本文主要说明通过gitlab的配置，完成对简单django项目的自动部署

途中包括gitlab服务，其中包括了container registry 服务
gitlab-runner，服务执行 gitlab-ci.yml中配置的任务
最终部署目标服务器

注意：

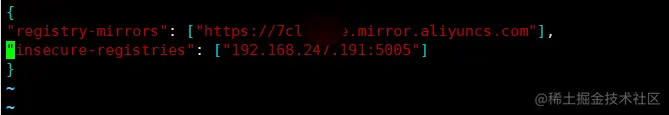

使用私有container registry，需要注意对应的配置 daemon.json 中添加

在gitlab-ci.yml 中配置了 docker 的executor，docker in docker，所以需要配置如下

services:
  - name: docker:19.03.12-dind
    command: ["--insecure-registry=192.168.247.191:5005"]

安装gitlab-ce

docker 安装

卸载老版本

 sudo yum remove docker \
                  docker-client \
                  docker-client-latest \
                  docker-common \
                  docker-latest \
                  docker-latest-logrotate \
                  docker-logrotate \
                  docker-engine

安装 yum-utils 和设置repo

sudo yum install -y yum-utils
sudo yum-config-manager --add-repo  http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

注意repo替换为阿里

安装docker

sudo yum install -y docker-ce docker-ce-cli containerd.io

docker 加速

sudo mkdir -p /etc/docker
sudo tee /etc/docker/daemon.json <<-'EOF'
{
"registry-mirrors": ["https://7clusxie.mirror.aliyuncs.com"]
}
EOF
sudo systemctl daemon-reload
sudo systemctl restart docker

Docker compose 安装

sudo curl -L "https://get.daocloud.io/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

chmod +x /usr/local/bin/docker-compose

docker-compose --version

gitlab-ce 安装

创建gitlab目录，在目录下创建docker-compose.yml，填写一下内容

version: '3.5'
services:
  gitlab:
    image: 'gitlab/gitlab-ce:latest'
    container_name: gitlab
    restart: always
    hostname: '192.168.247.191'
    environment:
        GITLAB_OMNIBUS_CONFIG: |
          external_url 'http://192.168.247.191:8929'
          gitlab_rails['gitlab_shell_ssh_port'] = 2224
          gitlab_rails['time_zone'] = 'Asia/Shanghai'
    ports:
        - '8929:8929'
        - '2224:22'
        - '5005:5005'
    volumes:
        - '$GITLAB_HOME/config:/etc/gitlab'
        - '$GITLAB_HOME/logs:/var/log/gitlab'
        - '$GITLAB_HOME/data:/var/opt/gitlab'

$GITLAB_HOME 之后修改配置，主要在这个目录操作

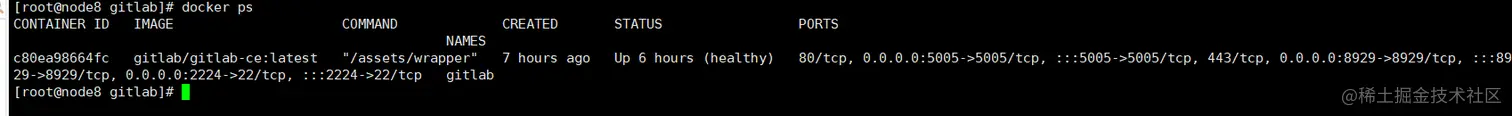

docker-compose up -d 启动服务

安装 gitlab-runner

创建gitlab-runner目录，在目录下创建docker-compose.yml，填写一下内容

version: '3.5'
services:
  gitlab-runner:
    image: gitlab/gitlab-runner:latest
    restart: always
    volumes:
      - '$GITLAB_HOME/config/gitlab-runner:/etc/gitlab-runner'
      - '/var/run/docker.sock:/var/run/docker.sock'

docker-compose up -d 启动服务

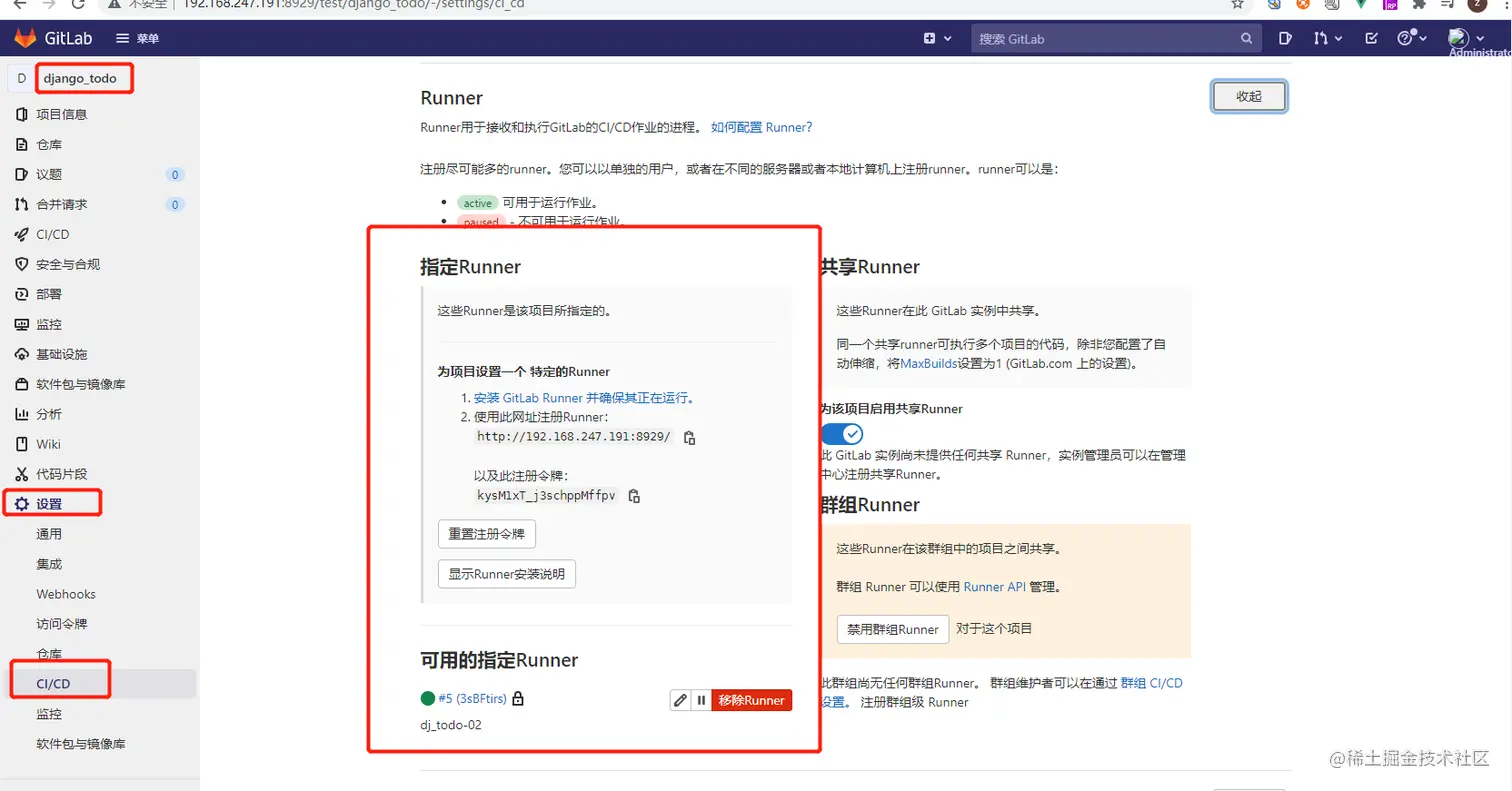

注册runner

下面以注册一个指定runner为例，runner只服务于当前项目

docker exec -it  gitlab-runner_name gitlab-runner register -n \
  --url http://192.168.247.191:8929/ \
  --registration-token kysM1xT_j3schppMffpv \
  --executor docker \
  --description "dj_todo-02" \
  --docker-privileged \
  --docker-image "docker/compose:1.29.2" \
  --docker-pull-policy  if-not-present

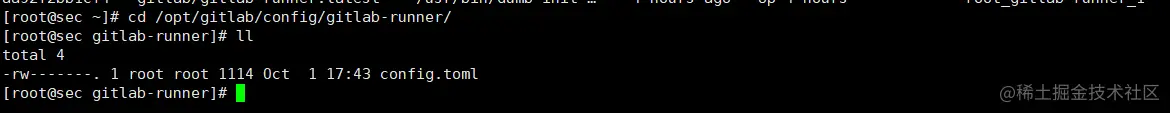

在GITLAB_HOME的对应目录下生成类似下面的config.yml文件

concurrent = 1
check_interval = 0

[session_server]
  session_timeout = 1800

[[runners]]
  name = "test"
  url = "http://192.168.247.174:8929/"
  token = "WZKc8dmkY1RrNHjtWrc9"
  executor = "docker"
  [runners.custom_build_dir]
  [runners.cache]
    [runners.cache.s3]
    [runners.cache.gcs]
    [runners.cache.azure]
  [runners.docker]
    tls_verify = false
    image = "docker/compose:1.29.2"
    privileged = true # 自己配置的镜像地址生效
    disable_entrypoint_overwrite = false
    oom_kill_disable = false
    disable_cache = false
    volumes = ["/cache"]
    shm_size = 0
    pull_policy = ["if-not-present"]

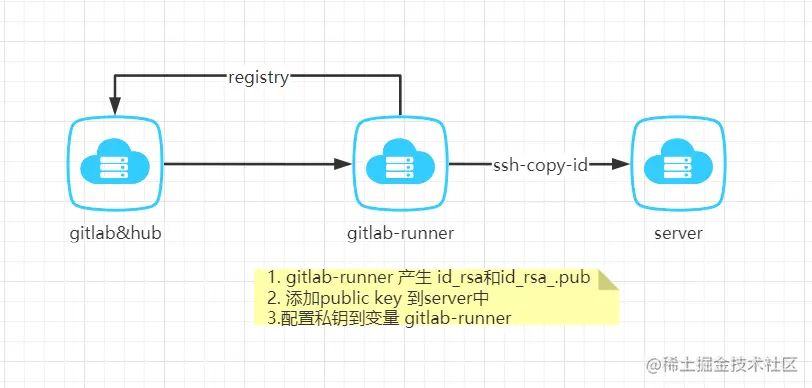

免密通道

ssh-keygen -t rsa # 生成公私秘钥

ssh-copy-id -i id_rsa.pub root@192.168.15.155 #cp 公钥到目标服务器

ssh root@192.168.247.155 测试

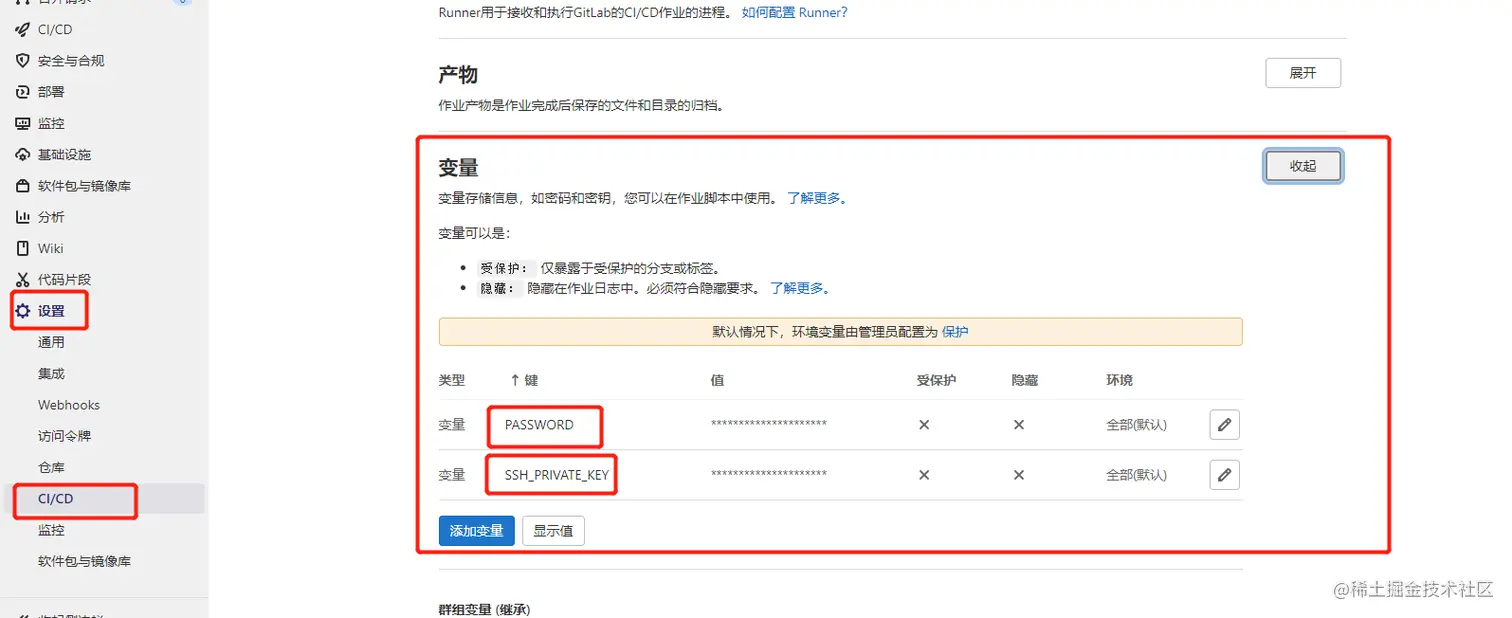

如下，CI变量区，配置流水线中使用到的敏感信息，例如ssh私钥

编写.gitlab-ci.yml

image:
  name: docker/compose:1.29.2
  entrypoint: [""]

services:
  - name: docker:19.03.12-dind
    command: ["--insecure-registry=192.168.247.191:5005"]

stages:
  - build
  - deploy

variables:
  DOCKER_HOST: tcp://docker:2375
  DOCKER_DRIVER: overlay2
  DOCKER_TLS_CERTDIR: ""
  CI_REGISTRY: "192.168.247.191:5005"
  CI_REGISTRY_USER: 'root'
  CI_CI_REGISTRY_GROUP: 'test'
  PROJECT_NAME: 'django_todo'
  IMAGE_NAME: "$CI_REGISTRY/$CI_CI_REGISTRY_GROUP/$PROJECT_NAME"
  REMOTE_SERVER: 192.168.247.214

before_script:
  - apk add --no-cache openssh-client coreutils bash
  - echo "$PASSWORD" | docker login --username $CI_REGISTRY_USER --password-stdin $CI_REGISTRY


# 镜像构建和推送阶段
build:
  stage: build
  script:
    - docker pull $IMAGE_NAME:latest || true
    #- docker pull $IMAGE:nginx || true
    - docker build --tag $PROJECT_NAME:latest .
    - docker tag $PROJECT_NAME:latest  $IMAGE_NAME:latest
    - docker push $IMAGE_NAME:latest

# 配置ssh和远程部署
deploy:
  stage: deploy
  script:
    - mkdir -p ~/.ssh
    - echo "$SSH_PRIVATE_KEY" | tr -d '\r' > ~/.ssh/id_rsa
    - cat ~/.ssh/id_rsa
    - chmod 700 ~/.ssh/id_rsa
    - eval "$(ssh-agent -s)"
    - ssh-add ~/.ssh/id_rsa
    - ssh-keyscan -p 22222 -H $REMOTE_SERVER >> ~/.ssh/known_hosts
    - ssh -p 22222 root@$REMOTE_SERVER "docker stop $PROJECT_NAME;docker system prune -a -f;echo '$PASSWORD' | docker login --username root --password-stdin $CI_REGISTRY;docker pull $IMAGE_NAME:latest; docker run --name $PROJECT_NAME -d -p 8000:8000 $IMAGE_NAME:latest"
  #only:
    #- feature-test

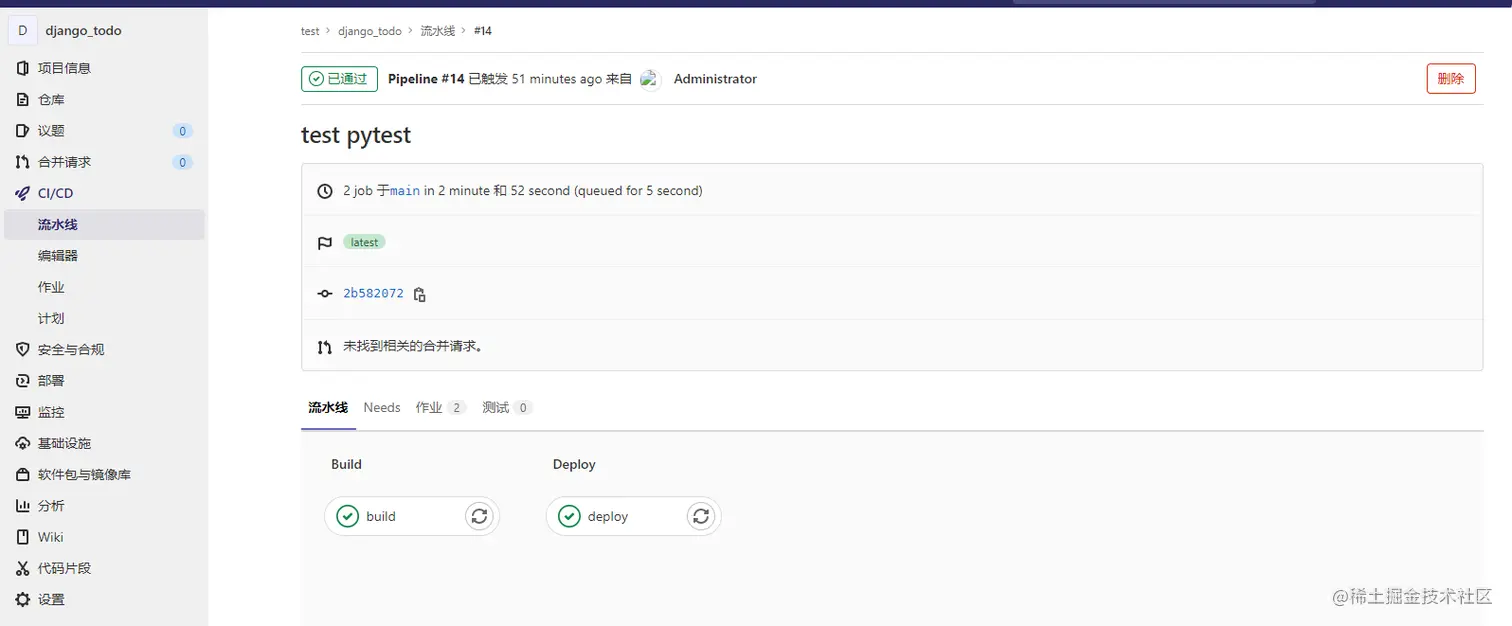

主要分为两个阶段

构建阶段，主要是使用dockerfile，构建镜像，push
使用私钥，配置免密通道，部署相关代码获取：链接：pan.baidu.com/s/17Pz2Kf6Y… 提取码：t4v6

总结

主要通过gitlab + 自带gitlab container registry + gitlab-runner 实现简单的ci功能

gitlab ci 实例 django
