低代码可视化拖拽页面编辑器
随着大前端的不断发展,越来越解放开发的双手,感觉要失业啦(^_^),针对一些简单模板处理,可直接通过个拖拉拽放,就可简单实现一些不错的 UI 功能。那么
可视化拖拽页面编辑器
的出现也是顺应时代的发展而出现。

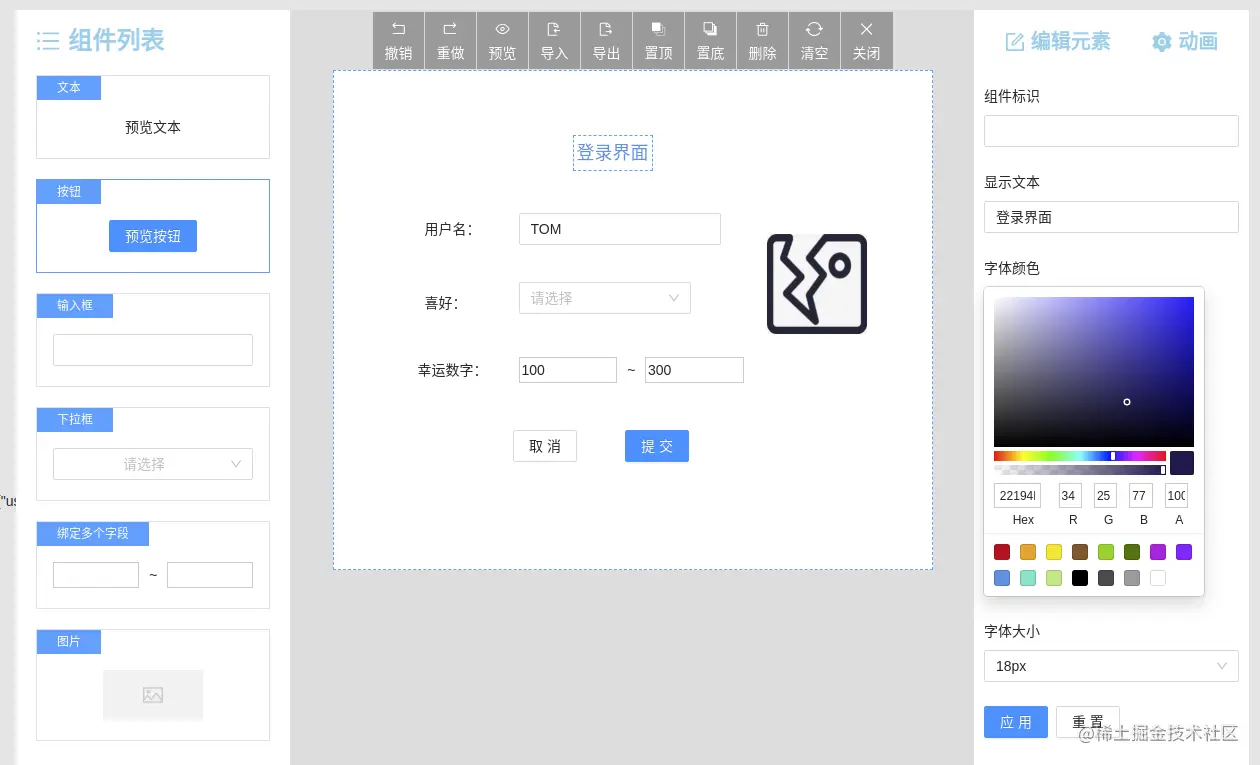

最终效果
任务清单
- 主页面结构:左侧菜单栏可选组件列表、中间容器画布、右侧编辑组件定义的属性;
- 左侧菜单栏可选组件列表渲染;
- 从菜单栏拖拽组件到容器;
- 组件(Block)在容器的选中状态;
- 容器内组件可移动位置;
- 命令队列及对应的快捷键;
- 容器内的组件单选、多选、全选;
- 操作栏按钮:
- 撤销、重做 重难点;
- 置顶、置底;
- 删除、清空;
- 预览、关闭编辑模式;
- 导入、导出;
- 右键菜单;
- 拖拽粘性贴边;
- 组件可以拖动调整高度和宽度(height,width);
- 组件可以设置预定好的属性(props);
- 组件绑定值(model);
- 设置组件标识(soltName),根据这个标识,定义某个组件的行为(函数触发)和插槽的实现(自定义视图);
- 完善可选组件列表:
- 输入框:双向绑定值,调整宽度;
- 按钮:类型、文字、大小尺寸、拖拽调整宽高;
- 图片:自定义图片地址、拖拽调整图片宽高
- 下拉框:预定义选项值、双向绑定字段;
一、项目搭建与页面布局
- 项目所需依赖:
"dependencies": {
"@ant-design/icons": "^4.5.0",
"antd": "^4.15.0",
"classnames": "^2.2.6",
"deepcopy": "^2.1.0",
"react": "^17.0.1",
"react-color": "^2.19.3",
"react-dom": "^17.0.1"
},
"devDependencies": {
"@types/classnames": "^2.2.11",
"@types/node": "^14.14.37",
"@types/react": "^17.0.2",
"@types/react-color": "^3.0.4",
"@types/react-dom": "^17.0.1",
"@vitejs/plugin-react-refresh": "^1.3.1",
"less": "^4.1.1",
"sass": "^1.42.0",
"typescript": "^4.1.5",
"vite": "^2.0.1",
"vite-plugin-babel-import": "^2.0.5",
"vite-plugin-style-import": "^1.2.1"
}
- vite 配置
const path = require('path');
import reactRefresh from '@vitejs/plugin-react-refresh';
import { defineConfig } from 'vite';
import styleImport from 'vite-plugin-style-import';
export default defineConfig({
plugins: [
reactRefresh(),
styleImport({
libs: [
{
libraryName: 'antd',
esModule: true,
resolveStyle: (name) => {
return `antd/es/${name}/style`;
},
}
]
}),
],
css: {
preprocessorOptions: {
less: {
javascriptEnabled: true
}
}
},
esbuild: {
jsxInject: "import React from 'react'", // 为每个 tsx jsx 自动引入 React,不用手动引入了
},
resolve: {
alias: {
"@": path.resolve(__dirname, "src"),
"@assets": path.resolve(__dirname, "src/assets"),
"@components": path.resolve(__dirname, "src/components")
}
},
server: {
https: false, // 是否开启 https
open: true, // 是否自动在浏览器打开
port: 3000, // 端口号
host: "0.0.0.0",
hmr: {
overlay: true, // 是否开启错误的阴影层
}
},
optimizeDeps: {
include: [] // 第三方库
},
build: {
chunkSizeWarningLimit: 2000,
terserOptions: {
// 生产环境移除 console
compress: {
drop_console: true,
drop_debugger: true,
},
},
rollupOptions: {
output:{
manualChunks: { // 分包
react: ['react', 'react-dom'],
antd: ['antd']
}
}
}
}
})
实现基本的三栏布局
- 左侧是组件列表的菜单栏
- 中间是画布容器和顶部的工具栏,用来编辑和预览页面
- 右侧是对应画布容器中某个组件,对应显示的该组件的属性配置
这布局下相对简单就脑补一下下吧 ^_^
二、基本数据结构设计
针对于一个画布容器与组件的关系,对应一个画布大小变化,和一个画布中对应多个组件,一个组件配置相关信息,对于拖拽大家一定想到,定位,如果优化,可以使用 CSS3 的属性
transform
的translateX
,translateY
优化。这里暂时不做处理。
- 定义数据结构
- container:画布容器信息
- blocks:画布容器中的组件信息
- block:blocks中存放每个 block 组件信息,包含了组件的唯一标识、位置、宽高、状态等信息
/**
* 容器中每个元素的的数据类型
*/
export interface VisualEditorBlock {
componentKey: string, // component 对象的的 key 唯一标识
top: number, // block 在容器中的 top 位置
left: number, // block 在容器中的 left 位置
width: number, // block 组件自身的宽度
height: number, // block 组件自身的高度
adjustPosition: boolean, // 添加组件到容器中时是否需要调整位置
focus: boolean, // 组件是否是选中状态
zIndex: number, // block 组件元素的 z-index style 属性
hasReasize: boolean, // block 组件元素是否曾调整国大小
props?: Record<string, any> // block 组件元素右侧属性配置信息
model?: Record<string, any> // 组件元素右侧自定义配置属性信息(绑定值)
slotName?: string // 组件标识
}
/**
* 编辑器编辑的数据类型
*/
export interface VisualEditorValue {
container: { // 画布容器
height: number,
width: number,
},
blocks: VisualEditorBlock[]
}
三、左侧菜单栏可选组件列表渲染
- 开发注册组件
// visual.config.tsx
import { Button, Input } from "antd";
import { createVisualConfig } from "./editor.utils";
export const visualConfig = createVisualConfig();
visualConfig.registryComponent('text', {
label: '文本',
prievew: () => <span>预览文本</span>,
render: () => <span>渲染文本</span>
});
visualConfig.registryComponent('button', {
label: '按钮',
prievew: () => <Button>预览按钮</Button>,
render: () => <Button type="primary">渲染按钮</Button>
});
visualConfig.registryComponent('input', {
label: '输入框',
prievew: () => <Input placeholder="预览输入框" />,
render: () => <Input placeholder="渲染输入框" />
});
注册组件的函数:
/**
* 创建编辑器的预设内容
*/
export function createVisualConfig() {
// 用于 block 数据,通过 componentKey 找到 component 对象,使用 component 对象的 render 属性渲染内容到 container 容器里
const componentMap: { [k: string]: VisualEditorComponent } = {};
// 用户在 menu 中预定义的组件列表
const componentList: VisualEditorComponent[] = [];
const registryComponent = (key: string, options: Omit<VisualEditorComponent, 'key'>) => {
// key 是唯一的
if (componentMap[key]) {
const index = componentList.indexOf(componentMap[key]);
componentList.splice(index, 1);
}
const newComponent = {
key,
...options
}
componentList.push(newComponent);
componentMap[key] = newComponent;
}
return {
componentList,
componentMap,
registryComponent
}
}
- 渲染注册的组件
// VisualEditor.tsx
// .....
export const VisualEditor: React.FC<{
value: VisualEditorValue,
config: VisualEditorConfig
}> = (props) => {
return (<>
<div className={styles['visual-editor__container']}>
<div className={styles['visual-editor__menu']}>
<div className={styles['visual-editor__menu__title']}>
<MenuUnfoldOutlined /> <span>组件列表</span>
</div>
{
props.config.componentList.map((component, index) => {
return (
<div key={component.key + '_' + index} className={styles['editor-menu__item']}>
<span className={styles['menu-item__title']}>{component.label}</span>
<div className={styles['menu-item__content']}>
{component.prievew()}
</div>
</div>
)
})
}
</div>
<div className={styles['visual-editor__head']}>header</div>
<div className={styles['visual-editor__operator']}>operator</div>
<div className={styles['visual-editor__body']}>body</div>
</div>
</>);
};

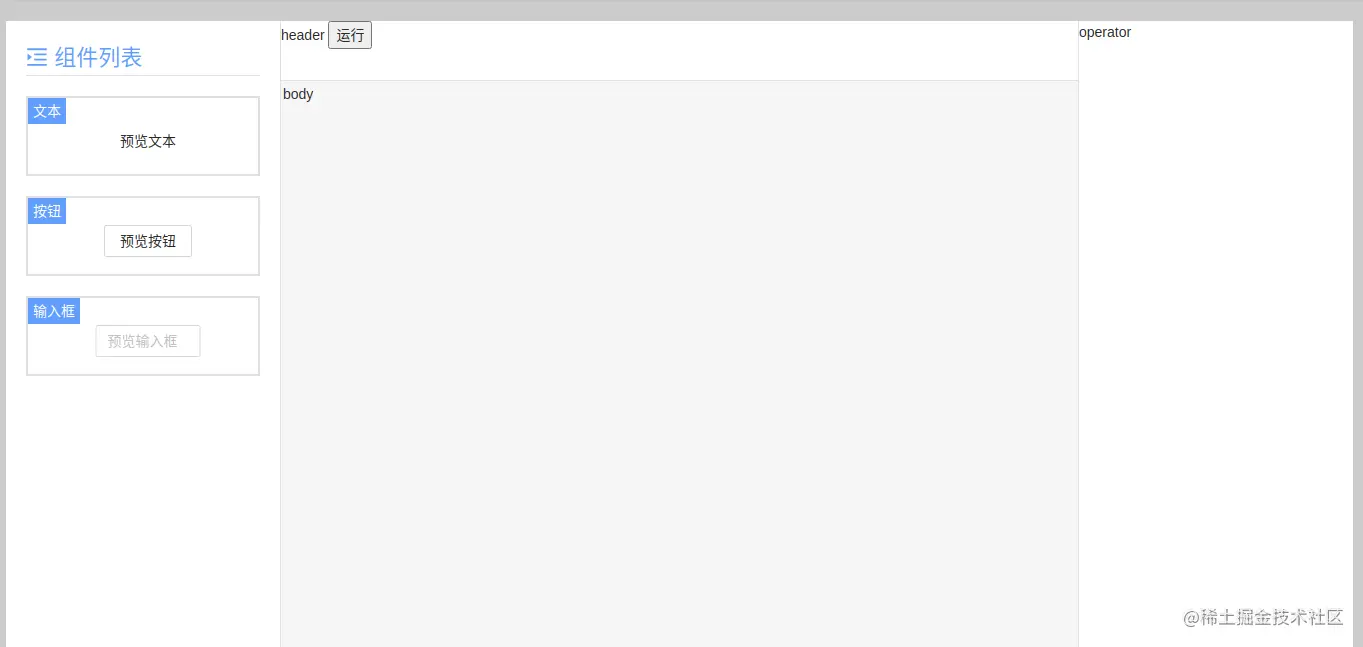

效果
四、block 组件画布容器区域渲染
基本的渲染
- block 组件
// EditorBlock.tsx
export const VisualEditorBlock: React.FC<{
block: VisualEditorBlockData,
config: VisualEditorConfig,
editing: boolean
}> = (props) => {
const style = useMemo(() => {
return {
top: `${props.block.top}px`,
left: `${props.block.left}px`,
}
}, [props.block.top, props.block.left]);
const component = props.config.componentMap[props.block.componentKey];
let render: any;
if (!!component) {
render = component.render({} as any);
}
return (() => {
const mask = props.editing ? 'mask': '';
return (
<div className={`${styles['visual-editor__block']} ${mask}`.trim()} style={style}>
{render}
</div>
)
})()
}
- block 组件的渲染
// VisualEditor.tsx
export const VisualEditor: React.FC<{
value: VisualEditorValue,
config: VisualEditorConfig
}> = (props) => {
// 代码省略.....
const containerStyles = useMemo(() => {
return {
width: `${props.value.container.width}px`,
height: `${props.value.container.height}px`,
}
}, [props.value.container.height, props.value.container.width]);
return (<>
{
editing ? (
<div className={styles['visual-editor__container']}>
{/* // 代码省略..... */}
<div className={styles['visual-editor__head']}>header <button onClick={methods.toggleEditing}>运行</button></div>
<div className={styles['visual-editor__operator']}>operator</div>
<div className={`${styles['visual-editor__body']} ${styles['custom-bar__style']}`}>
<div className={`${styles['editor-body_container']} ${'editor-block__mask'}`} style={containerStyles}>
{
props.value.blocks.map((block, index) => {
return <VisualEditorBlock
block={block}
config={props.config}
editing={editing}
key={index}
/>
})
}
</div>
</div>
</div>
) : (
<div className={styles['visual-editor__preview']}>
<div className={styles['editor-preview__edit']} onClick={methods.toggleEditing}><Button>编辑</Button></div>
<div className={styles['preview-edit__warpper']}>
<div className={styles['editor-body_container']} style={containerStyles}>
{
props.value.blocks.map((block, index) => {
return <VisualEditorBlock
block={block}
config={props.config}
key={index}
editing={editing}
/>
})
}
</div>
</div>
</div>
)
}
</>);
};

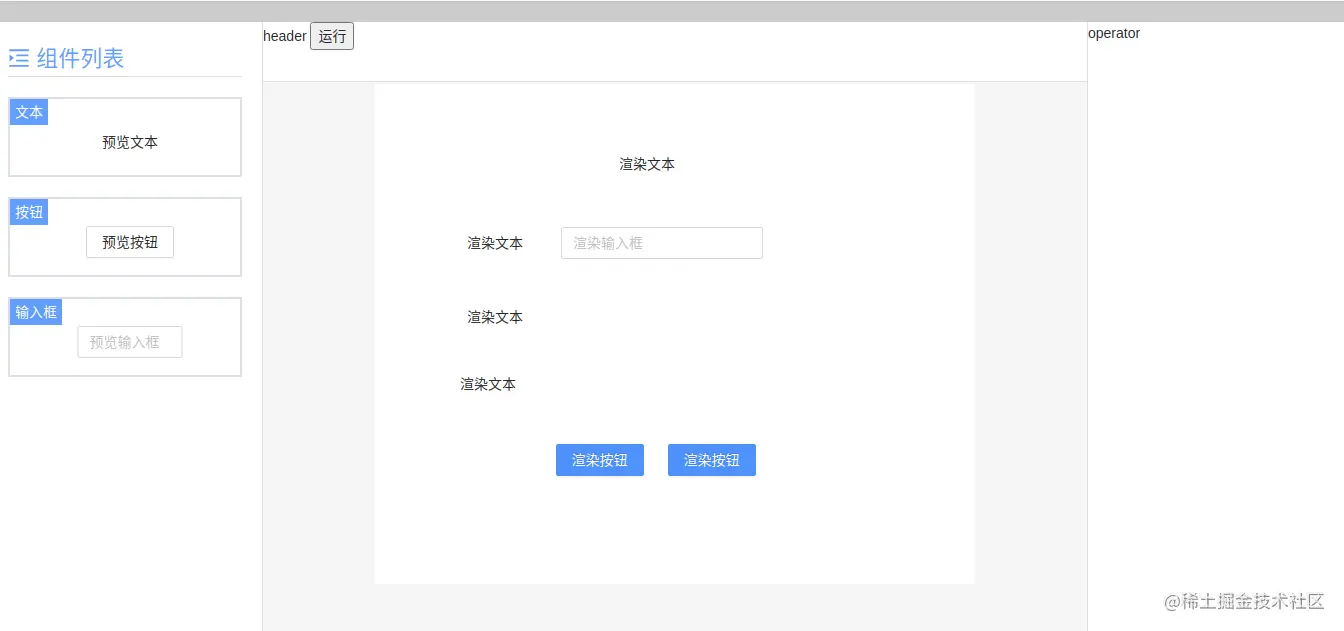

效果图
五、左侧菜单组件拖拽到画布容器区域渲染
HTML5拖拽事件的监听
// VisualEditor.tsx
export const VisualEditor: React.FC<{
value: VisualEditorValue,
config: VisualEditorConfig,
onChange: (val: VisualEditorValue) => void, // 数据有变化出发外部函数
}> = (props) => {
// 当前是否处于编辑状态
const [editing, setEditing] = useState(true);
const methods = {
// 切换编辑和运行状态
toggleEditing () {
setEditing(!editing);
},
/**
* 更新 block 数据,触发视图重新渲染
* @param blocks
*/
updateBlocks: (blocks: VisualEditorBlockData[]) => {
props.onChange({
...props.value,
blocks: [...blocks]
})
},
}
// 画布容器 DOM
const containerRef = useRef({} as HTMLDivElement);
const containerStyles = useMemo(() => {
return {
width: `${props.value.container.width}px`,
height: `${props.value.container.height}px`,
}
}, [props.value.container.height, props.value.container.width]);
//#region 左侧菜单拖拽到画布容器区域内
const menuDraggier = (() => {
const dragData = useRef({
dragComponent: null as null | VisualEditorComponent // 左侧组件列表去拖拽的当前组件
});
const container = {
dragenter: useCallbackRef((e: DragEvent) => {
e.dataTransfer!.dropEffect = 'move';
}),
dragover: useCallbackRef((e: DragEvent) => {
e.preventDefault();
}),
dragleave: useCallbackRef((e: DragEvent) => {
e.dataTransfer!.dropEffect = 'none';
}),
drop: useCallbackRef((e: DragEvent) => {
// 在容器画布添加组件
console.log('add')
methods.updateBlocks([
...props.value.blocks,
createVisualBlock({
top: e.offsetY,
left: e.offsetX,
component: dragData.current.dragComponent!
})
]);
}),
};
const block = {
dragstart: useCallbackRef((e: React.DragEvent<HTMLDivElement>, dragComponent: VisualEditorComponent) => {
containerRef.current.addEventListener('dragenter', container.dragenter);
containerRef.current.addEventListener('dragover', container.dragover);
containerRef.current.addEventListener('dragleave', container.dragleave);
containerRef.current.addEventListener('drop', container.drop);
dragData.current.dragComponent = dragComponent;
}),
dragend: useCallbackRef((e: React.DragEvent<HTMLDivElement>) => {
containerRef.current.removeEventListener('dragenter', container.dragenter);
containerRef.current.removeEventListener('dragover', container.dragover);
containerRef.current.removeEventListener('dragleave', container.dragleave);
containerRef.current.removeEventListener('drop', container.drop);
})
};
return block;
})();
//#endregion
return (<>
{
editing ? (
<div className={styles['visual-editor__container']}>
{/* // 代码省略..... */}
<div className={styles['visual-editor__head']}>header <button onClick={methods.toggleEditing}>运行</button></div>
<div className={styles['visual-editor__operator']}>operator</div>
<div className={`${styles['visual-editor__body']} ${styles['custom-bar__style']}`}>
<div
className={`${styles['editor-body_container']} ${'editor-block__mask'}`}
style={containerStyles}
ref={containerRef}
>
{
props.value.blocks.map((block, index) => {
return <VisualEditorBlock
block={block}
config={props.config}
editing={editing}
key={index}
/>
})
}
</div>
</div>
</div>
) : (
// 代码省略.....
)
}
</>);
};
