SpringBoot + ShardingSphere-JDBC 实现读写分离

·  阅读 1211
SpringBoot + ShardingSphere-JDBC 实现读写分离

引入依赖

我本地用的是 springboot 2 的版本,引用的 ShardingSphere-JDBC 的5.0.0-beta 版本

 <dependency>
    <groupId>org.apache.shardingsphere</groupId>
    <artifactId>shardingsphere-jdbc-core-spring-boot-starter</artifactId>
    <version>5.0.0-beta</version>
</dependency>
复制代码

修改配置文件

spring:
  profiles:
    include: common-local
  shardingsphere:
    datasource:
      names: write-ds,read-ds-0
      write-ds:
        jdbcUrl: jdbc:mysql://mysql.local.test.myapp.com:23306/test?allowPublicKeyRetrieval=true&useSSL=false&allowMultiQueries=true&serverTimezone=Asia/Shanghai&useSSL=false&autoReconnect=true&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull
        type: com.zaxxer.hikari.HikariDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        username: root
        password: nicai
        connectionTimeoutMilliseconds: 3000
        idleTimeoutMilliseconds: 60000
        maxLifetimeMilliseconds: 1800000
        maxPoolSize: 50
        minPoolSize: 1
        maintenanceIntervalMilliseconds: 30000
      read-ds-0:
        jdbcUrl: jdbc:mysql://mysql.local.test.read1.myall.com:23306/test?allowPublicKeyRetrieval=true&useSSL=false&allowMultiQueries=true&serverTimezone=Asia/Shanghai&useSSL=false&autoReconnect=true&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull
        type: com.zaxxer.hikari.HikariDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        username: root
        password: nicai
        connectionTimeoutMilliseconds: 3000
        idleTimeoutMilliseconds: 60000
        maxLifetimeMilliseconds: 1800000
        maxPoolSize: 50
        minPoolSize: 1
        maintenanceIntervalMilliseconds: 30000

    rules:
      readwrite-splitting:
        data-sources:
          glapp:
            write-data-source-name: write-ds
            read-data-source-names:
              - read-ds-0
            load-balancer-name: roundRobin # 负载均衡算法名称
        load-balancers:
          roundRobin:
            type: ROUND_ROBIN # 一共两种一种是 RANDOM(随机),一种是 ROUND_ROBIN(轮询)

复制代码

这里主要根据官网的 property 配置文件转的 yaml 文件,需要注意几点:

  • type: com.zaxxer.hikari.HikariDataSource 我用的是 Hikari 连接池,根据你的实际情况来
  • driver-class-name: com.mysql.cj.jdbc.Driver 不同 mysql 版本不一样,根据你的实际情况来,我的是 mysql 8.0
  • jdbcUrl ,官网上写的是 url, 不对,要写成 jdbcUrl

遇到的问题

Description:

Configuration property name 'spring.shardingsphere.datasource.write_ds' is not valid:

    Invalid characters: '_'
    Bean: org.apache.shardingsphere.spring.boot.ShardingSphereAutoConfiguration
    Reason: Canonical names should be kebab-case ('-' separated), lowercase alpha-numeric characters and must start with a letter

Action:

Modify 'spring.shardingsphere.datasource.write_ds' so that it conforms to the canonical names requirements.

复制代码

之前把配置文件中的某些名字配置用下划线写了,不行,得用中线。

测试

所有的改动只有以上这么多,还是比较简单的,以下的读库请求打过来时的监控,证明读请求都过来了,写库没有。

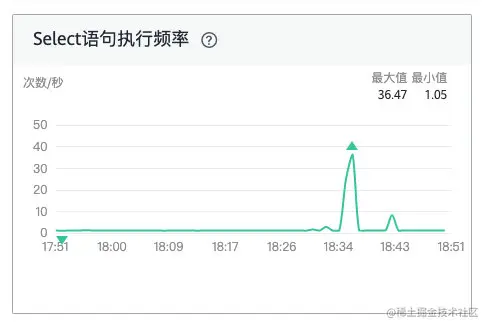

这是写库的:

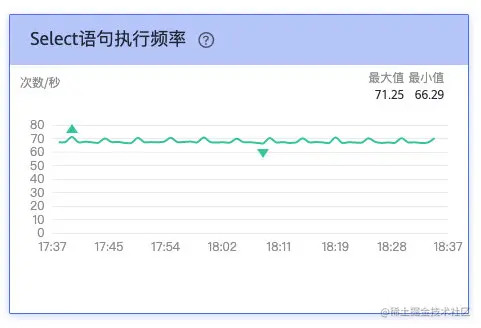

这是读库的:

参考
