前言

接着上一篇，我们继续来到OC内存管理系列，关于弱引用表的流程。

从 sidetable_retain 开始今天的源码阅读


id
objc_object::sidetable_retain(bool locked)
{
#if SUPPORT_NONPOINTER_ISA
    ASSERT(!isa.nonpointer);
#endif
    SideTable& table = SideTables()[this];

    if (!locked) table.lock();
    size_t& refcntStorage = table.refcnts[this];
    if (! (refcntStorage & SIDE_TABLE_RC_PINNED)) {
        refcntStorage += SIDE_TABLE_RC_ONE;
    }
    table.unlock();

    return (id)this;
}

SideTable

struct SideTable {
    spinlock_t slock;
    // 引用计数表
    RefcountMap refcnts;
    // 弱引用表 （ __weak ）
    weak_table_t weak_table;

    SideTable() {
        memset(&weak_table, 0, sizeof(weak_table));
    }

    ~SideTable() {
        _objc_fatal("Do not delete SideTable.");
    }

    void lock() { slock.lock(); }
    void unlock() { slock.unlock(); }
    void forceReset() { slock.forceReset(); }

    // Address-ordered lock discipline for a pair of side tables.

    template<HaveOld, HaveNew>
    static void lockTwo(SideTable *lock1, SideTable *lock2);
    template<HaveOld, HaveNew>
    static void unlockTwo(SideTable *lock1, SideTable *lock2);
};

系统会维护多张 SideTable ，（如果只有一张表的话，所有的对象，使用中会十分的耗费性能（查询，锁操作）），多张表就会将对象分开存储，随着使用，可以对释放的对象进行表的存储的优化。空间换时间的常规操作。

弱引用表

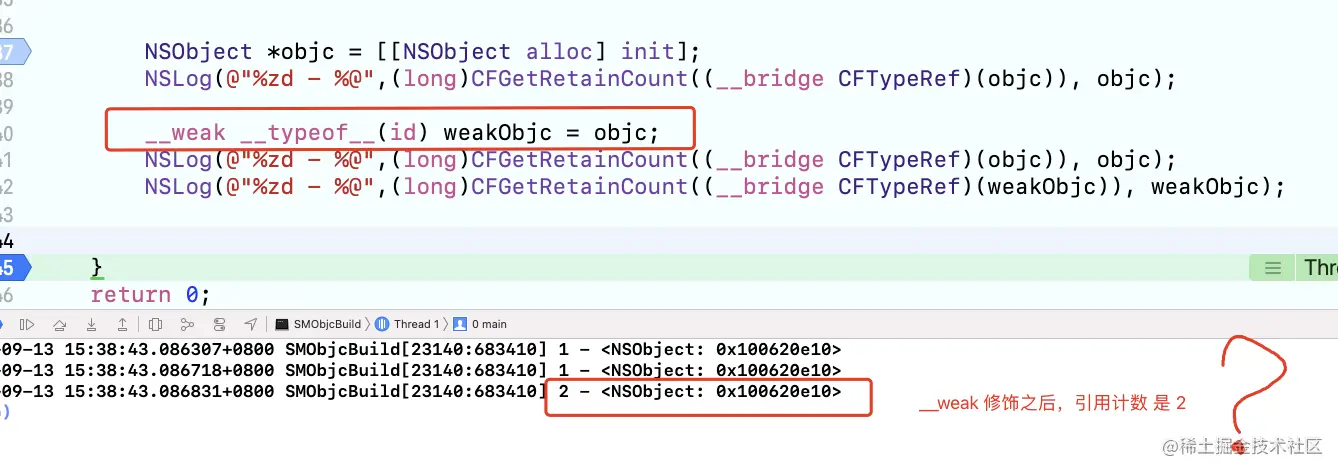

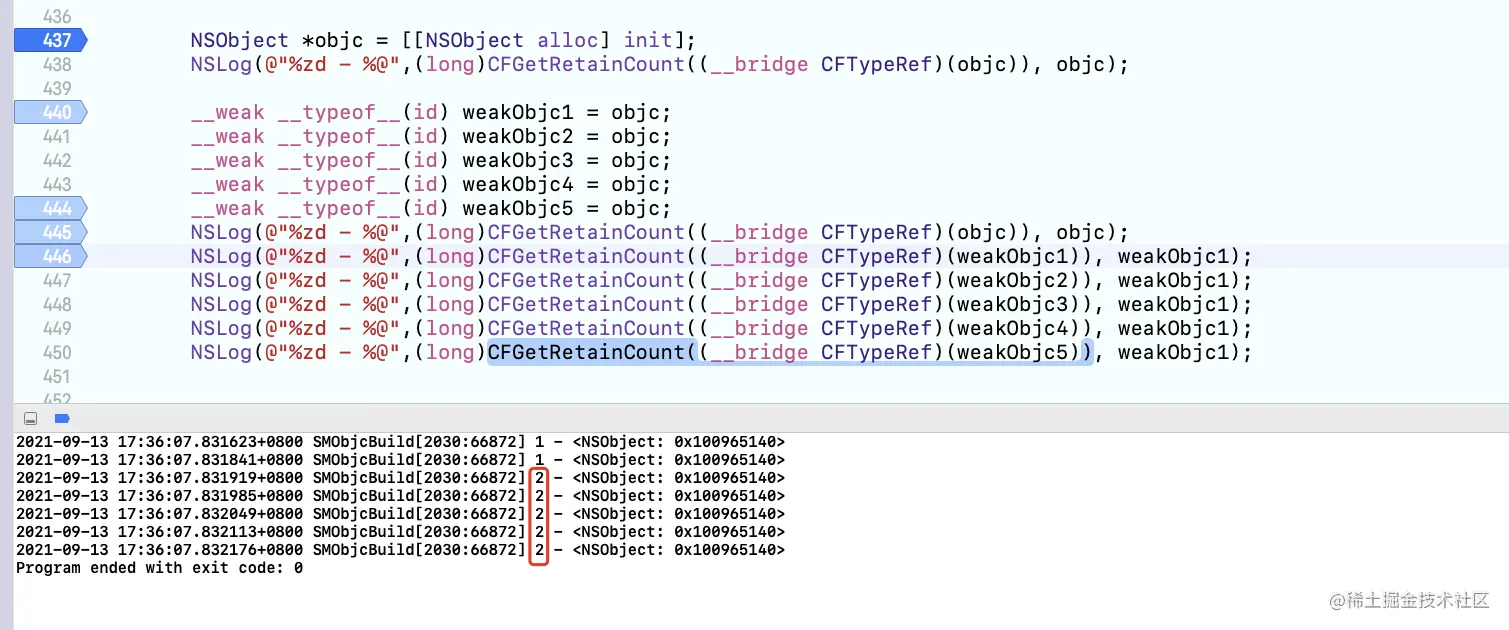

从测试打印看起来不太科学开始：

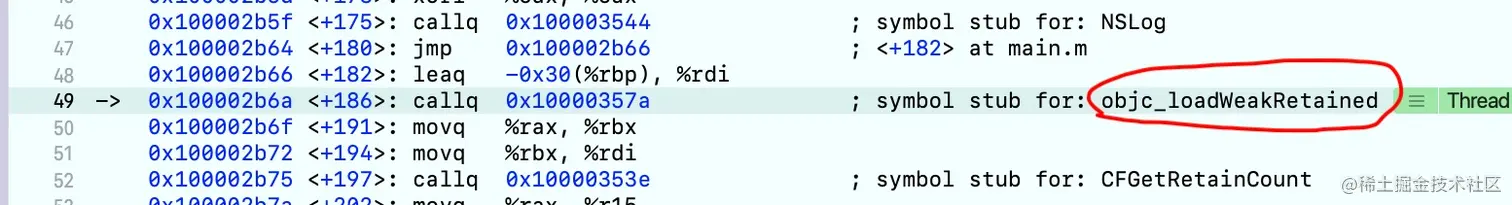

汇编搞一下

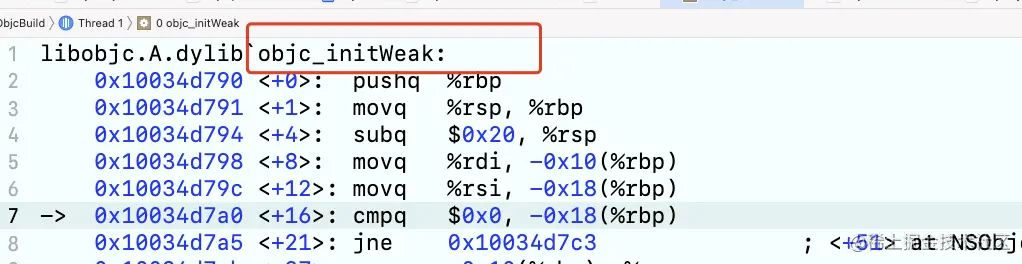

其会来到 objc_initWeak ，这是为什么呢？因为在 llvm 符号绑定了。和之前的 super 一样，会找到特定的标识符。

objc_initWeak

/**
 * 初始化指向某个对象位置的新弱指针。
 * 它将用于以下代码 :
 *
 * (The nil case)
 * __weak id weakPtr;
 * (The non-nil case)
 * NSObject *o = ...;
 * __weak id weakPtr = o;
 *
 * 这个函数对于并发来说不是线程安全的
 * 对弱变量的修改。(并发弱清除是安全的。)
 *
 * @param location Address of __weak ptr.
 * @param newObj Object ptr.
 */
id
objc_initWeak(id *location, id newObj)
{
    if (!newObj) {
        *location = nil;
        return nil;
    }

    return storeWeak<DontHaveOld, DoHaveNew, DoCrashIfDeallocating>
        (location, (objc_object*)newObj);
}

storeWeak

static id
storeWeak(id *location, objc_object *newObj)
{
    ASSERT(haveOld  ||  haveNew);
    if (!haveNew) ASSERT(newObj == nil);

    Class previouslyInitializedClass = nil;
    id oldObj;
    SideTable *oldTable;
    SideTable *newTable;

    // 为旧值和新值获取锁。
    // 按锁地址订购，防止锁顺序问题。
    // 如果我们下面的旧值发生了变化，请重试。
 retry:
    if (haveOld) {
        oldObj = *location;
        oldTable = &SideTables()[oldObj];
    } else {
        oldTable = nil;
    }
    if (haveNew) {
        newTable = &SideTables()[newObj];
    } else {
        newTable = nil;
    }

    SideTable::lockTwo<haveOld, haveNew>(oldTable, newTable);

    if (haveOld  &&  *location != oldObj) {
        SideTable::unlockTwo<haveOld, haveNew>(oldTable, newTable);
        goto retry;
    }

    // 防止弱引用机制之间的死锁
    // 和类初始化机制，确保没有
    // 弱引用对象具有未初始化的isa
    if (haveNew  &&  newObj) {
        Class cls = newObj->getIsa();
        if (cls != previouslyInitializedClass  &&
            !((objc_class *)cls)->isInitialized())
        {
            SideTable::unlockTwo<haveOld, haveNew>(oldTable, newTable);
            class_initialize(cls, (id)newObj);

            // If this class is finished with +initialize then we're good.
            // If this class is still running +initialize on this thread
            // (i.e. +initialize called storeWeak on an instance of itself)
            // then we may proceed but it will appear initializing and
            // not yet initialized to the check above.
            // Instead set previouslyInitializedClass to recognize it on retry.
            previouslyInitializedClass = cls;

            goto retry;
        }
    }

    // 清除旧的价值，如果有的话。
    if (haveOld) {
        weak_unregister_no_lock(&oldTable->weak_table, oldObj, location);
    }

    // 如果有新的值，则分配新的值
    if (haveNew) {
        newObj = (objc_object *)
            weak_register_no_lock(&newTable->weak_table, (id)newObj, location,
                                  crashIfDeallocating ? CrashIfDeallocating : ReturnNilIfDeallocating);
        // weak_register_no_lock returns nil if weak store should be rejected

        // Set is-weakly-referenced bit in refcount table.
        if (!newObj->isTaggedPointerOrNil()) {
            newObj->setWeaklyReferenced_nolock();
        }

        // Do not set *location anywhere else. That would introduce a race.
        *location = (id)newObj;
    }
    else {
        // No new value. The storage is not changed.
    }

    SideTable::unlockTwo<haveOld, haveNew>(oldTable, newTable);

    // This must be called without the locks held, as it can invoke
    // arbitrary code. In particular, even if _setWeaklyReferenced
    // is not implemented, resolveInstanceMethod: may be, and may
    // call back into the weak reference machinery.
    callSetWeaklyReferenced((id)newObj);

    return (id)newObj;
}

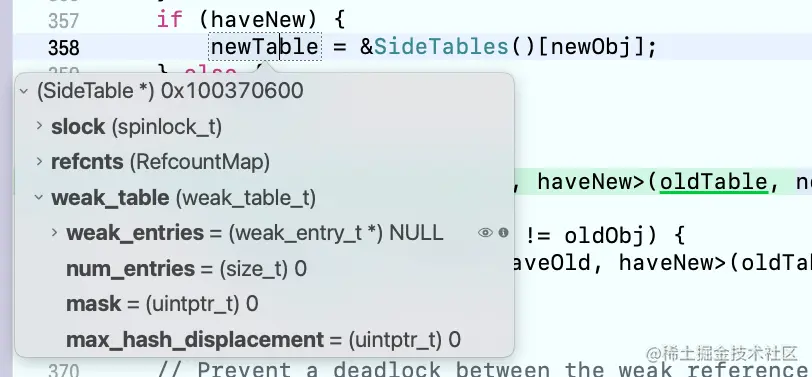

haveOld = nil; oldTable = nil;
haveNew = YES; newTable = newTable = &SideTables()[newObj];

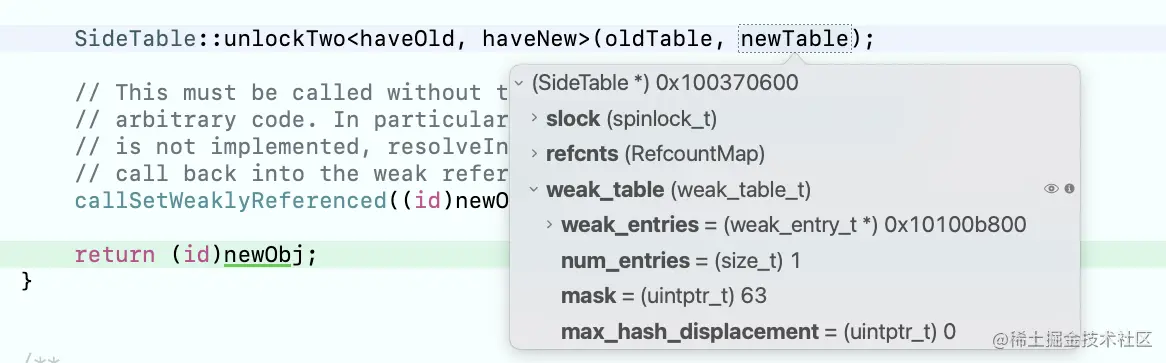

截屏2021-09-13 16.24.17.png

haveNew = YES;
newObj = (objc_object *)weak_register_no_lock(&newTable->weak_table, (id)newObj, location, crashIfDeallocating ? CrashIfDeallocating : ReturnNilIfDeallocating);
