Flink流表与维表Join

·  阅读 4836

在实际生产中,我们经常会有这样的需求,需要以原始数据流作为基础,然后关联大量的外部表来补充一些属性。例如,我们在订单数据中,希望能得到订单收货人所在省的名称,一般来说订单中会记录一个省的 ID,那么需要根据 ID 去查询外部的维度表补充省名称属性。

流表和维表的区别:

流表:实时流数据映射成的表,在join查询中,每来一条数据都会主动去维表中查询是否有匹配的数据。

维表:维度信息表,一般在外部存储(Redis,Mysql中)维表是被动查询的,目前Flink SQL的维表JOIN仅支持对当前时刻维表快照的关联

流表和维表join


在 Flink 流式计算中,我们的一些维度属性一般存储在 MySQL/HBase/Redis 中,这些维表数据存在定时更新,需要我们根据业务进行关联。根据我们业务对维表数据关联的时效性要求,有以下几种解决方案:

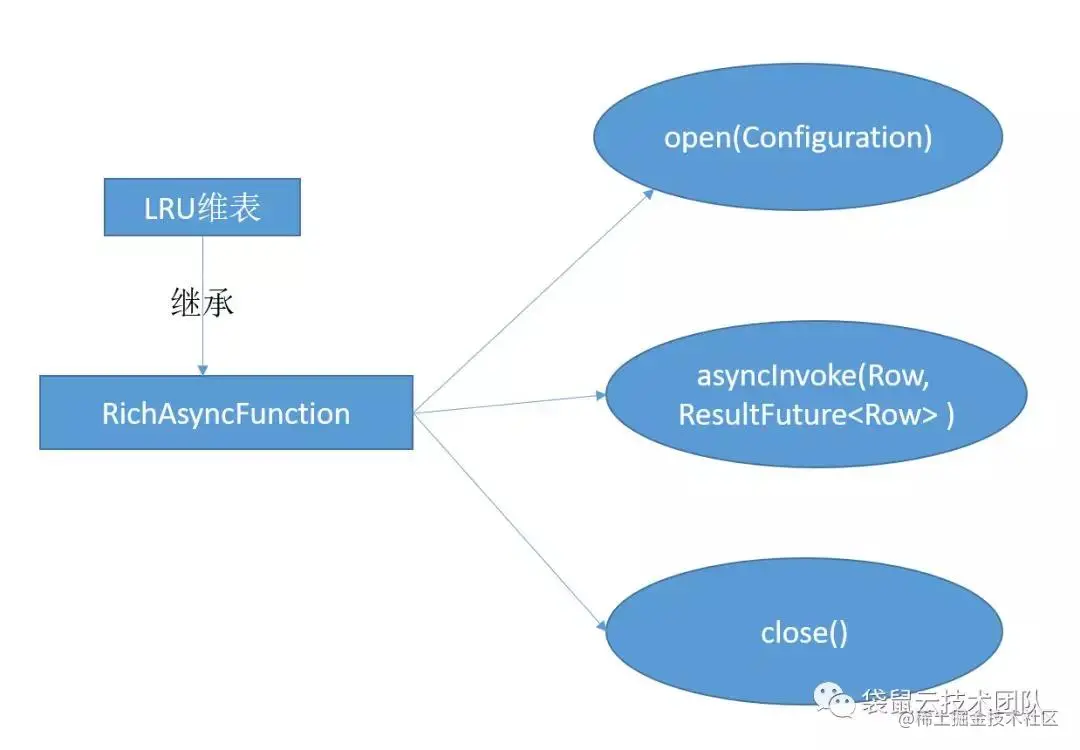

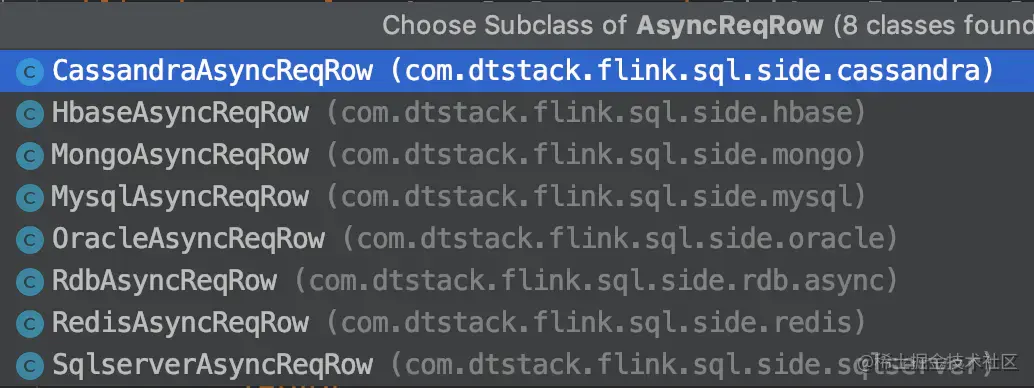

  1. 实时查询维表关联
  2. 预加载维表关联
  3. 热存储关联
  4. 广播维表

维表是数仓中的一个概念,维表中的维度属性是观察数据的角度,补充事实表的信息。在实时数仓中,同样也有维表与事实表的概念,其中事实表通常为kafka的实时流数据,维表通常存储在外部设备中(比如MySQL,HBase)。对于每条流式数据,可以关联一个外部维表数据源,为实时计算提供数据关联查询。维表可能是会不断变化的,在维表JOIN时,需指明这条记录关联维表快照的时刻。

  • 1、流表和维表的区别

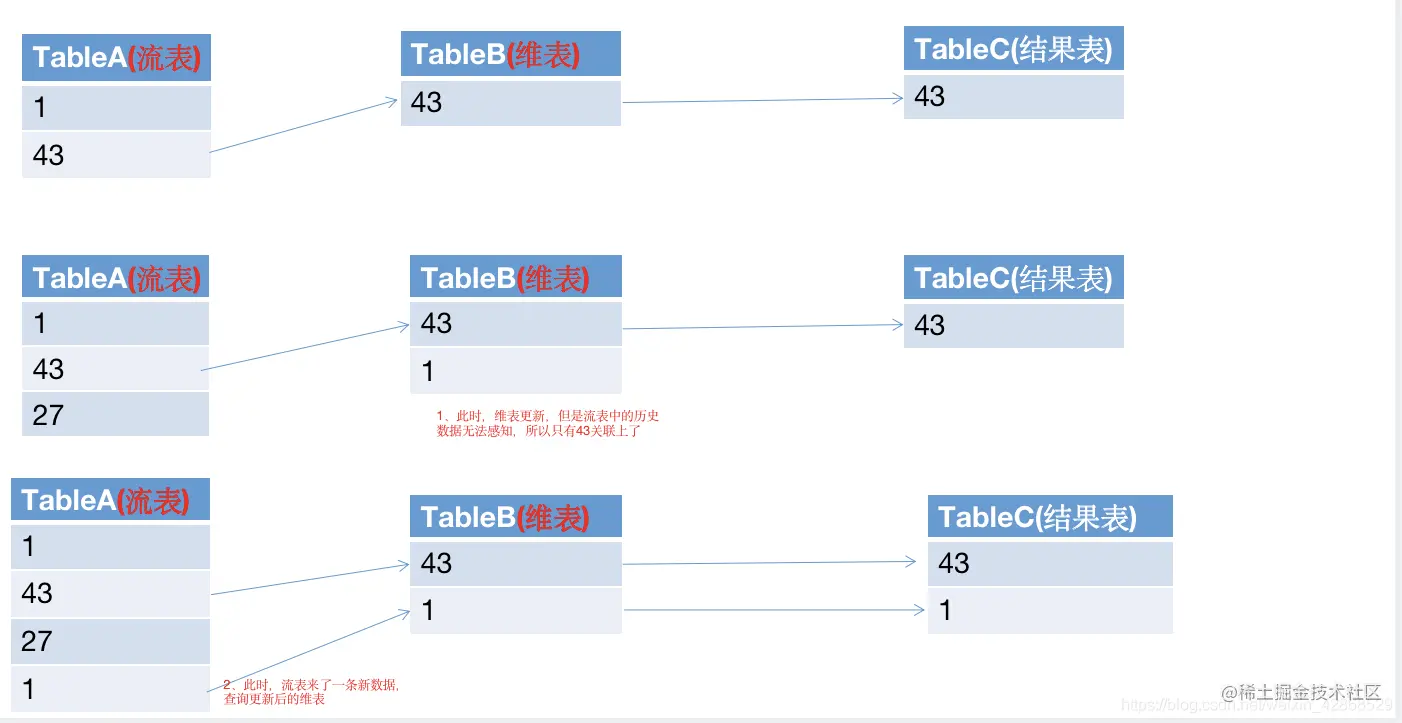

  • 2、流表和维表join的数据流转解析
  • 3、双流join的数据流转解析
  • 4、代码示例和场景

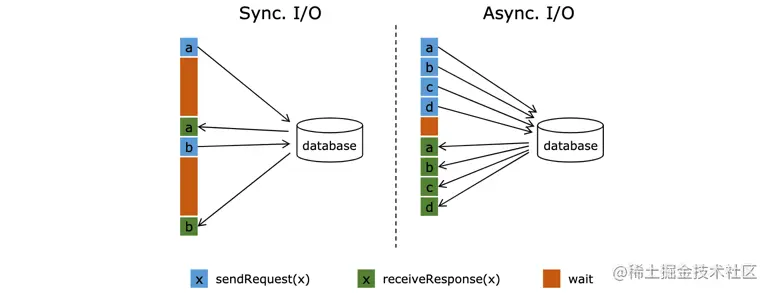

在Flink 流处理过程中,经常需要和外部系统进行交互,如维度补全,用维度表补全事实表中的字段。默认情况下,在MapFunction中,单个并行只能用同步方式去交互: 将请求发送到外部存储,IO阻塞,等待请求返回,然后继续发送下一个请求。这种同步交互的方式往往在网络等待上就耗费了大量时间。为了提高处理效率,可以增加MapFunction的并行度,但增加并行度就意味着更多的资源,并不是一种非常好的解决方式。Flink 在1.2中引入了Async I/O,在异步模式下,将IO操作异步化,单个并行可以连续发送多个请求,哪个请求先返回就先处理,从而在连续的请求间不需要阻塞式等待,大大提高了流处理效率。

aHR0cHM6Ly9naXRodWIuY29tL3dhbmdwZWkxOTQ5L3Bob3Rvcy9yYXcvbWFzdGVyL2JpZ0RhdGFOdXQvZmxpbmtfYXN5bmNfaW8ucG5n.png 注意:

使用Async I/O,需要外部存储有支持异步请求的客户端。

使用Async I/O,继承RichAsyncFunction(接口AsyncFunction<IN, OUT>的抽象类),重写或实现open(建立连接)、close(关闭连接)、asyncInvoke(异步调用)3个方法即可。如下,自定义实现的ElasticsearchAsyncFunction类,用于从ES中获取维度数据。

使用Async I/O, 最好结合缓存一起使用,可减少请求外部存储的次数,提高效率。

Async I/O 提供了Timeout参数来控制请求最长等待时间。默认,异步I/O请求超时时,会引发异常并重启或停止作业。 如果要处理超时,可以重写AsyncFunction#timeout方法。

Async I/O 提供了Capacity参数控制请求并发数,一旦Capacity被耗尽,会触发反压机制来抑制上游数据的摄入。

Async I/O 输出提供乱序和顺序两种模式。

乱序, 用AsyncDataStream.unorderedWait(...) API,每个并行的输出顺序和输入顺序可能不一致。

顺序, 用AsyncDataStream.orderedWait(...) API,每个并行的输出顺序和输入顺序一致。为保证顺序,需要在输出的Buffer中排序,该方式效率会低一些。

用Async I/O 实现流表与维表Join

需求背景

实时补全流表中的维度字段。这里,在流表中补全用户的年龄。

数据源

  1. 流表: 用户行为日志。某个用户在某个时刻点击或浏览了某个商品。自己造的测试数据,数据样例如下: {"userID": "user_1", "eventTime": "2016-06-06 07:03:42", "eventType": "browse", "productID": 2}
  2. 维表: 用户基础信息。自己造的测试数据,数据存储在ES上,数据样例如下: GET dim_user/dim_user/user

{ "_index": "dim_user", "_type": "dim_user", "_id": "user_1", "_version": 1, "found": true, "_source": { "age": 22 } }

实现逻辑

package com.bigdata.flink;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import org.apache.flink.api.common.functions.FilterFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.common.typeinfo.TypeHint;
import org.apache.flink.api.java.tuple.Tuple4;
import org.apache.flink.api.java.tuple.Tuple5;
import org.apache.flink.api.java.utils.ParameterTool;
import org.apache.flink.configuration.*;
import org.apache.flink.streaming.api.datastream.AsyncDataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;

import java.util.Properties;
import java.util.concurrent.TimeUnit;

/**
 * Author: zuoziwen
 * Summary:
 *     用Async I/O实现流表与维表Join
 */
public class FlinkAsyncIO {
    public static void main(String[] args) throws Exception{

        /**解析命令行参数*/
        ParameterTool parameterTool = ParameterTool.fromArgs(args);
        String kafkaBootstrapServers = parameterTool.get("kafka.bootstrap.servers");
        String kafkaGroupID = parameterTool.get("kafka.group.id");
        String kafkaAutoOffsetReset= parameterTool.get("kafka.auto.offset.reset");
        String kafkaTopic = parameterTool.get("kafka.topic");
        int kafkaParallelism =parameterTool.getInt("kafka.parallelism");

        String esHost= parameterTool.get("es.host");
        Integer esPort= parameterTool.getInt("es.port");
        String esUser = parameterTool.get("es.user");
        String esPassword = parameterTool.get("es.password");
        String esIndex = parameterTool.get("es.index");
        String esType = parameterTool.get("es.type");


        /**Flink DataStream 运行环境*/
        Configuration config = new Configuration();
        config.setInteger(RestOptions.PORT,8081);
        config.setBoolean(ConfigConstants.LOCAL_START_WEBSERVER, true);
        StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(config);

        /**添加数据源*/
        Properties kafkaProperties = new Properties();
        kafkaProperties.put("bootstrap.servers",kafkaBootstrapServers);
        kafkaProperties.put("group.id",kafkaGroupID);
        kafkaProperties.put("auto.offset.reset",kafkaAutoOffsetReset);
        FlinkKafkaConsumer010<String> kafkaConsumer = new FlinkKafkaConsumer010<>(kafkaTopic, new SimpleStringSchema(), kafkaProperties);
        kafkaConsumer.setCommitOffsetsOnCheckpoints(true);
        SingleOutputStreamOperator<String> source = env.addSource(kafkaConsumer).name("KafkaSource").setParallelism(kafkaParallelism);

        //数据转换
        SingleOutputStreamOperator<Tuple4<String, String, String, Integer>> sourceMap = source.map((MapFunction<String, Tuple4<String, String, String, Integer>>) value -> {
            Tuple4<String, String, String, Integer> output = new Tuple4<>();
            try {
                JSONObject obj = JSON.parseObject(value);
                output.f0 = obj.getString("userID");
                output.f1 = obj.getString("eventTime");
                output.f2 = obj.getString("eventType");
                output.f3 = obj.getInteger("productID");
            } catch (Exception e) {
                e.printStackTrace();
            }
            return output;
        }).returns(new TypeHint<Tuple4<String, String, String, Integer>>(){}).name("Map: ExtractTransform");

        //过滤掉异常数据
        SingleOutputStreamOperator<Tuple4<String, String, String, Integer>> sourceFilter = sourceMap.filter((FilterFunction<Tuple4<String, String, String, Integer>>) value -> value.f3 != null).name("Filter: FilterExceptionData");

        //Timeout: 超时时间 默认异步I/O请求超时时,会引发异常并重启或停止作业。 如果要处理超时,可以重写AsyncFunction#timeout方法。
        //Capacity: 并发请求数量
        /**Async IO实现流表与维表Join*/
        SingleOutputStreamOperator<Tuple5<String, String, String, Integer, Integer>> result = AsyncDataStream.orderedWait(sourceFilter, new ElasticsearchAsyncFunction(esHost,esPort,esUser,esPassword,esIndex,esType), 500, TimeUnit.MILLISECONDS, 10).name("Join: JoinWithDim");

        /**结果输出*/
        result.print().name("PrintToConsole");

        env.execute();


    }
}
复制代码

ElasticsearchAsyncFunction


import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.google.common.cache.Cache;
import com.google.common.cache.CacheBuilder;
import com.google.common.cache.RemovalListener;
import com.google.common.cache.RemovalNotification;
import org.apache.flink.api.java.tuple.Tuple4;
import org.apache.flink.api.java.tuple.Tuple5;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.functions.async.ResultFuture;
import org.apache.flink.streaming.api.functions.async.RichAsyncFunction;
import org.apache.http.HttpHost;
import org.apache.http.auth.AuthScope;
import org.apache.http.auth.UsernamePasswordCredentials;
import org.apache.http.client.CredentialsProvider;
import org.apache.http.impl.client.BasicCredentialsProvider;
import org.elasticsearch.action.ActionListener;
import org.elasticsearch.action.search.SearchRequest;
import org.elasticsearch.action.search.SearchResponse;
import org.elasticsearch.client.RestClient;
import org.elasticsearch.client.RestHighLevelClient;
import org.elasticsearch.index.query.QueryBuilders;
import org.elasticsearch.search.SearchHit;
import org.elasticsearch.search.builder.SearchSourceBuilder;

import java.util.Collections;
import java.util.concurrent.TimeUnit;

/**
 * Author: zuoziwen
 * Summary:
 *      自定义ElasticsearchAsyncFunction,实现从ES中查询维度数据
 */
public class ElasticsearchAsyncFunction extends RichAsyncFunction<Tuple4<String, String, String, Integer>, Tuple5<String, String, String, Integer,Integer>> {


    private String host;

    private Integer port;

    private String user;

    private String password;

    private String index;

    private String type;

    public ElasticsearchAsyncFunction(String host, Integer port, String user, String password, String index, String type) {
        this.host = host;
        this.port = port;
        this.user = user;
        this.password = password;
        this.index = index;
        this.type = type;
    }

    private RestHighLevelClient restHighLevelClient;

    private Cache<String,Integer> cache;

    /**
     * 和ES建立连接
     * @param parameters
     */
    @Override
    public void open(Configuration parameters){

        //ES Client
        CredentialsProvider credentialsProvider = new BasicCredentialsProvider();
        credentialsProvider.setCredentials(AuthScope.ANY, new UsernamePasswordCredentials(user, password));
        restHighLevelClient = new RestHighLevelClient(
                RestClient
                        .builder(new HttpHost(host, port))
                        .setHttpClientConfigCallback(httpAsyncClientBuilder -> httpAsyncClientBuilder.setDefaultCredentialsProvider(credentialsProvider)));

        //初始化缓存
        cache=CacheBuilder.newBuilder().maximumSize(2).expireAfterAccess(5, TimeUnit.MINUTES).build();
    }

    /**
     * 关闭连接
     * @throws Exception
     */
    @Override
    public void close() throws Exception {
        restHighLevelClient.close();
    }


    /**
     * 异步调用
     * @param input
     * @param resultFuture
     */
    @Override
    public void asyncInvoke(Tuple4<String, String, String, Integer> input, ResultFuture<Tuple5<String, String, String, Integer, Integer>> resultFuture) {

        // 1、先从缓存中取
        Integer cachedValue = cache.getIfPresent(input.f0);
        if(cachedValue !=null){
            System.out.println("从缓存中获取到维度数据: key="+input.f0+",value="+cachedValue);
            resultFuture.complete(Collections.singleton(new Tuple5<>(input.f0,input.f1,input.f2,input.f3,cachedValue)));

        // 2、缓存中没有,则从外部存储获取
        }else {
            searchFromES(input,resultFuture);
        }
    }

    /**
     * 当缓存中没有数据时,从外部存储ES中获取
     * @param input
     * @param resultFuture
     */
    private void searchFromES(Tuple4<String, String, String, Integer> input, ResultFuture<Tuple5<String, String, String, Integer, Integer>> resultFuture){

        // 1、构造输出对象
        Tuple5<String, String, String, Integer, Integer> output = new Tuple5<>();
        output.f0=input.f0;
        output.f1=input.f1;
        output.f2=input.f2;
        output.f3=input.f3;

        // 2、待查询的Key
        String dimKey = input.f0;

        // 3、构造Ids Query
        SearchRequest searchRequest = new SearchRequest();
        searchRequest.indices(index);
        searchRequest.types(type);
        searchRequest.source(SearchSourceBuilder.searchSource().query(QueryBuilders.idsQuery().addIds(dimKey)));

        // 4、用异步客户端查询数据
        restHighLevelClient.searchAsync(searchRequest, new ActionListener<SearchResponse>() {

            //成功响应时处理
            @Override
            public void onResponse(SearchResponse searchResponse) {
                SearchHit[] searchHits = searchResponse.getHits().getHits();
                if(searchHits.length >0 ){
                    JSONObject obj = JSON.parseObject(searchHits[0].getSourceAsString());
                    Integer dimValue=obj.getInteger("age");
                    output.f4=dimValue;
                    cache.put(dimKey,dimValue);
                    System.out.println("将维度数据放入缓存: key="+dimKey+",value="+dimValue);
                }

                resultFuture.complete(Collections.singleton(output));
            }

            //响应失败时处理
            @Override
            public void onFailure(Exception e) {
                output.f4=null;
                resultFuture.complete(Collections.singleton(output));
            }
        });

    }

    //超时时处理
    @Override
    public void timeout(Tuple4<String, String, String, Integer> input, ResultFuture<Tuple5<String, String, String, Integer, Integer>> resultFuture) {
        searchFromES(input,resultFuture);
    }
}

复制代码

Flink SQL实现流表与维表join

流表就是像kafka这种消息队列中的数据。维表是像MySQL中的静态数据。

想要使用Flink SQL的方式join两张表,静态维表的作用类似一张字典表。流表源源不断的来数据,然后去内存中查询字典将流表的数据更新然后插入到MySQL数据库中。

依赖

            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka_${scala.version}</artifactId>
            <version>${flink.version}</version>
            <!--            <scope>provided</scope>-->
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-jdbc_${scala.version}</artifactId>
            <version>${flink.version}</version>
            <!--            <scope>provided</scope>-->
        </dependency>
复制代码

实现


import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import static org.apache.flink.table.api.Expressions.*;

/**
 * 流表join维表
 * @Author zuoziwen
 */
public class JoinDemo {
    private static String dimTable = "CREATE TABLE dimTable (\n" +
            "  id int,\n" +
            "  user_name STRING,\n" +
            "  age INT,\n" +
            "  gender STRING,\n" +
            "  PRIMARY KEY (id) NOT ENFORCED\n" +
            ") WITH (\n" +
            "   'connector'='jdbc',\n" +
            "   'username'='root',\n" +
            "   'password'='root',\n" +
            "   'url'='jdbc:mysql://localhost:3306/aspirin',\n" +
            "   'table-name'='user_data_for_join'\n" +
            ")";

    private static String kafkaTable = "CREATE TABLE KafkaTable (\n" +
            "  `user` STRING,\n" +
            "  `site` STRING,\n" +
            "  `time` STRING\n" +
            ") WITH (\n" +
            "  'connector' = 'kafka',\n" +
            "  'topic' = 'test-old',\n" +
            "  'properties.bootstrap.servers' = 'localhost:9092',\n" +
            "  'properties.group.id' = 'testGroup',\n" +
            "  'scan.startup.mode' = 'earliest-offset',\n" +
            "  'format' = 'json'\n" +
            ")";

    private static String wideTable = "CREATE TABLE wideTable (\n" +
            "  id int,\n" +
            "  site STRING,\n" +
            "  user_name STRING,\n" +
            "  age INT,\n" +
            "  ts STRING,\n" +
            "  PRIMARY KEY (id) NOT ENFORCED\n" +
            ") WITH (\n" +
            "   'connector'='jdbc',\n" +
            "   'username'='root',\n" +
            "   'password'='root',\n" +
            "   'url'='jdbc:mysql://localhost:3306/aspirin',\n" +
            "   'table-name'='wide_table'\n" +
            ")";
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        StreamTableEnvironment tableEnvironment = StreamTableEnvironment.create(env);
        tableEnvironment.executeSql(dimTable);
        tableEnvironment.executeSql(kafkaTable);
        tableEnvironment.executeSql(wideTable);
        Table mysqlTable = tableEnvironment.from("dimTable").select("id, user_name, age, gender");
        Table kafkaTable = tableEnvironment.from("KafkaTable").select($("user"), $("site"), $("time"));

        String joinSql = "insert into wideTable " +
                " select " +
                "   dimTable.id as `id`, " +
                "   t.site as site, " +
                "   dimTable.user_name as user_name, " +
                "   dimTable.age as age, " +
                "   t.`time` as ts " +
                "from KafkaTable as t " +
                "left join dimTable on dimTable.user_name = t.`user`";
        tableEnvironment.executeSql(joinSql);

        env.execute();
    }
}
复制代码

参考袋鼠云开源的flinkStreamSQL:

github.com/DTStack/fli…
基于开源的flink,对其实时sql进行扩展;主要实现了流与维表的join,支持原生flink SQL所有的语法
源表:kafka
维表:mysql,SQlServer,oracle,hbase,mongo,redis,cassandra
结果表:mysql,SQlServer,oracle,hbase,elasticsearch5.x,mongo,redis,cassandra

核心是

**

   AsyncReqRow asyncDbReq = loadAsyncReq(sideType, sqlRootDir, rowTypeInfo, joinInfo, outFieldInfoList, sideTableInfo);

        //TODO How much should be set for the degree of parallelism? Timeout? capacity settings?
        if (ORDERED.equals(sideTableInfo.getCacheMode())){
            return AsyncDataStream.orderedWait(inputStream, asyncDbReq, sideTableInfo.getAsyncTimeout(), TimeUnit.MILLISECONDS, sideTableInfo.getAsyncCapacity())
                    .setParallelism(sideTableInfo.getParallelism());
        }else {
            return AsyncDataStream.unorderedWait(inputStream, asyncDbReq, sideTableInfo.getAsyncTimeout(), TimeUnit.MILLISECONDS, sideTableInfo.getAsyncCapacity())
                    .setParallelism(sideTableInfo.getParallelism());
        }
复制代码

inputStream 就是我们的流表 loadAsyncReq 就是返回一个RichAsyncFunction,定义是public abstract class AsyncReqRow extends RichAsyncFunction<Row, Row>就是从维表中查询数据,目前袋鼠云支持的几种维表有

6076209-45830924d0875794.webp 实现分两步:

用Flink api实现维表的功能

对应到Flink 的api就是RichAsyncFunction 这个抽象类,继层这个抽象类实现里面的open(初始化),asyncInvoke(数据异步调用),close(停止的一些操作)方法,最主要的是实现asyncInvoke 里面的方法。

流与维表的join会碰到两个问题:

第一个是性能问题。因为流速要是很快,每一条数据都需要到维表做下join,但是维表的数据是存在第三方存储系统,如果实时访问第三方存储系统,不仅join的性能会差,每次都要走网络io;还会给第三方存储系统带来很大的压力,有可能会把第三方存储系统搞挂掉。

所以解决的方法就是维表里的数据要缓存,可以全量缓存,这个主要是维表数据不大的情况,还有一个是LRU缓存,维表数据量比较大的情况。


解析流与维表join的SQL语法转化成底层的FlinkAPI

因为FlinkSQL已经做了大部分SQL场景,我们不可能在去解析SQL的所有语法,在把他转化成底层FlinkAPI。

所以我们做的就是解析SQL语法,来找到join表里有没有维表,如果有维表,那我们会把这个join的维表的语句单独拆来,用Flink的TableAPI和StreamAPi 生成新DataStream,在把这个DataStream与其他的表在做join这样就能用SQL来实现流与维表的join语法了。

SQL解析的工具就是用Apache calcite,Flink也是用这个框架做SQL解析的。所以所有语法都是可以解析的。

分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
