Redis 基础数据结构 —— 列表对象

347 阅读8分钟

Redis 列表是简单的字符串列表,按照插入顺序进行排序,支持从头部或者尾部添加元素,因此列表对象也经常用作为队列。一个列表键最多可以含 2^32−1 个元素。

压缩列表(ziplist)

压缩列表是 Redis 为了节约内存而开发的, 由一系列特殊编码的连续内存块组成的顺序型数据结构。

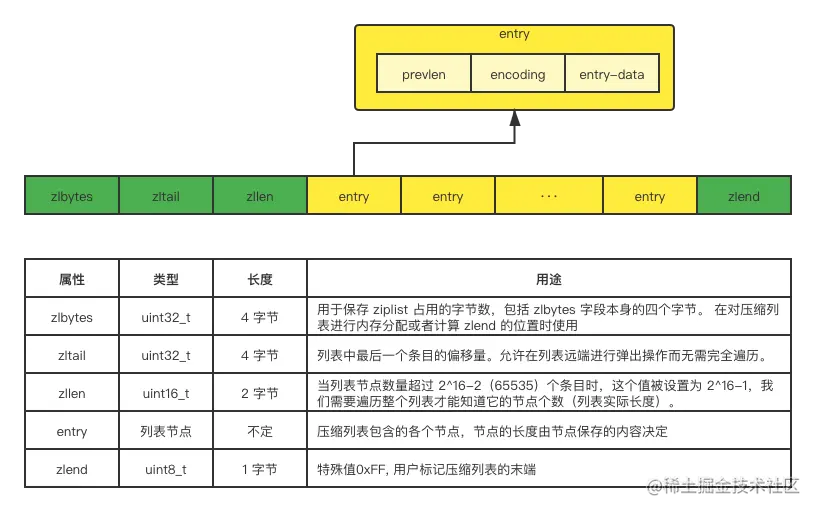

1. 压缩列表构成

一个压缩列表可以包含任意多个节点(entry), 每个节点可以保存一个字节数组或者一个整数值。如下,展示了压缩列表的各个组成部分。


2. 压缩列表节点的构成

每个压缩列表节点可以保存一个字节数组或者一个整数值

字节数组长度可以有以下 3 种

  • 长度小于等于 63( 2^6−1)字节的字节数组;
  • 长度小于等于 16383 (2^14−1)字节的字节数组;
  • 长度小于等于 4294967295 (2^32−1)字节的字节数组;

整数值则可以有以下 6 种长度

  • 4 位长,介于 0 至 12 之间的无符号整数
  • 1 字节长的有符号整数
  • 3 字节长的有符号整数
  • int16_t 类型整数
  • int32_t 类型整数
  • int64_t 类型整数

3. 连锁更新

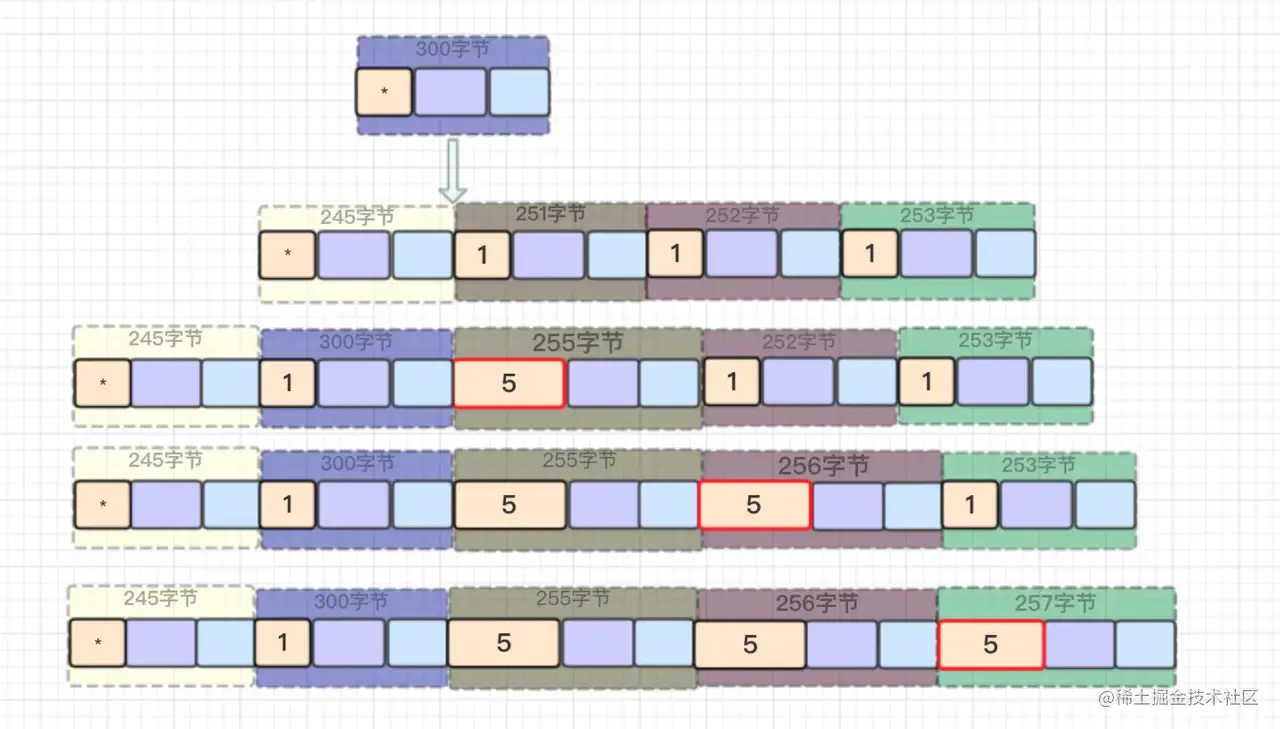

在一个压缩列表中, 有多个连续的、长度介于 250 字节到 253 字节之间的节点 e1 至 eN 。因为 e1 至 eN 的所有节点的长度都小于 254 字节, 所以记录这些节点的长度只需要 1 字节长的 previous_entry_length 属性, 换句话说, e1 至 eN 的所有节点的 previous_entry_length 属性都是 1 字节长的。 如果我们将一个长度大于等于 254 字节的新节点 new 设置为压缩列表的表头节点, 那么 new 将成为 e1 的前置节点,因为 e1 的 previous_entry_length 属性仅长 1 字节, 它没办法保存新节点 new 的长度, 所以程序将对压缩列表执行空间重分配操作, 并将 e1 节点的 previous_entry_length 属性从原来的 1 字节长扩展为 5 字节长。 现在, 麻烦的事情来了 —— e1 原本的长度介于 250 字节至 253 字节之间, 在为 previous_entry_length 属性新增四个字节的空间之后, e1 的长度就变成了介于 254 字节至 257 字节之间, 而这种长度使用 1 字节长的 previous_entry_length 属性是没办法保存的。 因此, 为了让 e2 的 previous_entry_length 属性可以记录下 e1 的长度, 程序需要再次对压缩列表执行空间重分配操作, 并将 e2 节点的 previous_entry_length 属性从原来的 1 字节长扩展为 5 字节长。 正如扩展 e1 引发了对 e2 的扩展一样, 扩展 e2 也会引发对 e3 的扩展, 而扩展 e3 又会引发对 e4 的扩展……为了让每个节点的 previous_entry_length 属性都符合压缩列表对节点的要求, 程序需要不断地对压缩列表执行空间重分配操作, 直到 eN 为止。 这就是连锁更新,因为一次操作,导致连续多次的空间扩展操作。除了添加节点会引发连锁更新,删除节点也是有可能引起连锁更新的。因为连锁更新在最坏情况下需要对压缩列表执行 N 次空间重分配操作, 而每次空间重分配的最坏复杂度为 O(N) , 所以连锁更新的最坏复杂度为 O(N^2) 。 要注意的是, 尽管连锁更新的复杂度较高, 但它真正造成性能问题的几率是很低的:

  • 首先, 压缩列表里要恰好有多个连续的、长度介于 250 字节至 253 字节之间的节点, 连锁更新才有可能被引发, 在实际中, 这种情况并不多见;
  • 其次, 即使出现连锁更新, 但只要被更新的节点数量不多, 就不会对性能造成任何影响: 比如说, 对三五个节点进行连锁更新是绝对不会影响性能的; 双端列表(linkedlist)

快表(QuickList)


既然快表是将链表跟压缩表数组结合起来使用,那么具体怎么用呢,比如我有一个 10 个元素的 list,那具体怎么放,每个 quicklistNode 里放多大的 ziplist,假如每个快表节点的 ziplist 只放一个元素,那么其实这就退化成了一个链表,如果 10 个元素放在一个 quicklistNode 的 ziplist 里,那就退化成了一个 ziplist.

redis 的配置参数: list-max-ziplist-size 和 list-compress-depth
list-max-ziplist-size
  • 正数时:对应的就是每个 quicklistNode 的 ziplist 中的元素个数。比如配置了 list-max-ziplist-size = 5,那么我刚才的 10 个元素的 list 就是一个两个 quicklistNode 组成的快表,每个 quicklistNode 中的 ziplist 包含了五个元素
  • 负数时:它限制了 ziplist 的字节数
    • -5: 每个 quicklist 节点上的 ziplist 大小不能超过 64 Kb。(注:1kb => 1024 bytes)
    • -4: 每个 quicklist 节点上的 ziplist 大小不能超过 32 Kb。
    • -3: 每个 quicklist 节点上的 ziplist 大小不能超过 16 Kb。
    • -2: 每个 quicklist 节点上的 ziplist 大小不能超过 8 Kb。(-2 是 Redis 给出的默认值)也就是上面的 quicklist->fill = -2;
    • -1: 每个 quicklist 节点上的 ziplist 大小不能超过 4 Kb。
list-compress-depth

这个参数是用来配置压缩的。这里考虑到的是一个场景,一般状况下,list 都是两端的访问频率比较高,那么是不是可以对中间的数据进行压缩,那么这个参数就是用来表示

  • 0,代表不压缩,默认值
  • 1,两端各一个节点不压缩
  • 2,两端各两个节点不压缩
  • ... 依次类推

压缩后的 ziplist 就会变成 quicklistLZF,然后替换 zl 指针,这里使用的是 LZF 压缩算法,压缩后的 quicklistLZF 中的 compressed 也是个柔性数组,压缩后的 ziplist 整个就放进这个柔性数组

代码实现

/* Node, quicklist, and Iterator are the only data structures used currently. */

/* quicklistNode is a 32 byte struct describing a ziplist for a quicklist.
 * We use bit fields keep the quicklistNode at 32 bytes.
 * count: 16 bits, max 65536 (max zl bytes is 65k, so max count actually < 32k).
 * encoding: 2 bits, RAW=1, LZF=2.
 * container: 2 bits, NONE=1, ZIPLIST=2.
 * recompress: 1 bit, bool, true if node is temporary decompressed for usage.
 * attempted_compress: 1 bit, boolean, used for verifying during testing.
 * extra: 10 bits, free for future use; pads out the remainder of 32 bits */
typedef struct quicklistNode {
    struct quicklistNode *prev;
    struct quicklistNode *next;
    unsigned char *zl;
    unsigned int sz;             /* ziplist size in bytes */
    unsigned int count : 16;     /* count of items in ziplist */
    unsigned int encoding : 2;   /* RAW==1 or LZF==2 */
    unsigned int container : 2;  /* NONE==1 or ZIPLIST==2 */
    unsigned int recompress : 1; /* was this node previous compressed? */
    unsigned int attempted_compress : 1; /* node can't compress; too small */
    unsigned int extra : 10; /* more bits to steal for future usage */
} quicklistNode;

/* quicklistLZF is a 4+N byte struct holding 'sz' followed by 'compressed'.
 * 'sz' is byte length of 'compressed' field.
 * 'compressed' is LZF data with total (compressed) length 'sz'
 * NOTE: uncompressed length is stored in quicklistNode->sz.
 * When quicklistNode->zl is compressed, node->zl points to a quicklistLZF */
typedef struct quicklistLZF {
    unsigned int sz; /* LZF size in bytes*/
    char compressed[];
} quicklistLZF;

/* Bookmarks are padded with realloc at the end of of the quicklist struct.
 * They should only be used for very big lists if thousands of nodes were the
 * excess memory usage is negligible, and there's a real need to iterate on them
 * in portions.
 * When not used, they don't add any memory overhead, but when used and then
 * deleted, some overhead remains (to avoid resonance).
 * The number of bookmarks used should be kept to minimum since it also adds
 * overhead on node deletion (searching for a bookmark to update). */
typedef struct quicklistBookmark {
    quicklistNode *node;
    char *name;
} quicklistBookmark;

#if UINTPTR_MAX == 0xffffffff
/* 32-bit */
#   define QL_FILL_BITS 14
#   define QL_COMP_BITS 14
#   define QL_BM_BITS 4
#elif UINTPTR_MAX == 0xffffffffffffffff
/* 64-bit */
#   define QL_FILL_BITS 16
#   define QL_COMP_BITS 16
#   define QL_BM_BITS 4 /* we can encode more, but we rather limit the user
                           since they cause performance degradation. */
#else
#   error unknown arch bits count
#endif

/* quicklist is a 40 byte struct (on 64-bit systems) describing a quicklist.
 * 'count' is the number of total entries.
 * 'len' is the number of quicklist nodes.
 * 'compress' is: 0 if compression disabled, otherwise it's the number
 *                of quicklistNodes to leave uncompressed at ends of quicklist.
 * 'fill' is the user-requested (or default) fill factor.
 * 'bookmakrs are an optional feature that is used by realloc this struct,
 *      so that they don't consume memory when not used. */
typedef struct quicklist {
    quicklistNode *head;
    quicklistNode *tail;
    unsigned long count;        /* total count of all entries in all ziplists */
    unsigned long len;          /* number of quicklistNodes */
    int fill : QL_FILL_BITS;              /* fill factor for individual nodes */
    unsigned int compress : QL_COMP_BITS; /* depth of end nodes not to compress;0=off */
    unsigned int bookmark_count: QL_BM_BITS;
    quicklistBookmark bookmarks[];
} quicklist;
REDIS_STATIC int _quicklistNodeSizeMeetsOptimizationRequirement(const size_t sz, const int fill) {
    if (fill >= 0)
        return 0;

    size_t offset = (-fill) - 1;
    if (offset < (sizeof(optimization_level) / sizeof(*optimization_level))) {
        if (sz <= optimization_level[offset]) {
            return 1;
        } else {
            return 0;
        }
    } else {
        return 0;
    }
}

/* Optimization levels for size-based filling */
static const size_t optimization_level[] = {4096, 8192, 16384, 32768, 65536};

/* Create a new quicklist.
 * Free with quicklistRelease(). */
quicklist *quicklistCreate(void) {
    struct quicklist *quicklist;

    quicklist = zmalloc(sizeof(*quicklist));
    quicklist->head = quicklist->tail = NULL;
    quicklist->len = 0;
    quicklist->count = 0;
    quicklist->compress = 0;
    quicklist->fill = -2;
    return quicklist;
}

业务场景应用

消息队列

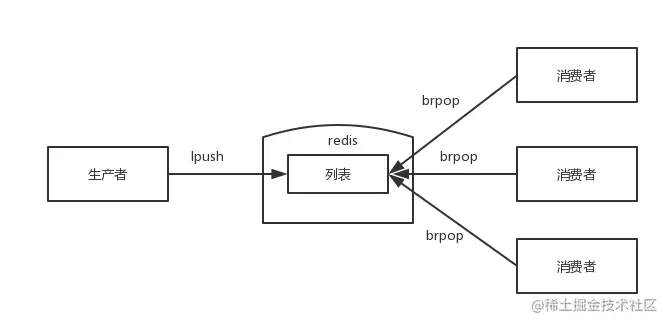

Redis的lpush + brpop命令组合即可实现阻塞队列,生产者客户端使用lpush从列表左侧插入元素,多个消费者客户端使用brpop命令阻塞式的争抢列表尾部的元素,多个客户端保证了消费的负载均衡和高可用。


最新列表(无分页、更新不频繁)

list类型的lpush命令和lrange命令能实现最新列表的功能,每次通过lpush命令往列表里插入新的元素,然后通过lrange命令读取最新的元素列表,如朋友圈的点赞列表、评论列表。

对于频繁更新的列表,list类型的分页可能导致列表元素重复或漏掉,举个例子,当前列表里由表头到表尾依次有(E,D,C,B,A)五个元素,每页获取3个元素,用户第一次获取到(E,D,C)三个元素,然后表头新增了一个元素F,列表变成了(F,E,D,C,B,A),此时用户取第二页拿到(C,B,A),元素C重复了。只有不需要分页(比如每次都只取列表的前5个元素)或者更新频率低(比如每天凌晨更新一次)的列表才适合用list类型实现。

排行榜(定时计算)

list类型的lrange命令可以分页查看队列中的数据。可将每隔一段时间计算一次的排行榜存储在list类型中,如京东每日的手机销量排行、学校每次月考学生的成绩排名、斗鱼年终盛典主播排名等,下图是酷狗音乐“K歌擂台赛”的昨日打擂金曲排行榜,每日计算一次,存储在list类型中,接口访问时,通过page和size分页获取打擂金曲。
