Mybatis源码解析-SqlNode解析

之前有分享Mybatis应用9中动态sql标签。那在实际执行过程中这段标签是怎么执行的?

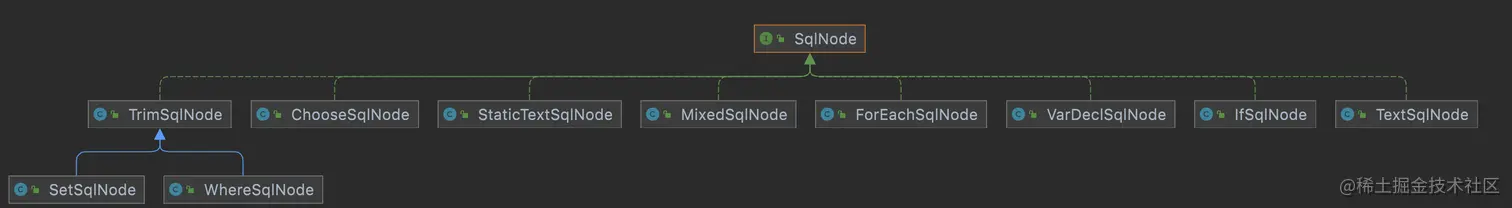

SqlNode

SqlNode接口，简单理解就是xml中的每个标签，比如上述sql的update,trim,if标签：

package org.apache.ibatis.scripting.xmltags;

/**
 * SQL节点信息
 *
 * @author Clinton Begin
 */
public interface SqlNode {
    /**
     * 解析节点
     *
     * @param context 包括Mapper调用的入参信息，以及内置的_parameter和_databaseId参数信息
     *
     * @return
     */
    boolean apply(DynamicContext context);
}

MixedSqlNode

其中xml中的sql（<insert>,<delete>,<update>,<select>）标签会转化为 一个MixedSqlNode对象。MixedSqlNode里面有一个属性contents。包含了sql标签的全部动态标签(<where>,<if>...)信息 再根据动态标签信息去解析sql语句.他的解析过程就是遍历contents属性去进行 其他属性标签的解析

/**
 * Copyright 2009-2019 the original author or authors.
 * <p>
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 * <p>
 * http://www.apache.org/licenses/LICENSE-2.0
 * <p>
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.apache.ibatis.scripting.xmltags;

import java.util.List;

/**
 * 用来描述一组SqlNode对象
 *  <select id="getStudentsByAlias" resultType="studentDto" useCache="false">
 *         select
 *         id,name.age,hobby
 *         from student
 *         <where>
 *             <if test="1==1">
 *                 and id is not null
 *             </if>
 *         </where>
 *     </select>
 *     会被解析为 StaticTextSqlNode 和 一个 WhereSqlNode
 *     StaticTextSqlNode:代表文本类型的sql
 *     WhereSqlNode: 代表where标签的sql  包括里面进行嵌套的 if标签的sql信息
 * @author Clinton Begin
 */
public class MixedSqlNode implements SqlNode {
    private final List<SqlNode> contents;

    public MixedSqlNode(List<SqlNode> contents) {
        this.contents = contents;
    }

    @Override
    public boolean apply(DynamicContext context) {
        // 调用所有的SqlNode的apply方法
        contents.forEach(node -> node.apply(context));
        return true;
    }
}

StaticTextSqlNode

直接追加文本内容

/**
 * Copyright 2009-2017 the original author or authors.
 * <p>
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 * <p>
 * http://www.apache.org/licenses/LICENSE-2.0
 * <p>
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package org.apache.ibatis.scripting.xmltags;

/**
 * 描述动态SQL中的静态文本内容
 *
 * @author Clinton Begin
 */
public class StaticTextSqlNode implements SqlNode {
    private final String text;

    public StaticTextSqlNode(String text) {
        this.text = text;
    }

    @Override
    public boolean apply(DynamicContext context) {
        // 直接追加SQL内容
        context.appendSql(text);
        return true;
    }

}

TrimSqlNode

TrimSqlNode有两个子类。SetSqlNode 和 WhereSqlNode。这两个子类对应标签set where可以实现的功能在trim标签上也可以进行实现。

package org.apache.ibatis.scripting.xmltags;

import org.apache.ibatis.session.Configuration;

import java.util.*;

/**
 * 解析<trim>标签
 *
 * @author Clinton Begin
 */
public class TrimSqlNode implements SqlNode {

    private final SqlNode contents;
    private final String prefix;
    private final String suffix;
    private final List<String> prefixesToOverride;
    private final List<String> suffixesToOverride;
    private final Configuration configuration;

    public TrimSqlNode(Configuration configuration, SqlNode contents, String prefix, String prefixesToOverride, String suffix, String suffixesToOverride) {
        this(configuration, contents, prefix, parseOverrides(prefixesToOverride), suffix, parseOverrides(suffixesToOverride));
    }

    protected TrimSqlNode(Configuration configuration, SqlNode contents, String prefix, List<String> prefixesToOverride, String suffix, List<String> suffixesToOverride) {
        this.contents = contents;
        this.prefix = prefix;
        this.prefixesToOverride = prefixesToOverride;
        this.suffix = suffix;
        this.suffixesToOverride = suffixesToOverride;
        this.configuration = configuration;
    }

    @Override
    public boolean apply(DynamicContext context) {
        FilteredDynamicContext filteredDynamicContext = new FilteredDynamicContext(context);
        // where set trim三种标签解析时 都可能包含有子标签 所以这几个标签在存储时都是MixedSqlNode类型的。需要再对这些进行二次解析
        boolean result = contents.apply(filteredDynamicContext);
        // 前缀和后缀的替换
        filteredDynamicContext.applyAll();
        return result;
    }

    private static List<String> parseOverrides(String overrides) {
        if (overrides != null) {
            final StringTokenizer parser = new StringTokenizer(overrides, "|", false);
            final List<String> list = new ArrayList<>(parser.countTokens());
            while (parser.hasMoreTokens()) {
                list.add(parser.nextToken().toUpperCase(Locale.ENGLISH));
            }
            return list;
        }
        return Collections.emptyList();
    }

    private class FilteredDynamicContext extends DynamicContext {
        private DynamicContext delegate;
        private boolean prefixApplied;
        private boolean suffixApplied;
        private StringBuilder sqlBuffer;

        public FilteredDynamicContext(DynamicContext delegate) {
            super(configuration, null);
            this.delegate = delegate;
            this.prefixApplied = false;
            this.suffixApplied = false;
            this.sqlBuffer = new StringBuilder();
        }

        public void applyAll() {
            sqlBuffer = new StringBuilder(sqlBuffer.toString().trim());
            String trimmedUppercaseSql = sqlBuffer.toString().toUpperCase(Locale.ENGLISH);
            if (trimmedUppercaseSql.length() > 0) {
                //前缀替换
                applyPrefix(sqlBuffer, trimmedUppercaseSql);
                //后缀替换
                applySuffix(sqlBuffer, trimmedUppercaseSql);
            }
            delegate.appendSql(sqlBuffer.toString());
        }

        @Override
        public Map<String, Object> getBindings() {
            return delegate.getBindings();
        }

        @Override
        public void bind(String name, Object value) {
            delegate.bind(name, value);
        }

        @Override
        public int getUniqueNumber() {
            return delegate.getUniqueNumber();
        }

        @Override
        public void appendSql(String sql) {
            sqlBuffer.append(sql);
        }

        @Override
        public String getSql() {
            return delegate.getSql();
        }

        private void applyPrefix(StringBuilder sql, String trimmedUppercaseSql) {
            if (!prefixApplied) {
                prefixApplied = true;
                if (prefixesToOverride != null) {
                    for (String toRemove : prefixesToOverride) {
                        if (trimmedUppercaseSql.startsWith(toRemove)) {
                            sql.delete(0, toRemove.trim().length());
                            break;
                        }
                    }
                }
                if (prefix != null) {
                    sql.insert(0, " ");
                    sql.insert(0, prefix);
                }
            }
        }

        private void applySuffix(StringBuilder sql, String trimmedUppercaseSql) {
            if (!suffixApplied) {
                suffixApplied = true;
                if (suffixesToOverride != null) {
                    for (String toRemove : suffixesToOverride) {
                        if (trimmedUppercaseSql.endsWith(toRemove) || trimmedUppercaseSql.endsWith(toRemove.trim())) {
                            int start = sql.length() - toRemove.trim().length();
                            int end = sql.length();
                            sql.delete(start, end);
                            break;
                        }
                    }
                }
                if (suffix != null) {
                    sql.append(" ");
                    sql.append(suffix);
                }
            }
        }

    }

}

ForeachSqlNode

解析<foreach>标签

package org.apache.ibatis.scripting.xmltags;

import org.apache.ibatis.parsing.GenericTokenParser;
import org.apache.ibatis.session.Configuration;

import java.util.Map;

/**
 * 解析<foreach>标签
 *
 * @author Clinton Begin
 */
public class ForEachSqlNode implements SqlNode {
    public static final String ITEM_PREFIX = "__frch_";

    private final ExpressionEvaluator evaluator;
    private final String collectionExpression;
    private final SqlNode contents;
    private final String open;
    private final String close;
    private final String separator;
    private final String item;
    private final String index;
    private final Configuration configuration;

    public ForEachSqlNode(Configuration configuration, SqlNode contents, String collectionExpression, String index, String item, String open, String close, String separator) {
        this.evaluator = new ExpressionEvaluator();
        this.collectionExpression = collectionExpression;
        this.contents = contents;
        this.open = open;
        this.close = close;
        this.separator = separator;
        this.index = index;
        this.item = item;
        this.configuration = configuration;
    }

    @Override
    public boolean apply(DynamicContext context) {
        Map<String, Object> bindings = context.getBindings();
        //得到配置collection参数集合的迭代器
        final Iterable<?> iterable = evaluator.evaluateIterable(collectionExpression, bindings);
        if (!iterable.iterator().hasNext()) {
            return true;
        }
        boolean first = true;
        //添加open属性
        applyOpen(context);
        int i = 0;
        for (Object o : iterable) {
            DynamicContext oldContext = context;
            //第一个不添加元素间隔符separator
            if (first || separator == null) {
                context = new PrefixedContext(context, "");
            } else {
                context = new PrefixedContext(context, separator);
            }
            int uniqueNumber = context.getUniqueNumber();
            // Issue #709
            //把遍历出来的值存储到map中
            if (o instanceof Map.Entry) {
                @SuppressWarnings("unchecked")
                Map.Entry<Object, Object> mapEntry = (Map.Entry<Object, Object>) o;
                applyIndex(context, mapEntry.getKey(), uniqueNumber);
                applyItem(context, mapEntry.getValue(), uniqueNumber);
            } else {
                applyIndex(context, i, uniqueNumber);
                applyItem(context, o, uniqueNumber);
            }
            //<foreach> 里面还存在其他动态标签再 进行apple解析
            contents.apply(new FilteredDynamicContext(configuration, context, index, item, uniqueNumber));
            if (first) {
                first = !((PrefixedContext) context).isPrefixApplied();
            }
            context = oldContext;
            i++;
        }
        //添加close属性
        applyClose(context);
        //清空绑定的集合属性
        context.getBindings().remove(item);
        context.getBindings().remove(index);
        return true;
    }

    private void applyIndex(DynamicContext context, Object o, int i) {
        if (index != null) {
            context.bind(index, o);
            context.bind(itemizeItem(index, i), o);
        }
    }

    private void applyItem(DynamicContext context, Object o, int i) {
        if (item != null) {
            context.bind(item, o);
            context.bind(itemizeItem(item, i), o);
        }
    }

    private void applyOpen(DynamicContext context) {
        if (open != null) {
            context.appendSql(open);
        }
    }

    private void applyClose(DynamicContext context) {
        if (close != null) {
            context.appendSql(close);
        }
    }

    private static String itemizeItem(String item, int i) {
        return ITEM_PREFIX + item + "_" + i;
    }

    private static class FilteredDynamicContext extends DynamicContext {
        private final DynamicContext delegate;
        private final int index;
        private final String itemIndex;
        private final String item;

        public FilteredDynamicContext(Configuration configuration, DynamicContext delegate, String itemIndex, String item, int i) {
            super(configuration, null);
            this.delegate = delegate;
            this.index = i;
            this.itemIndex = itemIndex;
            this.item = item;
        }

        @Override
        public Map<String, Object> getBindings() {
            return delegate.getBindings();
        }

        @Override
        public void bind(String name, Object value) {
            delegate.bind(name, value);
        }

        @Override
        public String getSql() {
            return delegate.getSql();
        }

        @Override
        public void appendSql(String sql) {
            GenericTokenParser parser = new GenericTokenParser("#{", "}", content -> {
                String newContent = content.replaceFirst("^\s*" + item + "(?![^.,:\s])", itemizeItem(item, index));
                if (itemIndex != null && newContent.equals(content)) {
                    newContent = content.replaceFirst("^\s*" + itemIndex + "(?![^.,:\s])", itemizeItem(itemIndex, index));
                }
                return "#{" + newContent + "}";
            });

            delegate.appendSql(parser.parse(sql));
        }

        @Override
        public int getUniqueNumber() {
            return delegate.getUniqueNumber();
        }

    }

    private class PrefixedContext extends DynamicContext {
        private final DynamicContext delegate;
        private final String prefix;
        private boolean prefixApplied;

        public PrefixedContext(DynamicContext delegate, String prefix) {
            super(configuration, null);
            this.delegate = delegate;
            this.prefix = prefix;
            this.prefixApplied = false;
        }

        public boolean isPrefixApplied() {
            return prefixApplied;
        }

        @Override
        public Map<String, Object> getBindings() {
            return delegate.getBindings();
        }

        @Override
        public void bind(String name, Object value) {
            delegate.bind(name, value);
        }

        @Override
        public void appendSql(String sql) {
            if (!prefixApplied && sql != null && sql.trim().length() > 0) {
                delegate.appendSql(prefix);
                prefixApplied = true;
            }
            delegate.appendSql(sql);
        }

        @Override
        public String getSql() {
            return delegate.getSql();
        }

        @Override
        public int getUniqueNumber() {
            return delegate.getUniqueNumber();
        }
    }

}

VarDeclSqlNode

<bind>标签的解析

package org.apache.ibatis.scripting.xmltags;

/**
 * 解析<bind>标签
 *
 * @author Frank D. Martinez [mnesarco]
 */
public class VarDeclSqlNode implements SqlNode {

    private final String name;
    private final String expression;

    public VarDeclSqlNode(String var, String exp) {
        name = var;
        expression = exp;
    }

    @Override
    public boolean apply(DynamicContext context) {
        // 把<bind> 标签中的value 里面写的表达式进行翻译
        final Object value = OgnlCache.getValue(expression, context.getBindings());
        //放到绑定参数中去 绑定的参数用于xml中动态标签使用也可以替换 #{likeName}
        context.bind(name, value);
        return true;
    }

}

ChooseSqlNode

解析choose when otherwise标签

package org.apache.ibatis.scripting.xmltags;

import java.util.List;

/**
 * 解析<choose>标签
 *
 * @author Clinton Begin
 */
public class ChooseSqlNode implements SqlNode {
    /**<otherwise>标签内容*/
    private final SqlNode defaultSqlNode;
    /**<when>标签集合*/
    private final List<SqlNode> ifSqlNodes;

    public ChooseSqlNode(List<SqlNode> ifSqlNodes, SqlNode defaultSqlNode) {
        this.ifSqlNodes = ifSqlNodes;
        this.defaultSqlNode = defaultSqlNode;
    }

    @Override
    public boolean apply(DynamicContext context) {
        //<when>标签下的 条件 这里已经转换为 IfSqlNode 如果满足其中条件会直接返回
        for (SqlNode sqlNode : ifSqlNodes) {
            if (sqlNode.apply(context)) {
                return true;
            }
        }
        //不满足条件时会选择最后的<otherwise> 来拼接sql
        if (defaultSqlNode != null) {
            defaultSqlNode.apply(context);
            return true;
        }
        return false;
    }
}

IfSqlNode

解析sql标签。判断是否满足条件 则解析if标签下的值

package org.apache.ibatis.scripting.xmltags;

/**
 * 解析<if>标签
 *
 * @author Clinton Begin
 */
public class IfSqlNode implements SqlNode {
    /**
     * 用来解析OGNL表达式
     */
    private final ExpressionEvaluator evaluator;
    /**
     * 保存<if>标签里的test属性值
     */
    private final String test;
    /**
     * 保存<if>标签里SQL信息
     */
    private final SqlNode contents;

    public IfSqlNode(SqlNode contents, String test) {
        this.test = test;
        this.contents = contents;
        this.evaluator = new ExpressionEvaluator();
    }

    @Override
    public boolean apply(DynamicContext context) {
        // 如果OGNL表达式解析为true，则调用<if>标签内容对应的SqlNode的apply方法
        if (evaluator.evaluateBoolean(test, context.getBindings())) {
            contents.apply(context);
            return true;
        }
        return false;
    }

}
