之前我们探究了dyld的加载流程，知道了编译的大概意思：把我们写的代码转换机器识别的代码，通过dyld把动态库进行链接最后生成可执行mach-o文件。那么对于我们日常开发中我们创建的类是怎样加载到内存中的，接下来就探索下。
1 _objc_init流程分析
我们之前探究dyld加载流程时在运行所有初始化程序initializeMainExecutable会for循环实例化镜像doInitialization，在此之前libSystem_initializer必须要先执行。经过libdispatch_init进入_os_object_init最后进入_objc_init
void _objc_init(void)
{
static bool initialized = false;
if (initialized) return;
initialized = true;
// fixme defer initialization until an objc-using image is found?
environ_init();
tls_init();
static_init();
runtime_init();
exception_init();
#if __OBJC2__
cache_t::init();
#endif
_imp_implementationWithBlock_init();
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
#if __OBJC2__
didCallDyldNotifyRegister = true;
#endif
}
1.1environ_init()分析
void environ_init(void)
{
if (issetugid()) {
// All environment variables are silently ignored when setuid or setgid
// This includes OBJC_HELP and OBJC_PRINT_OPTIONS themselves.
return;
}
// Turn off autorelease LRU coalescing by default for apps linked against
// older SDKs. LRU coalescing can reorder releases and certain older apps
// are accidentally relying on the ordering.
// rdar://problem/63886091
// if (!dyld_program_sdk_at_least(dyld_fall_2020_os_versions))
// DisableAutoreleaseCoalescingLRU = true;
bool PrintHelp = false;
bool PrintOptions = false;
bool maybeMallocDebugging = false;
// Scan environ[] directly instead of calling getenv() a lot.
//直接扫描environ[]，而不是大量调用getenv()
// This optimizes the case where none are set.
//优化了没有设置任何参数的情况
for (char **p = *_NSGetEnviron(); *p != nil; p++) {
if (0 == strncmp(*p, "Malloc", 6) || 0 == strncmp(*p, "DYLD", 4) ||
0 == strncmp(*p, "NSZombiesEnabled", 16))
{
maybeMallocDebugging = true;
}
if (0 != strncmp(*p, "OBJC_", 5)) continue;
if (0 == strncmp(*p, "OBJC_HELP=", 10)) {
PrintHelp = true;
continue;
}
if (0 == strncmp(*p, "OBJC_PRINT_OPTIONS=", 19)) {
PrintOptions = true;
continue;
}
if (0 == strncmp(*p, "OBJC_DEBUG_POOL_DEPTH=", 22)) {
SetPageCountWarning(*p + 22);
continue;
}
const char *value = strchr(*p, '=');
if (!*value) continue;
value++;
for (size_t i = 0; i < sizeof(Settings)/sizeof(Settings[0]); i++) {
const option_t *opt = &Settings[i];
if ((size_t)(value - *p) == 1+opt->envlen &&
0 == strncmp(*p, opt->env, opt->envlen))
{
*opt->var = (0 == strcmp(value, "YES"));
break;
}
}
}
// Special case: enable some autorelease pool debugging
// when some malloc debugging is enabled
// and OBJC_DEBUG_POOL_ALLOCATION is not set to something other than NO.
//特殊情况：打开一些自动释放池调试，当一些malloc调试被打开时，并且OBJC_DEBUG_POOL_ALLOCATION没有被设置为NO以外的值
if (maybeMallocDebugging) {
const char *insert = getenv("DYLD_INSERT_LIBRARIES");
const char *zombie = getenv("NSZombiesEnabled");
const char *pooldebug = getenv("OBJC_DEBUG_POOL_ALLOCATION");
if ((getenv("MallocStackLogging")
|| getenv("MallocStackLoggingNoCompact")
|| (zombie && (*zombie == 'Y' || *zombie == 'y'))
|| (insert && strstr(insert, "libgmalloc")))
&&
(!pooldebug || 0 == strcmp(pooldebug, "YES")))
{
DebugPoolAllocation = true;
}
}
// if (!os_feature_enabled_simple(objc4, preoptimizedCaches, true)) {
// DisablePreoptCaches = true;
// }
// Print OBJC_HELP and OBJC_PRINT_OPTIONS output.
//打印输出OBJC_PRINT_OPTIONS
if (PrintHelp || PrintOptions) {
if (PrintHelp) {
_objc_inform("Objective-C runtime debugging. Set variable=YES to enable.");
_objc_inform("OBJC_HELP: describe available environment variables");
if (PrintOptions) {
_objc_inform("OBJC_HELP is set");
}
_objc_inform("OBJC_PRINT_OPTIONS: list which options are set");
}
if (PrintOptions) {
_objc_inform("OBJC_PRINT_OPTIONS is set");
}
for (size_t i = 0; i < sizeof(Settings)/sizeof(Settings[0]); i++) {
const option_t *opt = &Settings[i];
if (PrintHelp) _objc_inform("%s: %s", opt->env, opt->help);
if (PrintOptions && *opt->var) _objc_inform("%s is set", opt->env);
}
}
}
主要是读取影响运行时的环境变量，如果需要，还可以打印环境变量帮助。我们看下有什么可以打印的选项

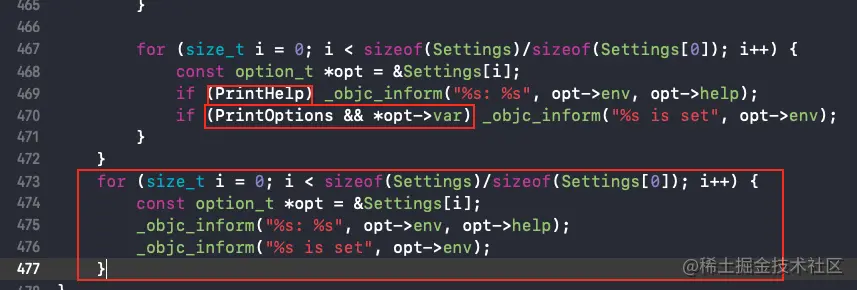

我们把这个判断条件去除，for循环拿到外面，打印一下看下有什么可选的环境变量。
objc[12216]: OBJC_PRINT_IMAGES: log image and library names as they are loaded
objc[12216]: OBJC_PRINT_IMAGES is set
objc[12216]: OBJC_PRINT_IMAGE_TIMES: measure duration of image loading steps
objc[12216]: OBJC_PRINT_IMAGE_TIMES is set
objc[12216]: OBJC_PRINT_LOAD_METHODS: log calls to class and category +load methods
objc[12216]: OBJC_PRINT_LOAD_METHODS is set
objc[12216]: OBJC_PRINT_INITIALIZE_METHODS: log calls to class +initialize methods
objc[12216]: OBJC_PRINT_INITIALIZE_METHODS is set
objc[12216]: OBJC_PRINT_RESOLVED_METHODS: log methods created by +resolveClassMethod: and +resolveInstanceMethod:
objc[12216]: OBJC_PRINT_RESOLVED_METHODS is set
objc[12216]: OBJC_PRINT_CLASS_SETUP: log progress of class and category setup
objc[12216]: OBJC_PRINT_CLASS_SETUP is set
objc[12216]: OBJC_PRINT_PROTOCOL_SETUP: log progress of protocol setup
objc[12216]: OBJC_PRINT_PROTOCOL_SETUP is set
objc[12216]: OBJC_PRINT_IVAR_SETUP: log processing of non-fragile ivars
objc[12216]: OBJC_PRINT_IVAR_SETUP is set
objc[12216]: OBJC_PRINT_VTABLE_SETUP: log processing of class vtables
objc[12216]: OBJC_PRINT_VTABLE_SETUP is set
objc[12216]: OBJC_PRINT_VTABLE_IMAGES: print vtable images showing overridden methods
objc[12216]: OBJC_PRINT_VTABLE_IMAGES is set
objc[12216]: OBJC_PRINT_CACHE_SETUP: log processing of method caches
objc[12216]: OBJC_PRINT_CACHE_SETUP is set
objc[12216]: OBJC_PRINT_FUTURE_CLASSES: log use of future classes for toll-free bridging
objc[12216]: OBJC_PRINT_FUTURE_CLASSES is set
objc[12216]: OBJC_PRINT_PREOPTIMIZATION: log preoptimization courtesy of dyld shared cache
objc[12216]: OBJC_PRINT_PREOPTIMIZATION is set
objc[12216]: OBJC_PRINT_CXX_CTORS: log calls to C++ ctors and dtors for instance variables
objc[12216]: OBJC_PRINT_CXX_CTORS is set
objc[12216]: OBJC_PRINT_EXCEPTIONS: log exception handling
objc[12216]: OBJC_PRINT_EXCEPTIONS is set
objc[12216]: OBJC_PRINT_EXCEPTION_THROW: log backtrace of every objc_exception_throw()
objc[12216]: OBJC_PRINT_EXCEPTION_THROW is set
objc[12216]: OBJC_PRINT_ALT_HANDLERS: log processing of exception alt handlers
objc[12216]: OBJC_PRINT_ALT_HANDLERS is set
objc[12216]: OBJC_PRINT_REPLACED_METHODS: log methods replaced by category implementations
objc[12216]: OBJC_PRINT_REPLACED_METHODS is set
objc[12216]: OBJC_PRINT_DEPRECATION_WARNINGS: warn about calls to deprecated runtime functions
objc[12216]: OBJC_PRINT_DEPRECATION_WARNINGS is set
objc[12216]: OBJC_PRINT_POOL_HIGHWATER: log high-water marks for autorelease pools
objc[12216]: OBJC_PRINT_POOL_HIGHWATER is set
objc[12216]: OBJC_PRINT_CUSTOM_CORE: log classes with custom core methods
objc[12216]: OBJC_PRINT_CUSTOM_CORE is set
objc[12216]: OBJC_PRINT_CUSTOM_RR: log classes with custom retain/release methods
objc[12216]: OBJC_PRINT_CUSTOM_RR is set
objc[12216]: OBJC_PRINT_CUSTOM_AWZ: log classes with custom allocWithZone methods
objc[12216]: OBJC_PRINT_CUSTOM_AWZ is set
objc[12216]: OBJC_PRINT_RAW_ISA: log classes that require raw pointer isa fields
objc[12216]: OBJC_PRINT_RAW_ISA is set
objc[12216]: OBJC_DEBUG_UNLOAD: warn about poorly-behaving bundles when unloaded
objc[12216]: OBJC_DEBUG_UNLOAD is set
objc[12216]: OBJC_DEBUG_FRAGILE_SUPERCLASSES: warn about subclasses that may have been broken by subsequent changes to superclasses
objc[12216]: OBJC_DEBUG_FRAGILE_SUPERCLASSES is set
objc[12216]: OBJC_DEBUG_NIL_SYNC: warn about @synchronized(nil), which does no synchronization
objc[12216]: OBJC_DEBUG_NIL_SYNC is set
objc[12216]: OBJC_DEBUG_NONFRAGILE_IVARS: capriciously rearrange non-fragile ivars
objc[12216]: OBJC_DEBUG_NONFRAGILE_IVARS is set
objc[12216]: OBJC_DEBUG_ALT_HANDLERS: record more info about bad alt handler use
objc[12216]: OBJC_DEBUG_ALT_HANDLERS is set
objc[12216]: OBJC_DEBUG_MISSING_POOLS: warn about autorelease with no pool in place, which may be a leak
objc[12216]: OBJC_DEBUG_MISSING_POOLS is set
objc[12216]: OBJC_DEBUG_POOL_ALLOCATION: halt when autorelease pools are popped out of order, and allow heap debuggers to track autorelease pools
objc[12216]: OBJC_DEBUG_POOL_ALLOCATION is set
objc[12216]: OBJC_DEBUG_DUPLICATE_CLASSES: halt when multiple classes with the same name are present
objc[12216]: OBJC_DEBUG_DUPLICATE_CLASSES is set
objc[12216]: OBJC_DEBUG_DONT_CRASH: halt the process by exiting instead of crashing
objc[12216]: OBJC_DEBUG_DONT_CRASH is set
objc[12216]: OBJC_DEBUG_POOL_DEPTH: log fault when at least a set number of autorelease pages has been allocated
objc[12216]: OBJC_DEBUG_POOL_DEPTH is set
objc[12216]: OBJC_DISABLE_VTABLES: disable vtable dispatch
objc[12216]: OBJC_DISABLE_VTABLES is set
objc[12216]: OBJC_DISABLE_PREOPTIMIZATION: disable preoptimization courtesy of dyld shared cache
objc[12216]: OBJC_DISABLE_PREOPTIMIZATION is set
objc[12216]: OBJC_DISABLE_TAGGED_POINTERS: disable tagged pointer optimization of NSNumber et al.
objc[12216]: OBJC_DISABLE_TAGGED_POINTERS is set
objc[12216]: OBJC_DISABLE_TAG_OBFUSCATION: disable obfuscation of tagged pointers
objc[12216]: OBJC_DISABLE_TAG_OBFUSCATION is set
objc[12216]: OBJC_DISABLE_NONPOINTER_ISA: disable non-pointer isa fields
objc[12216]: OBJC_DISABLE_NONPOINTER_ISA is set
objc[12216]: OBJC_DISABLE_INITIALIZE_FORK_SAFETY: disable safety checks for +initialize after fork
objc[12216]: OBJC_DISABLE_INITIALIZE_FORK_SAFETY is set
objc[12216]: OBJC_DISABLE_FAULTS: disable os faults
objc[12216]: OBJC_DISABLE_FAULTS is set
objc[12216]: OBJC_DISABLE_PREOPTIMIZED_CACHES: disable preoptimized caches
objc[12216]: OBJC_DISABLE_PREOPTIMIZED_CACHES is set
objc[12216]: OBJC_DISABLE_AUTORELEASE_COALESCING: disable coalescing of autorelease pool pointers
objc[12216]: OBJC_DISABLE_AUTORELEASE_COALESCING is set
objc[12216]: OBJC_DISABLE_AUTORELEASE_COALESCING_LRU: disable coalescing of autorelease pool pointers using look back N strategy
objc[12216]: OBJC_DISABLE_AUTORELEASE_COALESCING_LRU is set

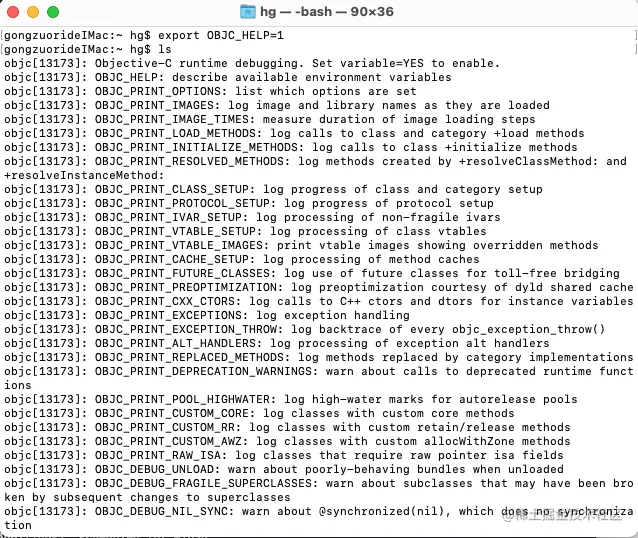

我们也可以用终端输出export OBJC_HELP=1
我们找2个比较熟悉的操作一下
OBJC_DISABLE_NONPOINTER_ISA: disable non-pointer isa fields和OBJC_PRINT_LOAD_METHODS: log calls to class and category +load methods 。是否是纯的isa和load方法打印。
1.1.1 OBJC_DISABLE_NONPOINTER_ISA验证

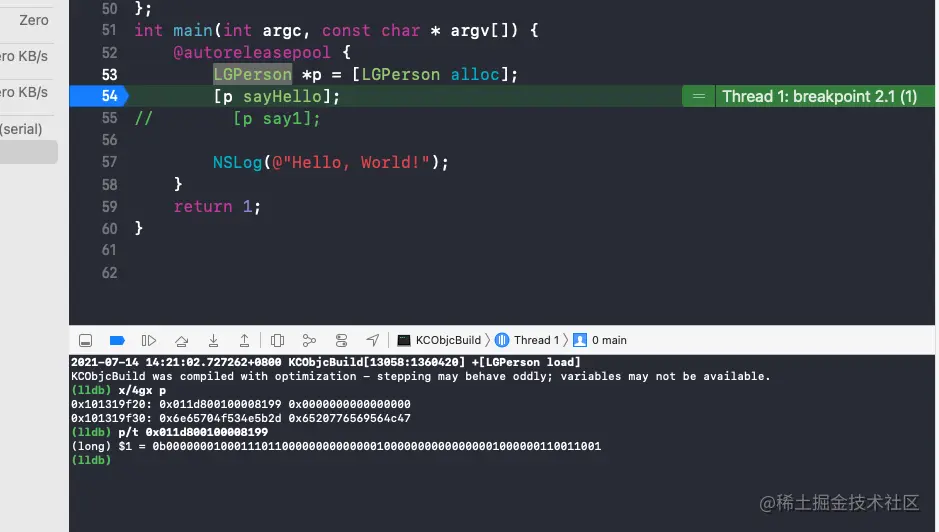

正常情况下我们打印一下实例对象的isa，把他转换成二进制。得到第一位是
1说明nonpointer的值为1，不是纯的isa。

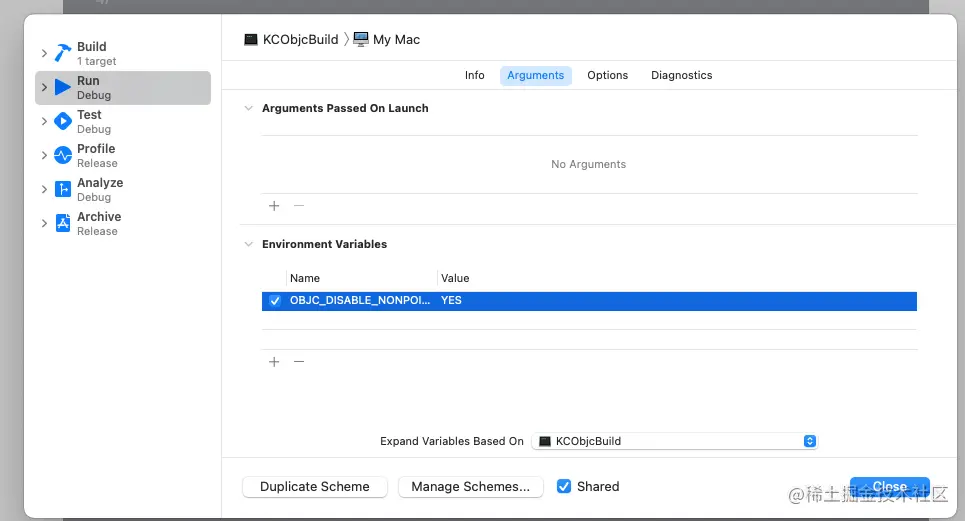

我们在设置里面设置下
OBJC_DISABLE_NONPOINTER_ISA为YES，取反。不是不是纯的isa。

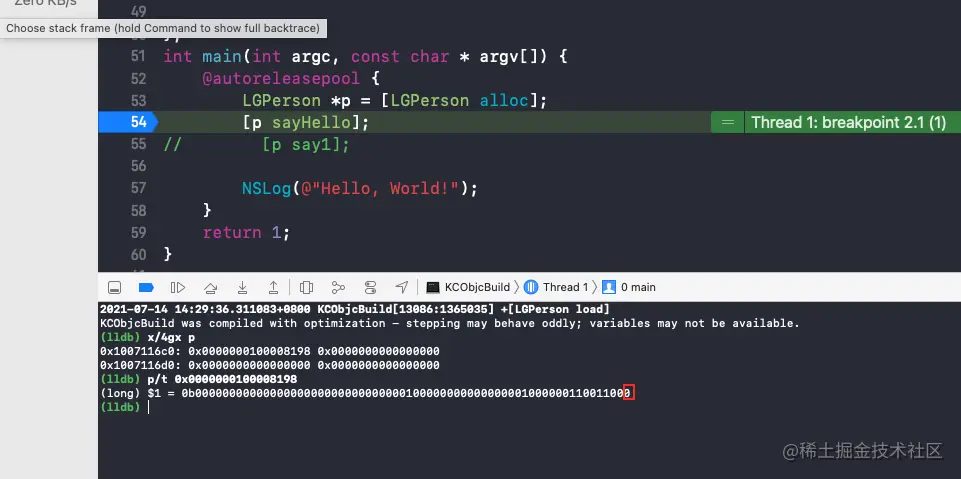

再次打印首位
nonpointer为0，表示是纯的isa

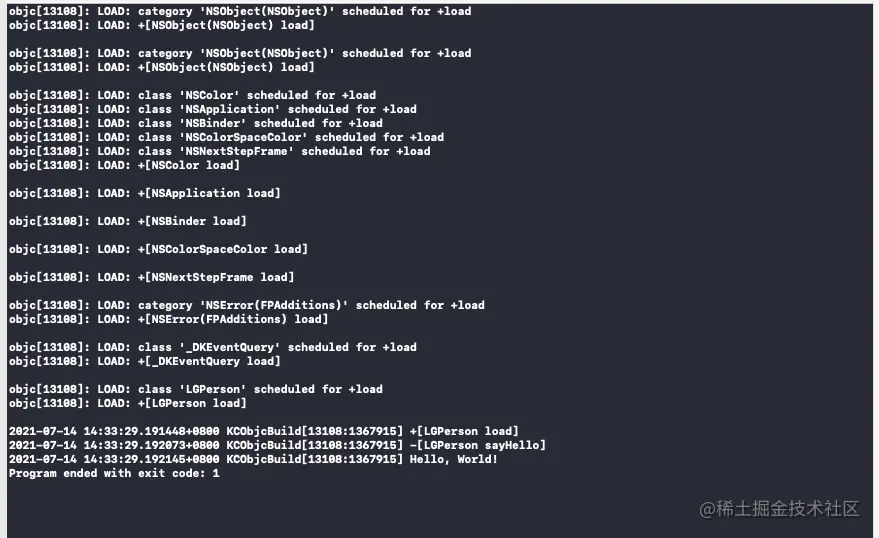

1.1.2 OBJC_PRINT_LOAD_METHODS验证

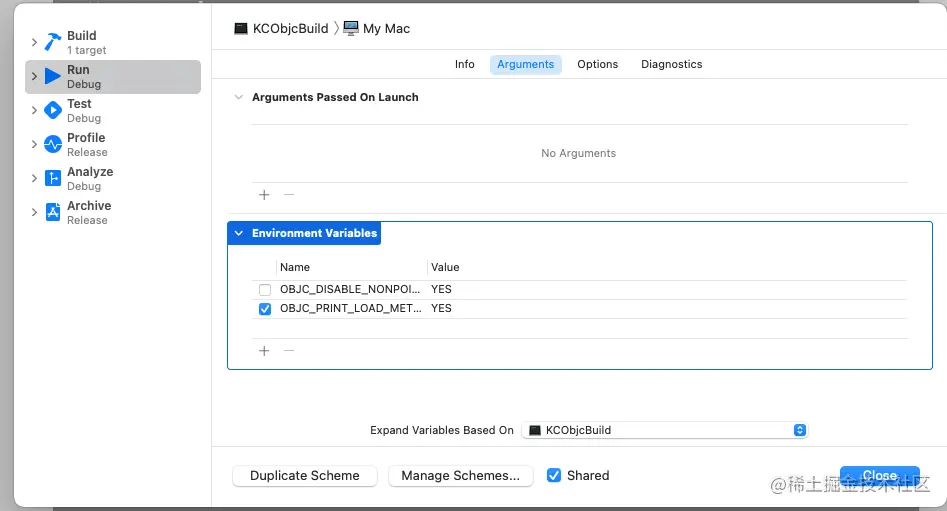

在设置中吧
OBJC_PRINT_LOAD_METHODS设置为YES，打印所有+load方法
可以在开发中，查找+（load）方法调用，进行一些优化，加快app启动时间。
1.2 tls_init()
void tls_init(void)
{
#if SUPPORT_DIRECT_THREAD_KEYS
pthread_key_init_np(TLS_DIRECT_KEY, &_objc_pthread_destroyspecific);
#else
_objc_pthread_key = tls_create(&_objc_pthread_destroyspecific);
#endif
}
void _objc_pthread_destroyspecific(void *arg)
{
_objc_pthread_data *data = (_objc_pthread_data *)arg;
if (data != NULL) {
_destroyInitializingClassList(data->initializingClasses);
_destroySyncCache(data->syncCache);
_destroyAltHandlerList(data->handlerList);
for (int i = 0; i < (int)countof(data->printableNames); i++) {
if (data->printableNames[i]) {
free(data->printableNames[i]);
}
}
free(data->classNameLookups);
// add further cleanup here...
free(data);
}
}
主要是关于线程key的绑定进行初始化，以及每个线程的析构函数
1.3 static_init();
static void static_init()
{
size_t count;
auto inits = getLibobjcInitializers(&_mh_dylib_header, &count);
for (size_t i = 0; i < count; i++) {
inits[i]();
}
auto offsets = getLibobjcInitializerOffsets(&_mh_dylib_header, &count);
for (size_t i = 0; i < count; i++) {
UnsignedInitializer init(offsets[i]);
init();
}
}
运行c++静态构造函数。libc在dyld调用静态构造函数之前调用_objc_init()，
所以我们必须自己做。之前我们知道在实例化镜像是进入doImageInit会先调用_objc_init.执行完doImageInit后会调用doModInitFunctions也就是运行静态构造函数
1.3 runtime_init()
void runtime_init(void)
{
objc::unattachedCategories.init(32);
objc::allocatedClasses.init();
}
runtime运行时初始化，主要是初始化2个表，一个未依附的类目列表初始化，一个是包含所有已经分配的类和元类列表。
1.4 exception_init()
void exception_init(void)
{
old_terminate = std::set_terminate(&_objc_terminate);
}
初始化libobjc异常处理系统，由map_images()回调
/***********************************************************************
* _objc_terminate 结束回调
* Custom std::terminate handler.
*
* The uncaught exception callback is implemented as a std::terminate handler.
未捕获的异常回调被实现为std::terminate处理程序。
* 1. Check if there's an active exception
检查是否有活动异常
* 2. If so, check if it's an Objective-C exception
如果是，检查它是否是一个Objective-C异常
* 3. If so, call our registered callback with the object.
如果是，用该对象调用我们注册的回调函数。
* 4. Finally, call the previous terminate handler.
最后，调用前面的终止处理程序。
**********************************************************************/
static void (*old_terminate)(void) = nil;
static void _objc_terminate(void)
{
if (PrintExceptions) {
_objc_inform("EXCEPTIONS: terminating");
}
if (! __cxa_current_exception_type()) {
// No current exception.
(*old_terminate)();
}
else {
// There is a current exception. Check if it's an objc exception.
//检查下是否是oc类的意外
@try {
__cxa_rethrow();
} @catch (id e) {
// It's an objc object. Call Foundation's handler, if any.
//是oc对象就调用回调处理，默认回调不处理
(*uncaught_handler)((id)e);
(*old_terminate)();
} @catch (...) {
// It's not an objc object. Continue to C++ terminate.
//不是oc对象的话，继续查找C++异常回调处理。oc就不对这个异常处理了
(*old_terminate)();
}
}
}
看下回调处理
/***********************************************************************
* _objc_default_uncaught_exception_handler 默认不会对异常进行处理
* Default uncaught exception handler. Expected to be overridden by Foundation.
**********************************************************************/
static void _objc_default_uncaught_exception_handler(id exception)
{
}
static objc_uncaught_exception_handler uncaught_handler = _objc_default_uncaught_exception_handler;
/***********************************************************************
* objc_setExceptionPreprocessor oc中异常的预处理
* Set a handler for preprocessing Objective-C exceptions. 设置一个回调对于oc中异常的预处理
* Returns the previous handler.
**********************************************************************/
objc_exception_preprocessor
objc_setExceptionPreprocessor(objc_exception_preprocessor fn)
{
objc_exception_preprocessor result = exception_preprocessor;
exception_preprocessor = fn;
return result;
}
我们可以在代码中实现NSSetUncaughtExceptionHandler(&handleCrash)进行崩溃的处理，获取堆栈信息 ，上传一些崩溃日志等，具体可以看下网上开源库AvoidCrash 说明
1.5 cache_t::init()
void cache_t::init()
{
#if HAVE_TASK_RESTARTABLE_RANGES
mach_msg_type_number_t count = 0;
kern_return_t kr;
while (objc_restartableRanges[count].location) {
count++;
}
kr = task_restartable_ranges_register(mach_task_self(),
objc_restartableRanges, count);
if (kr == KERN_SUCCESS) return;
_objc_fatal("task_restartable_ranges_register failed (result 0x%x: %s)",
kr, mach_error_string(kr));
#endif // HAVE_TASK_RESTARTABLE_RANGES
}
缓存条件初始化。
1.6 _imp_implementationWithBlock_init()
void
_imp_implementationWithBlock_init(void)
{
#if TARGET_OS_OSX
// Eagerly load libobjc-trampolines.dylib in certain processes. Some
// programs (most notably QtWebEngineProcess used by older versions of
// embedded Chromium) enable a highly restrictive sandbox profile which
// blocks access to that dylib. If anything calls
// imp_implementationWithBlock (as AppKit has started doing) then we'll
// crash trying to load it. Loading it here sets it up before the sandbox
// profile is enabled and blocks it.
//
// This fixes EA Origin (rdar://problem/50813789)
// and Steam (rdar://problem/55286131)
if (__progname &&
(strcmp(__progname, "QtWebEngineProcess") == 0 ||
strcmp(__progname, "Steam Helper") == 0)) {
Trampolines.Initialize();
}
#endif
}
该方法主要启动回调机制，通常这不会做什么，因为所有的初始化都是惰性的，但是对于某些进程，我们会迫不及待加载trampolines dylib
1.7 _dyld_objc_notify_register
// Note: only for use by objc runtime
// Register handlers to be called when objc images are mapped, unmapped, and initialized.
// Dyld will call back the "mapped" function with an array of images that contain an objc-image-info section.
// Those images that are dylibs will have the ref-counts automatically bumped, so objc will no longer need to
// call dlopen() on them to keep them from being unloaded. During the call to _dyld_objc_notify_register(),
// dyld will call the "mapped" function with already loaded objc images. During any later dlopen() call,
// dyld will also call the "mapped" function. Dyld will call the "init" function when dyld would be called
// initializers in that image. This is when objc calls any +load methods in that image.
//
void _dyld_objc_notify_register(_dyld_objc_notify_mapped mapped,
_dyld_objc_notify_init init,
_dyld_objc_notify_unmapped unmapped);
这个方法是一个注册函数的声明，具体实现在上一篇中dyld中实现。

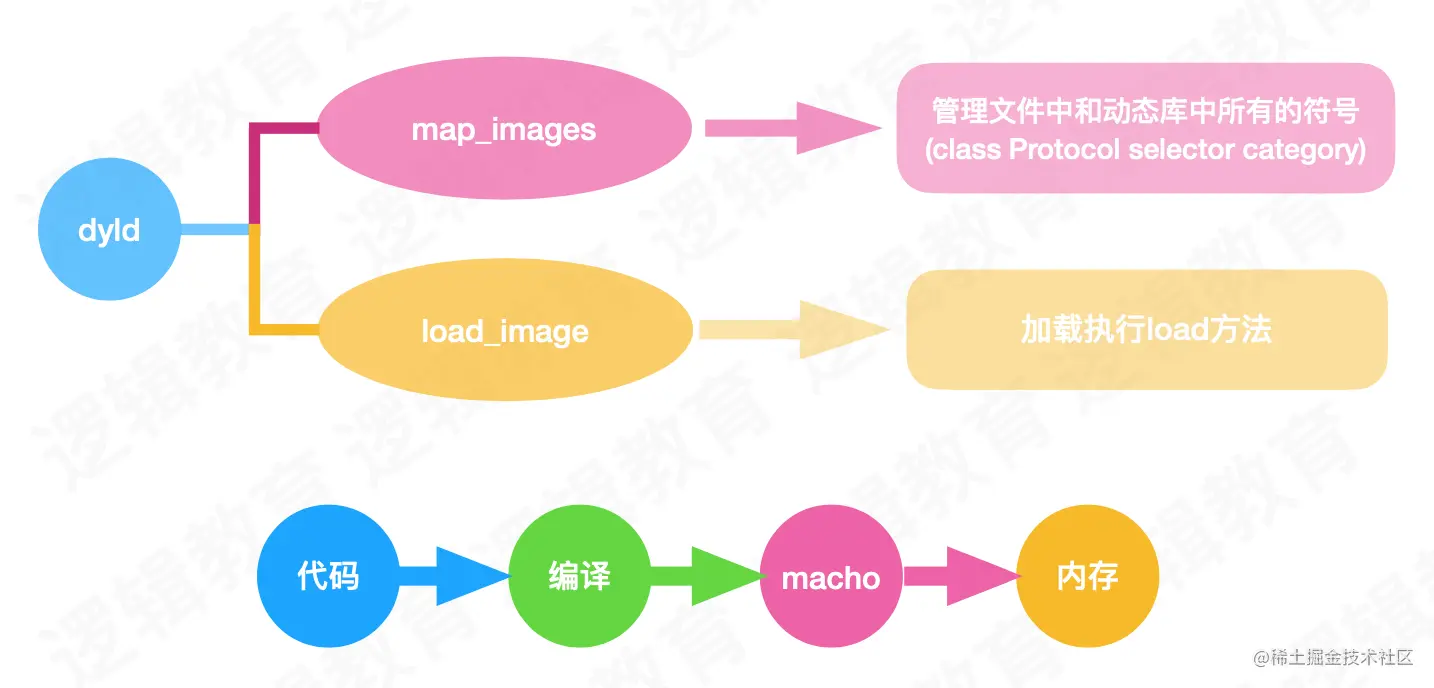

_dyld_objc_notify_register(&map_images, load_images, unmap_image)中有3个参数。
&map_images：引用传递，dyld在映射image镜像到内存时会触发该函数。使用&是因为映射过程耗时的，确保映射后引用的也是最新的。相当于不使用指针，而是使用指针指向的内存内容。load_images：值传递，dyld加载image的时候会触发该函数。unmap_image： 值传递，dyld移除image的时候会触发该函数。
2 _read_images分析
我们看下注册函数中map_images的实现
map_images(unsigned count, const char * const paths[],
const struct mach_header * const mhdrs[])
{
mutex_locker_t lock(runtimeLock);
return map_images_nolock(count, paths, mhdrs);
//处理dyld映射到的给定镜像。
}
看下map_images_nolock的实现
void
map_images_nolock(unsigned mhCount, const char * const mhPaths[],
const struct mach_header * const mhdrs[])
{
static bool firstTime = YES;
header_info *hList[mhCount];
uint32_t hCount;
size_t selrefCount = 0;
// Perform first-time initialization if necessary.
// This function is called before ordinary library initializers.
// fixme defer initialization until an objc-using image is found?
if (firstTime) {
preopt_init();
}
if (PrintImages) {
_objc_inform("IMAGES: processing %u newly-mapped images...\n", mhCount);
}
// Find all images with Objective-C metadata.
//找到所有镜像中oc元数据
hCount = 0;
// Count classes. Size various table based on the total.
//类的数量，大小取决于表的总大小。
int totalClasses = 0;
int unoptimizedTotalClasses = 0;
{
uint32_t i = mhCount;
while (i--) {
const headerType *mhdr = (const headerType *)mhdrs[i];
auto hi = addHeader(mhdr, mhPaths[i], totalClasses, unoptimizedTotalClasses);
if (!hi) {
// no objc data in this entry
continue;
}
if (mhdr->filetype == MH_EXECUTE) {
// Size some data structures based on main executable's size
#if __OBJC2__
// If dyld3 optimized the main executable, then there shouldn't
// be any selrefs needed in the dynamic map so we can just init
// to a 0 sized map
if ( !hi->hasPreoptimizedSelectors() ) {
size_t count;
_getObjc2SelectorRefs(hi, &count);
selrefCount += count;
_getObjc2MessageRefs(hi, &count);
selrefCount += count;
}
#else
_getObjcSelectorRefs(hi, &selrefCount);
#endif
#if SUPPORT_GC_COMPAT
// Halt if this is a GC app.
if (shouldRejectGCApp(hi)) {
_objc_fatal_with_reason
(OBJC_EXIT_REASON_GC_NOT_SUPPORTED,
OS_REASON_FLAG_CONSISTENT_FAILURE,
"Objective-C garbage collection "
"is no longer supported.");
}
#endif
}
hList[hCount++] = hi;
if (PrintImages) {
_objc_inform("IMAGES: loading image for %s%s%s%s%s\n",
hi->fname(),
mhdr->filetype == MH_BUNDLE ? " (bundle)" : "",
hi->info()->isReplacement() ? " (replacement)" : "",
hi->info()->hasCategoryClassProperties() ? " (has class properties)" : "",
hi->info()->optimizedByDyld()?" (preoptimized)":"");
}
}
}
// Perform one-time runtime initialization that must be deferred until
// the executable itself is found. This needs to be done before
// further initialization.
// (The executable may not be present in this infoList if the
// executable does not contain Objective-C code but Objective-C
// is dynamically loaded later.
if (firstTime) {
sel_init(selrefCount);//初始化内部使用的选择器表和注册选择器
arr_init();
#if SUPPORT_GC_COMPAT
// Reject any GC images linked to the main executable.
// We already rejected the app itself above.
// Images loaded after launch will be rejected by dyld.
for (uint32_t i = 0; i < hCount; i++) {
auto hi = hList[i];
auto mh = hi->mhdr();
if (mh->filetype != MH_EXECUTE && shouldRejectGCImage(mh)) {
_objc_fatal_with_reason
(OBJC_EXIT_REASON_GC_NOT_SUPPORTED,
OS_REASON_FLAG_CONSISTENT_FAILURE,
"%s requires Objective-C garbage collection "
"which is no longer supported.", hi->fname());
}
}
#endif
#if TARGET_OS_OSX
// Disable +initialize fork safety if the app is too old (< 10.13).
// Disable +initialize fork safety if the app has a
// __DATA,__objc_fork_ok section.
// if (!dyld_program_sdk_at_least(dyld_platform_version_macOS_10_13)) {
// DisableInitializeForkSafety = true;
// if (PrintInitializing) {
// _objc_inform("INITIALIZE: disabling +initialize fork "
// "safety enforcement because the app is "
// "too old.)");
// }
// }
for (uint32_t i = 0; i < hCount; i++) {
auto hi = hList[i];
auto mh = hi->mhdr();
if (mh->filetype != MH_EXECUTE) continue;
unsigned long size;
if (getsectiondata(hi->mhdr(), "__DATA", "__objc_fork_ok", &size)) {
DisableInitializeForkSafety = true;
if (PrintInitializing) {
_objc_inform("INITIALIZE: disabling +initialize fork "
"safety enforcement because the app has "
"a __DATA,__objc_fork_ok section");
}
}
break; // assume only one MH_EXECUTE image
}
#endif
}
if (hCount > 0) {
_read_images(hList, hCount, totalClasses, unoptimizedTotalClasses);
}
firstTime = NO;
// Call image load funcs after everything is set up.
//在一切设置完成后调用镜像加载函数。
for (auto func : loadImageFuncs) {
for (uint32_t i = 0; i < mhCount; i++) {
func(mhdrs[i]);
}
}
}

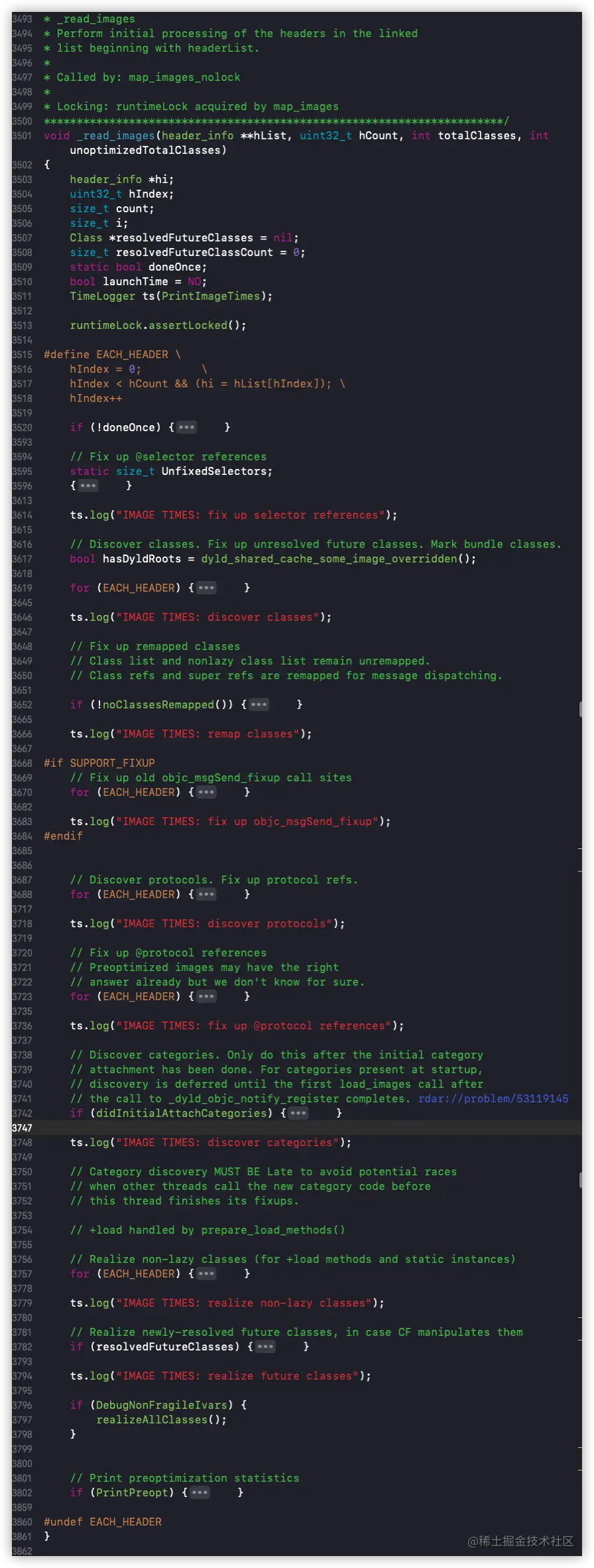

核心是_read_images读取，我们把功能折叠起来看下具体的实现
可以根据
log注释查看具体的读取步骤。
2.1 first time tasks
if (DisableTaggedPointers) {
disableTaggedPointers();//不可用小对象处理
}
initializeTaggedPointerObfuscator();//初始化小端混淆器
if (PrintConnecting) {
_objc_inform("CLASS: found %d classes during launch", totalClasses);
}
// namedClasses
// Preoptimized classes don't go in this table.预优化的类不在这个表中。
// 4/3 is NXMapTable's load factor 加载因子
int namedClassesSize =
(isPreoptimized() ? unoptimizedTotalClasses : totalClasses) * 4 / 3;
//计算大小 创建空间的时候实际大小是，实际大小 = 创建大小*3/4 那么现在要得到创建大小则 = 实际大小*4/3
gdb_objc_realized_classes =
NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);
//gdb_objc_realized_classes实际上是一个列表，命名类不在dyld共享缓存中，无论是否实现。这个列表排除了惰性命名的类，这些类必须被查找使用getClass钩子。
ts.log("IMAGE TIMES: first time tasks");
条件控制完成一次加载。
2.2 fix up selector references
static size_t UnfixedSelectors;
{
mutex_locker_t lock(selLock);
for (EACH_HEADER) {
if (hi->hasPreoptimizedSelectors()) continue;
bool isBundle = hi->isBundle();
SEL *sels = _getObjc2SelectorRefs(hi, &count);
UnfixedSelectors += count;
for (i = 0; i < count; i++) {
const char *name = sel_cname(sels[i]);
SEL sel = sel_registerNameNoLock(name, isBundle);
if (sels[i] != sel) {
sels[i] = sel;
}
}
}
}

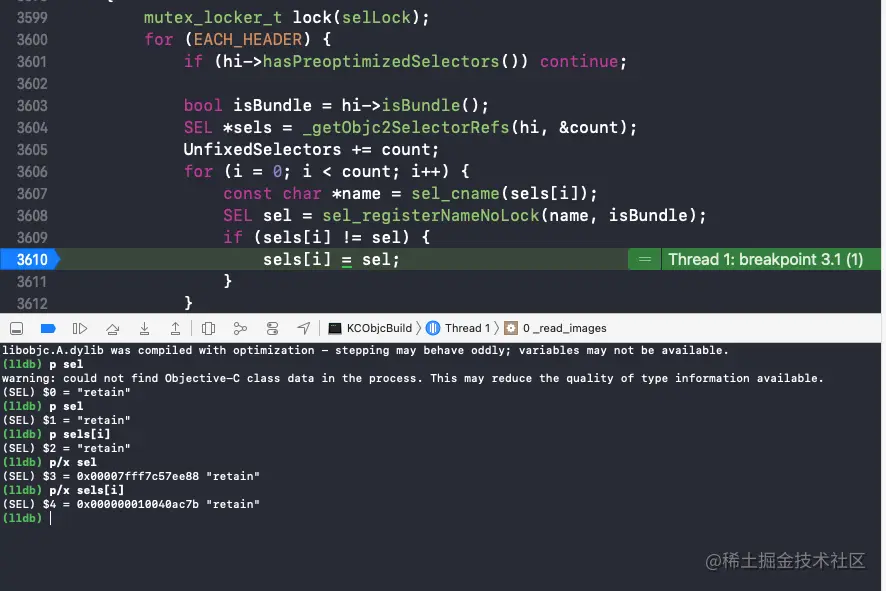

修复预编译阶段 @selector混乱问题。
2个
方法名相同，但是还是进入了判断条件,因为他们指针指向的地址内容不一样，imp不一样，所以要统一，避免混乱。== 的含义是指对象不仅指针一样，指针指向的内容也是一样的。
2.3 discover classes
// Discover classes. Fix up unresolved future classes. Mark bundle classes.
// 查找所有类，修复一些即将要移除的类 标记这些类。
bool hasDyldRoots = dyld_shared_cache_some_image_overridden();
for (EACH_HEADER) {
if (! mustReadClasses(hi, hasDyldRoots)) {
// Image is sufficiently optimized that we need not call readClass()
continue;
}
classref_t const *classlist = _getObjc2ClassList(hi, &count);
bool headerIsBundle = hi->isBundle();
bool headerIsPreoptimized = hi->hasPreoptimizedClasses();
for (i = 0; i < count; i++) {
Class cls = (Class)classlist[i];
Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);
if (newCls != cls && newCls) {
// Class was moved but not deleted. Currently this occurs
// only when the new class resolved a future class.
// Non-lazily realize the class below.
// 类已经移除了但是还没来及删除，此时发生一个新的类要解决这个未来的类，不是懒加载实现的这个类之后。
resolvedFutureClasses = (Class *)
realloc(resolvedFutureClasses,
(resolvedFutureClassCount+1) * sizeof(Class));
resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
}
}
}
ts.log("IMAGE TIMES: discover classes");
查找所有类，修复一些即将要移除的类 标记这些类，错误混乱的类的处理
2.4 remap classes
// Fix up remapped classes修复重新映射的类
// Class list and nonlazy class list remain unremapped.类列表和非惰性类列表保持未重映射。
// Class refs and super refs are remapped for message dispatching.
if (!noClassesRemapped()) {
for (EACH_HEADER) {
Class *classrefs = _getObjc2ClassRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
// fixme why doesn't test future1 catch the absence of this?
classrefs = _getObjc2SuperRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
}
}
修复一些没有被镜像文件加载进来的类
2.5 objc_msgSend_fixup
// Fix up old objc_msgSend_fixup call sites修复旧的objc_msgSend_fixup调用站点
for (EACH_HEADER) {
message_ref_t *refs = _getObjc2MessageRefs(hi, &count);
if (count == 0) continue;
if (PrintVtables) {
_objc_inform("VTABLES: repairing %zu unsupported vtable dispatch "
"call sites in %s", count, hi->fname());
}
for (i = 0; i < count; i++) {
fixupMessageRef(refs+i);
}
}
ts.log("IMAGE TIMES: fix up objc_msgSend_fixup");
修复一些消息
2.6 discover protocols
// Discover protocols. Fix up protocol refs.//查找未被加载的协议进行修复
for (EACH_HEADER) {
extern objc_class OBJC_CLASS_$_Protocol;
Class cls = (Class)&OBJC_CLASS_$_Protocol;
ASSERT(cls);
NXMapTable *protocol_map = protocols();
bool isPreoptimized = hi->hasPreoptimizedProtocols();
// Skip reading protocols if this is an image from the shared cache
// and we support roots
// Note, after launch we do need to walk the protocol as the protocol
// in the shared cache is marked with isCanonical() and that may not
// be true if some non-shared cache binary was chosen as the canonical
// definition
//如果这是来自共享缓存的镜像，则跳过读取协议。在启动后，我们需要遍历协议作为协议，在共享缓存中标记isCanonical()，如果选择非共享缓存二进制文件作为规范，则为true
if (launchTime && isPreoptimized) {
if (PrintProtocols) {
_objc_inform("PROTOCOLS: Skipping reading protocols in image: %s",
hi->fname());
}
continue;
}
bool isBundle = hi->isBundle();
protocol_t * const *protolist = _getObjc2ProtocolList(hi, &count);
for (i = 0; i < count; i++) {
readProtocol(protolist[i], cls, protocol_map,
isPreoptimized, isBundle);
}
}
ts.log("IMAGE TIMES: discover protocols");
类里面有协议的话，读取协议readProtocol
2.7 fix up @protocol references
// Fix up @protocol references 修复协议的引用
// Preoptimized images may have the right 预优化的镜像可能有权限
// answer already but we don't know for sure.
for (EACH_HEADER) {
// At launch time, we know preoptimized image refs are pointing at the
// shared cache definition of a protocol. We can skip the check on
// launch, but have to visit @protocol refs for shared cache images
// loaded later.
if (launchTime && hi->isPreoptimized())
continue;
protocol_t **protolist = _getObjc2ProtocolRefs(hi, &count);
for (i = 0; i < count; i++) {
remapProtocolRef(&protolist[i]);
}
}
ts.log("IMAGE TIMES: fix up @protocol references");
修复没有被加载的协议
2.8 discover categories
// Discover categories. Only do this after the initial category
// attachment has been done. For categories present at startup,
// discovery is deferred until the first load_images call after
// the call to _dyld_objc_notify_register completes. rdar://problem/53119145
if (didInitialAttachCategories) {
for (EACH_HEADER) {
load_categories_nolock(hi);
}
}
ts.log("IMAGE TIMES: discover categories");
分类处理
2.9 realize non-lazy classes
// Category discovery MUST BE Late to avoid potential races
// when other threads call the new category code before
// this thread finishes its fixups.
// +load handled by prepare_load_methods()
// Realize non-lazy classes (for +load methods and static instances)
//实现非惰性类(用于+加载方法和静态实例)
for (EACH_HEADER) {
classref_t const *classlist = hi->nlclslist(&count);
for (i = 0; i < count; i++) {
Class cls = remapClass(classlist[i]);
if (!cls) continue;
addClassTableEntry(cls);
if (cls->isSwiftStable()) {
if (cls->swiftMetadataInitializer()) {
_objc_fatal("Swift class %s with a metadata initializer "
"is not allowed to be non-lazy",
cls->nameForLogging());
}
// fixme also disallow relocatable classes
// We can't disallow all Swift classes because of
// classes like Swift.__EmptyArrayStorage
}
realizeClassWithoutSwift(cls, nil);
}
}
ts.log("IMAGE TIMES: realize non-lazy classes");
类的加载处理
2.10 realize future classes
// Realize newly-resolved future classes, in case CF manipulates them
//实现新解析的未来类，以防CF操纵它们
if (resolvedFutureClasses) {
for (i = 0; i < resolvedFutureClassCount; i++) {
Class cls = resolvedFutureClasses[i];
if (cls->isSwiftStable()) {
_objc_fatal("Swift class is not allowed to be future");
}
realizeClassWithoutSwift(cls, nil);
cls->setInstancesRequireRawIsaRecursively(false/*inherited*/);
}
free(resolvedFutureClasses);
}
ts.log("IMAGE TIMES: realize future classes");
没有被处理的类，优化那些被侵犯的类。
3. realizeClassWithoutSwift（oc类的实现）
static Class realizeClassWithoutSwift(Class cls, Class previously)
{
runtimeLock.assertLocked();
class_rw_t *rw;
Class supercls;
Class metacls;
if (!cls) return nil;
if (cls->isRealized()) {
validateAlreadyRealizedClass(cls);
return cls;
}
ASSERT(cls == remapClass(cls));
// fixme verify class is not in an un-dlopened part of the shared cache?
auto ro = (const class_ro_t *)cls->data();
auto isMeta = ro->flags & RO_META;
if (ro->flags & RO_FUTURE) {
// This was a future class. rw data is already allocated.
rw = cls->data();
ro = cls->data()->ro();
ASSERT(!isMeta);
cls->changeInfo(RW_REALIZED|RW_REALIZING, RW_FUTURE);
} else {
// Normal class. Allocate writeable class data.
rw = objc::zalloc<class_rw_t>();
rw->set_ro(ro);
rw->flags = RW_REALIZED|RW_REALIZING|isMeta;
cls->setData(rw);
}
cls->cache.initializeToEmptyOrPreoptimizedInDisguise();
#if FAST_CACHE_META
if (isMeta) cls->cache.setBit(FAST_CACHE_META);
#endif
// Choose an index for this class.
// Sets cls->instancesRequireRawIsa if indexes no more indexes are available
cls->chooseClassArrayIndex();
if (PrintConnecting) {
_objc_inform("CLASS: realizing class '%s'%s %p %p #%u %s%s",
cls->nameForLogging(), isMeta ? " (meta)" : "",
(void*)cls, ro, cls->classArrayIndex(),
cls->isSwiftStable() ? "(swift)" : "",
cls->isSwiftLegacy() ? "(pre-stable swift)" : "");
}
// Realize superclass and metaclass, if they aren't already.
// This needs to be done after RW_REALIZED is set above, for root classes.
// This needs to be done after class index is chosen, for root metaclasses.
// This assumes that none of those classes have Swift contents,
// or that Swift's initializers have already been called.
// fixme that assumption will be wrong if we add support
// for ObjC subclasses of Swift classes.
supercls = realizeClassWithoutSwift(remapClass(cls->getSuperclass()), nil);
metacls = realizeClassWithoutSwift(remapClass(cls->ISA()), nil);
#if SUPPORT_NONPOINTER_ISA
if (isMeta) {
// Metaclasses do not need any features from non pointer ISA
// This allows for a faspath for classes in objc_retain/objc_release.
cls->setInstancesRequireRawIsa();
} else {
// Disable non-pointer isa for some classes and/or platforms.
// Set instancesRequireRawIsa.
bool instancesRequireRawIsa = cls->instancesRequireRawIsa();
bool rawIsaIsInherited = false;
static bool hackedDispatch = false;
if (DisableNonpointerIsa) {
// Non-pointer isa disabled by environment or app SDK version
instancesRequireRawIsa = true;
}
else if (!hackedDispatch && 0 == strcmp(ro->getName(), "OS_object"))
{
// hack for libdispatch et al - isa also acts as vtable pointer
hackedDispatch = true;
instancesRequireRawIsa = true;
}
else if (supercls && supercls->getSuperclass() &&
supercls->instancesRequireRawIsa())
{
// This is also propagated by addSubclass()
// but nonpointer isa setup needs it earlier.
// Special case: instancesRequireRawIsa does not propagate
// from root class to root metaclass
instancesRequireRawIsa = true;
rawIsaIsInherited = true;
}
if (instancesRequireRawIsa) {
cls->setInstancesRequireRawIsaRecursively(rawIsaIsInherited);
}
}
// SUPPORT_NONPOINTER_ISA
#endif
// Update superclass and metaclass in case of remapping
cls->setSuperclass(supercls);
cls->initClassIsa(metacls);
// Reconcile instance variable offsets / layout.
// This may reallocate class_ro_t, updating our ro variable.
if (supercls && !isMeta) reconcileInstanceVariables(cls, supercls, ro);
// Set fastInstanceSize if it wasn't set already.
cls->setInstanceSize(ro->instanceSize);
// Copy some flags from ro to rw
if (ro->flags & RO_HAS_CXX_STRUCTORS) {
cls->setHasCxxDtor();
if (! (ro->flags & RO_HAS_CXX_DTOR_ONLY)) {
cls->setHasCxxCtor();
}
}
// Propagate the associated objects forbidden flag from ro or from
// the superclass.
if ((ro->flags & RO_FORBIDS_ASSOCIATED_OBJECTS) ||
(supercls && supercls->forbidsAssociatedObjects()))
{
rw->flags |= RW_FORBIDS_ASSOCIATED_OBJECTS;
}
// Connect this class to its superclass's subclass lists
if (supercls) {
addSubclass(supercls, cls);
} else {
addRootClass(cls);
}
// Attach categories
methodizeClass(cls, previously);
return cls;
}
终于来到了我们想要了解日常写的代码是如何加载的地方了。
4 总结
在编译过程中，我们把我们上层的代码转换成中间代码，在经过dyld链接动态库，运行所有初始化程序的时候其中初始化objc库，进入objc_init。其中包括objc环境初始化处理，线程key初始化处理，静态构造函数处理，运行时初始化处理，缓存初始化处理，启动回调机制。
类的加载的一种方式是在map_images中read_images实现realizeClassWithoutSwift，后面将会继续探索realizeClassWithoutSwift中类的具体实现。
