MyBatis温故而知新-注解解析SQL

前言

上文我先分析了MyBatis使用XML配置的方式是如何解析SQL的,那么MyBatis还有注解开发的方式,一些简单的查询使用注解更方便简洁些。 XML配置的方式我们知道框架底层解析的最后就是调用configuration.addMappedStatementf方法,那么注解是什么一个情况呢? ​

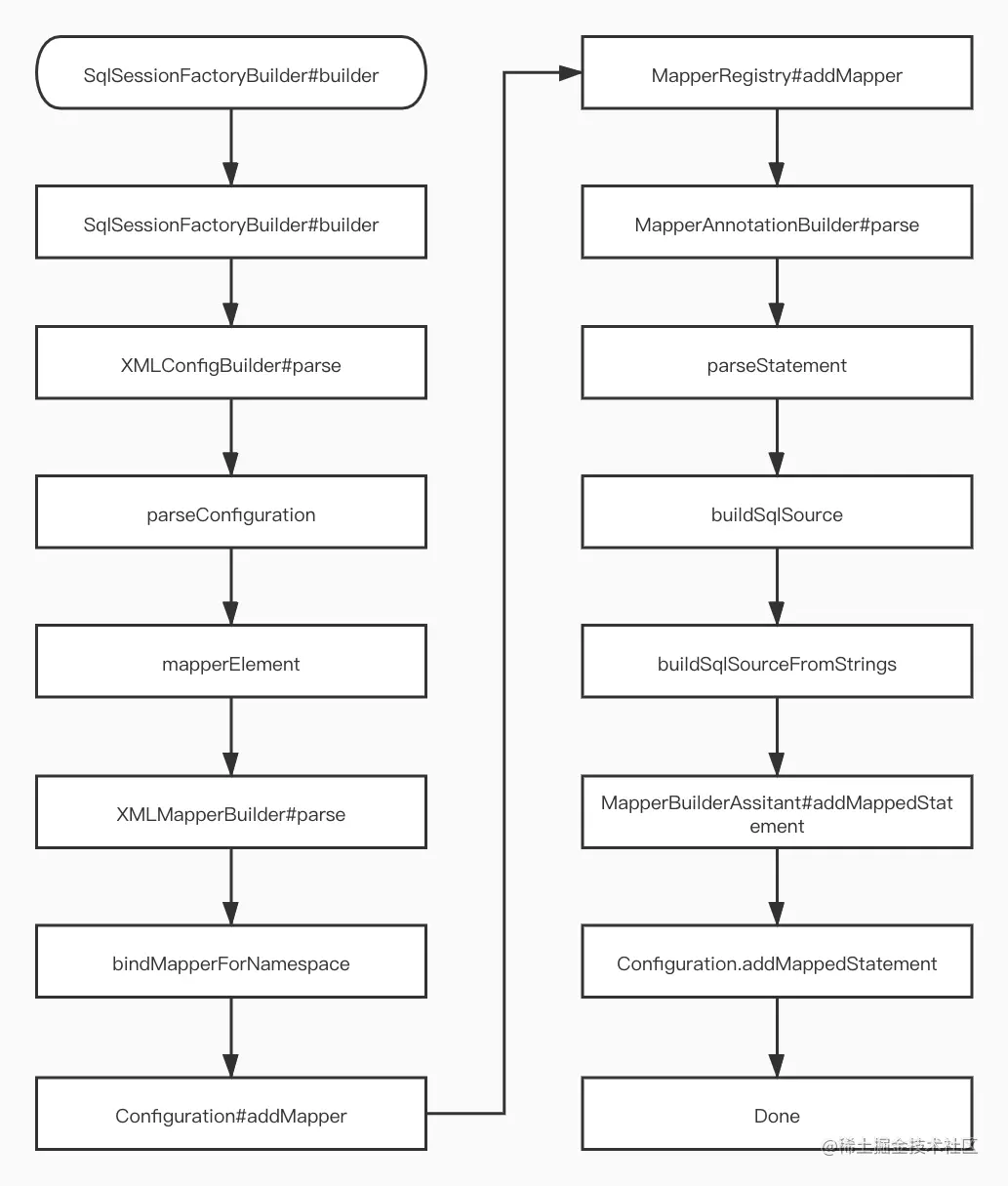

注解解析SQL调用链


解析SQL过程

 public Configuration parse() {
   if (parsed) {
      throw new BuilderException("Each XMLConfigBuilder can only be used once.");
   }
   parsed = true;
   parseConfiguration(parser.evalNode("/configuration"));
   return configuration;
 }
复制代码
private void parseConfiguration(XNode root) {
    try {
        propertiesElement(root.evalNode("properties"));
        Properties settings = settingsAsProperties(root.evalNode("settings"));
        loadCustomVfs(settings);
        loadCustomLogImpl(settings);
        typeAliasesElement(root.evalNode("typeAliases"));
        pluginElement(root.evalNode("plugins"));
        objectFactoryElement(root.evalNode("objectFactory"));
        objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
        reflectorFactoryElement(root.evalNode("reflectorFactory"));
        settingsElement(settings);
        // read it after objectFactory and objectWrapperFactory issue #631
        environmentsElement(root.evalNode("environments"));
        databaseIdProviderElement(root.evalNode("databaseIdProvider"));
        typeHandlerElement(root.evalNode("typeHandlers"));
        mapperElement(root.evalNode("mappers"));
    } catch (Exception e) {
        throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
    }
}
复制代码
private void mapperElement(XNode parent) throws Exception {
    if (parent != null) {
      for (XNode child : parent.getChildren()) {
        if ("package".equals(child.getName())) {
          String mapperPackage = child.getStringAttribute("name");
          configuration.addMappers(mapperPackage);
        } else {
          String resource = child.getStringAttribute("resource");
          String url = child.getStringAttribute("url");
          String mapperClass = child.getStringAttribute("class");
          if (resource != null && url == null && mapperClass == null) {
            ErrorContext.instance().resource(resource);
            try(InputStream inputStream = Resources.getResourceAsStream(resource)) {
              XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, resource, configuration.getSqlFragments());
              mapperParser.parse();
            }
          } else if (resource == null && url != null && mapperClass == null) {
            ErrorContext.instance().resource(url);
            try(InputStream inputStream = Resources.getUrlAsStream(url)){
              XMLMapperBuilder mapperParser = new XMLMapperBuilder(inputStream, configuration, url, configuration.getSqlFragments());
              mapperParser.parse();
            }
          } else if (resource == null && url == null && mapperClass != null) {
            Class<?> mapperInterface = Resources.classForName(mapperClass);
            configuration.addMapper(mapperInterface);
          } else {
            throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
          }
        }
      }
    }
  }
复制代码

XMLMapperBuilder#parse

public void parse() {
    if (!configuration.isResourceLoaded(resource)) {
      configurationElement(parser.evalNode("/mapper"));
      configuration.addLoadedResource(resource);
      bindMapperForNamespace();
    }

    parsePendingResultMaps();
    parsePendingCacheRefs();
    parsePendingStatements();
  }
复制代码

解析namespace

private void bindMapperForNamespace() {
    String namespace = builderAssistant.getCurrentNamespace();
    if (namespace != null) {
        Class<?> boundType = null;
        try {
            boundType = Resources.classForName(namespace);
        } catch (ClassNotFoundException e) {

        }
        if (boundType != null && !configuration.hasMapper(boundType)) {
            configuration.addLoadedResource("namespace:" + namespace);
            configuration.addMapper(boundType);
        }
    }
}
复制代码

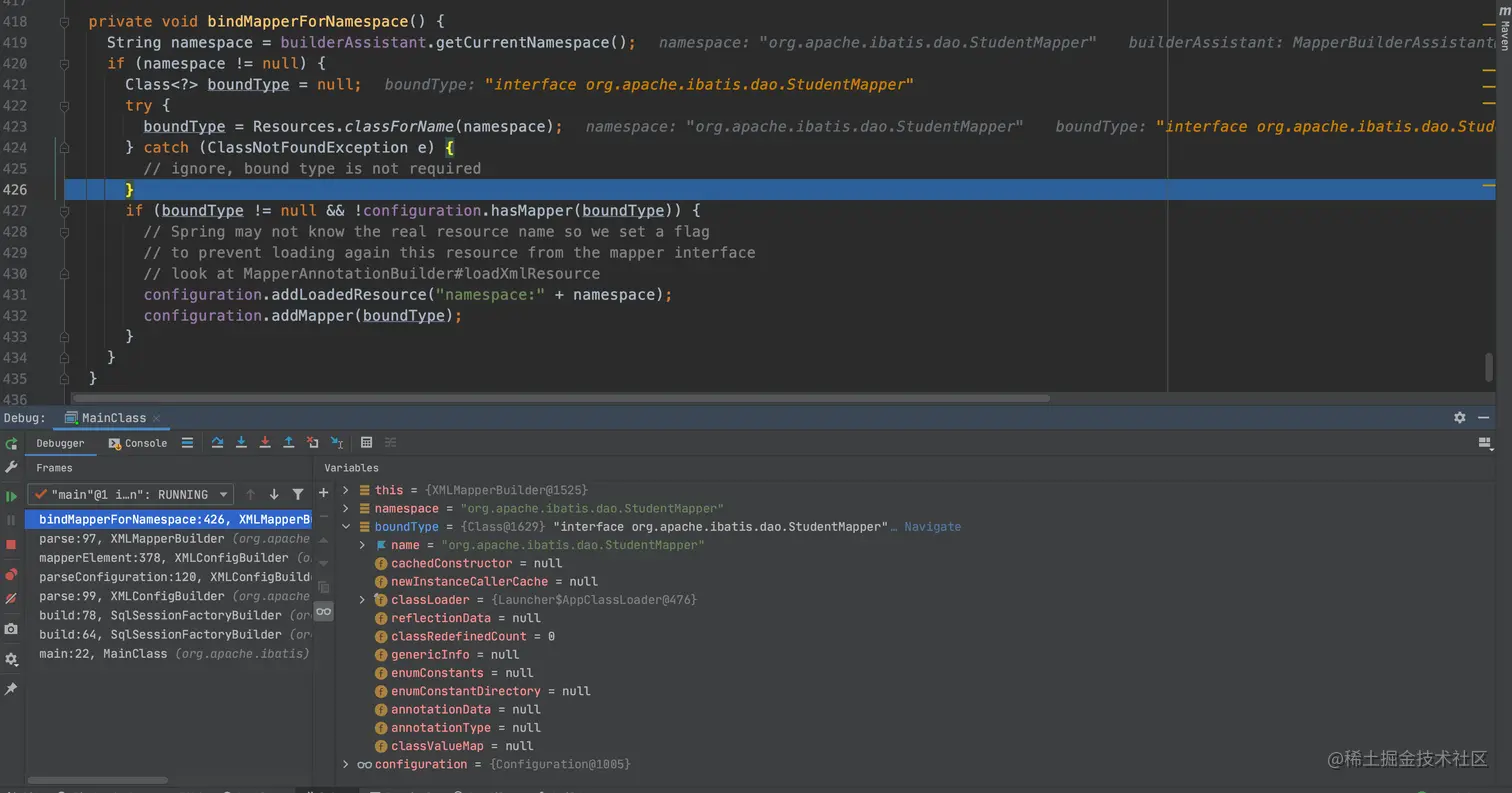

截屏2021-07-06 21.33.52.png

Configuration#addMapper

public <T> void addMapper(Class<T> type) {
    mapperRegistry.addMapper(type);
}
复制代码

MapperRegistry#addMapper

public <T> void addMapper(Class<T> type) {
    if (type.isInterface()) {
        if (hasMapper(type)) {
            throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
        }
        boolean loadCompleted = false;
        try {
            knownMappers.put(type, new MapperProxyFactory<>(type));
            MapperAnnotationBuilder parser = new MapperAnnotationBuilder(config, type);
            //这里开始解析Annotation
            parser.parse();
            loadCompleted = true;
        } finally {
            if (!loadCompleted) {
                knownMappers.remove(type);
            }
        }
    }
}
复制代码

MapperAnnotationBuilder#parse

public void parse() {
    //type就是当前mapper接口的class对象
    String resource = type.toString();
    if (!configuration.isResourceLoaded(resource)) {
        loadXmlResource();
        configuration.addLoadedResource(resource);
        assistant.setCurrentNamespace(type.getName());
        parseCache();
        parseCacheRef();
        for (Method method : type.getMethods()) {
            if (!canHaveStatement(method)) {
                continue;
            }
            if (getAnnotationWrapper(method, false, Select.class, SelectProvider.class).isPresent()
                && method.getAnnotation(ResultMap.class) == null) {
                parseResultMap(method);
            }
            try {
                parseStatement(method);
            } catch (IncompleteElementException e) {
                configuration.addIncompleteMethod(new MethodResolver(this, method));
            }
        }
    }
    parsePendingMethods();
}
复制代码

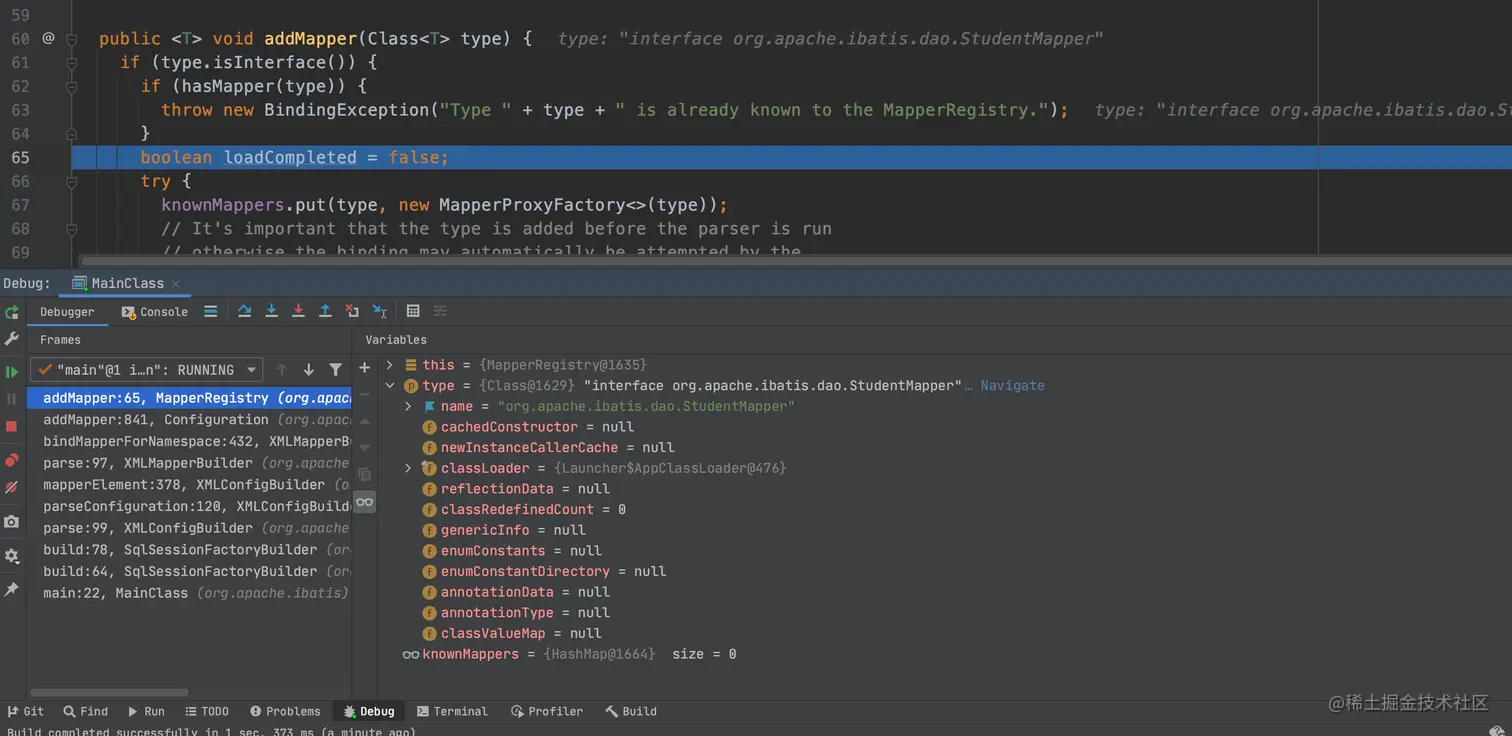

截屏2021-07-06 21.34.12.png

MapperAnnotationBuilder#parseStatement

这个方法的最后我们已经看到了assistant.addMappedStatement方法了,这个方法内部就是调用Configuration.addMappedStatement。

void parseStatement(Method method) {
    final Class<?> parameterTypeClass = getParameterType(method);
    final LanguageDriver languageDriver = getLanguageDriver(method);

    getAnnotationWrapper(method, true, statementAnnotationTypes).ifPresent(statementAnnotation -> {
        //根据注解获取对应的SqlSource
        final SqlSource sqlSource = buildSqlSource(statementAnnotation.getAnnotation(), parameterTypeClass, languageDriver, method);
        //获取注解的sql命令类型
        final SqlCommandType sqlCommandType = statementAnnotation.getSqlCommandType();
        final Options options = getAnnotationWrapper(method, false, Options.class).map(x -> (Options)x.getAnnotation()).orElse(null);
        final String mappedStatementId = type.getName() + "." + method.getName();

        final KeyGenerator keyGenerator;
        String keyProperty = null;
        String keyColumn = null;
        if (SqlCommandType.INSERT.equals(sqlCommandType) || SqlCommandType.UPDATE.equals(sqlCommandType)) {

            SelectKey selectKey = getAnnotationWrapper(method, false, SelectKey.class).map(x -> (SelectKey)x.getAnnotation()).orElse(null);
            if (selectKey != null) {
                keyGenerator = handleSelectKeyAnnotation(selectKey, mappedStatementId, getParameterType(method), languageDriver);
                keyProperty = selectKey.keyProperty();
            } else if (options == null) {
                keyGenerator = configuration.isUseGeneratedKeys() ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
            } else {
                keyGenerator = options.useGeneratedKeys() ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
                keyProperty = options.keyProperty();
                keyColumn = options.keyColumn();
            }
        } else {
            keyGenerator = NoKeyGenerator.INSTANCE;
        }

        Integer fetchSize = null;
        Integer timeout = null;
        StatementType statementType = StatementType.PREPARED;
        ResultSetType resultSetType = configuration.getDefaultResultSetType();
        boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
        boolean flushCache = !isSelect;
        boolean useCache = isSelect;
        if (options != null) {
            if (FlushCachePolicy.TRUE.equals(options.flushCache())) {
                flushCache = true;
            } else if (FlushCachePolicy.FALSE.equals(options.flushCache())) {
                flushCache = false;
            }
            useCache = options.useCache();
            fetchSize = options.fetchSize() > -1 || options.fetchSize() == Integer.MIN_VALUE ? options.fetchSize() : null; //issue #348
            timeout = options.timeout() > -1 ? options.timeout() : null;
            statementType = options.statementType();
            if (options.resultSetType() != ResultSetType.DEFAULT) {
                resultSetType = options.resultSetType();
            }
        }

        String resultMapId = null;
        if (isSelect) {
            ResultMap resultMapAnnotation = method.getAnnotation(ResultMap.class);
            if (resultMapAnnotation != null) {
                resultMapId = String.join(",", resultMapAnnotation.value());
            } else {
                resultMapId = generateResultMapName(method);
            }
        }

        assistant.addMappedStatement(
            mappedStatementId,
            sqlSource,
            statementType,
            sqlCommandType,
            fetchSize,
            timeout,
            // ParameterMapID
            null,
            parameterTypeClass,
            resultMapId,
            getReturnType(method),
            resultSetType,
            flushCache,
            useCache,
            // TODO gcode issue #577
            false,
            keyGenerator,
            keyProperty,
            keyColumn,
            statementAnnotation.getDatabaseId(),
            languageDriver,
            // ResultSets
            options != null ? nullOrEmpty(options.resultSets()) : null);
    });
}
复制代码
