8.ios-runtime 初探 _objc_msgSend 慢速查找流程

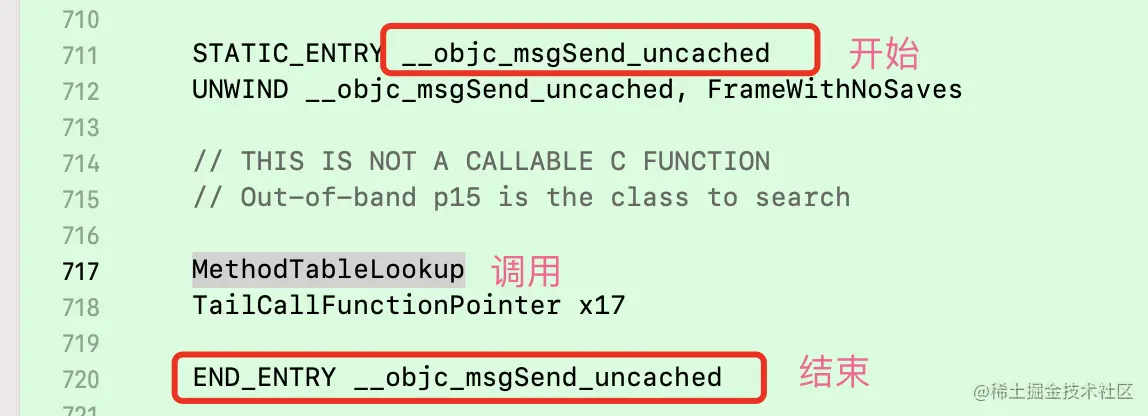

当无法在缓存中找到方法时,cbz p9, \MissLabelDynamic 调用__objc_msgSend_uncached

lookUpImpOrForward



  • IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)


  • 为什么用汇编查找缓存,慢速查找则使用c++,
    • 1.汇编查找缓存更加快速查找
    • 2.参数未知,汇编则更加动态化
- 是一个遍历methodlist的过程

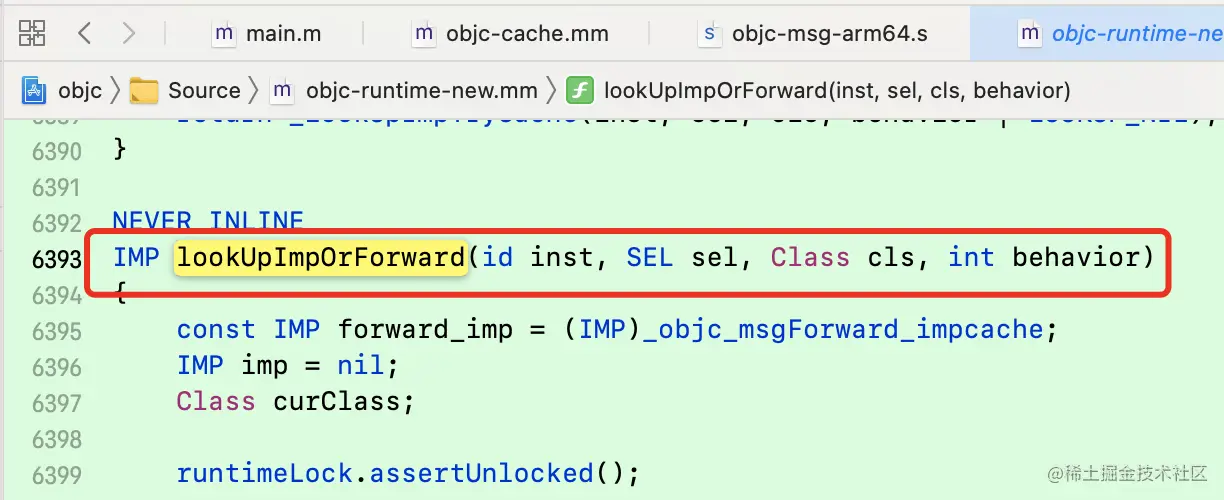

IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)
{
    const IMP forward_imp = (IMP)_objc_msgForward_impcache;
    IMP imp = nil;
    Class curClass;

    runtimeLock.assertUnlocked();

    if (slowpath(!cls->isInitialized())) {
        //...
        behavior |= LOOKUP_NOCACHE;
    }
    //...
    runtimeLock.lock();
    //...
    checkIsKnownClass(cls); //判断class是否已经完成注册

    cls = realizeAndInitializeIfNeeded_locked(inst, cls, behavior & LOOKUP_INITIALIZE);
    // runtimeLock may have been dropped but is now locked again
    runtimeLock.assertLocked();
    curClass = cls;

    //..
    for (unsigned attempts = unreasonableClassCount();;) {

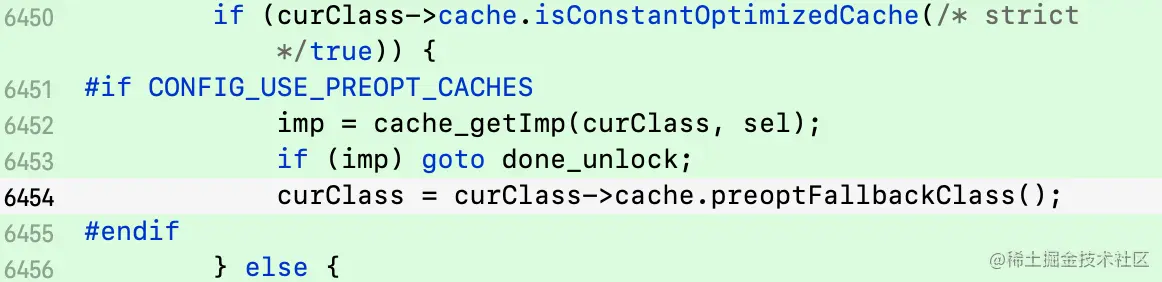

        if (curClass->cache.isConstantOptimizedCache(/* strict */true)) {
#if CONFIG_USE_PREOPT_CACHES //是否有共享缓存
            imp = cache_getImp(curClass, sel);
            if (imp) goto done_unlock;
            curClass = curClass->cache.preoptFallbackClass();
#endif
        } else {

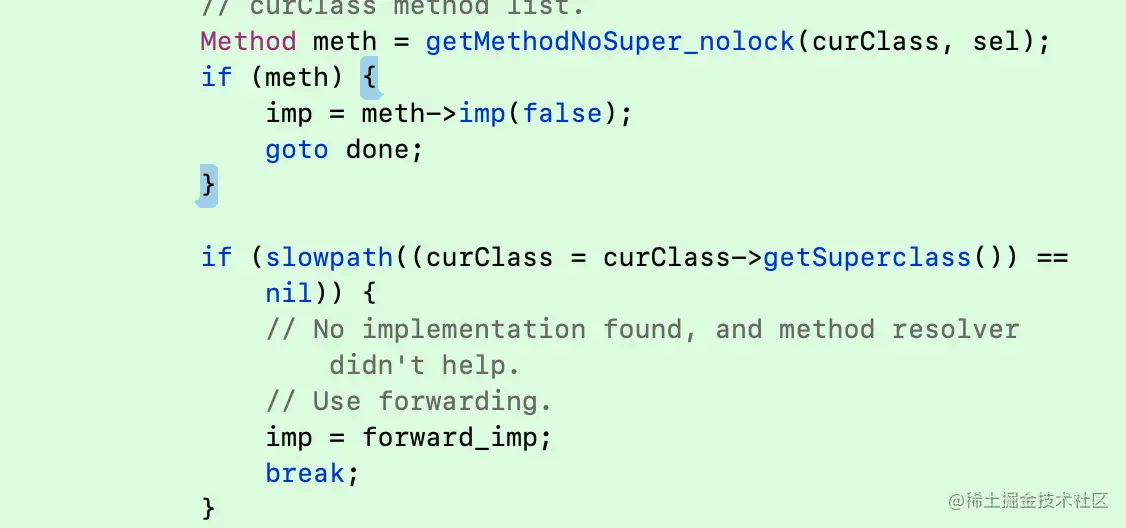

            // curClass method list.
            Method meth = getMethodNoSuper_nolock(curClass, sel);

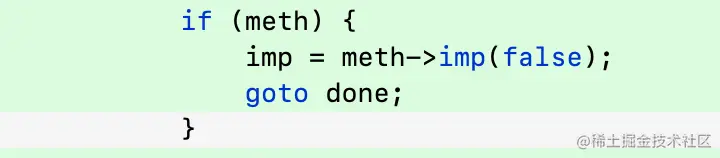

            if (meth) {
                imp = meth->imp(false);
                goto done;
            }

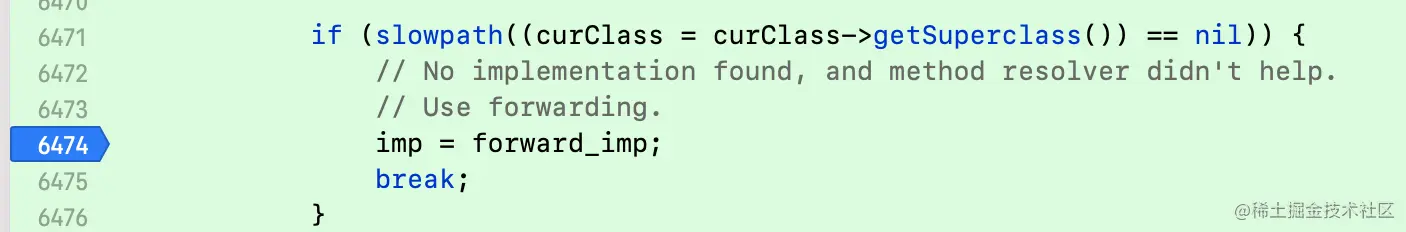

            if (slowpath((curClass = curClass->getSuperclass()) == nil)) {
                // No implementation found, and method resolver didn't help.
                // Use forwarding.
                imp = forward_imp;
                break;
            }
        }

        // Halt if there is a cycle in the superclass chain.
        if (slowpath(--attempts == 0)) {
            _objc_fatal("Memory corruption in class list.");
        }

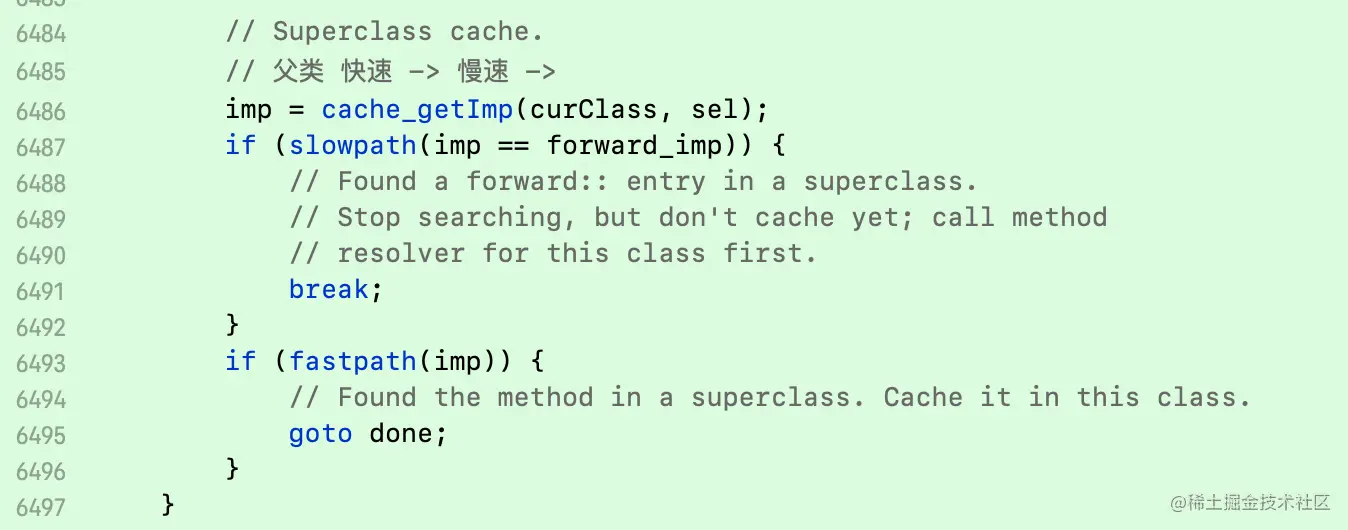

        // Superclass cache.
        imp = cache_getImp(curClass, sel);
        if (slowpath(imp == forward_imp)) {
            // Found a forward:: entry in a superclass.
            // Stop searching, but don't cache yet; call method
            // resolver for this class first.
            break;
        }
        if (fastpath(imp)) {
            // Found the method in a superclass. Cache it in this class.
            goto done;
        }
    }

    // No implementation found. Try method resolver once.

    if (slowpath(behavior & LOOKUP_RESOLVER)) {
        behavior ^= LOOKUP_RESOLVER;
        return resolveMethod_locked(inst, sel, cls, behavior);
    }

 done:
    if (fastpath((behavior & LOOKUP_NOCACHE) == 0)) {
#if CONFIG_USE_PREOPT_CACHES
        while (cls->cache.isConstantOptimizedCache(/* strict */true)) {
            cls = cls->cache.preoptFallbackClass();
        }
#endif
        log_and_fill_cache(cls, imp, sel, inst, curClass);
    }
 done_unlock:
    runtimeLock.unlock();
    if (slowpath((behavior & LOOKUP_NIL) && imp == forward_imp)) {
        return nil;
    }
    return imp;
}
复制代码

方法列表查找前准备

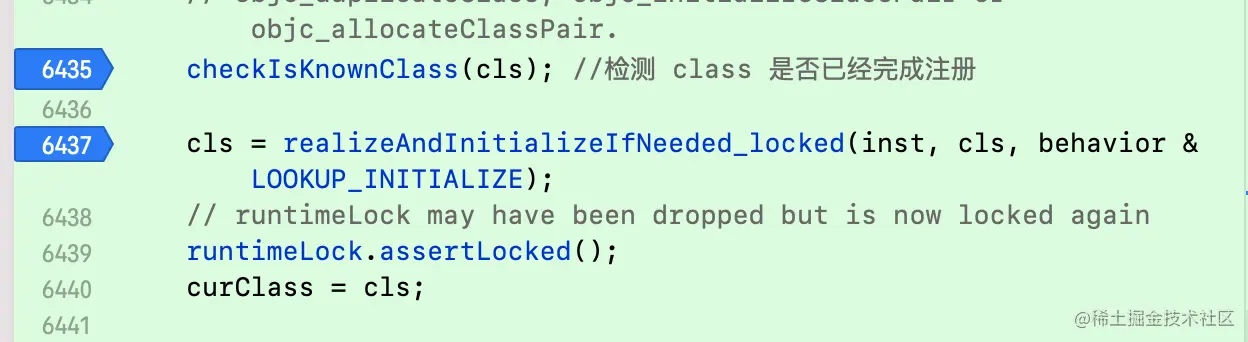

1.checkIsKnownClass(cls); //判断class是否已经完成注册

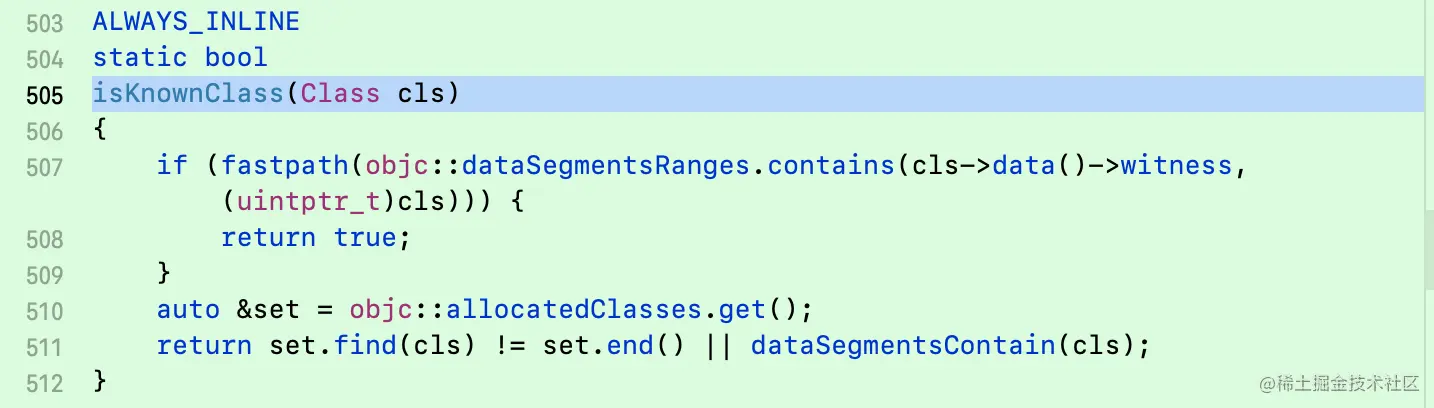

  • 流程顺序是 lookUpImpOrForward - > checkIsKnownClass(cls) -> checkIsKnownClass - > isKnownClass


  • realizeAndInitializeIfNeeded_locked
static Class
realizeAndInitializeIfNeeded_locked(id inst, Class cls, bool initialize)
{
    runtimeLock.assertLocked();
    if (slowpath(!cls->isRealized())) {
        cls = realizeClassMaybeSwiftAndLeaveLocked(cls, runtimeLock);
        // runtimeLock may have been dropped but is now locked again
    }

    if (slowpath(initialize && !cls->isInitialized())) {
        cls = initializeAndLeaveLocked(cls, inst, runtimeLock);
        // runtimeLock may have been dropped but is now locked again

        // If sel == initialize, class_initialize will send +initialize and
        // then the messenger will send +initialize again after this
        // procedure finishes. Of course, if this is not being called
        // from the messenger then it won't happen. 2778172
    }
    return cls;
}

复制代码
  • realizeClassMaybeSwiftAndLeaveLocked
static Class
realizeClassMaybeSwiftAndLeaveLocked(Class cls, mutex_t& lock)
{
    return realizeClassMaybeSwiftMaybeRelock(cls, lock, true);
}

复制代码
  • realizeClassMaybeSwiftMaybeRelock
static Class
realizeClassMaybeSwiftMaybeRelock(Class cls, mutex_t& lock, bool leaveLocked)
{
    lock.assertLocked();

    if (!cls->isSwiftStable_ButAllowLegacyForNow()) {
        // Non-Swift class. Realize it now with the lock still held.
        // fixme wrong in the future for objc subclasses of swift classes
        realizeClassWithoutSwift(cls, nil);
        if (!leaveLocked) lock.unlock();
    } else {
        // Swift class. We need to drop locks and call the Swift
        // runtime to initialize it.
        lock.unlock();
        cls = realizeSwiftClass(cls);
        ASSERT(cls->isRealized());    // callback must have provoked realization
        if (leaveLocked) lock.lock();
    }

    return cls;
}
复制代码
  • realizeClassWithoutSwift
static Class realizeClassWithoutSwift(Class cls, Class previously)
{
    runtimeLock.assertLocked();

    class_rw_t *rw;
    Class supercls;
    Class metacls;

    if (!cls) return nil;
    if (cls->isRealized()) {
        validateAlreadyRealizedClass(cls);
        return cls;
    }
    ASSERT(cls == remapClass(cls));

    // fixme verify class is not in an un-dlopened part of the shared cache?

    auto ro = (const class_ro_t *)cls->data();
    auto isMeta = ro->flags & RO_META;
    if (ro->flags & RO_FUTURE) {
        // This was a future class. rw data is already allocated.
        rw = cls->data();
        ro = cls->data()->ro();
        ASSERT(!isMeta);
        cls->changeInfo(RW_REALIZED|RW_REALIZING, RW_FUTURE);
    } else {
        // Normal class. Allocate writeable class data.
        rw = objc::zalloc<class_rw_t>();
        rw->set_ro(ro);
        rw->flags = RW_REALIZED|RW_REALIZING|isMeta;
        cls->setData(rw);
    }

    cls->cache.initializeToEmptyOrPreoptimizedInDisguise();

#if FAST_CACHE_META
    if (isMeta) cls->cache.setBit(FAST_CACHE_META);
#endif

    // Choose an index for this class.
    // Sets cls->instancesRequireRawIsa if indexes no more indexes are available
    cls->chooseClassArrayIndex();

    if (PrintConnecting) {
        _objc_inform("CLASS: realizing class '%s'%s %p %p #%u %s%s",
                     cls->nameForLogging(), isMeta ? " (meta)" : "",
                     (void*)cls, ro, cls->classArrayIndex(),
                     cls->isSwiftStable() ? "(swift)" : "",
                     cls->isSwiftLegacy() ? "(pre-stable swift)" : "");
    }

    // Realize superclass and metaclass, if they aren't already.
    // This needs to be done after RW_REALIZED is set above, for root classes.
    // This needs to be done after class index is chosen, for root metaclasses.
    // This assumes that none of those classes have Swift contents,
    //   or that Swift's initializers have already been called.
    //   fixme that assumption will be wrong if we add support
    //   for ObjC subclasses of Swift classes.
    supercls = realizeClassWithoutSwift(remapClass(cls->getSuperclass()), nil); //注册父类
    metacls = realizeClassWithoutSwift(remapClass(cls->ISA()), nil); //注册元类

#if SUPPORT_NONPOINTER_ISA
    if (isMeta) {
        // Metaclasses do not need any features from non pointer ISA
        // This allows for a faspath for classes in objc_retain/objc_release.
        cls->setInstancesRequireRawIsa();
    } else {
        // Disable non-pointer isa for some classes and/or platforms.
        // Set instancesRequireRawIsa.
        bool instancesRequireRawIsa = cls->instancesRequireRawIsa();
        bool rawIsaIsInherited = false;
        static bool hackedDispatch = false;

        if (DisableNonpointerIsa) {
            // Non-pointer isa disabled by environment or app SDK version
            instancesRequireRawIsa = true;
        }
        else if (!hackedDispatch  &&  0 == strcmp(ro->getName(), "OS_object"))
        {
            // hack for libdispatch et al - isa also acts as vtable pointer
            hackedDispatch = true;
            instancesRequireRawIsa = true;
        }
        else if (supercls  &&  supercls->getSuperclass()  &&
                 supercls->instancesRequireRawIsa())
        {
            // This is also propagated by addSubclass()
            // but nonpointer isa setup needs it earlier.
            // Special case: instancesRequireRawIsa does not propagate
            // from root class to root metaclass
            instancesRequireRawIsa = true;
            rawIsaIsInherited = true;
        }

        if (instancesRequireRawIsa) {
            cls->setInstancesRequireRawIsaRecursively(rawIsaIsInherited);
        }
    }
// SUPPORT_NONPOINTER_ISA
#endif

    // Update superclass and metaclass in case of remapping
    cls->setSuperclass(supercls); //设置父类
    cls->initClassIsa(metacls); //设置元类

    // Reconcile instance variable offsets / layout.
    // This may reallocate class_ro_t, updating our ro variable.
    if (supercls  &&  !isMeta) reconcileInstanceVariables(cls, supercls, ro);

    // Set fastInstanceSize if it wasn't set already.
    cls->setInstanceSize(ro->instanceSize);

    // Copy some flags from ro to rw
    if (ro->flags & RO_HAS_CXX_STRUCTORS) {
        cls->setHasCxxDtor();
        if (! (ro->flags & RO_HAS_CXX_DTOR_ONLY)) {
            cls->setHasCxxCtor();
        }
    }

    // Propagate the associated objects forbidden flag from ro or from
    // the superclass.
    if ((ro->flags & RO_FORBIDS_ASSOCIATED_OBJECTS) ||
        (supercls && supercls->forbidsAssociatedObjects()))
    {
        rw->flags |= RW_FORBIDS_ASSOCIATED_OBJECTS;
    }

    // Connect this class to its superclass's subclass lists
    if (supercls) {
        addSubclass(supercls, cls);
    } else {
        addRootClass(cls);
    }

    // Attach categories
    methodizeClass(cls, previously);

    return cls;
}

复制代码
  • 当前类以及相关类的注册,为方法的查找做准备。


进入循环

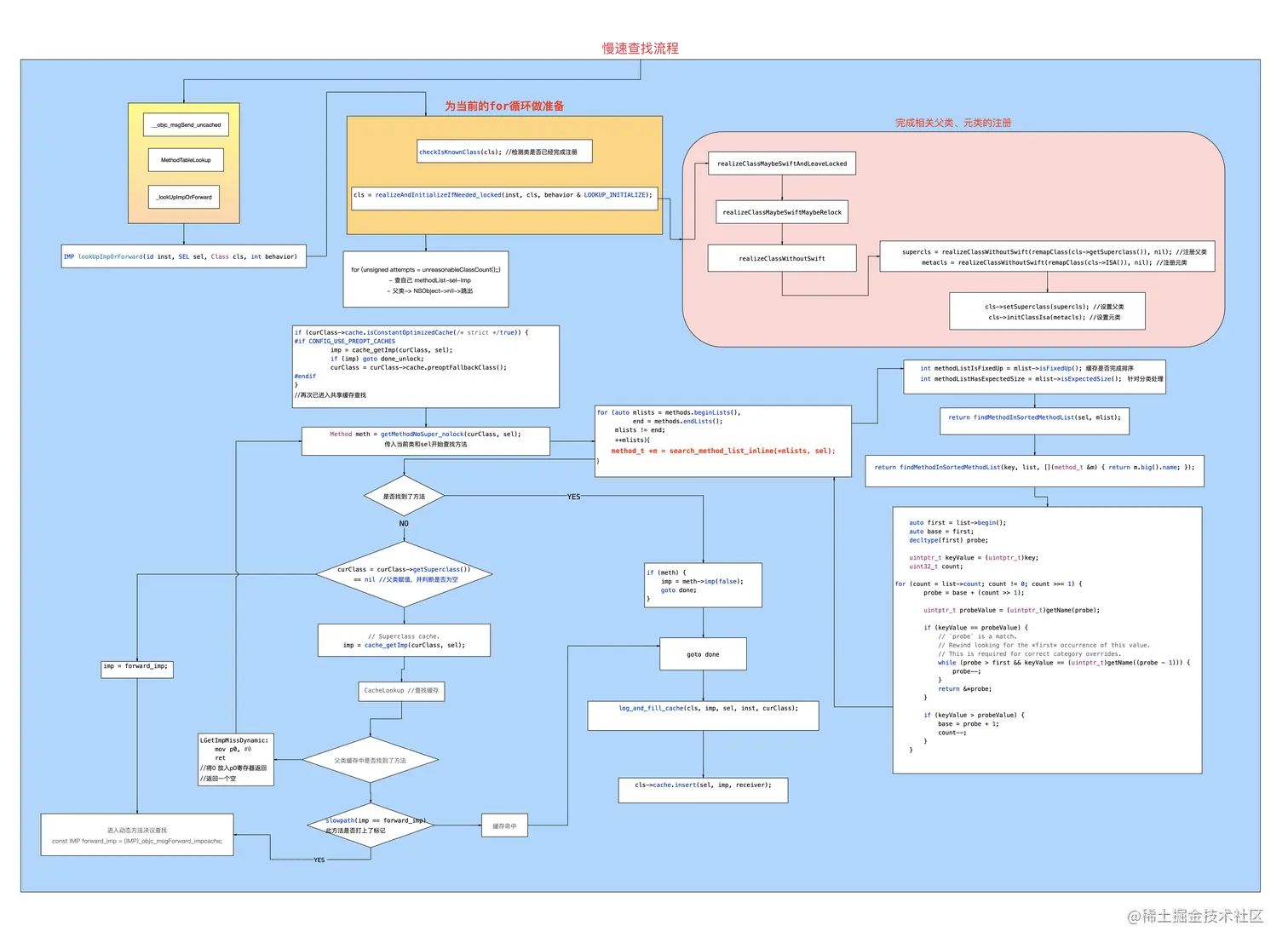

  • for (unsigned attempts = unreasonableClassCount();;) 慢速查找流程重点部分 这是一个死循环,除非return 出去。
    • 查自己 methodList-sel-imp
    • 父类-> NSObject->nil->跳出
  • 1.再次查找缓存。


  • 2.二分查找找到方法



  • 二维大数组的遍历循环
static method_t *
getMethodNoSuper_nolock(Class cls, SEL sel)
{
    runtimeLock.assertLocked();

    ASSERT(cls->isRealized());
    // fixme nil cls?
    // fixme nil sel?

    auto const methods = cls->data()->methods();  //获取方法列表
    //这个并不是二分查找,因为方法列表是一个二维数组,即大数组中的元素还是数组,为了避免遗漏,外部的大数组必须是依次遍历查找,自己(数组)元素,而(数组)元素,中的数组可以进行二分查找。
    for (auto mlists = methods.beginLists(),
              end = methods.endLists();
         mlists != end;
         ++mlists)  //for循环 设置两个变量 mlists 头部指针,end尾部指针,头部不等于尾部,则++
    {
        // <rdar://problem/46904873> getMethodNoSuper_nolock is the hottest
        // caller of search_method_list, inlining it turns
        // getMethodNoSuper_nolock into a frame-less function and eliminates
        // any store from this codepath.
        method_t *m = search_method_list_inline(*mlists, sel);
        if (m) return m;
    }

    return nil;
}

复制代码

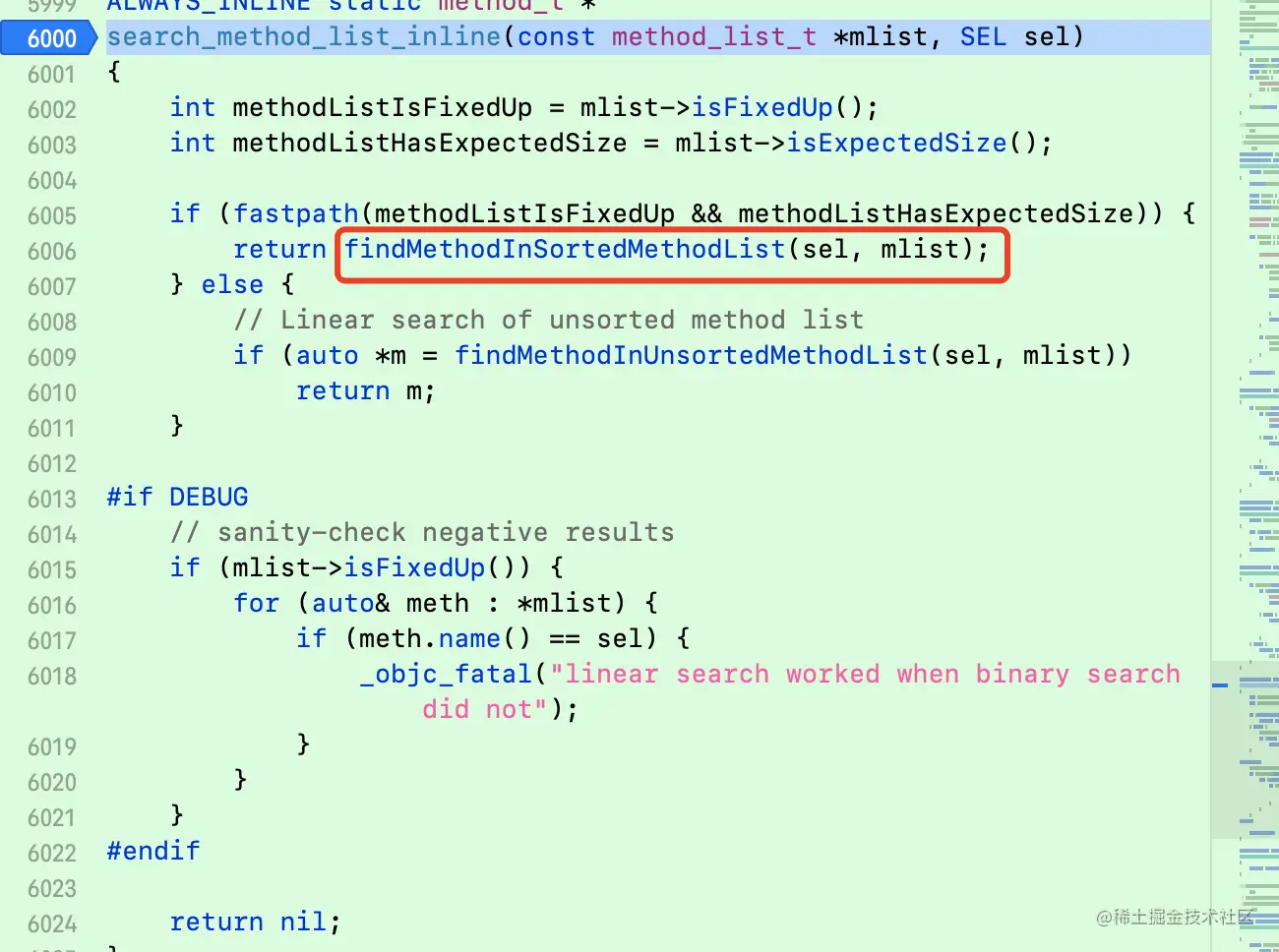

  • findMethodInSortedMethodList 传入方法名和方法列表开始进行二分查找
ALWAYS_INLINE static method_t *
search_method_list_inline(const method_list_t *mlist, SEL sel)
{
    int methodListIsFixedUp = mlist->isFixedUp(); //方法列表是否完成排序
    int methodListHasExpectedSize = mlist->isExpectedSize(); //针对分类处理

    if (fastpath(methodListIsFixedUp && methodListHasExpectedSize)) {
        return findMethodInSortedMethodList(sel, mlist);  //查找已经排序好的方法列表
    } else {
        // Linear search of unsorted method list
        if (auto *m = findMethodInUnsortedMethodList(sel, mlist))
            return m;
    }

#if DEBUG
    // sanity-check negative results
    if (mlist->isFixedUp()) {
        for (auto& meth : *mlist) {
            if (meth.name() == sel) {
                _objc_fatal("linear search worked when binary search did not");
            }
        }
    }
#endif

    return nil;
}

复制代码
  • 查找已经排序好的方法列表




  • 最重要的关键方法中了

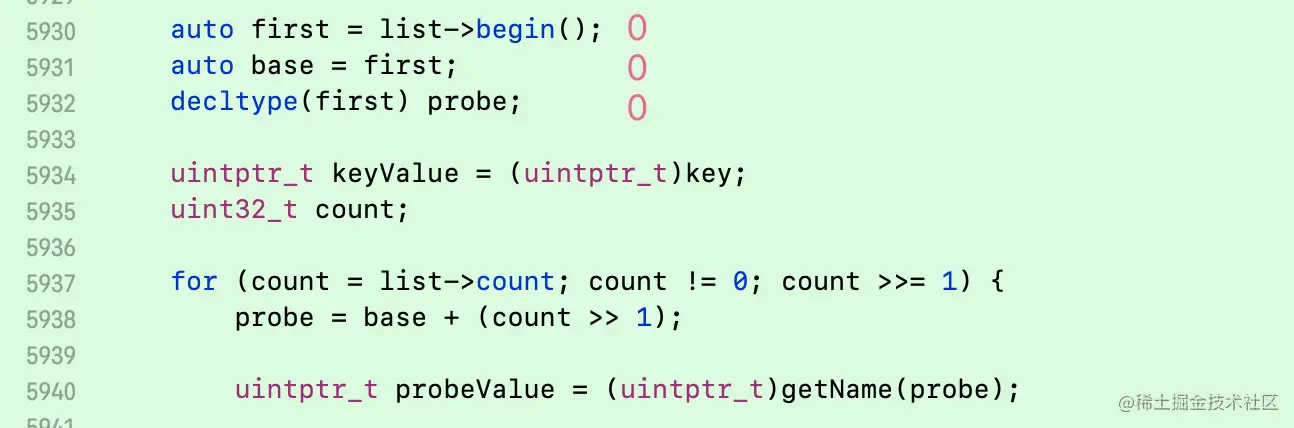

ALWAYS_INLINE static method_t *
findMethodInSortedMethodList(SEL key, const method_list_t *list, const getNameFunc &getName)
{
    ASSERT(list);

    auto first = list->begin();
    auto base = first;
    decltype(first) probe;

    uintptr_t keyValue = (uintptr_t)key;
    uint32_t count;

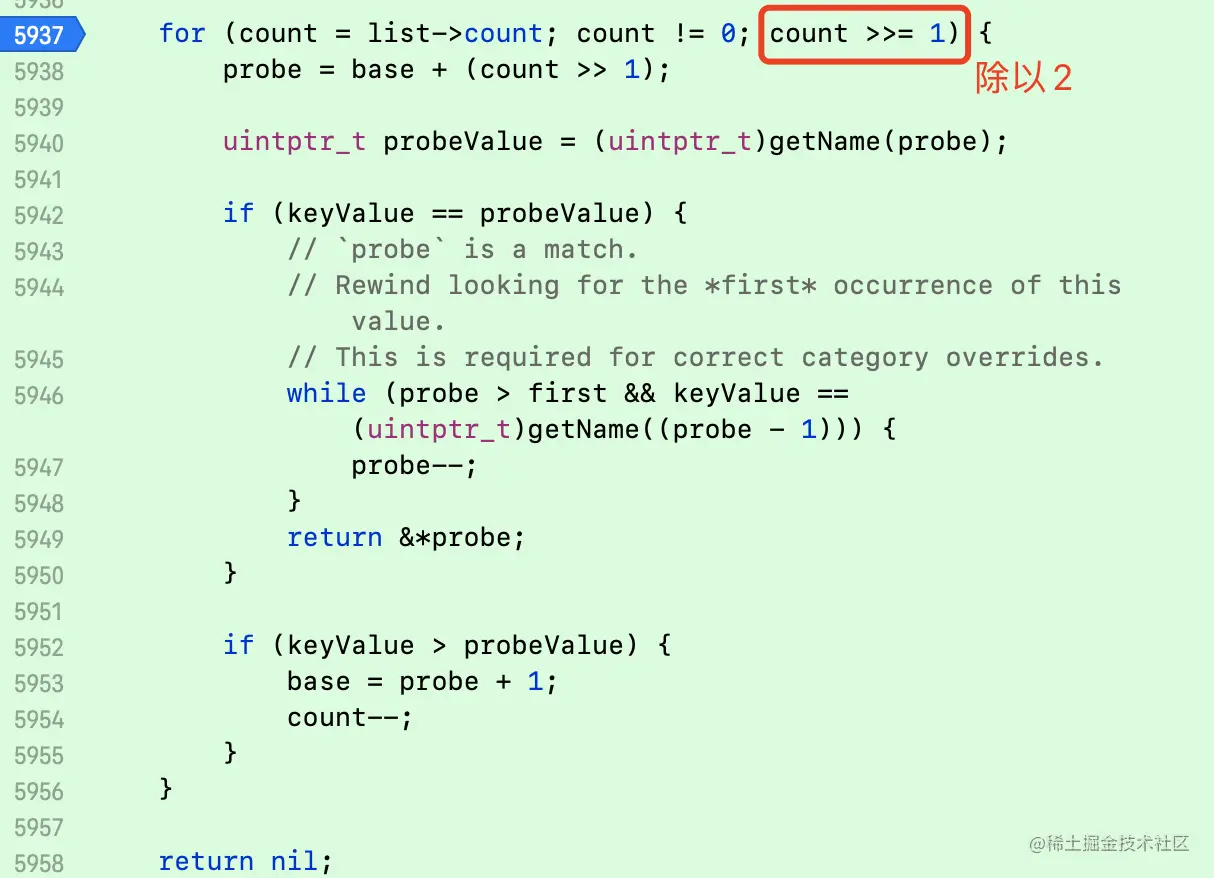

    for (count = list->count; count != 0; count >>= 1) {
        probe = base + (count >> 1);

        uintptr_t probeValue = (uintptr_t)getName(probe);

        if (keyValue == probeValue) {
            // `probe` is a match.
            // Rewind looking for the *first* occurrence of this value.
            // This is required for correct category overrides.
            while (probe > first && keyValue == (uintptr_t)getName((probe - 1))) {
                probe--;
            }
            return &*probe;
        }

        if (keyValue > probeValue) {
            base = probe + 1;
            count--;
        }
    }

    return nil;
}

复制代码


for example

  • 假设 count = list->count = 8 正确的位置 在 6 或者 7 在 中间的后面
    • 1.probe = 0 + 8>>1 =0+4 = 4 uintptr_t probeValue = (uintptr_t)getName(probe); //得到第4个当前的方法名

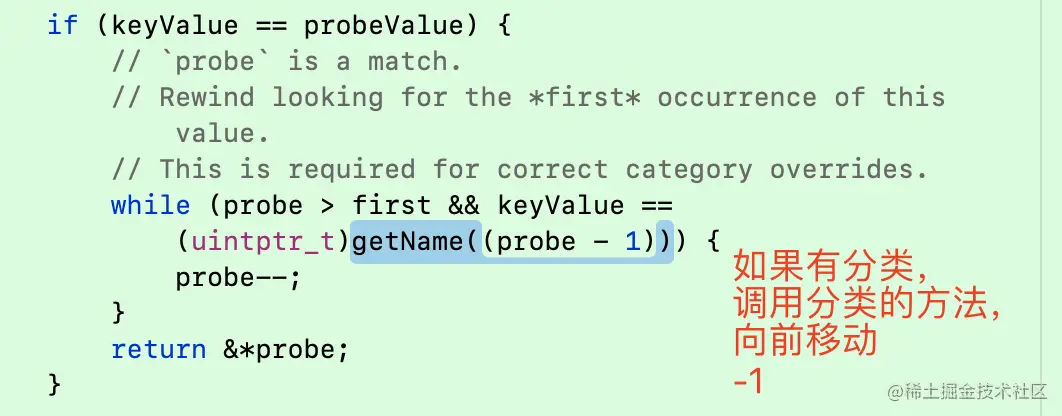

      • 如果找到了,判断当前下标大于first && 前一个的方法名也是相同的(有分类的时候)
      • 则减一 传出这个方法
      • 否则直接返回这个方法
    • 2.没有找到 则 base = probe + 1 = 5, count -- -> 7, count = count >> 1 = 3
      • probe = base + (count >> 1) = 6 uintptr_t probeValue = (uintptr_t)getName(probe); //得到第6个当前的方法名
    • 3.还是没有找到 base = probe + 1 = 7, count -- -> 2,count = count >> 1 = 1
      • probe = base + (count >> 1) = 7 + 0 = 7
    • 4.还是没有找到 count -- = 0 则跳出循环 返回 nil
  • 疑惑目前这个方法是向后对半的查找 没有向前呀???
  • 假设 count = list->count = 8 正确的位置 在 2 或者 3 在 中间的前面
    • 1.probe = 0 + 8>>1 =0+4 = 4 uintptr_t probeValue = (uintptr_t)getName(probe); //得到第4个当前的方法名
      • 没有找到 并且 keyValue < probeValue
    • 2.if (keyValue > probeValue) 判断不成立 返回上面再次循环
      • count >>= 1 ,count = 4 开始循环
      • probe = base + (count >> 1) = 0 + 4>> 1 = 2
      • 位置2 则正确返回
      1. 位置3 则进入这个判断
      • base = probe + 1 = 3 ,count -- = 3

      • count >>= 1 -> 1

      • probe = base + (count >> 1) = 3

      • 找到了3

goto done;


缓存填充



父类查找如果没有找到则继续向父类查找直到nil


nil forward_imp 打上标记


动态方法决议查找

const IMP forward_imp = (IMP)_objc_msgForward_impcache;

流程解析


文章分类
iOS
文章标签
