一、简介
DWA算法全称为dynamic window approach，其原理主要是在速度空间（v,w）中采样多组速度，并模拟这些速度在一定时间内的运动轨迹，再通过一个评价函数对这些轨迹打分，最优的速度被选择出来发送给下位机。

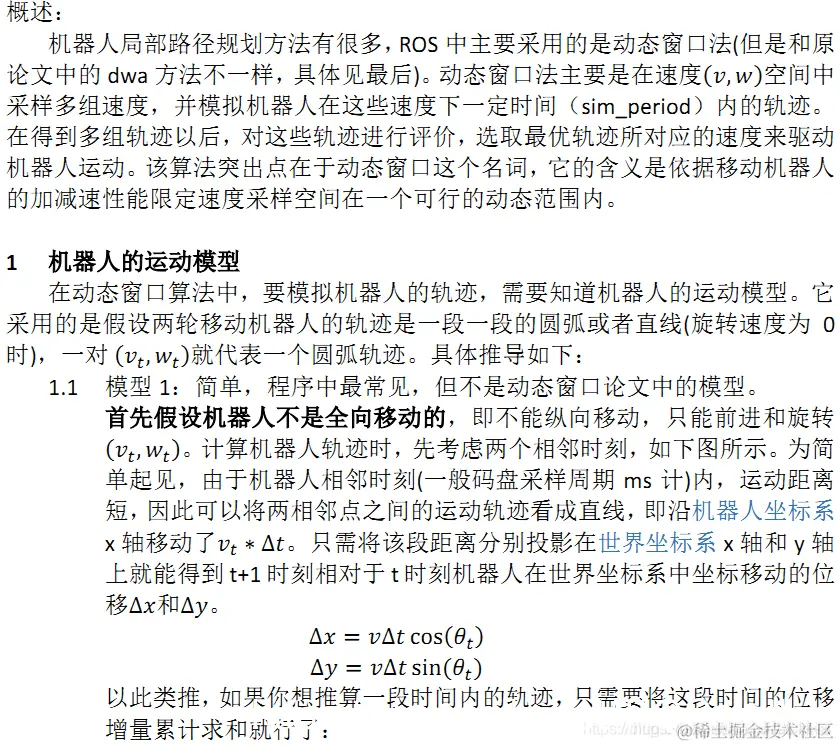

1 原理分析
2 速度采样

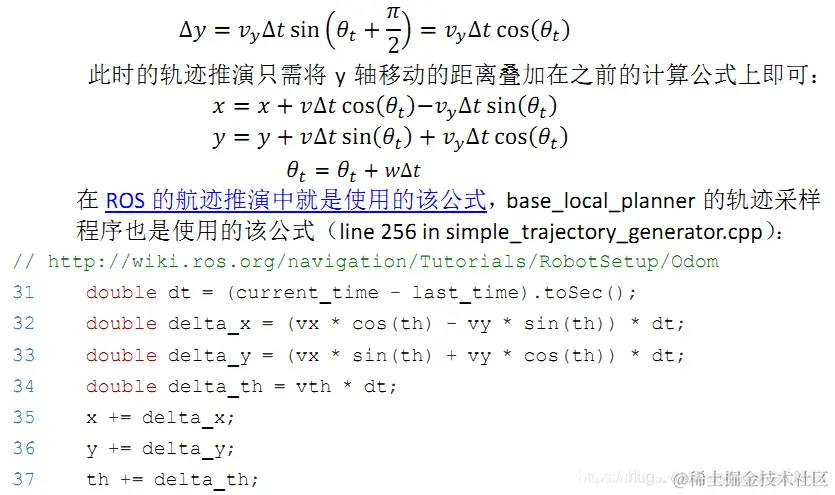

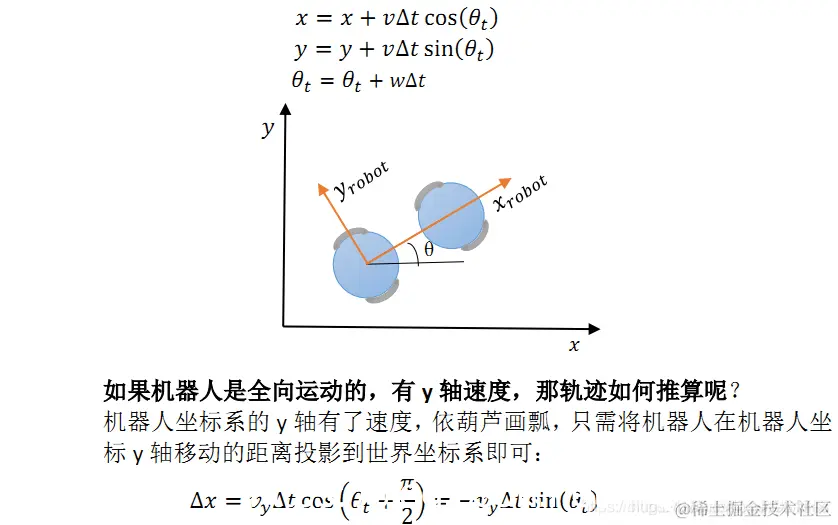

机器人的轨迹运动模型有了，根据速度就可以推算出轨迹。
因此只需采样很多速度，推算轨迹，然后评价这些轨迹好不好就行了。
（一）移动机器人受自身最大速度最小速度的限制
（二） 移动机器人受电机性能的影响:由于电机力矩有限,存在最大的加減速限制,因此移动机器人軌迹前向模拟的周期sim_period内,存在一个动态窗口,在该窗口内的速度是机器人能够实际达到的速度:
（三） 基于移动机器人安全的考虑:为了能够在碰到障碍物前停下来, 因此在最大减速度条件下, 速度有一个范围。
二、源代码
function varargout = Simulate(varargin)
clc
SamplingPeriod = 0.1;
time = 0;
timer1 = [];
txt_timer = [];
FuzzyLoaded = 0;
Z1 = [];
Z2 = [];
W_Zone = 20;
H_Zone = 20;
data = importdata ('fuzzytabledata.mat');
OUT1 = data.OUT1;
OUT2 = data.OUT2;
Z1 = reshape(OUT1(102:end,1)',101,[]);
Z2 = reshape(OUT2(102:end,1)',101,[]);
FuzzyLoaded = 1;
scrsz = get(0,'ScreenSize');
% Create a figure that will have a uitable, axes and checkboxes
figure('Position',[15*scrsz(3)/100 70 scrsz(3)-2*(15*scrsz(3)/100) scrsz(4)-100],...
'WindowStyle', 'normal',...
'CloseRequestFcn',{@CloseFcn},...
'Name', '具有动态障碍物的DWA仿真',... % Title figure
'NumberTitle', 'off') % Do not show figure number
% figure('Position',[15*scrsz(3)/100 70 scrsz(3)-2*(15*scrsz(3)/100) scrsz(4)-100],...
% 'WindowStyle', 'normal',...
% 'CloseRequestFcn',{@CloseFcn},...
% 'Name', '具有动态障碍物的DWA仿真',... % Title figure
% 'NumberTitle', 'off',... % Do not show figure number
% 'MenuBar', 'none'); % Hide standard menu bar menus
% Create an axes set x and y limits to the value extremes, and format labels
W_Zone = ceil(W_Zone/10)*10;
H_Zone = ceil(H_Zone/10)*10;
haxes = axes('Units', 'normalized',...
'Position', [.25 .05 0.75 0.9],...
'XLim', [-W_Zone/2 W_Zone/2],...
'YLim', [-H_Zone/2 H_Zone/2],...
'XLimMode', 'manual',...
'YLimMode', 'manual',...
'XTick',-W_Zone/2:1:W_Zone/2,...
'YTick',-H_Zone/2:1:H_Zone/2);%,...
% 'XTickLabel',...
% {'-10 m','-5 m','0','5 m','10 m'},...
% 'YTickLabel',...
% {'-10 m','-5 m','0','5 m','10 m'});
set(haxes,'DataAspectRatio',[1 1 1]);
title(haxes, '移动机器人动态避障仿真') % Describe data set
% Prevent axes from clearing when new lines or markers are plotted
hold(haxes, 'all')
grid on;
uicontrol('Style', 'pushbutton',...
'Units', 'normalized',...
'Position', [.02 .86 .2 .05],...
'String', '开始仿真',...
'Value', 0,...
'Callback', {@StartSimulation});
uicontrol('Style', 'pushbutton',...
'Units', 'normalized',...
'Position', [.02 .81 .2 .05],...
'String', '重新仿真',...
'Value', 0,...
'Callback', {@ResetSimulation});
% % Create a text to show timer;
txt_timer = uicontrol('Style', 'text',...
'Units', 'normalized',...
'Position', [.02 .915 .2 .035],...
'FontWeight', 'bold',...
'ForegroundColor', [0 .2 .8],...
'fontname', 'Helvetica',...
'fontsize', 14,...
'BackgroundColor', 'w', 'String','00:00 00');
% % Create some texts to monitor variables;
txt_inp1 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.05 .54 .08 .035],...
'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
txt_inp2 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.14 .54 .08 .035],...
'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
txt_out1 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.05 .47 .08 .035],...
'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
txt_out2 = uicontrol('Style', 'text', 'Units', 'normalized', 'Position', [.14 .47 .08 .035],...
'FontWeight', 'bold', 'ForegroundColor', [0 0 0], 'fontname', 'Helvetica', 'fontsize', 12, 'BackgroundColor', [0.9 0.9 0.9]);
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.05 .61 .15 .025],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
'BackgroundColor', [0.8 0.8 0.8], 'String', 'DWA权值调整');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.00 .55 .05 .02],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
'BackgroundColor', [0.8 0.8 0.8], 'String', 'INPs :');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.00 .48 .05 .02],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
'BackgroundColor', [0.8 0.8 0.8], 'String', '误差值 :');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.05 .58 .08 .02],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
'BackgroundColor', [0.8 0.8 0.8], 'String', '目标航向角');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.14 .58 .08 .02],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
'BackgroundColor', [0.8 0.8 0.8], 'String', '障碍物');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.05 .51 .08 .02],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
'BackgroundColor', [0.8 0.8 0.8], 'String', '左偏离');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.14 .51 .08 .02],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 9,...
'BackgroundColor', [0.8 0.8 0.8], 'String', '右偏离');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.09 .78 .12 .025],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
'BackgroundColor', [0.8 0.8 0.8], 'String', 'X Y');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.02 .74 .06 .03],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
'BackgroundColor', [0.8 0.8 0.8], 'String', '起始点坐标：');
uicontrol('Style', 'text','Units', 'normalized', 'Position', [.02 .7 .06 .03],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
'BackgroundColor', [0.8 0.8 0.8], 'String', ' 目标点坐标：');
% % Create a text get Robot X0 Pos;
edit_robot_x0 = uicontrol('Style', 'edit',...
'Units', 'normalized',...
'Position', [.09 .74 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
'FontWeight', 'bold',...
'fontname', 'Helvetica',...
'fontsize', 12);
% % Create a text get Robot Y0 Pos;
edit_robot_y0 = uicontrol('Style', 'edit',...
'Units', 'normalized',...
'Position', [.16 .74 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
'FontWeight', 'bold',...
'fontname', 'Helvetica',...
'fontsize', 12);
% % Create a text get Goal X Pos;
edit_goal_x = uicontrol('Style', 'edit',...
'Units', 'normalized',...
'Position', [.09 .7 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
'FontWeight', 'bold',...
'fontname', 'Helvetica',...
'fontsize', 12);
% % Create a text get Goal Y Pos;
edit_goal_y = uicontrol('Style', 'edit',...
'Units', 'normalized',...
'Position', [.16 .7 .06 .035],... %'String',... %'Use Plot check boxes to graph columns',...
'FontWeight', 'bold',...
'fontname', 'Helvetica',...
'fontsize', 12);
uicontrol('Style', 'pushbutton',...
'Units', 'normalized',...
'Position', [.09 .655 .13 .04],... %'TooltipString', 'Update Values Independently',...
'String', '更新',...
'Value', 0,...
'Callback', {@UpdateParams});
slider_x = uicontrol('Style', 'slider','Units', 'normalized', 'Position', [.02 .41 .2 .025],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
'BackgroundColor', [0.8 0.8 0.8],'Min',0,'Value',1,'Max',2,'SliderStep',[0.01 0.1]);
slider_y = uicontrol('Style', 'slider','Units', 'normalized', 'Position', [.02 .37 .2 .025],...
'FontWeight', 'bold', 'fontname', 'Helvetica', 'fontsize', 10,...
'BackgroundColor', [0.8 0.8 0.8],'Min',0,'Value',1,'Max',2,'SliderStep',[0.01 0.1]);
% uicontrol('Style', 'pushbutton',...
% 'Units', 'normalized',...
% 'Position', [0.35 .95 .25 .05],... %'TooltipString', 'Update Values Independently',...
% 'String', 'Save Data',...
% 'Value', 0,...
% 'Callback', {@SaveData});
% % Create an invisible marker plot of the data and save handles
% % to the lineseries objects; use this to simulate data brushing.
% % hmkrs = plot([1:10],[1:10].^2, 'LineStyle', 'none',...
% % 'Marker', 'o',...
% % 'MarkerFaceColor', 'y',...
% % 'HandleVisibility', 'off',...
% % 'Visible', 'on');
% Create three check boxes to toggle plots for columns
% uicontrol('Style', 'checkbox',...
% 'Units', 'normalized',...
% 'Position', [.10 .96 .09 .035],...
% 'TooltipString', 'Check to plot column 1',...
% 'String', 'Col 1',...
% 'Value', 0,...
% 'Callback', {@plot_callback,1});
%
% % Create a text label to say what the checkboxes do
% uicontrol('Style', 'text',...
% 'Units', 'normalized',...
% 'Position', [.025 .955 .06 .035],...
% 'String', 'Plot',...
% 'FontWeight', 'bold');

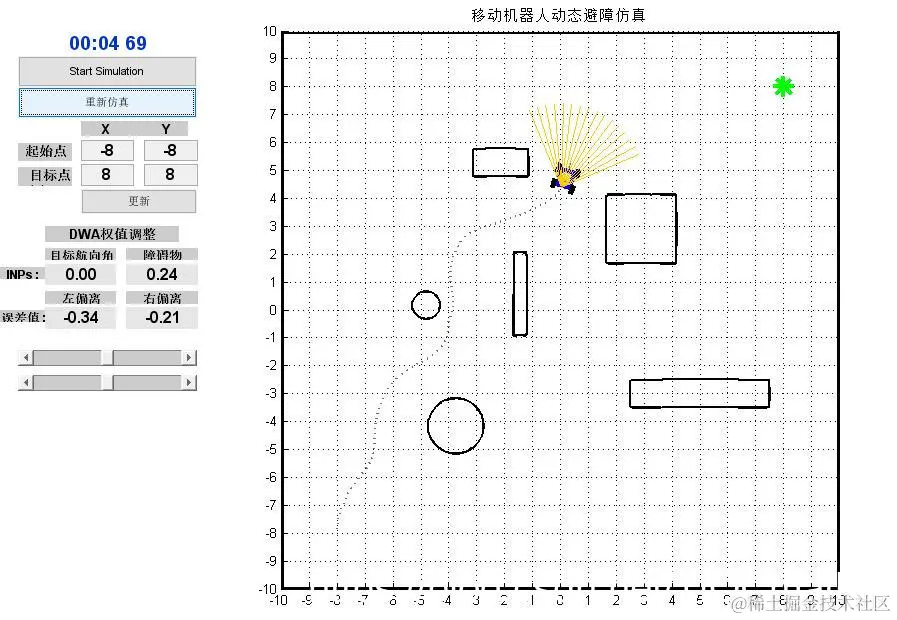

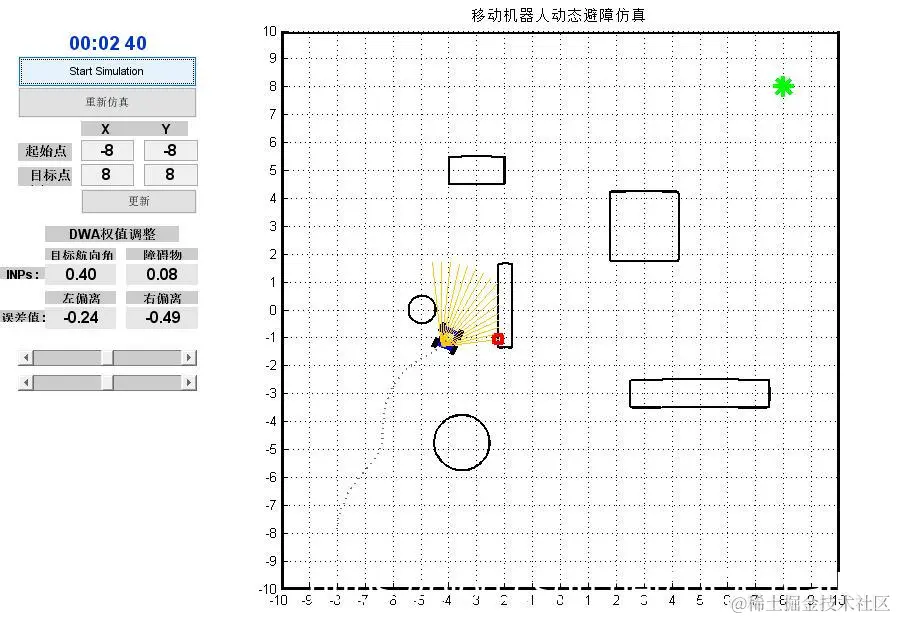

三、运行结果
四、备注
完整代码或者仿真咨询添加QQ2449341593
