前言
网上关于Netty源码研究的文章已经很多了，但是对于没有真正接触过的人或者只进行过简单demo的人来说，尽管说的通俗易懂，但是并没有真正的深入的话，真正理解的话还是很难的。对于我之前就是这样的，认为Netty很难，涉及到很多知识，心里就有一种恐惧感，不敢去面对它（真实的心里感受）。我对于Netty源码研究应该是从20年开始的，中间断断续续（还是那种恐惧感导致的)，这一段时间因为自己想写笔记（因为自己记性不好,看了很多次只能靠自己理解，时间久了就忘了）,俗话说，好记性不如烂笔头，所以就又重拾了Netty，开始进行探究。以下只是自己的理解，大佬勿喷。
源码编译
我觉得对于一个框架或者工具最好的学习就是去看它的源码，从中可以学到很多东西。
废话啥说，开始。
第一步：使用git拉取源代码
git clone git@github.com:netty/netty.git
第二步: 修改相关配置，比如maven.compiler.source如8 一些东西，这里遇到的相关问题，可以百度到，就不写这里了
第三步: 编译
mvn install -Dmaven.test.skip=true
Netty模块
Reactor模型
- 单Reactor单线程模型
消息处理流程：
Reactor对象通过select监控连接事件，收到事件后通过dispatch进行转发。 如果是连接建立的事件，则由acceptor接受连接，并创建handler处理后续事件。 如果不是建立连接事件，则Reactor会分发调用Handler来响应。 handler会完成read->业务处理->send的完整业务流程。 单Reactor单线程模型只是在代码上进行了组件的区分，但是整体操作还是单线程，不能充分利用硬件资源。handler业务处理部分没有异步。
对于一些小容量应用场景，可以使用单Reactor单线程模型。但是对于高负载、大并发的应用场景却不合适，主要原因如下：
即便Reactor线程的CPU负荷达到100%，也无法满足海量消息的编码、解码、读取和发送。 当Reactor线程负载过重之后，处理速度将变慢，这会导致大量客户端连接超时，超时之后往往会进行重发，这更加重Reactor线程的负载，最终会导致大量消息积压和处理超时，成为系统的性能瓶颈。 一旦Reactor线程意外中断或者进入死循环，会导致整个系统通信模块不可用，不能接收和处理外部消息，造成节点故障。 为了解决这些问题，演进出单Reactor多线程模型。
- 单Reactor多线程模型
消息处理流程：
Reactor对象通过Select监控客户端请求事件，收到事件后通过dispatch进行分发。 如果是建立连接请求事件，则由acceptor通过accept处理连接请求，然后创建一个Handler对象处理连接完成后续的各种事件。 如果不是建立连接事件，则Reactor会分发调用连接对应的Handler来响应。 Handler只负责响应事件，不做具体业务处理，通过Read读取数据后，会分发给后面的Worker线程池进行业务处理。 Worker线程池会分配独立的线程完成真正的业务处理，如何将响应结果发给Handler进行处理。 Handler收到响应结果后通过send将响应结果返回给Client。 相对于第一种模型来说，在处理业务逻辑，也就是获取到IO的读写事件之后，交由线程池来处理，handler收到响应后通过send将响应结果返回给客户端。这样可以降低Reactor的性能开销，从而更专注的做事件分发工作了，提升整个应用的吞吐。
但是这个模型存在的问题：
多线程数据共享和访问比较复杂。如果子线程完成业务处理后，把结果传递给主线程Reactor进行发送，就会涉及共享数据的互斥和保护机制。 Reactor承担所有事件的监听和响应，只在主线程中运行，可能会存在性能问题。例如并发百万客户端连接，或者服务端需要对客户端握手进行安全认证，但是认证本身非常损耗性能。 为了解决性能问题，产生了第三种主从Reactor多线程模型。
- 主从Reactor多线程模型
消息处理流程:
从主线程池中随机选择一个Reactor线程作为acceptor线程，用于绑定监听端口，接收客户端连接 acceptor线程接收客户端连接请求之后创建新的SocketChannel，将其注册到主线程池的其它Reactor线程上，由其负责接入认证、IP黑白名单过滤、握手等操作
步骤2完成之后，业务层的链路正式建立，将SocketChannel从主线程池的Reactor线程的多路复用器上摘除，重新注册到Sub线程池的线程上，并创建一个Handler用于处理各种连接事件 当有新的事件发生时，SubReactor会调用连接对应的Handler进行响应 Handler通过Read读取数据后，会分发给后面的Worker线程池进行业务处理 Worker线程池会分配独立的线程完成真正的业务处理，如何将响应结果发给Handler进行处理 Handler收到响应结果后通过Send将响应结果返回给Client

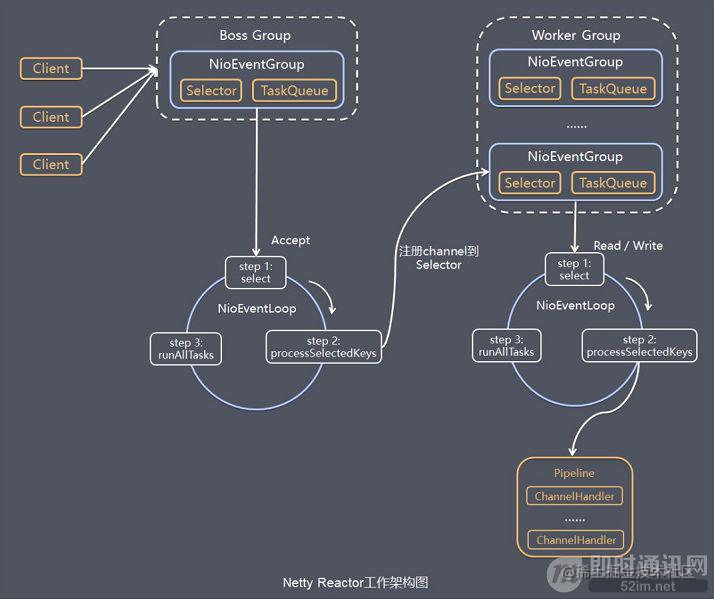

Netty模型
Netty抽象出线程池EventExecutorGroup，通常使用的是EventLoopGroup(调度EventLoop)EventLoopGroup相当于一个事件循环组，这个组中含有多个事件循环，每一个事件循环是EventLoopEventLoop表示一个不断循环的执行处理任务的线程，每个EventLoop都有一个selector，用于监听绑定在其上的socket网络通讯EventLoopGroup可以有多个线程，即可以含有多个EventLoop- 每个
EventLoop循环执行三个步骤：
- 处理任务队列的任务，即
runAllTasks - 监听selector事件，调用unsafe处理
- 每个
Worker EventLoop处理业务时，会使用pipeline，pipeline中包含了channel,即通过pipeline可以获取到对应通道，管道中维护了处理器上下文
从简单的echo服务开始进行探究
public class EchoServer {
public static void main(String[] args) throws InterruptedException {
ServerBootstrap serverBootstrap = new ServerBootstrap();
EventLoopGroup boss = new NioEventLoopGroup(1);
EventLoopGroup work = new NioEventLoopGroup();
StringDecoder stringDecoder = new StringDecoder();
ServerHandler serverHandler = new ServerHandler();
serverBootstrap.group(boss, work)
.channel(NioServerSocketChannel.class)
.option(ChannelOption.SO_BACKLOG, 100)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel ch) throws Exception {
ChannelPipeline p = ch.pipeline();
p.addLast(stringDecoder, serverHandler);
}
});
ChannelFuture f = serverBootstrap.bind(9999).sync();
f.channel().closeFuture().sync();
}
@ChannelHandler.Sharable
static class ServerHandler extends ChannelInboundHandlerAdapter {
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
System.out.println("接受到信息 : " + msg);
}
}
}
- 先从bind开始
可以点进去看，最终执行的doBind,里面就涉及到了很多东西
private ChannelFuture doBind(final SocketAddress localAddress) {
// 初始话channel
final ChannelFuture regFuture = initAndRegister();
final Channel channel = regFuture.channel();
if (regFuture.cause() != null) {
return regFuture;
}
// 下面则是调用真正的bind端口
if (regFuture.isDone()) {
// At this point we know that the registration was complete and successful.
ChannelPromise promise = channel.newPromise();
doBind0(regFuture, channel, localAddress, promise);
return promise;
} else {
// Registration future is almost always fulfilled already, but just in case it's not.
final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
regFuture.addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
Throwable cause = future.cause();
if (cause != null) {
// Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
// IllegalStateException once we try to access the EventLoop of the Channel.
promise.setFailure(cause);
} else {
// Registration was successful, so set the correct executor to use.
// See https://github.com/netty/netty/issues/2586
promise.registered();
doBind0(regFuture, channel, localAddress, promise);
}
}
});
return promise;
}
}
初始化channel，里面涉及到了nio的channel，以及pipeline的初始化 等等，pipeline则保存着上下文ChannelHandlerContext引用,head 和 tail ,用户添加自定义的handler则是在netty最开始的head和tail中间，ChannelHandlerContext保存着handler
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
// 获取用户在之前定义的channel类型 比如NioServerSocketChannel,在创建channel的时候，就初始化很多东西了，在下面有讲解
channel = channelFactory.newChannel();
init(channel);
} catch (Throwable t) {
if (channel != null) {
// channel can be null if newChannel crashed (eg SocketException("too many open files"))
channel.unsafe().closeForcibly();
// as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
}
// as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
}
// 向事件循环组中注册该channel
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
// If we are here and the promise is not failed, it's one of the following cases:
// 1) If we attempted registration from the event loop, the registration has been completed at this point.
// i.e. It's safe to attempt bind() or connect() now because the channel has been registered.
// 2) If we attempted registration from the other thread, the registration request has been successfully
// added to the event loop's task queue for later execution.
// i.e. It's safe to attempt bind() or connect() now:
// because bind() or connect() will be executed *after* the scheduled registration task is executed
// because register(), bind(), and connect() are all bound to the same thread.
return regFuture;
}
Channel
netty封装的连接通道，包含netty其他的相关特性组合，比如ChannelPipeline、ByteBufAllocator，核心内部类Unsafe则是关于java nio的一些相关方法调用（ 最终逻辑）
Netty抽象出一个AbstractChannel，大部分使用的channel都是继承自AbstractChannel,那么我们可以从中看出很多东西，先看相关的属性和构造方法
private final Channel parent;
private final ChannelId id;
private final Unsafe unsafe;
private final DefaultChannelPipeline pipeline;
private final VoidChannelPromise unsafeVoidPromise = new VoidChannelPromise(this, false);
private final CloseFuture closeFuture = new CloseFuture(this);
private volatile SocketAddress localAddress;
private volatile SocketAddress remoteAddress;
private volatile EventLoop eventLoop;
private volatile boolean registered;
private boolean closeInitiated;
private Throwable initialCloseCause;
private boolean strValActive;
private String strVal;
// 初始化channel的时候，则会初始化pipeline，而pipeline中又伴有默认的head和tail两个ChannelHandlerContext初始化
protected AbstractChannel(Channel parent) {
this.parent = parent;
id = newId();
unsafe = newUnsafe();
pipeline = newChannelPipeline();
}
protected AbstractChannel(Channel parent, ChannelId id) {
this.parent = parent;
this.id = id;
unsafe = newUnsafe();
pipeline = newChannelPipeline();
}
再来看AbstractNioChannel初始化，则会伴有java nio channel的产生以及引用
// SelectableChannel则是jdk nio 中的channle，NioServerSocketChannel初始则会创建一个
protected AbstractNioChannel(Channel parent, SelectableChannel ch, int readInterestOp) {
super(parent);
this.ch = ch;
this.readInterestOp = readInterestOp;
try {
ch.configureBlocking(false);
} catch (IOException e) {
try {
ch.close();
} catch (IOException e2) {
logger.warn(
"Failed to close a partially initialized socket.", e2);
}
throw new ChannelException("Failed to enter non-blocking mode.", e);
}
}
再来看之前的register过程，会选取一个EventLoop然后进行调用，（其他的很多东西都是这样），大家可以看看SimpleThreadEventLoop中的相关代码
@Override
public ChannelFuture register(final ChannelPromise promise) {
ObjectUtil.checkNotNull(promise, "promise");
// 调用channel的unsafe调用register
promise.channel().unsafe().register(this, promise);
return promise;
}
AbstractUnsafe 最终注册的逻辑，使用模板模式，子类来进行最终的注册逻辑
private void register0(ChannelPromise promise) {
try {
// check if the channel is still open as it could be closed in the mean time when the register
// call was outside of the eventLoop
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;
doRegister();
/**
* 如： AbstractNioChannel
* 调用底层的jdk channel 注册到 eventloop的selecor中去
* protected void doRegister() throws Exception {
* boolean selected = false;
* for (;;) {
* try {
* selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
* return;
* } catch (CancelledKeyException e) {
* if (!selected) {
* // Force the Selector to select now as the "canceled" SelectionKey may still be
* // cached and not removed because no Select.select(..) operation was called yet.
* eventLoop().selectNow();
* selected = true;
* } else {
* // We forced a select operation on the selector before but the SelectionKey is still cached
* // for whatever reason. JDK bug ?
* throw e;
* }
* }
* }
* }
*/
neverRegistered = false;
registered = true;
// Ensure we call handlerAdded(...) before we actually notify the promise. This is needed as the
// user may already fire events through the pipeline in the ChannelFutureListener.
pipeline.invokeHandlerAddedIfNeeded();
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
// Only fire a channelActive if the channel has never been registered. This prevents firing
// multiple channel actives if the channel is deregistered and re-registered.
if (isActive()) {
if (firstRegistration) {
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
// This channel was registered before and autoRead() is set. This means we need to begin read
// again so that we process inbound data.
//
// See https://github.com/netty/netty/issues/4805
beginRead();
}
}
} catch (Throwable t) {
// Close the channel directly to avoid FD leak.
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
再来看看ServerBootstrap#doBind0里面的逻辑，
private static void doBind0(
final ChannelFuture regFuture, final Channel channel,
final SocketAddress localAddress, final ChannelPromise promise) {
// This method is invoked before channelRegistered() is triggered. Give user handlers a chance to set up
// the pipeline in its channelRegistered() implementation.
channel.eventLoop().execute(new Runnable() {
@Override
public void run() {
if (regFuture.isSuccess()) {
channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
} else {
promise.setFailure(regFuture.cause());
}
}
});
}
大家可以看下channel#bind方法
@Override
public ChannelFuture bind(SocketAddress localAddress, ChannelPromise promise) {
return pipeline.bind(localAddress, promise);
}
很多这样的方法，像直接调用channel相关的write方法，和直接调用ctx的相关方法的区别就是在这里， channle的方法都是交给pipeline来进行处理，而入站在pipeline则是调用head ctx，出战则是tail ctx，使其这样一条handler链进行调用，所以我们在pipeline添加handler的时候，一定要注意好循序问题，以及在handler处理写入信息也要搞清楚到底是调用channel还是ctx的方法。
再来看NioEventLoop，不是常说事件循环嘛，逻辑就在这里了,我们先不说判断什么的，直接看主要逻辑processSelectedKeys()和runAllTasks()
protected void run() {
int selectCnt = 0;
for (;;) {
try {
int strategy;
try {
strategy = selectStrategy.calculateStrategy(selectNowSupplier, hasTasks());
switch (strategy) {
case SelectStrategy.CONTINUE:
continue;
case SelectStrategy.BUSY_WAIT:
// fall-through to SELECT since the busy-wait is not supported with NIO
case SelectStrategy.SELECT:
long curDeadlineNanos = nextScheduledTaskDeadlineNanos();
if (curDeadlineNanos == -1L) {
curDeadlineNanos = NONE; // nothing on the calendar
}
nextWakeupNanos.set(curDeadlineNanos);
try {
if (!hasTasks()) {
strategy = select(curDeadlineNanos);
}
} finally {
// This update is just to help block unnecessary selector wakeups
// so use of lazySet is ok (no race condition)
nextWakeupNanos.lazySet(AWAKE);
}
// fall through
default:
}
} catch (IOException e) {
// If we receive an IOException here its because the Selector is messed up. Let's rebuild
// the selector and retry. https://github.com/netty/netty/issues/8566
rebuildSelector0();
selectCnt = 0;
handleLoopException(e);
continue;
}
selectCnt++;
cancelledKeys = 0;
needsToSelectAgain = false;
final int ioRatio = this.ioRatio;
boolean ranTasks;
if (ioRatio == 100) {
try {
if (strategy > 0) {
processSelectedKeys();
}
} finally {
// Ensure we always run tasks.
ranTasks = runAllTasks();
}
} else if (strategy > 0) {
final long ioStartTime = System.nanoTime();
try {
processSelectedKeys();
} finally {
// Ensure we always run tasks.
final long ioTime = System.nanoTime() - ioStartTime;
ranTasks = runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
}
} else {
ranTasks = runAllTasks(0); // This will run the minimum number of tasks
}
if (ranTasks || strategy > 0) {
if (selectCnt > MIN_PREMATURE_SELECTOR_RETURNS && logger.isDebugEnabled()) {
logger.debug("Selector.select() returned prematurely {} times in a row for Selector {}.",
selectCnt - 1, selector);
}
selectCnt = 0;
} else if (unexpectedSelectorWakeup(selectCnt)) { // Unexpected wakeup (unusual case)
selectCnt = 0;
}
} catch (CancelledKeyException e) {
// Harmless exception - log anyway
if (logger.isDebugEnabled()) {
logger.debug(CancelledKeyException.class.getSimpleName() + " raised by a Selector {} - JDK bug?",
selector, e);
}
} catch (Error e) {
throw (Error) e;
} catch (Throwable t) {
handleLoopException(t);
} finally {
// Always handle shutdown even if the loop processing threw an exception.
try {
if (isShuttingDown()) {
closeAll();
if (confirmShutdown()) {
return;
}
}
} catch (Error e) {
throw (Error) e;
} catch (Throwable t) {
handleLoopException(t);
}
}
}
}
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
if (!k.isValid()) {
final EventLoop eventLoop;
try {
eventLoop = ch.eventLoop();
} catch (Throwable ignored) {
// If the channel implementation throws an exception because there is no event loop, we ignore this
// because we are only trying to determine if ch is registered to this event loop and thus has authority
// to close ch.
return;
}
// Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
// and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
// still healthy and should not be closed.
// See https://github.com/netty/netty/issues/5125
if (eventLoop == this) {
// close the channel if the key is not valid anymore
unsafe.close(unsafe.voidPromise());
}
return;
}
try {
int readyOps = k.readyOps();
// We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
// the NIO JDK channel implementation may throw a NotYetConnectedException.
if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
// remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
// See https://github.com/netty/netty/issues/924
int ops = k.interestOps();
ops &= ~SelectionKey.OP_CONNECT;
k.interestOps(ops);
unsafe.finishConnect();
}
// Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
if ((readyOps & SelectionKey.OP_WRITE) != 0) {
// Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
ch.unsafe().forceFlush();
}
// Also check for readOps of 0 to workaround possible JDK bug which may otherwise lead
// to a spin loop
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
unsafe.read();
}
} catch (CancelledKeyException ignored) {
unsafe.close(unsafe.voidPromise());
}
}
processSelectedKeys() 则是对于事件的处理，如果有事件的话，那么将进行Unsafe的调用,Unsafe最终将进行对信息的处理,以及对管道的相关方法进行回调，就算是连接事件也会进行Handler处理。只是回调的信息中msg类型会不同。 就比如ServerBootstrap$ServerBootstrapAcceptor,这个在初始化里面有进行向添加Pipeline添加这个Handler，这个Hndler则是处理连接事件，然后向work事件循环组去注册这个channel,runAllTasks()则是处理提交到这个eventloop的任务,所以我们经常说netty是全异步的，也是在这里体现。
我们看到read事件都是调用unsafe的read方法，我们可以看到有2个类实现了这个方NioServerSocketChannel内部类NioMessageUnsafe、NioSocketChannel内部类NioByteUnsafe，这就涉及到了有连接读取事件，是怎么进行消息处理的
我们可以看到NioServerSocketChannel#doReadMessages 则是获取到了nio的channel，并包装成NioSocketChannel，最后将信息交给Pipeline处理，就是我上面说的那个ServerBootstrap$ServerBootstrapAcceptor会进行相关处理
@Override
protected int doReadMessages(List<Object> buf) throws Exception {
SocketChannel ch = SocketUtils.accept(javaChannel());
try {
if (ch != null) {
buf.add(new NioSocketChannel(this, ch));
return 1;
}
} catch (Throwable t) {
logger.warn("Failed to create a new channel from an accepted socket.", t);
try {
ch.close();
} catch (Throwable t2) {
logger.warn("Failed to close a socket.", t2);
}
}
return 0;
}
而如果有读取事件呢，NioSocketChannel$NioByteUnsafe#read
@Override
public final void read() {
final ChannelConfig config = config();
if (shouldBreakReadReady(config)) {
clearReadPending();
return;
}
final ChannelPipeline pipeline = pipeline();
final ByteBufAllocator allocator = config.getAllocator();
final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle();
allocHandle.reset(config);
ByteBuf byteBuf = null;
boolean close = false;
try {
do {
byteBuf = allocHandle.allocate(allocator);
allocHandle.lastBytesRead(doReadBytes(byteBuf));
if (allocHandle.lastBytesRead() <= 0) {
// nothing was read. release the buffer.
byteBuf.release();
byteBuf = null;
close = allocHandle.lastBytesRead() < 0;
if (close) {
// There is nothing left to read as we received an EOF.
readPending = false;
}
break;
}
allocHandle.incMessagesRead(1);
readPending = false;
pipeline.fireChannelRead(byteBuf);
byteBuf = null;
} while (allocHandle.continueReading());
allocHandle.readComplete();
pipeline.fireChannelReadComplete();
if (close) {
closeOnRead(pipeline);
}
} catch (Throwable t) {
handleReadException(pipeline, byteBuf, t, close, allocHandle);
} finally {
// Check if there is a readPending which was not processed yet.
// This could be for two reasons:
// * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
// * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
//
// See https://github.com/netty/netty/issues/2254
if (!readPending && !config.isAutoRead()) {
removeReadOp();
}
}
}
}
我们先看netty是怎么从nio channel里面读取到信息的,最终会调用AbstractByteBuf#writeBytes(ScatteringByteChannel in, int length),根据定义我们知道,尝试从nio冲的channle读取数据到本身(Bytebuf)
public int writeBytes(ScatteringByteChannel in, int length) throws IOException {
ensureWritable(length);
int writtenBytes = setBytes(writerIndex, in, length);
if (writtenBytes > 0) {
writerIndex += writtenBytes;
}
return writtenBytes;
}
我们看到可以读取到信息时，则会调用pipeline.fireChannelRead(byteBuf),这里则会引发出几个问题，就是粘包半包问题，那么Netty抽象出的ByteToMessageDecoder里面则很好的解决的这个问题，里面会有Cumulator,将信息累计起来，调用decode方法(子类实现)，如果能解析成一个完整的数据,那么就输入到out中，将完整的信息继续调用handler进行业务处理。
Netty 中的拆包器大致如下：
固定长度的拆包器 FixedLengthFrameDecoder 每个应用层数据包的都拆分成都是固定长度的大小，比如 1024字节。 这个显然不大适应在 Java 聊天程序 进行实际应用。
行拆包器 LineBasedFrameDecoder 每个应用层数据包，都以换行符作为分隔符，进行分割拆分。 这个显然不大适应在 Java 聊天程序 进行实际应用。
分隔符拆包器 DelimiterBasedFrameDecoder 每个应用层数据包，都通过自定义的分隔符，进行分割拆分。 这个版本，是LineBasedFrameDecoder 的通用版本，本质上是一样的。 这个显然不大适应在 Java 聊天程序 进行实际应用。
基于数据包长度的拆包器 LengthFieldBasedFrameDecoder 将应用层数据包的长度，作为接收端应用层数据包的拆分依据。按照应用层数据包的大小，拆包。这个拆包器，有一个要求，就是应用层协议中包含数据包的长度。
结束语
说一下自己其他的感受吧，我其实也看了很多框架源码，比如Dubbo、Sentinel、RocketMQ,里面就涉及到了通信，都是用到了Netty，如果小伙伴们把Netty弄清楚了，看一些通信方式使用Netty真的是事倍功半。
自己文笔也不是很好，不知道该怎么描述，大佬勿喷。有什么错误的地方，小伙伴们可以指出，我会进行更改。
