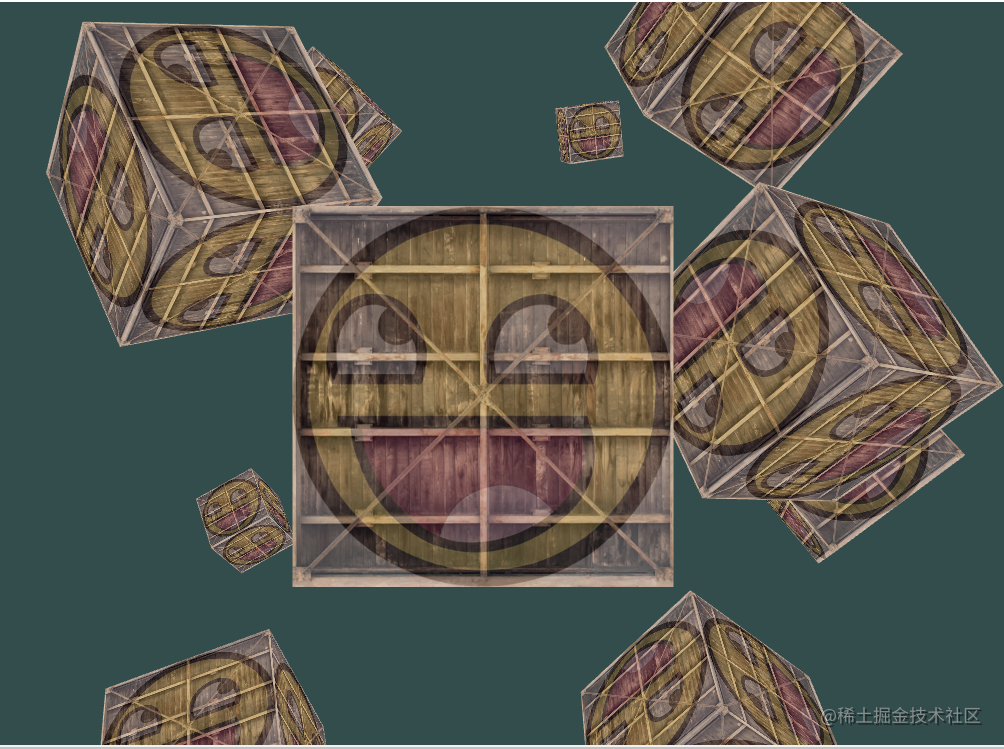

OpenGL_JS-coordinate_systems_multiple


  • 顶点着色器
export let vs_coordinate_systems = `#version 300 es
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec2 aTexCoord;
out vec2 TexCoord;
uniform mat4 model;
uniform mat4 view;
uniform mat4 projection;
void main()
{
    gl_Position = projection * view * model * vec4(aPos, 1.0f);
    TexCoord = vec2(aTexCoord.x, 1.0 - aTexCoord.y);
}
复制代码
  • 片元着色器
export let fs_coordinate_systems= `#version 300 es
precision mediump float;
out vec4 FragColor;
in vec2 TexCoord;
uniform sampler2D texture1;
uniform sampler2D texture2;
void main()
{
    FragColor = mix(texture(texture1, TexCoord), texture(texture2, TexCoord), 0.2);
}`
复制代码
  • createVertexArray bindVertexArray
  • createBuffer bindBuffer bufferData vertexAttribPointer enableVertexAttribArray
  • createBuffer bufferData
gl.enable(gl.DEPTH_TEST);
ourShader = new Shader(gl, vs_coordinate_systems, fs_coordinate_systems);
let vertices = new Float32Array([
    -0.5, -0.5, -0.5, 0.0, 0.0,
    0.5, -0.5, -0.5, 1.0, 0.0,
    0.5, 0.5, -0.5, 1.0, 1.0,
    0.5, 0.5, -0.5, 1.0, 1.0,
    -0.5, 0.5, -0.5, 0.0, 1.0,
    -0.5, -0.5, -0.5, 0.0, 0.0,
    -0.5, -0.5, 0.5, 0.0, 0.0,
    0.5, -0.5, 0.5, 1.0, 0.0,
    0.5, 0.5, 0.5, 1.0, 1.0,
    0.5, 0.5, 0.5, 1.0, 1.0,
    -0.5, 0.5, 0.5, 0.0, 1.0,
    -0.5, -0.5, 0.5, 0.0, 0.0,
    -0.5, 0.5, 0.5, 1.0, 0.0,
    -0.5, 0.5, -0.5, 1.0, 1.0,
    -0.5, -0.5, -0.5, 0.0, 1.0,
    -0.5, -0.5, -0.5, 0.0, 1.0,
    -0.5, -0.5, 0.5, 0.0, 0.0,
    -0.5, 0.5, 0.5, 1.0, 0.0,
    0.5, 0.5, 0.5, 1.0, 0.0,
    0.5, 0.5, -0.5, 1.0, 1.0,
    0.5, -0.5, -0.5, 0.0, 1.0,
    0.5, -0.5, -0.5, 0.0, 1.0,
    0.5, -0.5, 0.5, 0.0, 0.0,
    0.5, 0.5, 0.5, 1.0, 0.0,
    -0.5, -0.5, -0.5, 0.0, 1.0,
    0.5, -0.5, -0.5, 1.0, 1.0,
    0.5, -0.5, 0.5, 1.0, 0.0,
    0.5, -0.5, 0.5, 1.0, 0.0,
    -0.5, -0.5, 0.5, 0.0, 0.0,
    -0.5, -0.5, -0.5, 0.0, 1.0,
    -0.5, 0.5, -0.5, 0.0, 1.0,
    0.5, 0.5, -0.5, 1.0, 1.0,
    0.5, 0.5, 0.5, 1.0, 0.0,
    0.5, 0.5, 0.5, 1.0, 0.0,
    -0.5, 0.5, 0.5, 0.0, 0.0,
    -0.5, 0.5, -0.5, 0.0, 1.0
]);
cubePositions = [
    vec3.fromValues(0.0, 0.0, 0.0),
    vec3.fromValues(2.0, 5.0, -15.0),
    vec3.fromValues(-1.5, -2.2, -2.5),
    vec3.fromValues(-3.8, -2.0, -12.3),
    vec3.fromValues(2.4, -0.4, -3.5),
    vec3.fromValues(-1.7, 3.0, -7.5),
    vec3.fromValues(1.3, -2.0, -2.5),
    vec3.fromValues(1.5, 2.0, -2.5),
    vec3.fromValues(1.5, 0.2, -1.5),
    vec3.fromValues(-1.3, 1.0, -1.5)
];
VAO = gl.createVertexArray();
let VBO = gl.createBuffer();
gl.bindVertexArray(VAO);
gl.bindBuffer(gl.ARRAY_BUFFER, VBO);
gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);
gl.vertexAttribPointer(0, 3, gl.FLOAT, false, 5 * sizeFloat, 0);
gl.enableVertexAttribArray(0);
gl.vertexAttribPointer(1, 2, gl.FLOAT, false, 5 * sizeFloat, (3 * sizeFloat));
gl.enableVertexAttribArray(1);
复制代码
  • createTexture bindTexture texParameteri texImage2D
texture1 = gl.createTexture();
initTexture(gl, texture1);
const image1 = new Image();
image1.onload = function () {
    gl.bindTexture(gl.TEXTURE_2D, texture1);
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGB, gl.RGB, gl.UNSIGNED_BYTE, image1);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.REPEAT);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.REPEAT);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
    gl.generateMipmap(gl.TEXTURE_2D);
};
image1.src = "../../textures/container.jpg";
texture2 = gl.createTexture();
initTexture(gl, texture2);
const image2 = new Image();
image2.onload = function () {
    gl.bindTexture(gl.TEXTURE_2D, texture2);
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, gl.RGBA, gl.UNSIGNED_BYTE, image2);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_S, gl.REPEAT);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_WRAP_T, gl.REPEAT);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MIN_FILTER, gl.LINEAR);
    gl.texParameteri(gl.TEXTURE_2D, gl.TEXTURE_MAG_FILTER, gl.LINEAR);
    gl.generateMipmap(gl.TEXTURE_2D);
};
mage2.src = "../../textures/awesomeface.png";
ourShader.use(gl);
ourShader.setInt(gl, "texture1", 0);
ourShader.setInt(gl, "texture2", 1);
requestAnimationFrame(render);
function initTexture(gl, texture) {
    gl.bindTexture(gl.TEXTURE_2D, texture);
    const width = 1;
    const height = 1;
    const pixel = new Uint8Array([0, 0, 255]);
    gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGB, width, height, 0, gl.RGB, gl.UNSIGNED_BYTE, pixel);
}
复制代码
function render() {
    processInput();
    gl.clearColor(0.2, 0.3, 0.3, 1.0);
    gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
    gl.activeTexture(gl.TEXTURE0);
    gl.bindTexture(gl.TEXTURE_2D, texture1);
    gl.activeTexture(gl.TEXTURE1);
    gl.bindTexture(gl.TEXTURE_2D, texture2);
    ourShader.use(gl);
    let view = mat4.create();
    let projection = mat4.create();
    mat4.perspective(projection, 45.0 * Math.PI / 180, canvas.width / canvas.height, 0.1, 100.0);
    mat4.translate(view, view, vec3.fromValues(0.0, 0.0, -3.0));
    gl.uniformMatrix4fv(gl.getUniformLocation(ourShader.programId, "projection"), false, projection);
    gl.uniformMatrix4fv(gl.getUniformLocation(ourShader.programId, "view"), false, view);
    gl.bindVertexArray(VAO);
    for (let i = 0; i < 10; i++) {
        let model = mat4.create();
        model = mat4.translate(model, model, cubePositions[i]);
        let angle = 20.0 * i;
        mat4.rotate(model, model, (angle) * Math.PI / 180, vec3.fromValues(1.0, 0.3, 0.5));
        gl.uniformMatrix4fv(gl.getUniformLocation(ourShader.programId, "model"), false, model);
        gl.drawArrays(gl.TRIANGLES, 0, 36);
    }
    requestAnimationFrame(render);
function processInput() {
}
//# sourceMappingURL=coordinate_systems_multiple.js.map
复制代码
