Spring Cloud实战 | 第十篇 :Spring Cloud + Nacos整合Seata 1.4.1最新版本实现微服务架构中的分布式事务,进阶之路必须要迈过的槛

931 阅读10分钟

Seata分布式事务在线体验地址: www.youlai.store

本篇完整源码地址:github.com/hxrui/youla…

有想加入开源项目开发的童鞋也可以联系我(微信号:haoxianrui),希望大家能够一起交流学习。觉得项目对你有帮助希望能给一个star或者关注,持续更新中。。。

一. 前言

相信了解过开源项目 youlai-mall 的童鞋应该知道该项目主要是基于Spring Cloud + Vue等当前最新最主流技术落地实现的一套微服务架构 + 前后端分离的全栈商城系统(App、微信小程序等)。

往期文章链接:

微服务

  1. Spring Cloud实战 | 第一篇:Windows搭建Nacos服务
  2. Spring Cloud实战 | 第二篇:Spring Cloud整合Nacos实现注册中心
  3. Spring Cloud实战 | 第三篇:Spring Cloud整合Nacos实现配置中心
  4. Spring Cloud实战 | 第四篇:Spring Cloud整合Gateway实现API网关
  5. Spring Cloud实战 | 第五篇:Spring Cloud整合OpenFeign实现微服务之间的调用
  6. Spring Cloud实战 | 第六篇:Spring Cloud Gateway+Spring Security OAuth2+JWT实现微服务统一认证授权
  7. Spring Cloud实战 | 最七篇:Spring Cloud Gateway+Spring Security OAuth2集成统一认证授权平台下实现注销使JWT失效方案
  8. Spring Cloud实战 | 最八篇:Spring Cloud +Spring Security OAuth2+ Vue前后端分离模式下无感知刷新实现JWT续期
  9. Spring Cloud实战 | 最九篇:Spring Security OAuth2认证服务器统一认证自定义异常处理

管理前端

  1. vue-element-admin实战 | 第一篇: 移除mock接入后台,搭建有来商城youlai-mall前后端分离管理平台
  2. vue-element-admin实战 | 第二篇: 最小改动接入后台实现根据权限动态加载菜单

微信小程序

  1. vue+uniapp商城实战 | 第一篇:【有来小店】微信小程序快速开发接入Spring Cloud OAuth2认证中心完成授权登录

部署篇

  1. Docker实战 | 第二篇:IDEA集成Docker插件实现一键自动打包部署微服务项目,一劳永逸的技术手段值得一试
  2. Docker实战 | 第三篇:Docker安装Nginx,实现基于vue-element-admin框架构建的项目线上部署

说到微服务,自然就少不了保证服务之间数据一致性的分布式事务,所以本篇就以Seata的AT模式如何在微服务的实际场景中应用进行实战说明,希望大家都能有个看其形知其意的效果。

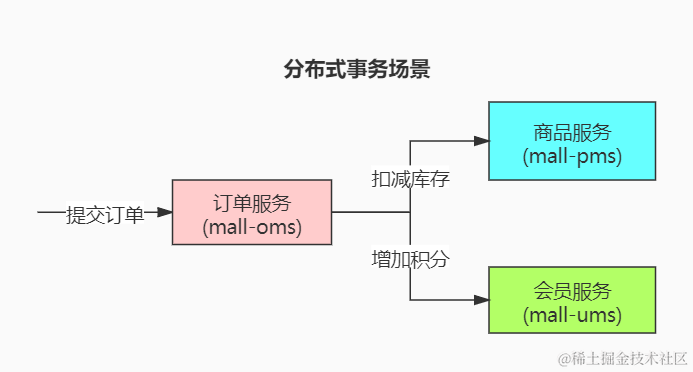

1. 需求描述

会员提交订单,扣减商品库存,增加会员积分,完成前面步骤,更改订单状态为已完成。

根据需求可知这其中牵涉到订单、商品、会员3个微服务,分别对应 youlai-mall 商城项目的 mall-oms、mall-pms、mall-ums微服务。

2. 技术版本

技术版本说明
Spring CloudHoxton.SR9微服务架构
Nacos1.4.0注册、配置中心
Seata1.4.1分布式事务

3. 环境准备

3.1 Nacos安装和配置

www.cnblogs.com/haoxianrui/…

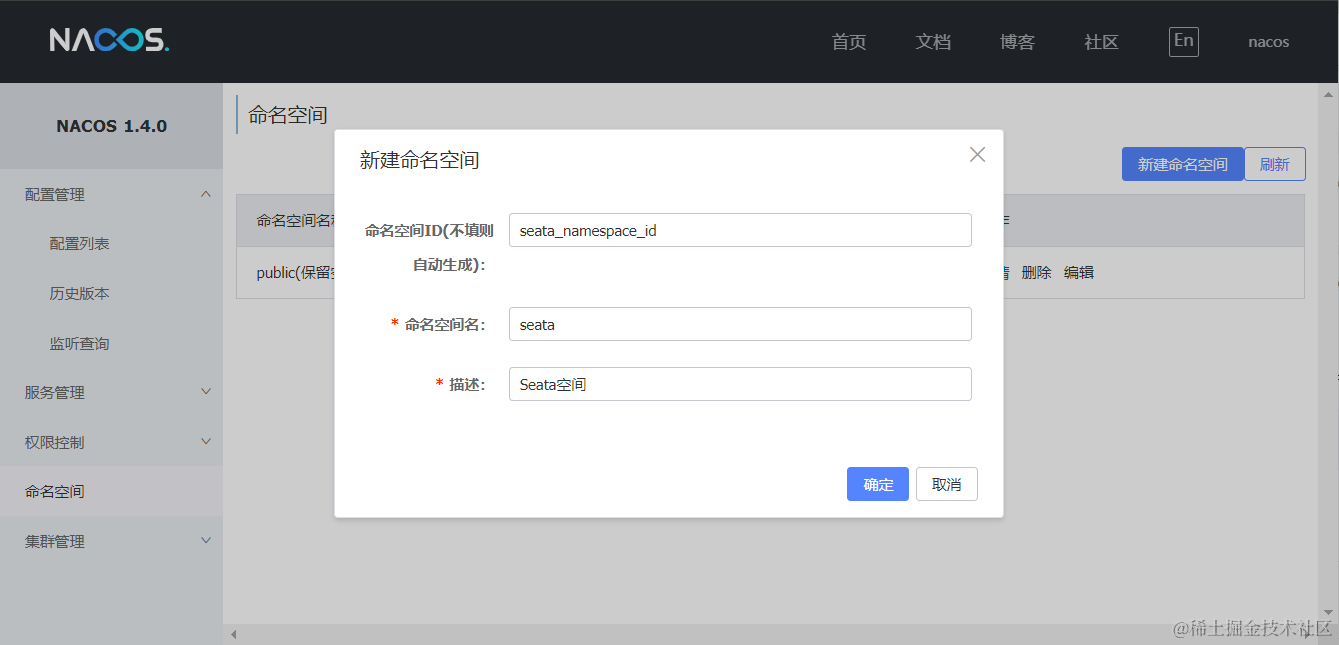

进入Nacos控制台,创建seata命名空间

记住命名空间ID自定义为seata_namespace_id,后面需要

3.2 Seata数据库创建

创建数据库名为seata,执行Seata的Github官方源码中提供的的MySQL数据库脚本

MySQL脚本地址:
github.com/seata/seata…

二. seata-server安装

重点声明: 192.168.1.188 是安装Nacos和Seata的虚拟机IP

点击 Docker Hub链接 查看最新Seata版本

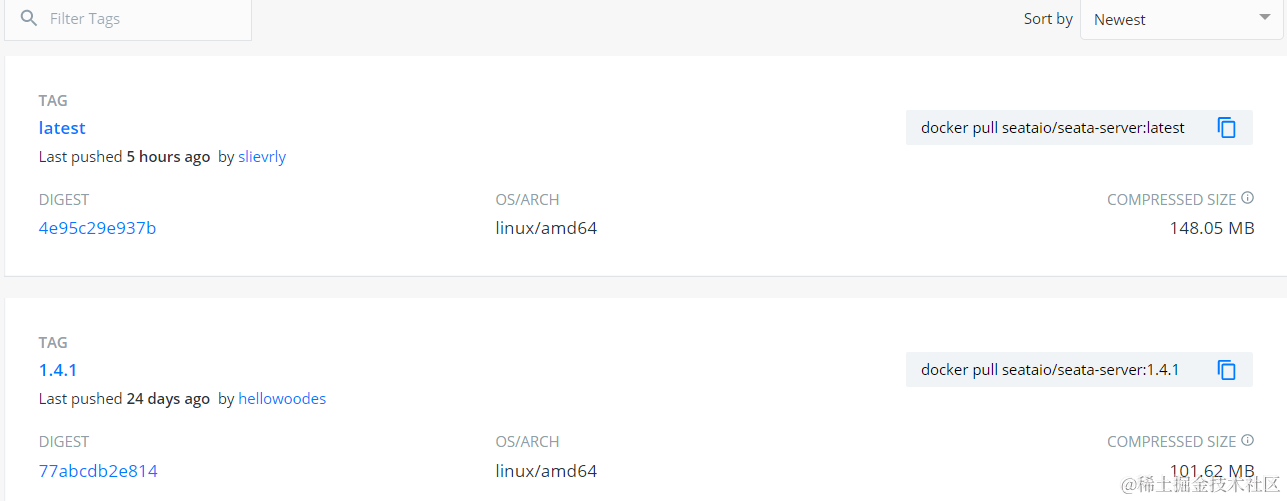

可以看到最新版本为1.4.1版本,复制指令获取最新版本镜像

docker pull seataio/seata-server:1.4.1

启动临时容器

docker run -d --name seata -p 8091:8091 seataio/seata-server

从临时容器获取到 registry.conf 配置文件

mkdir /opt/seata
docker cp seata:/seata-server/resources/registry.conf  /opt/seata

修改registry.conf配置,类型选择nacos,namesapce为上文中在nacos新建的命名空间id即seata_namespace_id,精简如下:

vim /opt/seata/registry.conf
registry {
  type = "nacos"
  loadBalance = "RandomLoadBalance"
  loadBalanceVirtualNodes = 10

  nacos {
    application = "seata-server"
    serverAddr = "192.168.1.188:8848"
    namespace = "seata_namespace_id"
    group = "SEATA_GROUP"
    cluster = "default"
  }
}
config {
  type = "nacos"

  nacos {
    serverAddr = "192.168.1.188:8848"
    namespace = "seata_namespace_id"
    group = "SEATA_GROUP"
  }
}

安排好 registry.conf 之后,删除临时容器

docker rm -f seata

接下来着手开始推送Seata依赖配置至Nacos

从Seata的GitHub官方源码获取配置文件(config.txt)和推送脚本文件(nacos/nacos-config.sh)

地址:github.com/seata/seata…

因为脚本的关系,文件存放目录如下

/opt/seata
├── config.txt
└── nacos
    └── nacos-config.sh

修改配置文件 config.txt

vim /opt/seata/config.txt

修改事务组和MySQL连接信息,修改信息如下:

service.vgroupMapping.mall_tx_group=default

store.mode=db
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://www.youlai.store:3306/seata?useUnicode=true&rewriteBatchedStatements=true
store.db.user=root
store.db.password=123456

执行推送命令

cd /opt/seata/nacos

bash nacos-config.sh -h 192.168.1.188 -p 8848 -g SEATA_GROUP -t seata_namespace_id -u nacos -w nacos
  • -t seata_namespace_id 指定Nacos配置命名空间ID
  • -g SEATA_GROUP 指定Nacos配置组名称

如果有 init nacos config fail. 报错信息,请检查修改信息,如果有属性修改提示failure,请修改config.txt中属性。

如果出现类似 cat: /tmp/tmp.rRGz1B7MUP: No such file or directory 的错误不用慌,重新执行推送命令直至成功。

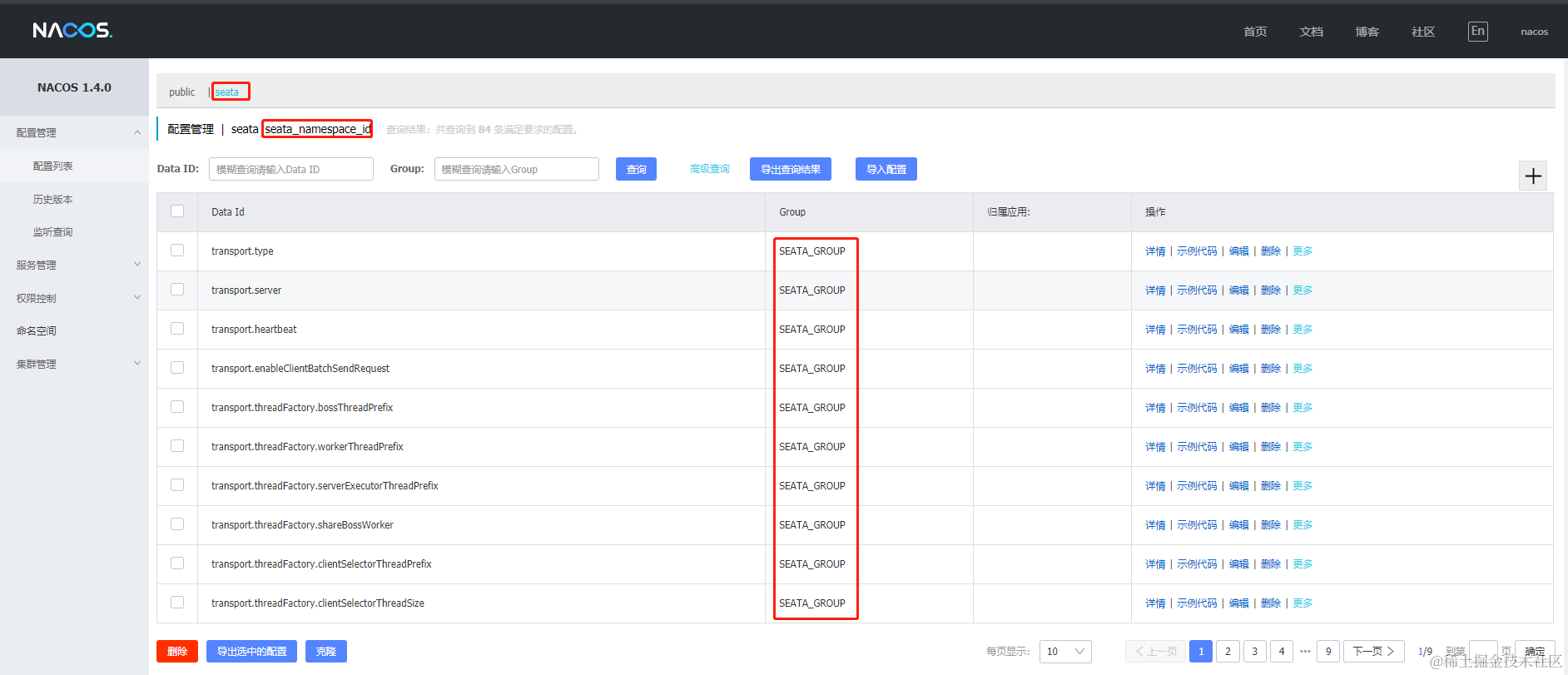

推送执行完毕,到Nacos控制台查看配置是否已添加成功

做完上述准备工作之后,接下来最后一步:启动Seata容器

docker run -d --name seata --restart=always -p 8091:8091  \
-e SEATA_IP=192.168.1.188 \
-e SEATA_CONFIG_NAME=file:/seata-server/resources/registry.conf \
-v /opt/seata/registry.conf:/seata-server/resources/registry.conf \
-v /opt/seata/logs:/root/logs \
seataio/seata-server

三. Seata客户端

上文完成了Seata服务端应用安装、添加Seata配置至Nacos配置中心以及注册Seata到Nacos注册中心。

接下来的工作就是客户端的配置,通过相关配置把订单(mall-oms)、商品(mall-pms)、会员(mall-ums)这3个微服务关联seata-server。

1. 添加undo_log表

Seata的AT模式下之所以在第一阶段直接提交事务,依赖的是需要在每个RM创建一张undo_log表,记录业务执行前后的数据快照。

如果二阶段需要回滚,直接根据undo_log表回滚,如果执行成功,则在第二阶段删除对应的快照数据。

Seata官方Github源码库undo_log表脚本地址:

github.com/seata/seata…

注意第一行的注释说明

-- for AT mode you must to init this sql for you business database. the seata server not need it.
CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';

分别在项目的 mall-oms、mall-pms、mall-ums 的三个数据库执行脚本创建 undo_log

2. 添加依赖

分别为 youlai-mall 的 mall-oms、mall-pms、mall-ums 微服务添加如下seata客户端依赖

<dependency>
    <groupId>io.seata</groupId>
    <artifactId>seata-spring-boot-starter</artifactId>
    <version>1.4.0</version>
</dependency>

<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
    <exclusions>
        <!-- 排除依赖 指定版本和服务器端一致 -->
        <exclusion>
            <groupId>io.seata</groupId>
            <artifactId>seata-all</artifactId>
        </exclusion>
        <exclusion>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
        </exclusion>
    </exclusions>
</dependency>

<dependency>
    <groupId>io.seata</groupId>
    <artifactId>seata-all</artifactId>
    <version>1.4.1</version>
</dependency>

<dependency>
    <groupId>io.seata</groupId>
    <artifactId>seata-spring-boot-starter</artifactId>
    <version>1.4.1</version>
</dependency>
  • 使用Alibaba官方提供的Spring Cloud和Seata整合好的Spring Boot启动器 spring-cloud-starter-alibaba-seata
  • 需要指定seata版本和服务版本一致,这里也就是1.4.1

3. yml配置

Seata官方Github源码库Spring配置链接:

github.com/seata/seata…

配置精简如下:

# 分布式事务配置
seata:
  tx-service-group: mall_tx_group
  enable-auto-data-source-proxy: true
  registry:
    type: nacos
    nacos:
      server-addr: localhost:8848
      namespace: seata_namespace_id
      group: SEATA_GROUP
  config:
    type: nacos
    nacos:
      server-addr: localhost:8848
      namespace: seata_namespace_id
      group: SEATA_GROUP
  • tx-service-group: mall_tx_group 配置事务群组,其中群组名称 mall_tx_group 需和服务端的配置 service.vgroupMapping.mall_tx_group=default 一致
  • enable-auto-data-source-proxy: true 自动为Seata开启了代理数据源,实现集成对undo_log表操作
  • namespace: seata_namespace_id seata-server一致
  • group: SEATA_GROUP seata-server一致

将精简的配置分别放置到 mall-oms、mall-pms、mall-ums的配置文件中

4. 启动类调整

因为要使用Seata提供的代理数据源,所以在启动类移除SpringBoot自动默认装配的数据源

同样也是需要在3个微服务启动类分别调整,不然分布式事务不会生效

@SpringBootApplication(exclude = DataSourceAutoConfiguration.class)

四. 测试环境模拟

根据上诉步骤完成Seata服务安装以及客户端的配置之后

接下来就开始着手 透过现象看本质 的工作,根据业务需求创建业务表和编写业务代码

1. 业务表

提供业务表关键字段,完整表结构请点击 youlai-mall

订单表(oms_order):

CREATE TABLE `oms_order` (
  `id` bigint NOT NULL AUTO_INCREMENT COMMENT 'id',
  `status` int NOT NULL DEFAULT '101' COMMENT '订单状态【101->待付款;102->用户取消;103->系统取消;201->已付款;202->申请退款;203->已退款;301->待发货;401->已发货;501->用户收货;502->系统收货;901->已完成】',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci COMMENT='订单表';

库存表(pms_sku):

CREATE TABLE `pms_sku` (
  `id` bigint NOT NULL AUTO_INCREMENT COMMENT '商品id',
  `stock` int NOT NULL DEFAULT '0' COMMENT '库存',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB  DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci ROW_FORMAT=DYNAMIC COMMENT='商品库存表';

会员表(ums_user):

CREATE TABLE `ums_user` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `username` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `point` int DEFAULT '0' COMMENT '会员积分',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE=InnoDB  DEFAULT CHARSET=utf8mb4 ROW_FORMAT=DYNAMIC COMMENT='会员信息表';

2. 业务代码

提供核心业务代码,完整代码请点击 youlai-mall

订单微服务(mall-oms):

代码定位:OmsOrderServiceImpl#submit

@Override
@GlobalTransactional(rollbackFor = Exception.class)
public boolean submit() {
    log.info("扣减库存----begin");
    productFeignService.updateStock(1l, -1);
    log.info("扣减库存----end");

    log.info("增加积分----begin");
    memberFeignService.updatePoint(1l, 10);
    log.info("增加积分----end");

    log.info("修改订单状态----begin");
    boolean result = this.update(new LambdaUpdateWrapper<OmsOrder>().eq(OmsOrder::getId, 1l).set(OmsOrder::getStatus, 901));
    log.info("修改订单状态----end");
    return result;
}
  • @GlobalTransactional注解,标识TM(事务管理器)开启全局事务

商品微服务(mall-pms):

代码定位:AppSkuController#updateStock

@PutMapping("/{id}/stock")
public Result updateStock(@PathVariable Long id, @RequestParam Integer num) {
    PmsSku sku = iPmsSkuService.getById(id);
    sku.setStock(sku.getStock() + num);
    boolean result = iPmsSkuService.updateById(sku);
    return Result.status(result);
}

会员微服务(mall-ums):

 @PutMapping("/{id}/point")
public Result updatePoint(@PathVariable Long id, @RequestParam Integer num) {
    UmsUser user = iUmsUserService.getById(id);
    user.setPoint(user.getPoint() + num);
    boolean result = iUmsUserService.updateById(user);
    try {
        Thread.sleep(15 * 1000);
    } catch (InterruptedException e) {
        e.printStackTrace();
    }
    return Result.status(result);
}

Thread.sleep(15 * 1000); 模拟超时异常验证事务是否能正常回滚

注意15s的设定有讲究的

先看下订单微服务的feign调用配置,

ribbon:
  ReadTimeout: 10000

feign底层使用ribbon做负载均衡和远程调用,上面设置ribbon的超时时间为10s

然而在订单调用会员服务的时候需要至少15s才能获得结果,显然会造成接口请求超时的异常,接下来就看事务能不能进行正常回滚。

五. 验证测试

本篇源码包括测试用例均已整合到 youlai-mall ,大家有条件的话可以搭建一个本地环境调试一下,项目从无到有的搭建参考项目中的说明文档。

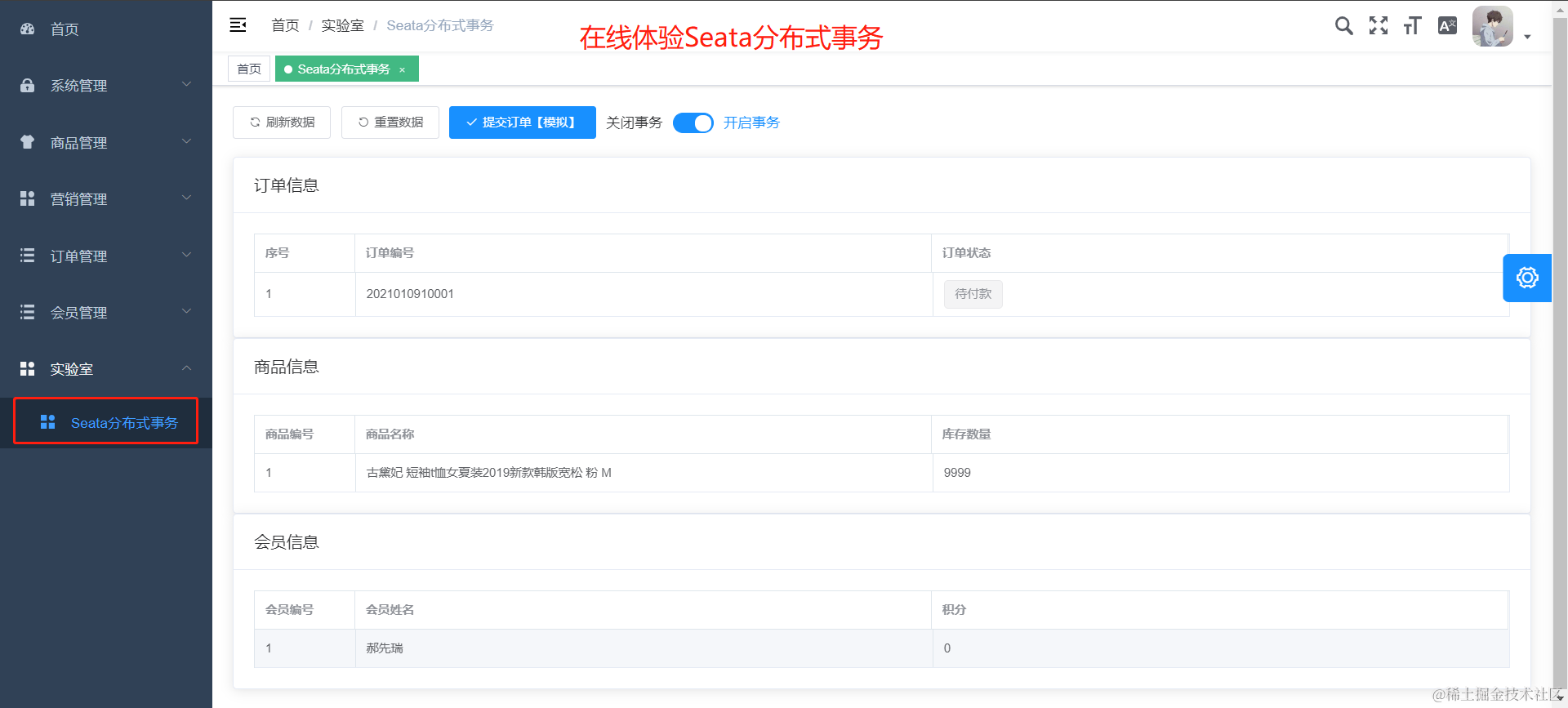

但如果你想快速验证Seata分布式事务和看到效果,ok,满足你,在项目中添加了一个 实验室 的菜单,计划用于技术点测试,也方便给大家提供一个完整的测试环境。

话不多说,看界面效果图:

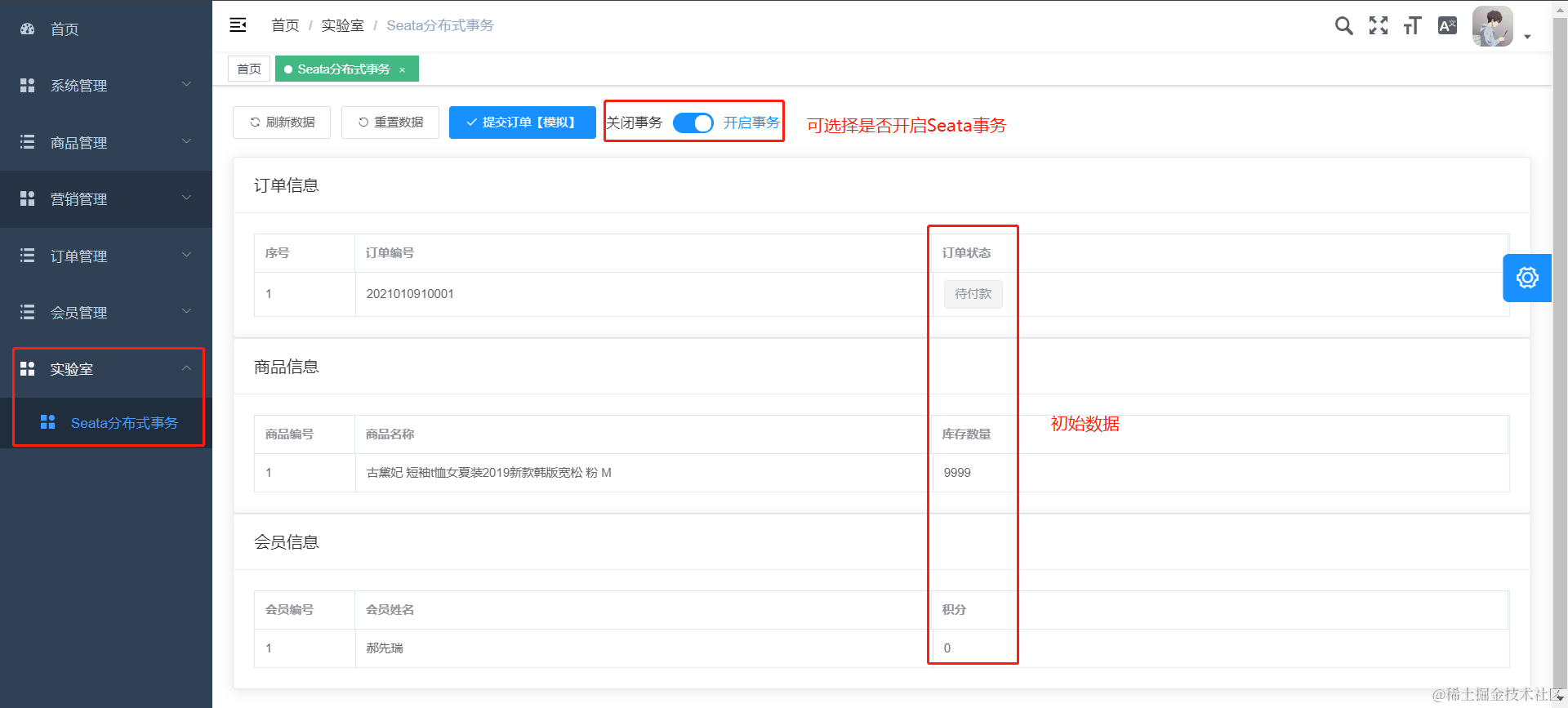

看完上图标注的地方,接下来通过界面来进行分布式事务测试

首先确定一下前提订单提交肯定会因为会员积分服务超时出现异常

  • 关闭事务提交

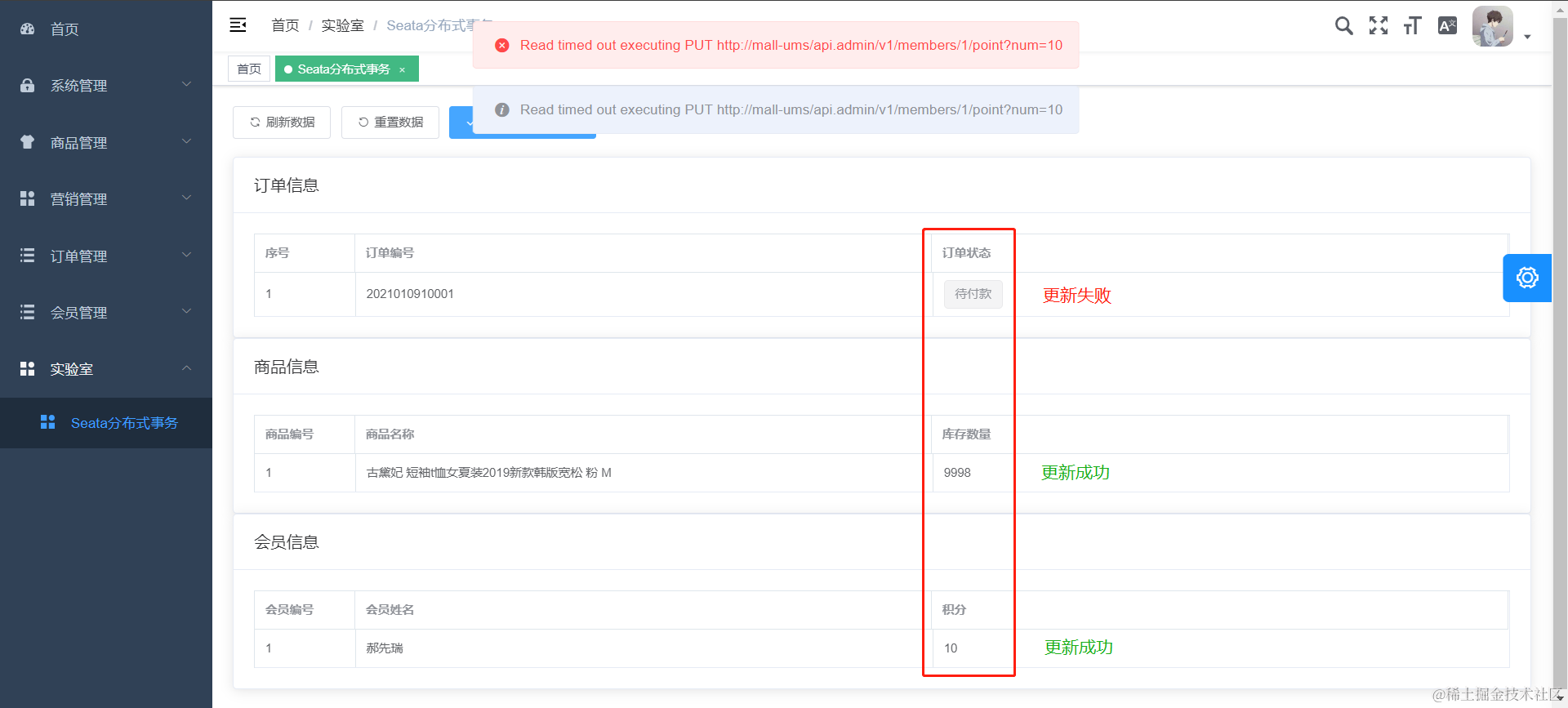

可以看到在关闭事务提交订单异常的情况下,库存和积分更新成功了,然而订单确更新失败了

接下来再看下开启事务提交的结果又会是如何呢?

  • 开启事务提交

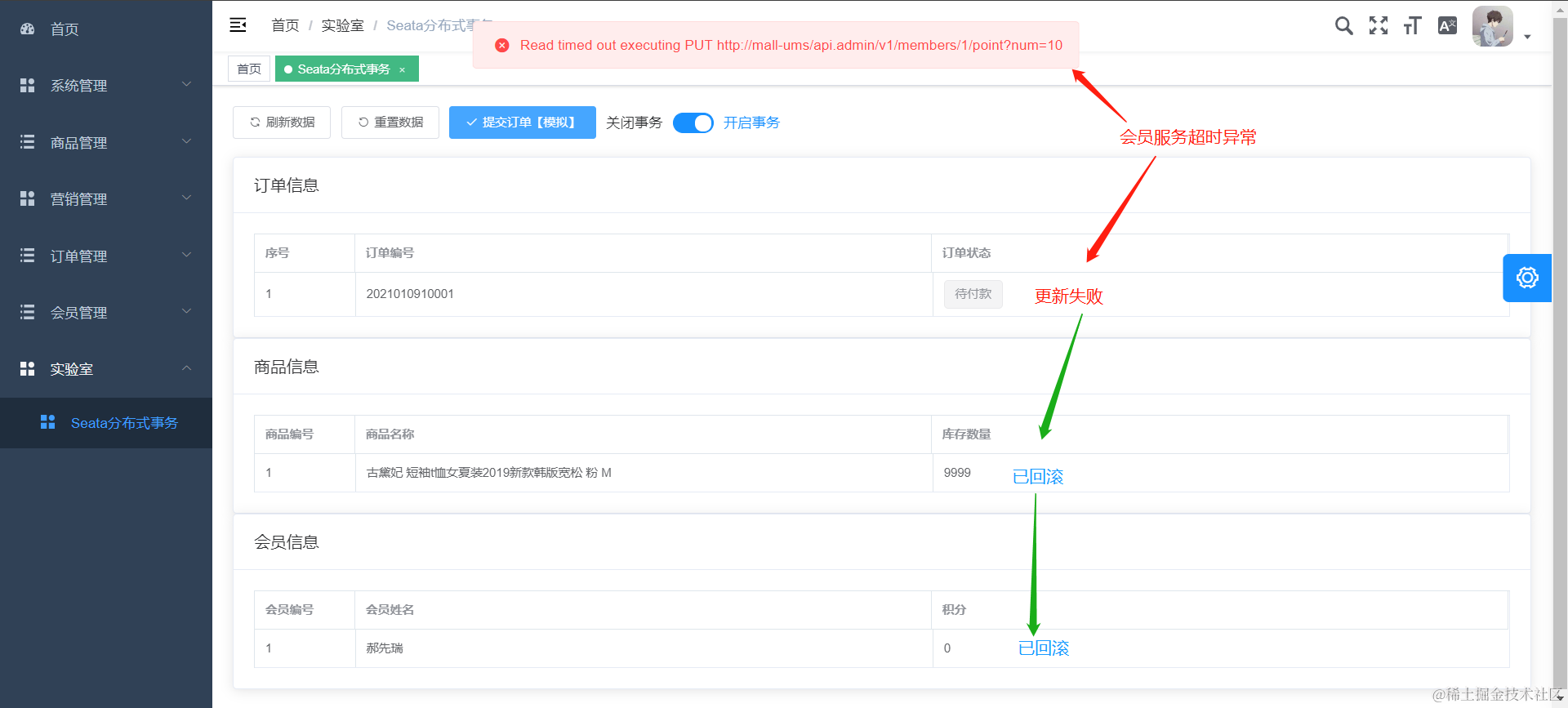

更新订单状态失败,因开启了全局事务,导致已更新的商品库存、积分被回滚至初始状态。

六. 结语

以上就Seata分布式事务结合实际场景应用的案例进行整合和测试,最后可以看到通过Seata实现了微服务调用链的最终数据一致性。最后提供了在线体验实验室功能模块,大家可以拉取到本地然后断点调试以及监听数据表的数据变化,相信应该会很快掌握Seata的执行流程和实现原理。

最后,觉得项目不错的话或对你有帮助的话,希望能给个star,持续更新中...
