一、故障简述

公司在访问Redis时使用了JedisPool。当Redis实例不可达时，会将该实例放入黑名单。后台线程周期性扫描黑名单列表，如果可达，则恢复。在检测时会新建新的JedisPool，通过jedisPool.getResource().close()的方式检测可达性。由于是周期性检测，每次检测都会new一个新的JedisPool，而且在创建JedisPool时，配置了minIdle为1。这样就埋下隐患。如果Redis长时间不可达，会new很多的JedisPool，当Redis恢复时，由于JedisPool有后台的周期性驱逐线程（如果连接长时间空闲，则销毁；为保证该pool内有足够minIdle连接，又会创建新的连接），这样会创建大量的连接。达到Redis的最大连接数限制，正常请求的连接会收到服务端返回的ERR max number of clients reached错误而抛出异常。注意，虽然客户端收到了错误，但是对于客户端而言连接是建立上了，客户端将请求发送到了服务端，在读取服务端请求的返回值时，服务端返回了ERR max number of clients reached错误。对于Redis服务端而言，对于造成服务端达到“最大连接数限制”的连接，服务端会直接关闭。

Caused by: redis.clients.jedis.exceptions.JedisDataException: ERR max number of clients reached
        at redis.clients.jedis.Protocol.processError(Protocol.java:130)
        at redis.clients.jedis.Protocol.process(Protocol.java:164)
        at redis.clients.jedis.Protocol.read(Protocol.java:218)
        at redis.clients.jedis.Connection.readProtocolWithCheckingBroken(Connection.java:341)
        at redis.clients.jedis.Connection.getBinaryMultiBulkReply(Connection.java:277)
        at redis.clients.jedis.BinaryJedis.mget(BinaryJedis.java:606)

有个疑问： 为什么日志中还有写失败的请求呢？不应该是正常建立的那些连接，可以正常写数据吗？因为被“达到最大连接数异常”的连接已经被回收了，不可能再被客户端使用了。难道服务端有清理连接的逻辑？

Caused by: java.net.SocketException: Connection reset by peer (Write failed)
        at java.base/java.net.SocketOutputStream.socketWrite0(Native Method)
        at java.base/java.net.SocketOutputStream.socketWrite(SocketOutputStream.java:110)
        at java.base/java.net.SocketOutputStream.write(SocketOutputStream.java:150)
        at redis.clients.util.RedisOutputStream.flushBuffer(RedisOutputStream.java:52)
        at redis.clients.util.RedisOutputStream.flush(RedisOutputStream.java:216)
        at redis.clients.jedis.Connection.flush(Connection.java:332)
        ... 30 more

二、驱逐线程

1. 驱逐线程的创建

/**
 * Create a new <code>GenericObjectPool</code> using a specific
 * configuration.
 *
 * @param factory   The object factory to be used to create object instances
 *                  used by this pool
 * @param config    The configuration to use for this pool instance. The
 *                  configuration is used by value. Subsequent changes to
 *                  the configuration object will not be reflected in the
 *                  pool.
 */
public GenericObjectPool(PooledObjectFactory<T> factory,
        GenericObjectPoolConfig config) {
    // 还记得之前的JMX问题吗？
    super(config, ONAME_BASE, config.getJmxNamePrefix());

    if (factory == null) {
        jmxUnregister(); // tidy up
        throw new IllegalArgumentException("factory may not be null");
    }
    this.factory = factory;

    idleObjects = new LinkedBlockingDeque<PooledObject<T>>(config.getFairness());

    setConfig(config);
    // 这里开启驱逐线程
    startEvictor(getTimeBetweenEvictionRunsMillis());
}

可以看到，驱逐线程是在构造函数中创建开启的。也就是说，每new一个JedisPool都会有一个对应的驱逐线程在周期性执行。 回忆一下，也是在这个构造函数里往JMX进行了注册，并引发了另外一个问题: new JedisPool可能会很慢。

2. 驱逐线程的实现

/**
 * <p>Starts the evictor with the given delay. If there is an evictor
 * running when this method is called, it is stopped and replaced with a
 * new evictor with the specified delay.</p>
 *
 * <p>This method needs to be final, since it is called from a constructor.
 * See POOL-195.</p>
 *
 * @param delay time in milliseconds before start and between eviction runs
 */
final void startEvictor(long delay) {
    synchronized (evictionLock) {
        if (null != evictor) {
            EvictionTimer.cancel(evictor);
            evictor = null;
            evictionIterator = null;
        }
        if (delay > 0) {
            evictor = new Evictor();
            EvictionTimer.schedule(evictor, delay, delay);
        }
    }
}

注释写的很清楚，两点：

• 如果驱逐任务已经被创建，那么就取消。
  • 这种情况，delay参数一般是-1，仅仅是取消驱逐任务，而不开启新的驱逐任务。
  • 想一下，在coding过程中，取消过吗？如果没有，有啥问题？
• 如果没有驱逐任务，那么按照周期调度驱逐任务。
  • 周期默认是30s。

3. 驱逐周期

public static final long DEFAULT_TIME_BETWEEN_EVICTION_RUNS_MILLIS = -1L;

private volatile long timeBetweenEvictionRunsMillis =
            BaseObjectPoolConfig.DEFAULT_TIME_BETWEEN_EVICTION_RUNS_MILLIS;

/**
 * Returns the number of milliseconds to sleep between runs of the idle
 * object evictor thread. When non-positive, no idle object evictor thread
 * will be run.
 *
 * @return number of milliseconds to sleep between evictor runs
 *
 * @see #setTimeBetweenEvictionRunsMillis
 */
public final long getTimeBetweenEvictionRunsMillis() {
    return timeBetweenEvictionRunsMillis;
}

注释写的也很清楚：如果是非正数（包括负数或0），那么就不会有空闲对象的驱逐线程被创建。

可以看到上面的默认值是-1，也就是不开启驱逐线程。但是JedisPoolConfig却给出了JedisPool的默认值，每30s调度一次驱逐线程：

public class JedisPoolConfig extends GenericObjectPoolConfig {
  public JedisPoolConfig() {
    // defaults to make your life with connection pool easier :)
    setTestWhileIdle(true);
    setMinEvictableIdleTimeMillis(60000);
    setTimeBetweenEvictionRunsMillis(30000);
    setNumTestsPerEvictionRun(-1);
  }
}

上面的注释说：这些默认值会使得你连接池的生命周期更容易。这个life是连接池的还是coder的life？

4. 驱逐任务

/**
 * The idle object evictor {@link TimerTask}.
 *
 * @see GenericKeyedObjectPool#setTimeBetweenEvictionRunsMillis
 */
class Evictor extends TimerTask {
    /**
     * Run pool maintenance.  Evict objects qualifying for eviction and then
     * ensure that the minimum number of idle instances are available.
     * Since the Timer that invokes Evictors is shared for all Pools but
     * pools may exist in different class loaders, the Evictor ensures that
     * any actions taken are under the class loader of the factory
     * associated with the pool.
     */
    @Override
    public void run() {

        try {
            // 省略关于class loader部分的代码

            // Evict from the pool
            try {
                evict();
            } catch(Exception e) {
                swallowException(e);
            } catch(OutOfMemoryError oome) {
                // Log problem but give evictor thread a chance to continue
                // in case error is recoverable
                oome.printStackTrace(System.err);
            }
            // Re-create idle instances.
            try {
                ensureMinIdle();
            } catch (Exception e) {
                swallowException(e);
            }
        } finally {
            // Restore the previous CCL
            Thread.currentThread().setContextClassLoader(savedClassLoader);
        }
    }
}

注释写的也很清楚：

• 驱逐满足驱逐条件的对象
• 确保池子内有minIdle数量的对象

5. evict

/**
 * <p>Perform <code>numTests</code> idle object eviction tests, evicting
 * examined objects that meet the criteria for eviction. If
 * <code>testWhileIdle</code> is true, examined objects are validated
 * when visited (and removed if invalid); otherwise only objects that
 * have been idle for more than <code>minEvicableIdleTimeMillis</code>
 * are removed.</p>
 *
 * @throws Exception when there is a problem evicting idle objects.
 */

@Override
public void evict() throws Exception {

    PooledObject<T> underTest = null;
    EvictionPolicy<T> evictionPolicy = getEvictionPolicy();


    EvictionConfig evictionConfig = new EvictionConfig(
            getMinEvictableIdleTimeMillis(),
            getSoftMinEvictableIdleTimeMillis(),
            getMinIdle());

    boolean testWhileIdle = getTestWhileIdle();

    for (int i = 0, m = getNumTests(); i < m; i++) {
        // 从idleObjects中获取要检测的对象

        // 是否可以驱逐该对象
        boolean evict;
        try {
            evict = evictionPolicy.evict(evictionConfig, underTest,
                    idleObjects.size());
        } catch (Throwable t) {
            //
        }

        if (evict) {
            // 驱逐，销毁该对象
            destroy(underTest);
        } else {
            // 该对象还不满足驱逐条件
            // 如果需要探测，则进行探测逻辑
            if (testWhileIdle) {
                boolean active = false;
                try {
                    factory.activateObject(underTest);
                    active = true;
                } catch (Exception e) {
                    destroy(underTest);
                    destroyedByEvictorCount.incrementAndGet();
                }
                if (active) {
                    // 此处进行ping探测：失败则销毁，成功则什么都不做
                    if (!factory.validateObject(underTest)) {
                        destroy(underTest);
                        destroyedByEvictorCount.incrementAndGet();
                    } else {
                        // 什么都不做
                    }
                }
            }
        }
    }
}

注释内容：

• 只检测numTests个对象（有可能被驱逐，有可能进行ping探活）
• 根据驱逐策略和驱逐配置判断是否需要驱逐该对象
  • 如果驱逐条件满足，则驱逐
  • 如果不满足驱逐条件
    • 是否需要testWhileIdle，需要则进行ping探活

numTests

/**
 * Returns the maximum number of objects to examine during each run (if any)
 * of the idle object evictor thread. When positive, the number of tests
 * performed for a run will be the minimum of the configured value and the
 * number of idle instances in the pool. When negative, the number of tests
 * performed will be <code>ceil({@link #getNumIdle}/
 * abs({@link #getNumTestsPerEvictionRun}))</code> which means that when the
 * value is <code>-n</code> roughly one nth of the idle objects will be
 * tested per run.
 */
private int getNumTests() {
    int numTestsPerEvictionRun = getNumTestsPerEvictionRun();
    if (numTestsPerEvictionRun >= 0) {
        return Math.min(numTestsPerEvictionRun, idleObjects.size());
    } else {
        return (int) (Math.ceil(idleObjects.size() /
                Math.abs((double) numTestsPerEvictionRun)));
    }
}

public class JedisPoolConfig extends GenericObjectPoolConfig {
  public JedisPoolConfig() {
    // defaults to make your life with connection pool easier :)
    setTestWhileIdle(true);
    setMinEvictableIdleTimeMillis(60000);
    setTimeBetweenEvictionRunsMillis(30000);
    // 这里给的是-1
    setNumTestsPerEvictionRun(-1);
  }
}

可以看到：

• 如果numTestsPerEvictionRun是非负数，则返回它和所有空闲对象的最小值
• 如果numTestsPerEvictionRun是负数，则取了个倍数

其实，在JedisPool中默认就是检测所有的空闲对象

驱逐策略

/**
 * Provides the default implementation of {@link EvictionPolicy} used by the
 * pools. Objects will be evicted if the following conditions are met:
 * <ul>
 * <li>the object has been idle longer than
 *     {@link GenericObjectPool#getMinEvictableIdleTimeMillis()} /
 *     {@link GenericKeyedObjectPool#getMinEvictableIdleTimeMillis()}</li>
 * <li>there are more than {@link GenericObjectPool#getMinIdle()} /
 *     {@link GenericKeyedObjectPoolConfig#getMinIdlePerKey()} idle objects in
 *     the pool and the object has been idle for longer than
 *     {@link GenericObjectPool#getSoftMinEvictableIdleTimeMillis()} /
 *     {@link GenericKeyedObjectPool#getSoftMinEvictableIdleTimeMillis()}
 * </ul>
 * This class is immutable and thread-safe.
 *
 */
public class DefaultEvictionPolicy<T> implements EvictionPolicy<T> {

    @Override
    public boolean evict(EvictionConfig config, PooledObject<T> underTest,
            int idleCount) {

        if ((config.getIdleSoftEvictTime() < underTest.getIdleTimeMillis() &&
                config.getMinIdle() < idleCount) ||
                config.getIdleEvictTime() < underTest.getIdleTimeMillis()) {
            return true;
        }
        return false;
    }
}

注释内容，满足下面两个条件之一就驱逐：

• 对象的空闲时间超过soft驱逐时间且当前的空闲对象数超过了最小的空闲数
• 对象的空闲时间超过了驱逐时间

JedisPool默认值：

// 空闲60s就驱逐
setMinEvictableIdleTimeMillis(60000);

// soft空闲时间是-1。也就是当前池子里只要空闲对象数超过了minIdle就可以驱逐
private volatile long softMinEvictableIdleTimeMillis =
            BaseObjectPoolConfig.DEFAULT_SOFT_MIN_EVICTABLE_IDLE_TIME_MILLIS;
public static final long DEFAULT_SOFT_MIN_EVICTABLE_IDLE_TIME_MILLIS = -1;

idleTime

这个时间是怎么计算的？

@Override
public long getIdleTimeMillis() {
    final long elapsed = System.currentTimeMillis() - lastReturnTime;
    // elapsed may be negative if:
    // - another thread updates lastReturnTime during the calculation window
    // - System.currentTimeMillis() is not monotonic (e.g. system time is set back)
    return elapsed >= 0 ? elapsed : 0;
}

当前时间距离上次该对象归还给线程池的时间，就是空闲时间。

那如果在归还之后，驱逐之前，这个对象又被borrow了怎么办？lastReturnTime会更新吗？ 这种情况是不会发生的。 驱逐会从idleObjects(LinkedBlockingDeque)中获取对象，而borrow时会将该对象从idleObjects中移除，好像是有并发的风险。

destroy

private void destroy(PooledObject<T> toDestory) throws Exception {
    toDestory.invalidate();
    idleObjects.remove(toDestory);
    allObjects.remove(new IdentityWrapper<T>(toDestory.getObject()));
    try {
        factory.destroyObject(toDestory);
    } finally {
        destroyedCount.incrementAndGet();
        createCount.decrementAndGet();
    }
}

探活逻辑

如果不满足驱逐条件，也会对该对象进行探活检测：发ping命令。

@Override
public boolean validateObject(PooledObject<Jedis> pooledJedis) {
  final BinaryJedis jedis = pooledJedis.getObject();
  try {
    HostAndPort hostAndPort = this.hostAndPort.get();

    String connectionHost = jedis.getClient().getHost();
    int connectionPort = jedis.getClient().getPort();

    return hostAndPort.getHost().equals(connectionHost)
        && hostAndPort.getPort() == connectionPort && jedis.isConnected()
        && jedis.ping().equals("PONG");
  } catch (final Exception e) {
    return false;
  }
}

6. ensureMinIdle

虽然被驱逐了，但是还要保证池子里有足够的minIdle对象。

/**
 * Tries to ensure that {@code idleCount} idle instances exist in the pool.
 * <p>
 * Creates and adds idle instances until either {@link #getNumIdle()} reaches {@code idleCount}
 * or the total number of objects (idle, checked out, or being created) reaches
 * {@link #getMaxTotal()}. If {@code always} is false, no instances are created unless
 * there are threads waiting to check out instances from the pool.
 *
 * @param idleCount the number of idle instances desired
 * @param always true means create instances even if the pool has no threads waiting
 * @throws Exception if the factory's makeObject throws
 */
private void ensureIdle(int idleCount, boolean always) throws Exception {
    if (idleCount < 1 || isClosed() || (!always && !idleObjects.hasTakeWaiters())) {
        return;
    }

    while (idleObjects.size() < idleCount) {
        PooledObject<T> p = create();
        if (p == null) {
            // Can't create objects, no reason to think another call to
            // create will work. Give up.
            break;
        }
        if (getLifo()) {
            idleObjects.addFirst(p);
        } else {
            idleObjects.addLast(p);
        }
    }
    if (isClosed()) {
        // Pool closed while object was being added to idle objects.
        // Make sure the returned object is destroyed rather than left
        // in the idle object pool (which would effectively be a leak)
        clear();
    }
}

注释内容，不创建线程的条件，要么是池子里的idle对象数达到最小空闲数，要么池子里的对象数超过了最大对象数。

也就是说，即使池子里idle数量不够，但是已经超过了池子中最大对象数，也不会创建新的对象。

7. minIdle vs maxIdle

为什么既有minIdle又有maxIdle？

上面所有的阐述都是围绕minIdle来讲的。池中必须要有minIdle个空闲对象备用。

maxIdle用在哪里？

在returnObject时会被用到：如果归还时，发现池子中已经有足够的空闲对象，那么直接销毁吧。

/**
 * <p>
 * If {@link #getMaxIdle() maxIdle} is set to a positive value and the
 * number of idle instances has reached this value, the returning instance
 * is destroyed.
 * <p>
 * If {@link #getTestOnReturn() testOnReturn} == true, the returning
 * instance is validated before being returned to the idle instance pool. In
 * this case, if validation fails, the instance is destroyed.
 * <p>
 */
@Override
public void returnObject(T obj) {
    // 1. 更新对象状态为RETURNING
    synchronized(p) {
        final PooledObjectState state = p.getState();
        if (state != PooledObjectState.ALLOCATED) {
            throw new IllegalStateException(
                    "Object has already been returned to this pool or is invalid");
        } else {
            p.markReturning(); // Keep from being marked abandoned
        }
    }

    long activeTime = p.getActiveTimeMillis();
    // 2. 归还时探测该对象的活性
    if (getTestOnReturn()) {
        if (!factory.validateObject(p)) {
            try {
                // ping失败，则销毁
                destroy(p);
            } catch (Exception e) {
                swallowException(e);
            }
            try {
                // 销毁后，还要保证minIdle
                ensureIdle(1, false);
            } catch (Exception e) {
                swallowException(e);
            }
            updateStatsReturn(activeTime);
            return;
        }
    }

    // 3. 更新对象状态为IDLE；更新归还时间
    if (!p.deallocate()) {
        throw new IllegalStateException(
                "Object has already been returned to this pool or is invalid");
    }

    // 4. 是否到达最大空闲数
    int maxIdleSave = getMaxIdle();
    if (isClosed() || maxIdleSave > -1 && maxIdleSave <= idleObjects.size()) {
        try {
            // 直接销毁
            destroy(p);
        } catch (Exception e) {
            swallowException(e);
        }
    } else {
        // 放入空闲列表，正常归还给池子
        if (getLifo()) {
            idleObjects.addFirst(p);
        } else {
            idleObjects.addLast(p);
        }
        if (isClosed()) {
            // Pool closed while object was being added to idle objects.
            // Make sure the returned object is destroyed rather than left
            // in the idle object pool (which would effectively be a leak)
            clear();
        }
    }
    updateStatsReturn(activeTime);
}

做了两件大事：

• 归还之前，如果要探活
  • 探活失败直接销毁
  • 销毁后需要保证池子中有足够的空闲对象
• 如果达到最大空闲数maxIdle直接销毁

三、问题复现

public class PoolLeak {
    public static void main(String[] args) {
        GenericObjectPoolConfig config = new JedisPoolConfig();
        config.setMinIdle(1);
        for (int i = 0; i < 5; i++) {
            JedisPool jedisPool = new JedisPool(config, "localhost");
            try {
                jedisPool.getResource().close();
            } catch (Exception e) {
                e.printStackTrace();
                // jedisPool.destroy();
            }
        }

        System.out.println("over...");
        try {
            System.in.read();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

在本地Redis server关闭的情况下，执行上面的代码。

1. Redis未启动

可以看到，直接被RST了。

2. 启动Redis

开启redis server。

• 第一次由于Redis server未启动，所以失败
• 第二次，30s一次的驱逐周期，由于池子中没有空闲的，所以不驱逐，但是要ensureMinIdle，Redis server未启动，连接失败
• 第三次，Redis server启动，达到驱逐周期，在ensureMinIdle时，创建连接成功

3. 驱逐

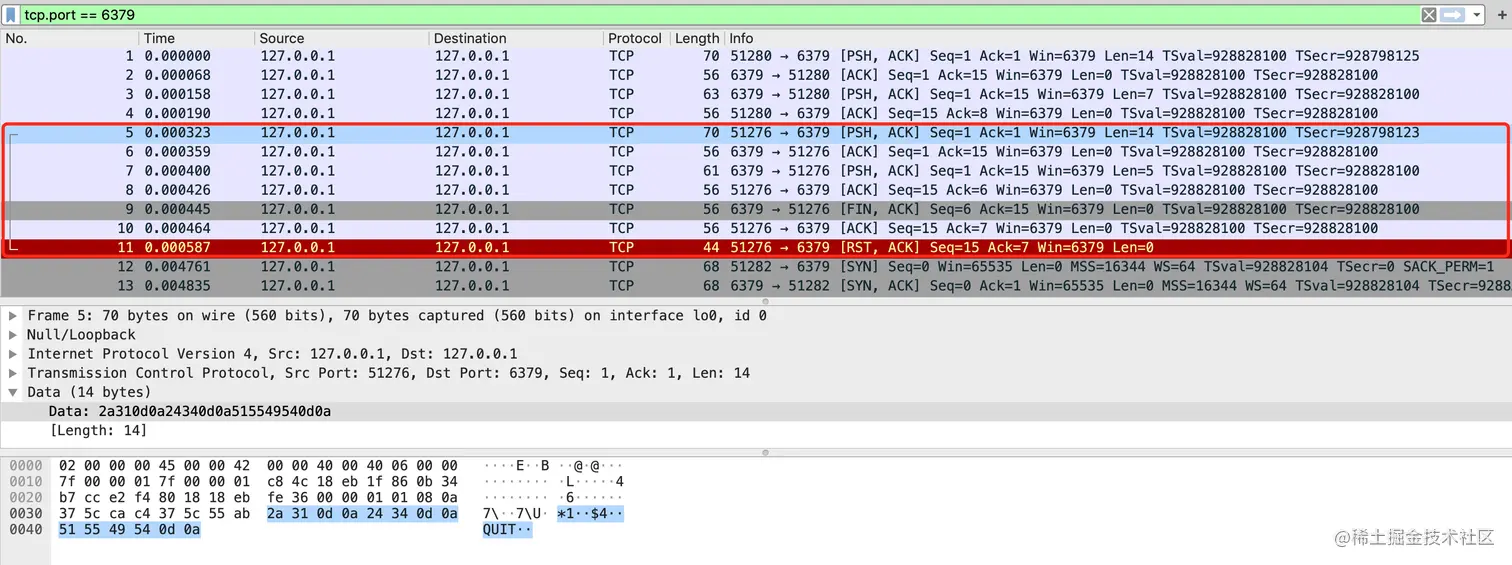

可以看到上面，客户端发送了quit命令。

4. 修复

其实destroy连接池就好了。也就是把上面代码中被注释的代码：// jedisPool.destroy();。

/**
 * Closes the pool. Once the pool is closed, {@link #borrowObject()} will
 * fail with IllegalStateException, but {@link #returnObject(Object)} and
 * {@link #invalidateObject(Object)} will continue to work, with returned
 * objects destroyed on return.
 * <p>
 * Destroys idle instances in the pool by invoking {@link #clear()}.
 */
@Override
public void close() {
    if (isClosed()) {
        return;
    }

    synchronized (closeLock) {
        if (isClosed()) {
            return;
        }

        // Stop the evictor before the pool is closed since evict() calls
        // assertOpen()
        // 关闭驱逐调度任务
        startEvictor(-1L);

        closed = true;
        // This clear removes any idle objects
        // 移除所有空闲任务
        clear();

        // 注销JMX
        jmxUnregister();

        // Release any threads that were waiting for an object
        idleObjects.interuptTakeWaiters();
    }
}

• 池子一旦关闭，borrowObject就会失败
• returnObject、invalidateObject还能工作，这样被归还的对象立马被销毁。

四、总结

• minIdle最好是0。
• pool如果不用了，记得主动销毁。
