IDEA MyBatis Plugins插件 自动生成实体类和mapper.xml
前言
如何下载和使用MyBatis Generator 插件,只说代码,不讲感情。如果有问题还请多多指点。
开发环境
- 开发工具:IntelliJ IDEA 2018.1.1 x64
- dk版本:1.8.0_171
- 工程构建工具:maven 版本3.2.5
- 数据库 mysql
IDEA 下载MyBatis Generator 插件

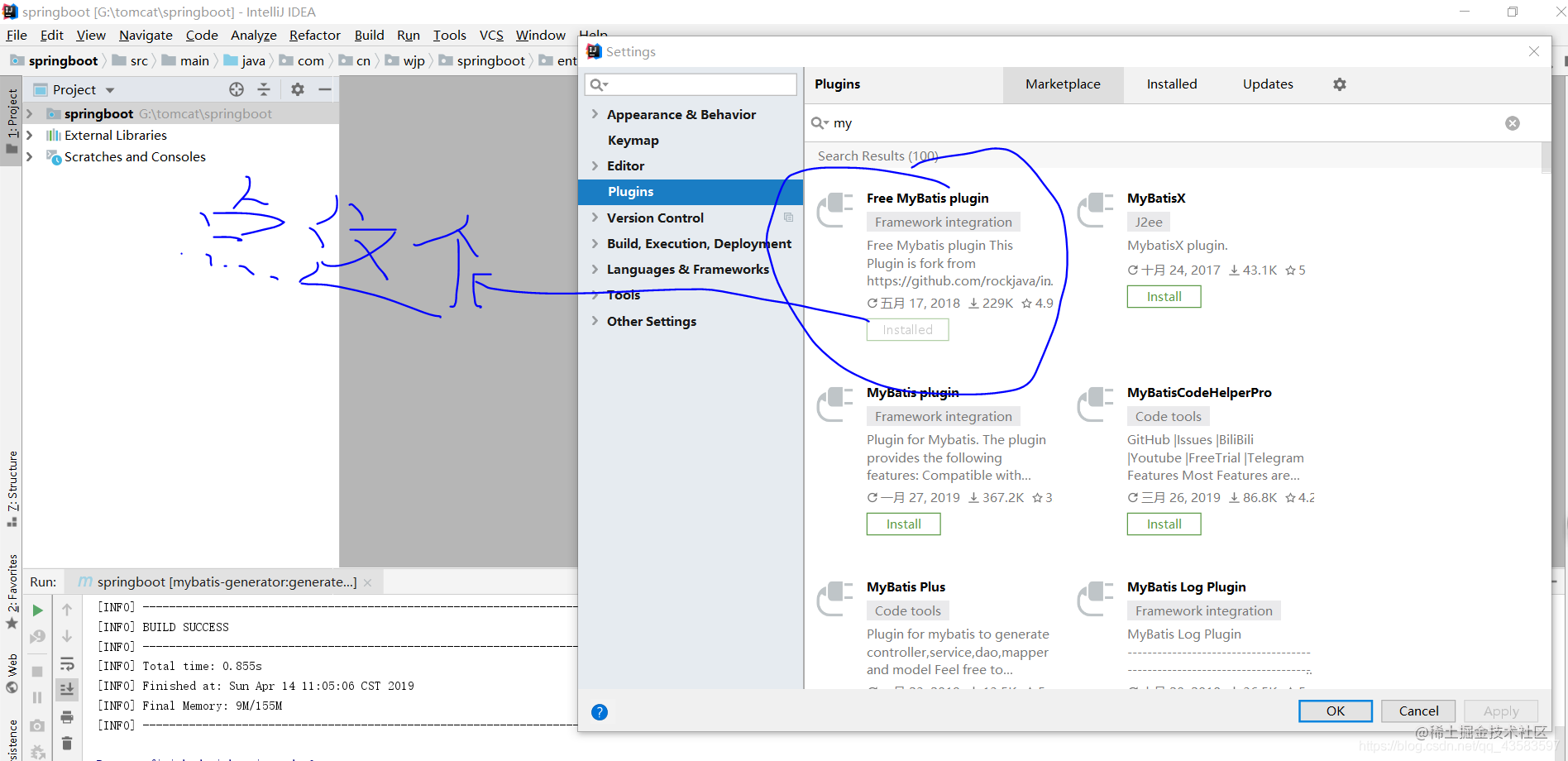

1.首先在File——Settings——点击Plugins,搜索框中搜索mybatis,选择mybatis-plugins,点击安装(由于我的已经安装过,所以没有绿色的Install按钮,而变成了instleaed,)安装完成后点击图片上那个位置的按钮(我忘了他叫什么了)之后会让你重启IDEA :
修改maven的pom文件
(注意此处是以plugin的方式,要放在plugins /plugins 里面)
<plugins>
<!-- mybatis generator 自动生成代码插件 -->
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.5</version>
<configuration>
<!--配置文件的位置-->
<configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
<overwrite>true</overwrite>
<verbose>true</verbose>
</configuration>
</plugin>
</plugins>
复制代码
新建一个generatorConfig.xml
放入下方代码,报错的话请往下看
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!-- 数据库驱动:选择你的本地硬盘上面的数据库驱动包-->
<classPathEntry location="G:\lianjieshujukuqudonglib\mysql-connector-java-5.1.45-bin.jar"/>
<context id="DB2Tables" targetRuntime="MyBatis3">
<commentGenerator>
<property name="suppressDate" value="true"/>
<!-- 是否去除自动生成的注释 true:是 : false:否 -->
<property name="suppressAllComments" value="true"/>
</commentGenerator>
<!--数据库链接URL,用户名、密码 -->
<jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://127.0.0.1/xx" userId="root" password="root">
</jdbcConnection>
<javaTypeResolver>
<property name="forceBigDecimals" value="false"/>
</javaTypeResolver>
<!-- 生成模型的包名和位置-->
<javaModelGenerator targetPackage="com.cn.wjp.springboot.entity" targetProject="src/main/java">
<property name="enableSubPackages" value="true"/>
<property name="trimStrings" value="true"/>
</javaModelGenerator>
<!-- 生成映射文件的包名和位置-->
<sqlMapGenerator targetPackage="main.resources.mapping" targetProject="src">
<!-- enableSubPackages:是否让schema作为包的后缀 -->
<property name="enableSubPackages" value="false" />
</sqlMapGenerator>
<!-- 生成DAO的包名和位置-->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.cn.wjp.springboot.dao" targetProject="src/main/java">
<property name="enableSubPackages" value="true"/>
</javaClientGenerator>
<!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->
<table tableName="sc"
domainObjectName="sc"
enableCountByExample="false"
enableUpdateByExample="false"
enableDeleteByExample="false"
enableSelectByExample="false"
selectByExampleQueryId="false">
</table>
</context>
</generatorConfiguration>
复制代码
generatorConfig.xml中的注意事项
- xmlns报红报错
解决办法如下

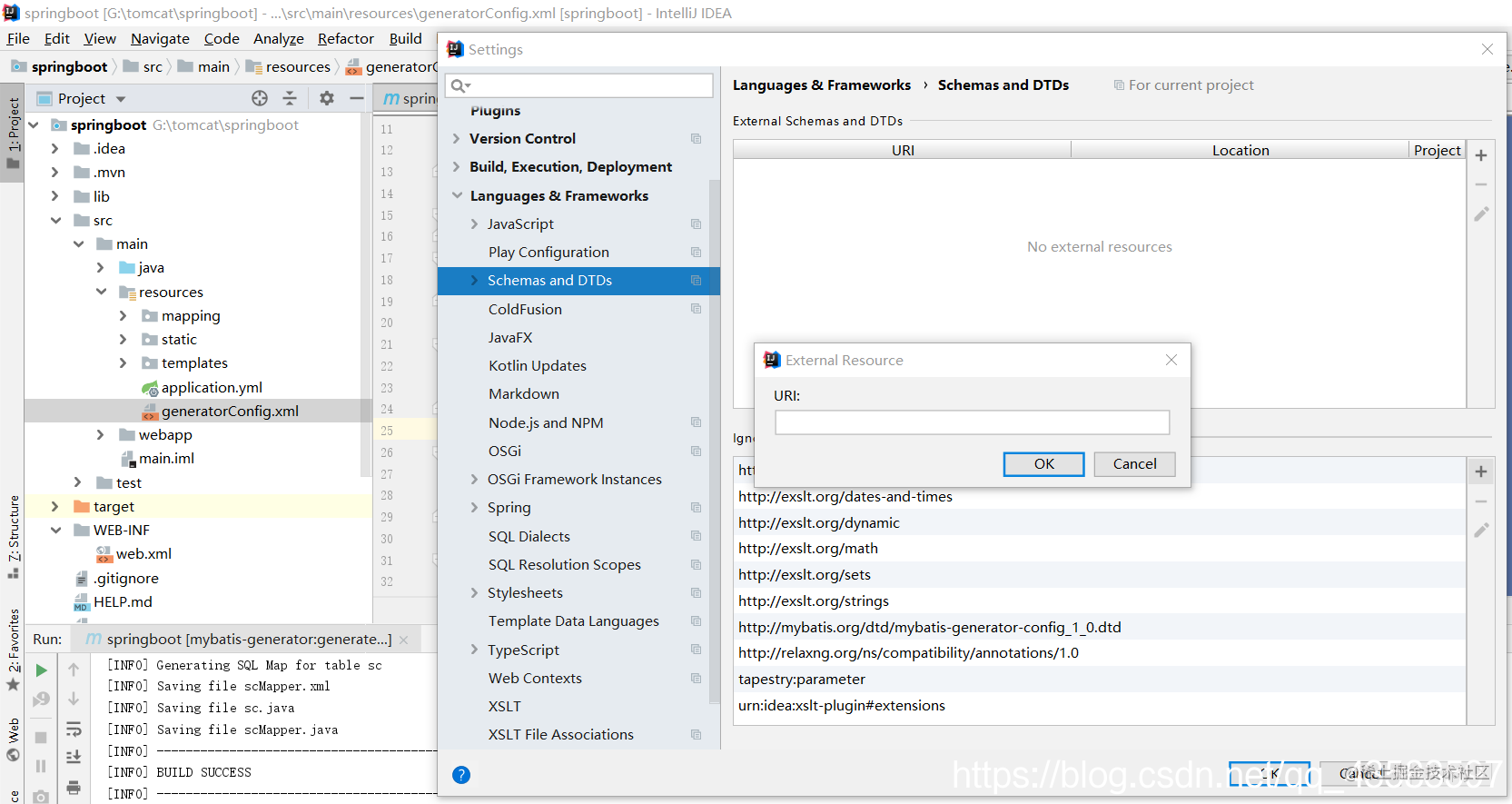

file–>settings…–>languages & frameworks–>Schemas and DTDs–>点击右边的加号
那个xmlns报红就添加那个URl - 数据库驱动:选择你的本地硬盘上面的数据库驱动包
数据驱动包找不到在哪里的话在下载一个,放到哪里看你心情喽。这里只要这个驱动包的位置
真的找不到的话,这里有一个。
链接:pan.baidu.com/s/1NjSm58Zu…
提取码:ie52

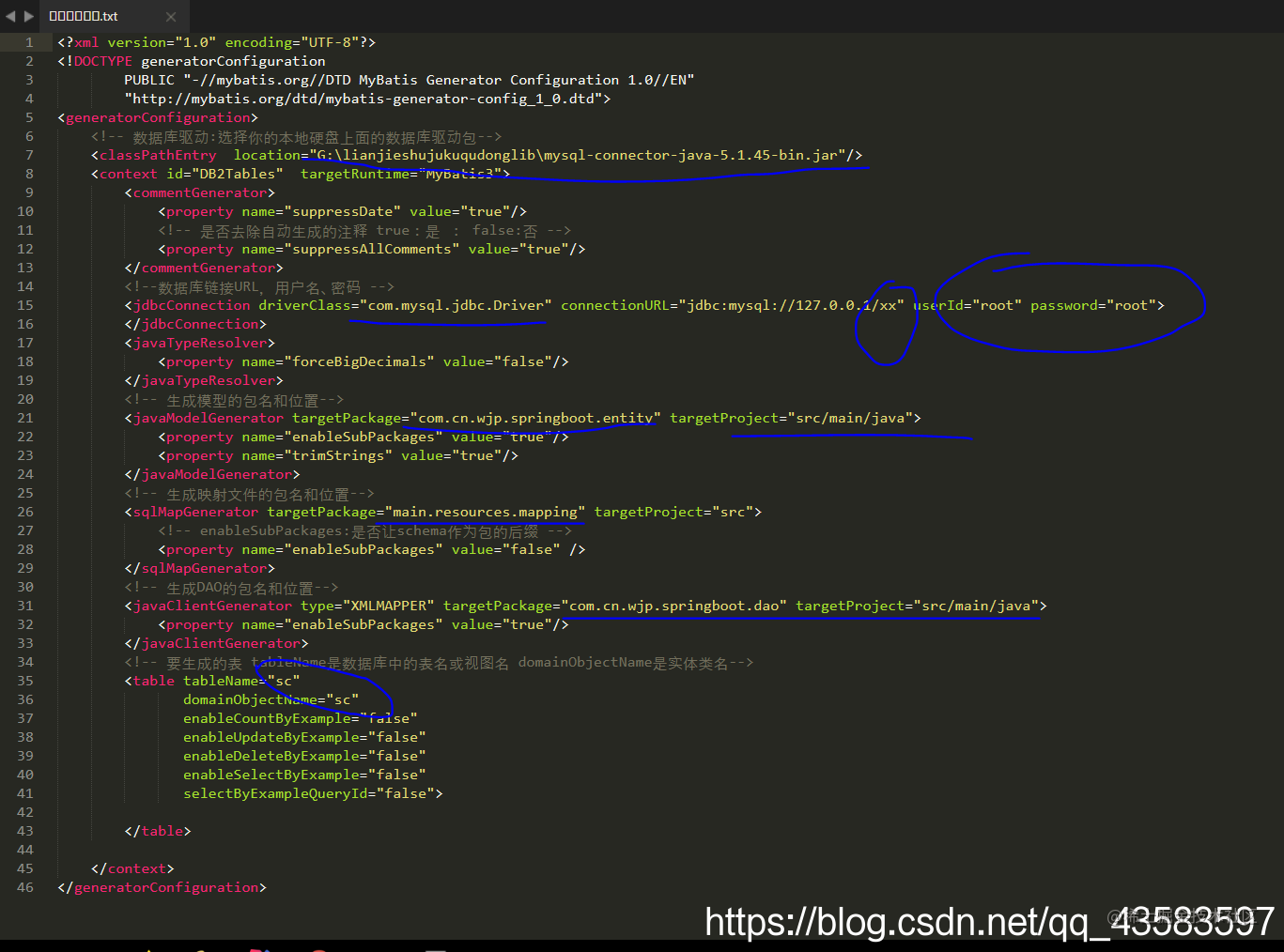

3.配置文件中需要修改的地方

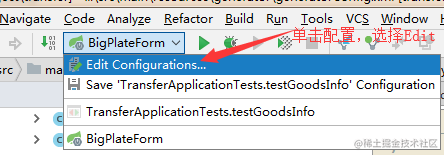

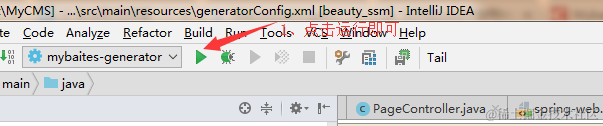

运行

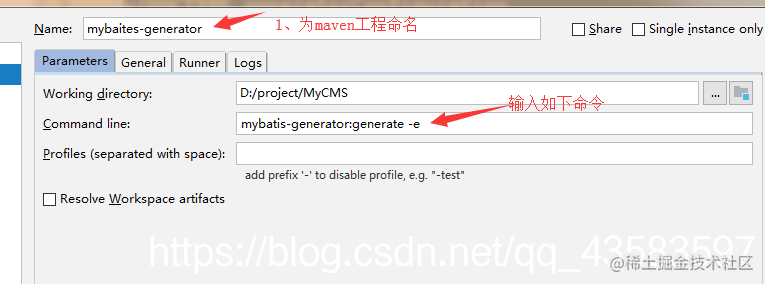

Commang line:中的命令要输入进去
链接: [上面的四张图片来自It民工123的博客]
(blog.csdn.net/yangqinfeng…).
到这里你会发现真简单
如果有错误请评论,谢谢
