Hadoop 中 RPC框架原理、代码示例

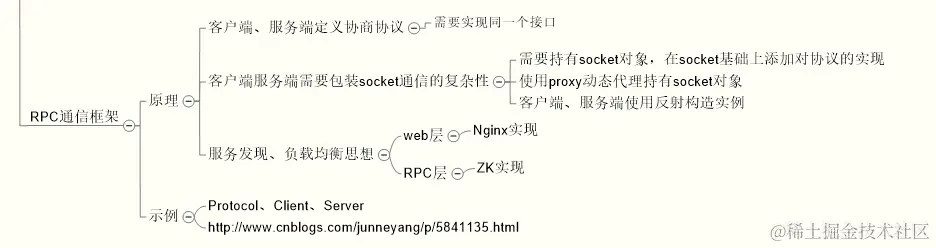

0、内容

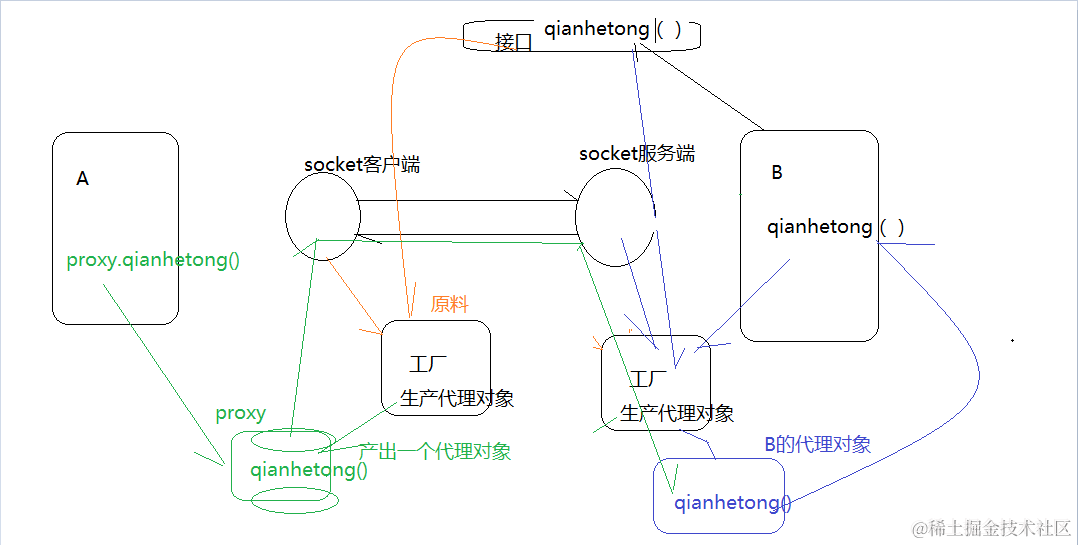

1、hadoop中的RPC框架封装思想

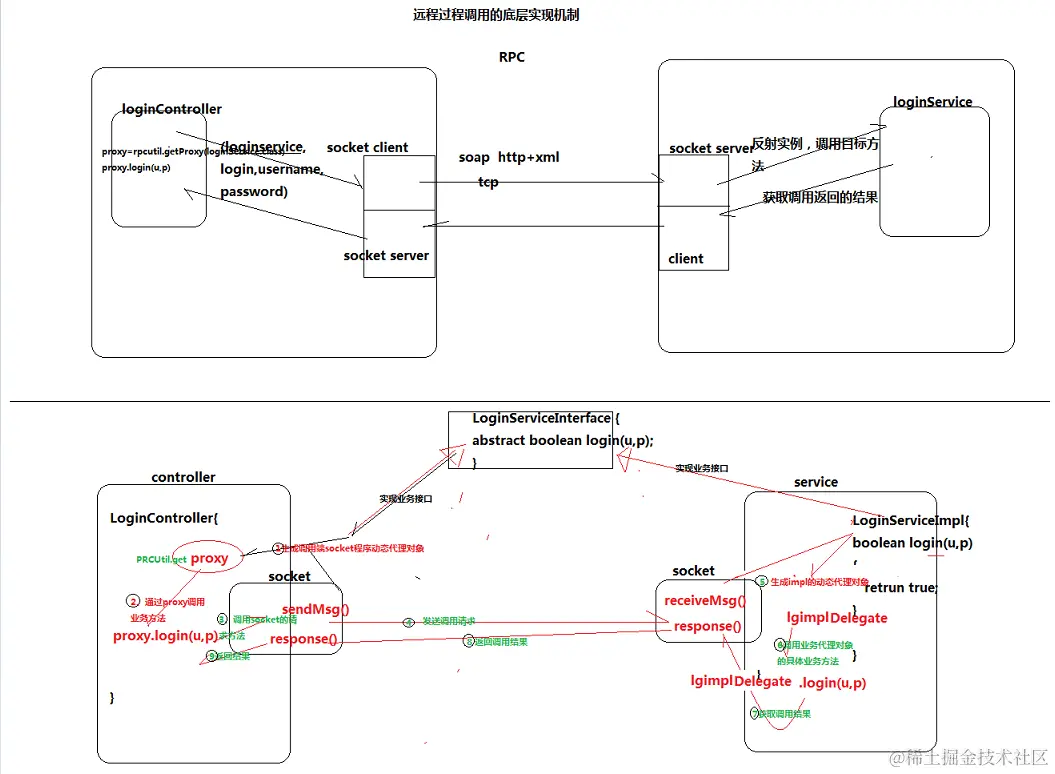

2、Hadoop RPC 实现方法

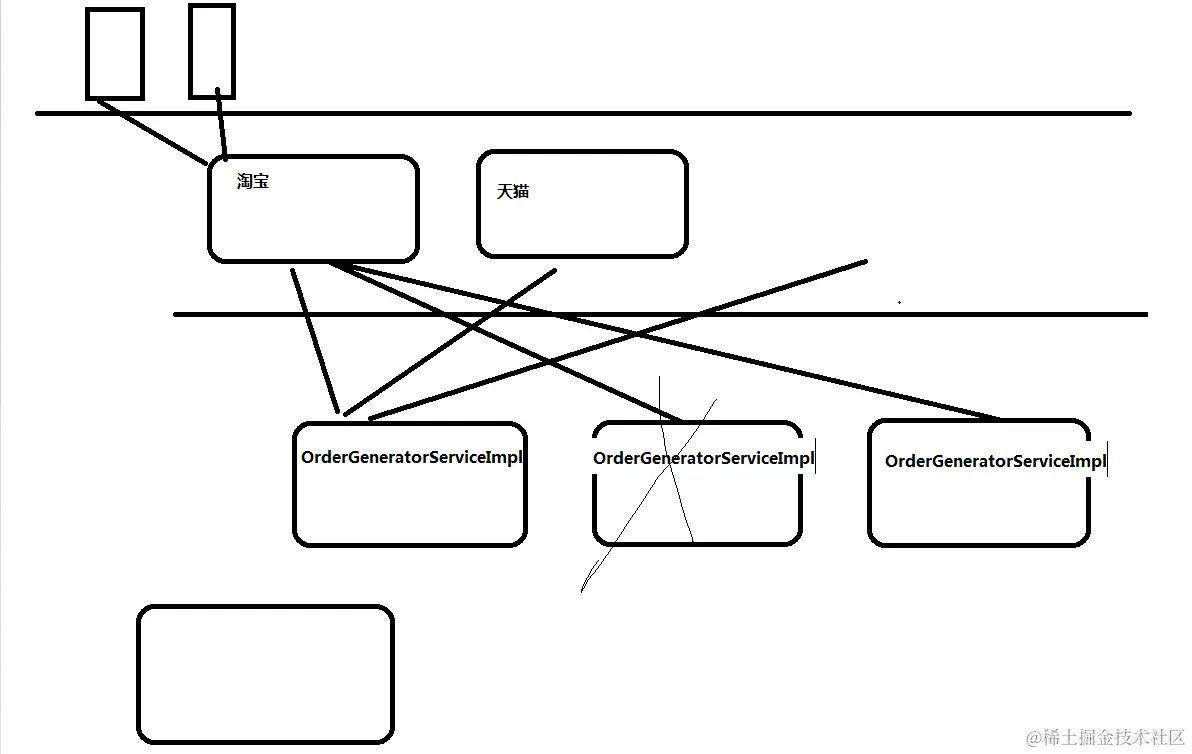

3、服务调用动态转发和负载均衡的实现思考

4、协议代码：

package com.ares.hadoop.rpc;

public interface HelloProtocol {
    public static final long versionID = 1L;

    public String helloMethod(String name);
}

5、服务端代码：

package com.ares.hadoop.rpc;

import java.io.IOException;

import org.apache.hadoop.HadoopIllegalArgumentException;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.ipc.RPC;
import org.apache.hadoop.ipc.RPC.Builder;
import org.apache.hadoop.ipc.RPC.Server;
import org.apache.log4j.Logger;

public class HelloServer implements HelloProtocol {

    private static final Logger LOGGER = Logger.getLogger(HelloServer.class);

    @Override
    public String helloMethod(String name) {
        // TODO Auto-generated method stub
        LOGGER.debug("name: " + name);
        return "Hello, " + name;
    }

    public static void main(String[] args) throws HadoopIllegalArgumentException, IOException {
        Builder builder = new RPC.Builder(new Configuration());
        String bindAddress = "HADOOP-NODE1";
        int port = 8888;
        builder.setBindAddress(bindAddress)
            .setPort(8888)
            .setProtocol(HelloProtocol.class)
            .setInstance(new HelloServer());
        Server server = builder.build();
        LOGGER.debug("Server start to listen on " + port);
        server.start();
    }

}

6、客户端代码：

package com.ares.hadoop.rpc;

import java.io.IOException;
import java.net.InetSocketAddress;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.ipc.RPC;
import org.apache.log4j.Logger;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;

public class HelloClientTest {
    private static final Logger LOGGER = Logger.getLogger(HelloClientTest.class);

    @Before
    public void setUp() {
    }
    @After
    public void tearDown() {
    }

    @Test
    public void testHello() throws IOException {
        // TODO Auto-generated method stub
        LOGGER.debug("RPCClientTest: testHello");
        String bindAddress = "HADOOP-NODE1";
        int port = 8888;
        InetSocketAddress addr = new InetSocketAddress(bindAddress, port);
        HelloProtocol proxy = RPC.getProxy(
                HelloProtocol.class, HelloProtocol.versionID,
                addr, new Configuration());
        String resp = proxy.helloMethod("JunneYang");
        LOGGER.debug(resp);
        resp = proxy.helloMethod("Ares");
        LOGGER.debug(resp);
    }
}
