# 新闻分类--多分类问题，使用TensorFlow实现

·  阅读 308

## 路透社数据集

``````from tensorflow.keras.datasets import reuters

(train_data, train_labels), (test_data, test_labels) = reuters.load_data(num_words=10000)

``````word_index = reuters.get_word_index()
reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
decoded_newswire = ' '.join([reverse_word_index.get(i - 3, '?') for i in train_data[0]])

print(decoded_newswire)

## 准备数据

``````def vectorize_sequences(sequences, dimension=10000):
results = np.zeros((len(sequences), dimension))
for i, sequence in enumerate(sequences):
results[i, sequence] = 1.
return results

x_train = vectorize_sequences(train_data)
x_test = vectorize_sequences(test_data)

``````def to_one_hot(labels, dimension=46):
results = np.zeros((len(labels), dimension))
for i, label in enumerate(labels):
results[i, label] = 1.
return results

one_hot_train_labels = to_one_hot(train_labels)
ont_hot_test_labels = to_one_hot(test_labels)

``````from keras.utils import to_categorical

one_hot_train_labels = to_categorical(train_labels)
one_hot_test_labels = to_categorical(test_labels)

## 构建网络

``````from tensorflow.keras import layers
from tensorflow.keras import models

model = models.Sequential()

• 网络的最后一层是大小为46 的 Dense 层。这意味着，对于每个输入样本，网络都会输 出一个 46 维向量。这个向量的每个元素（即每个维度）代表不同的输出类别。
• 最后一层使用了 softmax 激活。你在MNIST 例子中见过这种用法。网络将输出在46 个不同输出类别上的概率分布——对于每一个输入样本，网络都会输出一个 46 维向量， 其中 output[i] 是样本属于第 i 个类别的概率。46 个概率的总和为 1。

``````
model.compile(optimizer='rmsprop',
loss='categorical_crossentropy',
metrics=['accuracy'])

## 验证你的方法

``````x_val = x_train[:1000]
partial_x_train = x_train[1000:]

y_val = one_hot_train_labels[:1000]
partial_y_train = one_hot_train_labels[1000:]

``````history = model.fit(partial_x_train,
partial_y_train,
epochs=20,
batch_size=512,
validation_data=(x_val, y_val))

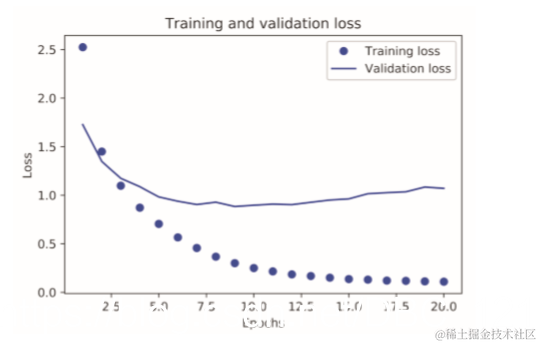

``````loss = history.history['loss']
val_loss = history.history['val_loss']
epochs = range(1, len(loss) + 1)

plt.plot(epochs, loss, 'bo', label='Training loss')
plt.plot(epochs, val_loss, 'b', label='Validation loss')
plt.title('Training and validation loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()

plt.show()

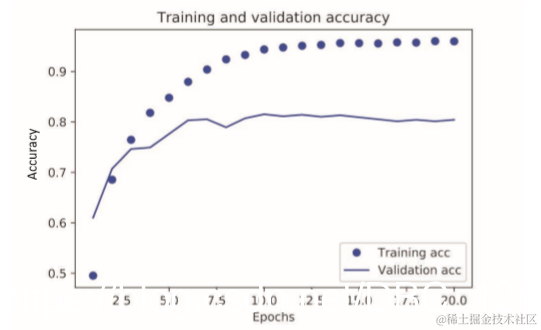

``````plt.clf()

acc = history.history['acc']
val_acc = history.history['val_acc']

plt.plot(epochs, acc, 'bo', label='Training acc')
plt.plot(epochs, val_acc, 'b', label='Validation acc')
plt.title('Training and validation accuracy')
plt.xlabel('Epochs')
plt.ylabel('Accuracy')
plt.legend()

plt.show()

``````model = models.Sequential()

model.compile(optimizer='rmsprop',
loss='categorical_crossentropy',
metrics=['accuracy'])
model.fit(partial_x_train,
partial_y_train,
epochs=9,
batch_size=512,
validation_data=(x_val, y_val))
results = model.evaluate(x_test, one_hot_test_labels)

#### 在新数据上生成预测结果

``````predictions = model.predict(x_test)

predictions 中的每个元素都是长度为 46 的向量。

`````` predictions[0].shape
#(46,)

``````np.sum(predictions[0])
# 1.0

``````np.argmax(predictions[0])
# 4

## 完整代码

``````from tensorflow.keras.datasets import reuters
from tensorflow.keras.utils import to_categorical
from tensorflow.keras import layers
from tensorflow.keras import models
import matplotlib.pyplot as plt
import numpy as np

(train_data, train_labels), (test_data, test_labels) = reuters.load_data(num_words=10000)

#word_index = reuters.get_word_index()
#reverse_word_index = dict([(value, key) for (key, value) in word_index.items()])
#decoded_newswire = ' '.join([reverse_word_index.get(i - 3, '?') for i in train_data[0]])

#print(decoded_newswire)

def vectorize_sequences(sequences, dimension=10000):
results = np.zeros((len(sequences), dimension))
for i, sequence in enumerate(sequences):
results[i, sequence] = 1.
return results

x_train = vectorize_sequences(train_data)
x_test = vectorize_sequences(test_data)

def to_one_hot(labels, dimension=46):
results = np.zeros((len(labels), dimension))
for i, label in enumerate(labels):
results[i, label] = 1.
return results

one_hot_train_labels = to_one_hot(train_labels)
one_hot_test_labels = to_one_hot(test_labels)

# one_hot_train_labels = to_categorical(train_labels)
# one_hot_test_labels = to_categorical(test_labels)

model = models.Sequential()

model.compile(optimizer='rmsprop',
loss='categorical_crossentropy',
metrics=['accuracy'])

x_val = x_train[:1000]
partial_x_train = x_train[1000:]

y_val = one_hot_train_labels[:1000]
partial_y_train = one_hot_train_labels[1000:]

history = model.fit(partial_x_train,
partial_y_train,
epochs=9,
batch_size=512,
validation_data=(x_val, y_val))

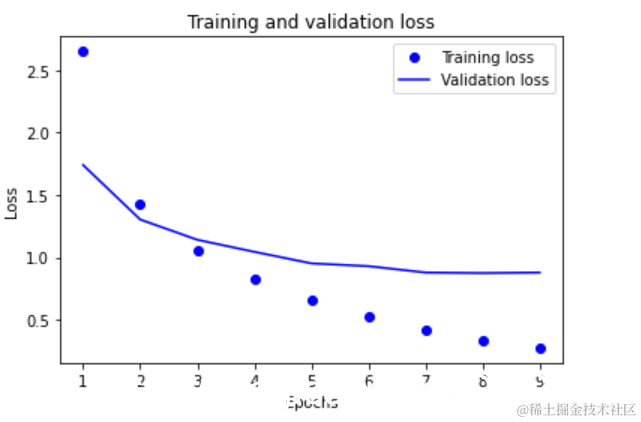

loss = history.history['loss']
val_loss = history.history['val_loss']
epochs = range(1, len(loss) + 1)

plt.plot(epochs, loss, 'bo', label='Training loss')
plt.plot(epochs, val_loss, 'b', label='Validation loss')
plt.title('Training and validation loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.legend()

plt.show()

# plt.clf()

# acc = history.history['acc']
# val_acc = history.history['val_acc']

# plt.plot(epochs, acc, 'bo', label='Training acc')
# plt.plot(epochs, val_acc, 'b', label='Validation acc')
# plt.title('Training and validation accuracy')
# plt.xlabel('Epochs')
# plt.ylabel('Accuracy')
# plt.legend()

# plt.show()
