《看不懂你打我系列》之 PageHelper分页原理浅析

·  阅读 1019
  1. PageHelper分页插件的使用

    • 引入依赖

      <dependency>
      	<groupId>com.github.pagehelper</groupId>
      	<artifactId>pagehelper</artifactId>
      	<version>5.1.6</version>
      </dependency>
      复制代码
    • 在mybatis全局配置文件中添加plugin配置

      <configuration>
      	<properties resource="properties/db.properties"></properties>
          <!-- 注意plugins 标签的位置,需要放在environments标签之前 -->
      	<plugins>
      		<plugin interceptor="com.github.pagehelper.PageInterceptor">
      			<property name="helperDialect" value="mysql"/>
      		</plugin>
      	</plugins>
      	<!-- 数据源 -->
      	<environments default="development">
      		<environment id="development">
      			<transactionManager type="JDBC" />
      			<dataSource type="POOLED">
      				<property name="driver" value="${db.driver}" />
      				<property name="url" value="${db.url}" />
      				<property name="username" value="${db.username}" />
      				<property name="password" value="${db.password}" />
      			</dataSource>
      		</environment>
      	</environments>
      	<mappers>
      		<mapper resource="dao/UserMapper.xml" />
      	</mappers>
      </configuration>
      复制代码
    • 在DAO层进行分页查询

      public class PageHelperTest{
          private SqlSessionFactory sqlSessionFactory;
          @Before
      	public void init() {
      		try {
      			String resource = "mybatis-config.xml";
      			InputStream inputStream = Resources.getResourceAsStream(resource);
      			sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
      		} catch (IOException e) {
      			e.printStackTrace();
      		}
      	}

          @Test
      	public PageInfo<User> testPage() {
      		SqlSession session = sqlSessionFactory.openSession();
              //开启分页,只对最近一次的查询有分页的效果
              //剧透一下,是使用了ThreadLocal来存储Page分页信息的
      		PageHelper.startPage(2,4);
              //下面的查询会被PageHelper拦截,返回的结果其实是一个Page对象,Page继承自ArrayList
      		List<User> lists = session.selectList("findAll");
              //mapper.xml里配置了一个<select id="findAll"> select * from user;</select>
      		PageInfo<User> pageInfo = new PageInfo<>(lists);
      		return pageInfo;
      	}
      }
      复制代码
  2. PageHelper插件工作原理

    • 首先,在全局配置文件里使用<plugin>标签,将PageHelper拦截器添加到配置中。实际,拦截器是对Executor起了作用,先来看拦截器是如何被配置的:

      进行全局配置文件的解析和装载时,就会将拦截器信息封装到了Configuration对象中,流程如下:

      String resource = "dao/SqlMapConfig.xml";
      InputStream inputStream = Resources.getResourceAsStream(resource);
      //下面的build方法,为全局配置文件的解析入口
      sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
      复制代码
      public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
          try {
            XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
            // parser.parse():使用XPATH解析XML配置文件,将配置文件封装为Configuration对象
            // 返回DefaultSqlSessionFactory对象,该对象拥有Configuration对象(封装配置文件信息)
            return build(parser.parse());
          } catch (Exception e) {
            throw ExceptionFactory.wrapException("Error building SqlSession.", e);
          } finally {
            ErrorContext.instance().reset();
            try {
              inputStream.close();
            } catch (IOException e) {
            }
          }
        }
      复制代码

      继续看XMLConfigBuilder中的parse方法

      public Configuration parse() {
          if (parsed) {
            throw new BuilderException("Each XMLConfigBuilder can only be used once.");
          }
          parsed = true;
          //XMLConfigBuilder中持有一个XPathParser
          //使用XPathParser,通过XPath语法,来
          parseConfiguration(parser.evalNode("/configuration"));
          return configuration;
      }

      private void parseConfiguration(XNode root) {
          try {
            //下面的解析顺序,即解释了配置文件中的标签书写顺序
            propertiesElement(root.evalNode("properties"));
            Properties settings = settingsAsProperties(root.evalNode("settings"));
            loadCustomVfs(settings);
            loadCustomLogImpl(settings);
            typeAliasesElement(root.evalNode("typeAliases"));
            // 关键在这,解析<plugins>标签
            pluginElement(root.evalNode("plugins"));
            objectFactoryElement(root.evalNode("objectFactory"));
            objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
            reflectorFactoryElement(root.evalNode("reflectorFactory"));
            settingsElement(settings);
            environmentsElement(root.evalNode("environments"));
            databaseIdProviderElement(root.evalNode("databaseIdProvider"));
            typeHandlerElement(root.evalNode("typeHandlers"));
            mapperElement(root.evalNode("mappers"));
          } catch (Exception e) {
            throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + e, e);
          }
        }


      private void pluginElement(XNode parent) throws Exception {
          if (parent != null) {
            for (XNode child : parent.getChildren()) {
              //循环遍历plugins标签下的子标签
              String interceptor = child.getStringAttribute("interceptor");
              Properties properties = child.getChildrenAsProperties();
              Interceptor interceptorInstance = (Interceptor) resolveClass(interceptor).newInstance();
              interceptorInstance.setProperties(properties);
             //将当前拦截器添加到Configuration对象中
              configuration.addInterceptor(interceptorInstance);
            }
          }
        }

      //Configuration对象中
      public void addInterceptor(Interceptor interceptor) {
      	interceptorChain.addInterceptor(interceptor);
          //Configuration持有一个InterceptorChain对象
          //InterceptorChain中持有一个List<Interceptor>对象
      }
      复制代码

      至此,装载拦截器流程完毕,Configuration对象被封装到了DefaultSqlSessionFactory里

    • 使用拦截器对Executor进行增强

      之后,我们调用openSession打开一个SqlSession,看看创建SqlSession时都做了些什么

      SqlSession session = sqlSessionFactory.openSession();
      复制代码
      //DefaultSqlSession中
      public SqlSession openSession() {
          return openSessionFromDataSource(configuration.getDefaultExecutorType(), null, false);
      }

      private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
          Transaction tx = null;
          try {
            // 获取数据源环境信息
            final Environment environment = configuration.getEnvironment();
            final TransactionFactory transactionFactory = getTransactionFactoryFromEnvironment(environment);
            tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
            // 创建Executor执行器,关键在这里*****
            final Executor executor = configuration.newExecutor(tx, execType);
            // 创建DefaultSqlSession
            return new DefaultSqlSession(configuration, executor, autoCommit);
          } catch (Exception e) {
            closeTransaction(tx);
            throw ExceptionFactory.wrapException("Error opening session.  Cause: " + e, e);
          } finally {
            ErrorContext.instance().reset();
          }
        }
      复制代码

      进入Configuration

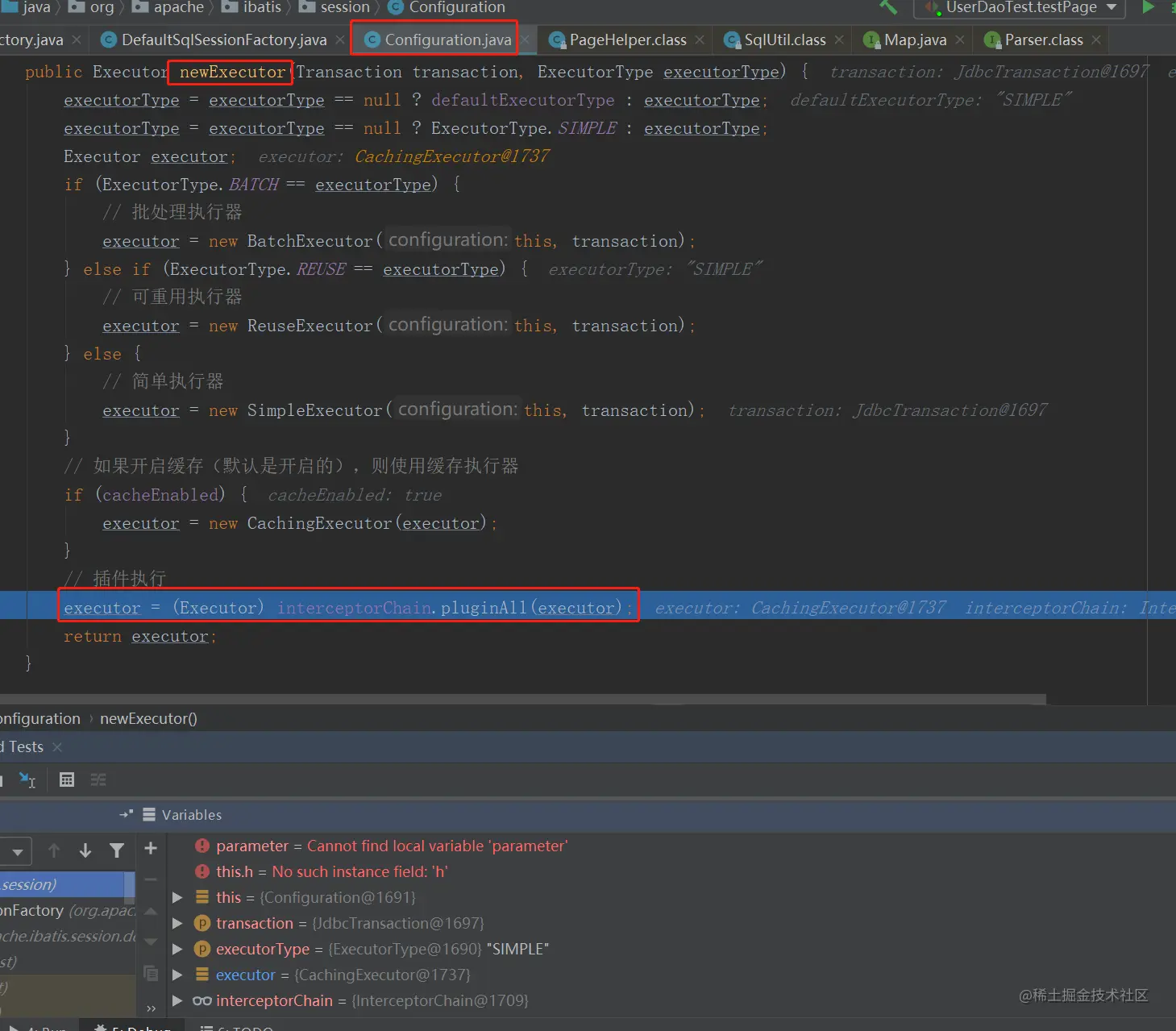

      public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
      		executorType = executorType == null ? defaultExecutorType : executorType;
      		executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
      		Executor executor;
      		if (ExecutorType.BATCH == executorType) {
      			executor = new BatchExecutor(this, transaction);
      		} else if (ExecutorType.REUSE == executorType) {
      			executor = new ReuseExecutor(this, transaction);
      		} else {
      			executor = new SimpleExecutor(this, transaction);
      		}
      		// 如果开启缓存(默认是开启的),则使用缓存执行器
      		if (cacheEnabled) {
      			executor = new CachingExecutor(executor);
      		}
      		// 插件增强,在这里使用插件对executor进行增强
      		executor = (Executor) interceptorChain.pluginAll(executor);
      		return executor;
      	}
      复制代码

      进入InterceptorChain

      public Object pluginAll(Object target) {
          for (Interceptor interceptor : interceptors) {
            target = interceptor.plugin(target);
          }
          return target;
      }
      复制代码

      看到这里,就知道其实是通过Interceptor接口的plugin方法为纽带,来对Executor进行增强的(AOP),这里,Interceptor即为PageHelper,所以接下来进入PageHelper

      //PageHelper
      public Object plugin(Object target) {
         return target instanceof Executor ? Plugin.wrap(target, this) : target;
      }
      复制代码
      //Plugin
      //这个Plugin是mybatis自带的接口,实现了InvocationHandler,也说明mybatis拦截器底层是通过JDK动态代理来实现的
      public static Object wrap(Object target, Interceptor interceptor) {
          //前面入参过来,这里interceptor是PageHelper
          Map<Class<?>, Set<Method>> signatureMap = getSignatureMap(interceptor);
          Class<?> type = target.getClass();
          Class<?>[] interfaces = getAllInterfaces(type, signatureMap);
          if (interfaces.length > 0) {
              //下面是经典的JDK动态代理生成代码
              //继续进入Plugin的构造函数看看
            return Proxy.newProxyInstance(
                type.getClassLoader(),
                interfaces,
                new Plugin(target, interceptor, signatureMap));
          }
          return target;
      }

      private Plugin(Object target, Interceptor interceptor, Map<Class<?>, Set<Method>> signatureMap) {
          this.target = target;
          this.interceptor = interceptor;
          this.signatureMap = signatureMap;
      }
      //只是进行了一些简单的变量设置

      //JDK动态代理,执行时会调用InvocationHandler中的invoke方法,所以我们接着看Plugin里面的invoke方法

      @Override
        public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
          try {
            Set<Method> methods = signatureMap.get(method.getDeclaringClass());
            if (methods != null && methods.contains(method)) {
              //看到这里就比较明白了,实际调用了拦截器的intercept方法
              //那我们就去PageHelper的intercept方法里一探究竟
              return interceptor.intercept(new Invocation(target, method, args));
            }
            return method.invoke(target, args);
          } catch (Exception e) {
            throw ExceptionUtil.unwrapThrowable(e);
          }
      }
      复制代码

      //PageHelper
      public Object intercept(Invocation invocation) throws Throwable {
              if (this.autoRuntimeDialect) {
                  SqlUtil sqlUtil = this.getSqlUtil(invocation);
                  return sqlUtil.processPage(invocation);
              } else {
                  if (this.autoDialect) {
                      this.initSqlUtil(invocation);
                  }

                  return this.sqlUtil.processPage(invocation);
              }
      }
      复制代码
      //SqlUtil
      public Object processPage(Invocation invocation) throws Throwable {
              Object var3;
              try {
                  Object result = this._processPage(invocation);
                  var3 = result;
              } finally {
                  clearLocalPage();
              }

              return var3;
      }

      private Object _processPage(Invocation invocation) throws Throwable {
              Object[] args = invocation.getArgs();
              Page page = null;
              if (this.supportMethodsArguments) {
                  page = this.getPage(args);
              }
              RowBounds rowBounds = (RowBounds)args[2];
              if (this.supportMethodsArguments && page == null || !this.supportMethodsArguments && getLocalPage() == null && rowBounds == RowBounds.DEFAULT) {
                  return invocation.proceed();
              } else {
                  if (!this.supportMethodsArguments && page == null) {
                      //SqlUtil里维护了一个ThreadLocal<Page>
                      //这里会从ThreadLocal中去取Page对象
                      //这个Page对象是在调用PageHelper.startPage()时,被添加到ThreadLocal里的
                      page = this.getPage(args);
                  }

                  return this.doProcessPage(invocation, page, args);
              }
      }

      //下面是最最最终的执行
      //流程有点复杂
      //大概可以分为2步:
      //1. 修改入参中的MappedStatement,执行一次SQL查询,获取总数count,设置到Page对象中
      //(这一步可通过PageHelper.startPage(int pageNum,int pageSize,boolean count) 中的第三个参数来取消)
      //2. 通过Page对象里的分页信息,修改MappedStatement中的SqlSource,通过getBoundSql,在sql语句末尾添加 limit ?,? ,后通过StatementHandler,将分页信息绑定到入参,执行查询
      private Page doProcessPage(Invocation invocation, Page page, Object[] args) throws Throwable {
             //args是Executor执行query时的入参
             //args[0] 为 MappedStatement
             //args[1] 为 Object ,是SQL查询时的参数
             //args[2] 为 RowBounds 貌似和分页有关
             //agrs[3] 为ResultHandler 结果集处理器
             //可以参考CachingExecutor的query方法
              RowBounds rowBounds = (RowBounds)args[2];
              MappedStatement ms = (MappedStatement)args[0];
              if (!this.isPageSqlSource(ms)) {
                  this.processMappedStatement(ms);
              }

             //这里设置Parser,可能的取值有MysqlParser,OracleParser,PostgreSQLParser等
             //本例中为MysqlParser
              ((PageSqlSource)ms.getSqlSource()).setParser(this.parser);

              try {
                  args[2] = RowBounds.DEFAULT;
                  if (this.isQueryOnly(page)) {
                      Page var12 = this.doQueryOnly(page, invocation);
                      return var12;
                  }

                  if (page.isCount()) {
                      //如果开启了查询总数,先查询总数
                      page.setCountSignal(Boolean.TRUE);
                      //这里args[0]即是Executor执行查询时入参的MappedStatement
                      //先将MappedStatement入参改为查询总数的Statement
                      args[0] = msCountMap.get(ms.getId());
                      //下面执行Executor查询,得到总数
                      Object result = invocation.proceed();
                      //将Executor查询入参的MappedStatement恢复
                      args[0] = ms;
                      //将记录的总条数,设置到Page对象中
                      page.setTotal((long)(Integer)((List)result).get(0));
                      if (page.getTotal() == 0L) {
                          //若记录数量为0,则直接返回,不执行真正的查询
                          Page var7 = page;
                          return var7;
                      }
                  } else {
                      page.setTotal(-1L);
                  }

                  if (page.getPageSize() > 0 && (rowBounds == RowBounds.DEFAULT && page.getPageNum() > 0 || rowBounds != RowBounds.DEFAULT)) {
                      //存在分页信息时,进行分页查询
                      page.setCountSignal((Boolean)null);
                      //通过下面这一句,得到一个BoundSql,此时已经添加了limit ?,?
                      //args[1]是sql查询的参数,将会进行sql参数绑定
                      BoundSql boundSql = ms.getBoundSql(args[1]);
                      //这一句进行参数封装,将分页信息封装到args[1]中,后续会替换limit ?,?中的?
                      args[1] = this.parser.setPageParameter(ms, args[1], boundSql, page);
                      page.setCountSignal(Boolean.FALSE);
                      //执行查询
                      Object result = invocation.proceed();
                      //将结果封装为Page对象,并返回
                      page.addAll((List)result);
                  }
              } finally {
                  ((PageSqlSource)ms.getSqlSource()).removeParser();
              }

              return page;
      }
      复制代码

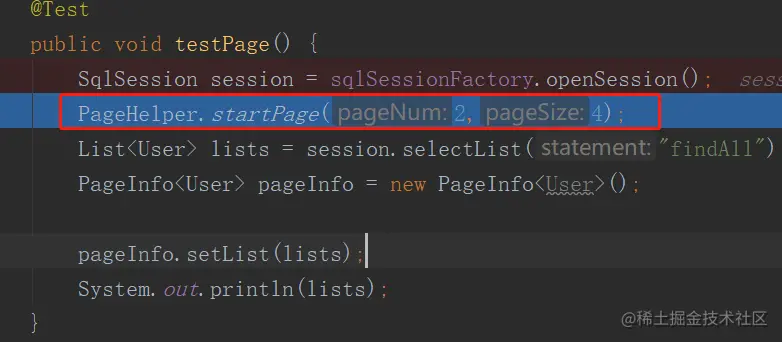

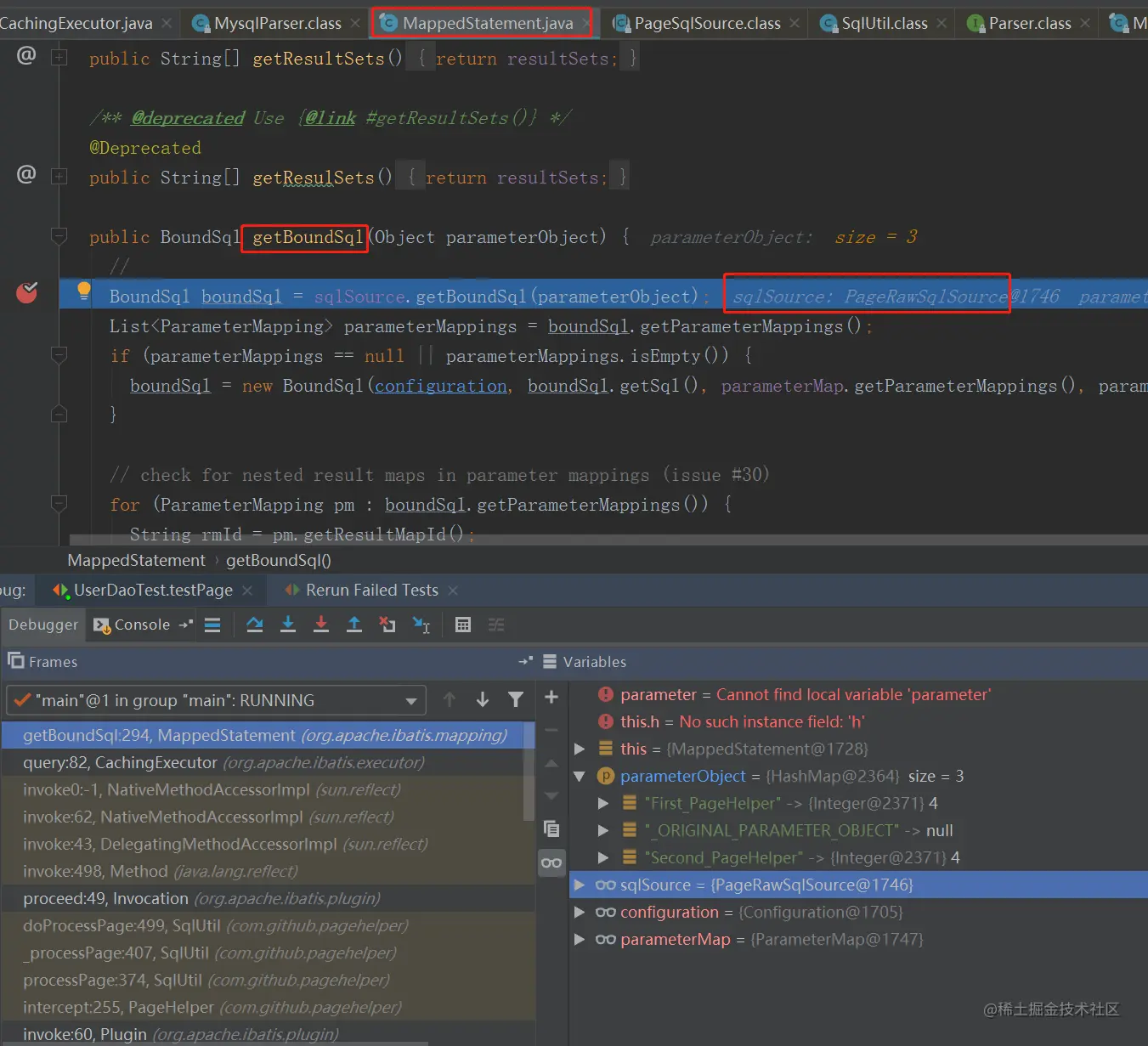

      下面通过一次debug过程,来从头到尾跟一遍PageHelper拦截器的执行

      下面是测试代码:

      public class TestPageHelper{
      private SqlSessionFactory sqlSessionFactory;
      	@Before
      	public void before() {
      		try {
      			String resource = "dao/SqlMapConfig.xml";
      			InputStream inputStream = Resources.getResourceAsStream(resource);
      			sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
      		} catch (IOException e) {
      			e.printStackTrace();
      		}
      	}
      	@Test
      	public void testPage() {
      		SqlSession session = sqlSessionFactory.openSession();
      		PageHelper.startPage(2,4);
      		List<User> lists = session.selectList("findAll");
      		PageInfo<User> pageInfo = new PageInfo<User>(lists);
      		System.out.println(lists);
      	}
      }
      复制代码

      从SqlSessionFactory.openSession开始跟






      至此,openSession跟完了,使用JDK动态代理对Executor进行了增强

      下面开始跟PageHelper.startPage



      下面开始跟SQL查询流程



      执行Executor的query之前,会执行PageHelper中的intercept方法,按照先前分析的,最终会进入到SqlUtil的doProcessPage方法,下面替换掉MappedStatement后,会执行Executor的query


      执行query


      后委托给BaseExecutor执行查询


      最后会进入到BaseExecutor中的queryFromDatabase方法,随后进入SimpleExecutor的doQuery


      第一次查询总数完成后,继续返回到SqlUtil的doProcessPage方法中,继续往下执行


      先进入355,主要是将分页信息,封装到入参Object中




      下面进入到getBoundSql


      继续进入PageRawSqlSource的getBoundSql(PageRawSqlSource继承自PageSqlSource,这里是直接调用父类的方法)


      继续看getPageBoundSql方法

      1566204502634.png 继续看PageStaticSqlSource中的getPageBoundSql,关键在于调用了MysqlParser的getPageSql

      1566204585579

      继续进入MysqlParser中去看看,最终找到了limit ? , ?

1566204678507

 再往后就是调用StatemenHandler对具体的SQL进行参数绑定,再执行查询,就不再赘述啦~

 下面列一下PageHelper涉及到的一些主要技术点作为总结:

 - 使用ThreadLocal存储Page分页信息(查询完后会清除)
 - 使用JDK动态代理来完成插件对Executor的拦截
复制代码

第一遍跟,会觉得头晕,多跟几遍,再梳理一下类的结构关系,就会比较清晰一点。一些更加细节的部分没有列出来,如PageHelper拦截后,将MappedStatement中的SqlSource再进行了一次封装,封装成PageSqlSource,PageRawSqlSource,还有PageStaticSqlSource啥啥的(在SqlUtil的doProcessPage中的this.processMappedStatement()方法中,这个方法内还有将select count(0) from user添加到一个map里的操作),以及第一次查询总数时,是如何将select * from user替换成select count(0) from user(在SqlParser中的sqlToCount方法),有兴趣的胖友可以自行深入。本人技术有限,如有纰漏或错误的地方,欢迎各位大佬批评指正。

(完)

分类:
后端
标签:
分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
