Canvas 实现图片缩放、拖拽

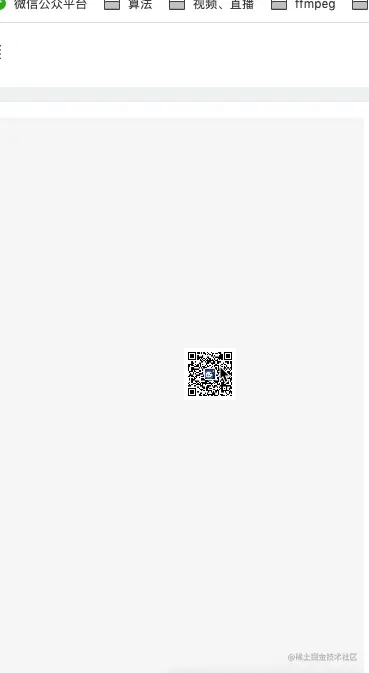

本文主要介绍Canvas实现图片缩放和拖拽功能,兼容PC端和移动端

事件监听

PC端事件监听

首先是各种事件监听。PC端监听缩放滚轮事件(mousewheel、wheel)

 this.canvasRef.addEventListener('mousedown', this.startMouse.bind(this))
 this.canvasRef.addEventListener('mousemove', this.moveMouse.bind(this))
 this.canvasRef.addEventListener('mouseup', this.endMouse.bind(this))
 this.canvasRef.addEventListener('mousewheel', this.mouseWheel.bind(this)) // 监听滚轮
 this.canvasRef.addEventListener('wheel', this.mouseWheel.bind(this)) // 监听滚轮
复制代码

移动端事件监听

移动端缩放是监听多手指触摸

this.canvasRef.addEventListener('touchstart', this.startTouch.bind(this))
this.canvasRef.addEventListener('touchmove', this.moveTouch.bind(this))
this.canvasRef.addEventListener('touchend', this.endMouse.bind(this))
复制代码

图片加载

图片加载使用Promise处理加载,crossOrigin解决跨域。

private loadImage(url: string) {
   return new Promise((reject, resolve) => {
       this.img = new Image();
       this.img.crossOrigin = 'Anonymous'
       this.img.onload = function() {
           reject('');
       }
       this.img.onerror = function(error) {
           console.error(error, 'error=====')
           resolve(error)
       }
       this.img.src = url
   })
}
复制代码

移动位置

计算鼠标或者触摸相对于canvas容器的位置

/**
* 处理鼠标的位置
* @private
* @param {number} startX
* @param {number} startY
* @returns {IPos}
* @memberof MapCanvas
*/
private windowToCanvas(startX: number, startY: number): IPos {
   const { left, top, width, height} = this.canvasRef.getBoundingClientRect();
   return {
       x: startX - left - (width - this.canvasRef.width) / 2,
       y: startY - top - (height - this.canvasRef.height) / 2
   }
}
复制代码

图片移动

PC端和移动端移动位置逻辑差不多,根据当前移动位置减去上一次移动位置。

/**
* 拖拽移动
* @private
* @param {(React.MouseEvent<HTMLElement> } e
* @memberof MapCanvas
*/
private moveMouse(e: React.MouseEvent<HTMLElement> ) {
   if(!this.isMove) return false
   const { pageX, pageY } = e
   this.movePos = this.windowToCanvas(pageX, pageY)
   const x = this.movePos.x - this.startPos.x, y = this.movePos.y - this.startPos.y;
   this.imgX += x;
   this.imgY += y;
   this.startPos = {...this.movePos} // 更新最新位置
   this.drawImage()
}
复制代码

绘制图片

绘制前,首先要清除上一次绘制

/**
* 绘制图片
* @private
* @memberof MapCanvas
*/
private drawImage() {
   // 清除上一帧绘制
   this.ctx.clearRect(0, 0, this.canvasRef.width, this.canvasRef.height)
   // 绘制图片
   this.ctx.drawImage(
       this.img,
       0,0,
       this.img.width,
       this.img.height,
       this.imgX,
       this.imgY,
       this.img.width * this.imgScale,
       this.img.height * this.imgScale
   )
}
复制代码

缩放

PC端和移动端缩放事件有所区别

PC端缩放

PC端监听滚动缩小还是放大是根据滚动事件wheelDelta的值来判断,大于0为放大,否则为缩小;

/**
* 监听滚轮
* @private
* @param {(React.WheelEvent<HTMLElement> & { wheelDelta: number })} e
* @memberof MapCanvas
*/
private mouseWheel(e: React.WheelEvent<HTMLElement> & { wheelDelta: number } ) {
   const { clientX, clientY, wheelDelta } = e
   const pos = this.windowToCanvas(clientX, clientY)
   // 计算图片的位置
   const newPos = { x: Number(((pos.x - this.imgX)/this.imgScale).toFixed(2)), y: Number(((pos.y - this.imgY)/this.imgScale).toFixed(2)) }
   // 判断是放大还是缩小
   if(wheelDelta > 0) { // 放大
       this.imgScale += 0.05
       if(this.imgScale >= this.MAX_SCALE) {
           this.imgScale = this.MAX_SCALE
       }
   } else { // 缩小
       this.imgScale -= 0.05
       if(this.imgScale <= this.MINIMUM_SCALE) {
           this.imgScale = this.MINIMUM_SCALE
       }
   }
   // 计算图片的位置, 根据当前缩放比例,计算新的位置
   this.imgX = (1-this.imgScale)*newPos.x+(pos.x-newPos.x);
   this.imgY = (1-this.imgScale)*newPos.y+(pos.y-newPos.y);
   this.drawImage(); // 开始绘制图片
}
复制代码

移动端缩放

移动端图片的缩放是根据滑动前后端两者之间的大小进行判断是否为缩放

/**
* 勾股定理,求两点间的直线距离
* @private
* @param {React.Touch} p1
* @param {React.Touch} p2
* @returns {number}
* @memberof MapCanvas
*/
private getDistance(p1: React.Touch, p2: React.Touch): number {
   const x = p2.pageX - p1.pageX
   const y = p2.pageY - p1.pageY
   // 求出两点间的距离
   return Math.sqrt((x * x) + (y * y))
}
复制代码

对比滑动前后之间的距离大小判断缩放;

/**
 * 移动端拖动缩放
 * @private
 * @param {React.TouchEvent<HTMLElement>} e
 * @memberof MapCanvas
 */
private moveTouch(e:  React.TouchEvent<HTMLElement>) {
    if(!this.isMove || !e.touches) return false
    const { clientX, clientY } = e.touches[0]
    // 如果是单指
    if(e.touches.length < 2) {
        this.movePos = this.windowToCanvas(clientX, clientY)
        const x = this.movePos.x - this.startPos.x, y = this.movePos.y - this.startPos.y;
        this.imgX += x;
        this.imgY += y;
        this.startPos = {...this.movePos} // 更新最新位置
    } else {
        const now = e.touches
        // 处理位置
        const pos = this.windowToCanvas(clientX, clientY)
        const newPos = {x: Number(((pos.x-this.imgX)/this.imgScale).toFixed(2)) , y: Number(((pos.y-this.imgY)/this.imgScale).toFixed(2))};
        const curPos = this.getDistance(now[0],now[1]); // 当前位置
        const startPos = this.getDistance(this.touchs[0], this.touchs[1]); // 前一个位置
        // 判断位置是放大还是缩小
        if(curPos > startPos) { // 放大
            this.imgScale += 0.03
            if(this.imgScale >= this.MAX_SCALE) {
                this.imgScale = this.MAX_SCALE
            }
        } else {
            this.imgScale -= 0.03
            if(this.imgScale <= this.MINIMUM_SCALE) {
                this.imgScale = this.MINIMUM_SCALE
            }
        }
        // 计算图片的位置, 更具当前缩放比例,计算新的位置
        this.imgX = (1-this.imgScale)*newPos.x+(pos.x-newPos.x);
        this.imgY = (1-this.imgScale)*newPos.y+(pos.y-newPos.y);
        this.touchs = now
    }
    this.drawImage()
}
复制代码

最后

全部代码

interface IPos {
   x: number
   y: number
}

class MapCanvas {
   private canvasRef:HTMLCanvasElement
   private ctx: CanvasRenderingContext2D
   private img: HTMLImageElement
   private startPos: IPos = { x: 0, y: 0 } // 开始坐标
   private touchs: React.TouchList         // 存储多手指位置
   private movePos: IPos                   // 存储移动坐标位置
   private imgX: number = 0                // 图片初始化X轴位置
   private imgY: number = 60               // 图片初始化Y轴位置
   private isMove: boolean = false         // 是否移动
   private imgScale: number = 0.5          // 图片缩放比例
   private MINIMUM_SCALE: number = 0.2     // 最小缩放
   private MAX_SCALE: number = 5           // 最大缩放
   constructor(canvas: HTMLCanvasElement) {
       this.canvasRef = canvas
       const { width, height} = this.canvasRef.getBoundingClientRect();
       this.canvasRef.width = width
       this.canvasRef.height = height
       this.ctx = canvas.getContext('2d')
       this.initCavas();
   }

   /**
    * 初始化
    * @memberof MapCanvas
    */
   async initCavas() {
       await this.loadImage('https://img.qlchat.com/qlLive/activity/image/ICLAJAYZ-PZ19-M9WM-1620287616694-OQR1MJFKO67O.jpg')
       this.drawImage();
       // PC端事件监听
       this.canvasRef.addEventListener('mousedown', this.startMouse.bind(this))
       this.canvasRef.addEventListener('mousemove', this.moveMouse.bind(this))
       this.canvasRef.addEventListener('mouseup', this.endMouse.bind(this))
       this.canvasRef.addEventListener('mousewheel', this.mouseWheel.bind(this)) // 监听滚轮
       this.canvasRef.addEventListener('wheel', this.mouseWheel.bind(this)) // 监听滚轮
       // 移动端事件监听
       this.canvasRef.addEventListener('touchstart', this.startTouch.bind(this))
       this.canvasRef.addEventListener('touchmove', this.moveTouch.bind(this))
       this.canvasRef.addEventListener('touchend', this.endMouse.bind(this))
   }

   /**
    * 图片加载
    * @private
    * @param {string} url
    * @returns
    * @memberof MapCanvas
    */
   private loadImage(url: string) {
       return new Promise((reject, resolve) => {
           this.img = new Image();
           this.img.crossOrigin = 'Anonymous'
           this.img.onload = function() {
               reject('');
           }
           this.img.onerror = function(error) {
               console.error(error, 'error=====')
               resolve(error)
           }
           this.img.src = url
       })
   }

   /**
    * 绘制图片
    * @private
    * @memberof MapCanvas
    */
   private drawImage() {
       // 清除上一帧绘制
       this.ctx.clearRect(0, 0, this.canvasRef.width, this.canvasRef.height)
       // 绘制图片
       this.ctx.drawImage(
           this.img,
           0,0,
           this.img.width,
           this.img.height,
           this.imgX,
           this.imgY,
           this.img.width * this.imgScale,
           this.img.height * this.imgScale
       )
   }

   /**
    * 开始拖拽
    * @private
    * @param {(React.MouseEvent<HTMLElement> | React.TouchEvent<HTMLElement>)} e
    * @memberof MapCanvas
    */
   private startMouse(e: React.MouseEvent<HTMLElement> ) {
       const { pageX, pageY } = e;
       this.isMove = true
       this.startPos = this.windowToCanvas(pageX, pageY)
   }

   /**
    * 开始触摸
    * @private
    * @param {React.TouchEvent<HTMLElement>} e
    * @memberof MapCanvas
    */
   private startTouch(e: React.TouchEvent<HTMLElement>) {
       const { touches } = e
       this.isMove = true;
       // 判断是否为多手指
       if(touches.length < 2) {
           const { clientX, clientY } = touches[0]
           this.startPos = this.windowToCanvas(clientX, clientY) // clientX:触摸点相对浏览器窗口的位置
       } else {
           this.touchs = touches
       }
   }

   /**
    * 拖拽移动
    * @private
    * @param {(React.MouseEvent<HTMLElement> } e
    * @memberof MapCanvas
    */
   private moveMouse(e: React.MouseEvent<HTMLElement> ) {
       if(!this.isMove) return false
       const { pageX, pageY } = e
       this.movePos = this.windowToCanvas(pageX, pageY)
       const x = this.movePos.x - this.startPos.x, y = this.movePos.y - this.startPos.y;
       this.imgX += x;
       this.imgY += y;
       this.startPos = {...this.movePos} // 更新最新位置
       this.drawImage()
   }

   /**
    * 移动端拖动缩放
    * @private
    * @param {React.TouchEvent<HTMLElement>} e
    * @memberof MapCanvas
    */
   private moveTouch(e:  React.TouchEvent<HTMLElement>) {
       if(!this.isMove || !e.touches) return false
       const { clientX, clientY } = e.touches[0]
       // 如果是单指
       if(e.touches.length < 2) {
           this.movePos = this.windowToCanvas(clientX, clientY)
           const x = this.movePos.x - this.startPos.x, y = this.movePos.y - this.startPos.y;
           this.imgX += x;
           this.imgY += y;
           this.startPos = {...this.movePos} // 更新最新位置
       } else {
           const now = e.touches
           // 处理位置
           const pos = this.windowToCanvas(clientX, clientY)
           const newPos = {x: Number(((pos.x-this.imgX)/this.imgScale).toFixed(2)) , y: Number(((pos.y-this.imgY)/this.imgScale).toFixed(2))};
           const curPos = this.getDistance(now[0],now[1]); // 当前位置
           const startPos = this.getDistance(this.touchs[0], this.touchs[1]); // 前一个位置
           // 判断位置是放大还是缩小
           if(curPos > startPos) { // 放大
               this.imgScale += 0.03
               if(this.imgScale >= this.MAX_SCALE) {
                   this.imgScale = this.MAX_SCALE
               }
           } else {
               this.imgScale -= 0.03
               if(this.imgScale <= this.MINIMUM_SCALE) {
                   this.imgScale = this.MINIMUM_SCALE
               }
           }
           // 计算图片的位置, 更具当前缩放比例,计算新的位置
           this.imgX = (1-this.imgScale)*newPos.x+(pos.x-newPos.x);
           this.imgY = (1-this.imgScale)*newPos.y+(pos.y-newPos.y);
           this.touchs = now
       }
       this.drawImage()
   }

   /**
    * 拖拽结束
    * @private
    * @param {(React.MouseEvent<HTMLElement> | React.TouchEvent<HTMLElement>)} e
    * @memberof MapCanvas
    */
   private endMouse(e: React.MouseEvent<HTMLElement> | React.TouchEvent<HTMLElement>) {
      this.isMove = false
   }

   /**
    * 监听滚轮
    * @private
    * @param {(React.WheelEvent<HTMLElement> & { wheelDelta: number })} e
    * @memberof MapCanvas
    */
   private mouseWheel(e: React.WheelEvent<HTMLElement> & { wheelDelta: number } ) {
       const { clientX, clientY, wheelDelta } = e
       const pos = this.windowToCanvas(clientX, clientY)
       // 计算图片的位置
       const newPos = { x: Number(((pos.x - this.imgX)/this.imgScale).toFixed(2)), y: Number(((pos.y - this.imgY)/this.imgScale).toFixed(2)) }
       // 判断是放大还是缩小
       if(wheelDelta > 0) { // 放大
           this.imgScale += 0.05
           if(this.imgScale >= this.MAX_SCALE) {
               this.imgScale = this.MAX_SCALE
           }
       } else { // 缩小
           this.imgScale -= 0.05
           if(this.imgScale <= this.MINIMUM_SCALE) {
               this.imgScale = this.MINIMUM_SCALE
           }
       }
       // 计算图片的位置, 根据当前缩放比例,计算新的位置
       this.imgX = (1-this.imgScale)*newPos.x+(pos.x-newPos.x);
       this.imgY = (1-this.imgScale)*newPos.y+(pos.y-newPos.y);
       this.drawImage(); // 开始绘制图片
   }

   /**
    * 处理鼠标的位置
    * @private
    * @param {number} startX
    * @param {number} startY
    * @returns {IPos}
    * @memberof MapCanvas
    */
   private windowToCanvas(startX: number, startY: number): IPos {
       const { left, top, width, height} = this.canvasRef.getBoundingClientRect();
       return {
           x: startX - left - (width - this.canvasRef.width) / 2,
           y: startY - top - (height - this.canvasRef.height) / 2
       }
   }

   /**
    * 勾股定理,求两点间的直线距离
    * @private
    * @param {React.Touch} p1
    * @param {React.Touch} p2
    * @returns {number}
    * @memberof MapCanvas
    */
   private getDistance(p1: React.Touch, p2: React.Touch): number {
       const x = p2.pageX - p1.pageX
       const y = p2.pageY - p1.pageY
       return Math.sqrt((x * x) + (y * y))
   }

}

const CanvasMap:React.FC<IP> = ({}: IP) => {
   const canvasRef = React.useRef<HTMLCanvasElement>()
   React.useEffect(() => {
       new MapCanvas(canvasRef.current);
   }, [])
   return (
       <div className={ styles['map-box'] }>
           <div>
               <canvas ref={canvasRef}></canvas>
           </div>
       </div>
   )
}

export default CanvasMap
复制代码

本文到此结束。希望对你有帮助。

小编第一次写文章文笔有限、才疏学浅,文中如有不正之处,万望告知。

文章分类
前端
文章标签
