Kotlin(九)探秘Kotlin协程机制

参考文档:www.jianshu.com/u/a324daa6f…

参考-扔物线:rengwuxian.com/kotlin-coro…

探秘Kotlin协程机制

  • 什么是协程
  • 协程的用法
  • 协程的启动
  • 协程挂起,恢复原理逆向剖析

1.什么是协程

场景1:异步回调嵌套

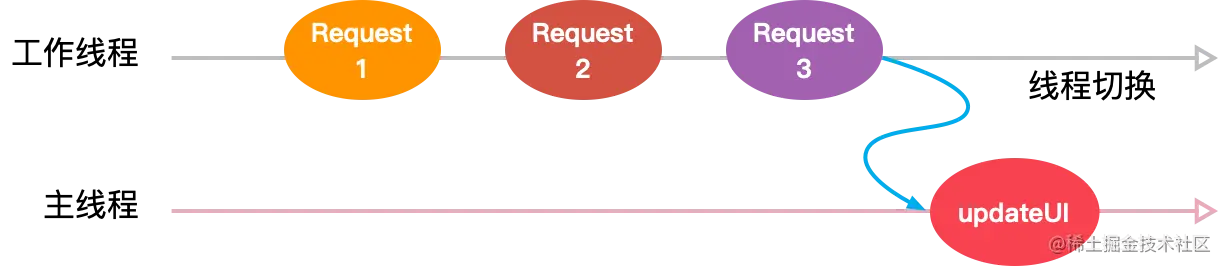

coroutine_1

  • 常规写法
//客户端顺序进行三次网络异步请求,并用最终结果更新UI
request1(parameter) { value1 ->
    request2(value1) { value2 ->
        request3(value2) { value3 ->
            updateUI(value3)
        }
    }
}
复制代码

这种结构的代码无论是阅读起来还是维护起来都是极其糟糕的。对多个回调组成的嵌套耦合,我亲切地称为 "回调地狱"。

  • 协程的写法
GlobalScope.launch(Dispatchers.Main){
  val value1 = request1()
  val value2 = request2(value1)
  val value3 = request2(value2)
  updateUI(value3)
}

suspend request1( )
suspend request2(..)
suspend request3(..)
复制代码

场景2:并发流程控制

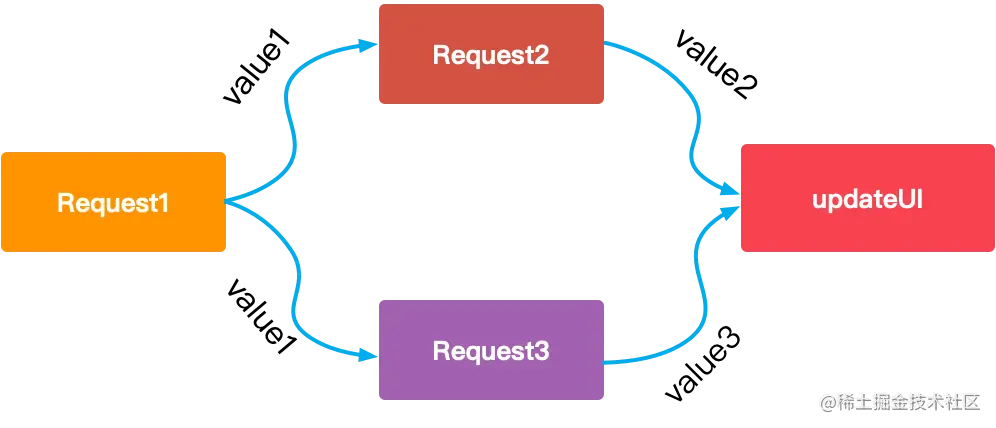

coroutine2

  • 常规写法
//客户端顺序并发三次网络异步请求,并用最终结果更新UI
fun request1(parameter) { value1 ->
    request2(value1) { value2 ->
      this.value2=value2
        if(request3){
         updateUI()
      }
    }
  request3(value2) { value3 ->
      this.value3=value3
        if(request2) {
        updateUI()
      }
    }
}

fun updateUI()
复制代码
  • 协程写法
GlobalScope.launch(Dispatchers.Main){
   val value1 =    request1()
   val deferred2 = GlobalScope.async{request2(value1)}
   val deferred3 = GlobalScope.async{request3(value2)}
   updateUI(deferred2.await(),deferred3.await())
}

suspend request1( )
suspend request2(..)
suspend request3(..)
复制代码

协程的目的是为了让多个任务之间更好的协作,解决异步回调嵌套。能够以同步的方式编排代码完成异步工作。将异步代码像同步代码一样直观。同时它也是一个并发流程控制的解决方案。

协程主要是让原来要使用“异步+回调”写出来的复杂代码, 简化成看似同步写出来的方式,弱化了线程的概念(对线程的操作进一步抽象)

2.协程的用法

引入gradle依赖

//在kotlin项目中配合jetpack架构引入协程
api 'androidx.lifecycle:lifecycle-viewmodel-ktx:2.2.0'
api 'androidx.lifecycle:lifecycle-runtime-ktx:2.2.0'
api 'androidx.lifecycle:lifecycle-livedata-ktx:2.2.0'

//在kotlin项目但非jetpack 架构项目中引入协程
api "org.jetbrains.kotlinx:kotlinx-coroutines-core:1.2.1"
api 'org.jetbrains.kotlinx:kotlinx-coroutines-android:1.1.1'
复制代码

常用的创建协程的方法

//创建协程时,可以通过Dispatchers.IO,MAIN,Unconfined指定协程运行的线程
val job:Job =GlobalScope.launch(Dispatchers.Main)
val deffered:Deffered=GlobalScope.async(Dispatchers.IO)
复制代码

Job:协程构建函数的返回值,可以把 Job 看成协程对象本身,包含了对协程的控制方法。

Deffered是Job的子类,实际上就增加了个await方法。能够让当前协程暂时挂起,暂停往下执行。当await方法有返回值后,会恢复协程,继续往下执行

方法说明
start()手动启动协程
join()等待协程执行完毕
cancel()取消一个协程

协程的启动

public fun CoroutineScope.launch(
    context: CoroutineContext = EmptyCoroutineContext,
    start: CoroutineStart = CoroutineStart.DEFAULT,
    block: suspend CoroutineScope.() -> Unit
): Job{
  val newContext = newCoroutineContext(context)
  val coroutine =  StandaloneCoroutine(newContext, active = true)
  coroutine.start(start, coroutine, block)
}
复制代码

CoroutineContext - 可以理解为协程的上下文,是一种key-value数据结构

CoroutineContextList
get(key: Key): Eget(int index)
plus(context: Element)add(int index, E element)
minusKey(key: Key<*>)remove(E element)

一个简单的例子

object CoroutineScene {

    private const val TAG = "CoroutineScene"


    fun startScene1(){
        GlobalScope.launch (Dispatchers.Main){
            Log.i(TAG,"startScene work on ${Thread.currentThread().name}")
            val result1 = request1()
            val result2 = request2(result1)
            val result3 = request3(result2)
            updateUI(result3)
        }
    }


    fun startScene2(){
        GlobalScope.launch (Dispatchers.Main){
            Log.i(TAG,"startScene work on ${Thread.currentThread().name}")
            val result1 = request1()


            val deferred2 = GlobalScope.async { request2(result1) }
            val deferred3 = GlobalScope.async { request3(result1) }
            //不能单独调用await
            updateUI(deferred2.await(),deferred3.await())
        }
    }



    private fun updateUI(result: String) {
        Log.i(TAG,"updateUI work on ${Thread.currentThread().name}")
        Log.i(TAG,"result: $result")
    }

    private fun updateUI(result2:String,result3: String) {
        Log.i(TAG,"updateUI work on ${Thread.currentThread().name}")
        Log.i(TAG,"result: ${result2}--${result3}")
    }



    //suspend 关键字的作用?
    //delay既然是IO异步任务,是如何做到延迟协程中的代码向下执行的?
    suspend fun request1():String{
        delay(2*1000)   //延迟2秒,不会暂停线程,但会暂停当前的协程

        Log.i(TAG,"request1 work on ${Thread.currentThread().name}")
        return "result from request1"
    }

    suspend fun request2(request:String):String{
        delay(2*1000)   //延迟2秒
        Log.i(TAG,"request2 work on ${Thread.currentThread().name}")
        return "result from request2"
    }

    suspend fun request3(request:String):String{
        delay(2*1000)   //延迟2秒
        Log.i(TAG,"request3 work on ${Thread.currentThread().name}")
        return "result from request3"
    }
}
复制代码

CoroutineDispatcher 协程运行的线程调度器

协程调度器

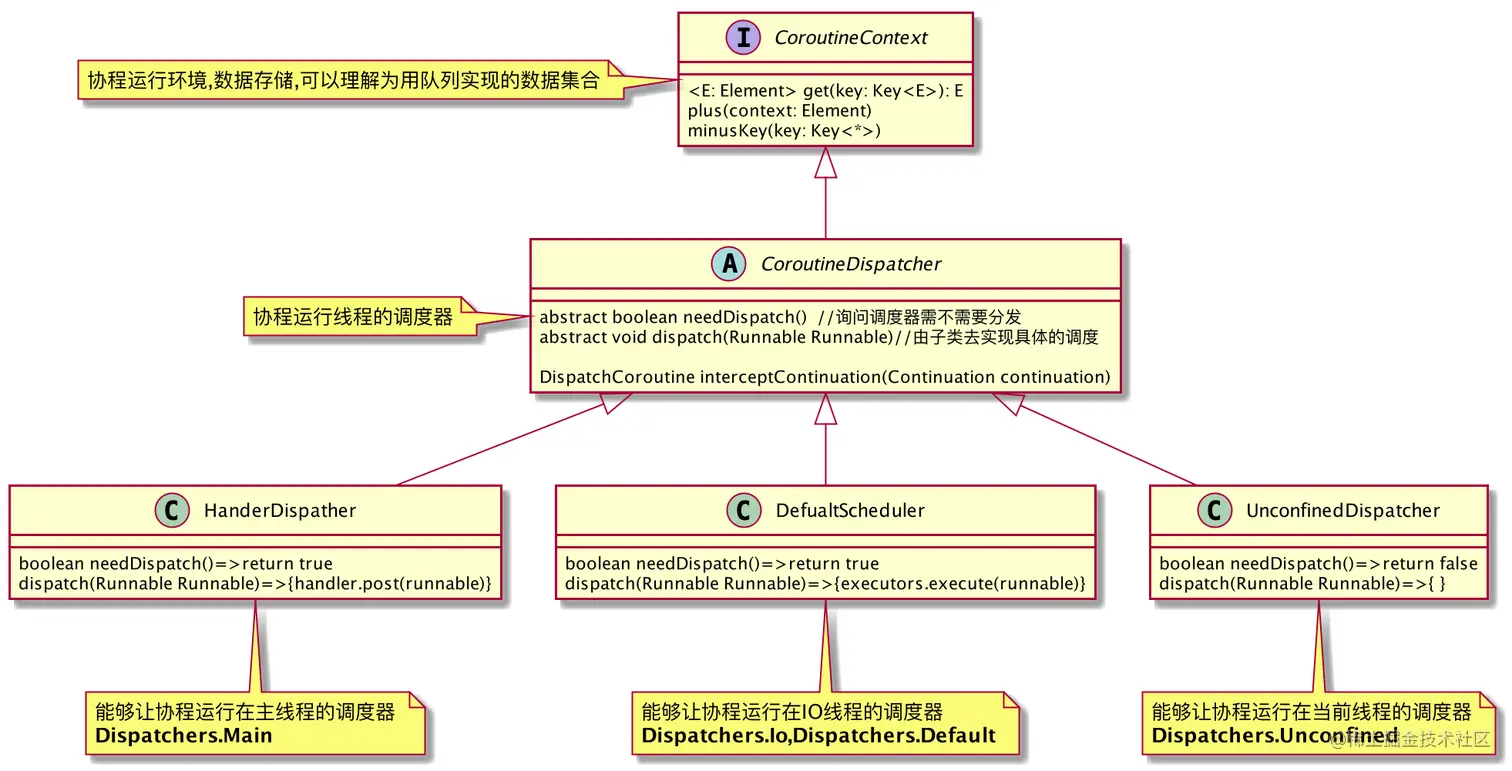

coroutine_dispatcher

模式说明
Dispatchers.IO显示指定协程运行的线程,为IO线程
Dispatchers.Main指定这个协程运行在主线程
Dispatchers.Default默认的,启动携程时会启动一个线程
Dispatchers.Unconfined不指定,就是在当前线程运行,协程恢复后的运行的线程取决于协程挂起时所在的线程

CoroutineStart - 启动模式

默认是DEAFAULT,也就是创建就启动;还有一个是LAZY,意思是等你需要它的时候,再调用启动

模式说明
CoroutineStart().DEAFAULT模式模式,创建即启动协程,可随时取消
ATOMIC自动模式,同样创建即启动,但启动前不可取消
LAZY延迟启动模式,只有当调用start方法时才会启动

3.协程挂起,恢复原理逆向剖析

挂起函数

被关键字suspend修饰的方法在编译阶段,编译器会修改方法的签名.包括返回值,修饰符,入参,方法体实现。协程的挂起是靠挂起函数中实现的代码。

//kotlin
suspend fun request(): String {
     delay(2 * 1000)     //suspend fun()
     println("after delay")
     return "result from request"
}
复制代码

转成java之后

//java
public static final Object request(Continuation completion) {
  ContinuationImpl requestContinuation = completion;
        if ((completion.label & Integer.MIN_VALUE) == 0)
            requestContinuation = new ContinuationImpl(completion) {
                @Override
                Object invokeSuspend(Object o) {
                    label |= Integer.MIN_VALUE;
                    return request(this);   //3.重新再次请求
                }
            };
        }
        switch (requestContinuation.label) {
            case 0: {  //1.第一次进来,执行方法,并且将标记改为1
                requestContinuation.label = 1;
                //2. 执行延迟操作,并将异步监听放进去,由此可见:协程的挂起其实是方法的挂起
                Object delay = DelayKt.delay(2000, requestContinuation);
                if (delay == COROUTINE_SUSPENDED) {
                    return COROUTINE_SUSPENDED;
                }
            }
        }
  //4.执行下面的方法
  System.out.println("after delay")
  return "result from request";
}
复制代码

协程挂起与协程恢复

协程的核心是挂起----恢复,挂起--恢复的本质是return & callback回调

coroutine_resume

模拟挂起和恢复的整个流程

object CoroutineScene2 {

    private  val TAG :String = "CoroutineScene2"

    suspend fun request2():String{
        delay(2*1000);
        Log.i(TAG,"request2 completed")
        return "result from request2";
    }
}
复制代码

Java

public class CoroutineScene2_decompiled {

    private static final String TAG = "CoroutineScene2";


    //1.挂起流程
    public static final Object request2(Continuation preCallback) {
        ContinuationImpl request2Callback;

        if (!(preCallback instanceof ContinuationImpl) || (((ContinuationImpl) preCallback).label & Integer.MAX_VALUE) == 0) {
            request2Callback = new ContinuationImpl(preCallback) {
                @Override
                public Object invokeSuspend(@NotNull Object resumeResult) {
                    this.result = resumeResult;
                    this.label |= Integer.MAX_VALUE;
                    return request2(this);
                }
            };

        } else {
            request2Callback = (ContinuationImpl) preCallback;
        }
        switch (request2Callback.label){
            case 0:
                Object delay = DelayKt.delay(2000,request2Callback);
                if(delay == IntrinsicsKt.getCOROUTINE_SUSPENDED()){
                    return IntrinsicsKt.getCOROUTINE_SUSPENDED();
                }
        }
        Log.i(TAG,"request2 comleted");
        return "result from request 2";
    }


    static abstract class ContinuationImpl<T> implements Continuation<T> {

        Continuation preCallback;
        int label;
        Object result;

        public ContinuationImpl(Continuation preCallback) {
            this.preCallback = preCallback;
        }

        @NotNull
        @Override
        public CoroutineContext getContext() {
            return preCallback.getContext();
        }


        //2.恢复流程
        @Override
        public void resumeWith(@NotNull Object result) {
            Object suspend = invokeSuspend(result);
            if(suspend == IntrinsicsKt.getCOROUTINE_SUSPENDED()){
                return;
            }
            preCallback.resumeWith(suspend);
        }

        public abstract Object invokeSuspend(@NotNull Object resumeResult);
    }

}
复制代码

kotliin

object CoroutineScene2 {

    private  val TAG :String = "CoroutineScene2"


    suspend fun request1():String{
        val request2 :String  = request2();
        return "result from request1" + request2
    }

    suspend fun request2():String{
        delay(2*1000);
        Log.i(TAG,"request2 completed")
        return "result from request2";
    }
}
复制代码

Java

public class CoroutineScene2_decompiled {

    private static final String TAG = "CoroutineScene2";
    //1.挂起流程
    public static final Object request1(Continuation preCallback) {
        ContinuationImpl request1Callback;

        if (!(preCallback instanceof ContinuationImpl) || (((ContinuationImpl) preCallback).label & Integer.MAX_VALUE) == 0) {
            request1Callback = new ContinuationImpl(preCallback) {
                @Override
                public Object invokeSuspend(@NotNull Object resumeResult) {
                    this.result = resumeResult;
                    this.label |= Integer.MAX_VALUE;
                    Log.i(TAG,"request1 has resumed");
                    return request1(this);
                }
            };

        } else {
            request1Callback = (ContinuationImpl) preCallback;
        }
        switch (request1Callback.label){
            case 0:
                //Object delay = DelayKt.delay(2000,request2Callback);
                Object request2= request2(request1Callback);
                if(request2 == IntrinsicsKt.getCOROUTINE_SUSPENDED()){
                    Log.i(TAG,"request1 has suspended");
                    return IntrinsicsKt.getCOROUTINE_SUSPENDED();
                }
        }
        Log.i(TAG,"request2 completed");
        return "result1 from request1 " + request1Callback.result;
    }



    //1.挂起流程
    public static final Object request2(Continuation preCallback) {
        ContinuationImpl request2Callback;

        if (!(preCallback instanceof ContinuationImpl) || (((ContinuationImpl) preCallback).label & Integer.MAX_VALUE) == 0) {
            request2Callback = new ContinuationImpl(preCallback) {
                @Override
                public Object invokeSuspend(@NotNull Object resumeResult) {
                    this.result = resumeResult;
                    this.label |= Integer.MAX_VALUE;
                    Log.i(TAG,"request2 has resumed");
                    return request2(this);
                }
            };

        } else {
            request2Callback = (ContinuationImpl) preCallback;
        }
        switch (request2Callback.label){
            case 0:
                Object delay = DelayKt.delay(2000,request2Callback);
                if(delay == IntrinsicsKt.getCOROUTINE_SUSPENDED()){
                    Log.i(TAG,"request2 has suspended");
                    return IntrinsicsKt.getCOROUTINE_SUSPENDED();
                }
        }
        Log.i(TAG,"request2 comleted");
        return "result from request 2";
    }


    static abstract class ContinuationImpl<T> implements Continuation<T> {

        Continuation preCallback;
        int label;
        Object result;

        public ContinuationImpl(Continuation preCallback) {
            this.preCallback = preCallback;
        }

        @NotNull
        @Override
        public CoroutineContext getContext() {
            return preCallback.getContext();
        }


        //2.恢复流程
        @Override
        public void resumeWith(@NotNull Object result) {
            Object suspend = invokeSuspend(result);
            if(suspend == IntrinsicsKt.getCOROUTINE_SUSPENDED()){
                return;
            }
            preCallback.resumeWith(suspend);
        }

        public abstract Object invokeSuspend(@NotNull Object resumeResult);
    }

}
复制代码

调用:

val callback = Continuation<String>(Dispatchers.Main){result->
      Log.i(TAG,result.getOrNull())
 }
CoroutineScene2_decompiled.request1(callback)
复制代码

协程回顾

  • 什么是协程

    • 协程是一种解决方案,是一种解决嵌套,并发,弱化线程概念的方案。能让多个任务之间更好的协作,能够以同步的方式编排代码完成异步工作。将异步代码写的像同步代码一样直观。
  • 协程的启动

    • 根据创建协程指定的调度器HandlerDispatcher,DefaultScheduler,UnconfinedDispatcher来执行任务,以决定协程中的代码块运行在那个线程上。
  • 协程的挂起,恢复

    • 本质是方法的挂起,恢复。本质是return +callback。
    • 用编译时的变换处理方法间的callback,这样可以很直观地写顺序执行的异步代码。
  • 协程是线程框架吗?

    • 协程的本质是编译时return +callback。只不过在调度任务时提供了能够运行在IO线程的调度器。
  • 什么时候使用协程

    • 多任务并发流程控制场景使用比较好, 流程控制比较简单,不会涉及线程阻塞与唤醒,性能比java并发控制手段高。
