Vue3 全家桶 + TS+ Vite2 + element-plus 搭建简洁时尚的博客网站实战及踩坑记

34,819

五一期间,花了 3 天时间,边学 Vue3 和 Vite2,边重构自己的项目,终于都用 Vue3 + TypeScript + Vite2 + Vuex4 + Vue-Router4 + element-plus 重构完啦!

终于完成一项心心念念的 2021 年度目标了 ✌️

项目地址:

github.com/biaochenxuy…

效果

效果图:

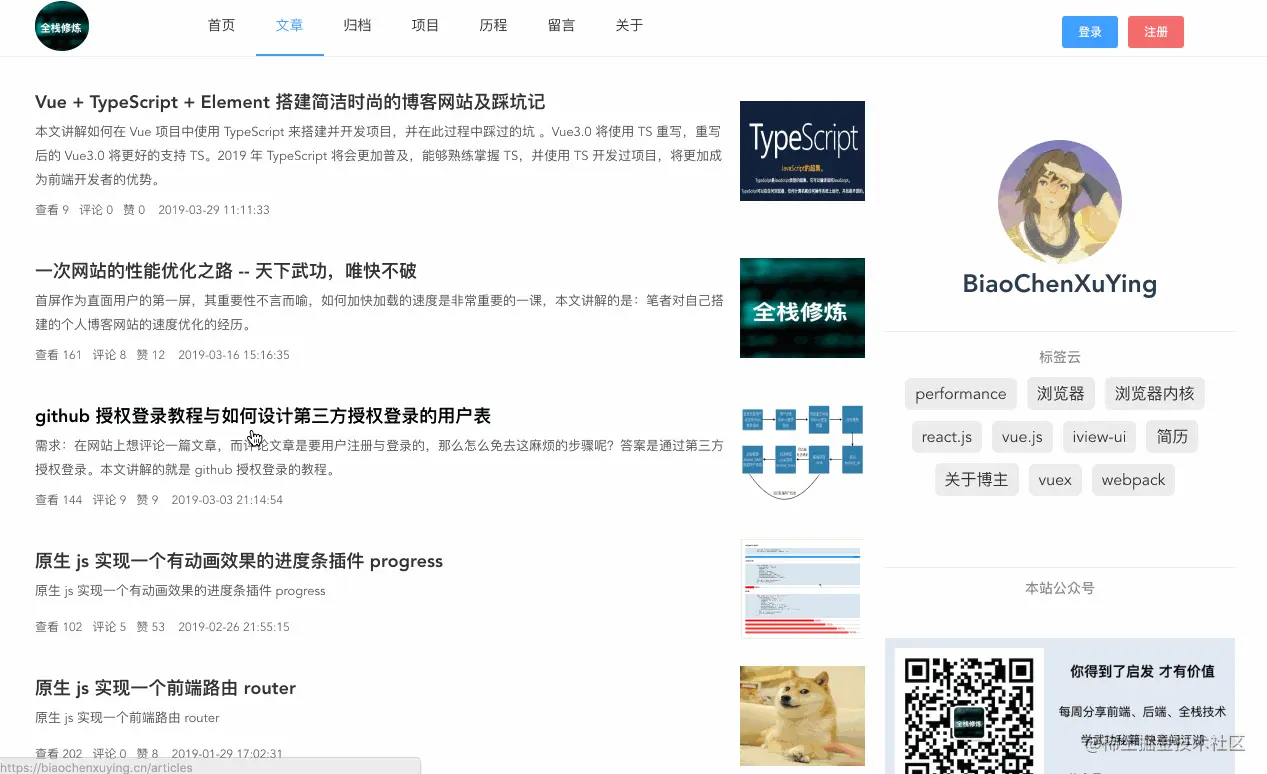

  • pc 端

  • 移动端

完整效果请看:

biaochenxuying.cn

功能

已经完成功能

  • 登录
  • 注册
  • 文章列表
  • 文章归档
  • 标签
  • 关于
  • 点赞与评论
  • 留言
  • 历程
  • 文章详情(支持代码语法高亮)
  • 文章详情目录
  • 移动端适配
  • github 授权登录

前端主要技术

所有技术都是当前最新的。

  • vue:^3.0.5
  • typescript : ^4.1.3
  • element-plus: ^1.0.2-beta.41
  • vue-router : ^4.0.6
  • vite: ^2.2.3
  • vuex: ^4.0.0
  • axios: ^0.21.1
  • highlight.js: ^10.7.2
  • marked:^2.0.3

1. 初化化项目

用 vite-app 创建项目

yarn create vite-app <project-name>

# 或者
npm init vite-app <project-name>

然后按照提示操作即可!

进入项目,安装依赖

cd <project-name>

yarn # 或 npm i

运行项目

yarn dev

打开浏览器 http://localhost:3000 查看

2. 引入 TypeScript

在创建项目的时候可以 TypeScript 的,如果你选择了 TypeScript ,可以忽略第 2 个步骤。

加入 ts 依赖

yarn add --dev typescript

在 项目根目录下创建 TypeScript 的配置文件 tsconfig.json

{
  "compilerOptions": {
    // 允许从没有设置默认导出的模块中默认导入。这并不影响代码的输出,仅为了类型检查。
    "allowSyntheticDefaultImports": true,

    // 解析非相对模块名的基准目录
    "baseUrl": ".",

    "esModuleInterop": true,

    // 从 tslib 导入辅助工具函数(比如 __extends, __rest等)
    "importHelpers": true,

    // 指定生成哪个模块系统代码
    "module": "esnext",

    // 决定如何处理模块。
    "moduleResolution": "node",

    // 启用所有严格类型检查选项。
    // 启用 --strict相当于启用 --noImplicitAny, --noImplicitThis, --alwaysStrict,
    // --strictNullChecks和 --strictFunctionTypes和--strictPropertyInitialization。
    "strict": true,

    // 生成相应的 .map文件。
    "sourceMap": true,

    // 忽略所有的声明文件( *.d.ts)的类型检查。
    "skipLibCheck": true,

    // 指定ECMAScript目标版本
    "target": "esnext",

    // 要包含的类型声明文件名列表
    "types": [

    ],

    "isolatedModules": true,

    // 模块名到基于 baseUrl的路径映射的列表。
    "paths": {
      "@/*": [
        "src/*"
      ]
    },
    // 编译过程中需要引入的库文件的列表。
    "lib": [
      "ESNext",
      "DOM",
      "DOM.Iterable",
      "ScriptHost"
    ]
  },
  "include": [
    "src/**/*.ts",
    "src/**/*.tsx",
    "src/**/*.vue",
    "tests/**/*.ts",
    "tests/**/*.tsx"
  ],
  "exclude": [
    "node_modules"
  ]
}

在 src 目录下新加 shim.d.ts 文件

/* eslint-disable */
import type { DefineComponent } from 'vue'

declare module '*.vue' {
  const component: DefineComponent<{}, {}, any>
  export default component
}

把 main.js 修改成 main.ts

在根目录,打开 Index.html

<script type="module" src="/src/main.js"></script>
修改为:
<script type="module" src="/src/main.ts"></script>

3. 引入 eslint

安装 eslint prettier 依赖

@typescript-eslint/parser @typescript-eslint/eslint-plugin 为 eslint 对 typescript 支持。

yarn add --dev eslint prettier eslint-config-prettier eslint-plugin-prettier eslint-plugin-vue @typescript-eslint/parser @typescript-eslint/eslint-plugin

在根目录下建立 eslint 配置文件: .eslintrc.js

module.exports = {
  parser: 'vue-eslint-parser',
  parserOptions: {
    parser: '@typescript-eslint/parser',
    ecmaVersion: 2020,
    sourceType: 'module',
    ecmaFeatures: {
      jsx: true
    }
  },
  extends: [
    'plugin:vue/vue3-recommended',
    'plugin:@typescript-eslint/recommended',
    'prettier/@typescript-eslint',
    'plugin:prettier/recommended'
  ],
  rules: {
    '@typescript-eslint/ban-ts-ignore': 'off',
    '@typescript-eslint/explicit-function-return-type': 'off',
    '@typescript-eslint/no-explicit-any': 'off',
    '@typescript-eslint/no-var-requires': 'off',
    '@typescript-eslint/no-empty-function': 'off',
    'vue/custom-event-name-casing': 'off',
    'no-use-before-define': 'off',
    // 'no-use-before-define': [
    //   'error',
    //   {
    //     functions: false,
    //     classes: true,
    //   },
    // ],
    '@typescript-eslint/no-use-before-define': 'off',
    // '@typescript-eslint/no-use-before-define': [
    //   'error',
    //   {
    //     functions: false,
    //     classes: true,
    //   },
    // ],
    '@typescript-eslint/ban-ts-comment': 'off',
    '@typescript-eslint/ban-types': 'off',
    '@typescript-eslint/no-non-null-assertion': 'off',
    '@typescript-eslint/explicit-module-boundary-types': 'off',
    '@typescript-eslint/no-unused-vars': [
      'error',
      {
        argsIgnorePattern: '^h$',
        varsIgnorePattern: '^h$'
      }
    ],
    'no-unused-vars': [
      'error',
      {
        argsIgnorePattern: '^h$',
        varsIgnorePattern: '^h$'
      }
    ],
    'space-before-function-paren': 'off',
    quotes: ['error', 'single'],
    'comma-dangle': ['error', 'never']
  }
};

建立 prettier.config.js

module.exports = {
  printWidth: 100,
  tabWidth: 2,
  useTabs: false,
  semi: false, // 未尾逗号
  vueIndentScriptAndStyle: true,
  singleQuote: true, // 单引号
  quoteProps: 'as-needed',
  bracketSpacing: true,
  trailingComma: 'none', // 未尾分号
  jsxBracketSameLine: false,
  jsxSingleQuote: false,
  arrowParens: 'always',
  insertPragma: false,
  requirePragma: false,
  proseWrap: 'never',
  htmlWhitespaceSensitivity: 'strict',
  endOfLine: 'lf'
}

4. vue-router、vuex

npm install vue-router@4 vuex

4.1 vuex

在根目录下创建 store/index.ts

import { InjectionKey } from 'vue'
import { createStore, Store } from 'vuex'

export interface State {
  count: number
}

export const key: InjectionKey<Store<State>> = Symbol()

export const store = createStore<State>({
  state() {
    return {
      count: 0
    }
  },
  mutations: {
    increment(state) {
      state.count++
    }
  }
})

main.ts 修改

import { createApp } from 'vue'
import { store, key } from './store'
import App from './App'
import './index.css'

const app = createApp(App)

app.use(store, key)

app.mount('#app')

components/HelloWord.vue 修改

<template>
  <h1>{{ msg }}</h1>
  <button @click="inCrement"> count is: </button>
  <p>{{ count }}</p>
</template>

<script>
  import { defineComponent, computed } from 'vue'
  import { useStore } from 'vuex'
  import { key } from '../store'

  export default defineComponent({
    name: 'HelloWorld',
    props: {
      msg: {
        type: String,
        default: ''
      }
    },
    setup() {
      const store = useStore(key)

      const count = computed(() => store.state.count)

      return {
        count,
        inCrement: () => store.commit('increment')
      }
    }
  })
</script>

4.2 vue-router

在 src 目录下建立 router/index.ts,内容如下:

import { createRouter, createWebHistory, RouteRecordRaw } from "vue-router";
import HelloWorld from "../components/HelloWorld.vue";

const routes: Array<RouteRecordRaw> = [
    {
        path: "/",
        name: "HelloWorld",
        component: HelloWorld,
    },
    {
        path: "/about",
        name: "About",
        // route level code-splitting
        // this generates a separate chunk (about.[hash].js) for this route
        // which is lazy-loaded when the route is visited.
        component: () =>
            import(/* webpackChunkName: "About" */ "../components/About.vue")
    }
];

const router = createRouter({
    history: createWebHistory(process.env.BASE_URL),
    routes,
});

export default router;

再新建一个 components/About.vue 文件,内容如下:

<template>
  <img
    alt="Vue logo"
    src="../assets/logo.png"
  />
  <h1>{{ msg }}</h1>
</template>

<script lang="ts">
import { defineComponent } from 'vue'

export default defineComponent({
  name: 'About',
  data() {
    return {
      msg: 'Hello Vue 3.0 + Vite!'
    }
  },
  setup() {}
})
</script>

再修改 main.ts

import { createApp } from 'vue'
import { store, key } from './store'
import router from "./router";
import App from './App'
import './index.css'

const app = createApp(App)

app.use(store, key)
app.use(router)
app.mount('#app')

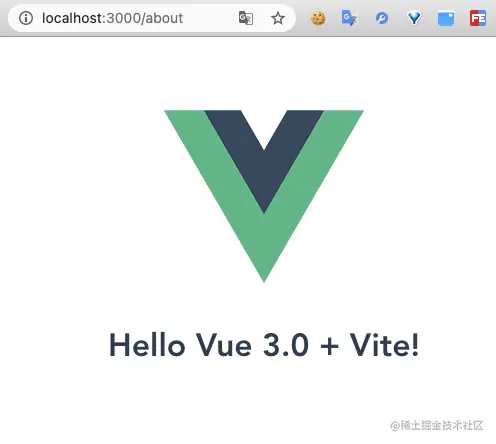

再访问 http://localhost:3000/

http://localhost:3000/about 即可

5. 加入 Element Plus

5.1 安装 element-plus

全局安装

npm install element-plus --save

5.2 引入 Element Plus

你可以引入整个 Element Plus,或是根据需要仅引入部分组件。我们先介绍如何引入完整的 Element。

完整引入

在 main.js 中写入以下内容:

import { createApp } from 'vue'
import ElementPlus from 'element-plus';
import router from "./router";
import 'element-plus/lib/theme-chalk/index.css';
import App from './App.vue';
import './index.css'

const app = createApp(App)
app.use(ElementPlus)
app.use(router)
app.mount('#app')

以上代码便完成了 Element Plus 的引入。需要注意的是,样式文件需要单独引入。


按需引入

借助 babel-plugin-component,我们可以只引入需要的组件,以达到减小项目体积的目的。

首先,安装 babel-plugin-component:

npm install babel-plugin-component -D

然后,将 .babelrc 修改为:

{
  "plugins": [
    [
      "component",
      {
        "libraryName": "element-plus",
        "styleLibraryName": "theme-chalk"
      }
    ]
  ]
}

接下来,如果你只希望引入部分组件,比如 Button 和 Select,那么需要在 main.js 中写入以下内容:

import { createApp } from 'vue'
import { store, key } from './store';
import router from "./router";
import { ElButton, ElSelect } from 'element-plus';
import App from './App.vue';
import './index.css'

const app = createApp(App)
app.component(ElButton.name, ElButton);
app.component(ElSelect.name, ElSelect);

/* or
 * app.use(ElButton)
 * app.use(ElSelect)
 */

app.use(store, key)
app.use(router)
app.mount('#app')
app.mount('#app')

更详细的安装方法请看 快速上手

5.3 全局配置

在引入 Element Plus 时,可以传入一个全局配置对象。

该对象目前支持 size 与 zIndex 字段。size 用于改变组件的默认尺寸,zIndex 设置弹框的初始 z-index(默认值:2000)。按照引入 Element Plus 的方式,具体操作如下:

完整引入 Element:

import { createApp } from 'vue'
import ElementPlus from 'element-plus';
import App from './App.vue';

const app = createApp(App)
app.use(ElementPlus, { size: 'small', zIndex: 3000 });

按需引入 Element:

import { createApp } from 'vue'
import { ElButton } from 'element-plus';
import App from './App.vue';

const app = createApp(App)
app.config.globalProperties.$ELEMENT = option
app.use(ElButton);

按照以上设置,项目中所有拥有 size 属性的组件的默认尺寸均为 'small',弹框的初始 z-index 为 3000。

5.4 配置 vite.config.ts

其中 proxy 和 alias 是和 vue-cli 区别比较大的地方。

import { defineConfig } from 'vite'
import vue from '@vitejs/plugin-vue'
import styleImport from 'vite-plugin-style-import'
import path from 'path'

// https://vitejs.dev/config/
export default defineConfig({
  plugins: [
    vue(),
    styleImport({
      libs: [
        {
          libraryName: 'element-plus',
          esModule: true,
          ensureStyleFile: true,
          resolveStyle: (name) => {
            return `element-plus/lib/theme-chalk/${name}.css`;
          },
          resolveComponent: (name) => {
            return `element-plus/lib/${name}`;
          },
        }
      ]
    })
  ],

  /**
   * 在生产中服务时的基本公共路径。
   * @default '/'
   */
  base: './',
  /**
  * 与“根”相关的目录,构建输出将放在其中。如果目录存在,它将在构建之前被删除。
  * @default 'dist'
  */
  // outDir: 'dist',
  server: {
    // hostname: '0.0.0.0',
    host: "localhost",
    port: 3001,
    // // 是否自动在浏览器打开
    // open: true,
    // // 是否开启 https
    // https: false,
    // // 服务端渲染
    // ssr: false,
    proxy: {
      '/api': {
        target: 'http://localhost:3333/',
        changeOrigin: true,
        ws: true,
        rewrite: (pathStr) => pathStr.replace('/api', '')
      },
    },
  },
  resolve: {
    // 导入文件夹别名
    alias: {
      '@': path.resolve(__dirname, './src'),
      views: path.resolve(__dirname, './src/views'),
      components: path.resolve(__dirname, './src/components'),
      utils: path.resolve(__dirname, './src/utils'),
      less: path.resolve(__dirname, "./src/less"),
      assets: path.resolve(__dirname, "./src/assets"),
      com: path.resolve(__dirname, "./src/components"),
      store: path.resolve(__dirname, "./src/store"),
      mixins: path.resolve(__dirname, "./src/mixins")
    },
  }
})

踩到坑

npm run dev 打包时不报错,但是在 npm run build 时却报错了,build 的时候会把 node_modules 里面的文件也编译,所以挺多 element-plus 的类型文件报错了。

tsconfig.json 里面的 includeexclude 修改一下就不会了,配置如下

{
  "compilerOptions": {
    "target": "esnext",
    "module": "esnext",
    "moduleResolution": "node",
    "strict": true,
    "jsx": "preserve",
    "sourceMap": true,
    // 忽略 this 的类型检查, Raise error on this expressions with an implied any type.
    "noImplicitThis": false,
    "resolveJsonModule": true,
    "esModuleInterop": true,
    "lib": ["esnext", "dom"],
    "types": ["vite/client"]
  },
  "include": ["/src/**/*.ts", "/src/**/*.d.ts", "/src/**/*.tsx", "/src/**/*.vue"],
  // ts 排除的文件
  "exclude": ["node_modules"]
}

Vue3 + vite2 打包出来的文件和原来 vue2 版的差别也挺大的,由原来 2.5M 直接变成了 1.8M ,amazing!

最后

项目代码大多都是 2 年前的,还有很多可以优化的地方,这次重构的过程没对原来的样式和代码做什么改动,没那么多时间,加上我懒 😂

这次就升级了主要框架与相应的 ui 库,过了一遍 Vue3 中的 API,发现很多 Vue3 中新的 API 都用不上,主要是要熟练一下 Vue3 和 Vite2 项目搭建,这假期也算有所收获。

具体项目源码请看:

github.com/biaochenxuy…

至此,一个基于 Vue3 全家桶 + Vite2 + TypeScript + Element Plus 的开发环境已经搭建完毕,现在就可以编写代码了,各个组件的使用方法请参阅它们各自的文档。

不得不说 Vue3 + Element Plus + Vite + TypeScript 是真的香!

推荐一个 Vue3 相关的资料汇总: Vue3 的学习教程汇总、源码解释项目、支持的 UI 组件库、优质实战项目,相信你会挖到矿哦!

参考文章:vue3 + vite + typescript + eslint + jest 项目配置实践

推荐阅读

欢迎关注公众号: “全栈修炼”,回复 “电子书” 即可以获得 300 本技术精华书籍哦,猫哥 wx:CB834301747
