vue elementui实现图片的预览和下载 封装预览下载组件

需求背景：

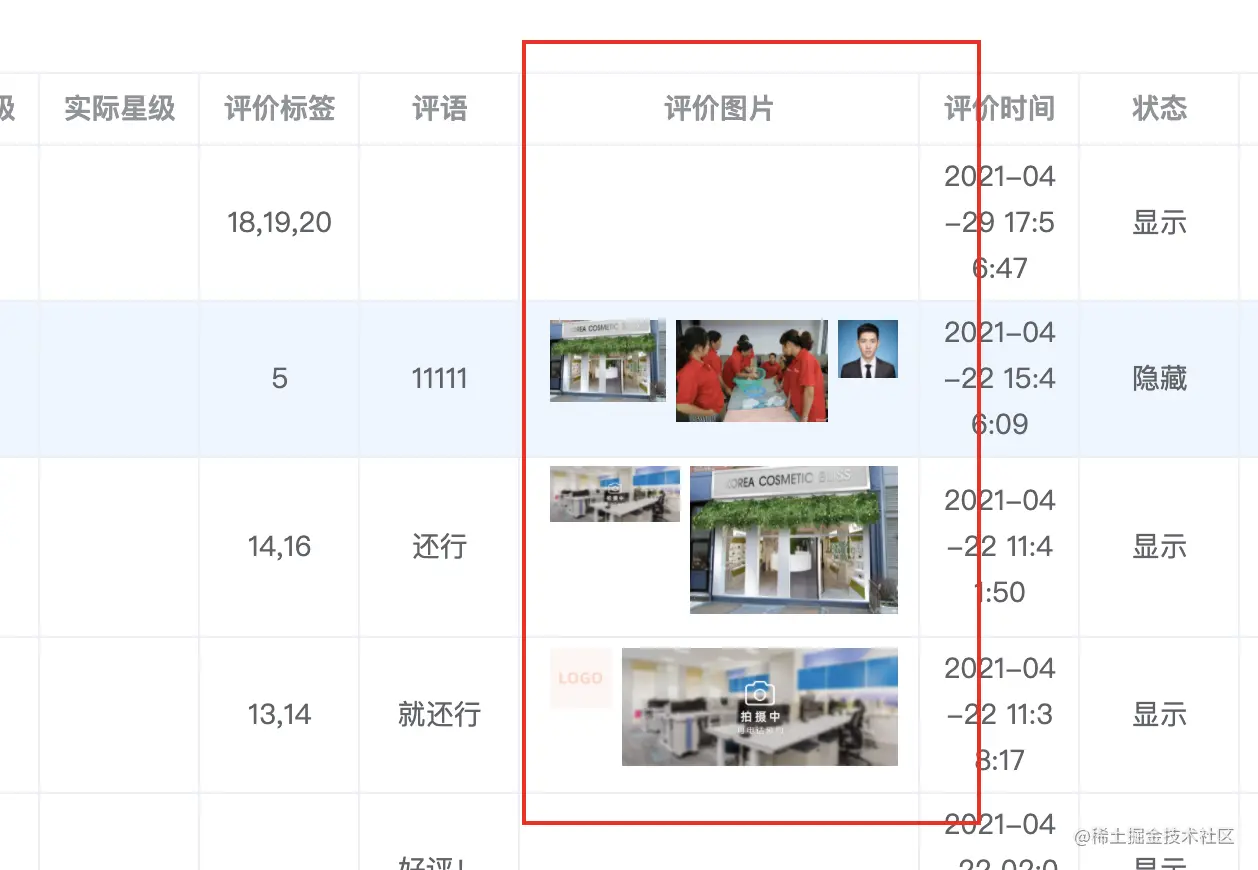

在表格的评价图片列显示多张图片的缩略图，点击缩略图出现预览大图，并且可以左右滑动，旋转，下载的功能

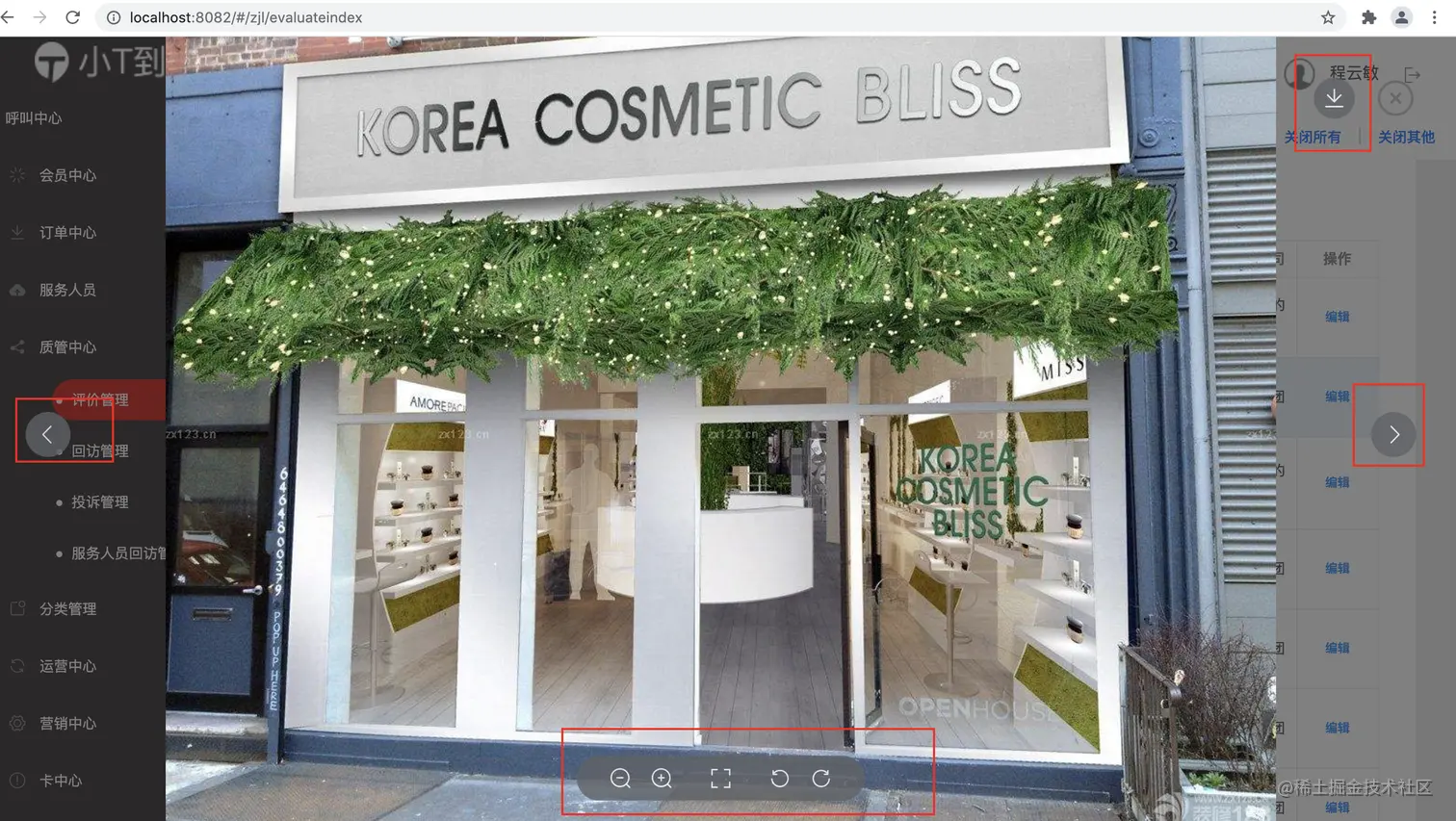

实现效果图

组件代码 viewImage.vue

<template>
  <div class="view-image" :style="width + ';' + height">
    <el-image
        style="width: 100%; height: 100%"
        :src="src"
        :fit="fit"
        :alt="alt"
        :referrerPolicy="referrerPolicy"
        :zIndex="zIndex"
        :preview-src-list="previewSrcList"
        @click="cusPreviewImage"
    >
    </el-image>
    <span
        class="el-image-viewer__btn el-image-viewer__download"
        v-show="dnFlag"
        @click="dnImage"
    >
        <i class="el-icon-download"></i>
    </span>
  </div>
</template>
<script>
export default {
    name: "viewImage",
    data() {
        return {
            dnFlag: false,
            wrapperElem: null,
            hidElClassNameLists: [
                "el-image-viewer__mask",
                "el-image-viewer__btn el-image-viewer__close",
                "el-icon-close",
            ],
        };
    },
    props: {
        src: {
            type: String,
            default: "",
        },
        previewSrcList: {
            type: Array,
            default: function () {
                return [];
            },
        },
        width: {
            type: String,
            default: "100%",
        },
        height: {
            type: String,
            default: "100%",
        },
        fit: {
            type: String,
            default: "",
        },
        alt: {
            type: String,
            default: "",
        },
        referrerPolicy: {
            type: String,
            default: "",
        },
        zIndex: {
            type: Number,
            default: 2000,
        },
    },
	methods: {
        cusPreviewImage(e) {
            console.log(this.src,e,'cusPreviewImage')
            this.dnFlag = true;
            this.checkElemlents();
        },
        checkElemlents() {
            this.$nextTick(() => {
                let wrapper = document.getElementsByClassName(
                    "el-image-viewer__wrapper"
                );
                if (wrapper.length > 0) {
                    this.wrapperElem = wrapper[0];
                    console.log(wrapper,'wrapper')
                    this.cusClickHandler();
                } else {
                    this.checkElemlents();
                }
            });
        },
        cusClickHandler() {
            this.wrapperElem.addEventListener("click", this.hideCusBtn);
        },
        hideCusBtn(e) {
            console.log(e,'e')
            let className = e.target.className;
            console.log(className,'className')
            if (this.hidElClassNameLists.includes(className)) {
                this.dnFlag = false;
            }
        },
        dnImage() {
            let imgUrl = document.getElementsByClassName(
                "el-image-viewer__canvas"
            )[0].children[0].src;
            this.downloadImage(imgUrl);
        },
        download(imgsrc, name) {//下载图片地址和图片名
            const image = new Image()
            // 解决跨域 Canvas 污染问题
            image.setAttribute('crossOrigin', 'anonymous')
            image.onload = () => {
                const canvas = document.createElement('canvas')
                canvas.width = image.width
                canvas.height = image.height
                const context = canvas.getContext('2d')
                context.drawImage(image, 0, 0, image.width, image.height)
                canvas.toBlob((blob) => {
                    const url = URL.createObjectURL(blob)
                    const a = document.createElement('a')
                    a.download = name || 'photo'
                    a.href = url
                    a.click()
                    a.remove()
                    URL.revokeObjectURL(url)
                })
            }
            image.src = imgsrc
        },
        downloadImage(imgUrl){
            this.download(imgUrl,name)
        }
    },
    mounted() {
    }
};
</script>
<style scoped>
.view-image {
    display: inline-block;
}
.view-image .el-image-viewer__download {
	    top: 40px;
        right: 100px;
        width: 40px;
        height: 40px;
        font-size: 24px;
        color: #fff;
        background-color: #606266;
        z-index: 2001; /* 如果该组件需要传递 z-index 的值，这个值也需要做成动态的 props */
        cursor: pointer;
        position: fixed;
}
</style>

调用组件

js代码
<script>
import viewImage from "@/components/viewImage";
export default {
    components: {
        viewImage
    }
}
</script>

html代码
<el-table-column label="评价图片" property="" align="center" width="200px">
   <template slot-scope="scope">
       <div style="width: 100%;display: flex;justify-content: space-between;">
           <div v-for="(url,index) of scope.row.imageList" :key="index" style="margin-left:5px;">
             <view-image
                 :previewSrcList="scope.row.imageList" :src="url"
             >
             </view-image>
           </div>
       </div>
   </template>
</el-table-column>
