可视化拖拽组件

·  阅读 1289

基于 vue ,下面代码部分直接添加为一个组件显示即可运行,是完整代码

业务痛点

  • 固定类型数据展示页面重复开发 (活动页面重复开发)
  • 需求改变频繁
  • 开发时间短
  • 开发人力不足
  • 开发工作零碎 维护成本高
  • 开发流程涉及产品/运营 沟通成本高

解决:

  • 组件复用
  • 拖拽生成
  • 配置修改

类似游戏引擎

要点

  • 组件化
    • 动态组件 根据组件信息生成对应类型组件
  • dashboard 画布
    • 数组保存每个组件
    • 拖拽 缩放 删除 图层 放大缩小 吸附 标线 配置
    • 配置表单 JSON Schema
  • 组件交互
    • eventbus 发布订阅
    • 固定类型 固定事件
    • 初始化时绑定
  • 组件数据
    • 配置请求 api
  • 页面预览
    • 修改页面状态 读取缓存页面数据
    • 页面挂载
      • 实时渲染快
      • 可能污染编辑器页面
  • 后台渲染
  • 页面分享
    • 页面数据保存 得到数据 ID 根据 id 生成分享页面
  • 实时数据更新
    • websocket 对应 id 请求

布局

整体页面布局:

  • 工具栏:快捷操作
  • 组件列表:可以生成的组件
  • 画布:dashboard 用来放置组件
  • 属性编辑区域:修改组件属性

思路:

  1. 用一个数组 componentData 维护画布上的组件数据
  2. 拖拽组件到画布上,使用 push 将组件的数据加入到 componentData
  3. 使用动态组件和 v-for 来把 componentData 中到组件渲染上去

拖拽

思路:

  1. dragstart 开始拖拽将组件信息缓存
  2. drop 拖拽结束将缓存信息加入到 componentData,触发 drop 事件时,使用 dataTransfer.getData() 接收传输过来的索引数据,然后根据索引找到对应的组件数据,再添加到画布,从而渲染组件。
  3. 首先需要将画布设为相对定位 position: relative,然后将每个组件设为绝对定位 position: absolute。除了这一点外,还要通过监听三个事件来进行移动:
  • mousedown 事件,按下鼠标时,记录组件当前的位置
  • mousemove 事件,每次鼠标移动时,都用当前最新的坐标减去最开始的坐标,从而计算出移动距离,再改变组件位置
  • mouseup 事件,鼠标抬起时结束移动。

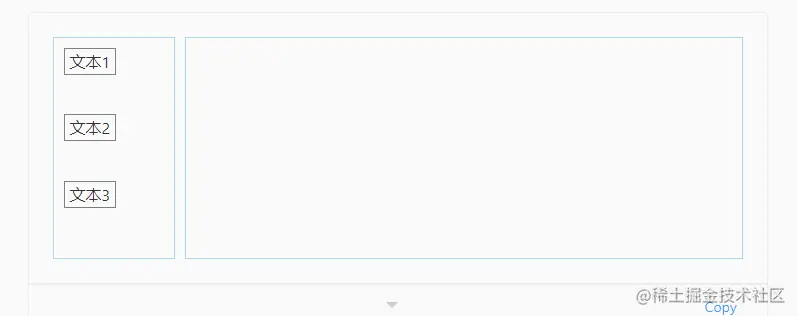

<template>
  <div class="content-wrap">
    <!-- 组件列表 -->
    <div @dragstart="handleDragStart" class="component-list">
      <div
        v-for="(item, index) in componentList"
        :key="index"
        class="list"
        draggable
        :data-index="index"
      >
        <!-- 自定义组件 -->
        <span>{{ item.label }}</span>
      </div>
    </div>
    <!-- 画板 -->
    <div
      class="content"
      @drop="handleDrop"
      @dragover="handleDragOver"
      @mousedown="handleMouseDown"
      ref="content"
    >
      <div
        v-for="(item, index) in componentData"
        :key="index"
        class="list"
        :data-index="index"
        :style="item.style"
      >
        <!-- 自定义组件 -->
        <span>{{ item.label }}</span>
      </div>
    </div>
  </div>
</template>

<script>
  export default {
    data() {
      return {
        componentList: [
          {
            label: "文本1",
          },
          {
            label: "文本2",
          },
          {
            label: "文本3",
          },
        ],
        componentData: [],
        operation: "",
      };
    },
    methods: {
      handleDragStart(e) {
        e.dataTransfer.setData("index", e.target.dataset.index);
        this.operation = "drag";
      },
      handleDrop(e) {
        e.preventDefault();
        e.stopPropagation();

        // 拖拽的组件
        let selected = this.componentList[e.dataTransfer.getData("index")];
        if (!selected) return false;
        const component = JSON.parse(JSON.stringify(selected));
        component.style = {
          top: e.offsetY + "px",
          left: e.offsetX + "px",
        };
        const tmp = [...this.componentData, component];
        // 把组件信息加入到画布组件信息队列中
        this.$set(this, "componentData", tmp);
      },
      handleDragOver(e) {
        // 需要这样设置才能触发 drop
        // 1. 屏蔽默认事件
        // 2. 设置 dropEffect = copy
        e.preventDefault();
        if (this.operation === "drag") e.dataTransfer.dropEffect = "copy";
        if (this.operation === "move") {
          return false;
        }
      },
      handleMouseDown(e) {
        e.stopPropagation();
        this.operation = "move";
        // 移动选中的组件
        let selected = this.componentData[e.target.parentNode.dataset.index];
        if (!selected) return false;
        const component = JSON.parse(JSON.stringify(selected));
        const pos = component.style;
        const startY = e.clientY;
        const startX = e.clientX;
        const startTop = Number(pos.top.replace("px", ""));
        const startLeft = Number(pos.left.replace("px", ""));

        // mousemove 修改位置
        const move = (moveEvent) => {
          const currX = moveEvent.clientX;
          const currY = moveEvent.clientY;
          pos.top = currY - startY + startTop;
          pos.left = currX - startX + startLeft;
          // 修改当前组件样式
          selected.style = {
            top: pos.top + "px",
            left: pos.left + "px",
          };
        };

        // mouseup 解除事件绑定
        const up = () => {
          document.removeEventListener("mousemove", move);
          document.removeEventListener("mouseup", up);
        };

        document.addEventListener("mousemove", move);
        document.addEventListener("mouseup", up);
      },
    },
  };
</script>

<style>
  .content-wrap {
    display: flex;
    flex-direction: row;
  }
  .component-list {
    display: flex;
    flex-wrap: wrap;
    justify-content: space-between;
    padding: 10px;
    height: 200px;
    width: 100px;
    border: 1px solid lightblue;
  }
  .content {
    height: 200px;
    flex: 1;
    border: 1px solid lightblue;
    padding: 10px;
    margin-left: 10px;
    position: relative;
  }
  .list {
    height: fit-content;
    width: fit-content;
    border: 1px solid grey;
    cursor: grab;
    margin-bottom: 10px;
    text-align: center;
    color: #333;
    padding: 2px 5px;
    display: flex;
    align-items: center;
    justify-content: center;
  }

  .content .list {
    position: absolute;
  }
</style>
复制代码

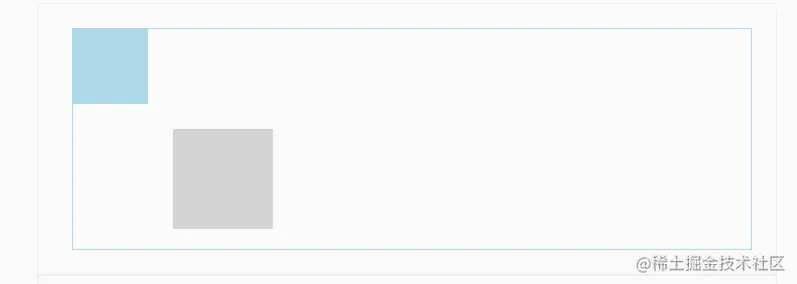

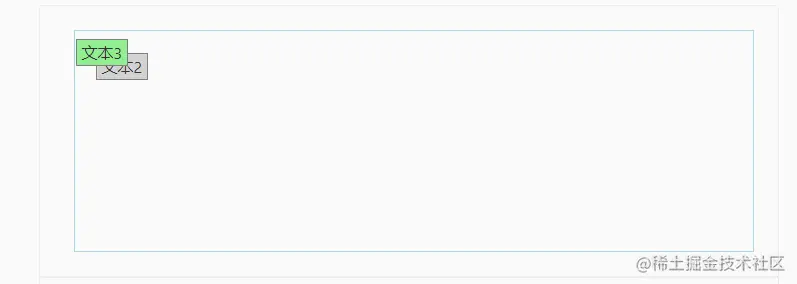

删除组件,调整图层

由于拖拽组件到画布中是有先后顺序的,所以可以按照数据顺序来分配图层层级。

改变图层层级,即是改变组件数据在 componentData 数组中的顺序。


<template>
  <!-- 画板 -->
  <div
    class="content"
    @mousedown="handleMouseDown"
    ref="content"
    @click="showMenu = false"
  >
    <div
      v-for="(item, index) in componentData"
      :key="index"
      class="list"
      :data-index="index"
      :style="Object.assign(item.style, { zIndex: index })"
      @contextmenu="handleMenu"
    >
      <!-- 自定义组件 -->
      <span>{{ item.label }}</span>
    </div>
    <div class="menu" v-show="showMenu" :style="menuPos" @click="handleCommand">
      <div data-command="up">上移</div>
      <div data-command="down">下移</div>
      <div data-command="bottom">置底</div>
      <div data-command="top">置顶</div>
      <div data-command="delete">删除</div>
    </div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      componentData: [
        {
          style: {
            top: "0",
            left: "0",
            background: "lightblue",
          },
          label: "文本1",
        },
        {
          style: {
            top: "20px",
            left: "10px",
            background: "lightgrey",
          },
          label: "文本2",
        },
        {
          style: {
            top: "40px",
            left: "20px",
            background: "lightgreen",
          },
          label: "文本3",
        },
      ],
      showMenu: false,
      menuPos: {},
      currentComponent: null,
    };
  },
  methods: {
    handleMouseDown(e) {
      e.stopPropagation();
      this.operation = "move";
      // 移动选中的组件
      let selected = this.componentData[e.target.parentNode.dataset.index];
      if (!selected) return false;
      const component = JSON.parse(JSON.stringify(selected));
      const pos = component.style;
      const startY = e.clientY;
      const startX = e.clientX;
      const startTop = Number(pos.top.replace("px", ""));
      const startLeft = Number(pos.left.replace("px", ""));

      // mousemove 修改位置
      const move = (moveEvent) => {
        const currX = moveEvent.clientX;
        const currY = moveEvent.clientY;
        pos.top = currY - startY + startTop;
        pos.left = currX - startX + startLeft;
        // 修改当前组件样式
        selected.style = {
          top: pos.top + "px",
          left: pos.left + "px",
          background: pos.background,
        };
      };

      // mouseup 解除事件绑定
      const up = () => {
        document.removeEventListener("mousemove", move);
        document.removeEventListener("mouseup", up);
      };

      document.addEventListener("mousemove", move);
      document.addEventListener("mouseup", up);
    },
    handleMenu(e) {
      e.preventDefault();
      this.currentComponent = e.currentTarget.dataset.index;
      this.menuPos = {
        top: e.offsetY + "px",
        left: e.offsetX + "px",
      };
      this.showMenu = true;
    },
    handleCommand(e) {
      const command = e.target.dataset.command;
      const len = this.componentData.length - 1;
      const tmp = [...this.componentData];
      const curIndex = +this.currentComponent;
      switch (command) {
        case "up":
          if (curIndex != len) {
            [tmp[curIndex + 1], tmp[curIndex]] = [
              tmp[curIndex],
              tmp[curIndex + 1],
            ];
            this.$set(this, "componentData", tmp);
          }
          break;
        case "down":
          if (curIndex != 0) {
            [tmp[curIndex - 1], tmp[curIndex]] = [
              tmp[curIndex],
              tmp[curIndex - 1],
            ];
            this.$set(this, "componentData", tmp);
          }
          break;
        case "bottom":
          if (curIndex != 0) {
            tmp.unshift(...tmp.splice(curIndex, 1));
            this.$set(this, "componentData", tmp);
          }
          break;
        case "top":
          if (curIndex != len) {
            tmp.push(...tmp.splice(curIndex, 1));
            this.$set(this, "componentData", tmp);
          }
          break;
        case "delete":
          tmp.splice(curIndex, 1);
          this.$set(this, "componentData", tmp);
          break;
      }
    },
  },
};
</script>

<style>
.content {
  height: 200px;
  border: 1px solid lightblue;
  padding: 10px;
  margin-left: 10px;
  position: relative;
}
.list {
  height: fit-content;
  width: fit-content;
  border: 1px solid grey;
  cursor: grab;
  margin-bottom: 10px;
  text-align: center;
  color: #333;
  padding: 2px 5px;
  display: flex;
  align-items: center;
  justify-content: center;
}

.content .list {
  position: absolute;
}
.menu {
  border: 1px solid #000;
  width: fit-content;
  z-index: 999;
  position: absolute;
  background: lightcyan;
}
.menu div {
  border: 1px solid #000;
  cursor: pointer;
  padding: 0 3px;
}
.menu div:hover {
  background: lightblue;
}
</style>
复制代码

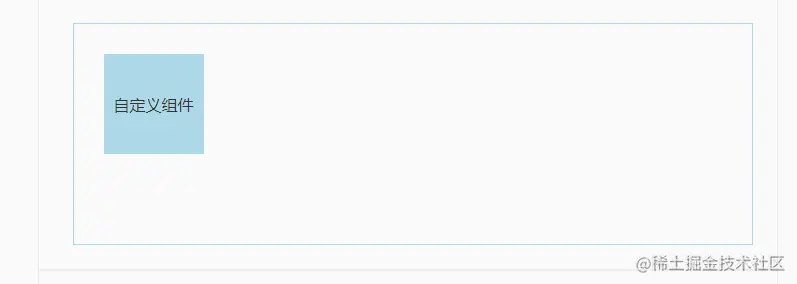

放大缩小

选中画布上的组件,组件外圈会出现 8 个小圆点可以拖动进行放大缩小。

思路:

  1. 每个组件外层包裹一层组件,包裹组件包含 8 个小圆点和插槽,插槽用来放置组件
  2. 点击组件通过样式控制显示小圆点
  3. 计算每个小圆点的位置(要显示在组件外层,还需要计算小圆点的大小,记小圆点长宽都为 w):
  • 左上 left:0-w top:0-w
  • 右上 left:width top:0-w
  • 左下 left:0-w top:height
  • 右下 left:width top:height
  • 中间的点 width/2 height/2 同理计算
  1. 点击小圆点可以进行缩放操作
  • 点击小圆点,记录初始坐标
  • 向下拖动就用新的 y 坐标减去初始坐标可以得到移动距离,再把距离加上组件的高度计算得到新的高度(用 movement 鼠标移动距离也可以计算)
  • 上下只能修改高度 左右只能修改宽度,西北方向特殊处理,需要限制对应圆点的功能


<template>
  <!-- 画板 -->
  <div class="content" @click="contentClick">
    <!-- 模拟外层包裹组件 -->
    <div
      v-for="(item, index) in componentData"
      :key="index"
      class="component"
      :style="item.style"
      :data-index="index"
      @click="
        (e) => {
          e.stopPropagation();
          selected = index;
        }
      "
    >
      <!-- 自定义组件 -->
      <div>自定义组件</div>
      <div
        class="dots"
        v-for="(dot, i) in dots"
        :key="i"
        :style="{
          left: dot[0] + 'px',
          top: dot[1] + 'px',
          width: dotSize + 'px',
          height: dotSize + 'px',
          cursor: dot[2],
        }"
        @mousedown="handleMouseDown"
        :data-type="dot[2].split('-')[0]"
      ></div>
    </div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      componentData: [
        {
          style: {
            top: "30px",
            left: "30px",
            height: "100px",
            width: "100px",
            background: "lightblue",
          },
        },
      ],
      selected: null,
      dotSize: 4,
    };
  },
  methods: {
    contentClick() {
      this.selected = null;
    },
    // componentClick(index) {
    //   return function(e) {
    //     e.stopPropagation();
    //     this.selected = index;
    //   };
    // },
    handleMouseDown(e) {
      const component = this.componentData[this.selected];
      const type = e.target.dataset.type;
      const move = (me) => {
        let t = { ...component.style };
        // 东西方向能修改宽度
        if (type.indexOf("e") > -1)
          t.width = Number(t.width.replace("px", "")) + me.movementX + "px";
        // 南北方向能修改高度
        if (type.indexOf("s") > -1)
          t.height = Number(t.height.replace("px", "")) + me.movementY + "px";
        // 西北方向需要修改 left top 宽高修改相反
        if (type.indexOf("w") > -1) {
          t.left = Number(t.left.replace("px", "")) + me.movementX + "px";
          t.width = Number(t.width.replace("px", "")) - me.movementX + "px";
        }
        if (type.indexOf("n") > -1) {
          t.top = Number(t.top.replace("px", "")) + me.movementY + "px";
          t.height = Number(t.height.replace("px", "")) - me.movementY + "px";
        }
        this.$set(this.componentData[this.selected], "style", t);
      };
      const up = () => {
        document.removeEventListener("mousemove", move);
        document.removeEventListener("mouseup", up);
      };
      document.addEventListener("mousemove", move);
      document.addEventListener("mouseup", up);
    },
  },
  computed: {
    dots() {
      if (this.selected !== null) {
        const component = this.componentData[this.selected];
        const width = +component.style.width.replace("px", "");
        const height = +component.style.height.replace("px", "");
        return [
          [0 - this.dotSize, 0 - this.dotSize, "nw-resize"],
          [0 - this.dotSize, height, "sw-resize"],
          [width, 0 - this.dotSize, "ne-resize"],
          [width, height, "se-resize"],
          [width / 2, 0 - this.dotSize, "n-resize"],
          [width / 2, height, "s-resize"],
          [0 - this.dotSize, height / 2, "w-resize"],
          [width, height / 2, "e-resize"],
        ];
      }
      return [];
    },
  },
};
</script>

<style>
.content {
  height: 200px;
  flex: 1;
  border: 1px solid lightblue;
  padding: 10px;
  margin-left: 10px;
  position: relative;
}

.component {
  position: absolute;
  height: fit-content;
  width: fit-content;
  text-align: center;
  color: #333;
  display: flex;
  align-items: center;
  justify-content: center;
}
.dots {
  border: 1px solid lightblue;
  position: absolute;
}
</style>
复制代码

吸附 对齐

参考 Sketch 墨刀

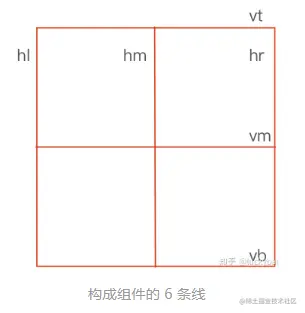

可以看到,一个组件在画布中可以由 6 条线 (vt / vm / vb | hl / hm / hr) 来表示,组件移动过程中的对齐其实就是组件的 6 条线到其它组件线的集合中寻找临近线,找到后考虑 吸附 + 对齐 的过程。

对齐吸附:横向左移动为例,它的 hl / hm / hr 会不断的去查找与这 3 条线相邻最近的线。

  • 当没有找到相邻线时,组件跟随鼠标移动
  • 当初次找到时,组件便移动一个较大距离吸附过去
  • 当在吸附线上再次移动时,继续查找相邻线,看是否有下一条吸附线
    • 如果有,则移动到下一条吸附线上
    • 如果没有,则在鼠标移动一定距离后,组件离开

具体(a 是移动组件 b 是固定组件):

  • 向下移动 依次会出现下面情况
    • a 底部 = b 顶部 显示 水平底部线
    • a 顶部 = b 顶部 显示 水平顶部线
    • a 中间 = b 中间 显示 水平中线
    • a 底部 = b 底部 显示 水平底部线
    • a 顶部 = b 底部 显示 水平顶部线
  • 向左向右同理
  • 向上移动和向下出现顺序相反

上下和左右分别构造两个数组来保存:

  • 判断条件 是否满足吸附
  • 显示的线的类型
  • 吸附后 线的位置
  • 吸附后 组件的位置

按照顺序遍历数组,只要满足条件就退出,同时一个方向只会显示一条线


<template>
  <!-- 画板 -->
  <div class="content" @click="selected = null">
    <!-- 模拟外层包裹组件 -->
    <div
      v-for="(item, index) in componentData"
      :key="index"
      class="component"
      :style="item.style"
      :data-index="index"
      @mousedown="handleMouseDown"
    >
      <!-- 自定义组件 -->
      <!-- <div>自定义组件</div> -->
    </div>

    <!-- 标线 -->
    <div class="mark-line">
      <div
        v-for="line in lines"
        :key="line"
        class="line"
        :class="line.includes('x') ? 'xline' : 'yline'"
        :ref="line"
        v-show="lineStatus[line] || false"
      ></div>
    </div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      componentData: [
        {
          style: {
            top: "0",
            left: "0",
            width: "75px",
            height: "75px",
            background: "lightblue",
          },
        },
        {
          style: {
            top: "100px",
            left: "100px",
            width: "100px",
            height: "100px",
            background: "lightgrey",
          },
        },
      ],
      currentComponent: null,
      lines: ["xt", "xc", "xb", "yl", "yc", "yr"], // 分别对应三条横线和三条竖线
      diff: 5, // 相距 dff 像素将自动吸附
      lineStatus: {
        xt: false, // 水平顶部
        xc: false, // 水平中间
        xb: false, // 水平底部
        yl: false, // 垂直左边
        yc: false, // 垂直中间
        yr: false, // 垂直右边
      },
    };
  },
  methods: {
    hideLine() {
      Object.keys(this.lineStatus).forEach((line) => {
        this.lineStatus[line] = false;
      });
    },
    showLine(currentComponent, index, top, left, toDown, toRight) {
      const rest = this.componentData.filter((c, i) => i != index)[0];
      const rwidth = +rest.style.width.replace("px", "");
      const rheight = +rest.style.height.replace("px", "");
      const rtop = +rest.style.top.replace("px", "");
      const rleft = +rest.style.left.replace("px", "");
      const width = +currentComponent.style.width.replace("px", "");
      const height = +currentComponent.style.height.replace("px", "");
      this.hideLine();
      const lines = this.$refs;
      let changeLeft = left,
        changeTop = top;

      const rules = {
        updown: [
          {
            condition: top + height < rtop && top + height + this.diff >= rtop,
            line: "xb",
            ltop: rtop,
            top: rtop - height,
          },
          {
            condition: top < rtop && top + this.diff >= rtop,
            line: "xt",
            ltop: rtop,
            top: rtop,
          },
          {
            condition:
              top + height / 2 < rtop + rheight / 2 &&
              top + height / 2 + this.diff >= rtop + rheight / 2,
            line: "xc",
            ltop: rtop + rheight / 2,
            top: rtop + rheight / 2 - height / 2,
          },
          {
            condition:
              top + height < rtop + rheight &&
              top + height + this.diff >= rtop + rheight,
            line: "xb",
            ltop: rtop + rheight,
            top: rtop + rheight - height,
          },
          {
            condition:
              top < rtop + rheight && top + this.diff >= rtop + rheight,
            line: "xt",
            ltop: rtop + rheight,
            top: rtop + rheight,
          },
        ],
        leftright: [
          {
            condition:
              left + width < rleft && left + width + this.diff >= rleft,
            line: "yr",
            lleft: rleft,
            left: rleft - width,
          },
          {
            condition: left < rleft && left + this.diff >= rleft,
            line: "yl",
            lleft: rleft,
            left: rleft,
          },
          {
            condition:
              left + width / 2 < rleft + rwidth / 2 &&
              left + width / 2 + this.diff >= rleft + rwidth / 2,
            line: "yc",
            lleft: rleft + rwidth / 2,
            left: rleft + rwidth / 2 - width / 2,
          },
          {
            condition:
              left + width < rleft + rwidth &&
              left + width + this.diff >= rleft + rwidth,
            line: "yr",
            lleft: rleft + rwidth,
            left: rleft + rwidth - width,
          },
          {
            condition:
              left < rleft + rwidth && left + this.diff >= rleft + rwidth,
            line: "yl",
            lleft: rleft + rwidth,
            left: rleft + rwidth,
          },
        ],
      };

      // 向上顺序相反
      if (!toDown) {
        rules.updown.reverse();
      }
      for (let t of rules.updown) {
        if (t.condition) {
          this.lineStatus[t.line] = true;
          lines[t.line][0].style.left = 0;
          lines[t.line][0].style.top = t.ltop + "px";
          changeTop = t.top;
          break;
        }
      }
      // 向左相反
      if (!toRight) {
        rules.leftright.reverse();
      }
      for (let t of rules.leftright) {
        if (t.condition) {
          this.lineStatus[t.line] = true;
          lines[t.line][0].style.left = t.lleft + "px";
          lines[t.line][0].style.top = 0;
          changeLeft = t.left;
          break;
        }
      }

      const style = currentComponent.style;

      this.$set(this.componentData, index, {
        style: Object.assign(style, {
          left: changeLeft + "px",
        }),
      });

      this.$set(this.componentData, index, {
        style: Object.assign(style, {
          top: changeTop + "px",
        }),
      });
    },
    handleMouseDown(e) {
      e.stopPropagation();
      // 移动选中的组件
      let selected = this.componentData[e.target.dataset.index];
      if (!selected) return false;
      const component = JSON.parse(JSON.stringify(selected));
      const pos = component.style;
      const startY = e.clientY;
      const startX = e.clientX;
      const startTop = Number(pos.top.replace("px", ""));
      const startLeft = Number(pos.left.replace("px", ""));

      // mousemove 修改位置
      const move = (moveEvent) => {
        const currX = moveEvent.clientX;
        const currY = moveEvent.clientY;
        const toDown = currY - startY > 0 ? true : false;
        const toRight = currX - startX > 0 ? true : false;
        pos.top = currY - startY + startTop;
        pos.left = currX - startX + startLeft;
        this.showLine(
          selected,
          e.target.dataset.index,
          pos.top,
          pos.left,
          toDown,
          toRight
        );
        // 修改当前组件样式
        selected.style = {
          top: pos.top + "px",
          left: pos.left + "px",
          background: pos.background,
          width: pos.width,
          height: pos.height,
        };
      };

      // mouseup 解除事件绑定
      const up = () => {
        document.removeEventListener("mousemove", move);
        document.removeEventListener("mouseup", up);
        this.hideLine();
      };

      document.addEventListener("mousemove", move);
      document.addEventListener("mouseup", up);
    },
  },
};
</script>

<style>
.content {
  height: 200px;
  flex: 1;
  border: 1px solid lightblue;
  margin-left: 10px;
  position: relative;
}

.component {
  position: absolute;
  height: fit-content;
  width: fit-content;
  text-align: center;
  color: #333;
  display: flex;
  align-items: center;
  justify-content: center;
  cursor: pointer;
}
.mark-line {
  height: 100%;
}
.line {
  background: #59c7f9;
  position: absolute;
  z-index: 1000;
}
.xline {
  width: 100%;
  height: 1px;
}
.yline {
  width: 1px;
  height: 100%;
}
</style>
复制代码

属性设置

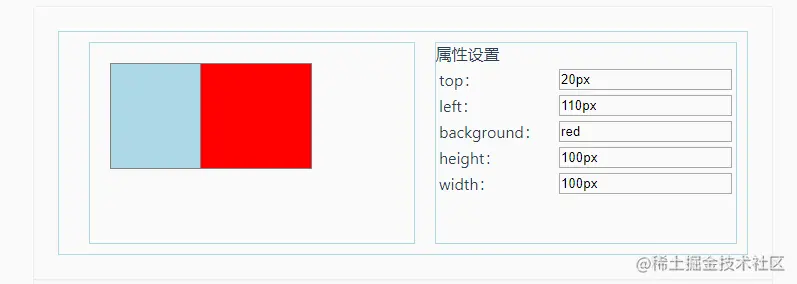

点击组件显示对应的属性设置,修改属性组件样式应用修改。

思路:

  1. 点击组件把组件的样式对象绑定到属性设置上
  2. 利用双向绑定在修改属性的时候修改对应样式


<template>
  <div class="prop-wrapper">
    <!-- 画板 -->
    <div class="prop-content" ref="content" @click="currentComponent = null">
      <div
        v-for="(item, index) in componentData"
        :key="index"
        class="list"
        :data-index="index"
        :style="Object.assign(item.style)"
        @click="handleClick"
      >
        <!-- 自定义组件 -->
      </div>
    </div>
    <div class="prop-div">
      属性设置
      <div
        v-show="currentComponent"
        v-for="(key, index) in Object.keys(
          currentComponent ? currentComponent.style : {}
        )"
        :key="index"
      >
        <label> {{ key }}:</label>
        <!-- 这里使用 v-model 实现双向绑定 -->
        <input v-model="currentComponent.style[key]" />
      </div>
    </div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      componentData: [
        {
          style: {
            top: "20px",
            left: "20px",
            background: "lightblue",
            height: "100px",
            width: "100px",
          },
        },
        {
          style: {
            top: "20px",
            left: "110px",
            background: "lightgrey",
            height: "100px",
            width: "100px",
          },
        },
      ],
      currentComponent: null,
    };
  },
  methods: {
    handleClick(e) {
      e.stopPropagation();
      console.log(e.target);
      this.currentComponent = this.componentData[e.target.dataset.index];
    },
  },
};
</script>

<style>
.prop-wrapper {
  border: 1px solid lightblue;
  display: flex;
  flex-direction: row;
  padding: 10px;
}
.prop-div {
  margin: auto;
  width: 300px;
  height: 200px;
  border: 1px solid lightblue;
}
.prop-div div {
  display: flex;
  flex-direction: row;
  justify-content: center;
  margin-top: 5px;
}

.prop-div div label {
  width: 120px;
}
.prop-content {
  height: 200px;
  border: 1px solid lightblue;
  margin: 0 20px;
  flex: 1;
  position: relative;
}

.prop-content .list {
  position: absolute;
  height: fit-content;
  width: fit-content;
  border: 1px solid grey;
  cursor: grab;
  margin-bottom: 10px;
  text-align: center;
  color: #333;
  padding: 2px 5px;
  display: flex;
  align-items: center;
  justify-content: center;
}
</style>
复制代码

数据请求

默认自定义数据可以添加在 componentData 里面的一个属性

远程数据可以配置一个 url 属性利用 websocket 根据组件 id 订阅更新

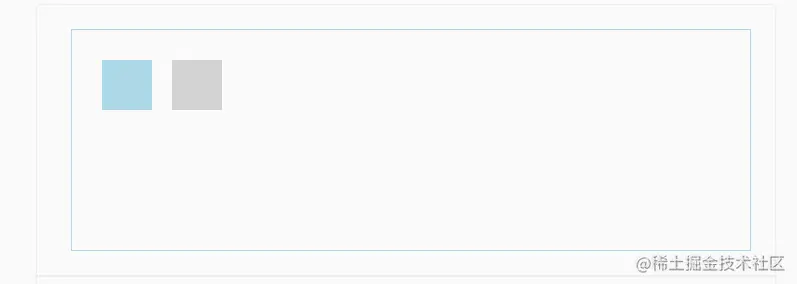

组合 拆分

技术点:

  • 选中区域
    • 一个加边框 div 来显示
    • mouseDown
      • 画布决定起始位置 设置 showArea = true
    • mouseMove
      • 更新区域大小 根据 offet-start 正负情况修改 定位样式
    • mouseUp
      • 判断选中的组件 显示选中区域
        • 根据左上角和宽高 是否完全包裹组件的左上角和宽高 符合条件就加入数组
        • 遍历数组更新四个顶点 根据顶点构建选中区域样式
      • 移除事件绑定 设置 showArea = false
    • 问题
      • 移动的时候 offsetY 有的时候会变成一半,起初以为是冒泡导致,发现阻止冒泡也没效果
        • 原因是 mousemove 过程中,触发的事件源元素可能会变成区域元素导致相对位置变化
        • 解决:在区域元素样式上添加 pointer-events: none; 使得区域元素永远不会成为鼠标事件的 target
  • 组合后的移动、旋转
  • 组合后的放大缩小
  • 拆分后子组件样式的恢复

组合后,把组件信息从数组中刪除,把选中的组件信息重新生成组合组件,再加入数组 拆分后,把组合组件的每个组件信息重新计算,再添加进组件数组


注:下面代码只做了选中部分

<template>
  <!-- 画板 -->
  <div
    class="content"
    ref="content"
    @click="selected = null"
    @mousedown="contentMouseDown"
  >
    <!-- 模拟外层包裹组件 -->
    <div
      v-for="(item, index) in componentData"
      :key="index"
      class="combine-component"
      :style="item.style"
      :data-index="index"
      @mousedown="handleMouseDown"
    >
      <!-- 自定义组件 -->
    </div>

    <!-- 区域 -->
    <div class="area" v-show="showArea" :style="areaStyle"></div>

    <!-- 选中区域 -->
    <div class="area" v-show="showSelectArea" :style="selectAreaStyle"></div>
  </div>
</template>

<script>
export default {
  data() {
    return {
      componentData: [
        {
          style: {
            top: "30px",
            left: "30px",
            width: "50px",
            height: "50px",
            background: "lightblue",
          },
        },
        {
          style: {
            top: "30px",
            left: "100px",
            width: "50px",
            height: "50px",
            background: "lightgrey",
          },
        },
      ],
      currentComponent: null,
      showArea: false,
      showSelectArea: false,
      areaStyle: {},
      selectAreaStyle: {},
      result: [],
    };
  },
  methods: {
    handleMouseDown() {},
    contentMouseDown(e) {
      this.result = [];
      const startX = e.offsetX;
      const startY = e.offsetY;

      // 画布宽高
      const width = this.$refs.content.clientWidth;
      const height = this.$refs.content.clientHeight;
      const move = (e) => {
        const curX = e.offsetX;
        const curY = e.offsetY;

        this.areaStyle = Object.assign(
          {},
          {
            position: "absolute",
            width: Math.abs(curX - startX) + "px",
            height: Math.abs(curY - startY) + "px",
          },
          curX - startX >= 0
            ? { left: startX + "px" }
            : { right: width - startX + "px" },
          curY - startY >= 0
            ? { top: startY + "px" }
            : { bottom: height - startY + "px" }
        );
        this.showArea = true;
      };
      const up = (e) => {
        console.log(e);
        const style = Object.assign({}, this.areaStyle);
        for (let k in style) {
          style[k] = +style[k].replace("px", "");
        }
        const x = style.left || width - (style.right + style.width);
        const y = style.top || height - (style.bottom + style.height);
        const awidth = style.width;
        const aheight = style.height;
        this.componentData.forEach((component) => {
          let { left, top } = component.style;
          let cwidth = component.style.width;
          let cheight = component.style.height;
          left = +left.replace("px", "");
          top = +top.replace("px", "");
          cwidth = +cwidth.replace("px", "");
          cheight = +cheight.replace("px", "");
          if (
            x <= left &&
            y <= top &&
            left + cwidth <= x + awidth &&
            top + cheight <= y + aheight
          ) {
            this.result.push(component);
          }
        });

        this.showArea = false;
        this.areaStyle = {};
        this.$refs.content.removeEventListener("mousemove", move);
        this.$refs.content.removeEventListener("mouseup", up);
      };

      this.$refs.content.addEventListener("mousemove", move);
      this.$refs.content.addEventListener("mouseup", up);
    },
  },
  watch: {
    result(val) {
      if (val.length) {
        let aleft = Infinity,
          atop = Infinity,
          aright = -Infinity,
          abottom = -Infinity;
        val.forEach((v) => {
          let { left, top, width, height } = v.style;
          left = +left.replace("px", "");
          top = +top.replace("px", "");
          height = +height.replace("px", "");
          width = +width.replace("px", "");
          if (left < aleft) aleft = left;
          if (top < atop) atop = top;
          if (left + width > aright) aright = left + width;
          if (top + height > abottom) abottom = top + height;
        });
        this.selectAreaStyle = {
          position: "absolute",
          top: atop + "px",
          left: aleft + "px",
          width: aright - aleft + "px",
          height: abottom - atop + "px",
        };
        this.showSelectArea = true;
      } else {
        this.showSelectArea = false;
        this.selectAreaStyle = {};
      }
    },
  },
};
</script>

<style>
.content {
  height: 200px;
  flex: 1;
  border: 1px solid lightblue;
  margin-left: 10px;
  position: relative;
}

.combine-component {
  position: absolute;
  height: fit-content;
  width: fit-content;
  text-align: center;
  color: #333;
  display: flex;
  align-items: center;
  justify-content: center;
  cursor: pointer;
  pointer-events: none;
}
.area {
  border: 1px solid lightseagreen;
  pointer-events: none;
}
</style>
复制代码

参考

分类:
前端
标签:
