SpringCloud踩坑实战笔记(入门篇)

前言

本周投入了不少的精力着重研究了springCloud相关的基础知识,把网上的相关博文,资料翻了一遍,搭建出了第一个SpringCould的Demo集群,把SrpingCould的入门坑踩了一遍,在这记录一下,希望大家能少走一些弯路。

SpringCould介绍

Spring Cloud为开发人员提供了快速构建分布式系统中一些常见模式的工具(例如配置管理,服务发现,断路器,智能路由,微代理,控制总线)。 简单来说,SpringCloud为开发人员提供了一系列贴有Spring品牌的适合于微服务应用开发的服务组件。
本文涉及到的主要内容如下图所示。
这里写图片描述

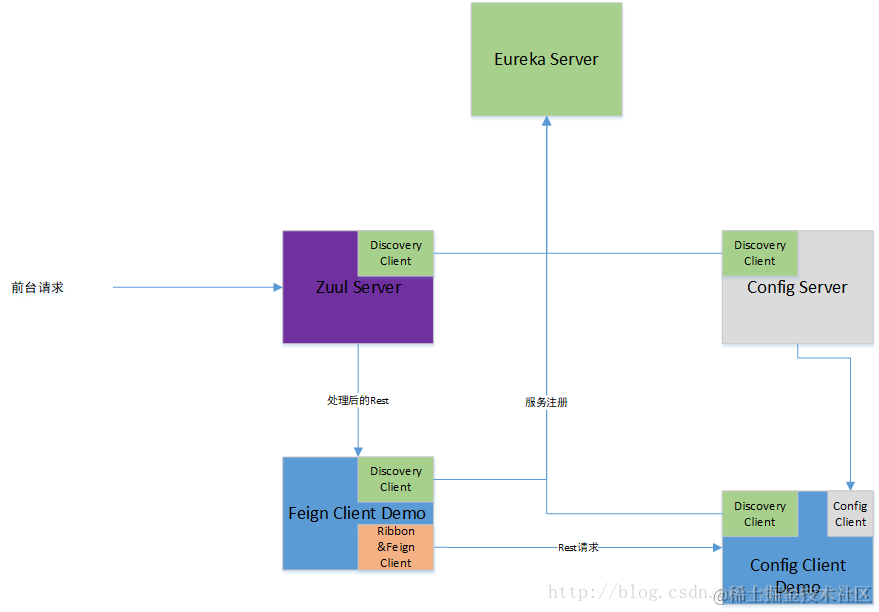

Demo架构

这里写图片描述

这里面涉及的内容较多,由于本文侧重实战就不详细说明了,请参考网络上的博客和www.springcloud.cc/spring-clou…www.springcloud.cc/

主要内容

准备工作

建立开发环境,我们一共需要5个工程来完成Demo的搭建,开发环境是maven,jdk8,intellij。

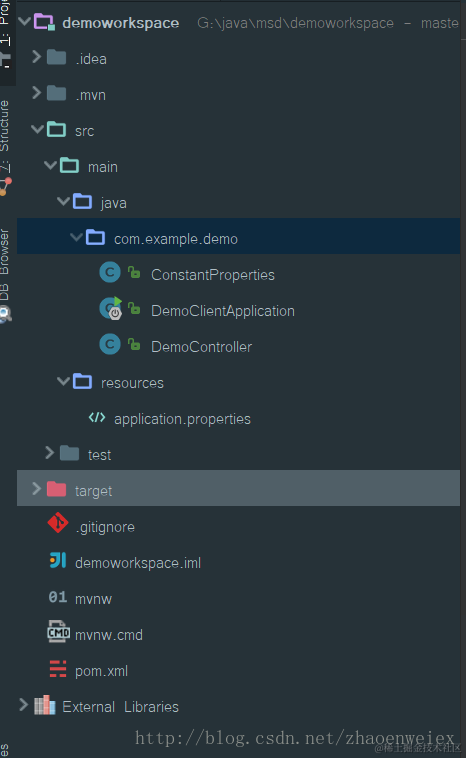

目录结构如下图所示,采用maven约定的结构。
这里写图片描述

服务注册与发现(Spring Eureka)

demo-eureka工程
DemoApplication.java


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@EnableEurekaServer
@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }
}
复制代码

application.properties
ps这个配置不可用于生产环境,缺乏优化

server.port=8181#端口
spring.application.name=mmb-eureka-server#服务名称
eureka.client.register-with-eureka=false#注册自己,用于集群形式
eureka.client.fetch-registry=false#若为true的话会报错
复制代码

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Dalston.SR1</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka-server</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>
复制代码

负载均衡和连接模板(Spring Ribbon&Feign)

DemoClient2Application.java

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.feign.EnableFeignClients;

@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class DemoClient2Application {

    public static void main(String[] args) {
        SpringApplication.run(DemoClient2Application.class, args);
    }
}
复制代码

DemoController.java

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@RestController
public class DemoController {

    @Autowired
    private WordFeignClient wordFeignClient;

    @RequestMapping("/abc")
    public String getSentence() {
        return wordFeignClient.getWord() + wordFeignClient.getWord();
    }
}
复制代码

WordFeignClient.java

import org.springframework.cloud.netflix.feign.FeignClient;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

/**
 * Created by zhaoenwei on 2017/7/1.
 */
@FeignClient("mmb-eureka-subject")
public interface WordFeignClient {
    @RequestMapping(value = "/", method = RequestMethod.GET)
    String getWord();

}
复制代码

application.properties

eureka.client.service-url.defaultZone=http://localhost:8181/eureka
server.port= 8182
spring.application.name=mmb-eureka-client2
eureka.instance.prefer-ip-address=true
mmb-eureka-subject.ribbon.NFLoadBalancerRuleClassName=com.netflix.loadbalancer.RandomRule
复制代码

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>demo-client2</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>demo-client2</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Dalston.SR1</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-feign</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.6.1</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.6.1</version>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>
复制代码

网关(Spring Zuul)

ZuulDemoApplication.java

package com.example.demo;

import org.springframework.boot.SpringApplication;
        import org.springframework.cloud.client.SpringCloudApplication;
        import org.springframework.cloud.netflix.zuul.EnableZuulProxy;
        import org.springframework.context.annotation.Bean;

@SpringCloudApplication
@EnableZuulProxy

public class ZuulDemoApplication {
    @Bean
    public SimpleFilter simpleFilter() {
        return new SimpleFilter();
    }

    public static void main(String[] args) {
        SpringApplication.run(ZuulDemoApplication.class, args);
    }
}
复制代码

SimpleFilter.java

package com.example.demo;

import com.netflix.zuul.ZuulFilter;
import com.netflix.zuul.context.RequestContext;
import net.sf.json.JSONObject;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import javax.servlet.http.HttpServletRequest;
import java.util.Map;

/**
 * Created by zhaoenwei on 2017/6/30.
 */
public class SimpleFilter extends ZuulFilter {

    private static Logger log = LoggerFactory.getLogger(SimpleFilter.class);

    @Override
    public String filterType() {
        return "pre";
    }

    @Override
    public int filterOrder() {
        return 1;
    }

    @Override
    public boolean shouldFilter() {
        return true;
    }

    @Override
    public Object run() {
        RequestContext ctx = RequestContext.getCurrentContext();
        HttpServletRequest request = ctx.getRequest();
        Map<String,String[]> map=request.getParameterMap();
        JSONObject jsonMap= JSONObject.fromObject(map);

        log.info(String.format("%s request to %s ZEW==>params:%s", request.getMethod(), request.getRequestURL().toString(),jsonMap.toString()));

        return null;
    }

}
复制代码

application.properties

#path的url是被替换掉的也示例
#zuulIP:zuulPort/sentence2/abc->serviceIP:servicePort/abc
zuul.routes.sentence.path=/sentence2/**
zuul.routes.sentence.serviceId=mmb-eureka-client2
  #zuul.routes.sentence.url=http://localhost:8182/sentence
spring.application.name=mmb-zuul-server
#下面那个参数是去掉zuul-prefix参数产生的前缀的,跟path一毛钱关系都没有

zuul.strip-prefix=false

server.port=8081
eureka.client.service-url.defaultZone=http://localhost:8181/eureka
复制代码

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>zuul-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>zuul-demo</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Dalston.SR1</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-ribbon</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zuul</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>net.sf.json-lib</groupId>
            <artifactId>json-lib</artifactId>
            <version>2.4</version>
            <classifier>jdk15</classifier>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>
复制代码

配置中心与消息总线(Srping Config & Bus)

该配置中心设置是支持在git的统一配置管理,并支持rabbitmq的消息传播。也就是说该服务需要rabbitmq的环境。

配置中心

DemoConfigApplication.java

package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.config.server.EnableConfigServer;

@SpringBootApplication
@EnableConfigServer
@EnableDiscoveryClient
public class DemoConfigApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoConfigApplication.class, args);
    }
}
复制代码

application.properties

server.port=8888
spring.application.name=config-server
eureka.client.service-url.defaultZone=http://localhost:8181/eureka
eureka.instance.prefer-ip-address=true
复制代码

bootstrap.properties

spring.cloud.config.server.git.uri=https://github.com/zhaoenweiex/config-repo.git
management.security.enabled=false
spring.cloud.config.server.git.basedir=target/config
spring.cloud.config.server.git.search-paths= configclient
spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
复制代码

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>demo-config</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>demo-config</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Dalston.SR1</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-server</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>
复制代码

配置客户端

DemoConfigApplication.java

package com.example.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient

public class DemoClientApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoClientApplication.class, args);
    }
}
复制代码

DemoController.java

package com.example.demo;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.net.Inet4Address;
import java.net.UnknownHostException;

/**
 * Created by zhaoenwei on 2017/6/29.
 */
@RefreshScope
@RestController
public class DemoController {
    private static long timeStample=System.currentTimeMillis();
//   @Autowired
//   private ConstantProperties constantProperties;

    //从config server拿到的配置数据
    @Value("${words}")
    private String wordsStr;
    @RequestMapping("/")
    public  String getWord() {
        String[] wordArray = wordsStr.split(",");
        String address= null;
        try {
            address = Inet4Address.getLocalHost().getHostAddress();
        } catch (UnknownHostException e) {
            e.printStackTrace();
        }
        int i = (int)Math.round(Math.random() * (wordArray.length - 1));
            return wordArray[i]+timeStample+ address;
    }
}
复制代码

application.properties

eureka.client.service-url.defaultZone=http://192.168.31.238:8181/eureka
server.port= ${PORT:${SERVER_PORT:0}}
spring.application.name=mmb-eureka-subject
eureka.instance.prefer-ip-address=true
spring.cloud.config.uri=http://localhost:8888
spring.cloud.config.profile=dev
spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
复制代码

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>demo-client</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>

    <name>demo-client</name>
    <description>Demo project for Spring Boot</description>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.4.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <spring-cloud.version>Dalston.SR1</spring-cloud.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>


</project>
复制代码

总结

本文展示了如何搭建基于SpringCloud的微服务框架,包括了负责服务注册于发现的Spring Eureka,负责基于客户端负载均衡的组件Srping Ribbon,负责统一配置的Spring Config,负责智能路由和网关的Sping Zuul以及消息更新的消息总线Spring Bus,还有简化Rest连接的模板Feign。
最后补充两点:
1.在springCloud中最为复杂和容易出错的的并非是业务代码开发,而是依赖与配置,所以关于.properties或.yaml都是使用SpringCloud的必背基础,
2.支撑业务的SpringBoot开发框架也是必不可少的基础知识。

附录

下面是Demo项目的Git地址:

  1. 统一配置文件:github.com/zhaoenweiex…
  2. 配置中心:github.com/zhaoenweiex…
  3. 网关:github.com/zhaoenweiex…
  4. 负载均衡和连接模板的客户端:github.com/zhaoenweiex…
  5. 配置客户端:github.com/zhaoenweiex…
  6. 服务注册中心:github.com/zhaoenweiex…
文章分类
后端
文章标签
