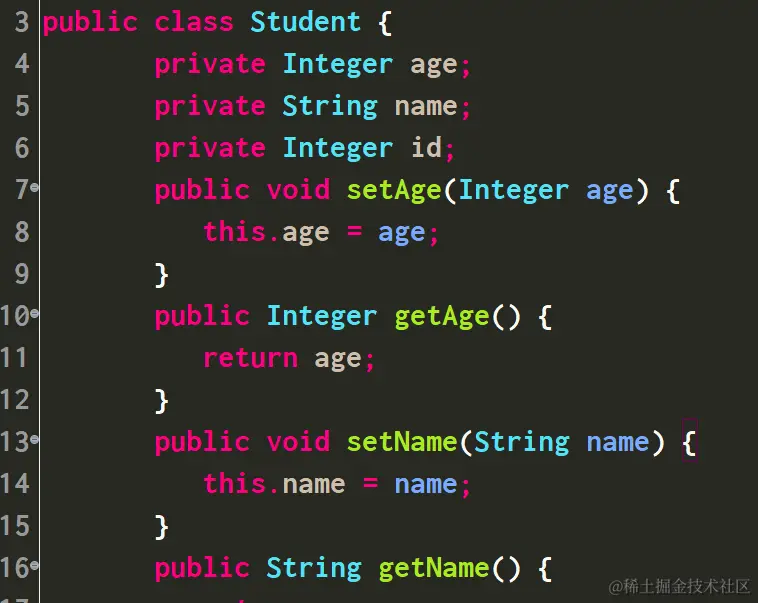

Student.java:

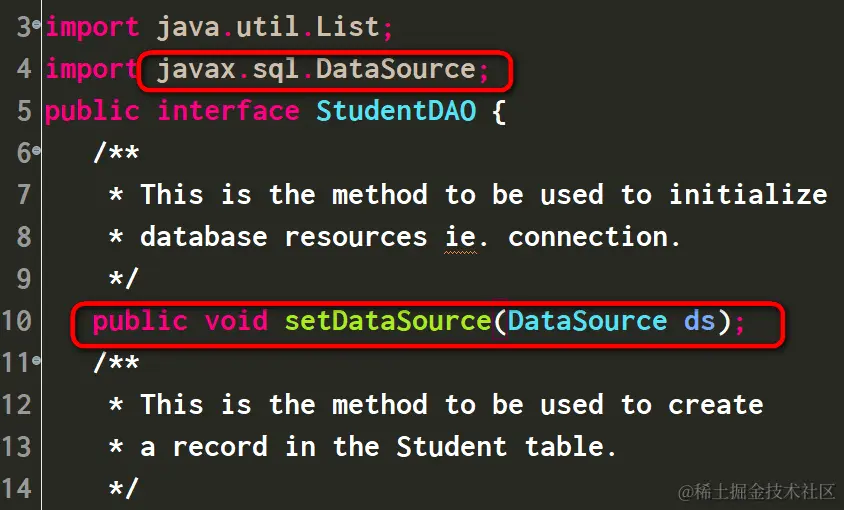

StudentDAO: 一个接口
setDataSource方法注入javax.sql.DataSource的依赖:

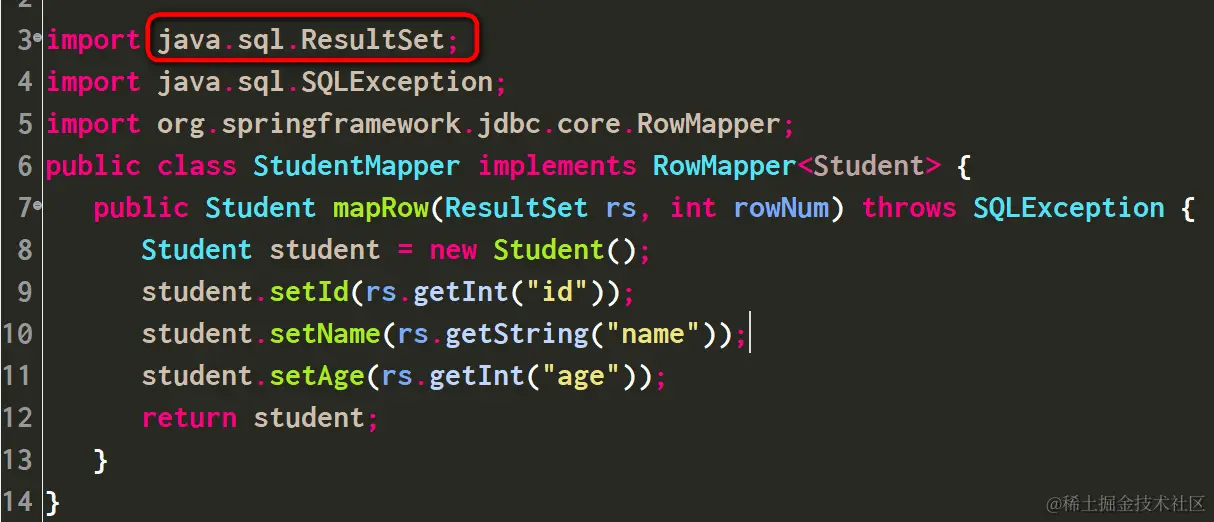

StudentMapper: java.sql.ResultSet包含的是单条记录:

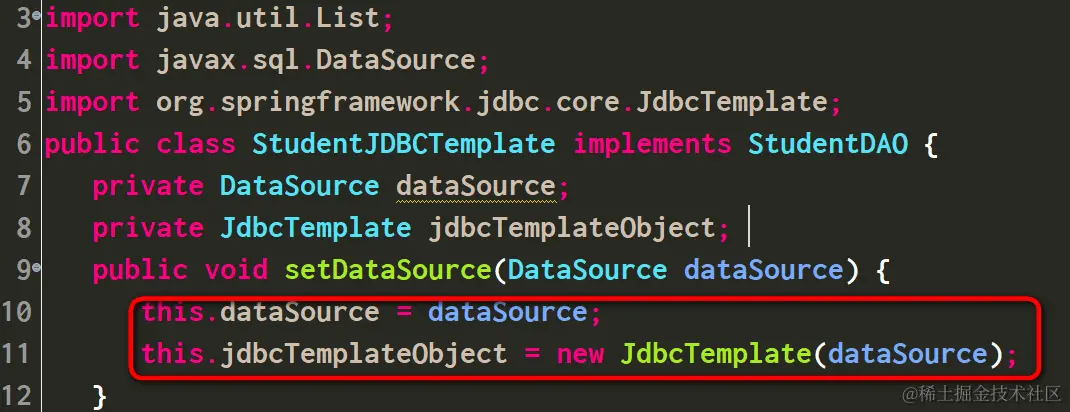

StudentJDBCTemplate: 是接口StudentDAO的实现类。关键就是setDataSource方法,需要研究其是何时被调用的。DataSource被注入之后,基于这个注入的DataSource创建jdbcTemplateObject实例。
Java代码里的data source和MySQL服务器实例的绑定关系在beans.xml里维护:
Beans.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd ">
<!-- Initialization for data source -->
<bean id="dataSource"
class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="url" value="jdbc:mysql://localhost:3306/TEST"/>
<property name="username" value="root"/>
<property name="password" value="123456"/>
</bean>
<!-- Definition for studentJDBCTemplate bean -->
<bean id="studentJDBCTemplate"
class="com.sap.StudentJDBCTemplate">
<property name="dataSource" ref="dataSource" />
</bean>
</beans>
