SpringBoot+Quartz图形化(有源码)

猿之村
1,193 阅读5分钟

在我们日常的开发中，很多时候，定时任务都不是写死的，都是写好代码，页面配置，定时器执行规则都是灵活的，是写到数据库中，从而实现定时任务的动态配置，下面就通过一个简单的示例，来实现这个功能。

github.com/huyufan1995…

本次demo是SpringBoot的，毕竟是19年了，废话不多说了。

1.maven引入的依赖

<dependencies>
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>1.3.0</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-quartz</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>

    <dependency>
        <groupId>com.github.pagehelper</groupId>
        <artifactId>pagehelper</artifactId>
        <version>5.0.0</version>
    </dependency>

</dependencies>

2.application.yml配置文件

spring:
  datasource:
    url: jdbc:mysql://127.0.0.1:3306/quartz_test?useSSL=false&useUnicode=true
    username: root
    password: 123456
    driver-class-name: com.mysql.jdbc.Driver

# Mybatis����
mybatis:
  mapperLocations: classpath:mapper/*.xml
  configLocation: classpath:mybatis.xml

3.整合quartz官方推荐要写一个配置文件quartz.properties

# 固定前缀org.quartz
# 主要分为scheduler、threadPool、jobStore、plugin等部分
#
#
org.quartz.scheduler.instanceName = DefaultQuartzScheduler
org.quartz.scheduler.rmi.export = false
org.quartz.scheduler.rmi.proxy = false
org.quartz.scheduler.wrapJobExecutionInUserTransaction = false

# 实例化ThreadPool时，使用的线程类为SimpleThreadPool
org.quartz.threadPool.class = org.quartz.simpl.SimpleThreadPool

# threadCount和threadPriority将以setter的形式注入ThreadPool实例
# 并发个数
org.quartz.threadPool.threadCount = 5
# 优先级
org.quartz.threadPool.threadPriority = 5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread = true

org.quartz.jobStore.misfireThreshold = 5000

# 默认存储在内存中
#org.quartz.jobStore.class = org.quartz.simpl.RAMJobStore

#持久化
org.quartz.jobStore.class = org.quartz.impl.jdbcjobstore.JobStoreTX

org.quartz.jobStore.tablePrefix = QRTZ_

org.quartz.jobStore.dataSource = qzDS

org.quartz.dataSource.qzDS.driver = com.mysql.jdbc.Driver

org.quartz.dataSource.qzDS.URL = jdbc:mysql://127.0.0.1:3306/quartz_test?useSSL=false&useUnicode=true&characterEncoding=UTF-8

org.quartz.dataSource.qzDS.user = root

org.quartz.dataSource.qzDS.password = 123456

org.quartz.dataSource.qzDS.maxConnections = 10

4.mysql需要的quartz官方表支持

DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
DROP TABLE IF EXISTS QRTZ_LOCKS;
DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
DROP TABLE IF EXISTS QRTZ_CALENDARS;


CREATE TABLE QRTZ_JOB_DETAILS
(
SCHED_NAME VARCHAR(120) NOT NULL,
JOB_NAME  VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
JOB_CLASS_NAME   VARCHAR(250) NOT NULL,
IS_DURABLE VARCHAR(1) NOT NULL,
IS_NONCONCURRENT VARCHAR(1) NOT NULL,
IS_UPDATE_DATA VARCHAR(1) NOT NULL,
REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
);

CREATE TABLE QRTZ_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
JOB_NAME  VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
NEXT_FIRE_TIME BIGINT(13) NULL,
PREV_FIRE_TIME BIGINT(13) NULL,
PRIORITY INTEGER NULL,
TRIGGER_STATE VARCHAR(16) NOT NULL,
TRIGGER_TYPE VARCHAR(8) NOT NULL,
START_TIME BIGINT(13) NOT NULL,
END_TIME BIGINT(13) NULL,
CALENDAR_NAME VARCHAR(200) NULL,
MISFIRE_INSTR SMALLINT(2) NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP)
);

CREATE TABLE QRTZ_SIMPLE_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
REPEAT_COUNT BIGINT(7) NOT NULL,
REPEAT_INTERVAL BIGINT(12) NOT NULL,
TIMES_TRIGGERED BIGINT(10) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_CRON_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
CRON_EXPRESSION VARCHAR(200) NOT NULL,
TIME_ZONE_ID VARCHAR(80),
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_SIMPROP_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
STR_PROP_1 VARCHAR(512) NULL,
STR_PROP_2 VARCHAR(512) NULL,
STR_PROP_3 VARCHAR(512) NULL,
INT_PROP_1 INT NULL,
INT_PROP_2 INT NULL,
LONG_PROP_1 BIGINT NULL,
LONG_PROP_2 BIGINT NULL,
DEC_PROP_1 NUMERIC(13,4) NULL,
DEC_PROP_2 NUMERIC(13,4) NULL,
BOOL_PROP_1 VARCHAR(1) NULL,
BOOL_PROP_2 VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_BLOB_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
BLOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_CALENDARS
(
SCHED_NAME VARCHAR(120) NOT NULL,
CALENDAR_NAME  VARCHAR(200) NOT NULL,
CALENDAR BLOB NOT NULL,
PRIMARY KEY (SCHED_NAME,CALENDAR_NAME)
);

CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS
(
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_GROUP  VARCHAR(200) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP)
);

CREATE TABLE QRTZ_FIRED_TRIGGERS
(
SCHED_NAME VARCHAR(120) NOT NULL,
ENTRY_ID VARCHAR(95) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
FIRED_TIME BIGINT(13) NOT NULL,
SCHED_TIME BIGINT(13) NOT NULL,
PRIORITY INTEGER NOT NULL,
STATE VARCHAR(16) NOT NULL,
JOB_NAME VARCHAR(200) NULL,
JOB_GROUP VARCHAR(200) NULL,
IS_NONCONCURRENT VARCHAR(1) NULL,
REQUESTS_RECOVERY VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,ENTRY_ID)
);

CREATE TABLE QRTZ_SCHEDULER_STATE
(
SCHED_NAME VARCHAR(120) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
CHECKIN_INTERVAL BIGINT(13) NOT NULL,
PRIMARY KEY (SCHED_NAME,INSTANCE_NAME)
);

CREATE TABLE QRTZ_LOCKS
(
SCHED_NAME VARCHAR(120) NOT NULL,
LOCK_NAME  VARCHAR(40) NOT NULL,
PRIMARY KEY (SCHED_NAME,LOCK_NAME)
);

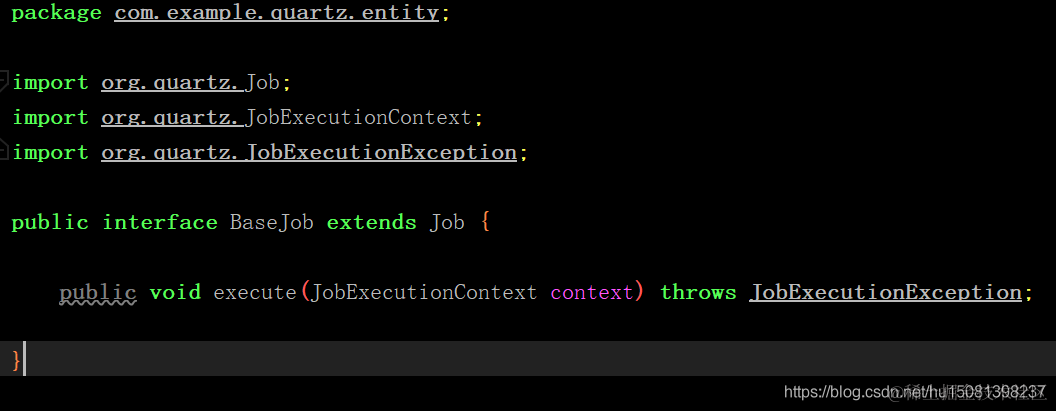

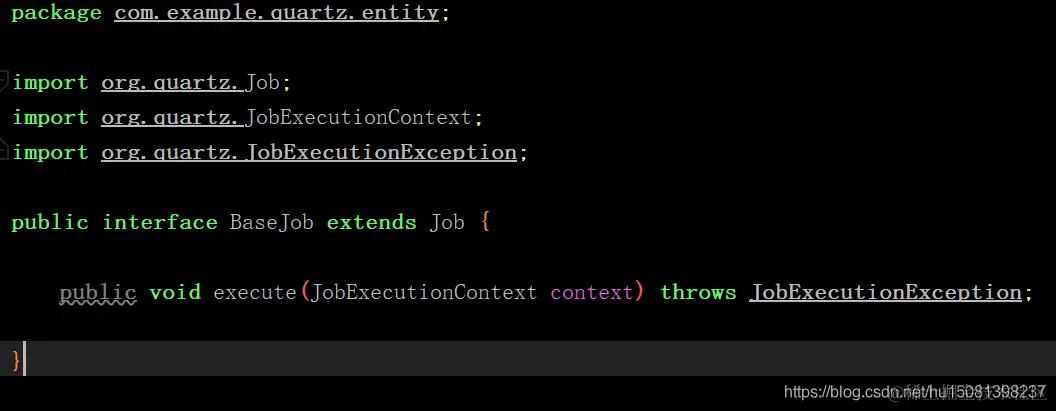

5.可以写一个接口，方便扩展

6.实体类Entity

7.因为springboot都是写配置类，我们不写尽量不写配置文件，所以如下

package com.example.quartz.config;

import org.quartz.Scheduler;
import org.quartz.ee.servlet.QuartzInitializerListener;
import org.springframework.beans.factory.config.PropertiesFactoryBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;

import java.io.IOException;
import java.util.Properties;
import org.springframework.scheduling.quartz.SchedulerFactoryBean;


@Configuration
public class SchedulerConfig {

    @Bean(name="SchedulerFactory")
    public SchedulerFactoryBean schedulerFactoryBean() throws IOException {
        SchedulerFactoryBean factory = new SchedulerFactoryBean();
        factory.setQuartzProperties(quartzProperties());
        return factory;
    }

    @Bean
    public Properties quartzProperties() throws IOException {
        PropertiesFactoryBean propertiesFactoryBean = new PropertiesFactoryBean();
        propertiesFactoryBean.setLocation(new ClassPathResource("/quartz.properties"));
        //在quartz.properties中的属性被读取并注入后再初始化对象
        propertiesFactoryBean.afterPropertiesSet();
        return propertiesFactoryBean.getObject();
    }

    /*
     * quartz初始化监听器
     */
    @Bean
    public QuartzInitializerListener executorListener() {
        return new QuartzInitializerListener();
    }

    /*
     * 通过SchedulerFactoryBean获取Scheduler的实例
     */
    @Bean(name="Scheduler")
    public Scheduler scheduler() throws IOException {
        return schedulerFactoryBean().getScheduler();
    }
}

8.主要Controller代码如下

package com.example.quartz.controller;


import java.util.HashMap;
import java.util.Map;

import com.example.quartz.entity.BaseJob;
import com.example.quartz.entity.JobAndTrigger;
import com.example.quartz.service.IJobAndTriggerService;
import com.github.pagehelper.PageInfo;
import org.quartz.CronScheduleBuilder;
import org.quartz.CronTrigger;
import org.quartz.JobBuilder;
import org.quartz.JobDetail;
import org.quartz.JobKey;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.TriggerBuilder;
import org.quartz.TriggerKey;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;



@RestController
@RequestMapping(value="/job")
public class JobController
{
    @Autowired
    private IJobAndTriggerService iJobAndTriggerService;

    //加入Qulifier注解，通过名称注入bean
    @Autowired @Qualifier("Scheduler")
    private Scheduler scheduler;

    private static Logger log = LoggerFactory.getLogger(JobController.class);


    @PostMapping(value="/addjob")
    public void addjob(@RequestParam(value="jobClassName")String jobClassName,
                       @RequestParam(value="jobGroupName")String jobGroupName,
                       @RequestParam(value="cronExpression")String cronExpression) throws Exception
    {
        addJob(jobClassName, jobGroupName, cronExpression);
    }

    public void addJob(String jobClassName, String jobGroupName, String cronExpression)throws Exception{

        // 启动调度器
        scheduler.start();

        //构建job信息
        JobDetail jobDetail = JobBuilder.newJob(getClass(jobClassName).getClass()).withIdentity(jobClassName, jobGroupName).build();

        //表达式调度构建器(即任务执行的时间)
        CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(cronExpression);

        //按新的cronExpression表达式构建一个新的trigger
        CronTrigger trigger = TriggerBuilder.newTrigger().withIdentity(jobClassName, jobGroupName)
                .withSchedule(scheduleBuilder).build();

        try {
            scheduler.scheduleJob(jobDetail, trigger);

        } catch (SchedulerException e) {
            System.out.println("创建定时任务失败"+e);
            throw new Exception("创建定时任务失败");
        }
    }

    /**
     * 暂停
     * @param jobClassName
     * @param jobGroupName
     * @throws Exception
     */
    @PostMapping(value="/pausejob")
    public void pausejob(@RequestParam(value="jobClassName")String jobClassName, @RequestParam(value="jobGroupName")String jobGroupName) throws Exception
    {
        jobPause(jobClassName, jobGroupName);
    }

    public void jobPause(String jobClassName, String jobGroupName) throws Exception
    {
        scheduler.pauseJob(JobKey.jobKey(jobClassName, jobGroupName));
    }

    /**
     * 恢复
     * @param jobClassName
     * @param jobGroupName
     * @throws Exception
     */
    @PostMapping(value="/resumejob")
    public void resumejob(@RequestParam(value="jobClassName")String jobClassName, @RequestParam(value="jobGroupName")String jobGroupName) throws Exception
    {
        jobresume(jobClassName, jobGroupName);
    }

    public void jobresume(String jobClassName, String jobGroupName) throws Exception
    {
        scheduler.resumeJob(JobKey.jobKey(jobClassName, jobGroupName));
    }

    /**
     * 重启
     * @param jobClassName
     * @param jobGroupName
     * @param cronExpression
     * @throws Exception
     */
    @PostMapping(value="/reschedulejob")
    public void rescheduleJob(@RequestParam(value="jobClassName")String jobClassName,
                              @RequestParam(value="jobGroupName")String jobGroupName,
                              @RequestParam(value="cronExpression")String cronExpression) throws Exception
    {
        jobreschedule(jobClassName, jobGroupName, cronExpression);
    }

    public void jobreschedule(String jobClassName, String jobGroupName, String cronExpression) throws Exception
    {
        try {
            TriggerKey triggerKey = TriggerKey.triggerKey(jobClassName, jobGroupName);
            // 表达式调度构建器
            CronScheduleBuilder scheduleBuilder = CronScheduleBuilder.cronSchedule(cronExpression);

            CronTrigger trigger = (CronTrigger) scheduler.getTrigger(triggerKey);

            // 按新的cronExpression表达式重新构建trigger
            trigger = trigger.getTriggerBuilder().withIdentity(triggerKey).withSchedule(scheduleBuilder).build();

            // 按新的trigger重新设置job执行
            scheduler.rescheduleJob(triggerKey, trigger);
        } catch (SchedulerException e) {
            System.out.println("更新定时任务失败"+e);
            throw new Exception("更新定时任务失败");
        }
    }

    /**
     * 删除
     * @param jobClassName
     * @param jobGroupName
     * @throws Exception
     */
    @PostMapping(value="/deletejob")
    public void deletejob(@RequestParam(value="jobClassName")String jobClassName, @RequestParam(value="jobGroupName")String jobGroupName) throws Exception
    {
        jobdelete(jobClassName, jobGroupName);
    }

    public void jobdelete(String jobClassName, String jobGroupName) throws Exception
    {
        scheduler.pauseTrigger(TriggerKey.triggerKey(jobClassName, jobGroupName));
        scheduler.unscheduleJob(TriggerKey.triggerKey(jobClassName, jobGroupName));
        scheduler.deleteJob(JobKey.jobKey(jobClassName, jobGroupName));
    }


    @GetMapping(value="/queryjob")
    public Map<String, Object> queryjob(@RequestParam(value="pageNum")Integer pageNum, @RequestParam(value="pageSize")Integer pageSize)
    {
        PageInfo jobAndTrigger = iJobAndTriggerService.getJobAndTriggerDetails(pageNum, pageSize);
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("JobAndTrigger", jobAndTrigger);
        map.put("number", jobAndTrigger.getTotal());
        return map;
    }

    public static BaseJob getClass(String classname) throws Exception
    {
        Class<?> class1 = Class.forName(classname);
        return (BaseJob)class1.newInstance();
    }


}

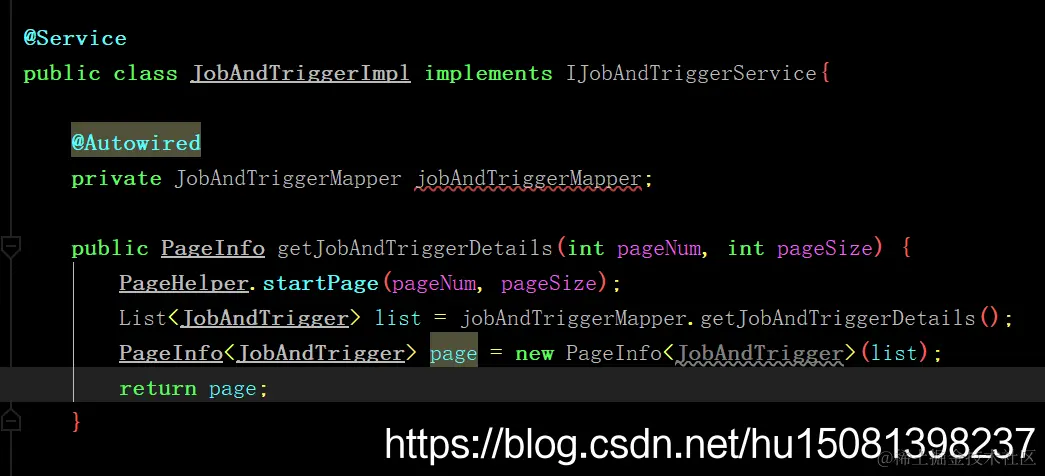

9.service实现类



10.最重要的Mapper文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.example.quartz.dao.JobAndTriggerMapper">

   <resultMap id="BaseResultMap" type="com.example.quartz.entity.JobAndTrigger">
      <result column="JOB_NAME" property="JOB_NAME"/>
      <result column="JOB_GROUP" property="JOB_GROUP"/>
      <result column="JOB_CLASS_NAME" property="JOB_CLASS_NAME"/>
      <result column="TRIGGER_NAME" property="TRIGGER_NAME"/>
      <result column="TRIGGER_GROUP" property="TRIGGER_GROUP"/>
      <result column="REPEAT_INTERVAL" property="REPEAT_INTERVAL"/>
      <result column="TIMES_TRIGGERED" property="TIMES_TRIGGERED"/>
      <result column="CRON_EXPRESSION" property="CRON_EXPRESSION"/>
      <result column="TIME_ZONE_ID" property="TIME_ZONE_ID"/>


   </resultMap>

    <select id="getJobAndTriggerDetails" resultMap="BaseResultMap">
         SELECT
            qrtz_job_details.JOB_NAME,
            qrtz_job_details.JOB_GROUP,
            qrtz_job_details.JOB_CLASS_NAME,
            qrtz_triggers.TRIGGER_NAME,
            qrtz_triggers.TRIGGER_GROUP,
            qrtz_cron_triggers.CRON_EXPRESSION,
            qrtz_cron_triggers.TIME_ZONE_ID
         FROM
            qrtz_job_details
         JOIN qrtz_triggers
         JOIN qrtz_cron_triggers ON qrtz_job_details.JOB_NAME = qrtz_triggers.JOB_NAME
         AND qrtz_triggers.TRIGGER_NAME = qrtz_cron_triggers.TRIGGER_NAME
         AND qrtz_triggers.TRIGGER_GROUP = qrtz_cron_triggers.TRIGGER_GROUP
         AND qrtz_job_details.JOb_GROUP = qrtz_cron_triggers.TRIGGER_GROUP
    </select>

</mapper>

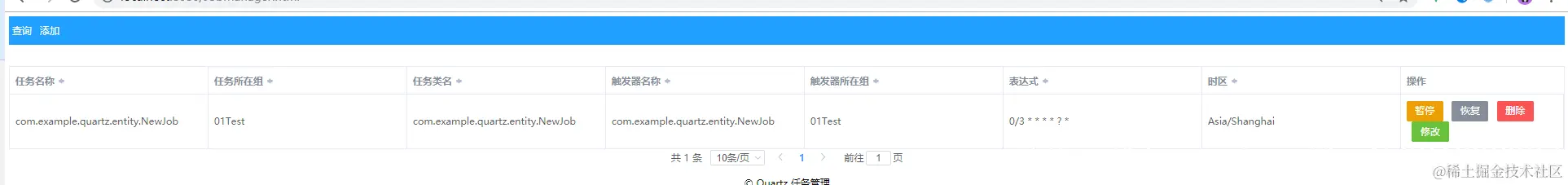

效果



问题整理：官方提供的表中，有个暂停的记录表，但是我使用暂停过程中，确实能够暂停，但是表中无记录信息，如果正式开发中，肯定需要页面开始与暂停切换，状态的一些信息，最好是将定时器的一部分信息在存放自己生成的表中，方便业务扩展

avatar
文章
阅读
粉丝
相关推荐
SpringBoot中实现定时任务(Quartz)
888阅读
 ·
25点赞
公司为什么禁止在SpringBoot项目中使用@Autowired注解
41k阅读
 ·
461点赞
SpringBoot3集成Quartz
512阅读
 ·
4点赞
Spring Boot整合Quartz实现动态配置
1.7k阅读
 ·
11点赞
SpringBoot 定时调度 : 从Timer到Quartz
679阅读
 ·
2点赞
SpringBoot整合Quartz
716阅读
 ·
12点赞
一文快速入门任务调度框架-Quartz
5.1k阅读
 ·
42点赞
Spring源码解析-Spring 事务
23k阅读
 ·
32点赞
SpringBoot可以同时处理多少请求？
78k阅读
 ·
1.0k点赞
SpringBoot-集成Quartz实现持久化定时接口调用任务
2.2k阅读
 ·
26点赞

友情链接：
