浏览器进程之间协作的理解与研究

avatar
Ctrl+C、V工程师 @豌豆公主

上篇文章我们简单的理解了浏览器的相关进程,以及各种进程模式,那么这篇文章我们就探究进程之间的协作吧,可能内容有些多,我可以拆碎一些,但是这不是水文章哦~
单进程

附:历史文章

进程之间的协作

当打开浏览器,从输入url到展示页面,发生了什么

这个其实是一个老生常谈的问题,据说我们CTO以前就很喜欢问这个...既然这样那我们再来重新梳理一下。

打开浏览器

说实话,这个地方的资料真的有些难找,只能逼着我找源码了,简单的说一下吧,不然我怎么装....要是有大神,请指教~,这里代码太多,没兴趣的同学可以直接看总结。

Chrome的启动文件

chrome_exe_main.cc这个文件是Chrome的启动文件,一个是加载chrome.dll内核文件,检查版本更新,初始化崩溃上报

const wchar_t* dll_name = L"chrome.dll";
#if defined(GOOGLE_CHROME_BUILD)
  google_update::GoogleUpdateClient client;
  client.Init(L"{8A69D345-D564-463c-AFF1-A69D9E530F96}", dll_name);
  InitCrashReporter(client.GetDLLPath());

chrome_dll_main.cc在这个文件是可以看到chrome.dll的入口函数是ChromeMain

DLLEXPORT int __cdecl ChromeMain(HINSTANCE instance,
                                sandbox::SandboxInterfaceInfo* sandbox_info,
                                TCHAR* command_line, int show_command)

在这个文件中我发现了一些对进程的处理

extern int BrowserMain(CommandLine &, int, sandbox::BrokerServices*);
extern int RendererMain(CommandLine &, int, sandbox::TargetServices*);
extern int PluginMain(CommandLine &, int, sandbox::TargetServices*);
...
if (single_process)
 RenderProcessHost::set_run_renderer_in_process(true);
...
...
if (process_type.empty()) {
 file_state = logging::DELETE_OLD_LOG_FILE;
}

int rv;
if (process_type == switches::kRendererProcess) {
 rv = RendererMain(parsed_command_line, show_command, target_services);
} else if (process_type == switches::kPluginProcess) {
 rv = PluginMain(parsed_command_line, show_command, target_services);
} else if (process_type.empty()) {
 int ole_result = OleInitialize(NULL);
 DCHECK(ole_result == S_OK);
 rv = BrowserMain(parsed_command_line, show_command, broker_services);
 OleUninitialize();
} else {
 NOTREACHED() << "Unknown process type";
 rv = -1;
}
if (!process_type.empty()) {
 ResourceBundle::CleanupSharedInstance();
总结

综上,我们不难看出,ChromeMain一开始做了一些初始化的操作,不同类型的进程启动入口都通过ChromeMain来统一处理。其中主要是browser、render还有plugin的进程。

从输入url到展示页面,发生了什么

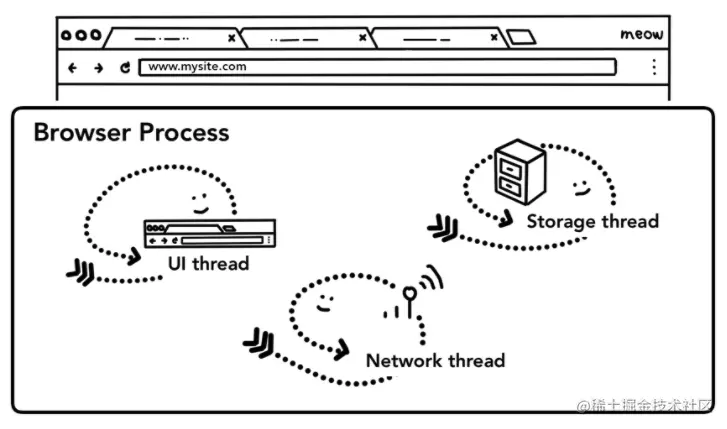

我感觉这个问题可能会很常见,那我们就通过一个用户正常打开浏览器之后的操作来进行分析吧。渲染进程除外,通熟的说是除了tab之外,有很多交互操作用是浏览器的主进程(Browser process)来处理,我们比较常见的有:

  • UI thread : 控制浏览器上的按钮及输入框;
  • network thread: 处理网络请求,从网上获取数据;
  • storage thread: 控制文件等的访问;

多进程
当我们在地址栏中输入一个地址之后,首先起作用的是UI线程(UI thread)。我们输入的地址千奇百怪,但正常的来说绝大部分确实也是URL,但这个是需要UI thread进行判断的。

解析URL

首先他会分析这个URI是什么,如果是http相关会进行DNS查询等,然后直接调用http相关的模块。但也有可能是一个搜索地址。

Browser* StartupBrowserCreatorImpl::OpenTabsInBrowser(Browser* browser,
                                                      bool process_startup,
                                                      const StartupTabs& tabs) {
  DCHECK(!tabs.empty());

  if (!profile_ && browser)
    profile_ = browser->profile();

  bool first_tab = true;
  ProtocolHandlerRegistry* registry = profile_ ?
      ProtocolHandlerRegistryFactory::GetForBrowserContext(profile_) : NULL;
  for (size_t i = 0; i < tabs.size(); ++i) {
    // We skip URLs that we'd have to launch an external protocol handler for.
    // This avoids us getting into an infinite loop asking ourselves to open
    // a URL, should the handler be (incorrectly) configured to be us. Anyone
    // asking us to open such a URL should really ask the handler directly.
    bool handled_by_chrome = ProfileIOData::IsHandledURL(tabs[i].url) ||
        (registry && registry->IsHandledProtocol(tabs[i].url.scheme()));
    if (!process_startup && !handled_by_chrome)
      continue;

    int add_types = first_tab ? TabStripModel::ADD_ACTIVE :
                                TabStripModel::ADD_NONE;
    add_types |= TabStripModel::ADD_FORCE_INDEX;
    if (tabs[i].is_pinned)
      add_types |= TabStripModel::ADD_PINNED;

    NavigateParams params(browser, tabs[i].url,
                          ui::PAGE_TRANSITION_AUTO_TOPLEVEL);
    params.disposition = first_tab ? WindowOpenDisposition::NEW_FOREGROUND_TAB
                                   : WindowOpenDisposition::NEW_BACKGROUND_TAB;
    params.tabstrip_add_types = add_types;

#if BUILDFLAG(ENABLE_RLZ)
    if (process_startup && google_util::IsGoogleHomePageUrl(tabs[i].url)) {
      params.extra_headers = rlz::RLZTracker::GetAccessPointHttpHeader(
          rlz::RLZTracker::ChromeHomePage());
    }
#endif  // BUILDFLAG(ENABLE_RLZ)

    Navigate(&params);

    first_tab = false;
  }
  if (!browser->tab_strip_model()->GetActiveWebContents()) {
    // TODO(sky): this is a work around for 110909. Figure out why it's needed.
    if (!browser->tab_strip_model()->count())
      chrome::AddTabAt(browser, GURL(), -1, true);
    else
      browser->tab_strip_model()->ActivateTabAt(0);
  }

  browser->window()->Show();

  return browser;
}

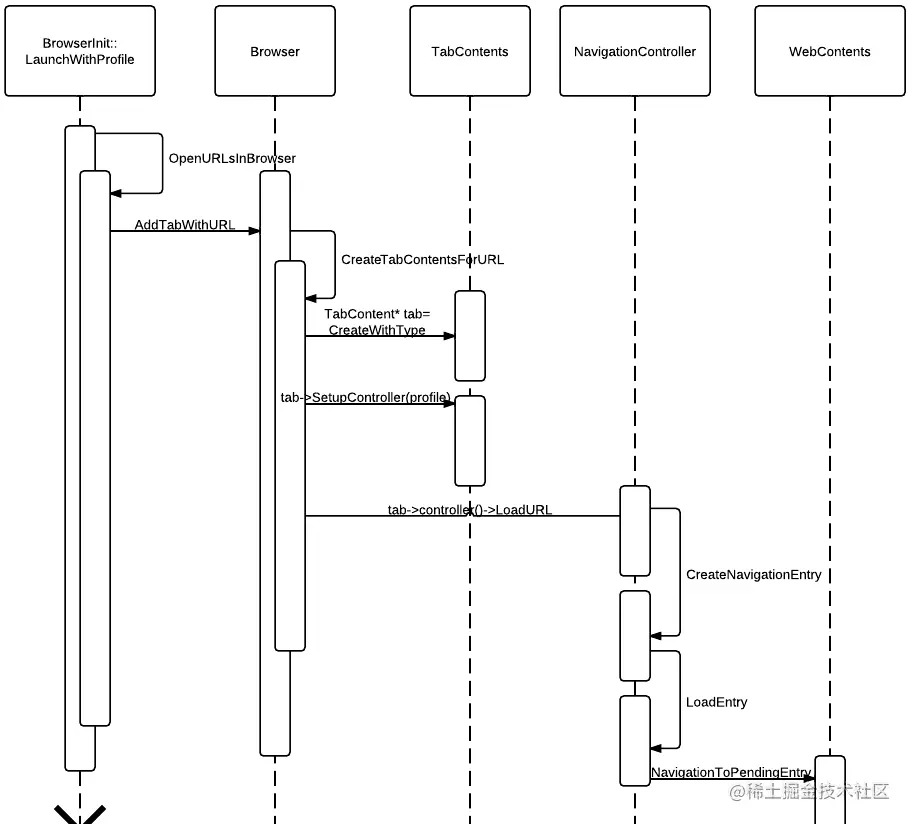

综合上边的理解,实际上的流程如下:
多进程

下一篇文章我们就详细的来说说,浏览器从发出请求到收到请求以及处理的流程~
