# Python的灵活运用之——100 行代码教你实现光线追踪 !

·  阅读 882

## 场景布置

``````scene = [sphere([.75, .1, 1.], .6, [.8, .3, 0.]),           # 球心位置，半径，颜色
sphere([-.3, .01, .2], .3, [.0, .0, .9]),
sphere([-2.75, .1, 3.5], .6, [.1, .572, .184]),
plane([0., -.5, 0.], [0., 1., 0.])]                # 平面上一点的位置，法向量
light_point = np.array([5., 5., -10.])                      # 点光源位置
light_color = np.array([1., 1., 1.])                        # 点光源的颜色值
ambient = 0.05                                              # 环境光

## 生成物品

``````def get_color(obj, P):
color = obj['color']
if not hasattr(color, '__len__'):
color = color(P)
return color
def sphere(position, radius, color, reflection=.85, diffuse=1., specular_c=.6, specular_k=50):
color=np.array(color), reflection=reflection, diffuse=diffuse, specular_c=specular_c, specular_k=specular_k)

def plane(position, normal, color=np.array([1.,1.,1.]), reflection=0.15, diffuse=.75, specular_c=.3, specular_k=50):
return dict(type='plane', position=np.array(position), normal=np.array(normal),
color=lambda P: (np.array([1.,1.,1.]) if (int(P[0]*2)%2) == (int(P[2]*2)%2) else (np.array([0.,0.,0.]))),
reflection=reflection, diffuse=diffuse, specular_c=specular_c, specular_k=specular_k)

## 基础准备

``````import numpy as np

def normalize(x):
return x / np.linalg.norm(x)

def get_normal(obj, point):         # 获得物体表面某点处的单位法向量
if obj['type'] == 'sphere':
return normalize(point - obj['position'])
if obj['type'] == 'plane':
return obj['normal']

## 简单的几何学

``````def intersect(origin, dir, obj):    # 射线与物体的相交测试
if obj['type'] == 'plane':
return intersect_plane(origin, dir, obj['position'], obj['normal'])
elif obj['type'] == 'sphere':

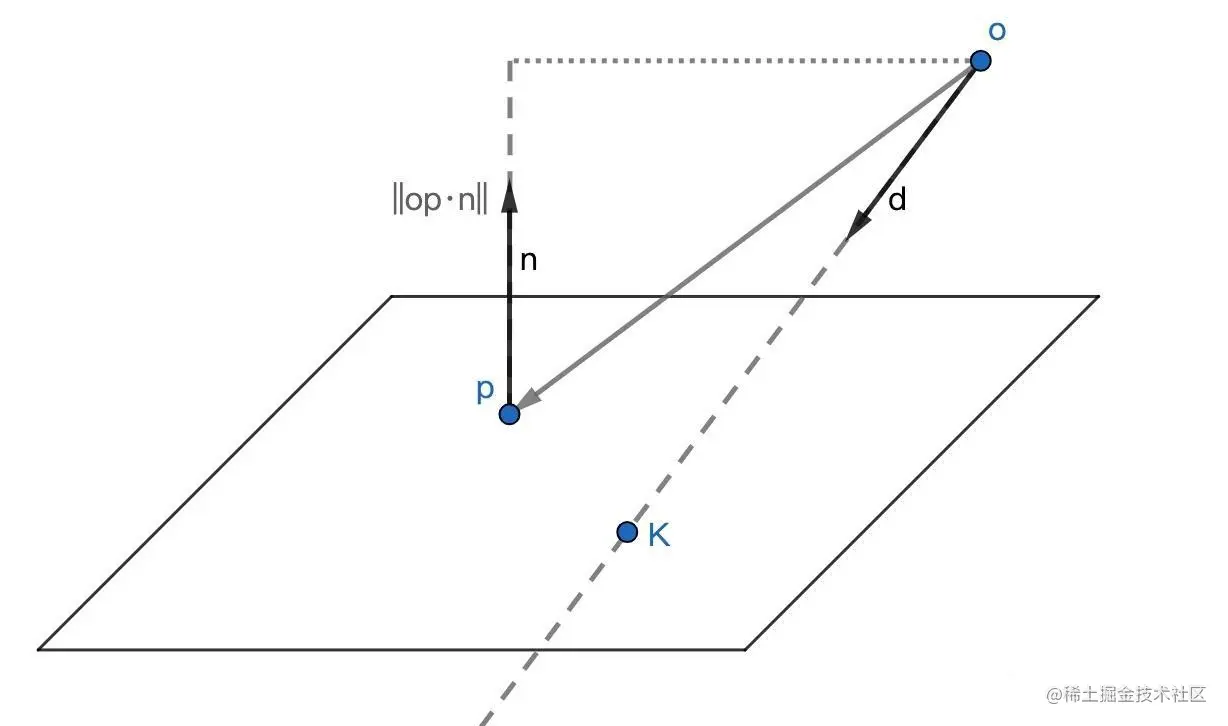

``````def intersect_plane(origin, dir, point, normal):    # 射线与平面的相交测试
dn = np.dot(dir, normal)
if np.abs(dn) < 1e-6:   # 射线与平面几乎平行
return np.inf       # 交点为无穷远处

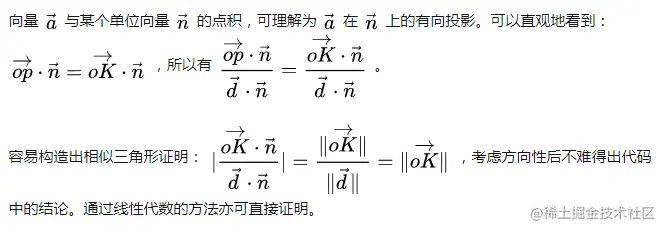

d = np.dot(point - origin, normal) / dn         # 交点与射线原点的距离（相似三角形原理）
return d if d>0 else np.inf     # 负数表示射线射向平面的反方向

``````def intersect_sphere(origin, dir, center, radius):  # 射线与球的相交测试
OC = center - origin
if (np.linalg.norm(OC) < radius) or (np.dot(OC, dir) < 0):
return np.inf
l = np.linalg.norm(np.dot(OC, dir))
m_square = np.linalg.norm(OC) * np.linalg.norm(OC) - l * l
return (l - np.sqrt(q_square)) if q_square >= 0 else np.inf

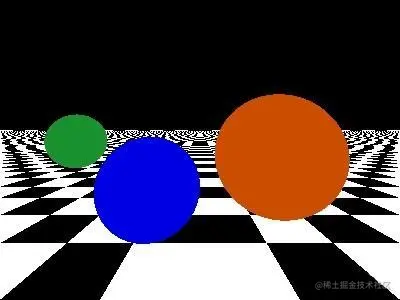

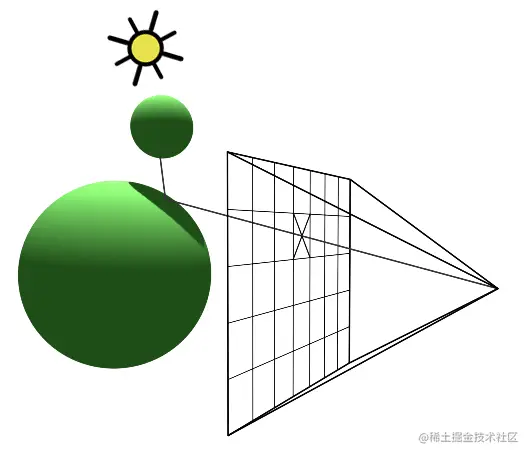

## 主逻辑代码

``````w, h = 400, 300     # 屏幕宽高
O = np.array([0., 0.35, -1.])   # 摄像机位置
Q = np.array([0., 0., 0.])      # 摄像机指向
img = np.zeros((h, w, 3))
r = float(w) / h
S = (-1., -1. / r + .25, 1., 1. / r + .25)

for i, x in enumerate(np.linspace(S[0], S[2], w)):
print("%.2f" % (i / float(w) * 100), "%")
for j, y in enumerate(np.linspace(S[1], S[3], h)):
Q[:2] = (x, y)
img[h - j - 1, i, :] = intersect_color(O, normalize(Q - O), 1)

plt.imsave('test.png', img)

## 核心代码

``````def intersect_color(origin, dir, intensity):
min_distance = np.inf
for i, obj in enumerate(scene):
current_distance = intersect(origin, dir, obj)
if current_distance < min_distance:
min_distance, obj_index = current_distance, i   # 记录最近的交点距离和对应的物体
if (min_distance == np.inf) or (intensity < 0.01):
return np.array([0., 0., 0.])

obj = scene[obj_index]
P = origin + dir * min_distance     # 交点坐标
color = get_color(obj, P)
N = get_normal(obj, P)                  # 交点处单位法向量
PL = normalize(light_point - P)
PO = normalize(origin - P)

c = color

return np.clip(c, 0, 1)

intersect_color 函数就是我们实现光线追踪的核心代码了。代码开始，我们对射线和场景中的物体逐一做相交测试，找出距离最近的交点，若不存在，则返回无穷远点。其中 intensity 参数是用于停止光追迭代，后续部分再行解释。

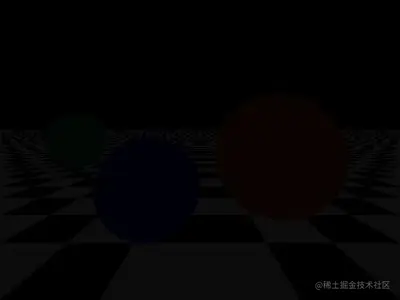

``````c = ambient * color

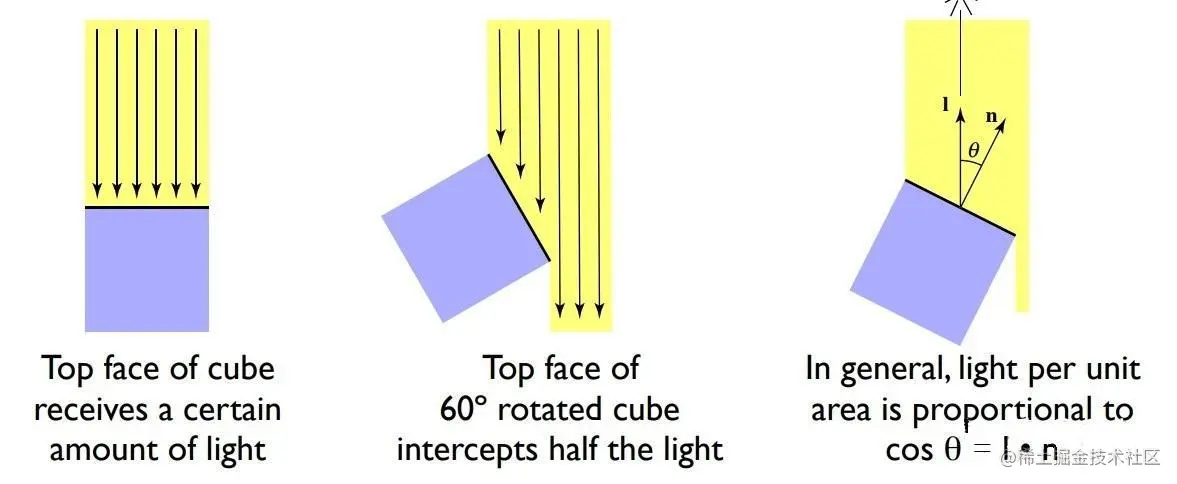

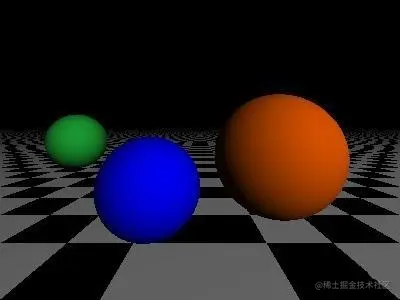

## 兰伯特模型

``````c += obj['diffuse'] * max(np.dot(N, PL), 0) * color * light_color

## 阴影

``````    c = ambient * color

l = [intersect(P + N * .0001, PL, obj_shadow_test)            for i, obj_shadow_test in enumerate(scene) if i != obj_index]       # 阴影测试
if not (l and min(l) < np.linalg.norm(light_point - P)):
c += obj['diffuse'] * max(np.dot(N, PL), 0) * color * light_color

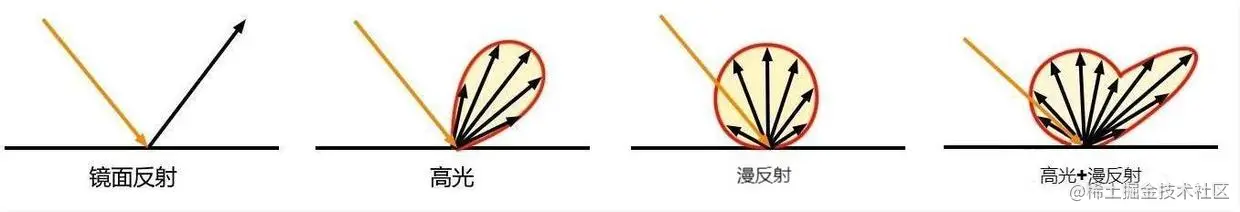

## 高光：微表面假设与 Blinn-Phong 模型

1975 年，学者 Bui Tuong Phong 提出了用于计算高光的 Phong 模型。

``````    l = [intersect(P + N * .0001, PL, obj_shadow_test)            for i, obj_shadow_test in enumerate(scene) if i != obj_index]       # 阴影测试
if not (l and min(l) < np.linalg.norm(light_point - P)):
c += obj['diffuse'] * max(np.dot(N, PL), 0) * color * light_color
c += obj['specular_c'] * max(np.dot(N, normalize(PL + PO)), 0) ** obj['specular_k'] * light_color

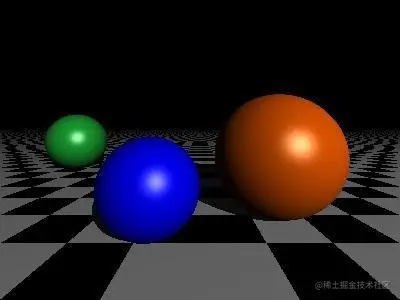

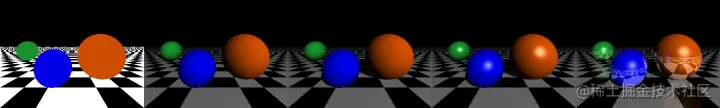

## 光线追踪

``````//   伪代码
IntersectColor(vBeginPoint, vDirection)
{
Determine IntersectPoint;
Color = ambient color;
for each light
if(surface is reflective)
color += reflect Coefficient * IntersectColor(IntersecPoint, Reflect Ray);
else if ( surface is refractive)
color += refract Coefficient * IntersectColor(IntersecPoint, Refract Ray);
return color;
}

``````    l = [intersect(P + N * .0001, PL, obj_shadow_test)            for i, obj_shadow_test in enumerate(scene) if i != obj_index]       # 阴影测试
if not (l and min(l) < np.linalg.norm(light_point - P)):
c += obj['diffuse'] * max(np.dot(N, PL), 0) * color * light_color
c += obj['specular_c'] * max(np.dot(N, normalize(PL + PO)), 0) ** obj['specular_k'] * light_color

reflect_ray = dir - 2 * np.dot(dir, N) * N      # 计算反射光线
c += obj['reflection'] * intersect_color(P + N * .0001, reflect_ray, obj['reflection'] * intensity)

return np.clip(c, 0, 1)

``````    if (min_distance == np.inf) or (intensity < 0.01):
return np.array([0., 0., 0.])

``````import numpy as np
import matplotlib.pyplot as plt

def normalize(x):
return x / np.linalg.norm(x)

def intersect(origin, dir, obj):    # 射线与物体的相交测试
if obj['type'] == 'plane':
return intersect_plane(origin, dir, obj['position'], obj['normal'])
elif obj['type'] == 'sphere':

def intersect_plane(origin, dir, point, normal):    # 射线与平面的相交测试
dn = np.dot(dir, normal)
if np.abs(dn) < 1e-6:   # 射线与平面几乎平行
return np.inf       # 交点为无穷远处
d = np.dot(point - origin, normal) / dn         # 交点与射线原点的距离（相似三角形原理）
return d if d>0 else np.inf     # 负数表示射线射向平面的反方向

def intersect_sphere(origin, dir, center, radius):  # 射线与球的相交测试
OC = center - origin
if (np.linalg.norm(OC) < radius) or (np.dot(OC, dir) < 0):
return np.inf
l = np.linalg.norm(np.dot(OC, dir))
m_square = np.linalg.norm(OC) * np.linalg.norm(OC) - l * l
return (l - np.sqrt(q_square)) if q_square >= 0 else np.inf

def get_normal(obj, point):         # 获得物体表面某点处的单位法向量
if obj['type'] == 'sphere':
return normalize(point - obj['position'])
if obj['type'] == 'plane':
return obj['normal']

def get_color(obj, M):
color = obj['color']
if not hasattr(color, '__len__'):
color = color(M)
return color

def sphere(position, radius, color, reflection=.85, diffuse=1., specular_c=.6, specular_k=50):
color=np.array(color), reflection=reflection, diffuse=diffuse, specular_c=specular_c, specular_k=specular_k)

def plane(position, normal, color=np.array([1.,1.,1.]), reflection=0.15, diffuse=.75, specular_c=.3, specular_k=50):
return dict(type='plane', position=np.array(position), normal=np.array(normal),
color=lambda M: (np.array([1.,1.,1.]) if (int(M[0]*2)%2) == (int(M[2]*2)%2) else (np.array([0.,0.,0.]))),
reflection=reflection, diffuse=diffuse, specular_c=specular_c, specular_k=specular_k)

scene = [sphere([.75, .1, 1.], .6, [.8, .3, 0.]),           # 球心位置，半径，颜色
sphere([-.3, .01, .2], .3, [.0, .0, .9]),
sphere([-2.75, .1, 3.5], .6, [.1, .572, .184]),
plane([0., -.5, 0.], [0., 1., 0.])]                # 平面上一点的位置，法向量
light_point = np.array([5., 5., -10.])                      # 点光源位置
light_color = np.array([1., 1., 1.])                        # 点光源的颜色值
ambient = 0.05                                              # 环境光

def intersect_color(origin, dir, intensity):
min_distance = np.inf
for i, obj in enumerate(scene):
current_distance = intersect(origin, dir, obj)
if current_distance < min_distance:
min_distance, obj_index = current_distance, i   # 记录最近的交点距离和对应的物体
if (min_distance == np.inf) or (intensity < 0.01):
return np.array([0., 0., 0.])

obj = scene[obj_index]
P = origin + dir * min_distance     # 交点坐标
color = get_color(obj, P)
N = get_normal(obj, P)                  # 交点处单位法向量
PL = normalize(light_point - P)
PO = normalize(origin - P)

c = ambient * color

l = [intersect(P + N * .0001, PL, obj_shadow_test)
for i, obj_shadow_test in enumerate(scene) if i != obj_index]       # 阴影测试
if not (l and min(l) < np.linalg.norm(light_point - P)):
c += obj['diffuse'] * max(np.dot(N, PL), 0) * color * light_color
c += obj['specular_c'] * max(np.dot(N, normalize(PL + PO)), 0) ** obj['specular_k'] * light_color

reflect_ray = dir - 2 * np.dot(dir, N) * N  # 计算反射光线
c += obj['reflection'] * intersect_color(P + N * .0001, reflect_ray, obj['reflection'] * intensity)

return np.clip(c, 0, 1)

w, h = 400, 300     # 屏幕宽高
O = np.array([0., 0.35, -1.])   # 摄像机位置
Q = np.array([0., 0., 0.])      # 摄像机指向
img = np.zeros((h, w, 3))
r = float(w) / h
S = (-1., -1. / r + .25, 1., 1. / r + .25)

for i, x in enumerate(np.linspace(S[0], S[2], w)):
print("%.2f" % (i / float(w) * 100), "%")
for j, y in enumerate(np.linspace(S[1], S[3], h)):
Q[:2] = (x, y)
img[h - j - 1, i, :] = intersect_color(O, normalize(Q - O), 1)

plt.imsave('test.png', img)
