Springboot Security and JWT 快速入门实战

快速创建应用

采用Springboot、Maven、jdk8,快速创建一个Web应用。


基础访问类编写
package com.example.demo.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 *
 * @author 小隐乐乐
 * @since 2020/11/8 19:44
 */
@RestController
@RequestMapping("/api")
public class HelloController {

    @GetMapping("/hello")
    public String hello() {
        return "hello guys";
    }
}
复制代码
配置文件修改

application.properties

添加端口信息

server.port=8000
复制代码
POM
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>
复制代码
测试应用

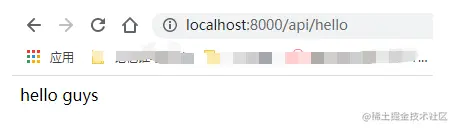

启动应用,访问接口 : localhost:8000/api/hello


应用创建成功。

添加Spring Boot Security支持

POM
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

复制代码
测试应用

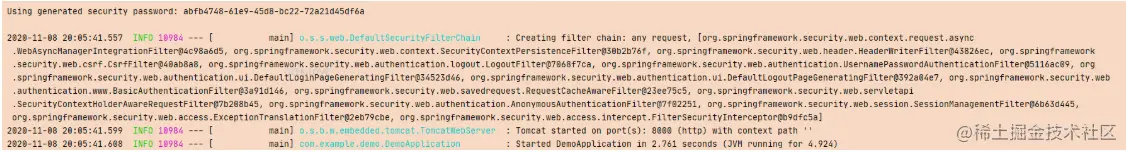

启动应用,日志如下:


Springboot Security会创建一个用户,还有一个请求安全链。用户默认用户名user 密码,随机生成,打印在启动日志中,此时为abfb4748-61e9-45d8-bc22-72a21d45df6a

测试应用,访问接口 : localhost:8000/api/hello

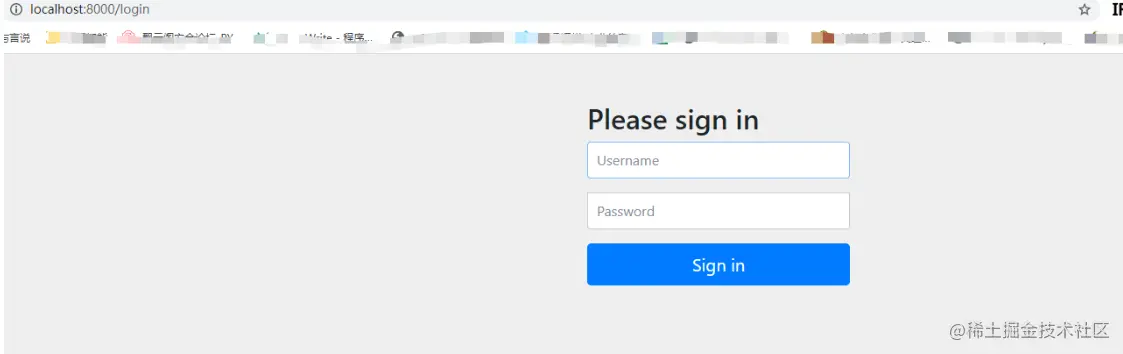

页面自动跳转到登录页面


输入用户名、密码,之后会跳转到接口响应页面

用户名密码修改

可以在配置文件中自定义,用户名/密码

application.properties

server.port=8000
spring.security.user.name=levi
spring.security.user.password=123456
复制代码

MVC Security

默认的安全配置在SecurityAutoConfigurationUserDetailsServiceAutoConfiguration中实现。 SecurityAutoConfiguration实现SpringBootWebSecurityConfigurationWeb安全性并通过UserDetailsServiceAutoConfiguration配置身份验证,这在非Web应用程序中也很重要。要完全关闭默认的Web应用程序安全性配置或合并多个Spring Security组件(例如OAuth 2 Client和Resource Server),请添加一个类型的bean WebSecurityConfigurerAdapter(这样做不会禁用UserDetailsService配置或Actuator的安全性)。

为了关闭UserDetailsService的配置,可以添加类型的UserDetailsServiceAuthenticationProviderAuthenticationManager

可以通过添加自定义来覆盖访问规则WebSecurityConfigurerAdapter。Spring Boot提供了便利的方法,可用于覆盖执行器端点和静态资源的访问规则。 EndpointRequest可用于创建RequestMatcher基于management.endpoints.web.base-path属性的。 PathRequest可用于RequestMatcher在常用位置创建for资源。

详细可以参考官方文档介绍 docs.spring.io/spring-boot…

开发配置类

用于自定义拦截配置

package com.example.demo.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;

/**
 * @author 小隐乐乐
 * @since 2020/11/8 20:20
 */
@Configuration
public class WebSecurityConfiguration extends WebSecurityConfigurerAdapter {

    @Autowired
    private UserDetailsService userDetailsService;

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .csrf().disable()
                .authorizeRequests()
                .antMatchers("/api/signin").permitAll()
                .anyRequest().authenticated()
                .and()
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS);
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Bean
    @Override
    public UserDetailsService userDetailsService() {
        UserDetails user = User.withDefaultPasswordEncoder()
                .username("user")
                .password("password")
                .roles("USER")
                .build();

        return new InMemoryUserDetailsManager(user);
    }
}
复制代码
开发登录实体类

用于完成登录实体

package com.example.demo.dto;

import com.sun.istack.internal.NotNull;

/**
 * @author 小隐乐乐
 * @since 2020/11/8 20:22
 */
public class SigninDto {

    @NotNull
    private String username;

    @NotNull
    private String password;

    protected SigninDto() {}

    public SigninDto(String username, String password) {
        this.username = username;
        this.password = password;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }
}

复制代码
改造controller
package com.example.demo.controller;

import com.example.demo.dto.SigninDto;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.web.bind.annotation.*;

import javax.validation.Valid;

/**
 *
 * @author 小隐乐乐
 * @since 2020/11/8 19:44
 */
@RestController
@RequestMapping("/api")
public class HelloController {

    @Autowired
    private AuthenticationManager authenticationManager;

    @GetMapping("/hello")
    public String hello() {
        return "hello guys";
    }

    @PostMapping("/signin")
    public Authentication signIn(@RequestBody @Valid SigninDto signInDto) {
        return authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(signInDto.getUsername(), signInDto.getPassword()));
    }
}

复制代码

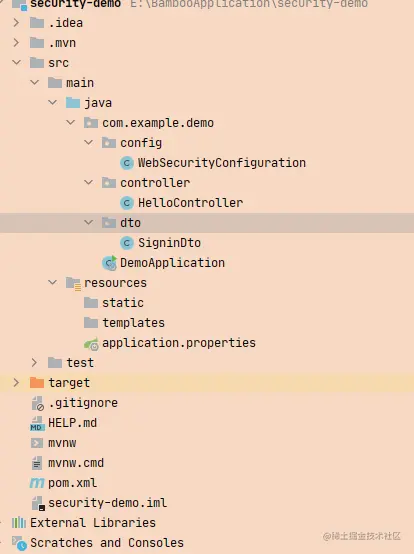

目录结构


此时完成了添加端点signin到自定义拦截链中

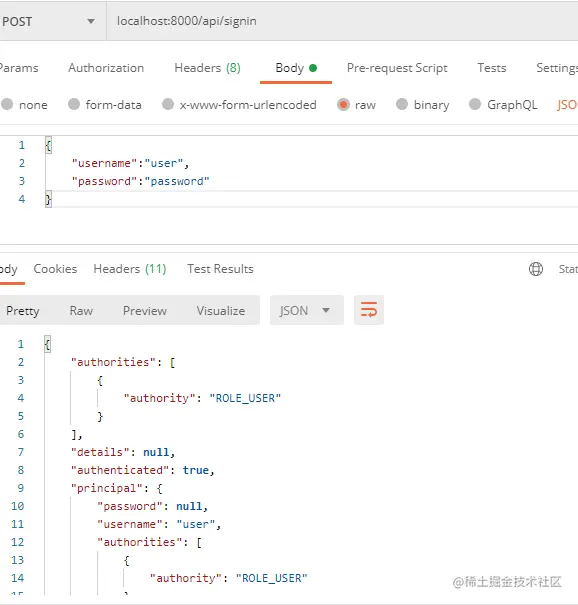

测试应用


此时接口api/hello,仍然是没有权限的,我们添加jwt的支持。

添加JWT

依赖添加
<!-- https://mvnrepository.com/artifact/io.jsonwebtoken/jjwt -->
<dependency>
    <groupId>io.jsonwebtoken</groupId>
    <artifactId>jjwt</artifactId>
    <version>0.9.1</version>
</dependency>
复制代码
开发token生成类
package com.example.demo.jwt;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

import java.util.Base64;
import java.util.Date;

/**
 * @author 小隐乐乐
 * @since 2020/11/8 20:38
 */
@Component
public class JwtProvider {

    private String secretKey;
    private long validityInMilliseconds;

    @Autowired
    public JwtProvider(@Value("${security.jwt.token.secret-key}") String secretKey,
                       @Value("${security.jwt.token.expiration}") long milliseconds) {

        this.secretKey = Base64.getEncoder().encodeToString(secretKey.getBytes());
        this.validityInMilliseconds = milliseconds;
    }

    public String createToken(String username) {
        //Add the username to the payload
        Claims claims = Jwts.claims().setSubject(username);

        //Build the Token
        Date now = new Date();
        return Jwts.builder()
                .setClaims(claims)
                .setIssuedAt(now)
                .setExpiration(new Date(now.getTime() + validityInMilliseconds))
                .signWith(SignatureAlgorithm.HS256, secretKey)
                .compact();
    }
}
复制代码

create Token方法使用jjwt库创建JWT令牌。用户名就是有效负载的主题。它是使用属性文件中的密钥签名的,并且令牌的有效性也在属性文件中指定。结果令牌将具有Header.Payload.Signature的格式。标头包含类型(JSON Web令牌)和哈希算法(HMAC SHA256)。有效负载又称包含令牌的主题(子),数字日期值(exp)中的到期日期,发布JWT的时间(iat),唯一的JWT标识符(jti)以及由冒号分隔的特定于应用程序的键值对。签名是使用嵌入在应用程序中的密钥的标头和有效负载的哈希值。

配置文件修改
security.jwt.token.secret-key=jwt-token-secret-key-for-encryption
security.jwt.token.expiration=1200000
复制代码
开发web filter
package com.example.demo.jwt;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.web.filter.GenericFilterBean;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import java.io.IOException;
import java.util.Base64;
import java.util.Date;
import java.util.Optional;
import java.util.function.Function;

/**
 * @author 小隐乐乐
 * @since 2020/11/8 20:46
 */
public class JwtTokenFilter extends GenericFilterBean {
    private String secret;

    private static final String BEARER = "Bearer";

    private UserDetailsService userDetailsService;

    public JwtTokenFilter(UserDetailsService userDetailsService, String secret) {
        this.userDetailsService = userDetailsService;
        this.secret = Base64.getEncoder().encodeToString(secret.getBytes());
    }

    @Override
    public void doFilter(ServletRequest req, ServletResponse res, FilterChain filterChain)
            throws IOException, ServletException {

        String headerValue = ((HttpServletRequest) req).getHeader("Authorization");
        getBearerToken(headerValue).ifPresent(token -> {
            String username = getClaimFromTokenS((String) token, Claims::getSubject);
            UserDetails userDetails = userDetailsService.loadUserByUsername(username);

            if (username.equals(userDetails.getUsername()) && !isJwtExpired((String) token)) {
                UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken =
                        new UsernamePasswordAuthenticationToken(userDetails, null, userDetails.getAuthorities());
                usernamePasswordAuthenticationToken.setDetails(
                        new WebAuthenticationDetailsSource().buildDetails((HttpServletRequest) req));
                SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);
            }
        });

        filterChain.doFilter(req, res);
    }

    private Optional getBearerToken(String headerVal) {
        if (headerVal != null && headerVal.startsWith(BEARER)) {
            return Optional.of(headerVal.replace(BEARER, "").trim());
        }
        return Optional.empty();
    }

    private Date getClaimFromToken(String token, Function<Claims, Date> claimsResolver) {
        final Claims claims = Jwts.parser().setSigningKey(secret).parseClaimsJws(token).getBody();
        return claimsResolver.apply(claims);
    }

    private String getClaimFromTokenS(String token, Function<Claims, String> claimsResolver) {
        final Claims claims = Jwts.parser().setSigningKey(secret).parseClaimsJws(token).getBody();
        return claimsResolver.apply(claims);
    }

    private boolean isJwtExpired(String token) {
        Date expirationDate = getClaimFromToken(token, Claims::getExpiration);
        return expirationDate.before(new Date());
    }
}

复制代码

这与Java EE中的Web过滤器相同。此Web筛选器检查令牌是否已过期(即Jwt已过期)。它解析有效负载,获取来自令牌的Claims。它将剥离承载字符串,该字符串是授权标头的值。如果令牌通过了所有检查,则do Filter方法将配置Spring安全性以在上下文中手动设置身份验证。我们指定当前用户已通过身份验证,以使其成功通过。

接下来是在Web安全配置类中添加一些行。

WebSecurityConfiguration改造
package com.example.demo.config;

import com.example.demo.jwt.JwtTokenFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

/**
 * @author 小隐乐乐
 * @since 2020/11/8 20:20
 */
@Configuration
public class WebSecurityConfiguration extends WebSecurityConfigurerAdapter {

    @Value("${security.jwt.token.secret-key}")
    private String secret;

    @Autowired
    private UserDetailsService userDetailsService;

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http
                .csrf().disable()
                .authorizeRequests()
                .antMatchers("/api/signin").permitAll()
                .anyRequest().authenticated()
                .and()
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS);
        http.addFilterBefore(new JwtTokenFilter(userDetailsService, secret), UsernamePasswordAuthenticationFilter.class);
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    @Bean
    @Override
    public UserDetailsService userDetailsService() {
        UserDetails user = User.withDefaultPasswordEncoder()
                .username("user")
                .password("password")
                .roles("USER")
                .build();

        return new InMemoryUserDetailsManager(user);
    }
}
复制代码
接口类改造
package com.example.demo.controller;

import com.example.demo.dto.SigninDto;
import com.example.demo.jwt.JwtProvider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.AuthenticationException;
import org.springframework.web.bind.annotation.*;

import javax.validation.Valid;

/**
 * @author 小隐乐乐
 * @since 2020/11/8 19:44
 */
@RestController
@RequestMapping("/api")
public class HelloController {

    @Autowired
    private JwtProvider jwtProvider;

    @Autowired
    private AuthenticationManager authenticationManager;

    @GetMapping("/hello")
    public String hello() {
        return "hello guys";
    }

    @PostMapping("/signin")
    public String signIn(@RequestBody @Valid SigninDto signInDto) {
        try {
            authenticationManager.authenticate(new UsernamePasswordAuthenticationToken(signInDto.getUsername(), signInDto.getPassword()));
            return jwtProvider.createToken(signInDto.getUsername());
        } catch (AuthenticationException e) {
            System.out.println("Log in failed for user, " + signInDto.getUsername());
        }

        return "";
    }
}

复制代码
测试应用

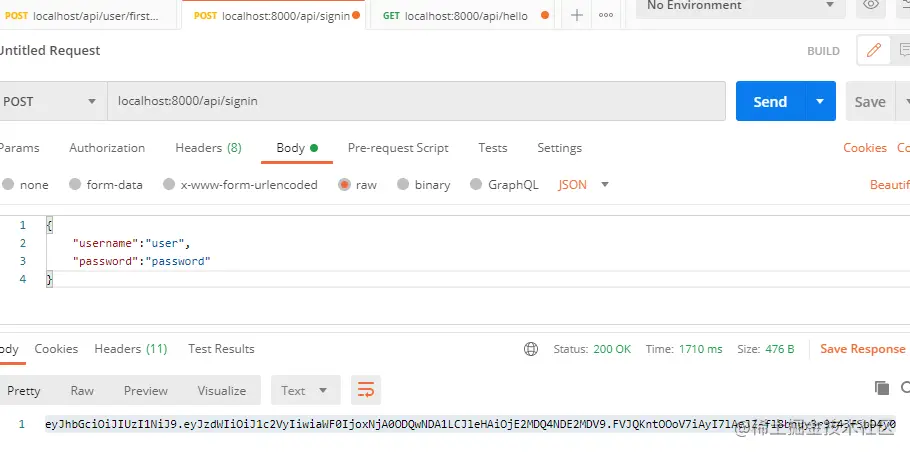

signin接口调用获取token

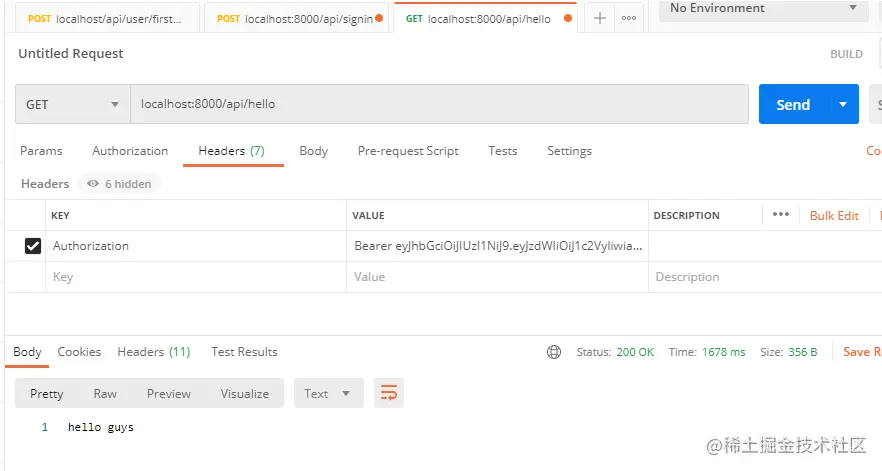

hello接口调用携带token


总结

Spring Boot Security和JWT Hello World示例已完成。总而言之,当登录身份验证通过时,我们将创建一个JSON Web令牌并将其返回给调用方。然后,调用方将JWT放置在标头中,并在其后续的GET请求中使用授权密钥。 Web过滤器检查令牌的有效性。如果有效,Web过滤器将使其通过过滤器链并返回“ Hello world”。

文章分类
后端
文章标签
