1. explain释义
本节描述EXPLAIN生成的输出列。
Column | JSON Name | Meaning |
---|---|---|
id | select_id | The SELECT identifier |
select_type | None | The SELECT type |
table | table_name | The table for the output row |
partitions | partitions | The matching partitions |
type | access_type | The join type |
possible_keys | possible_keys | The possible indexes to choose |
key | key | The index actually chosen |
key_len | key_length | The length of the chosen key |
ref | ref | The columns compared to the index |
rows | rows | Estimate of rows to be examined |
filtered | filtered | Percentage of rows filtered by table condition |
Extra | None | Additional information |
id
id:select查询的序列号,包含一组数字,表示查询中执行select子句或操作表的顺序
id 取值的三种情况:
- id相同,执行顺序由上至下
- id不同,如果是子查询,id的序号会递增,id值越大优先级越高,越先被执行
- id相同不同,同时存在:id如果相同,可以认为是一组,从上往下顺序执行;在所有组中,id值越大,优先级越高,越先执行;衍生=DERIVED
select_type
select_type:查询的类型,主要用于区别普通查询、联合查询、子查询等复杂查询
- SIMPLE:简单的select查询,查询中不包含子查询或者UNION
- PRIMARY:查询中若包含任何复杂的子部分,最外层查询则被标记为PRIMARY
- SUBQUERY:在SELECT或者WHERE列表中包含了子查询
- DERIVED:在FROM列表中包含的子查询被标记为DERIVED(衍生)MySQL会递归执行这些子查询,把结果放在临时表里
- UNION:若第二个SELECT出现在UNION之后,则被标记为UNION;若UNION包含在FROM子句的子查询中,外层SELECT将被标记为:DERIVED
- UNION RESULT:从UNION表获取结果的SELECT
table
table:显示这一行的数据是关于哪张表的
type
type 是查询的访问类型。是较为重要的一个指标,结果值从最好到最坏依次是: system > const > eq_ref > ref > fulltext > ref_or_null > index_merge > unique_subquery > index_subquery > range > index > ALL ,一般来说,得保证查询至少达到 range 级别,最好能达到 ref。
-
system:表只有一行记录(等于系统表),这是const类型的特例,平时不会出现,这个也可以忽略不计
-
const:表示通过索引一次就找到了,const用于比较primary key或者unique索引。因为只匹配一行数据,所以很快。如将主键置于where列表中,MySQL就能将该查询转换为一个常量
- eq_ref:唯一性索引,对于每个索引键,表中只有一条记录与之匹配,常见于主键或唯一索引扫描
- ref:非唯一索引扫描,返回匹配某个单独值的所有行。本质上也是一种索引访问,它返回所有匹配某个单独值的行,然而,它可能会找到多个符合条件的行,所以他应该属于查找和扫描的混合体

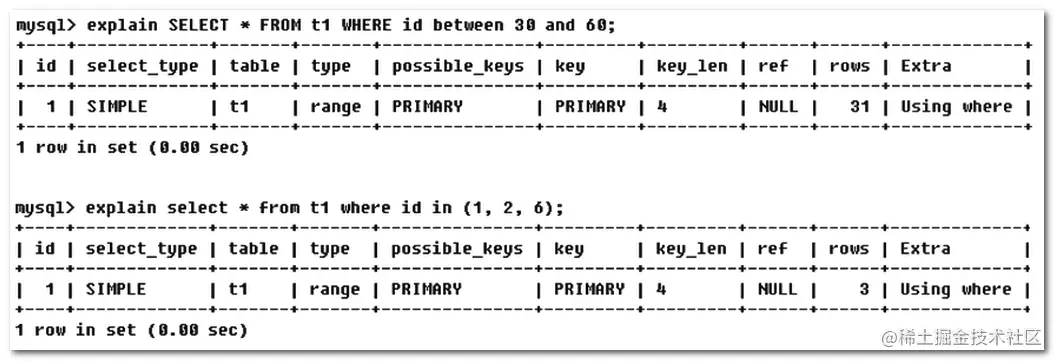

- range:只检索给定范围的行,使用一个索引来选择行。key列显示使用了哪个索引一般就是在你的where语句中出现了between、<、>、in等的查询这种范围扫描索引扫描比全表扫描要好,因为他只需要开始索引的某一点,而结束于另一点,不用扫描全部索引
- index:Full Index Scan,index与ALL区别为index类型只遍历索引树。这通常比ALL快,因为索引文件通常比数据文件小。(也就是说虽然all和index都是读全表,但index是从索引中读取的,而all是从硬盘数据库文件中读的)
- all:FullTable Scan,将遍历全表以找到匹配的行(全表扫描)
备注:一般来说,得保证查询只是达到range级别,最好达到ref
possible_keys
显示可能应用在这张表中的索引,一个或多个。查询涉及到的字段上若存在索引,则该索引将被列出,但不一定被查询实际使用。
key
实际使用的索引。如果为NULL,则没有使用索引。
key_len
表示索引中使用的字节数,可通过该列计算查询中使用的索引的长度。 key_len 字段能够帮你检查是否充分的利用上了索引。ken_len 越长,说明索引使用的越充分。
ref
显示索引的哪一列被使用了,如果可能的话,是一个常数。哪些列或常量被用于查找索引列上的值。 由key_len可知t1表的索引idx_col1_col2被充分使用,t1表的col1匹配t2表的col1,t1表的col2匹配了一个常量,即’ac’
rows
根据表统计信息及索引选用情况,大致估算出找到所需的记录所需要读取的行数
Extra
其他的额外重要的信息。
Using filesort
说明 mysql 会对数据使用一个外部的索引排序,而不是按照表内的索引顺序进行读取。MySQL 中无法利用索引 完成的排序操作称为“文件排序”。 出现 filesort 的情况:
优化后,不再出现 filesort 的情况:
查询中排序的字段,排序字段若通过索引去访问将大大提高排序速度。
Using temporary
使了用临时表保存中间结果,MySQL 在对查询结果排序时使用临时表。常见于排序 order by 和分组查询 group by。
优化前:
优化后:
Using index
Using index 代表表示相应的 select 操作中使用了覆盖索引(Covering Index),避免访问了表的数据行,效率不错! 如果同时出现 using where,表明索引被用来执行索引键值的查找;如果没有同时出现 using where,表明索引只是用来读取数据而非利用索引执行查找。 利用索引进行了排序或分组。
Using where
表明使用了 where 过滤。
Using join buffer
使用了连接缓存。
impossible where
where 子句的值总是 false,不能用来获取任何元组。
select tables optimized away
在没有 GROUPBY 子句的情况下,基于索引优化 MIN/MAX 操作或者对于 MyISAM 存储引擎优化 COUNT(*)操 作,不必等到执行阶段再进行计算,查询执行计划生成的阶段即完成优化。 在 innodb 中:
2. 索引优化
单表索引优化
--建表 SQL, 准备数据
CREATE TABLE IF NOT EXISTS article(
id INT(10) UNSIGNED NOT NULL PRIMARY KEY AUTO_INCREMENT,
author_id INT(10) UNSIGNED NOT NULL,
category_id INT(10) UNSIGNED NOT NULL,
views INT(10) UNSIGNED NOT NULL,
comments INT(10) UNSIGNED NOT NULL,
title VARCHAR(255) NOT NULL,
content TEXT NOT NULL
);
INSERT INTO article(author_id,category_id,views,comments,title,content)
VALUES
(1,1,1,1,'1','1'),
(2,2,2,2,'2','2'),
(1,1,3,3,'3','3');
--使用 explain 分析 SQL 语句的执行效率: type是ALL,即最坏的情况; Extra 里还出现了Using filesort,也是最坏的情况。
EXPLAIN SELECT id, author_id FROM article WHERE category_id = 1 AND comments > 1 ORDER BY views DESC LIMIT 1;
+----+-------------+---------+------------+------+---------------+------+---------+------+------+----------+-----------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+---------+------------+------+---------------+------+---------+------+------+----------+-----------------------------+
| 1 | SIMPLE | article | NULL | ALL | NULL | NULL | NULL | NULL | 3 | 33.33 | Using where; Using filesort |
+----+-------------+---------+------------+------+---------------+------+---------+------+------+----------+-----------------------------+
1 row in set, 1 warning (0.00 sec)
-- 1. 在 category_id 列、comments 列和 views 列上建立联合索引: 无效
-- 按照B+Tree索引的工作原理,先排序 category_id,如果遇到相同的 category_id 则再排序comments,如果遇到相同的 comments 则再排序 views。
-- 当comments字段在联合索引里处于中间位置时,因为comments>1条件是一个范围值(所谓 range),无法利用索引再对后面的views部分进行检索,即 range 类型查询字段后面的索引无效。
create index idx_article_ccv on article(category_id, comments, views);
EXPLAIN SELECT id, author_id FROM article WHERE category_id = 1 AND comments > 1 ORDER BY views DESC LIMIT 1;
+----+-------------+---------+------------+-------+-----------------+-----------------+---------+------+------+----------+---------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+---------+------------+-------+-----------------+-----------------+---------+------+------+----------+---------------------------------------+
| 1 | SIMPLE | article | NULL | range | idx_article_ccv | idx_article_ccv | 8 | NULL | 1 | 100.00 | Using index condition; Using filesort |
+----+-------------+---------+------------+-------+-----------------+-----------------+---------+------+------+----------+---------------------------------------+
-- 2. 利用 category_id 和 views 的联合索引
-- type变为了ref,Extra中的Using filesort也消失了,结果非常理想
DROP INDEX idx_article_ccv ON article;
create index idx_article_ccv on article(category_id, views);
EXPLAIN SELECT id, author_id FROM article WHERE category_id = 1 AND comments > 1 ORDER BY views DESC LIMIT 1;
+----+-------------+---------+------------+------+-----------------+-----------------+---------+-------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+---------+------------+------+-----------------+-----------------+---------+-------+------+----------+-------------+
| 1 | SIMPLE | article | NULL | ref | idx_article_ccv | idx_article_ccv | 4 | const | 2 | 33.33 | Using where |
+----+-------------+---------+------------+------+-----------------+-----------------+---------+-------+------+----------+-------------+
两表索引优化
--准备
CREATE TABLE IF NOT EXISTS class(
id INT(10) UNSIGNED NOT NULL AUTO_INCREMENT,
card INT(10) UNSIGNED NOT NULL,
PRIMARY KEY(id)
);
CREATE TABLE IF NOT EXISTS book(
bookid INT(10) UNSIGNED NOT NULL AUTO_INCREMENT,
card INT(10) UNSIGNED NOT NULL,
PRIMARY KEY(bookid)
);
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO class(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO book(card) VALUES(FLOOR(1+(RAND()*20)));
-- 查询案例:实现两表的连接,连接条件是 class.card = book.card
-- explain 分析 SQL 语句的性能,可以看到:驱动表是左表 class 表
-- type 有 All ,rows 为表中数据总行数,说明 class 和 book 进行了全表检索
-- 即每次 class 表对 book 表进行左外连接时,都需要在 book 表中进行一次全表检索
EXPLAIN SELECT * FROM class LEFT JOIN book ON class.card = book.card;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| 1 | SIMPLE | class | NULL | ALL | NULL | NULL | NULL | NULL | 21 | 100.00 | NULL |
| 1 | SIMPLE | book | NULL | ALL | NULL | NULL | NULL | NULL | 20 | 100.00 | Using where; Using join buffer (Block Nested Loop) |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
-- 1. 在右表添加索引: 无效
ALTER TABLE class ADD INDEX X(card);
EXPLAIN SELECT * FROM class LEFT JOIN book ON class.card = book.card;
+----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| 1 | SIMPLE | class | NULL | index | NULL | X | 4 | NULL | 21 | 100.00 | Using index |
| 1 | SIMPLE | book | NULL | ALL | NULL | NULL | NULL | NULL | 20 | 100.00 | Using where; Using join buffer (Block Nested Loop) |
+----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+----------------------------------------------------+
-- 2. 添加索引:在右表添加索引
-- 可以看到第二行的type变为了ref,rows也变成了优化比较明显。
-- 左表连接右表,则需要拿着左表的数据去右表里面查,索引需要在右表中建立索引
DROP INDEX X ON class;
ALTER TABLE book ADD INDEX Y (card);
mysql> EXPLAIN SELECT * FROM class LEFT JOIN book ON class.card = book.card;
+----+-------------+-------+------------+------+---------------+------+---------+-----------------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+-----------------+------+----------+-------------+
| 1 | SIMPLE | class | NULL | ALL | NULL | NULL | NULL | NULL | 21 | 100.00 | NULL |
| 1 | SIMPLE | book | NULL | ref | Y | Y | 4 | test.class.card | 1 | 100.00 | Using index |
+----+-------------+-------+------------+------+---------------+------+---------+-----------------+------+----------+-------------+
三表索引优化
--数据准备
CREATE TABLE IF NOT EXISTS phone(
phoneid INT(10) UNSIGNED NOT NULL AUTO_INCREMENT,
card INT(10) UNSIGNED NOT NULL,
PRIMARY KEY(phoneid)
)ENGINE=INNODB;
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
INSERT INTO phone(card) VALUES(FLOOR(1+(RAND()*20)));
-- 实现三表的连接查询
-- 使用 explain 分析 SQL 指令:
-- type 有All ,rows 为表数据总行数,说明 class、 book 和 phone 表都进行了全表检索
-- Extra 中 Using join buffer ,表明连接过程中使用了 join 缓冲区
EXPLAIN SELECT * FROM class LEFT JOIN book ON class.card = book.card LEFT JOIN phone ON book.card = phone.card;
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
| 1 | SIMPLE | class | NULL | ALL | NULL | NULL | NULL | NULL | 21 | 100.00 | NULL |
| 1 | SIMPLE | book | NULL | ALL | NULL | NULL | NULL | NULL | 20 | 100.00 | Using where; Using join buffer (Block Nested Loop) |
| 1 | SIMPLE | phone | NULL | ALL | NULL | NULL | NULL | NULL | 20 | 100.00 | Using where; Using join buffer (Block Nested Loop) |
+----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+----------------------------------------------------+
-- 1. 进行 LEFT JOIN ,永远都在右表的字段上建立索引
-- 后2行的type都是ref,且总rows优化很好,效果不错。因此索引最好设置在需要经常查询的字段中。
ALTER TABLE book ADD INDEX Y (card);
ALTER TABLE phone ADD INDEX Z (card);
EXPLAIN SELECT * FROM class LEFT JOIN book ON class.card = book.card LEFT JOIN phone ON book.card = phone.card;
+----+-------------+-------+------------+------+---------------+------+---------+-----------------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+-------+------------+------+---------------+------+---------+-----------------+------+----------+-------------+
| 1 | SIMPLE | class | NULL | ALL | NULL | NULL | NULL | NULL | 21 | 100.00 | NULL |
| 1 | SIMPLE | book | NULL | ref | Y | Y | 4 | test.class.card | 1 | 100.00 | Using index |
| 1 | SIMPLE | phone | NULL | ref | Z | Z | 4 | test.book.card | 1 | 100.00 | Using index |
+----+-------------+-------+------------+------+---------------+------+---------+-----------------+------+----------+-------------+
join语句优化总结
- 将 left join 看作是两层嵌套 for 循环
-
永远用小结果集驱动大的结果集(在大结果集中建立索引,在小结果集中遍历全表); 使用小表驱动大表,这就相当于外层 for 循环的次数少,内层 for 循环的次数多 然后我们在大表中建立了索引,这样内层 for 循环的效率明显提高 综上,使用小表驱动大表,在大表中建立了索引
-
当无法保证被驱动表的Join条件字段被索引且内存资源充足的前提下,不要太吝惜JoinBuffer的设置;
-
子查询尽量不要放在被驱动表,有可能使用不到索引; left join时,尽量让实体表作为被驱动表。
3. 索引失效
索引失效判断准则
- 全值匹配
- 最佳左前缀法则:如果索引了多例,要遵守最左前缀法则。指的是查询从索引的最左前列开始并且不跳过索引中的列。
- 不在索引列上做任何操作(计算、函数、(自动or手动)类型转换),会导致索引失效而转向全表扫描
- 存储引擎不能使用索引中范围条件右边的列
- 尽量使用覆盖索引(只访问索引的查询(索引列和查询列一致)),减少select *
- mysql在使用不等于(!=或者<>)的时候无法使用索引会导致全表扫描
- is null,is not null 也无法使用索引(早期版本不能走索引,后续版本应该优化过,可以走索引)
- like以通配符开头(’%abc…’)mysql索引失效会变成全表扫描操作
- 字符串不加单引号索引失效
- 少用or,用它连接时会索引失效 总结: 在选择组合索引的时候,当前query中过滤性最好的字段在索引字段顺序中,位置越靠左越好。
-- 准备数据
CREATE TABLE staffs(
id INT PRIMARY KEY AUTO_INCREMENT,
`name` VARCHAR(24)NOT NULL DEFAULT'' COMMENT'姓名',
`age` INT NOT NULL DEFAULT 0 COMMENT'年龄',
`pos` VARCHAR(20) NOT NULL DEFAULT'' COMMENT'职位',
`add_time` TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT'入职时间'
)CHARSET utf8 COMMENT'员工记录表';
INSERT INTO staffs(`name`,`age`,`pos`,`add_time`) VALUES('z3',22,'manager',NOW());
INSERT INTO staffs(`name`,`age`,`pos`,`add_time`) VALUES('July',23,'dev',NOW());
INSERT INTO staffs(`name`,`age`,`pos`,`add_time`) VALUES('2000',23,'dev',NOW());
ALTER TABLE staffs ADD INDEX index_staffs_nameAgePos(`name`,`age`,`pos`);
-- 2. 最左前缀
EXPLAIN SELECT * FROM staffs WHERE age = 23 AND pos = 'dev';--失效
+----+-------------+--------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | staffs | NULL | ALL | NULL | NULL | NULL | NULL | 6 | 16.67 | Using where |
+----+-------------+--------+------------+------+---------------+------+---------+------+------+----------+-------------+
-- 3. 不在索引列上做任何操作
EXPLAIN SELECT * FROM staffs WHERE LEFT(name,4) = 'July';
+----+-------------+--------+------------+------+---------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+---------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | staffs | NULL | ALL | NULL | NULL | NULL | NULL | 6 | 100.00 | Using where |
+----+-------------+--------+------------+------+---------------+------+---------+------+------+----------+-------------+
-- 4. 范围之后全失效
EXPLAIN SELECT * FROM staffs WHERE name = 'July'AND age > 23 AND pos = 'dev';
+----+-------------+--------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+-----------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+-----------------------+
| 1 | SIMPLE | staffs | NULL | range | index_staffs_nameAgePos | index_staffs_nameAgePos | 78 | NULL | 1 | 16.67 | Using index condition |
+----+-------------+--------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+-----------------------+
-- 5. 尽量使用覆盖索引(只访问索引的查询(索引列和查询列一致)),减少 select *
EXPLAIN SELECT name, age, pos FROM staffs WHERE name = 'July'AND age > 23 AND pos = 'dev';
+----+-------------+--------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+--------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+--------------------------+
| 1 | SIMPLE | staffs | NULL | range | index_staffs_nameAgePos | index_staffs_nameAgePos | 78 | NULL | 1 | 16.67 | Using where; Using index |
+----+-------------+--------+------------+-------+-------------------------+-------------------------+---------+------+------+----------+--------------------------+
-- 6. mysql在使用不等于(!=或者<>)的时候无法使用索引会导致全表扫描
EXPLAIN SELECT * FROM staffs WHERE name != 'July';
+----+-------------+--------+------------+------+-------------------------+------+---------+------+------+----------+-------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+-------------------------+------+---------+------+------+----------+-------------+
| 1 | SIMPLE | staffs | NULL | ALL | index_staffs_nameAgePos | NULL | NULL | NULL | 6 | 66.67 | Using where |
+----+-------------+--------+------------+------+-------------------------+------+---------+------+------+----------+-------------+
-- 7. is null,is not null 也无法使用索引
EXPLAIN SELECT * FROM staffs WHERE name is null;
+----+-------------+-------+------+---------------+------+---------+------+------+------------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+-------+------+---------------+------+---------+------+------+------------------+
| 1 | SIMPLE | NULL | NULL | NULL | NULL | NULL | NULL | NULL | Impossible WHERE |
+----+-------------+-------+------+---------------+------+---------+------+------+------------------+
-- 8. like % 写最右
EXPLAIN SELECT * FROM staffs WHERE name like '%July';
+----+-------------+--------+------+---------------+------+---------+------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+--------+------+---------------+------+---------+------+------+-------------+
| 1 | SIMPLE | staffs | ALL | NULL | NULL | NULL | NULL | 3 | Using where |
+----+-------------+--------+------+---------------+------+---------+------+------+-------------+
-- 解决【like ‘%str%’ 】索引失效的问题:覆盖索引
-- 9. 字符串不加单引号索引失效
explain select * from staffs where name=2000;
+----+-------------+--------+------+-------------------------+------+---------+------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+--------+------+-------------------------+------+---------+------+------+-------------+
| 1 | SIMPLE | staffs | ALL | index_staffs_nameAgePos | NULL | NULL | NULL | 3 | Using where |
+----+-------------+--------+------+-------------------------+------+---------+------+------+-------------+
-- 10. 少用or,用它连接时会索引失效
explain select * from staffs where name='z3' or name = 'July';
+----+-------------+--------+------+-------------------------+------+---------+------+------+-------------+
| id | select_type | table | type | possible_keys | key | key_len | ref | rows | Extra |
+----+-------------+--------+------+-------------------------+------+---------+------+------+-------------+
| 1 | SIMPLE | staffs | ALL | index_staffs_nameAgePos | NULL | NULL | NULL | 3 | Using where |
+----+-------------+--------+------+-------------------------+------+---------+------+------+-------------+
4. 截取查询分析
慢查询日志
开启使用
-
是什么 (1)MySQL的慢查询日志是MySQL提供的一种日志记录,它用来记录在MySQL中响应时间超过阀值的语句,具体指运行时间超过long_query_time值的SQL,则会被记录到慢查询日志中。 (2)具体指运行时间超过long_query_time值的SQL,则会被记录到慢查询日志中。long_query_time的默认值为10,意思是运行10秒以上的语句。 (3)由他来查看哪些SQL超出了我们的最大忍耐时间值,比如一条sql执行超过5秒钟,我们就算慢SQL,希望能收集超过5秒的sql,结合之前explain进行全面分析。
-
怎么用 默认情况下,MySQL 数据库没有开启慢查询日志,需要我们手动来设置这个参数。 当然,如果不是调优需要的话,一般不建议启动该参数,因为开启慢查询日志会或多或少带来一定的性能影响。 慢查询日志支持将日志记录写入文件。
- 查看是否开启 默认情况下slow_query_log的值为OFF,表示慢查询日志是禁用的
可以通过设置slow_query_log的值来开启
通过SHOW VARIABLES LIKE '%slow_query_log%';查看 mysql 的慢查询日志是否开启
- 如何开启开启慢查询日志 set global slow_query_log = 1;开启慢查询日志
使用set global slow_query_log=1开启了慢查询日志只对当前数据库生效,如果MySQL重启后则会失效。
如果要永久生效,就必须修改配置文件my.cnf
修改my.cnf文件,[mysqld]下增加或修改参数:slow_query_log和slow_query_log_file后,然后重启MySQL服务器。
也即将如下两行配置进my.cnf文件
[mysqld]
slow_query_log =1
slow_query_log_file=/var/lib/mysql/Heygo-slow.log
关于慢查询的参数slow_query_log_file,它指定慢查询日志文件的存放路径,系统默认会给一个缺省的文件host_name-slow.log(如果没有指定参数slow_query_log_file的话)
- 那么开启慢查询日志后,什么样的SQL参会记录到慢查询里面? 这个是由参数long_query_time控制,默认情况下long_query_time的值为10秒
命令:SHOW VARIABLES LIKE 'long_query_time%';查看慢 SQL 的阈值
可以使用命令修改,也可以在my.cnf参数里面修改。
假如运行时间正好等于long_query_time的情况,并不会被记录下来。也就是说,在mysql源码里是判断大于long_query_time,而非大于等于。
mysql> select sleep(10);
+-----------+
| sleep(10) |
+-----------+
| 0 |
+-----------+
1 row in set (10.04 sec)
mysql> show global status like '%Slow_queries%';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| Slow_queries | 1 |
+---------------+-------+
1 row in set (0.00 sec)
mysql> show global variables like '%slow%';
+---------------------------+---------------------------------+
| Variable_name | Value |
+---------------------------+---------------------------------+
| log_slow_admin_statements | OFF |
| log_slow_slave_statements | ON |
| slow_launch_time | 2 |
| slow_query_log | ON |
| slow_query_log_file | /export/data/mysql/log/slow.log |
+---------------------------+---------------------------------+
root@mysql:/var/lib/mysql# cat mysql-slow.log
select sleep(10);
日志分析命令 mysqldumpslow
在生产环境中,如果要手工分析日志,查找、分析SQL,显然是个体力活,MySQL提供了日志分析工具mysqldumpslow。
mysqldumpshow 参数解释:
s:是表示按何种方式排序
c:访问次数
l:锁定时间
r:返回记录
t:查询时间
al:平均锁定时间
ar:平均返回记录数
at:平均查询时间
t:即为返回前面多少条的数据
g:后边搭配一个正则匹配模式,大小写不敏感的
常用参数手册:
- 得到返回记录集最多的10个SQL
mysqldumpslow -s r -t 10 /var/lib/mysql/Heygo-slow.log
- 得到访问次数最多的10个SQL
mysqldumpslow -s c -t 10 /var/lib/mysql/Heygo-slow.log
- 得到按照时间排序的前10条里面含有左连接的查询语句
mysqldumpslow -s t -t 10 -g "left join" /var/lib/mysql/Heygo-slow.log
- 另外建议在使用这些命令时结合 | 和more使用,否则有可能出现爆屏情况
mysqldumpslow -s r -t 10 /var/lib/mysql/Heygo-slow.log | more
Show Profile
Show Profile是mysql提供可以用来分析当前会话中语句执行的资源消耗情况。可以用于SQL的调优测量 默认情况下,参数处于关闭状态,并保存最近15次的运行结果
- 查看是当前的SQL版本是否支持Show Profile
show variables like '%profiling%'; 查看 Show Profile 是否开启
- 开启功能 Show Profile ,默认是关闭,使用前需要开启
set profiling=on; 开启 Show Profile
- 通过 show profiles; 指令查看结果
mysql> show profiles;
+----------+------------+----------------------------------------------------------------------+
| Query_ID | Duration | Query |
+----------+------------+----------------------------------------------------------------------+
| 1 | 0.00052700 | show variables like 'profiling%' |
| 2 | 0.00030300 | select * from tbl_emp |
| 3 | 0.00010650 | select * from tbl_emp e inner join tbl_dept d on e.'deptId' = d.'id' |
| 4 | 0.00031625 | select * from tbl_emp e inner join tbl_dept d on e.deptId = d.id |
| 5 | 0.00042100 | select * from tbl_emp e left join tbl_dept d on e.deptId = d.id |
| 6 | 0.38621875 | select * from emp group by id%20 limit 150000 |
| 7 | 0.00014900 | select * from emp group by id%20 order by 150000 |
| 8 | 0.38649000 | select * from emp group by id%20 order by 5 |
| 9 | 0.06782700 | select COUNT(*) from emp |
| 10 | 0.35434400 | select * from emp group by id%10 limit 150000 |
+----------+------------+----------------------------------------------------------------------+
10 rows in set, 1 warning (0.00 sec)
- 诊断SQL show profile cpu, block io for query SQL编号; 查看 SQL 语句执行的具体流程以及每个步骤花费的时间
mysql> show profile cpu, block io for query 2;
+----------------------+----------+----------+------------+--------------+---------------+
| Status | Duration | CPU_user | CPU_system | Block_ops_in | Block_ops_out |
+----------------------+----------+----------+------------+--------------+---------------+
| starting | 0.000055 | 0.000000 | 0.000000 | 0 | 0 |
| checking permissions | 0.000007 | 0.000000 | 0.000000 | 0 | 0 |
| Opening tables | 0.000011 | 0.000000 | 0.000000 | 0 | 0 |
| init | 0.000024 | 0.000000 | 0.000000 | 0 | 0 |
| System lock | 0.000046 | 0.000000 | 0.000000 | 0 | 0 |
| optimizing | 0.000018 | 0.000000 | 0.000000 | 0 | 0 |
| statistics | 0.000008 | 0.000000 | 0.000000 | 0 | 0 |
| preparing | 0.000019 | 0.000000 | 0.000000 | 0 | 0 |
| executing | 0.000003 | 0.000000 | 0.000000 | 0 | 0 |
| Sending data | 0.000089 | 0.000000 | 0.000000 | 0 | 0 |
| end | 0.000004 | 0.000000 | 0.000000 | 0 | 0 |
| query end | 0.000003 | 0.000000 | 0.000000 | 0 | 0 |
| closing tables | 0.000005 | 0.000000 | 0.000000 | 0 | 0 |
| freeing items | 0.000006 | 0.000000 | 0.000000 | 0 | 0 |
| cleaning up | 0.000006 | 0.000000 | 0.000000 | 0 | 0 |
+----------------------+----------+----------+------------+--------------+---------------+
15 rows in set, 1 warning (0.00 sec)
参数备注:
ALL:显示所有的开销信息
BLOCK IO:显示块IO相关开销
CONTEXT SWITCHES:上下文切换相关开销
CPU:显示CPU相关开销信息
IPC:显示发送和接收相关开销信息
MEMORY:显示内存相关开销信息
PAGE FAULTS:显示页面错误相关开销信息
SOURCE:显示和Source_function,Source_file,Source_line相关的开销信息
SWAPS:显示交换次数相关开销的信息
日常开发需要注意的结论
converting HEAP to MyISAM:查询结果太大,内存都不够用了往磁盘上搬了。
Creating tmp table:创建临时表,mysql 先将拷贝数据到临时表,然后用完再将临时表删除
Copying to tmp table on disk:把内存中临时表复制到磁盘,危险!!!
locked:锁表
全局查询日志
永远不要在生产环境开启这个功能。
- 配置启用全局查询日志 在mysql的my.cnf中,设置如下:
# 开启
general_log=1
# 记录日志文件的路径
general_log_file=/path/logfile
# 输出格式
log_output=FILE
- 编码启用全局查询日志 执行如下指令开启全局查询日志
set global general_log=1;
set global log_output='TABLE';
此后,你所执行的sql语句,将会记录到mysql库里的general_log表,可以用下面的命令查看 select * from mysql.general_log;
mysql> select * from mysql.general_log;
+---------------------+---------------------------+-----------+-----------+--------------+-----------------------------------------------+
| event_time | user_host | thread_id | server_id | command_type | argument |
+---------------------+---------------------------+-----------+-----------+--------------+-----------------------------------------------+
| 2020-08-05 14:41:07 | root[root] @ localhost [] | 14 | 0 | Query | select * from emp group by id%10 limit 150000 |
| 2020-08-05 14:41:12 | root[root] @ localhost [] | 14 | 0 | Query | select COUNT(*) from emp |
| 2020-08-05 14:41:30 | root[root] @ localhost [] | 14 | 0 | Query | select * from mysql.general_log |
+---------------------+---------------------------+-----------+-----------+--------------+-----------------------------------------------+
3 rows in set (0.00 sec)
5. 查询优化
子查询优化
在范围判断时,尽量不要使用 not in 和 not exists,使用 left join on xxx is null 代替。
-- 取所有不为掌门人的员工,按年龄分组
select age as 'age', count(*) as 'sum' from t_emp where id not in (select ceo from t_dept where ceo is not null) group by age;
-- 1解决 dept 表的全表扫描,建立 ceo 字段的索引:
-- 2进一步优化,替换 not in
select age as '年龄',count(*) as '人数' from emp e left join dept d on e.id=d.ceo where d.id is null group by age;
排序分组优化
- order by/group by字段顺序要与组合索引顺序一致
-- 数据准备
create table test03(
id int primary key not null auto_increment,
c1 char(10),
c2 char(10),
c3 char(10),
c4 char(10),
c5 char(10)
);
insert into test03(c1,c2,c3,c4,c5) values ('a1','a2','a3','a4','a5');
insert into test03(c1,c2,c3,c4,c5) values ('b1','b2','b3','b4','b5');
insert into test03(c1,c2,c3,c4,c5) values ('c1','c2','c3','c4','c5');
insert into test03(c1,c2,c3,c4,c5) values ('d1','d2','d3','d4','d5');
insert into test03(c1,c2,c3,c4,c5) values ('e1','e2','e3','e4','e5');
create index idx_test03_c1234 on test03(c1,c2,c3,c4);
-- 因为索引建立的顺序和使用的顺序不一致,导致 mysql 动用了文件排序
EXPLAIN SELECT * FROM test03 WHERE c1='a1' AND c2='a2' ORDER BY c4;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+---------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+---------------------------------------+
| 1 | SIMPLE | test03 | NULL | ref | idx_test03_c1234 | idx_test03_c1234 | 22 | const,const | 1 | 100.00 | Using index condition; Using filesort |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+---------------------------------------+
-- 出现了filesort,我们建的索引是1234,它没有按照顺序来,32颠倒了
EXPLAIN SELECT * FROM test03 WHERE c1='a1' AND c5='a5' ORDER BY c3, c2;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------+------+----------+----------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------+------+----------+----------------------------------------------------+
| 1 | SIMPLE | test03 | NULL | ref | idx_test03_c1234 | idx_test03_c1234 | 11 | const | 1 | 20.00 | Using index condition; Using where; Using filesort |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------+------+----------+----------------------------------------------------+
-- 注意查询条件 c2=‘a2’ ,我都把 c2 查出来了(c2 为常量),还给它排序作甚,所以没有产生 filesort
EXPLAIN SELECT * FROM test03 WHERE c1='a1' AND c2='a2' AND c5='a5' ORDER BY c3, c2;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+------------------------------------+
| 1 | SIMPLE | test03 | NULL | ref | idx_test03_c1234 | idx_test03_c1234 | 22 | const,const | 1 | 20.00 | Using index condition; Using where |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------------+------+----------+------------------------------------+
-- group by 表面上叫分组,分组之前必排序,group by 和 order by 在索引上的问题基本是一样的
-- Using temporary; Using filesort 两个都有
-- group by 基本上都需要进行排序,但凡使用不当,会有临时表产生
EXPLAIN SELECT c1,c2,c3,c4 FROM test03 WHERE c1='a1' AND c4='a4' GROUP BY c3, c2;
+----+-------------+--------+------------+------+------------------+------------------+---------+-------+------+----------+-----------------------------------------------------------+
| id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------+------+----------+-----------------------------------------------------------+
| 1 | SIMPLE | test03 | NULL | ref | idx_test03_c1234 | idx_test03_c1234 | 11 | const | 1 | 20.00 | Using where; Using index; Using temporary; Using filesort |
+----+-------------+--------+------------+------+------------------+------------------+---------+-------+------+----------+-----------------------------------------------------------+
- 索引的选择
-- 年龄为 30 岁的,且员工编号小于 101000 的用户,按用户名称排序
explain SELECT SQL_NO_CACHE * FROM emp WHERE age =30 AND empno <101000 ORDER BY NAME ;
-- 索引
create index idx_age_name on emp(age,name);
create index idx_age_empno on emp(age,empno);
原因:所有的排序都是在条件过滤之后才执行的,所以如果条件过滤了大部分数据的话,几百几千条数据进行排序 其实并不是很消耗性能,即使索引优化了排序但实际提升性能很有限。 相对的 empno<101000 这个条件如果没 有用到索引的话,要对几万条的数据进行扫描,这是非常消耗性能的,使用 empno 字段的范围查询,过滤性更好 (empno 从 100000 开始)!
结论: 当范围条件和 group by 或者 order by 的字段出现二选一时 ,优先观察条件字段的过滤数量,如果过滤的 数据足够多,而需要排序的数据并不多时,优先把索引放在范围字段上。反之,亦然。
exist&in的合理利用
假设表A表示某企业的员工表,表B表示部门表,查询所有部门的所有员工,很容易有以下SQL:
select * from A where deptId in (select deptId from B);
这样写等价于:
先查询部门表B
select deptId from B
再由部门deptId,查询A的员工
select * from A where A.deptId = B.deptId
select * from A where exists (select 1 from B where A.deptId = B.deptId);
显然,除了使用in,我们也可以用exists实现一样的查询功能 因为exists查询的理解就是,先执行主查询,获得数据后,再放到子查询中做条件验证,根据验证结果(true或者false),来决定主查询的数据结果是否得意保留。 那么,这样写就等价于:
select * from A,先从A表做循环
select * from B where A.deptId = B.deptId,再从B表做循环.
数据库最费劲的就是跟程序链接释放。假设链接了两次,每次做上百万次的数据集查询,查完就走,这样就只做了两次;相反建立了上百万次链接,申请链接释放反复重复,这样系统就受不了了。即mysql优化原则,就是小表驱动大表,小的数据集驱动大的数据集,从而让性能更优。
因此,我们要选择最外层循环小的,也就是,如果B的数据量小于A,适合使用in,如果B的数据量大于A,即适合选择exist。
尽量用union all替换 union
如果使用union,不管检索结果有没有重复,都会尝试进行合并,然后在输出最终结果前进行排序。如果已知检索结果没有重复记录,使用union all 代替union,这样会提高效率。
索引不宜太多,一般5个以内。
索引并不是越多越好,索引虽然提高了查询的效率,但是也降低了插入和更新的效率。
insert或update时有可能会重建索引,所以建索引需要慎重考虑,视具体情况来定。
一个表的索引数最好不要超过5个,若太多需要考虑一些索引是否没有存在的必要。
