一、背景

使用 mysqld_exporter 来抓取 mysql的一些指标信息。

二、prometheus接入mysqld_exporter

1、安装mysqld_exporter

# 下载 mysqld_exporter
wget https://github.com/prometheus/mysqld_exporter/releases/download/v0.12.1/mysqld_exporter-0.12.1.darwin-amd64.tar.gz
# 解压 并 重命名
tar -zxvf mysqld_exporter-0.12.1.darwin-amd64.tar.gz
mv mysqld_exporter-0.12.1.darwin-amd64 mysqld_exporter

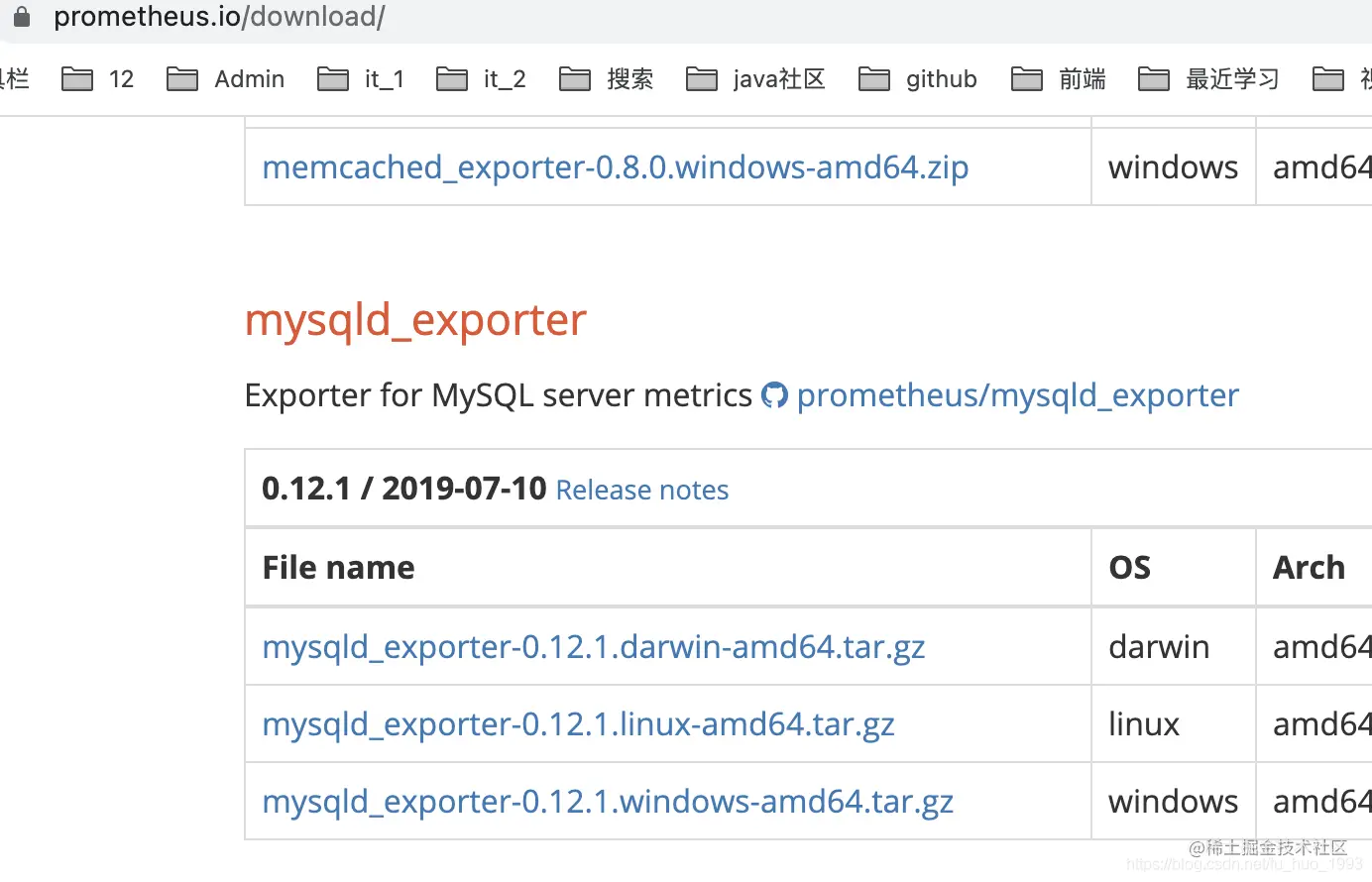

mysqld_exporter下载地址

2、创建mysqld_exporter用户并授权

CREATE USER 'mysqld_exporter'@'localhost' IDENTIFIED BY 'mysqldExporter1993' WITH MAX_USER_CONNECTIONS 3;
GRANT PROCESS, REPLICATION CLIENT, SELECT ON *.* TO 'mysqld_exporter'@'localhost';

注意：
在创建用户的时候，推荐执行 MAX_USER_CONNECTIONS参数，避免我们监控使用过多的数据库连接数，导致数据库压力过大。

3、创建 my.cnf 配置文件

在和mysqld_exporter文件同级的文件夹中创建my.cnf文件，文件内容如下。

[client]
user=mysqld_exporter
password=mysqldExporter1993
host=localhost
port=3306

4、启动mysqld_exporter

nohup /Users/huan/soft/prometheus/mysqld_exporter/mysqld_exporter \
--config.my-cnf="/Users/huan/soft/prometheus/mysqld_exporter/my.cnf" \
--web.listen-address="0.0.0.0:9088" \
--log.level=debug \
> logs/mysqld_exporter.out 2>&1 &

参数解释：

参数	解释
--config.config.my-cnf	指定配置文件的路径
--web.listen-address	指定监听的地址，端口
--log.level	指定日志级别

5、查看抓取的mysql指标信息

http://localhost:9088/metrics 抓取的部分指标数据

6、接入到prometheus中

scrape_configs:
  - job_name: 'mysqld-exporter'
    static_configs:
    - targets: ['localhost:9088']
      labels:
        nodename: 'mysql'

接入到prometheus

三、部分告警指标

groups:
- name: GaleraAlerts
  rules:
  - alert: MySQLGaleraNotReady
    expr: mysql_global_status_wsrep_ready != 1
    for: 5m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.job}} on {{$labels.instance}} is not ready.'
      summary: Galera cluster node not ready
  - alert: MySQLGaleraOutOfSync
    expr: (mysql_global_status_wsrep_local_state != 4 and mysql_global_variables_wsrep_desync
      == 0)
    for: 5m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.job}} on {{$labels.instance}} is not in sync ({{$value}}
        != 4).'
      summary: Galera cluster node out of sync
  - alert: MySQLGaleraDonorFallingBehind
    expr: (mysql_global_status_wsrep_local_state == 2 and mysql_global_status_wsrep_local_recv_queue
      > 100)
    for: 5m
    labels:
      severity: warning
    annotations:
      description: '{{$labels.job}} on {{$labels.instance}} is a donor (hotbackup)
        and is falling behind (queue size {{$value}}).'
      summary: xtradb cluster donor node falling behind
  - alert: MySQLReplicationNotRunning
    expr: mysql_slave_status_slave_io_running == 0 or mysql_slave_status_slave_sql_running
      == 0
    for: 2m
    labels:
      severity: critical
    annotations:
      description: Slave replication (IO or SQL) has been down for more than 2 minutes.
      summary: Slave replication is not running
  - alert: MySQLReplicationLag
    expr: (instance:mysql_slave_lag_seconds > 30) and on(instance) (predict_linear(instance:mysql_slave_lag_seconds[5m],
      60 * 2) > 0)
    for: 1m
    labels:
      severity: critical
    annotations:
      description: The mysql slave replication has fallen behind and is not recovering
      summary: MySQL slave replication is lagging
  - alert: MySQLReplicationLag
    expr: (instance:mysql_heartbeat_lag_seconds > 30) and on(instance) (predict_linear(instance:mysql_heartbeat_lag_seconds[5m],
      60 * 2) > 0)
    for: 1m
    labels:
      severity: critical
    annotations:
      description: The mysql slave replication has fallen behind and is not recovering
      summary: MySQL slave replication is lagging
  - alert: MySQLInnoDBLogWaits
    expr: rate(mysql_global_status_innodb_log_waits[15m]) > 10
    labels:
      severity: warning
    annotations:
      description: The innodb logs are waiting for disk at a rate of {{$value}} /
        second
      summary: MySQL innodb log writes stalling

参考连接：github.com/prometheus/…

四、参考链接

1、mysqld_exporter的github地址
2、mysql的部分告警编写

mysqld_exporter监控mysql信息
