自己原来是做iOS开发,后来转成react-native,iOS中的webview还好,最新的WkWebView兼容性还行。但是遇到android的时候,真的是被各种的手机支配的心累。这篇文章主要说下webView在Flutter中怎么使用。找到最适合项目的方案
webview_flutter
On iOS the WebView widget is backed by a WKWebView; On Android the WebView widget is backed by a WebView.
引入库在pubspec.yaml中加入。没有用最新版本,还没更新到2.0
webview_flutter: ^1.0.7
这个插件是官方推荐的使用也比较简单
import 'package:webview_flutter/webview_flutter.dart';
@override
void initState() {
super.initState();
if (Platform.isAndroid) WebView.platform = SurfaceAndroidWebView();
}
@override
Widget build(BuildContext context) {
return WebView(
initialUrl: 'https://flutter.dev',
);
}

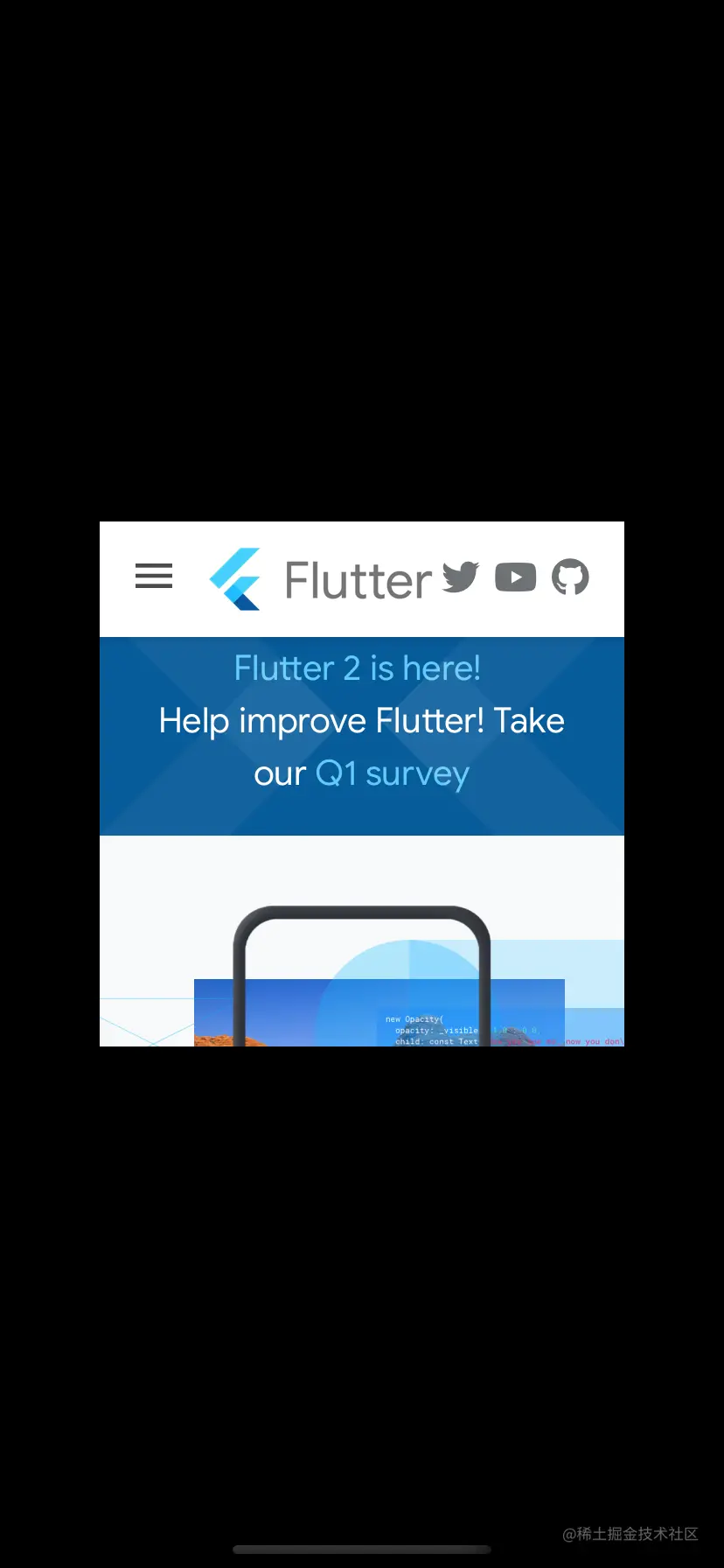

控制webView的展示的宽高:
@override
Widget build(BuildContext context) {
return UnconstrainedBox(
child: Container(
height: 300,
width: 300,
child: WebView(
initialUrl: 'https://flutter.dev',
)),
);
}
加载本地html文件
WebViewController _webViewController;
WebView(
initialUrl: '',
javascriptMode: JavascriptMode.unrestricted,
onWebViewCreated: (WebViewController webViewController) {
_webViewController = webViewController;
_loadHtmlFromAssets();
},
)
_loadHtmlFromAssets() async {
String fileHtmlContents = await rootBundle.loadString('本地路径html文件在项目中的路径');
_webViewController.loadUrl(Uri.dataFromString(fileHtmlContents,
mimeType: 'text/html', encoding: Encoding.getByName('utf-8')).toString());
}
据说flutter_webview_plugin这个插件是在webview_flutter基础上做的封装,有兴趣的可以看下。这些都不是重点。这两个可以插件可以说在iOS上没有问题,但是在android上呢,随着碎片化的机型适配,我遇到的比较特殊的局势oppo和vivo手机上适配不太行,需要腾讯X5内核的才行。
x5_webview
针对于android的加载webView的解决方案。 同样pubspec.yaml文件添加
x5_webview: ^0.24.6
插件介绍android6.0以上需要动态申请权限, 使用permission_handler库进行申请权限
//请求权限
Map<Permission, PermissionStatus> statuses = await [
Permission.phone,
Permission.storage,
].request();
//判断权限
if (!(statuses[Permission.phone].isGranted &&
statuses[Permission.storage].isGranted)) {
print("权限被拒绝");
return;
}
初始化:
var isOk = await X5Sdk.init();
print(isOk ? "X5内核成功加载" : "X5内核加载失败");
支持直接打开页面
X5Sdk.openWebActivity("https://www.baidu.com",title: "web页面");
内嵌webView:
X5WebView(
url: "https://www.baidu.com",
javaScriptEnabled: true,
header: {"TestHeader": "测试"},
userAgentString: "my_ua",
//Url拦截,传null不会拦截会自动跳转
onUrlLoading: (willLoadUrl) {
_controller.loadUrl(willLoadUrl);
}
onWebViewCreated: (control) {
_controller = control;
},)
仅对与android平台
flutter_html
如果项目中遇到,直接返回html的数据,直接使用flutter_html展示即可, 同样的方式引入
flutter_html: ^1.1.1
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text('flutter_html'),
),

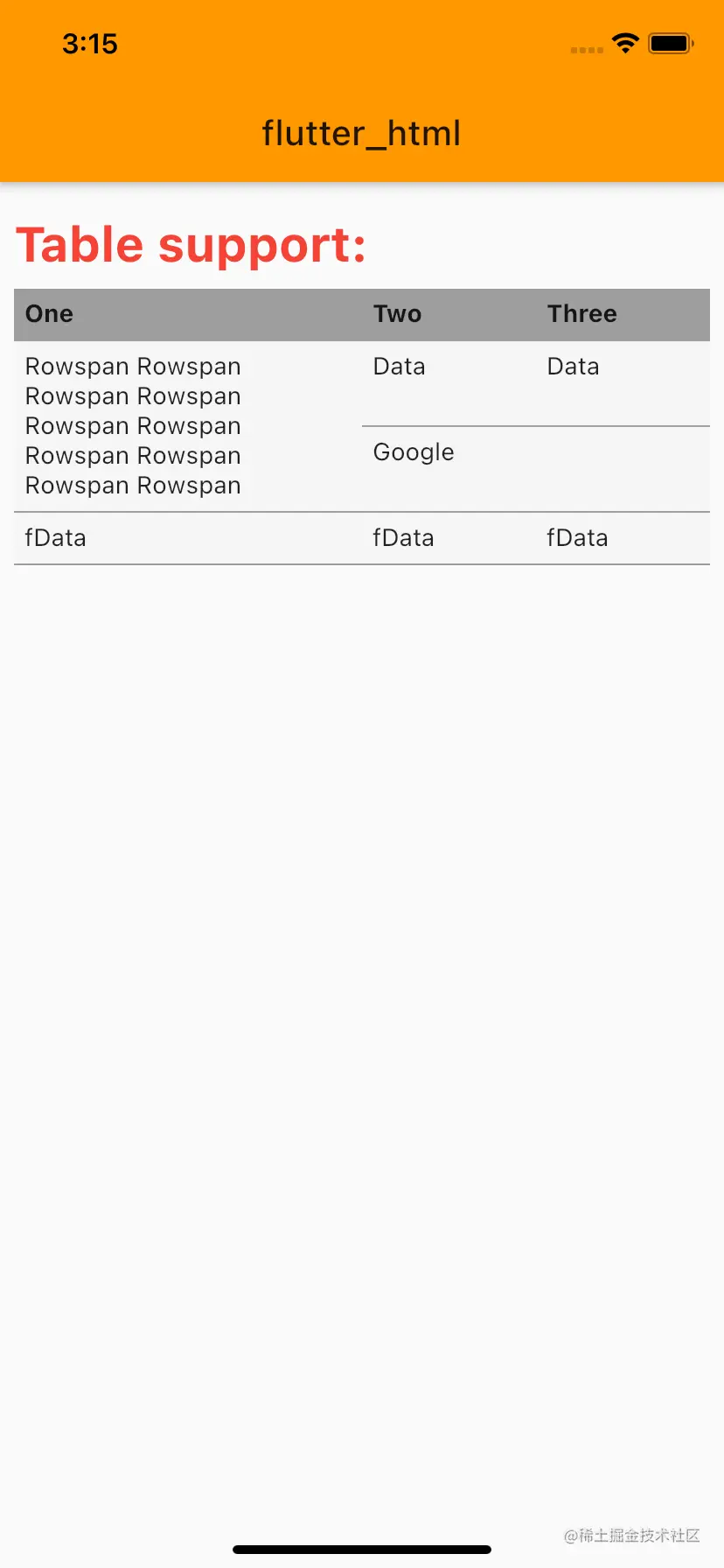

body: Html(data: """
<h1>Table support:</h1>
<table>
<colgroup>
<col width="50%" />
<col span="2" width="25%" />
</colgroup>
<thead>
<tr><th>One</th><th>Two</th><th>Three</th></tr>
</thead>
<tbody>
<tr>
<td rowspan='2'>Rowspan\nRowspan\nRowspan\nRowspan\nRowspan\nRowspan\nRowspan\nRowspan\nRowspan\nRowspan</td><td>Data</td><td>Data</td>
</tr>
<tr>
<td colspan="2"><img alt='Google' src='https://www.google.com/images/branding/googlelogo/2x/googlelogo_color_92x30dp.png' /></td>
</tr>
</tbody>
<tfoot>
<tr><td>fData</td><td>fData</td><td>fData</td></tr>
</tfoot>
</table>""", style: {
// tables will have the below background color
"table": Style(
backgroundColor: Color.fromARGB(0x50, 0xee, 0xee, 0xee),
),
// some other granular customizations are also possible
"tr": Style(
border: Border(bottom: BorderSide(color: Colors.grey)),
),
"th": Style(
padding: EdgeInsets.all(6),
backgroundColor: Colors.grey,
),
"td": Style(
padding: EdgeInsets.all(6),
alignment: Alignment.topLeft,
),
// text that renders h1 elements will be red
"h1": Style(color: Colors.red),
}));
}
加载自定义的富文本

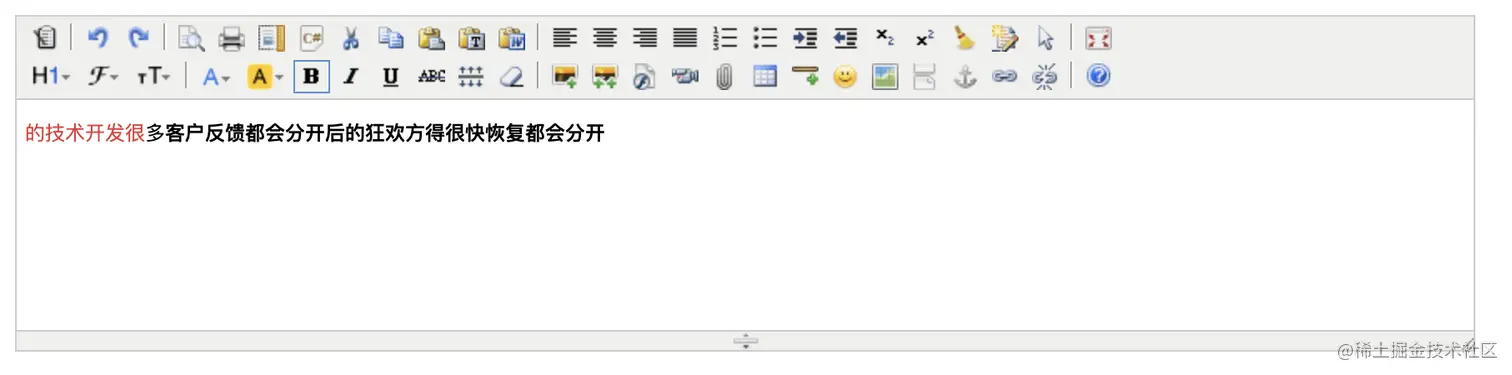

线上编译器编辑富文本

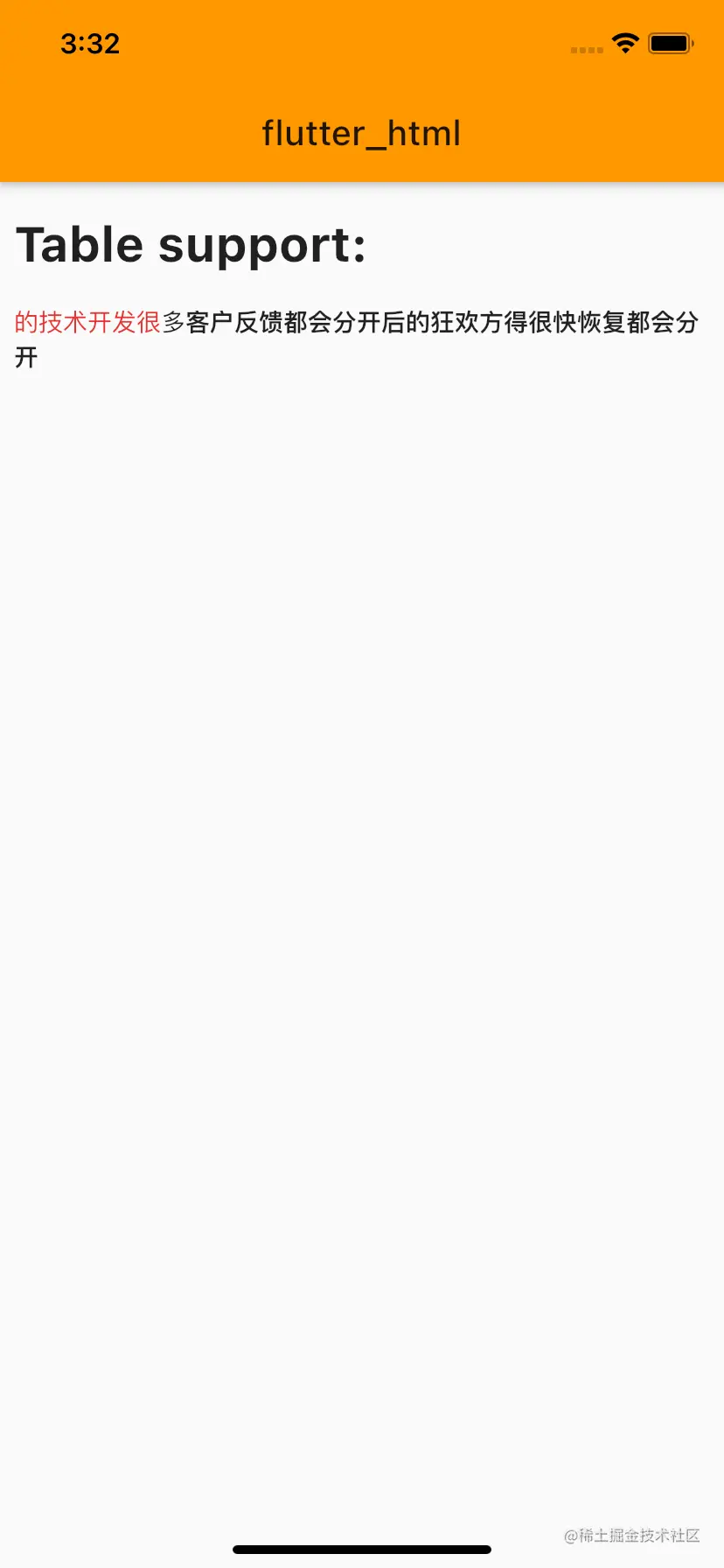

实际显示如下:
flutter_fai_webview 也可以这里不一一说了,感兴趣的可以看一下,选择一款适合自己的
one more things.....
- 图表展示
欢迎大家来讨论。。。。。。
