一、需求来源

macOS 的视图封装需要重写 draw 方法来实现，通过自定义鼠标状态枚举类型，将多种鼠标方法合并，同时代理方法会返回 NSEvent 参数，实现了调用简单和扩展性兼得：

视图公用：

public extension NSResponder {
    /// 自定义鼠标状态
    @objc enum MouseState: Int {
        case down = 0
        case up = 1
        case entered = 2
        case exited = 3
    }
}

二、用户信息视图自定义

import Cocoa

@objc protocol NNUserInfoViewDelegate: NSObjectProtocol {
    @objc func userInfoView(_ userView: NNUserInfoView, state: NSResponder.MouseState, event: NSEvent);
}

class NNUserInfoView: NSView {

    weak var delegate: NNUserInfoViewDelegate?

    var image = NSImage(named: "img_portrait_N")

    var name = "姓名"
    var desc = "个人简介"

    // MARK: -life cycle
    override var isFlipped: Bool{
        return true
    }

    override init(frame frameRect: NSRect) {
        super.init(frame: frameRect)

        addTrackingRect(bounds, owner: self, userData: nil, assumeInside: true)
    }

    required init?(coder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }


    override func draw(_ dirtyRect: NSRect) {
        super.draw(dirtyRect)

        // Drawing code here.
        let imageRect = NSRect(x: 0, y: 0, width: bounds.height, height: bounds.height)
        image?.draw(in: imageRect)


        let paraStyle: NSMutableParagraphStyle = NSMutableParagraphStyle.default.mutableCopy() as! NSMutableParagraphStyle
        paraStyle.alignment = .left
        paraStyle.lineBreakMode = .byWordWrapping

        let attDic = [NSAttributedString.Key.paragraphStyle: paraStyle,
                      NSAttributedString.Key.foregroundColor: NSColor.labelColor,
                      NSAttributedString.Key.font: NSFont.systemFont(ofSize: 13, weight: .light)
        ]

        let attString = NSAttributedString(string: name, attributes: attDic)
        let nameRect = NSRect(x: bounds.height + 3, y: 0, width: bounds.width - bounds.height - 3, height: bounds.height*0.5)
        attString.draw(in: nameRect)

        let attStringSub = NSAttributedString(string: desc, attributes: attDic)
        let descRect = NSRect(x: bounds.height + 3, y: bounds.height*0.5, width: bounds.width - bounds.height - 3, height: bounds.height*0.5)
        attStringSub.draw(in: descRect)
    }

    // MARK: -mouse
    override func mouseEntered(with event: NSEvent) {
//        print("\(#function):\(event)")
        delegate?.userInfoView(self, state: NSResponder.MouseState.entered, event: event)
    }

    override func mouseExited(with event: NSEvent) {
//        print("\(#function):\(event)")
        delegate?.userInfoView(self, state: NSResponder.MouseState.exited, event: event)
    }

    override func mouseDown(with event: NSEvent) {
//        print("\(#function):\(event)")
        delegate?.userInfoView(self, state: NSResponder.MouseState.down, event: event)
    }

    override func mouseUp(with event: NSEvent) {
//        print("\(#function):\(event)")
        delegate?.userInfoView(self, state: NSResponder.MouseState.up, event: event)
    }

}

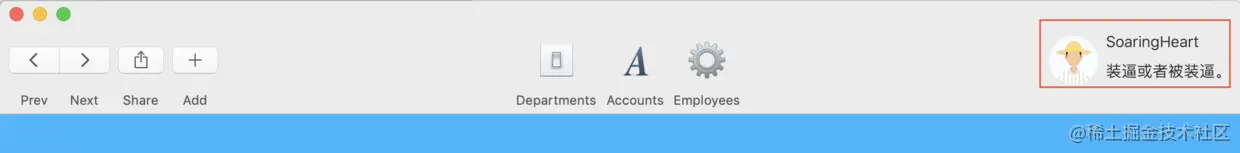

NNUserInfoView
