前言
flutter实现简单的抽屉效果，和大家一起学习探讨。

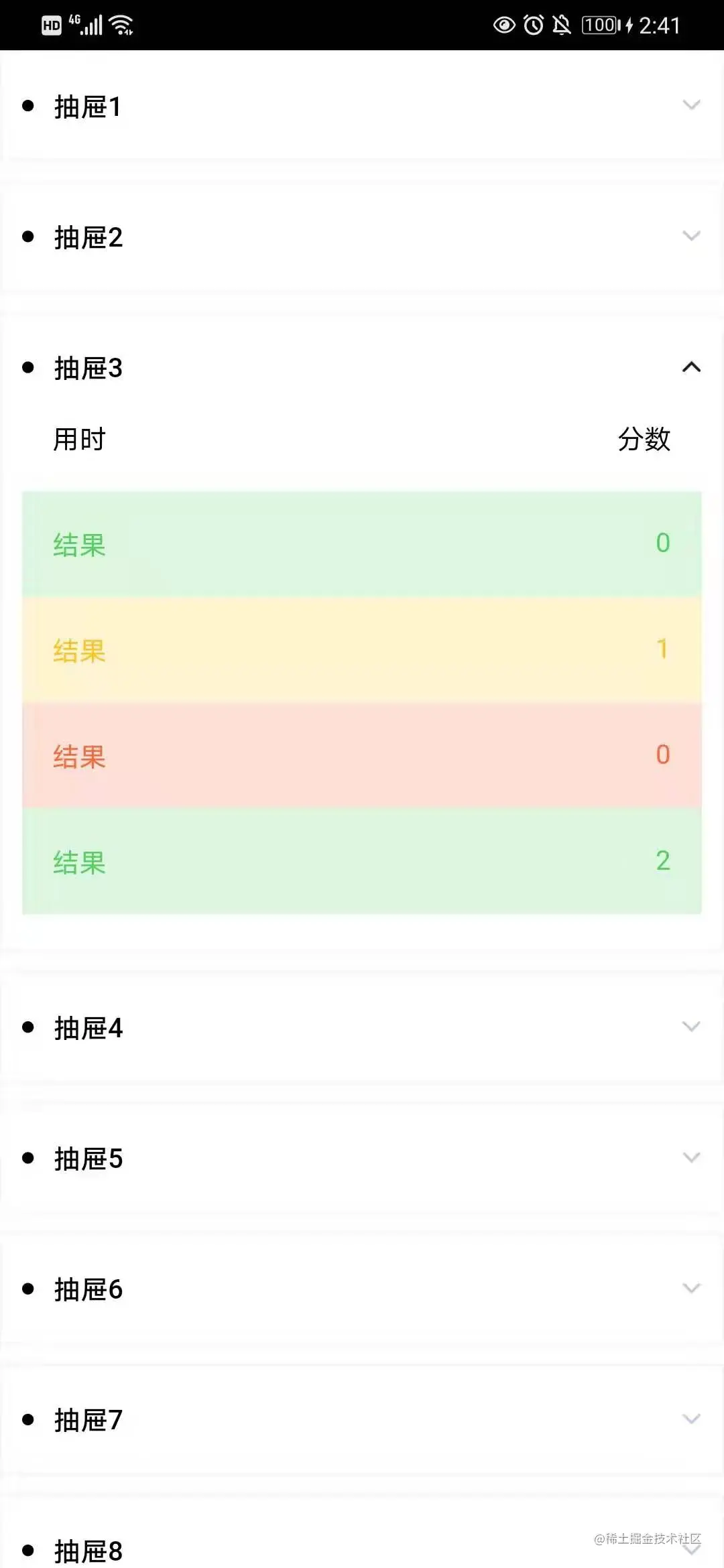

先上效果图：

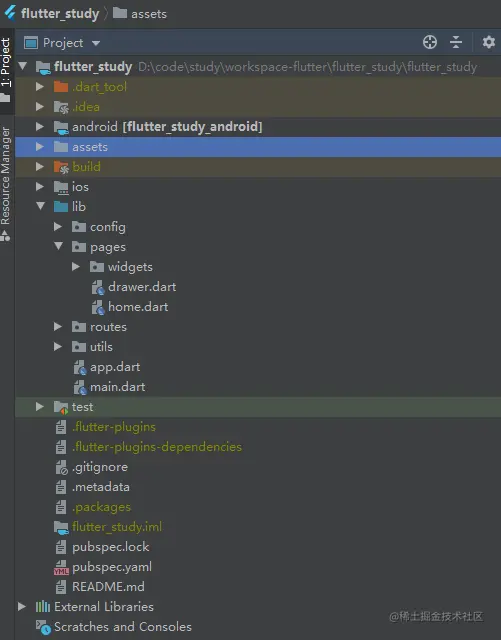

首先项目的大概结构是：加入了路由（fluro），新项目第一个demo就是抽屉效果，后续会一直加入自己写的demo，也算是算个笔记和大家共同交流。
这个效果很简单，我的心得体会是父组件给子组件传递回调函数，以达到点击子组件的时候回调父组件的方法来实现我们的业务需要。父组件直接将回调函数传递给子组件的构造方法里。
child: Column(
children: allSubject.map((e) {
return SubjectItem(
key: Key(e['id'].toString()),
callBack: clickBack,
showBottm: e['showBottm'],
name: e['subject_name'],
id: e['id'],
);
}).toList(),
),
回调函数为：
clickBack(bool flag, int id) {
var tmp = [];
for (int i = 0; i < allSubject.length; i++) {
if (allSubject[i]['id'] == id) {
var item = allSubject[i];
if (flag == true) {
item['showBottm'] = true;
} else {
item['showBottm'] = false;
}
tmp.add(item);
} else {
tmp.add(allSubject[i]);
}
}
setState(() {
allSubject = tmp;
});
}
在父组件的回调函数里处理每个抽屉的显示隐藏效果，适用于我们父子组件的业务需求。
在子组件里我们绑定点击事件调用父组件的回调方法，以下为子组件部分：
click() async {
if (widget.showBottm == true) {
widget.callBack(false,widget.id);
}else{
widget.callBack(true,widget.id);
}
}
全部的子组件内容：
import 'package:flutter/material.dart';
import 'package:flutter_screenutil/screenutil.dart';
import 'package:flutter_study/pages/widgets/radius_circle.dart';
import 'load_image.dart';
class SubjectItem extends StatefulWidget {
final int id;
final String name;
final bool showBottm;
final Function callBack;
SubjectItem({Key key, this.id, this.name, this.showBottm=false,this.callBack}) : super(key: key);
@override
_SubjectItemState createState() {
return _SubjectItemState();
}
}
class _SubjectItemState extends State<SubjectItem> {
// bool showBottm = false;
List panelData = [{'level':1,'result':'结果','score':'0'},{'level':2,'result':'结果','score':'1'},{'level':3,'result':'结果','score':'0'},{'level':1,'result':'结果','score':'2'},];
@override
void initState() {
super.initState();
}
@override
void dispose() {
super.dispose();
}
click() async {
if (widget.showBottm == true) {
widget.callBack(false,widget.id);
}else{
widget.callBack(true,widget.id);
}
}
@override
Widget build(BuildContext context) {
// TODO: implement build
return Container(
width: double.infinity,
child: Column(
children: [
GestureDetector(
onTap: () {
click();
},
child: Container(
width: double.infinity,
// height: ScreenUtil().setHeight(100),
padding: EdgeInsets.symmetric(
horizontal: 10, vertical: ScreenUtil().setHeight(30)),
margin: EdgeInsets.only(bottom: 10),
decoration: BoxDecoration(
border: new Border.all(
color: Color(0xFFA0AACD).withOpacity(0.1), //边框颜色
width: 1, //边框宽度
), // 边色与边宽度
color: Colors.white, // 底色
boxShadow: [
BoxShadow(
blurRadius: 3, //阴影范围
spreadRadius: 0.1, //阴影浓度
color: Color(0xFFA0AACD).withOpacity(0.1), //阴影颜色
),
],
),
child: Column(children: [
Row(
children: [
RadiusCircle(
color: Colors.black,
),
SizedBox(
width: 10,
),
Text(
widget.name,
style: TextStyle(
fontSize: ScreenUtil().setSp(28),
color: Colors.black,
fontWeight: FontWeight.w500),
),
Expanded(
child: Container(),
),
widget.showBottm == true
? LoadAssetImage(
'shang',
width: ScreenUtil().setWidth(20),
)
: LoadAssetImage('xia',
width: ScreenUtil().setWidth(20))
],
),
Visibility(
visible: widget.showBottm == true,
child: Container(
child: Column(
children: [
Container(
padding: EdgeInsets.symmetric(horizontal: 15),
color: Colors.white,
width: double.infinity,
height: ScreenUtil().setHeight(90),
child: Row(
mainAxisAlignment: MainAxisAlignment.spaceBetween,
children: [
Text(
'用时',
style: TextStyle(
color: Colors.black,
fontSize: ScreenUtil().setSp(28)),
),
Text(
'分数',
style: TextStyle(
color: Colors.black,
fontSize: ScreenUtil().setSp(28)),
)
],
),
),
panelData.length==0?Container(
child: Text('无数据',style: TextStyle(color: Colors.grey),),
):
Column(
children: panelData.map((e) {
return Container(
padding: EdgeInsets.symmetric(horizontal: 15),
color: e['level'] == 1
? Color(0xFF54D060).withOpacity(0.2)
: (e['level'] == 2
? Color(0xFFFFC21E).withOpacity(0.2)
: (e['level'] == 3
? Color(0xFFFF6638).withOpacity(0.2)
: Color(0xFFFF2B2B)
.withOpacity(0.2))),
width: double.infinity,
height: ScreenUtil().setHeight(90),
child: Row(
mainAxisAlignment:
MainAxisAlignment.spaceBetween,
children: [
Text(
e['result'] ?? '无',
style: TextStyle(
color: e['level'] == 1
? Color(0xFF54D060)
: (e['level'] == 2
? Color(0xFFFFC21E)
: (e['level'] == 3
? Color(0xFFFF6638)
: Color(0xFFFF2B2B))),
fontSize: ScreenUtil().setSp(28)),
),
Text(
(e['score'] ?? '无').toString(),
style: TextStyle(
color: e['level'] == 1
? Color(0xFF54D060)
: (e['level'] == 2
? Color(0xFFFFC21E)
: (e['level'] == 3
? Color(0xFFFF6638)
: Color(0xFFFF2B2B))),
fontSize: ScreenUtil().setSp(28)),
)
],
),
);
}).toList(),
)
],
),
),
)
])),
),
],
),
);
}
}
欢迎大家和我一起学习分享flutter
此项目的github地址：项目地址
下面是我们的公众号：flutter编程笔记（code9871）
不定期分享自己的学习想法
