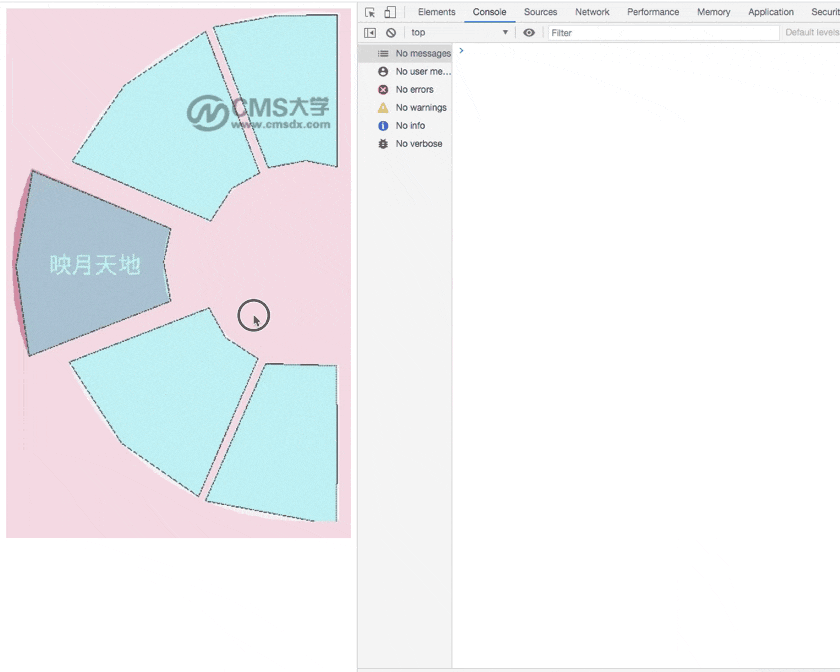

效果如下：
代码如下：
<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>Document</title></head><body> <div> <img id="myImg" src="./b398c4c6c7789286fa6cb5bcd3814c9a.jpg" alt="" width="100%" usemap="#Map" onload="init()" /> <map name="Map"> <area shape="poly" coords="290,404,221,561,360,580,372,494,371,406" href="#1"> <area shape="poly" coords="65,402,225,340,244,374,281,398,213,556,125,495" href="#2"> <area shape="poly" coords="181,249,173,287,181,332,19,395,4,292,23,183" href="#3"> <area shape="poly" coords="227,240,68,172,128,85,221,23,283,185,251,203" href="#4"> <area shape="poly" coords="293,179,230,18,302,5,372,4,372,178,336,171" href="#5"> </map> </div> <script type="text/javascript"> function init(){ return setTimeout(function () { adjust({ name: 'Map', img: { originalWidth: 395, originalHeight: 607 } }) }, 100); } // init() var timeout = null; // onresize触发次数过多，设置定时器 window.onresize = function () { clearTimeout(timeout); timeout = init() // 页面大小变化，重新加载页面以刷新MAP } //获取MAP中元素属性 function adjust({ name, img = { originalWidth: 100, originalHeight: 100 } }) { var map = document.querySelector(`[name="${name}"]`); var element = [...map.childNodes].filter(item => item.coords); let originalArea if (!map.getAttribute('original-area')) { originalArea = element[0].coords map.setAttribute('original-area', originalArea) } else { originalArea = map.getAttribute('original-area') } var coefficient = { width: parseFloat(element[0].coords.split(',')[0]) / parseFloat(originalArea.split(',')[0]), height: parseFloat(element[0].coords.split(',')[1]) / parseFloat(originalArea.split(',')[1]), }; var myImg = document.querySelector(`[usemap="#${name}"]`) var ratio = { width: myImg.width / img.originalWidth, height: myImg.height / img.originalHeight } for (var i = 0; i < element.length; i++) { var oldCoords = element[i].coords; var newCoords = adjustPosition(oldCoords, coefficient, ratio); element[i].setAttribute("coords", newCoords); } } //调整MAP中坐标 function adjustPosition(position, coefficient = { height: 1, width: 1 }, ratio = { height: 1, width: 1 }) { var each = position.split(","); //获取每个坐标点 for (var i = 0; i < each.length; i++) { each[i] = Math.round(parseFloat(each[i]) / coefficient.width * ratio.width).toString();//x坐标 i++; each[i] = Math.round(parseFloat(each[i]) / coefficient.height * ratio.height).toString();//y坐标 } //生成新的坐标点 var newPosition = ""; for (var i = 0; i < each.length; i++) { newPosition += each[i]; if (i < each.length - 1) { newPosition += ","; } } return newPosition; } </script></body></html>
