前言
参考自cypress官方提供的博客:文章链接,博客提供了一个很好的例子帮助我们从Jest+React Testing Library到Cypress + cypress-react-unit-test迁移。通过阅读本文,可以理解两个库的React测试入门。
开始
首先通过CRP(create-react-app)来创建一个标准的react应用,默认情况下,通过CRP创建的应用已经内置了Jest+React Testing Library,我们可以通过查看package.json来验证:
...
"dependencies": {
"@testing-library/jest-dom": "^5.11.4",
"@testing-library/react": "^11.1.0",
"@testing-library/user-event": "^12.1.10",
"react": "^17.0.1",
"react-dom": "^17.0.1",
"react-scripts": "4.0.1",
"web-vitals": "^0.2.4"
},
...
现在来安装我们的主角cypress和cypress react单元测试插件:
npm install --save-dev cypress cypress-react-unit-test @testing-library/cypress
运行以下命令,进行cypress的初始化,会生成cypress的文件夹和cypress.json:
npx cypress open
现在可以看到cypress.json生成在项目文件夹下,cypress.json是cypress的全局配置,我们在这里启用Component Testing(单元测试)和fetch polyfill的实验功能:
{
"experimentalComponentTesting": true,
"experimentalFetchPolyfill": true,
"testFiles": "**/*cy-spec.js",
"componentFolder": "src"
}
在用Jest那一套进行测试的时候,我们更倾向于测试文件接近我们的源文件,但是在cypress中,所有的测试用例都集中在__tests__文件夹下。Jest默认采用后缀.spec.js去匹配测试文件,我们这里用testFiles来配置后缀为.cy-spec.js。
src/components/
__tests__/
# Jest + RTL test files
ExpandCollapse.spec.js
Hello.spec.js
Login.spec.js
Pizza.spec.js
RemotePizza_*.spec.js
# Cypress + CTL test files
ExpandCollapse.cy-spec.js
Hello.cy-spec.js
Login.cy-spec.js
Pizza.cy-spec.js
RemotePizza.cy-spec.js
# component source files
ExpandCollapse.js
Login.js
Pizza.js
RemotePizza.js
由于这是一篇迁移文章,我们也配置一下Jest:
// package.json
{
"jest": {
"testMatch": [
"**/__tests__/**/*.spec.js"
]
}
}
我们的项目是由create-react-app创建的,CRP创建的项目配置存放在node_modules下的react-scripts。通过查看package.json可以看到,所有的scripts实际上都是在跑react-scripts下的命令:
"scripts": {
"start": "react-scripts start",
"build": "react-scripts build",
"test": "react-scripts test",
"eject": "react-scripts eject"
},
为什么需要关注这个呢?我们需要让Cypress使用和react-scripts一样的配置,好让它能够理解打包机制:
// cypress/plugins/index.js
modules.exports = (on, config) => {
require('cypress-react-unit-test/plugins/react-scripts')(on, config);
return config;
}
最后我们需要加载@testing-library/cypress和cypress-react-unit-test到Cypress support文件内,它将会引入查询命令,例如cy.findByText(类似于React Testing Library)。
// cypress/support/index.js
// https://github.com/bahmutov/cypress-react-unit-test#install
require('cypress-react-unit-test/support');
// https://testing-library.com/docs/cypress-testing-library/intro
require('@testing-library/cypress/add-commands');
Hello World(挂载和元素获取)
我们可以从Jest+RTL的例子Hello.spec.js开始,它没有对应的组件文件,因为它使用的是内联JSX:
// src/components/__tests__/Hello.spec.js
import React from 'react';
import { render, screen } from '@testing-library/react';
test('hello world', () => {
const { getByText } = render(<p>Hello Jest!</p>);
expect(getByText('Hello Jest!')).toBeTruthy();
// or
expect(screen.getByText('Hello Jest!')).toBeTruthy();
})
使用cypress-react-unit-test来写相同功能的测试用例时,我们用mount来替代render,用findByText来替代getByText:
// src/components/__tests__/Hello.cy-spec.js
import React from 'react';
import { mount } from 'cypress-react-unit-test';
it('hello world', () => {
mount(<p>Hello Jest!</p>);
cy.findByText('Hello Jest!');
})
然后我们通过如下命令来运行cypress测试:
npx cypress open
// or
yarn cypress open
可以看到测试通过了,类似如下
Tip:我们关注到一点,在mount命令的Log日志里,会看到<Unknown ...>的标识。这是因为我们的组件没有命名。
在实际的测试例子中,我们渲染的组件都会有命名,可能是一个函数名称,也可能是一个class名称:
it('hello world component', () => {
const HelloWorld = () => <p>Hello World!</p>;
mount(<HelloWorld>);
// or cy.contains
cy.findByText('Hello World!');
})
Cypress在e2e测试中提供的cy.contains API也能够直接使用,类似于cy.findByTextBy,如果文本不存在DOM中(4秒),cy.contains会执行失败。如果我们的应用够快,我们可以在全局设置每次检索的等待时间,也可以在每个命令中配置。
it('fails if text is not found', () => {
const HelloWorld = () => <p>Hello World!</p>;
mount(<HelloWorld>);
cy.contains('Hello Mocha', {timeout: 200});
})
真实例子-扩大折叠组件的测试(事件处理和异步元素审查)
假设有一个ExpandCollapse组件,它的功能和名字一样,展开和收缩。展开时显示传入的children,收缩时隐藏传入的children:
const ExpandCollapse = (props) => {
const { children } = props;
const [isExpanded, setExpanded] = useState(false);
return (
<>
<button data-testid="expandCollapseBtn" onClick={() => setExpanded(!isExpanded)}>
click
</button>
{isExpanded ? children : null}
</>
);
}
如果我们要写这个组件的测试用例,首先点击Button,查看children是否显示,再点击Button,查看children是否隐藏。通过Jest写的测试用例如下(原本的示例中使用了ARIA,无障碍阅读的概念,由于这个概念想要去理解和记住成本较高,所以我这里使用了testid属性来替代):
// src/components/__tests__/ExpandCollapse.spec.js
import React from 'react';
import { render, screen, fireEvent } from '@testing-library/react';
import ExpandCollapse from '../ExpandCollapse.js';
it('ExpandCollapse Test', () => {
const children = 'Hello World';
render(<ExpandCollapse>{children}</ExpandCollapse>);
expect(screen.queryByText(children)).not.toBeInTheDocument();
// 通过screen.debug来查看每个阶段的DOM。
screen.debug();
fireEvent.click(screen.getByTestId('expandCollapseBtn'));
expect(screen.queryByText(children)).toBeInTheDocument();
screen.debug();
fireEvent.click(screen.getByTestId('expandCollapseBtn'));
expect(screen.queryByText(children)).not.toBeInTheDocument();
screen.debug();
});
让我们来看看同等的测试用例,这次使用cypress和cypress-react-unit-test来编写:
import React from 'react';
import { mount } from 'cypress-react-unit-test';
import ExpandCollapse from '../ExpandCollapse';
it('ExpandCollapse Test', () => {
const children = 'Hello World';
mount(<ExpandCollapse>{children}</ExpandCollapse>);
cy.findByText(children).should('not.exist');
cy.findByTestId('expandCollapseBtn').click();
cy.findByText(children); // 内置断言
cy.findByTestId('expandCollapseBtn').click();
cy.findByText(children).should('not.exist');
});
上面的两个测试用例都是同步的(点击后立即断言),但是实际上,每一个交互动作,例如点击按钮,都是异步的,也就是执行完这个动作后的效果,应该是异步的,例如我们把刚刚的Button点击事件修改一下:
<button data-testid="expandCollapseBtn" onClick={() => setTimeout(() => setExpanded(!isExpanded), 1000)}>
click
</button>

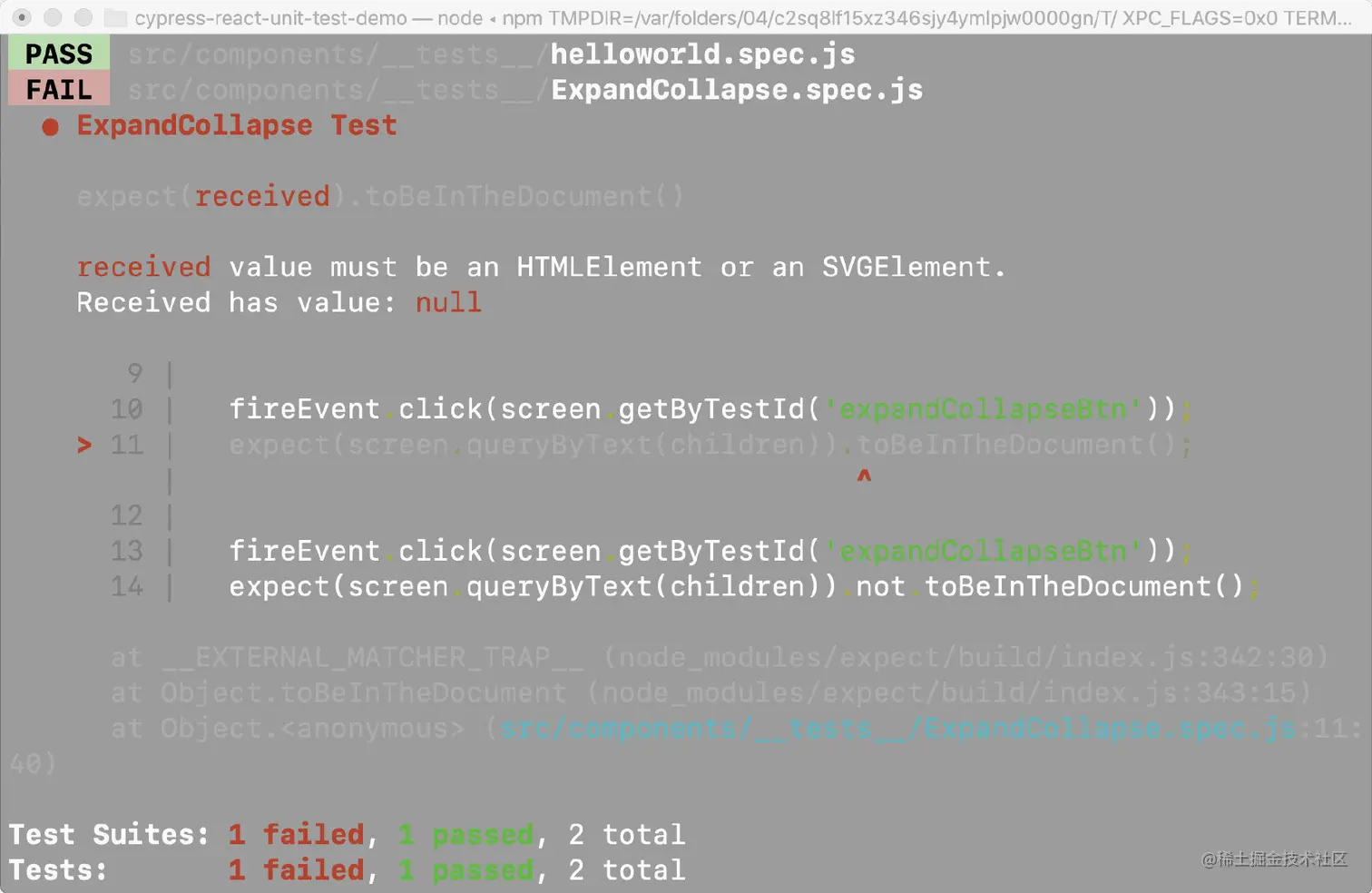

使用Jest执行测试用例,可以看到报错信息:
实际上,即使刚刚的测试用例改成0ms,用Jest进行测试也会报错。使用Cypress去执行测试用例,可以看到没有报错,这是由于Cypress的命令是异步的,即使我们把组件的更新从同步改成异步,或者设置delay,Cypress的Test Runner依旧会重复尝试命令直到DOM更新。
但是,默认情况下Cypress只会在4000ms内重试,超过4000ms就会报错,例如把刚刚的例子改成如下:
<button data-testid="expandCollapseBtn" onClick={() => setTimeout(() => setExpanded(!isExpanded), 5000)}>
click
</button>
再去执行cypress的测试用例会报错:
用Jest+React-Testing-Library异步元素审查
那么用Jest+RTL可以做到异步获取元素吗?当然可以,Jest支持异步的测试用例,RTL支持异步的元素审查
- 异步判断元素存在:waitFor + getBy/queryBy 或者 findBy
- 异步判断元素不存在:waitFor + getBy/queryBy 或者 waitForElementToBeRemoved
// src/components/__tests__/ExpandCollapse.spec.js
import React from 'react';
import { render, screen, fireEvent } from '@testing-library/react';
import ExpandCollapse from '../ExpandCollapse.js';
it('ExpandCollapse Test', async () => {
const children = 'Hello World';
render(<ExpandCollapse>{children}</ExpandCollapse>);
expect(screen.queryByText(children)).not.toBeInTheDocument();
// 通过screen.debug来查看每个阶段的DOM。
screen.debug();
fireEvent.click(screen.getByTestId('expandCollapseBtn'));
expect(await screen.findByText(children)).toBeInTheDocument();
/*
await waitFor(() => {
expect(screen.getByText(children)).toBeInTheDocument();
})
*/
screen.debug();
fireEvent.click(screen.getByTestId('expandCollapseBtn'));
await waitForElementToBeRemoved(() => queryByText(children));
/*
await waitFor(() => {
expect(queryByText(children)).not.toBeInTheDocument();
})
*/
screen.debug();
});
如果用上述5000ms的例子来测试,依然会报错,这是由于waitFor和findBy默认情况下的超时时间为1000ms,Jest的默认函数超时时间为5000ms。waitFor的超时时间可以由第二个参数传入,而findBy的超时时间可以由第三个参数传入:
import React from 'react';
import { render, screen, fireEvent, waitFor } from '@testing-library/react';
import ExpandCollapse from '../ExpandCollapse.js';
// 设置jest的超时时间
jest.setTimeout(10000);
it('ExpandCollapse Test', async () => {
const children = 'Hello World';
render(<ExpandCollapse>{children}</ExpandCollapse>);
expect(screen.queryByText(children)).not.toBeInTheDocument();
fireEvent.click(screen.getByTestId('expandCollapseBtn'));
// await waitFor(() => {
// expect(screen.queryByText(children)).toBeInTheDocument();
// }, { timeout: 5000 });
expect(await screen.findByText(children, {}, { timeout: 5000 })).toBeInTheDocument();
fireEvent.click(screen.getByTestId('expandCollapseBtn'));
await waitFor(() => {
expect(screen.queryByText(children)).not.toBeInTheDocument();
}, { timeout: 5000 });
});
用Cypress异步元素审查
同样的,cypress也提供了异步的审查机制,也是通过传入timeout来实现:
import React from 'react';
import { mount } from 'cypress-react-unit-test';
import ExpandCollapse from '../ExpandCollapse';
it('ExpandCollapse Test', () => {
const children = 'Hello World';
mount(<ExpandCollapse>{children}</ExpandCollapse>);
cy.findByText(children).should('not.exist');
cy.findByTestId('expandCollapseBtn').click();
cy.findByText(children, {
timeout: 5000
}); // 内置断言
cy.findByTestId('expandCollapseBtn').click();
cy.findByText(children, {
timeout: 5000
}).should('not.exist');
});
Login Form(回调处理)
接下来的例子是一个含有提交按钮的表单,当用户填充输入框点击提交按钮之后,由父组件传入的onSubmit方法将会被调用:
// src/components/Login.js
export default function Login ({ onSubmit }) {
const [username, setUsername] = React.useState('');
const [paswword, setPassword] = React.useState('');
const handleSubmit = event => {
event.preventDefault();
onSubmit({ username, password });
};
return (
<form onSubmit={handleSubmit} data-test-id="loginForm">
<h3>Login</h3>
<label>
Username
<input
name="username"
value={username}
onChange={event => setUsername(event.target.value)}
data-testid="loginForm-username"
/>
</label>
<label>
Password
<input
name="password"
type="password"
value={password}
onChange={event => setPassword(event.target.value)}
data-testid="loginForm-password"
/>
</label>
<button type="submit" data-testid="loginForm-submit">Log in</button>
</form>
)
}
对于上述例子,我们需要传入onSubmit函数到被测试的组件内,需要关注的是
- 函数是否被调用,以及调用次数
- 调用时传入的参数是否按照预期
用Jest来写事件回调处理
通过Jest.fn来创建一个函数,将这个函数传入到被测试组件内,再通过Jest提供的断言函数来进行测试:
// src/components/__tests__/Login.spec.js
import React from 'react';
import Login from '../Login';
import { screen, render, fireEvent } from '@testing-library/react';
describe('form', async () => {
it('submits username and password usting testing-library', () => {
const username = 'me';
const password = 'please';
const onSubmit = Jest.fn();
render(<Login onSubmit={onSubmit} />);
fireEvent.onChange(screen.queryByLabelText(/username/i), {
target: {
value: username
}
});
fireEvent.onChange(screen.queryByLabelText(/username/i), {
target: {
value: username
}
});
await fireEvent.submit(screen.queryTestId('loginForm-submit'));
expect(onSubmit).toHaveBeenCalledTimes(1);
expect(onSubmit).toHaveBeenCalledWith({ username, password });
})
})
用Cypress来写事件回调处理
可以通过cy.stub来创建一个函数作为父组件的onSubmit传入到被测试组件内,通过cy.stub创建的函数会在每个测试用例被重置,所以我们不用手动去重置它。
// src/components/__tests__/Login.cy-spec.js
import React from 'react';
import Login from '../Login';
import { mount } from 'cypress-react-unit-test';
describe('form', () => {
it('submits username and password usting testing-library', () => {
const username = 'me';
const password = 'please';
const onSubmit = cy.stub();
mount(<Login onSubmit={onSubmit} />);
cy.findByLabelText(/username/i).type(username);
cy.findByLabelText(/password/i).type(password);
cy.findByRole('button', { name: /log in/i })
.submit()
.then(() => {
expect(onSubmit).to.be.calledOnce;
expect(onSubmit).to.be.calledWith({
username,
password,
});
});
});
});
Pizza toppings(网络请求)
最后一个例子是一个Pizza菜单的列表组件。
export default function Pizza({ ingredients }) {
return (
<>
<h3>Pizza</h3>
<ul>
{ingredients.map(ingredient => (
<li key={ingredient}>{ingredient}</li>
))}
</ul>
</>
)
}
如果这个列表是由外部通过Props传入的,那么这个测试用例会很简单。
// src/components/__tests__/Pizza.cy-spec.js
// 通过cypress来写
import React from 'react';
import { mount } from 'cypress-react-unit-test';
import Pizza from '../Pizza';
it('contains all ingredients', () => {
const ingredients = ['bacon', 'tomato', 'mozzarella', 'pineapples'];
// component Pizza shows the passed list of toppings
mount(<Pizza ingredients={ingredients} />);
for (const ingredient of ingredients) {
cy.findByText(ingredient);
}
});
但在实际情况下,组件可能会通过请求来获得列表数据:
import React from 'react';
export default function RemotePizza() {
const [ingredients, setIngredients] = React.useState([]);
const handleCook = async () => {
const result = await window.fetch('/api/pizza', {
method: 'GET',
headers: {'Content-Type': 'application/json'}
});
result.json().then((data) => {
setIngredients(data);
})
};
return (
<>
<h3>Pizza</h3>
<button data-testid="fetch-button" onClick={handleCook}>Cook</button>
{ingredients.length > 0 && (
<ul>
{ingredients.map((ingredient) => (
<li key={ingredient}>{ingredient}</li>
))}
</ul>
)}
</>
);
}
通过cypress,可以很容易的拦截请求,并设置返回的数据:
//src/components/__tests__/RemotePizza.cy-spec.js
import React from 'react';
import { mount } from 'cypress-react-unit-test';
import RemotePizza from '../RemotePizza';
describe('RemotePizza Testing', () => {
beforeEach(() => {
cy.server();
cy.fixture('ingredients')
.as('ingredients')
.then((ingredients) => {
cy.route({
method: 'GET',
url: '/api/pizza',
response: ingredients
}).as(
'pizza'
);
})
});
it('download ingredients from internets (network mock)', function () {
mount(<RemotePizza />);
cy.contains('button', /cook/i).click();
cy.wait('@pizza'); // make sure the network stub was used
for (const ingredient of this.ingredients) {
cy.contains(ingredient);
}
})
})

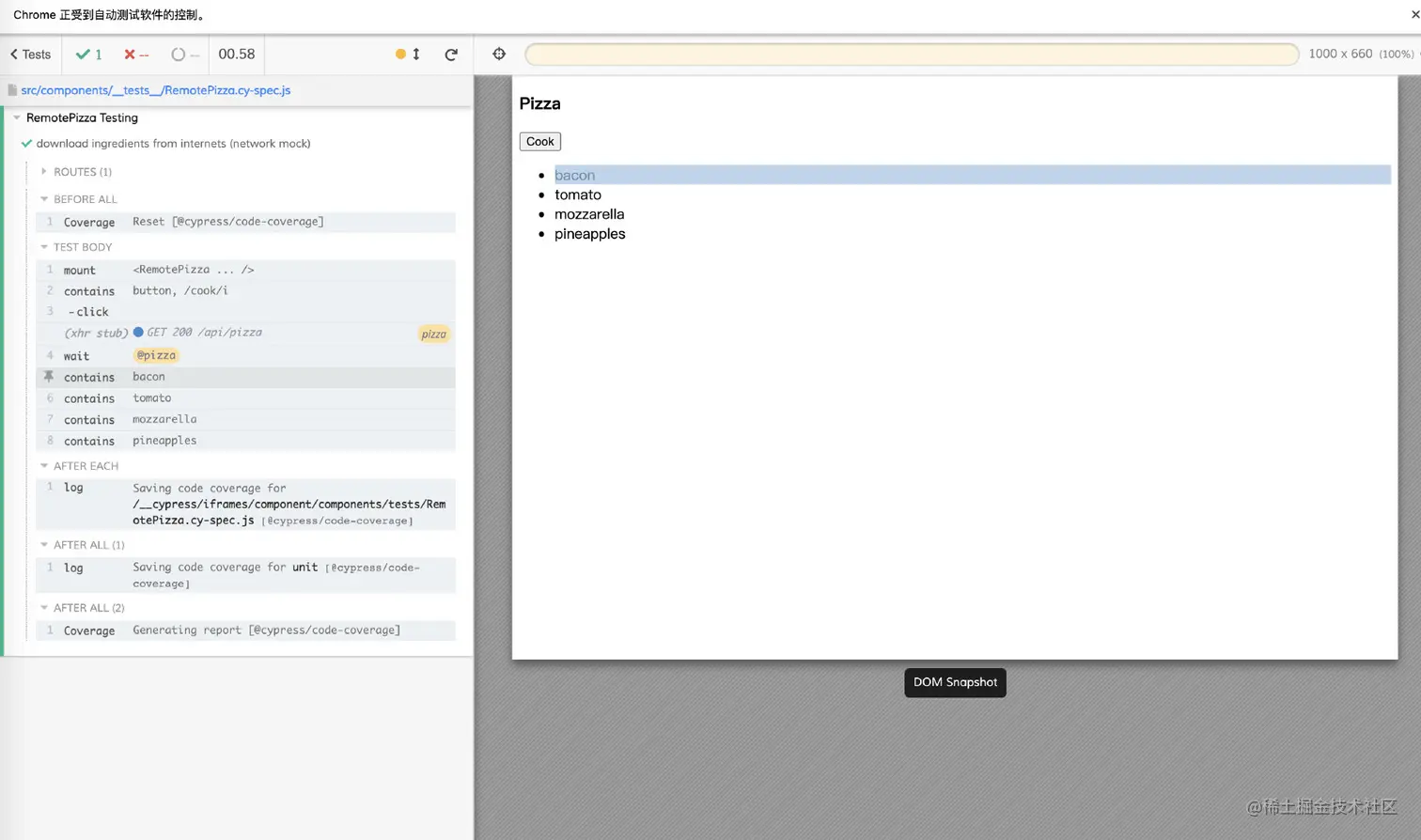

cypress运行结果:
通过Jest,我们需要借助msw(mock service worker),这里要注意一下,原来的例子是等待某个DOM元素出现之后,才开始进行断言。在这里我使用了一个jest函数,在server的回调函数内调用,等待这个函数被调用后,说明已经有返回结果,这个时候进行断言,更加靠谱。
import React from 'react';
import { rest } from 'msw';
import { setupServer } from 'msw/node';
import { render, fireEvent, screen, waitFor } from '@testing-library/react';
import ingredients from '../../../cypress/fixtures/ingredients.json';
import RemotePizza from '../RemotePizza';
const test = jest.fn();
const server = setupServer(
rest.get('/api/pizza', (req, res, ctx) => {
test();
return res(ctx.json(ingredients))
})
);
beforeAll(() => server.listen());
afterEach(() => server.resetHandlers());
afterAll(() => server.close());
it('RemotePizza Testing', async () => {
render(<RemotePizza />);
fireEvent.click(screen.queryByTestId('fetch-button'));
screen.debug();
await waitFor(() => {
expect(test).toHaveBeenCalledTimes(1);
});
screen.debug();
for (const ingredient of ingredients) {
expect(screen.queryByText(ingredient)).toBeInTheDocument();
}
})
结论
- Jest + RTL编写的测试用例,基本上可以完全迁移成Cypress+Cypress-react-unit-test,两者的API基本上是一致的。
- Cypress有一些独特的优势,比起Jest在命令行内跑
- Cypress支持真实的浏览器运行环境
- 具有每一个命令的执行日志和时间回溯的功能

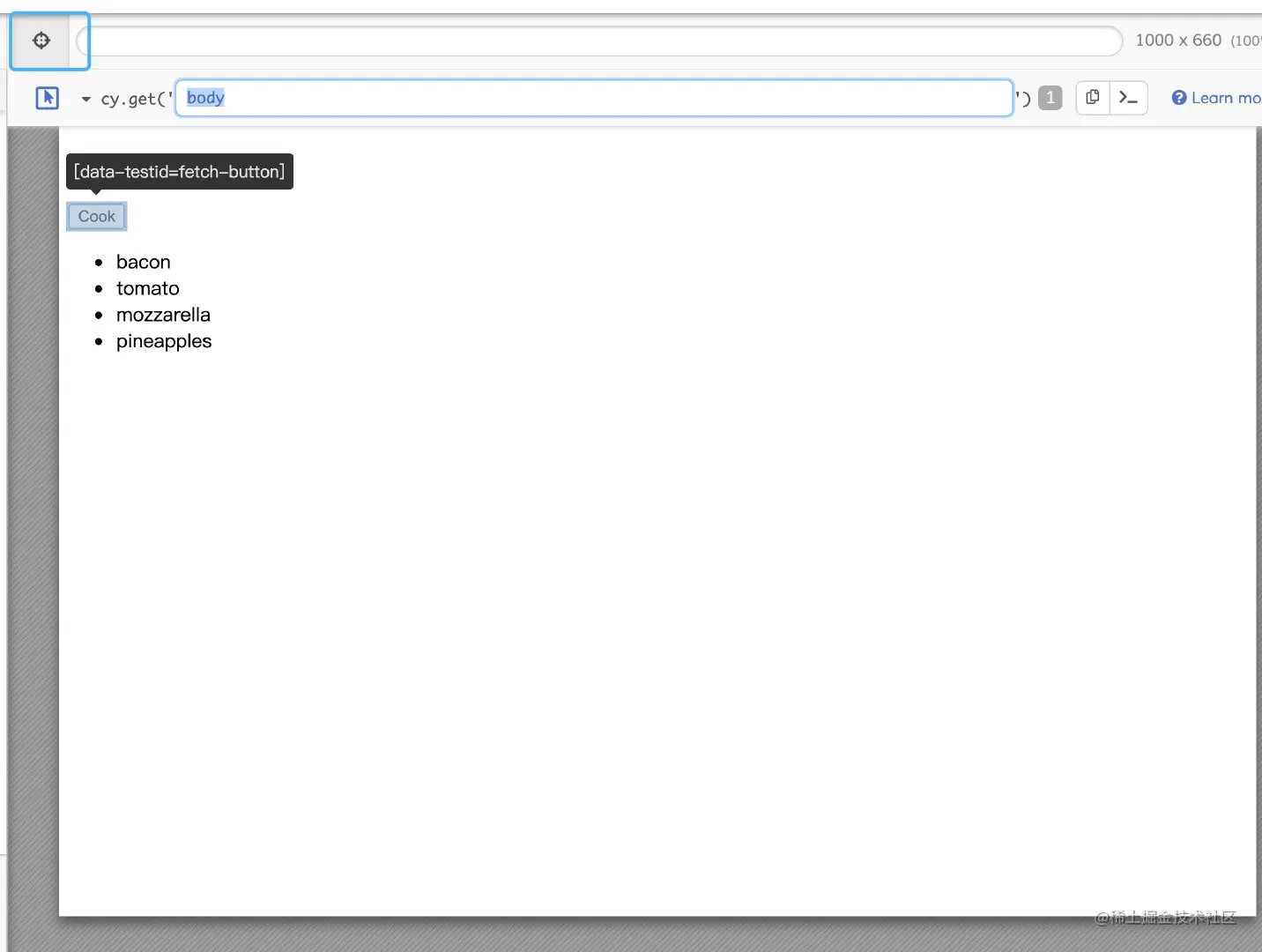

- 元素选择工具
- 失败时会有截图
- cypress的每个命令都是异步的,jest有一些是同步,有一些是异步,但也能满足要求。
