SpringBoot整合Mybatis-Plus 实战之Mybatis-Plus的一级缓存、二级缓存详解

前言:

现在的JAVA行业,貌似已经是SpringBoot + SpringCloud 的天下了,早期的SSH,SSM框架已经老去,与SpringBoot相结合的JPA框架虽然省去了很多的增删改查sql,但是比较笨拙,在面对一些复杂多变的逻辑时常常力不从心,而相对应的Mybatis由于其高度的灵活性受到广大JAVA攻城狮的欢迎。之前整合过了springboot+mybatis,前几天看到一个面试的问一个问题,Mybatis的一级缓存,二级缓存。我想这个应该也是一个重点吧,所以今天决定来详细解读一下神秘的一二级缓存。

先知

  • 一级缓存是SqlSession级别的缓存。在操作数据库时需要构造sqlSession对象,在对象中有一个数据结构(HashMap)用于存储缓存数据。不同的sqlSession之间的缓存数据区域(HashMap)是互相不影响的。 一级缓存是默认开启的不用配置。
  • 二级缓存是mapper级别的缓存,多个SqlSession去操作同一个Mapper的sql语句,多个SqlSession可以共用二级缓存,二级缓存是跨SqlSession的。二级缓存的开启(实体类必须序列化),然后在配置文件里面配置。

MyBatis-plus 配置要点

核心要点1

mybatis-plus 在springboot 中的核心配置如下

mybatis-plus.configuration.cache-enabled=true
mybatis-plus.mapper-locations=classpath*:/mapper/*.xml
mybatis-plus.type-aliases-package=com.sch.app.mybatis.entity
logging.level.com.sch.app.mybatis.mapper= debug
复制代码

所需依赖 除了基本的springboot依赖外,还有

核心要点2

  <dependency>
		    <groupId>com.baomidou</groupId>
		    <artifactId>mybatis-plus-boot-starter</artifactId>
		    <version>3.3.2</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-cache</artifactId>
		</dependency>
			<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
		</dependency>
复制代码

核心要点3

  • mybatis 语句生成 generatorConfig.xml 用它一步生成需要的基本实体类和接口以及mapper文件(resouses目录下)

            <property name="nullCatalogMeansCurrent" value="true"/>
        </jdbcConnection>
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>
        <javaModelGenerator targetPackage="com.sch.app.mybatis.entity" targetProject="SpringbootMybatis\src\main\java">
            <property name="enableSubPackages" value="true"/>
            <!-- 从数据库返回的值被清理前后的空格  -->
            <property name="trimStrings" value="true" />
        </javaModelGenerator>
        <sqlMapGenerator targetPackage="mapper" targetProject="SpringbootMybatis\src\main\resources">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.sch.app.mybatis.mapper" targetProject="SpringbootMybatis\src\main\java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!--数据库表-->
        <table  schema="" tableName="d_dictionary"></table>
        <table  schema="" tableName="d_dictionary_type"></table>
        <table  schema="" tableName="c_resource"></table>
        <table  schema="" tableName="c_role"></table>
        <table  schema="" tableName="c_role_resource"></table>
        <table  schema="" tableName="c_user_online"></table>
        <table  schema="" tableName="c_user"></table>
        <table  schema="" tableName="c_user_role"></table>
        <table  schema="" tableName="test"></table>
    </context>
    复制代码

在这里插入图片描述

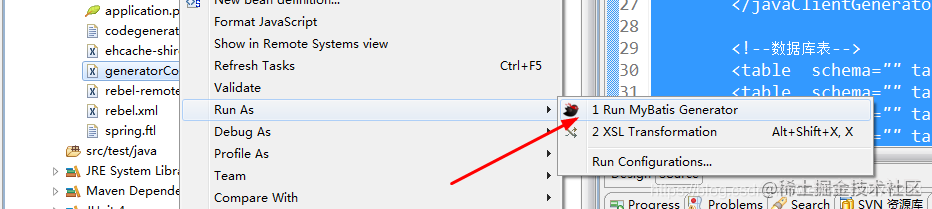

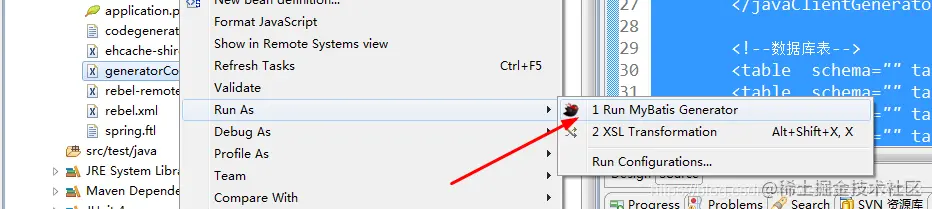

这个 Run Mybatis Generator 可以在eclipse 的插件市场下的

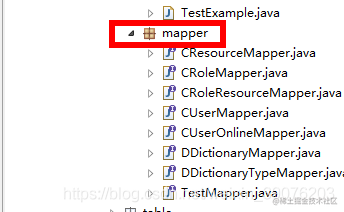

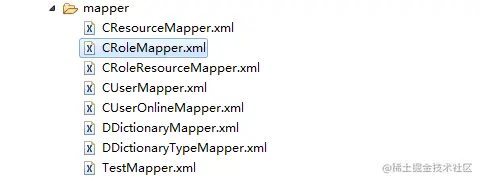

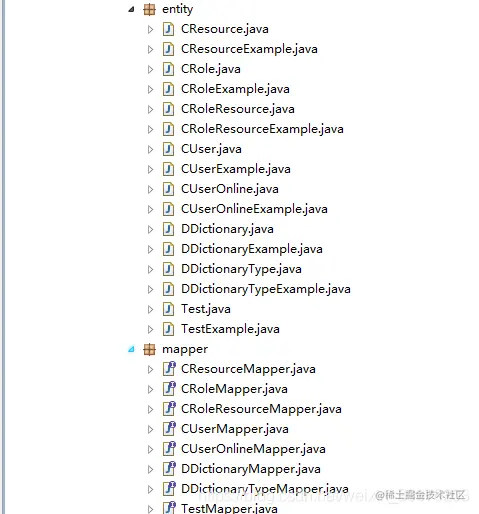

  • 点击执行后生成以下内容

在这里插入图片描述

在这里插入图片描述

Mybatis-plus 一级缓存的测试

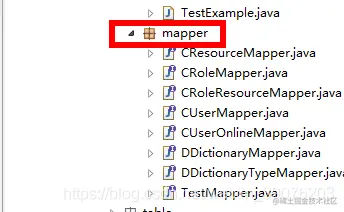

  • 首先一定要开启日志 方便查看效果

    logging.level.com.sch.app.mybatis.mapper= debug

com.sch.app.mybatis.mapper 也就是 mapper接口的目录

在这里插入图片描述

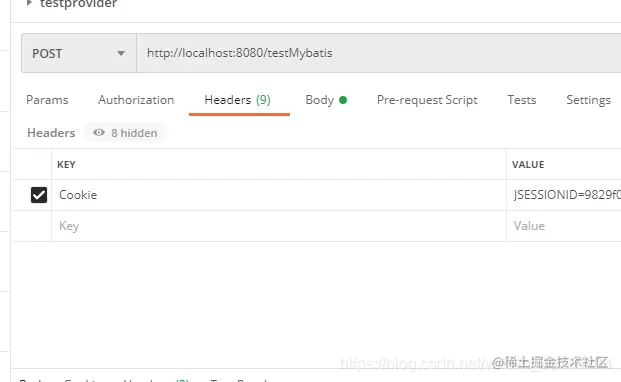

  • 测试代码1

    @Autowired private SqlSessionFactory sqlSessionFactory;

    @RequestMapping(value = "/testMybatis") @ResponseBody public void testMybatis(){ SqlSession sqlSession = sqlSessionFactory.openSession(); TestMapper testMapper = sqlSession.getMapper(TestMapper.class); for (int i = 0; i < 3; i++) { Test selectByPrimaryKey = testMapper.selectByPrimaryKey(5); log.info("结果:"+ selectByPrimaryKey.getUsername()); }

在这里插入图片描述

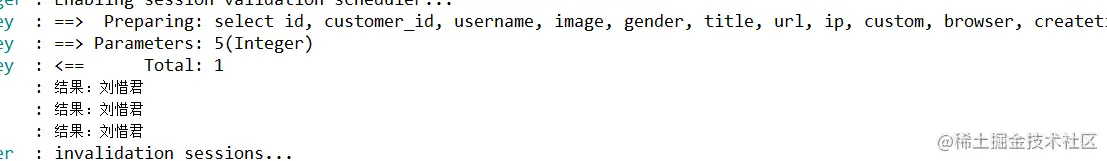

  • 结果是

在这里插入图片描述

  • 可以看出,只搜索了一次,第二三次都没有sql打印

  • 测试代码2

    @RequestMapping(value = "/testMybatis") @ResponseBody public void testMybatis(){ SqlSession sqlSession = sqlSessionFactory.openSession(); TestMapper testMapper = sqlSession.getMapper(TestMapper.class); for (int i = 0; i < 3; i++) { Test selectByPrimaryKey = testMapper.selectByPrimaryKey(5); log.info("结果:"+ selectByPrimaryKey.getUsername()); if (i == 2) { selectByPrimaryKey.setUsername("刘惜君的妹妹"); testMapper.updateByPrimaryKey(selectByPrimaryKey); Test selectByPrimaryKey2 = testMapper.selectByPrimaryKey(5); log.info("更新后的用户名:"+ selectByPrimaryKey2.getUsername()); } }

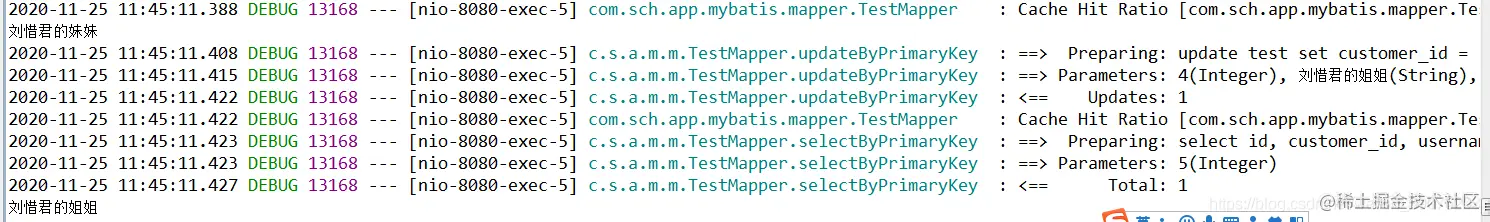

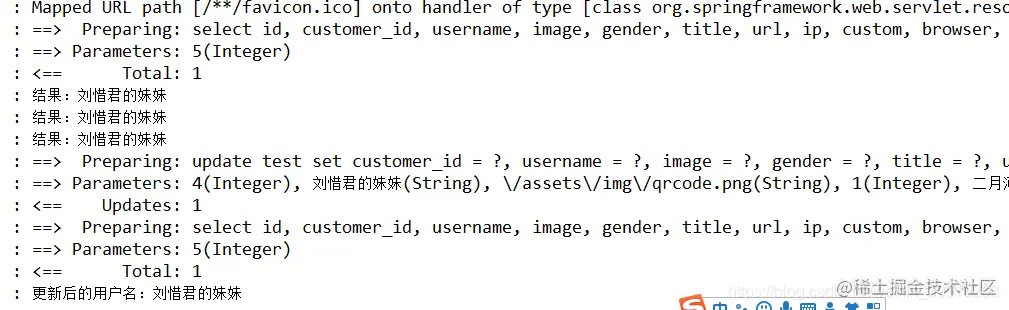

  • 打印结果:

在这里插入图片描述

可见,第一次我加入了更新的代码后再次查询的时候,就又执行了sql语句,说明当执行插入、更新、删除,会清空SqlSession中的一级缓存。只有查询的操作,一级缓存才不会被清除。

Mybatis-plus二级缓存测试

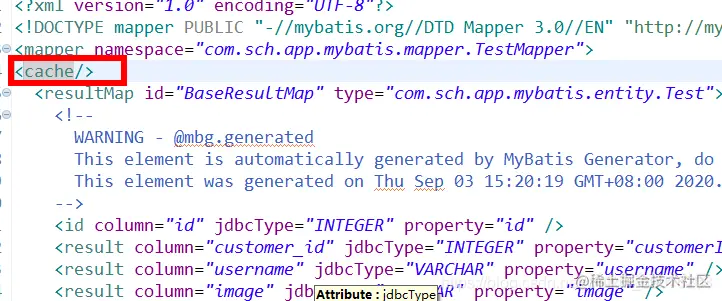

二级缓存的开启除了在配置文件中打开开关 还要在mapper对应开启

在这里插入图片描述

  • 测试代码1

     @RequestMapping(value = "/testMybatis2")
    	    @ResponseBody
    	    public void testMybatis2(){
    	    	SqlSession openSession1 = sqlSessionFactory.openSession();
    	    	SqlSession openSession2 = sqlSessionFactory.openSession();
    	    	TestMapper mapper1 = openSession1.getMapper(TestMapper.class);
    	    	TestMapper mapper2 = openSession2.getMapper(TestMapper.class);
    	    	Test selectByPrimaryKey = mapper1.selectByPrimaryKey(5);
    	    	System.out.println(selectByPrimaryKey.getUsername());
    	    	openSession1.close();
    	    	Test selectByPrimaryKey2 = mapper2.selectByPrimaryKey(5);
    	    	System.out.println(selectByPrimaryKey2.getUsername());
    	    	openSession2.close();
    	   }
    复制代码

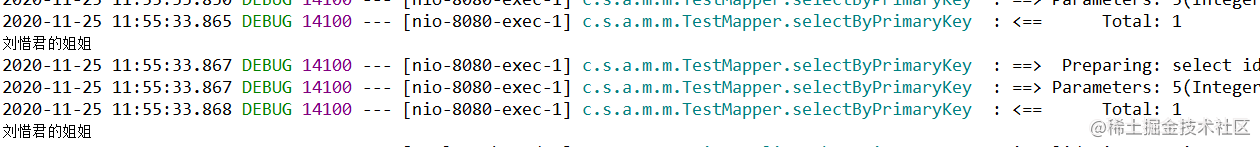

  • 测试结果

在这里插入图片描述

由测试结果可知,上述代码第一次查 mapper1.selectByPrimaryKey(5) 的时候执行了sql,然后关闭了第一个session 第二次 用别的sqlseeison 去查没有调用sql,说明了二级换粗和sqlseesion 无关,之和mapper有关。

  • 测试代码2

    @RequestMapping(value = "/testMybatis3") @ResponseBody public void testMybatis3(){ SqlSession openSession1 = sqlSessionFactory.openSession(); SqlSession openSession2 = sqlSessionFactory.openSession(); SqlSession openSession3 = sqlSessionFactory.openSession(); TestMapper mapper1 = openSession1.getMapper(TestMapper.class); TestMapper mapper2 = openSession2.getMapper(TestMapper.class); TestMapper mapper3 = openSession3.getMapper(TestMapper.class); Test selectByPrimaryKey = mapper1.selectByPrimaryKey(5); System.out.println(selectByPrimaryKey.getUsername()); openSession1.close(); selectByPrimaryKey.setUsername("刘惜君的姐姐"); mapper2.updateByPrimaryKey(selectByPrimaryKey); openSession2.commit();

    	    	Test selectByPrimaryKey3 = mapper3.selectByPrimaryKey(5);
    	    	System.out.println(selectByPrimaryKey3.getUsername());
    	    	openSession3.close();
    	   }
    复制代码
  • 打印结果

在这里插入图片描述

由此可知,做了更新mapper2.updateByPrimaryKey(selectByPrimaryKey); 之后, 二级缓存才被清空。特性和一级缓存很类似。

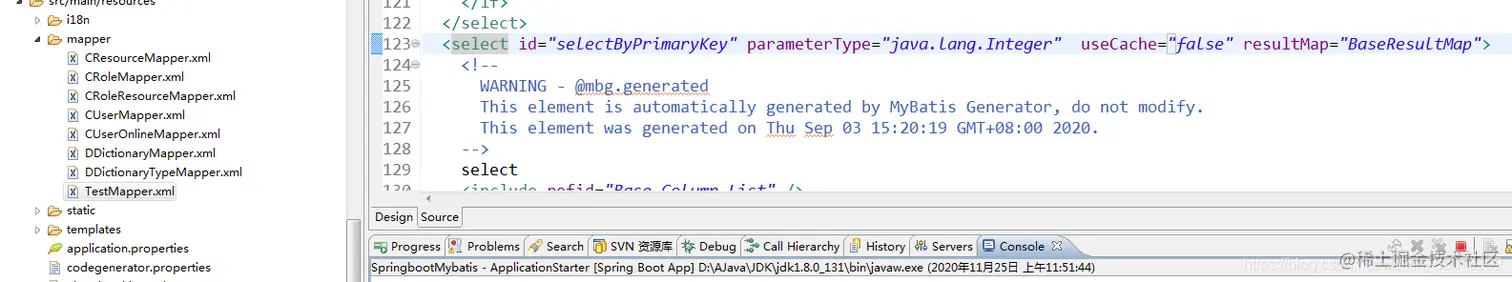

初次之外,我们可以通过userCache是来设置具体的语句是否禁用二级缓存

在这里插入图片描述

在这里插入图片描述

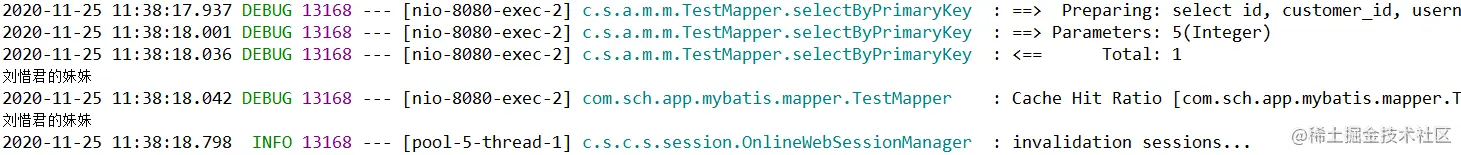

  • 可见 selectByPrimaryKey 这个查询禁止二级缓存后,两次都从数据库里面查了。

小结

  • 一级缓存是默认开始的,属于会话级别,一个会话做多次做相同查询会开启,如果对查询的数据进行更新,删除等操作时,再次查询会从数据库里查而不用一级缓存。
  • 二级缓存开启最重要,请记住三点,1.配置文件开启mybatis-plus.configuration.cache-enabled=true,2.对应mapper文件开启 3.对应实体类实现Serializable 接口。如果要对某一个sql语句禁用二级缓存,则需要在具体的xml 的sql语句定义处加上 useCache=“false” 。另外记住它和会话无关,和 xml 的 namespace 即具体的mapper 有关。
  • 在mapper的同一个namespace中,如果有其它insert、update、delete操作数据后需要刷新缓存,如果不执行刷新缓存会出现脏读。
  • 设置statement配置中的flushCache=“true” 属性,可以实现二级缓存的刷新,false则可能出现脏读。openSession.clearCache() 可以实现对一级缓存的刷新。
