15分钟学习开发一个vscode扩展插件

1,510 阅读3分钟

先打个广告,我自己开发的vscode插件Create-Easy已经上线vscode扩展商店了,点击Create-Easy,或者在vscode的扩展中搜索即可使用。这个扩展主要是方便创建文件和文件夹,一开始我的设计思路是只支持快捷创建vue文件,创建好后直接注入模板(template,script,style)。后来参考了几个vscode的扩展,比如create-file-folder,决定还是以创建文件夹和文件为主要方向,同时支持多种文件格式内部注入模板,在功能上也可以和其它同类型的扩展得以区分。

OK,简单介绍后开始说正文。

一. 安装

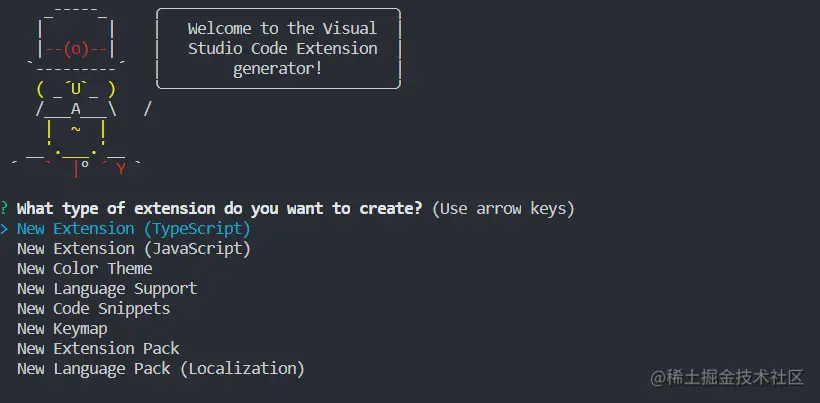

目前,微软提供了开发扩展的脚手架,只需要执行:

npm install -g yo generator-code

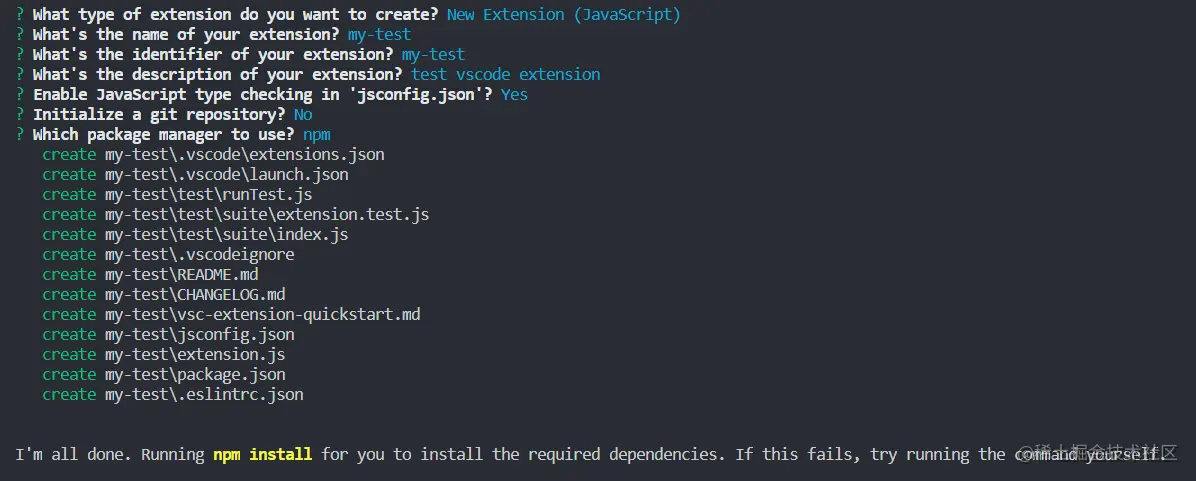

注意,脚手架会自动为你执行npm install 或者 yarn,但是速度非常慢,这边建议取消install后手动cnpm install来进行安装。

二. 起步

安装完毕后,按下F5或者打开vscode调试模式并运行进入到扩展宿主开发环境,按ctrl+shift+p后,输入Hello World就可以看到脚手架为我们提供示例的弹窗。

接下来我们看代码,脚手架为我们提供的代码核心是extension.js和package.json两个文件,前者是入口文件,后者是依赖以及配置文件,而在package.json文件中,最重要的配置就是activationEventscontributes

activationEvents是用来控制触发事件(官方称为Activation Event)的,示例中,控制条件是onCommand,即'ctrl+shift+p',接下来输入指令就可以触发插件了;除了onCommand以外,官方还提供了诸如onLanguageonDebugonUri等事件;

contributes是用来扩展vscode方法的配置,在示例中,注册了commands,也就是说配置了一个命令,my-test.helloworld,在activationEvents也是配置的这个命令,而title则是这个命令在vscode正式环境中使用的名称,也就是用户使用时的名称。而my-test.helloworld是在编写代码时的命令名称。除了commands外,vscode还支持注册menuskeybindingslanguages等多个配置,更多配置可以点击Contributes Point来查看。

接着,我们来看extensions.js文件。

function activate(context) {


  // Use the console to output diagnostic information (console.log) and errors (console.error)
  // This line of code will only be executed once when your extension is activated
  console.log('Congratulations, your extension "my-test" is now active!');


  // The command has been defined in the package.json file
  // Now provide the implementation of the command with  registerCommand
  // The commandId parameter must match the command field in package.json
  let disposable = vscode.commands.registerCommand('my-test.helloWorld', function () {
    // The code you place here will be executed every time your command is executed


    // Display a message box to the user
    vscode.window.showInformationMessage('Hello World from my-test!');
  });


  context.subscriptions.push(disposable);
}

文件的核心代码只有这些,vscode.commands.registerCommand注册之前我们在package.json中配置的命令,回调函数则是触发这个命令后执行的核心逻辑,示例中使用vscode.window.showInformationMessage调用了编辑器的弹窗。

三. 动手实现一个

这回我们实现一个简单的功能,使用命令创建一个HTML文件,同时让它内部生成好需要的HTML代码。

1. 修改命令名称

在package.json中,我们修改'contributescommandtitle,将Hello World改成create html,这样我们就可以在ctrl+shift+p中使用create html命令来执行我们的代码了。

2. 在extension.js中引入fs和path,删除函数中vscode.window.showInformationMessage的代码,接着创建html的默认内容

function activate(context) {

  let disposable = vscode.commands.registerCommand('my-test.helloWorld', function () {
      const content = `<!DOCTYPE html>
<html>
<head>
  <title></title>
</head>
<body>


</body>
</html>
`
  });


  context.subscriptions.push(disposable);
}

3. 创建文件

最后一步,只需要用fs写入文件就可以了:

function activate(context) {

  let disposable = vscode.commands.registerCommand('my-test.helloWorld', function () {

    const content = `<!DOCTYPE html>
<html>
<head>
  <title></title>
</head>
<body>


</body>
</html>
    `
    const uri = vscode.workspace.workspaceFolders[0].uri.fsPath
    console.log(uri)
    fs.writeFile(path.join(uri, 'index.html'), content, (err) => {
      if (err) vscode.window.showErrorMessage('创建失败')
      vscode.window.showInformationMessage('创建成功')
    })

  });


  context.subscriptions.push(disposable);
}

vscode.workspace.workspaceFolders[0].uri.fsPath是用来获取当前工作区的第一个文件夹的绝对路径,如果你一个工作区有多个项目,可以通过workspaceFolders数组来进行控制;

四. 发布

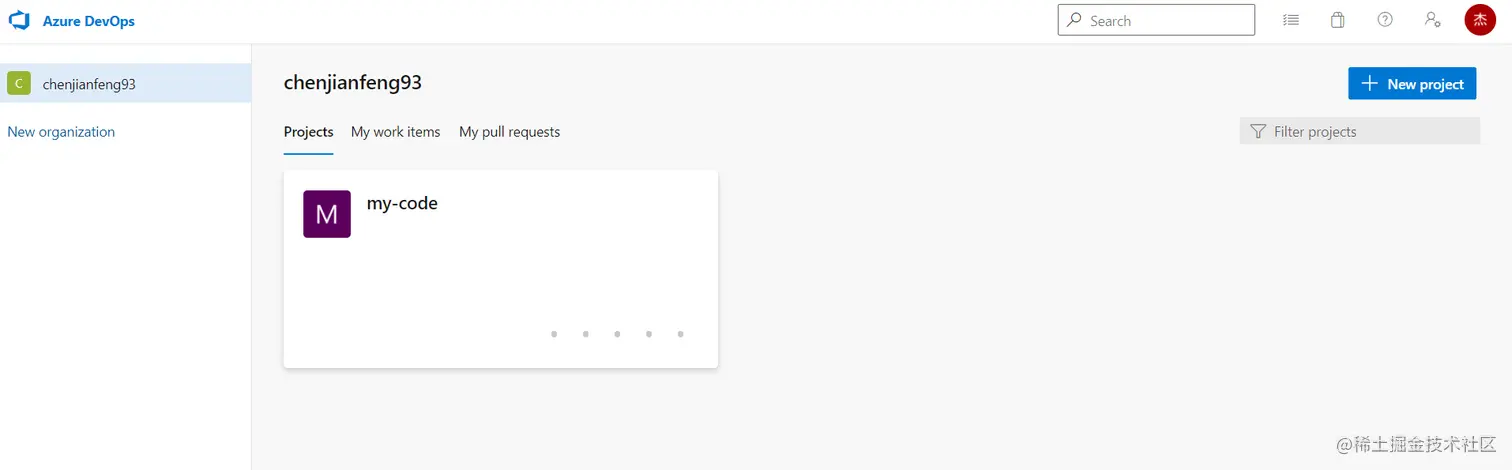

首先安装vsce,npm install -g vsce,接着去azure创建账号,创建成功后如图:

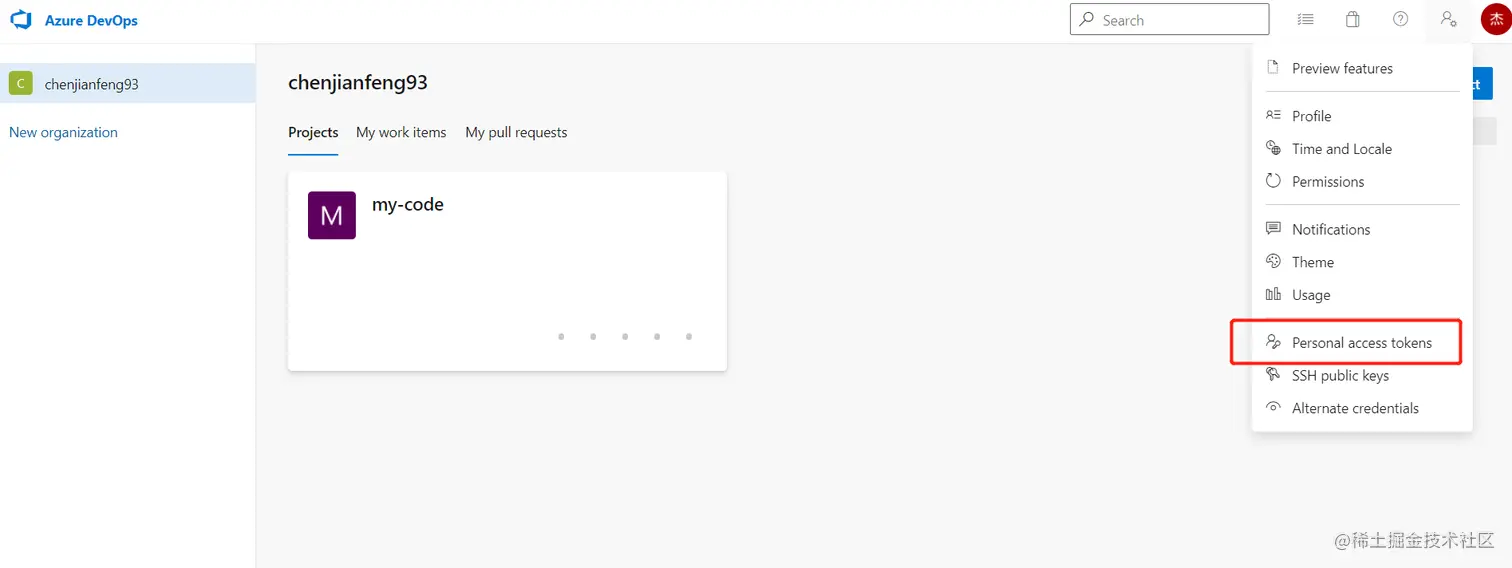

然后点击用户设置,点击personal access token创建令牌

创建成功后记得保存令牌;

接下来执行vsce publisher 创建发布者,这里需要输入刚才的令牌;

接着修改你的readme文件,最后执行vsce publish就成功发布了。

本文同步发布于:shreddedbutter.com
