写在前面

最近在 K8S 1.18.2 版本的集群上搭建DevOps环境,期间遇到了各种坑。目前,搭建环境的过程中出现的各种坑均已被填平,特此记录,并分享给大家!

文章和搭建环境所需要的yml文件已收录到:github.com/sunshinelyz…gitee.com/binghe001/t… 。如果文件对你有点帮助,别忘记给个Star哦!

服务器规划

IP主机名节点操作系统
192.168.175.101binghe101K8S MasterCentOS 8.0.1905
192.168.175.102binghe102K8S WorkerCentOS 8.0.1905
192.168.175.103binghe103K8S WorkerCentOS 8.0.1905

安装环境版本

软件名称软件版本说明
Docker19.03.8提供容器环境
docker-compose1.25.5定义和运行由多个容器组成的应用
K8S1.8.12是一个开源的,用于管理云平台中多个主机上的容器化的应用,Kubernetes的目标是让部署容器化的应用简单并且高效(powerful),Kubernetes提供了应用部署,规划,更新,维护的一种机制。
GitLab12.1.6代码仓库(与SVN安装一个即可)
Harbor1.10.2私有镜像仓库
Jenkins2.89.3持续集成交付
SVN1.10.2代码仓库(与GitLab安装一个即可)
JDK1.8.0_202Java运行基础环境
maven3.6.3构建项目的基础插件

服务器免密码登录

在各服务器执行如下命令。

ssh-keygen -t rsa
cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
复制代码

将binghe102和binghe103服务器上的id_rsa.pub文件复制到binghe101服务器。

[root@binghe102 ~]# scp .ssh/id_rsa.pub binghe101:/root/.ssh/102
[root@binghe103 ~]# scp .ssh/id_rsa.pub binghe101:/root/.ssh/103
复制代码

在binghe101服务器上执行如下命令。

cat ~/.ssh/102 >> ~/.ssh/authorized_keys
cat ~/.ssh/103 >> ~/.ssh/authorized_keys
复制代码

然后将authorized_keys文件分别复制到binghe102、binghe103服务器。

[root@binghe101 ~]# scp .ssh/authorized_keys binghe102:/root/.ssh/authorized_keys
[root@binghe101 ~]# scp .ssh/authorized_keys binghe103:/root/.ssh/authorized_keys
复制代码

删除binghe101节点上~/.ssh下的102和103文件。

rm ~/.ssh/102
rm ~/.ssh/103
复制代码

安装JDK

需要在每台服务器上安装JDK环境。到Oracle官方下载JDK,我这里下的JDK版本为1.8.0_202,下载后解压并配置系统环境变量。

tar -zxvf jdk1.8.0_212.tar.gz
mv jdk1.8.0_212 /usr/local
复制代码

接下来,配置系统环境变量。

vim /etc/profile
复制代码

配置项内容如下所示。

JAVA_HOME=/usr/local/jdk1.8.0_212
CLASS_PATH=.:$JAVA_HOME/lib
PATH=$JAVA_HOME/bin:$PATH
export JAVA_HOME CLASS_PATH PATH
复制代码

接下来执行如下命令使系统环境变量生效。

source /etc/profile
复制代码

安装Maven

到Apache官方下载Maven,我这里下载的Maven版本为3.6.3。下载后直接解压并配置系统环境变量。

tar -zxvf apache-maven-3.6.3-bin.tar.gz
mv apache-maven-3.6.3-bin /usr/local
复制代码

接下来,就是配置系统环境变量。

vim /etc/profile
复制代码

配置项内容如下所示。

JAVA_HOME=/usr/local/jdk1.8.0_212
MAVEN_HOME=/usr/local/apache-maven-3.6.3-bin
CLASS_PATH=.:$JAVA_HOME/lib
PATH=$MAVEN_HOME/bin:$JAVA_HOME/bin:$PATH
export JAVA_HOME CLASS_PATH MAVEN_HOME PATH
复制代码

接下来执行如下命令使系统环境变量生效。

source /etc/profile
复制代码

接下来,修改Maven的配置文件,如下所示。

<localRepository>/home/repository</localRepository>
复制代码

将Maven下载的Jar包存储到/home/repository目录下。

安装Docker环境

本文档基于Docker 19.03.8 版本搭建Docker环境。

在所有服务器上创建install_docker.sh脚本,脚本内容如下所示。

export REGISTRY_MIRROR=https://registry.cn-hangzhou.aliyuncs.com
dnf install yum*
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
dnf install https://mirrors.aliyun.com/docker-ce/linux/centos/7/x86_64/stable/Packages/containerd.io-1.2.13-3.1.el7.x86_64.rpm
yum install -y docker-ce-19.03.8 docker-ce-cli-19.03.8
systemctl enable docker.service
systemctl start docker.service
docker version
复制代码

在每台服务器上为install_docker.sh脚本赋予可执行权限,并执行脚本即可。

安装docker-compose

注意:在每台服务器上安装docker-compose

1.下载docker-compose文件

curl -L https://github.com/docker/compose/releases/download/1.25.5/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose
复制代码

2.为docker-compose文件赋予可执行权限

chmod a+x /usr/local/bin/docker-compose
复制代码

3.查看docker-compose版本

[root@binghe ~]# docker-compose version
docker-compose version 1.25.5, build 8a1c60f6
docker-py version: 4.1.0
CPython version: 3.7.5
OpenSSL version: OpenSSL 1.1.0l  10 Sep 2019
复制代码

安装K8S集群环境

本文档基于K8S 1.8.12版本来搭建K8S集群

安装K8S基础环境

在所有服务器上创建install_k8s.sh脚本文件,脚本文件的内容如下所示。

#配置阿里云镜像加速器
mkdir -p /etc/docker
tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://zz3sblpi.mirror.aliyuncs.com"]
}
EOF
systemctl daemon-reload
systemctl restart docker

#安装nfs-utils
yum install -y nfs-utils
yum install -y wget

#启动nfs-server
systemctl start nfs-server
systemctl enable nfs-server

#关闭防火墙
systemctl stop firewalld
systemctl disable firewalld

#关闭SeLinux
setenforce 0
sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

# 关闭 swap
swapoff -a
yes | cp /etc/fstab /etc/fstab_bak
cat /etc/fstab_bak |grep -v swap > /etc/fstab

#修改 /etc/sysctl.conf
# 如果有配置,则修改
sed -i "s#^net.ipv4.ip_forward.*#net.ipv4.ip_forward=1#g"  /etc/sysctl.conf
sed -i "s#^net.bridge.bridge-nf-call-ip6tables.*#net.bridge.bridge-nf-call-ip6tables=1#g"  /etc/sysctl.conf
sed -i "s#^net.bridge.bridge-nf-call-iptables.*#net.bridge.bridge-nf-call-iptables=1#g"  /etc/sysctl.conf
sed -i "s#^net.ipv6.conf.all.disable_ipv6.*#net.ipv6.conf.all.disable_ipv6=1#g"  /etc/sysctl.conf
sed -i "s#^net.ipv6.conf.default.disable_ipv6.*#net.ipv6.conf.default.disable_ipv6=1#g"  /etc/sysctl.conf
sed -i "s#^net.ipv6.conf.lo.disable_ipv6.*#net.ipv6.conf.lo.disable_ipv6=1#g"  /etc/sysctl.conf
sed -i "s#^net.ipv6.conf.all.forwarding.*#net.ipv6.conf.all.forwarding=1#g"  /etc/sysctl.conf
# 可能没有,追加
echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf
echo "net.bridge.bridge-nf-call-ip6tables = 1" >> /etc/sysctl.conf
echo "net.bridge.bridge-nf-call-iptables = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.all.disable_ipv6 = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.default.disable_ipv6 = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.lo.disable_ipv6 = 1" >> /etc/sysctl.conf
echo "net.ipv6.conf.all.forwarding = 1"  >> /etc/sysctl.conf
# 执行命令以应用
sysctl -p

# 配置K8S的yum源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
       http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

# 卸载旧版本K8S
yum remove -y kubelet kubeadm kubectl

# 安装kubelet、kubeadm、kubectl,这里我安装的是1.18.2版本,你也可以安装1.17.2版本
yum install -y kubelet-1.18.2 kubeadm-1.18.2 kubectl-1.18.2

# 修改docker Cgroup Driver为systemd
# # 将/usr/lib/systemd/system/docker.service文件中的这一行 ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
# # 修改为 ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --exec-opt native.cgroupdriver=systemd
# 如果不修改,在添加 worker 节点时可能会碰到如下错误
# [WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd".
# Please follow the guide at https://kubernetes.io/docs/setup/cri/
sed -i "s#^ExecStart=/usr/bin/dockerd.*#ExecStart=/usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock --exec-opt native.cgroupdriver=systemd#g" /usr/lib/systemd/system/docker.service

# 设置 docker 镜像,提高 docker 镜像下载速度和稳定性
# 如果访问 https://hub.docker.io 速度非常稳定,亦可以跳过这个步骤
# curl -sSL https://kuboard.cn/install-script/set_mirror.sh | sh -s ${REGISTRY_MIRROR}

# 重启 docker,并启动 kubelet
systemctl daemon-reload
systemctl restart docker
systemctl enable kubelet && systemctl start kubelet

docker version
复制代码

在每台服务器上为install_k8s.sh脚本赋予可执行权限,并执行脚本即可。

初始化Master节点

只在binghe101服务器上执行的操作。

1.初始化Master节点的网络环境

注意:下面的命令需要在命令行手动执行。

# 只在 master 节点执行
# export 命令只在当前 shell 会话中有效,开启新的 shell 窗口后,如果要继续安装过程,请重新执行此处的 export 命令
export MASTER_IP=192.168.175.101
# 替换 k8s.master 为 您想要的 dnsName
export APISERVER_NAME=k8s.master
# Kubernetes 容器组所在的网段,该网段安装完成后,由 kubernetes 创建,事先并不存在于物理网络中
export POD_SUBNET=172.18.0.1/16
echo "${MASTER_IP}    ${APISERVER_NAME}" >> /etc/hosts
复制代码

2.初始化Master节点

在binghe101服务器上创建init_master.sh脚本文件,文件内容如下所示。

#!/bin/bash
# 脚本出错时终止执行
set -e

if [ ${#POD_SUBNET} -eq 0 ] || [ ${#APISERVER_NAME} -eq 0 ]; then
  echo -e "\033[31;1m请确保您已经设置了环境变量 POD_SUBNET 和 APISERVER_NAME \033[0m"
  echo 当前POD_SUBNET=$POD_SUBNET
  echo 当前APISERVER_NAME=$APISERVER_NAME
  exit 1
fi


# 查看完整配置选项 https://godoc.org/k8s.io/kubernetes/cmd/kubeadm/app/apis/kubeadm/v1beta2
rm -f ./kubeadm-config.yaml
cat <<EOF > ./kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta2
kind: ClusterConfiguration
kubernetesVersion: v1.18.2
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
controlPlaneEndpoint: "${APISERVER_NAME}:6443"
networking:
  serviceSubnet: "10.96.0.0/16"
  podSubnet: "${POD_SUBNET}"
  dnsDomain: "cluster.local"
EOF

# kubeadm init
# 根据服务器网速的情况,您需要等候 3 - 10 分钟
kubeadm init --config=kubeadm-config.yaml --upload-certs

# 配置 kubectl
rm -rf /root/.kube/
mkdir /root/.kube/
cp -i /etc/kubernetes/admin.conf /root/.kube/config

# 安装 calico 网络插件
# 参考文档 https://docs.projectcalico.org/v3.13/getting-started/kubernetes/self-managed-onprem/onpremises
echo "安装calico-3.13.1"
rm -f calico-3.13.1.yaml
wget https://kuboard.cn/install-script/calico/calico-3.13.1.yaml
kubectl apply -f calico-3.13.1.yaml
复制代码

赋予init_master.sh脚本文件可执行权限并执行脚本。

3.查看Master节点的初始化结果

(1)确保所有容器组处于Running状态

# 执行如下命令,等待 3-10 分钟,直到所有的容器组处于 Running 状态
watch kubectl get pod -n kube-system -o wide
复制代码

具体执行如下所示。

[root@binghe101 ~]# watch kubectl get pod -n kube-system -o wide
Every 2.0s: kubectl get pod -n kube-system -o wide                                                                                                                          binghe101: Sun May 10 11:01:32 2020

NAME                                       READY   STATUS    RESTARTS   AGE    IP                NODE        NOMINATED NODE   READINESS GATES
calico-kube-controllers-5b8b769fcd-5dtlp   1/1     Running   0          118s   172.18.203.66     binghe101   <none>           <none>
calico-node-fnv8g                          1/1     Running   0          118s   192.168.175.101   binghe101   <none>           <none>
coredns-546565776c-27t7h                   1/1     Running   0          2m1s   172.18.203.67     binghe101   <none>           <none>
coredns-546565776c-hjb8z                   1/1     Running   0          2m1s   172.18.203.65     binghe101   <none>           <none>
etcd-binghe101                             1/1     Running   0          2m7s   192.168.175.101   binghe101   <none>           <none>
kube-apiserver-binghe101                   1/1     Running   0          2m7s   192.168.175.101   binghe101   <none>           <none>
kube-controller-manager-binghe101          1/1     Running   0          2m7s   192.168.175.101   binghe101   <none>           <none>
kube-proxy-dvgsr                           1/1     Running   0          2m1s   192.168.175.101   binghe101   <none>           <none>
kube-scheduler-binghe101                   1/1     Running   0          2m7s   192.168.175.101   binghe101   <none>           <none>
复制代码

(2) 查看 Master 节点初始化结果

kubectl get nodes -o wide
复制代码

具体执行如下所示。

[root@binghe101 ~]# kubectl get nodes -o wide
NAME        STATUS   ROLES    AGE     VERSION   INTERNAL-IP       EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION         CONTAINER-RUNTIME
binghe101   Ready    master   3m28s   v1.18.2   192.168.175.101   <none>        CentOS Linux 8 (Core)   4.18.0-80.el8.x86_64   docker://19.3.8
复制代码

初始化Worker节点

1.获取join命令参数

在Master节点(binghe101服务器)上执行如下命令获取join命令参数。

kubeadm token create --print-join-command
复制代码

具体执行如下所示。

[root@binghe101 ~]# kubeadm token create --print-join-command
W0510 11:04:34.828126   56132 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io]
kubeadm join k8s.master:6443 --token 8nblts.62xytoqufwsqzko2     --discovery-token-ca-cert-hash sha256:1717cc3e34f6a56b642b5751796530e367aa73f4113d09994ac3455e33047c0d
复制代码

其中,有如下一行输出。

kubeadm join k8s.master:6443 --token 8nblts.62xytoqufwsqzko2     --discovery-token-ca-cert-hash sha256:1717cc3e34f6a56b642b5751796530e367aa73f4113d09994ac3455e33047c0d
复制代码

这行代码就是获取到的join命令。

注意:join命令中的token的有效时间为 2 个小时,2小时内,可以使用此 token 初始化任意数量的 worker 节点。

2.初始化Worker节点

针对所有的 worker 节点执行,在这里,就是在binghe102服务器和binghe103服务器上执行。

在命令分别手动执行如下命令。

# 只在 worker 节点执行
# 192.168.175.101 为 master 节点的内网 IP
export MASTER_IP=192.168.175.101
# 替换 k8s.master 为初始化 master 节点时所使用的 APISERVER_NAME
export APISERVER_NAME=k8s.master
echo "${MASTER_IP}    ${APISERVER_NAME}" >> /etc/hosts

# 替换为 master 节点上 kubeadm token create 命令输出的join
kubeadm join k8s.master:6443 --token 8nblts.62xytoqufwsqzko2     --discovery-token-ca-cert-hash sha256:1717cc3e34f6a56b642b5751796530e367aa73f4113d09994ac3455e33047c0d
复制代码

具体执行如下所示。

[root@binghe102 ~]# export MASTER_IP=192.168.175.101
[root@binghe102 ~]# export APISERVER_NAME=k8s.master
[root@binghe102 ~]# echo "${MASTER_IP}    ${APISERVER_NAME}" >> /etc/hosts
[root@binghe102 ~]# kubeadm join k8s.master:6443 --token 8nblts.62xytoqufwsqzko2     --discovery-token-ca-cert-hash sha256:1717cc3e34f6a56b642b5751796530e367aa73f4113d09994ac3455e33047c0d
W0510 11:08:27.709263   42795 join.go:346] [preflight] WARNING: JoinControlPane.controlPlane settings will be ignored when control-plane flag is not set.
[preflight] Running pre-flight checks
        [WARNING FileExisting-tc]: tc not found in system path
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.18" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
复制代码

根据输出结果可以看出,Worker节点加入了K8S集群。

注意:kubeadm join…就是master 节点上 kubeadm token create 命令输出的join。

3.查看初始化结果

在Master节点(binghe101服务器)执行如下命令查看初始化结果。

kubectl get nodes -o wide
复制代码

具体执行如下所示。

[root@binghe101 ~]# kubectl get nodes
NAME        STATUS   ROLES    AGE     VERSION
binghe101   Ready    master   20m     v1.18.2
binghe102   Ready    <none>   2m46s   v1.18.2
binghe103   Ready    <none>   2m46s   v1.18.2
复制代码

注意:kubectl get nodes命令后面加上-o wide参数可以输出更多的信息。

重启K8S集群引起的问题

1.Worker节点故障不能启动

Master 节点的 IP 地址发生变化,导致 worker 节点不能启动。需要重新安装K8S集群,并确保所有节点都有固定的内网 IP 地址。

2.Pod崩溃或不能正常访问

重启服务器后使用如下命令查看Pod的运行状态。

kubectl get pods --all-namespaces
复制代码

发现很多 Pod 不在 Running 状态,此时,需要使用如下命令删除运行不正常的Pod。

kubectl delete pod <pod-name> -n <pod-namespece>
复制代码

注意:如果Pod 是使用 Deployment、StatefulSet 等控制器创建的,K8S 将创建新的 Pod 作为替代,重新启动的 Pod 通常能够正常工作。

K8S安装ingress-nginx

注意:在Master节点(binghe101服务器上执行)

1.创建ingress-nginx命名空间

创建ingress-nginx-namespace.yaml文件,文件内容如下所示。

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    name: ingress-nginx
复制代码

执行如下命令创建ingress-nginx命名空间。

kubectl apply -f ingress-nginx-namespace.yaml
复制代码

2.安装ingress controller

创建ingress-nginx-mandatory.yaml文件,文件内容如下所示。

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx

---

apiVersion: apps/v1
kind: Deployment
metadata:
  name: default-http-backend
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
  namespace: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: default-http-backend
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: default-http-backend
        app.kubernetes.io/part-of: ingress-nginx
    spec:
      terminationGracePeriodSeconds: 60
      containers:
        - name: default-http-backend
          # Any image is permissible as long as:
          # 1. It serves a 404 page at /
          # 2. It serves 200 on a /healthz endpoint
          image: registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/defaultbackend-amd64:1.5
          livenessProbe:
            httpGet:
              path: /healthz
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            timeoutSeconds: 5
          ports:
            - containerPort: 8080
          resources:
            limits:
              cpu: 10m
              memory: 20Mi
            requests:
              cpu: 10m
              memory: 20Mi

---
apiVersion: v1
kind: Service
metadata:
  name: default-http-backend
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
spec:
  ports:
    - port: 80
      targetPort: 8080
  selector:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-configuration
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: tcp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

kind: ConfigMap
apiVersion: v1
metadata:
  name: udp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---

apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress-serviceaccount
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: nginx-ingress-clusterrole
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses/status
    verbs:
      - update

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: Role
metadata:
  name: nginx-ingress-role
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
    resourceNames:
      # Defaults to "<election-id>-<ingress-class>"
      # Here: "<ingress-controller-leader>-<nginx>"
      # This has to be adapted if you change either parameter
      # when launching the nginx-ingress-controller.
      - "ingress-controller-leader-nginx"
    verbs:
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - endpoints
    verbs:
      - get

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: RoleBinding
metadata:
  name: nginx-ingress-role-nisa-binding
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: nginx-ingress-role
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx

---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: nginx-ingress-clusterrole-nisa-binding
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: nginx-ingress-clusterrole
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx

---

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
    spec:
      serviceAccountName: nginx-ingress-serviceaccount
      containers:
        - name: nginx-ingress-controller
          image: registry.cn-qingdao.aliyuncs.com/kubernetes_xingej/nginx-ingress-controller:0.20.0
          args:
            - /nginx-ingress-controller
            - --default-backend-service=$(POD_NAMESPACE)/default-http-backend
            - --configmap=$(POD_NAMESPACE)/nginx-configuration
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx
            - --annotations-prefix=nginx.ingress.kubernetes.io
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            # www-data -> 33
            runAsUser: 33
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          ports:
            - name: http
              containerPort: 80
            - name: https
              containerPort: 443
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1

---
复制代码

执行如下命令安装ingress controller。

kubectl apply -f ingress-nginx-mandatory.yaml
复制代码

3.安装K8S SVC:ingress-nginx

主要是用来用于暴露pod:nginx-ingress-controller。

创建service-nodeport.yaml文件,文件内容如下所示。

apiVersion: v1
kind: Service
metadata:
  name: ingress-nginx
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  type: NodePort
  ports:
    - name: http
      port: 80
      targetPort: 80
      protocol: TCP
      nodePort: 30080
    - name: https
      port: 443
      targetPort: 443
      protocol: TCP
      nodePort: 30443
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
复制代码

执行如下命令安装。

kubectl apply -f service-nodeport.yaml
复制代码

4.访问K8S SVC:ingress-nginx

查看ingress-nginx命名空间的部署情况,如下所示。

[root@binghe101 k8s]# kubectl get pod -n ingress-nginx
NAME                                        READY   STATUS    RESTARTS   AGE
default-http-backend-796ddcd9b-vfmgn        1/1     Running   1          10h
nginx-ingress-controller-58985cc996-87754   1/1     Running   2          10h
复制代码

在命令行服务器命令行输入如下命令查看ingress-nginx的端口映射情况。

kubectl get svc -n ingress-nginx
复制代码

具体如下所示。

[root@binghe101 k8s]# kubectl get svc -n ingress-nginx
NAME                   TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)                      AGE
default-http-backend   ClusterIP   10.96.247.2   <none>        80/TCP                       7m3s
ingress-nginx          NodePort    10.96.40.6    <none>        80:30080/TCP,443:30443/TCP   4m35s
复制代码

所以,可以通过Master节点(binghe101服务器)的IP地址和30080端口号来访问ingress-nginx,如下所示。

[root@binghe101 k8s]# curl 192.168.175.101:30080
default backend - 404
复制代码

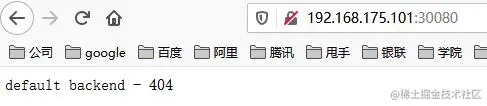

也可以在浏览器打开http://192.168.175.101:30080 来访问ingress-nginx,如下所示。 在这里插入图片描述

分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
