用Markdown绘制图表

一旦从首选项面板中启用,Typora就支持图表的某些Markdown扩展。

当导出为HTML,PDF,epub,docx时,这些渲染图也将包括在内,但将markdown导出为当前版本的其他文件格式时,不支持图功能。此外,您还应该注意,标准Markdown,CommonMark或GFM不支持图表。因此,我们仍然建议您插入这些图的图像,而不是直接将它们写在Markdown中。

顺序图

此功能使用js-sequence,它将以下代码块转换为呈现的图:

```sequence
Alice->Bob: Hello Bob, how are you?
Note right of Bob: Bob thinks
Bob-->Alice: I am good thanks!
```
复制代码

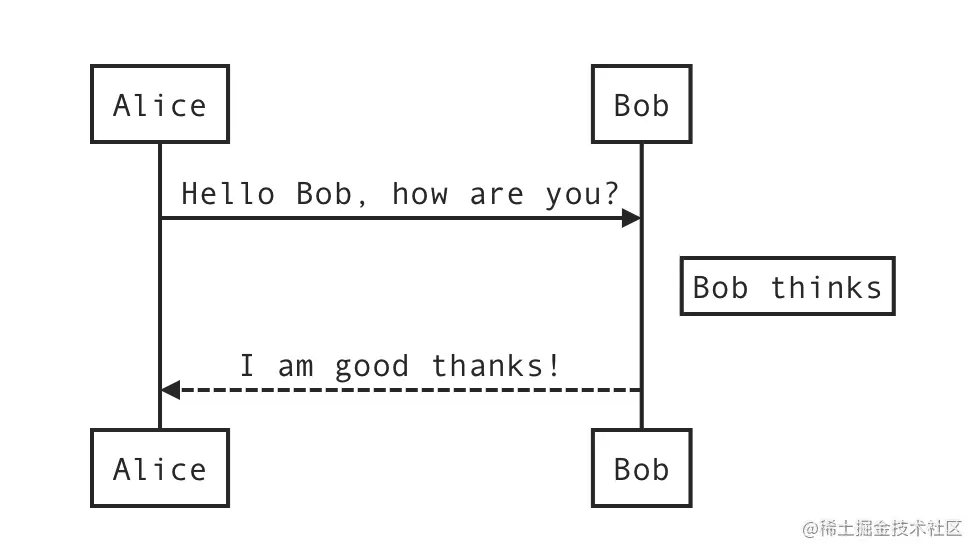

js序列

有关更多详细信息,请参见此语法说明

流程图

此功能使用流程图.js,它将以下代码块转换为呈现的图:

```flow
st=>start: Start
op=>operation: Your Operation
cond=>condition: Yes or No?
e=>end

st->op->cond
cond(yes)->e
cond(no)->op
```
复制代码

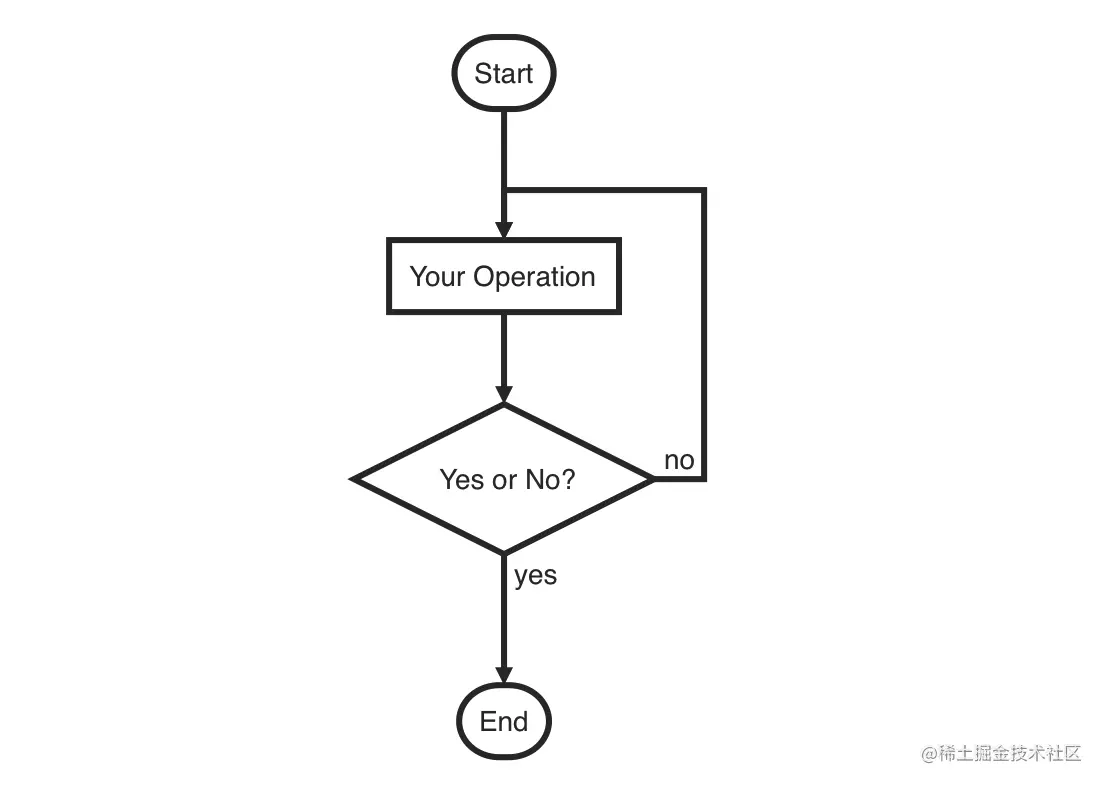

流程图

Mermaid

Typora还与mermaid集成,后者支持顺序图,流程图,Gantt Charts,类和状态图以及饼图。

顺序图

有关更多详细信息,请参见这些说明

```mermaid
%% Example of sequence diagram
  sequenceDiagram
    Alice->>Bob: Hello Bob, how are you?
    alt is sick
    Bob->>Alice: Not so good :(
    else is well
    Bob->>Alice: Feeling fresh like a daisy
    end
    opt Extra response
    Bob->>Alice: Thanks for asking
    end
```
复制代码

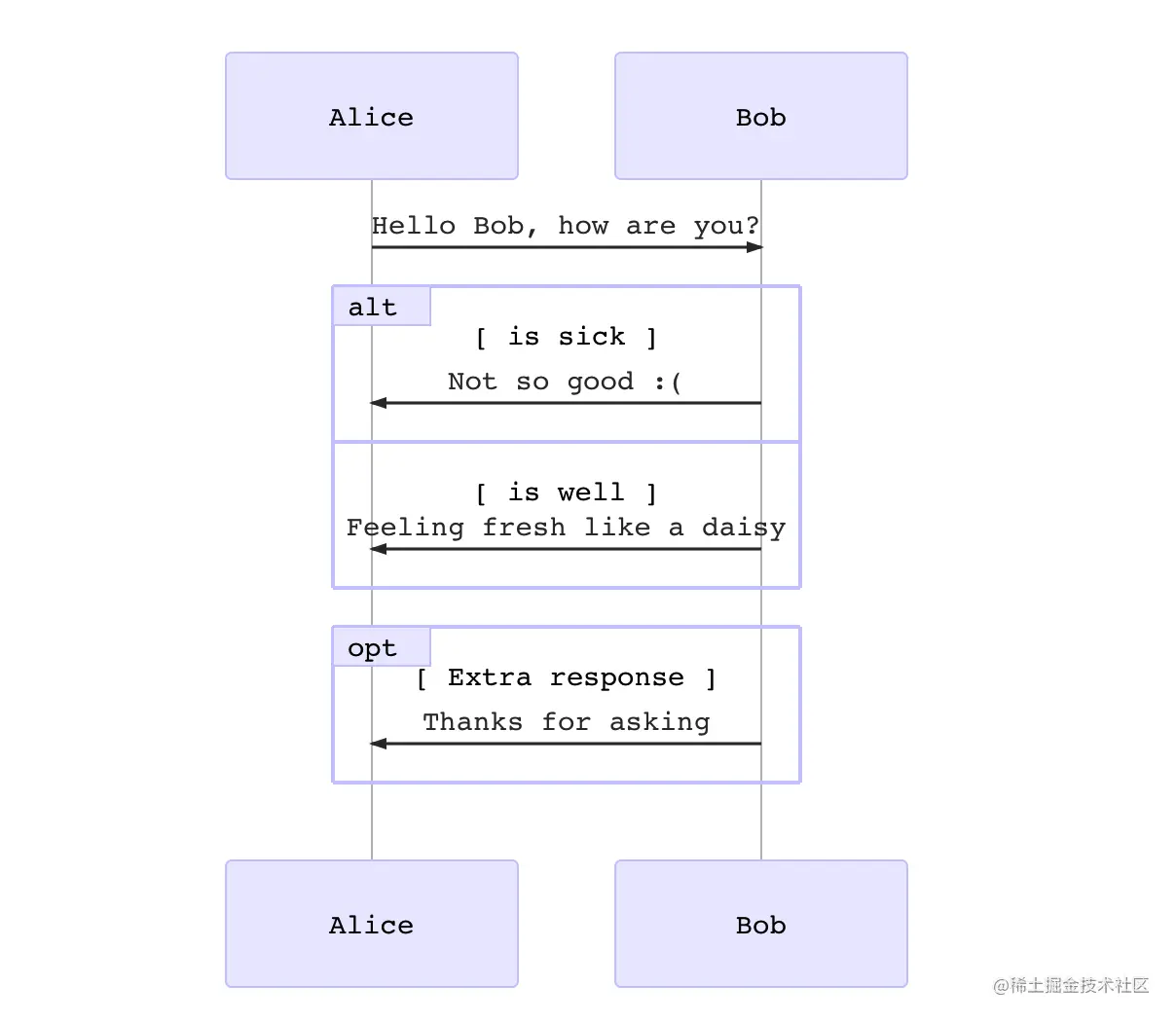

美人鱼序列

流程图

有关更多详细信息,请参见这些说明

```mermaid
graph LR
A[Hard edge] -->B(Round edge)
    B --> C{Decision}
    C -->|One| D[Result one]
    C -->|Two| E[Result two]
```
复制代码

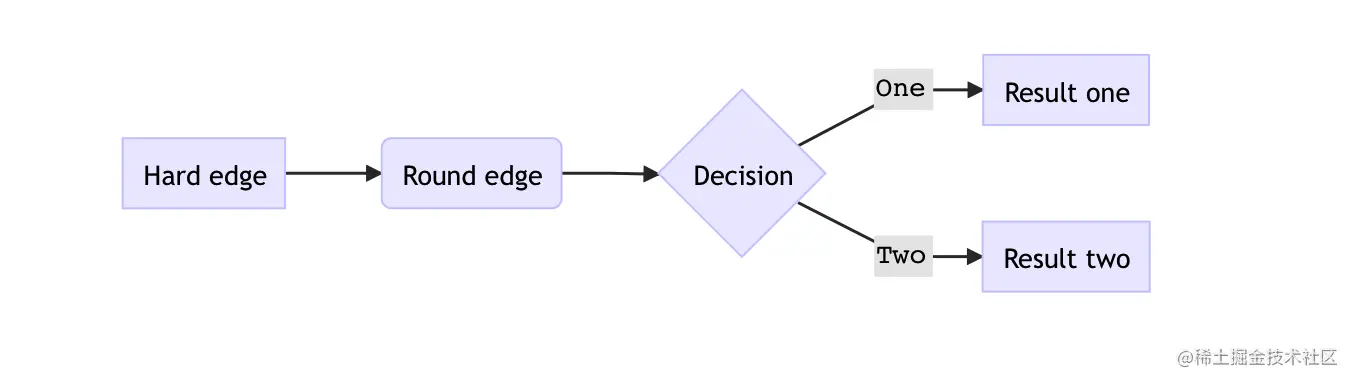

美人鱼流程图

Gantt Charts

有关更多详细信息,请参见这些说明

```mermaid
%% Example with selection of syntaxes
        gantt
        dateFormat  YYYY-MM-DD
        title Adding GANTT diagram functionality to mermaid

        section A section
        Completed task            :done,    des1, 2014-01-06,2014-01-08
        Active task               :active,  des2, 2014-01-09, 3d
        Future task               :         des3, after des2, 5d
        Future task2               :         des4, after des3, 5d

        section Critical tasks
        Completed task in the critical line :crit, done, 2014-01-06,24h
        Implement parser and jison          :crit, done, after des1, 2d
        Create tests for parser             :crit, active, 3d
        Future task in critical line        :crit, 5d
        Create tests for renderer           :2d
        Add to mermaid                      :1d

        section Documentation
        Describe gantt syntax               :active, a1, after des1, 3d
        Add gantt diagram to demo page      :after a1  , 20h
        Add another diagram to demo page    :doc1, after a1  , 48h

        section Last section
        Describe gantt syntax               :after doc1, 3d
        Add gantt diagram to demo page      : 20h
        Add another diagram to demo page    : 48h
```
复制代码

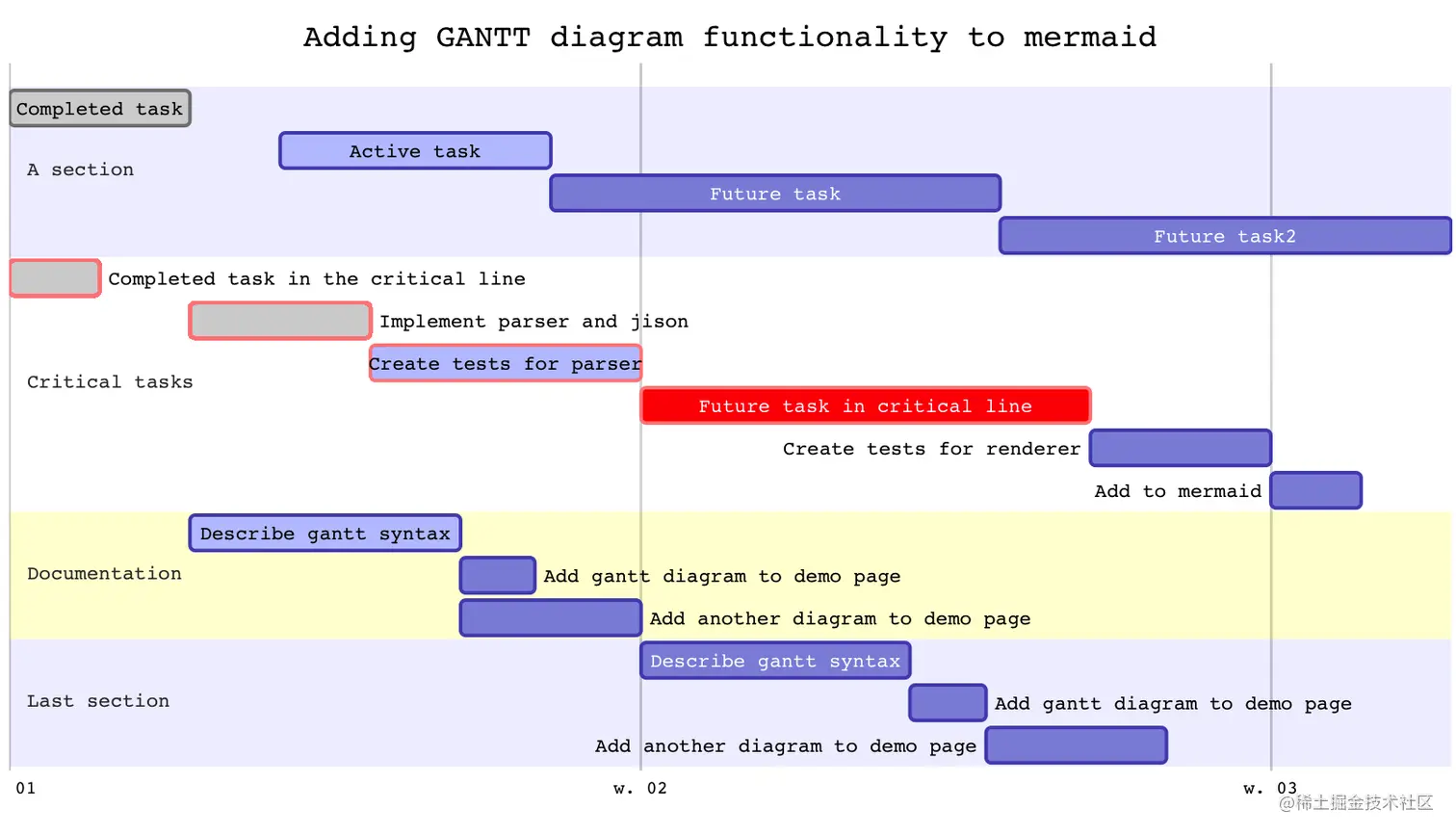

美人鱼-甘特

类图

有关更多详细信息,请参见这些说明

```mermaid
classDiagram
      Animal <|-- Duck
      Animal <|-- Fish
      Animal <|-- Zebra
      Animal : +int age
      Animal : +String gender
      Animal: +isMammal()
      Animal: +mate()
      class Duck{
          +String beakColor
          +swim()
          +quack()
      }
      class Fish{
          -int sizeInFeet
          -canEat()
      }
      class Zebra{
          +bool is_wild
          +run()
      }
```
复制代码

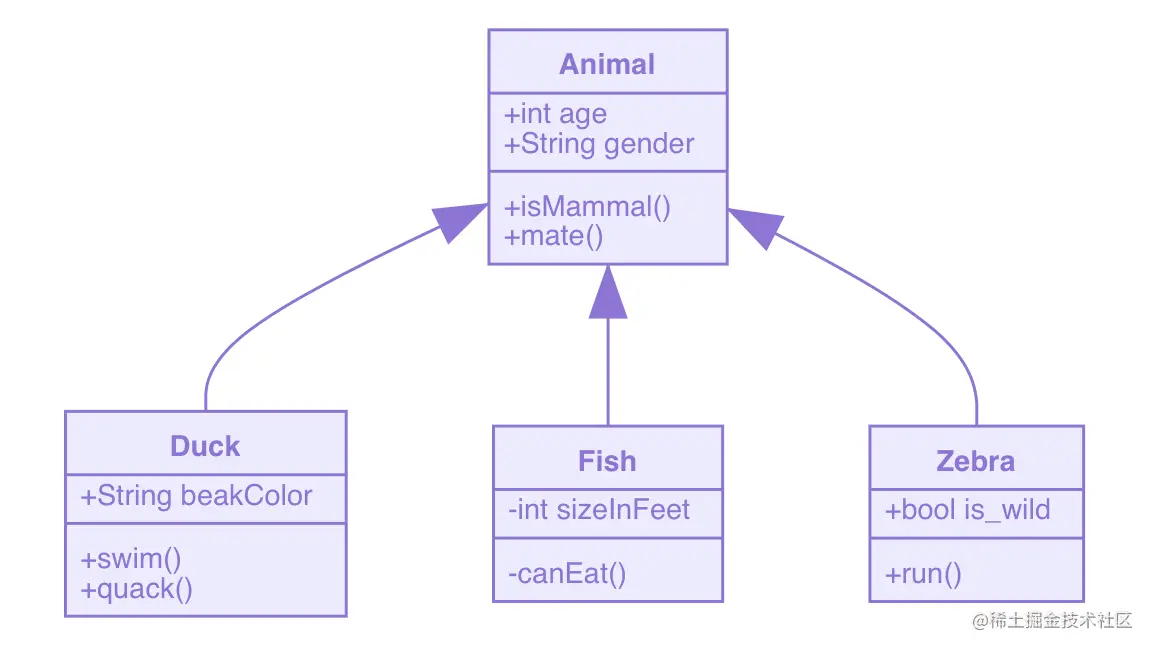

类图

状态图

有关更多详细信息,请参见这些说明

```mermaid
stateDiagram
    [*] --> Still
    Still --> [*]

    Still --> Moving
    Moving --> Still
    Moving --> Crash
    Crash --> [*]
```
复制代码

状态图

饼状图

```mermaid
pie
    title Pie Chart
    "Dogs" : 386
    "Cats" : 85
    "Rats" : 150
```
复制代码

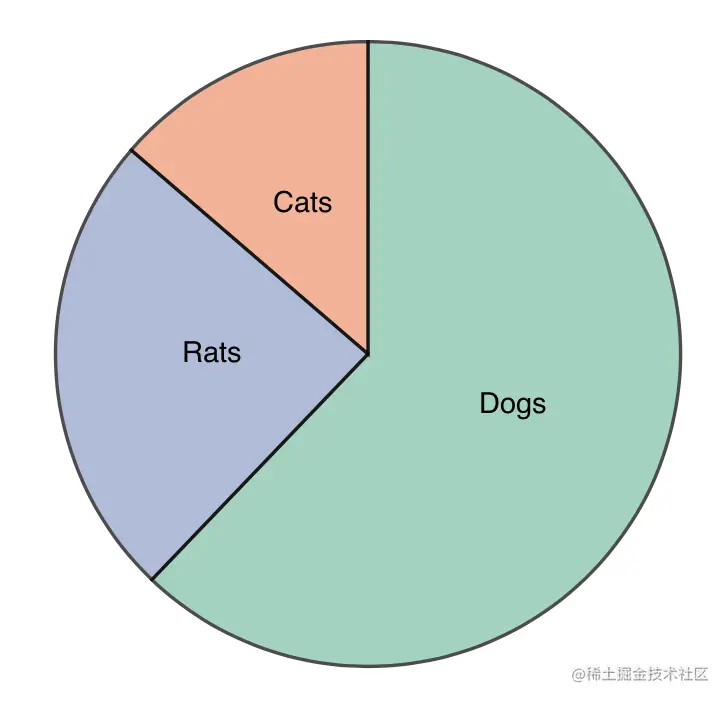

饼形图

参考

Draw Diagrams With Markdown
