模拟Vue响应式原理,实现一个简易版Vue

2,428

先实现mini 版Vue之前,我们先来了解一些概念

1、数据驱动

  • 数据驱动
  • 响应式的核心原理
  • 发布订阅模式和观察者模式

数据驱动

  • 数据响应式、双向绑定、数据驱动

  • 数据响应式

  • 数据模型仅仅是普通对象的JavaScript,而我们修改数据时,视图会进行更新,避免了繁琐的DOM操作,提高开发效率

  • 双向绑定

  • 数据改变,视图改变,数据也随之改变

  • 我们可以使用v-model在表单元素上创建双向数据绑定

数据驱动是Vue最独特的特性之一

  • 开发过程中仅需要关注数据本身,不需要关系数据时如何渲染到视图

2、数据响应式的核心原理 Vue2

let data = {
  msg: '大白菜'
}
// 模拟Vue的实例
let vm = {}

// 数据劫持, 当访问或者设置vm中成员的时候,做一些干预操作
Object.defineProperty(vm, 'msg', {
  // 可枚举
  enumerable: true,
  // 可配置 (可以使用delete杉树,也可通过defineProperty重新定义)
  configurable: true,
  get () {
    return data.msg
  },
  set (newValue) {
    if (newValue === data.msg) {
      return
    }
    data.msg = newValue
    // 数据更改,更新DOM的值
    document.querySelector("#app").textContent = data.msg
  }
})

// 测试
vm.msg = 'Hello word'
console.log(vm.msg)


// 多个属性
let vm = {}
proxyData(data)

function proxyData(data) {
  Object.keys(data).forEach(key => {
    Object.defineProperty(vm, key, {
      enumerable: true,
      configurable: true,
      get () {
        console.log('set:', key, data[key])
        return data[key]
      },
      set(newValue) {
        if (newValue === data[key]) {
          return
        }
        data[key] = newValue
        document.querySelector("#app").textContent = data[key]
      }
    })
  })
}
// vm.msg = '大白菜'
// set: msg 大白菜

3、Vue响应式原理 Vue3

  • MDN Proxy
  • 直接监听对象, 而非属性
  • ES6中新增, IE不支持,性能由浏览器优化
let data = {
  msg: 'hello'
}

let vm = new Proxy(data, {
  get(target, key) {
    return target[key]
  },
  // 设置vm的成员会执行
  set(target, key, newValue) {
    console.log('set', key, newValue)
    if (target[key] === newValue) {
      return
    }
    target[key] = newValue
    document.querySelector('#app').textContent = target[key]
  }
})
vm.msg = '大白菜'
console.log(vm.msg)

4、发布订阅模式

  • 发布/订阅模式
  • 订阅者
  • 发布者
  • 信号中心

我们假定,存在一个“信号中心”,某个任务执行完成,就向信号中心“发布” (publish)一个信号,其他任务可以向信号中心“订阅” (subscribe)这个信号,从而知道什么时候自己可以开始执行,这就叫做“发布/定于模式” (publish-subscribe pattern)

let vm = new Vue()
// 注册事件(订阅消息)
vm.$on('dataChange', () => {
  console.log('dataChange')
})

vm.$on('dataChange', () => {
  console.log('dataChange1')
})
// 触发事件(发布消息)

// 自定义事件
class EventEmitter {
  constructor () {
    this.subs = Object.create(null)
  }

  // 注册事件
  $on (eventType, handler) {
    this.subs[eventType] = this.subs[eventType] || []
    this.subs[eventType].push(handler)
  }
  // 触发事件
  $emit (eventType) {
    if (this.subs[eventType]) {
      this.subs[eventType].forEach(handler => {
        handler()
      })
    }
  }
}

// 测试一下
let em = new EventEmitter()
em.$on('click', () => {
  console.log('click1')
})
em.$on('click', function() {
  console.log('click2')
})

em.$emit('click')

5、观察者模式

  • 观察者(订阅者) -- Watcher
  • upload(): 当事件发生时,具体要做的事情
  • 目标(发布者) --Dep
    • subs数组: 存储所有的观察者
    • addSub(): 添加观察者
    • notify(): 当事件发生,调用所有观察者upload()方法
  • 没有事件中心
class Dep {
  constructor () {
    // 记录所有的订阅者
    this.subs = []
  }
  // 添加观察者
  addSub() {
    if (sub && sub.update) {
      this.subs.push(sub)
    }
  }
  notify () {
    this.subs.forEach(sub => {
      sub.update()
    })
  }
}

class Watcher {
  update () {
    console.log('update')
  }
}

// 测试一下
let dep = new Dep()
let watcher = new Watcher()
dep.addSub(watcher)
dep.notify()

  • 观察者模式是由具体目标调度,Dep就回去调用观察者的方法,所以观察者模式的订阅者与发布者之间是存在依赖的
  • 发布/订阅模式由统一调度中心调用,因此发布者和订阅者不需要知道对方的存在

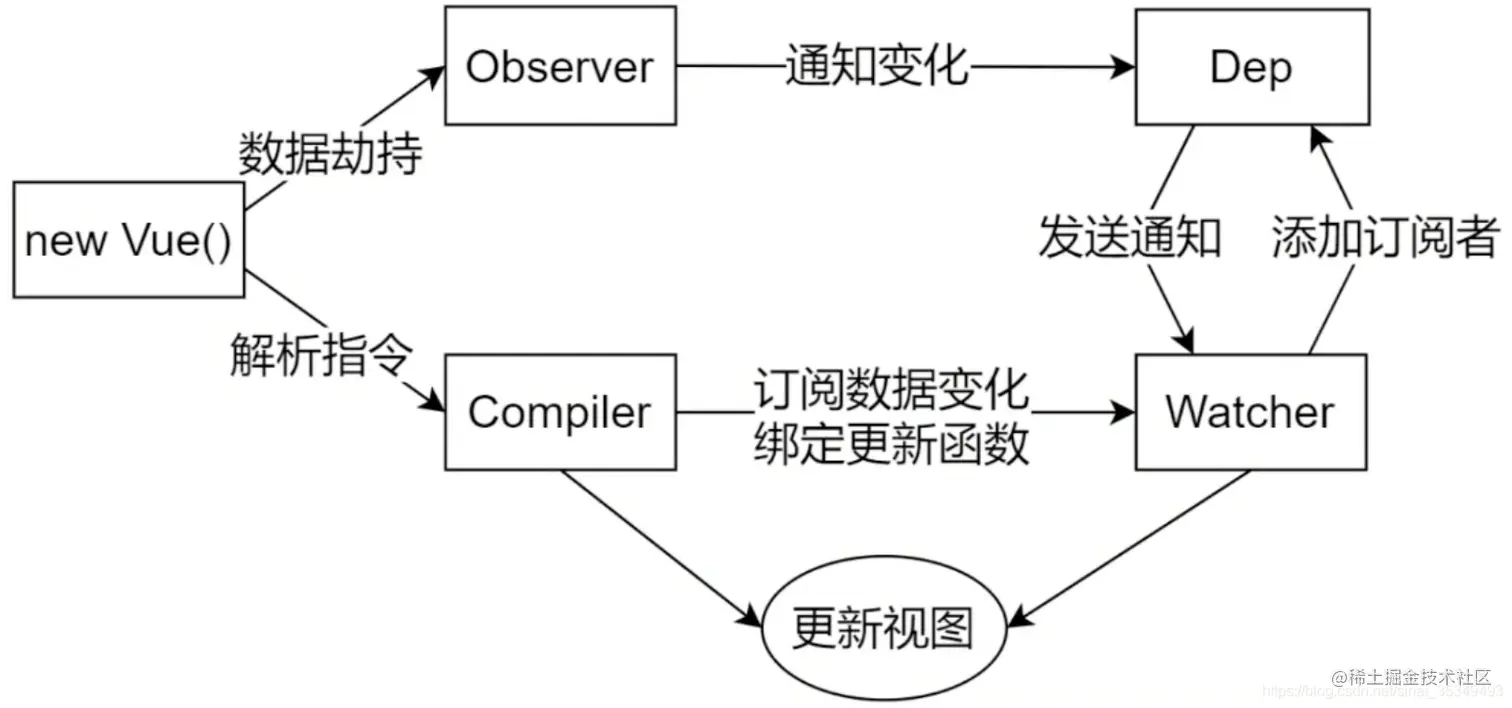

  • 见图

6、模拟Vue响应式原理-分析

  • Vue基本结构
  • 打印Vue实例观察
  • 见图 Vue
  • 把data 中的成员注入到Vue实例,并且把data中的成员转成getter/setter Observer
  • 能够对数据对象的所有属性进行监听,如有变动可拿到最新值并通知Dep

ok,说这么多,终于到了如何去实现mini版vue了,下面我们将一步一步去实现mini版的vue

7、Vue

  • 负责接收初始化的参数(选项)
  • 负责把data中的属性注入到Vue实例,转换成getter/setter
  • 负责调用observer监听data中所有属性的变化
  • 负责调用compiler 解析指令/差值表达式

结构

  • + $options
  • + $el
  • + $data
  • + _proxyData

首先在文件中新增一个vue.js文件

class Vue {
  constructor (options) {
    // 1. 通过属性保存选项的数据
    // 2. 把data中的成员转换成getter和setter,注入到Vue实例中
    // 3. 调用observer对象,监听数据的辩护
    // 4. 调用compiler对象, 解析指令和差值表达式
  }
  // 代理数据
  _proxyData (data) {

  }
}

完整代码

// vue.js
class Vue {
  constructor (options) {
    // 1. 通过属性保存选项的数据
    this.$options = options || {}
    this.$data = options.data || {}
    this.$el = typeof options.el === 'string' ? document.querySelector(options.el) : options.el
    // 2. 把data中的成员转换成getter和setter,注入到Vue实例中
    this._proxyData(this.$data)
    // 3. 调用observer对象,监听数据的辩护
	new Observer(this.$data)
    // 4. 调用compiler对象, 解析指令和差值表达式
  }
  _proxyData (data) {
    // 遍历data中的所有属性
    Object.keys(data).forEach(key => {
      // 把data的属性注入到Vue实例中
      Object.defineProperty(this, key, {
        enumerable: true,
        configurable: true,
        get () {
          return data[key]
        },
        set(newValue) {
          if (newValue === data[key]) {
            return
          }
          data[key] = newValue
        }
      })
    })
  }
}
// 测试一下
// 控制台输入vm看是有实例

这个时候我们需要在index.html去使用Vue.js

<script src="vue.js"></script>

let vm = new Vue({
  el: '#app',
  data: {
    msg: 'Hello Vue',
    count: 100
  },
})
console.log(vm.msg)

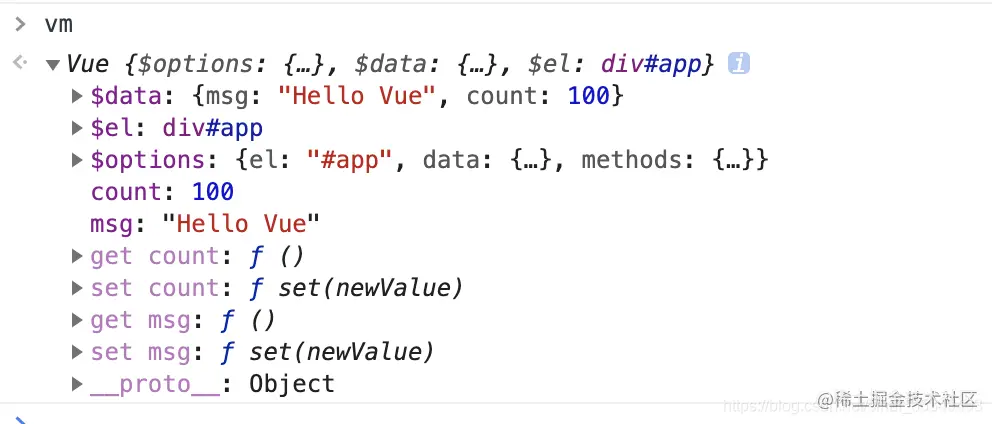

在控制台输入vm测试一下,可以看到我们刚刚添加的成员

在这里插入图片描述

8、Observer

  • 负责把data选项中的属性转换成响应式数据
  • data中的某个属性也是对象,把该属性转换成响应式数据
  • 数据变化发送通知 结构
  • + walk(data)
  • + defineReactive(data, key, value)

新建一个observer.js, 在index.html中引入

// +walk(data)
// + defineReactive(data, key, value)
// 结构
class Observer {
  walk (data) {

  }
  defineReactive (obj, key, val) {

  }
}

完成代码

class Observer {
  constructor (data) {
    this.walk(data)
  }
  walk (data) {
    // 1. 判断data是否是对象
    if (!data || typeof data !== 'object') {
      return
    }
    // 2. 遍历data对象的所有属性
    Object.keys(data).forEach(key => {
      this.defineReactive(data, key, data[key])
    })
  }
  defineReactive (obj, key, val) {
    let that = this
    // 如果val是对象,把val内部的属性转换成响应式数据
    this.walk(val)
    Object.defineProperty(obj, key, {
      enumerable: true,
      configurable: true,
      get () {
        return val
      },
      set (newValue) {
        if (newValue === val) {
          return
        }
        val = newValue
        that.walk(newValue)
        //发送通知
      }
    })
  }
}

测试一下

<!DOCTYPE html>
<html lang="en">

<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Vue</title>
</head>

<body>
  <div id="app">
    <h1>大白菜</h1>
    <h1>{{ msg }}</h1>
    <h1>{{ count }}</h1>
    <div>{{ name }}</div>
    <h1>v-text</h1>
    <div v-html="htmlStr"></div>
    <div v-text="msg"></div>
    <input type="text" v-model="msg">
    <input type="text" v-model="count">
  </div>
  <script src="observer.js"></script>
  <script src="vue.js"></script>
  <script>
    let vm = new Vue({
      el: '#app',
      data: {
        msg: 'Hello Vue',
        count: 100,
        person: {
          name: 'zzzz'
        }
      }
    })
    console.log(vm.msg)
    vm.msg = { test: '大白菜~' }
  </script>
</body>
</html>

记得在vue.js第三步 调用Observer

new Observer(this.$data)

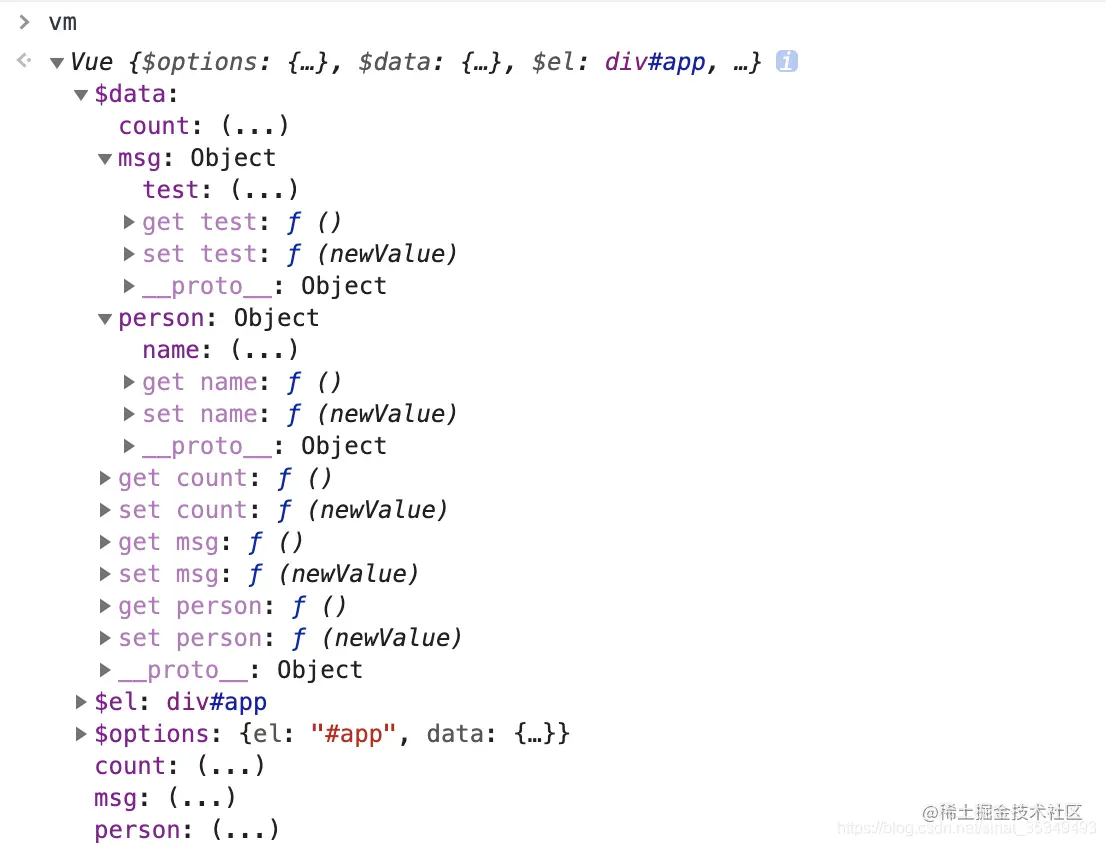

此时在控制台输入vm即可看到如下结果 msg为响应式对象

在这里插入图片描述

9、Compiler

Compiler功能

  • 负责编译模板,解析指令/差值表达式
  • 负责页面的首次渲染
  • 当数据变化后重新渲染视图

Compiler结构

  • + el
  • + vm
  • + compile(el)
  • + compileElement(node)
  • + compileText(node)
  • + isDirective(arrrNode)
  • + isTextNode(node)
  • + isElementNode(node)

新建compiler.js

// 接下来会一步一步实现这个compiler.js的方法
class Compiler {
  constructor (vm) {
    this.el = vm.$el
    this.vm = vm
  }
  // 编译模板, 处理文本节点和元素节点
  compile (el) {

  }
  // 编译元素节点, 出来指令
  compileElement (node) {

  }
  // 编译文本节点,出来插值表达式
  compileText (node) {

  }
  // 判断元素属性是否是指令
  isDirective(attrName) {
    return attrName.startsWith('v-')
  }
  // 判断节点是否是文本节点
  isTextNode (node) {
    return node.nodeType === 3
  }
  // 判读节点是否是元素节点
  isElementNode (node) {
    return node.nodeType === 1
  }
}

Compiler compile

class Compiler {
  constructor (vm) {
    this.el = vm.$el
    this.vm = vm
    this.compile(this.el)
  }
  // 编译模板, 处理文本节点和元素节点
  compile (el) {
    let childNodes = el.childNodes
    Array.from(childNodes).forEach(node => {
      // 处理文本节点
      if (this.isTextNode(node)) {
        this.compileText(node)
      } else if (this.isElementNode(node)) {
        // 处理元素节点
        this.compileElement(node)
      }

      // 判断node节点,是否有子节点, 如果有子节点,要递归调用compile
      if (node.childNodes && node.childNodes.length) {
        this.compile(node)
      }
    })
  }
}

Compiler compileText

 // 编译文本节点,出来差值
 compileText (node) {
   // console.dir(node)
   let reg = /\{\{(.+?)\}\}/
   let value = node.textContent
   if (reg.test(value)) {
     let key = RegExp.$1.trim()
     node.textContent = value.replace(reg, this.vm[key])
   }
 }

Compiler compileElement

 // 编译元素节点, 出来指令
 compileElement (node) {
   console.log(node.attributes)
   // 遍历所有的属性节点
   Array.from(node.attributes).forEach(attr => {
     // 判断是否是指令
     let attrName = attr.name
     if (this.isDirective(attrName)) {
       // v-text --> text
       attrName = attrName.substr(2)
       let key = attr.value
       this.update(node, key, attrName)
     }
   })
 }

 update (node, key, attrName) {
   let updateFn = this[attrName + 'Updater']
   updateFn && updateFn(node, this.vm[key])
 }

10、Dep

功能

  • 收集依赖,添加观察者
  • 通知所有观察者

Dep结构

  • + subs
  • + addSubs(sub)
  • + notify

新建Dep.js

class Dep {
  constructor () {
    // 存储所有的观察者
    this.subs = []
  }
  // 添加观察者
  addSub (sub) {
    if (sub && sub.update) {
      this.subs.push(sub)
    }
  }
  // 发送通知
  notify () {
    this.subs.forEach(sub => {
      sub.update()
    })
  }
}

完成dep.js之后,我们需要在Observer.js中的defineReactive中创建Dep对象

defineReactive (obj, key, val) {
  let that = this
  // 负责收集依赖, 并发送通知
  let dep = new Dep()
  // 如果是val对象,把val内部的属性转换成响应式对象
  that.walk(val)
  Object.defineProperty(obj, key, {
    enumerable: true,
    configurable: true,
    get () {
      // 收集依赖
      Dep.target && dep.addSub(Dep.target)
      return val
    },
    set (newValue) {
      if (newValue === val) {
        return
      }
      val = newValue
      that.walk(newValue)
      // 发送通知
      dep.notify()
    }
  })
}

11、Watcher

在这里插入图片描述

功能

  • 当数据变化出发依赖,dep通知所有的Watcher实例更新试图
  • 自身实例化的时候往dep对象中添加自己

Watcher

  • + vm
  • + key
  • + cb
  • + oldValue
  • + update

新建watcher.js文件

class Watcher {
  constructor (vm, key, cb) {
    this.vm = vm;
    // data中的属性名称
    this.key = key;
    // 回调函数负责更新视图
    this.cb = cb;

    // 把Watcher对象记录到Dep 类的静态属性target中
    Dep.target = this;
    // 触发get方法, 在get方法中调用addSub
    this.oldValue = vm[key];
    Dep.target = null
  }
  // 当数据发生变化的时候更新视图
  update () {
    let newValue = this.vm[this.key];
    // 判断新值和旧值是否相等
    if (this.oldValue === newValue) {
      return
    }
    this.cb(newValue)
  }
}

我们需要在compile.js中的 compileTexttextUpdatermodelUpdater去创建watcher对象

 // 编译文本节点,出来差值
 compileText (node) {
   // console.dir(node)
   let reg = /\{\{(.+?)\}\}/
   let value = node.textContent
   if (reg.test(value)) {
     let key = RegExp.$1.trim()
     node.textContent = value.replace(reg, this.vm[key])

     // 创建watcher对象, 当数据改变更新视图
     new Watcher(this.vm, key, (newValue) => {
       node.textContent = newValue
     })
   }
 }

 // 处理 v-text 指令
 textUpdater (node, value, key) {
   node.textContent = value
   new Watcher(this.vm, key, (newValue) => {
     node.textContent = newValue
   })
 }
 // v-model
 modelUpdater (node, value, key) {
   node.value = value;
   new Watcher(this.vm, key, (newValue) => {
     node.value = newValue
   })
 }
 // 传入key
 update (node, key, attrName) {
   let updateFn = this[attrName + 'Updater']
   updateFn && updateFn.call(this, node, this.vm[key], key)
 }

此时在vue.js第四步中调用compile对象,解析指令和插值表达式

// 4. 调用compiler对象, 解析指令和差值表达式
new Compiler(this)

打开控制台即可看到如下效果,到这里,mini版的vue就基本完成了 在这里插入图片描述

12、双向绑定

给input注册事件,实现双向绑定

 // v-model
 modelUpdater (node, value, key) {
   node.value = value;
   new Watcher(this.vm, key, (newValue) => {
     node.value = newValue
   })
   // 双向绑定
   node.addEventListener('input', () => {
     this.vm[key] = node.value
   })
 }

13、总结

首先创建了一个Vue的对象,在 Vue 的构造函数中首先记录了从 options 传过来的选项,然后调用一个Proxy data,也就是把data 注入到Vue的实例上,创建 ObserverCompilerObserver 的作用是数据劫持,在Observer中将data属性转换成gettersetter,当数据变化的时候,也就是触发set的时候,需要去通知变化,调用Depnotify方法,而 Depnotify方法要调用 Watcher 中的 update 方法发送通知,通知 Watcher,数据发生了变化,你们要去更新视图了,接着Watcherupdate方法就要去更新视图了,只有当数据变化的时候去更新视图,当创建Watcher对象的时候,会将当前的Watcher对象添加到Depsubs数组中,负责收集依赖,让 Dep 记录Watcher 然后还要去创建Compiler对象,它的作用是解析指令,差值表达式,在页面首次加载的时候,会调用Compiler中的相关方法去更新视图,同时在Compiler还要去订阅数据的变化,绑定更新函数,当创建一个Watcher对象的时候,需要传递一个回调函数,在这个回调函数中去更新视图,注意首次加载是通过 Compiler 去更新视图,当数据发送了变化是通过Watcher去更新视图。

在这里插入图片描述

完成代码已提交到github

请点击这里
