Core Motion (陀螺仪、加速计)

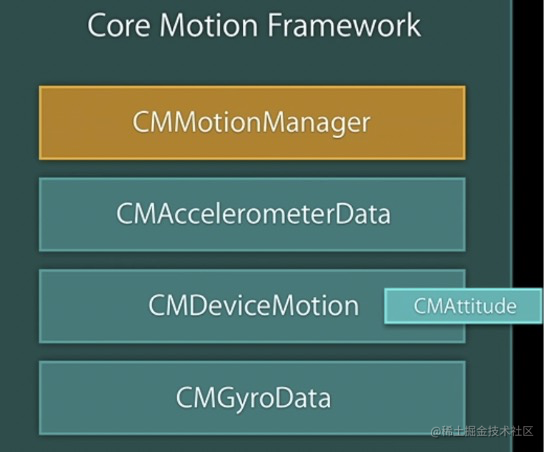

Core Motion框架结构示意图
Core Motion 获取数据的两种方式
push
实时采集所有数据(采集频率高)
- 创建运动管理者对象
CMMotionManager *mgr = [[CMMotionManager alloc] init]; 复制代码
- 判断加速计是否可用(最好判断)
if (mgr.isAccelerometerAvailable) { // 加速计可用 } 复制代码
- 设置采样间隔
mgr.accelerometerUpdateInterval = 1.0/30.0; // 1秒钟采样30次 复制代码
- 开始采样(采样到数据就会调用handler,handler会在queue中执行)
- (void)startAccelerometerUpdatesToQueue:(NSOperationQueue *)queue withHandler:(CMAccelerometerHandler)handler; 复制代码
pull
在有需要的时候,再主动去采集数据
- 创建运动管理者对象
CMMotionManager *mgr = [[CMMotionManager alloc] init]; 复制代码
- 判断加速计是否可用(最好判断)
if (mgr.isAccelerometerAvailable) { // 加速计可用 } 复制代码
- 开始采样
- (void)startAccelerometerUpdates; 复制代码
- 在需要的时候采集加速度数据
CMAcceleration acc = mgr.accelerometerData.acceleration; NSLog(@"%f, %f, %f", acc.x, acc.y, acc.z); 复制代码
实际使用举例
仿贝壳VR图片晃动(陀螺仪)
swift 版本: 包含两个文件 GyroMannager.swift、GyroscopeImageView.swift,代码实现了在界面显示时自动可以晃动,离开界面停止晃动,下拉放大图片等功能。
Demo地址:demo->陀螺仪使用-晃动手机移动图片
GyroMannager.swift
import UIKit
import CoreMotion
public class GyroMannager {
static var shared = GyroMannager()
private let gyromanager = CMMotionManager()
/// manager刷新时间间隔(采样频率设置为比屏幕刷新频率1/60稍小)
public var timestamp:CGFloat = 0.016
/// 用于记录引用 CMMotionManager 的数量
private var useNumber:Int = 0
private init() {}
func monitorDeviceMotion(index: Int) {
useNumber += index
if useNumber <= 0 {
stopMotionUpdates()
} else {
startMotionUpdates()
}
}
/// 开始陀螺仪
private func startMotionUpdates() {
if self.gyromanager.isGyroAvailable {
if self.gyromanager.isGyroActive { return }
self.gyromanager.gyroUpdateInterval = TimeInterval(self.timestamp)
self.gyromanager.startGyroUpdates(to: OperationQueue.main) { [weak self] (data, nil) in
if let gyroData = data {
print("陀螺仪---Updates---0")
NotificationCenter.default.post(name: NSNotification.Name(rawValue: "kCMMotionManagerUpdatesNotification"), object: self, userInfo: ["gyroData": gyroData])
}
}
}
}
/// 停止陀螺仪
private func stopMotionUpdates() {
print("陀螺仪---stopMotionUpdates---", self.useNumber)
if self.useNumber <= 0 {
print("陀螺仪---stopMotionUpdates")
self.gyromanager.stopGyroUpdates()
}
}
}
复制代码
GyroscopeImageView.swift 把moveImgView放在scrollView是为了实现下拉屏幕放大图片的效果,如果只需要晃动,不需要下拉放大,可以不放在scrollView上。
//
// GyroscopeImageView.swift
// ORSwiftSummary
//
// Created by orilme on 2020/10/16.
// Copyright © 2020 orilme. All rights reserved.
//
import UIKit
import CoreMotion
import MJRefresh
class GyroscopeImageView: UIView {
public lazy var moveImgView:UIImageView = {
let moveImgView = UIImageView()
return moveImgView
}()
public lazy var scrollView: UIScrollView = {
let scroll = UIScrollView()
scroll.delegate = self
scroll.maximumZoomScale = 5.0
scroll.minimumZoomScale = 1.0
scroll.panGestureRecognizer.isEnabled = false
scroll.pinchGestureRecognizer?.isEnabled = false
scroll.panGestureRecognizer.cancelsTouchesInView = false
return scroll
}()
/// 图片最大偏移量
private var mMaxOffsetX:CGFloat = 0.00
private var mMaxOffsetY:CGFloat = 0.00
/// 陀螺仪在X、Y轴旋转的最大弧度
/// The value must between (0, π / 8).
private var mMaxRotateRadian:CGFloat = CGFloat(Double.pi / 8)
/// 相对于初始位置的旋转弧度
private var mRotateRadianX:CGFloat = 0.00
private var mRotateRadianY:CGFloat = 0.00
/// 相对初始位置的偏移距离
private var progressX:CGFloat = 0.00
private var progressY:CGFloat = 0.00
/// 偏移的距离
private var currentOffsetX:CGFloat = 0.00
private var currentOffsetY:CGFloat = 0.00
/// 是否初始化过
private var isReload:Bool = false
/// 第一次加载的view的size
private var startSize:CGSize = CGSize.zero
/// 第一次加载的时候img的size
private var startImgSize:CGSize = CGSize.zero
/// 是否需要更新frame
private var isGyroscopeUpdate: Bool = true
/// view所在的控制器
private weak var parentVC: UIViewController?
override init(frame: CGRect) {
super.init(frame: frame)
gyroscopeImageViewLoad()
}
required init?(coder: NSCoder) {
super.init(coder: coder)
gyroscopeImageViewLoad()
}
func gyroscopeImageViewLoad() {
clipsToBounds = true
scrollView.addSubview(moveImgView)
addSubview(scrollView)
GyroMannager.shared.monitorDeviceMotion(index: 1)
NotificationCenter.default.addObserver(self, selector: #selector(motionManagerUpdates(_:)), name: NSNotification.Name(rawValue: "kCMMotionManagerUpdatesNotification"), object: nil)
}
@objc func motionManagerUpdates(_ notification: NSNotification) {
if let vc = self.parentVC {
/// 判断不在VR所在的界面时不执行后面的代码,不移动VR
isGyroscopeUpdate = vc.isViewLoaded && (vc.view.window != nil)
//print("陀螺仪---Updates---2", isGyroscopeUpdate, (vc.view.window != nil))
}
/// 隐藏不刷新,当前控制器不在最前面不刷新
guard !isHidden,
isGyroscopeUpdate,
let gyroData = notification.userInfo?["gyroData"] as? CMGyroData else {
return
}
//print("陀螺仪---Updates---1")
let x = CGFloat(gyroData.rotationRate.x)
let y = CGFloat(gyroData.rotationRate.y)
self.imagePanTransform(x: x, y: y)
}
/* 设置移动的imageView 的 frame
* 注意: 调用此方法时必须等GyroscopeImageView加载完成调用,或者传入width,height 即GyroscopeImageView的宽高,否则可能会引起显示偏移
*/
func setMoveImgViewFrame(width: CGFloat?, height: CGFloat?) {
if isReload == true {
updateMoveImgViewFrame(height: self.frame.size.height)
return
}
isReload = true
var containerWidth = self.frame.size.width
var containerHeight = self.frame.size.height
if let cwidth = width {
containerWidth = cwidth
}
if let cheight = height {
containerHeight = cheight
}
//moveImgView.sizeToFit()
let moveImgViewSize = moveImgView.sizeThatFits(CGSize.zero)
let imgWidth = moveImgViewSize.width
let imgHeight = moveImgViewSize.height
var newHeight = imgHeight
var newWidth = imgWidth
if imgWidth/imgHeight > containerWidth/containerHeight {
newHeight = containerHeight * 1.25
newWidth = newHeight * (imgWidth / imgHeight)
} else {
newWidth = containerWidth * 1.25
newHeight = newWidth * (imgHeight / imgWidth)
}
mMaxOffsetX = (newWidth - containerWidth) * 0.5
mMaxOffsetY = (newHeight - containerHeight) * 0.5
startSize = CGSize(width: containerWidth, height: containerHeight)
startImgSize = CGSize(width: newWidth, height: newHeight)
scrollView.frame = CGRect(x: -self.mMaxOffsetX, y: -self.mMaxOffsetY, width: newWidth, height: newHeight)
moveImgView.frame = CGRect(x: 0, y: 0, width: newWidth, height: newHeight)
self.parentVC = self.firstViewController()
}
/// 下拉重新加载过程跟新view frame
func updateMoveImgViewFrame(height: CGFloat) {
let ratio = height/startSize.height
scrollView.setZoomScale(ratio, animated: false)
scrollView.mj_size = CGSize(width: startImgSize.width, height: startImgSize.height * ratio)
}
/// 更新 imagView 的 frame
func imagePanTransform(x: CGFloat, y: CGFloat) {
#if DEBUG
//print("监听到陀螺仪,正在刷新frame---", x, y)
#endif
if abs(x) < 0.01, abs(y) < 0.01 {
/// 晃动幅度过小不更新frame,要不然太频繁
//print("晃动幅度过小不更新frame,要不然太频繁")
return
}
let timestamp = GyroMannager.shared.timestamp
mRotateRadianY += y * timestamp
mRotateRadianX += x * timestamp
if (mRotateRadianY > mMaxRotateRadian) {
mRotateRadianY = mMaxRotateRadian
}
else if (mRotateRadianY < -mMaxRotateRadian) {
mRotateRadianY = -mMaxRotateRadian
}
if (mRotateRadianX > mMaxRotateRadian) {
mRotateRadianX = mMaxRotateRadian
}
else if (mRotateRadianX < -mMaxRotateRadian) {
mRotateRadianX = -mMaxRotateRadian
}
progressX = mRotateRadianY/mMaxRotateRadian
progressY = mRotateRadianX/mMaxRotateRadian
currentOffsetX = mMaxOffsetX * progressX
currentOffsetY = mMaxOffsetY * progressY
var frame = moveImgView.frame
frame.origin.x = currentOffsetX
frame.origin.y = currentOffsetY
self.moveImgView.frame = frame
self.layoutIfNeeded()
}
deinit {
print("陀螺仪---view释放")
GyroMannager.shared.monitorDeviceMotion(index: -1)
NotificationCenter.default.removeObserver(self)
}
}
extension GyroscopeImageView: UIScrollViewDelegate {
func scrollViewWillBeginDragging(_ scrollView: UIScrollView) {
scrollView.panGestureRecognizer.isEnabled = false
scrollView.pinchGestureRecognizer?.isEnabled = false
}
func scrollViewWillBeginZooming(_ scrollView: UIScrollView, with view: UIView?) {
scrollView.panGestureRecognizer.isEnabled = false
scrollView.pinchGestureRecognizer?.isEnabled = false
}
func viewForZooming(in scrollView: UIScrollView) -> UIView? {
return moveImgView
}
}
extension UIView {
func firstViewController() -> UIViewController? {
for view in sequence(first: self.superview, next: { $0?.superview }) {
if let responder = view?.next {
if responder.isKind(of: UIViewController.self){
return responder as? UIViewController
}
}
}
return nil
}
}
复制代码
待优化的点:CMMontionManager只负责数据的采集。利用CADisplayLink 刷新更新 view 的 frame。
摇一摇
-
监控摇一摇的方法
方法1:通过分析加速计数据来判断是否进行了摇一摇操作(比较复杂)。 方法2:iOS自带的Shake监控API(非常简单)。 -
判断摇一摇的步骤:实现3个摇一摇监听方法
- (void)motionBegan:(UIEventSubtype)motion withEvent:(UIEvent *)event /** 检测到摇动 */ - (void)motionCancelled:(UIEventSubtype)motion withEvent:(UIEvent *)event /** 摇动取消(被中断) */ - (void)motionEnded:(UIEventSubtype)motion withEvent:(UIEvent *)event /** 摇动结束 */ 复制代码
iOS中的一些传感器
iPhone中内置的一些传感器
-
运动/加速度传感器(Motion/Accelerometer Sensor)
功能:通过测量三个轴的加速度大小来判断人体运动。
局限:受重力干扰大,瞬时误差大。
应用:活动测量,感应设备的运动(摇一摇、计步器) -
陀螺仪(Gyroscope)
功能:通过测量三个轴的旋转速率来判断朝向
局限:误差会积累,长时间读数准确性差。
应用:感应设备的持握方式(赛车类游戏) -
环境光传感器(Ambient Light Sensor)
感应周边环境光线的强弱(自动调节屏幕亮度) -
距离传感器(Proximity Sensor)
功能:无需物理接触就判断附近物体的存在。
局限:不通用,大多数只针对几种材质。
应用:智能省电、感应是否有其他物体靠近设备屏幕(打电话自动锁屏) -
磁力计传感器(Magnetometer Sensor)
功能:通过测量设备周围的磁场的强度和方向来判断朝向。
应用:导航、感应周边的磁场(合盖锁屏) -
内部温度传感器(Internal Temperature Sensor)
感应设备内部的温度(提醒用户降温,防止损伤设备) -
湿度传感器(Moisture Sensor)
感应设备是否进水(方便维修人员)
运动/加速度传感器(Motion/Accelerometer Sensor)

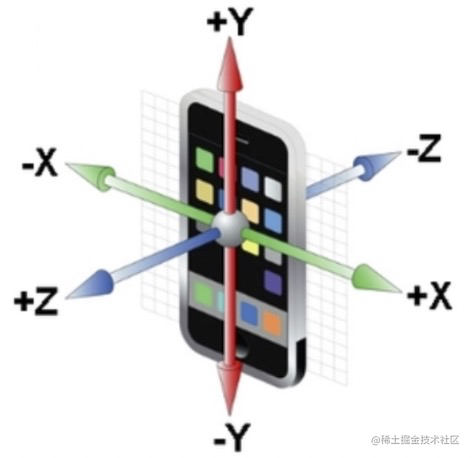

最早出现在iOS设备上的传感器之一。加速计用于检测设备在X、Y、Z轴上的加速度 (哪个方向有力的作用)
-
加速计的作用
用于检测设备的运动(比如摇晃) -
加速计的经典应用场景
摇一摇
计步器 -
加速计的原理
检测设备在X、Y、Z轴上的加速度 (哪个方向有力的作用,哪个方向运动了)。 根据加速度数值,就可以判断出在各个方向上的作用力度。
陀螺仪(Gyroscope)
陀螺仪是随着iPhone4的上市首次出现在iOS设备上的传感器。 陀螺仪可以用于检测设备的持握方式。 陀螺仪的原理是检测设备在X、Y、Z轴上所旋转的角速度。
相对于运动/加速度传感器,从它本身的特点来说,激发它需要一个可被察觉的加速度,从而使得它更有利于侦测设备相对于外界参照物的移动,但是 对于检测设备本身的动作或姿态并不精准。这就是陀螺仪进驻 iOS 设备的原因,它 能够让设备对于自身当前的姿态有更准确的了解。iOS 设备中的陀螺仪都是三轴陀 螺仪,三轴的方向与定义与运动/加速度传感器中的三轴定义相同(图片同上
)。不同的地方是陀 螺仪并不用来侦测设备在三个轴向上的线性加速度,而是用于侦测设备沿三个轴为 中线所旋转时的角速度。这里有了三个名词,分别为 pitch (纵倾), roll (横倾) 和 yaw (横摆)。让我们还是以前面介绍运动/加速度传感器时的描述开始。
想象你的设备正面向上平放在一个 水平平面上,则现在你抬起设备左边缘或右边缘,使得设备沿着 y 轴为中心线做旋 转,这就叫做 roll (横倾)。如果你抬起设备的上边缘或下边缘,让设备沿着 x 轴
为中心线做旋转,则叫做 pitch (纵倾)。如果你将设备水平的在平面上沿着垂直于水 平面的 z 轴旋转,则叫做 yaw (横摆)。从这里你可以看到,陀螺仪通过对这三个轴 角速度的侦测,可以计算得出设备当前的姿态。这对于很多赛车类游戏的操控方式 有着重要的意义,可以通过旋转设备检测到的角速度,来模拟汽车驾驶时方向盘旋 转的动作,使得这类游戏的操控体验更为直观,精确。
- 加速计的经典应用场景
陀螺仪在赛车类游戏中有重大作用:模拟汽车驾驶时方向盘旋转的动作,使得这类游戏的操控体验更为真实。
环境光传感器(Ambient Light Sensor)
是iOS、Mac设备中最为古老的传感器成员。
它能够让你在使用 Mac、iPhone、iPad时,眼睛更为舒适。
从一个明亮的室外走入相对黑暗的室内后,iOS设备会自动调低亮度,让屏幕显得不再那么光亮刺眼。
当你使用iPhone拍照时,闪光灯会在一定条件下自动开启。
几乎所有的Mac 都带有背光键盘,当周围光线弱到一定条件时,会自动开启键盘背光。
距离传感器(Proximity Sensor)
用于检测是否有其他物体靠近设备屏幕。
当你打电话或接电话时将电话屏幕贴近耳边,iPhone会自动关闭屏幕 ,好处是节省电量,防止耳朵或面部不小心触摸屏幕而引发一些不想要的意外操作 。
// 开启距离感应功能
[UIDevice currentDevice].proximityMonitoringEnabled = YES;
// 监听距离感应的通知
[[NSNotificationCenter defaultCenter] addObserver:self
selector:@selector(proximityChange:)
name:UIDeviceProximityStateDidChangeNotification
object:nil];
- (void)proximityChange:(NSNotificationCenter *)notification {
if ([UIDevice currentDevice].proximityState == YES) {
NSLog(@"某个物体靠近了设备屏幕"); // 屏幕会自动锁住
} else {
NSLog(@"某个物体远离了设备屏幕"); // 屏幕会自动解锁
}
}
复制代码
磁力计传感器(Magnetometer Sensor)
可以感应地球磁场,获得方向信息,使位置服务数据更精准。
可以用于电子罗盘和导航应用。
iPad的Smart Cover盒盖睡眠操作就是基于磁力计传感器。
内部温度传感器(Internal Temperature Sensor)
从 iPad一代开始,iOS设备都加入了一个内部温度传感器,用于检测内部组件温度,当温度超过系统设定的阈值时,会出现以下提示。
内部温度传感器,对于提升iOS设备自身安全性与稳定性有很大的帮助。
湿度传感器(Moisture Sensor)
湿度传感器跟其他基于微电子的传感器不同,是一个简单的物理传感器。简单来说,湿度传感器就是一张遇水变红的试纸。
Apple的维修人员就是通过检测试纸是否变红,来判断设备是否进水(设备进水不在保修范围之内)。
