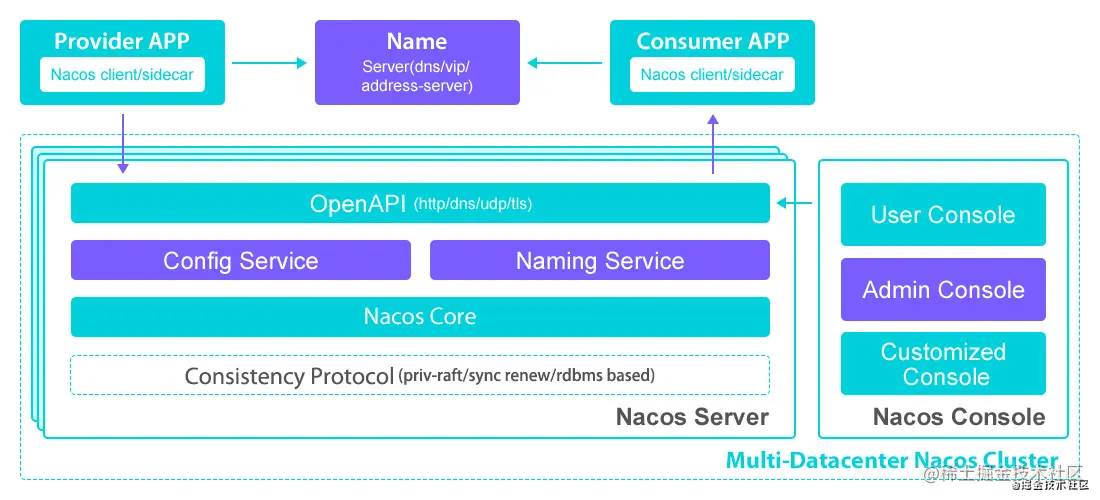

1、Nacos官网架构图
基本架构及概念
-
服务 (Service) 服务是指一个或一组软件功能（例如特定信息的检索或一组操作的执行），其目的是不同的客户端可以为不同的目的重用（例如通过跨进程的网络调用）。Nacos 支持主流的服务生态，如 Kubernetes Service、gRPC|Dubbo RPC Service 或者 Spring Cloud RESTful Service.
-
服务注册中心 (Service Registry) 服务注册中心，它是服务，其实例及元数据的数据库。服务实例在启动时注册到服务注册表，并在关闭时注销。服务和路由器的客户端查询服务注册表以查找服务的可用实例。服务注册中心可能会调用服务实例的健康检查 API 来验证它是否能够处理请求。
-
服务元数据 (Service Metadata) 服务元数据是指包括服务端点(endpoints)、服务标签、服务版本号、服务实例权重、路由规则、安全策略等描述服务的数据
-
服务提供方 (Service Provider) 是指提供可复用和可调用服务的应用方
-
服务消费方 (Service Consumer) 是指会发起对某个服务调用的应用方
-
配置 (Configuration) 在系统开发过程中通常会将一些需要变更的参数、变量等从代码中分离出来独立管理，以独立的配置文件的形式存在。目的是让静态的系统工件或者交付物（如 WAR，JAR 包等）更好地和实际的物理运行环境进行适配。配置管理一般包含在系统部署的过程中，由系统管理员或者运维人员完成这个步骤。配置变更是调整系统运行时的行为的有效手段之一。
-
配置管理 (Configuration Management) 在数据中心中，系统中所有配置的编辑、存储、分发、变更管理、历史版本管理、变更审计等所有与配置相关的活动统称为配置管理。
-
名字服务 (Naming Service) 提供分布式系统中所有对象(Object)、实体(Entity)的“名字”到关联的元数据之间的映射管理服务，例如 ServiceName -> Endpoints Info, Distributed Lock Name -> Lock Owner/Status Info, DNS Domain Name -> IP List, 服务发现和 DNS 就是名字服务的2大场景。
-
配置服务 (Configuration Service) 在服务或者应用运行过程中，提供动态配置或者元数据以及配置管理的服务提供者。
2、注册中心实现原理
服务注册功能主要体现在：
- 服务实现在容器启动完成时通过监听器，注册到服务注册表上，并在关闭时注销
- 服务消费者查询服务注册表，获得可用实例
- 服务注册中心需要调用服务实例的健康检查API来验证服务健康情况

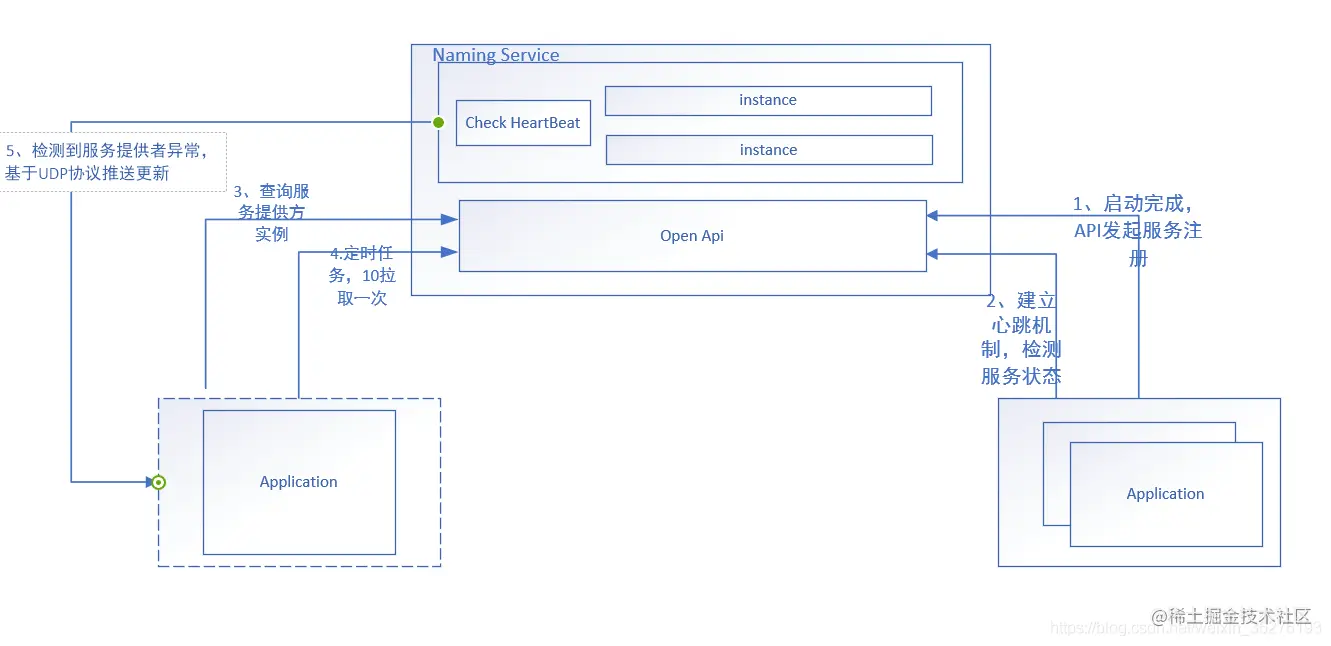

2.1nacos服务注册与发现的原理图
3、解读nacos注册中心原码
nacos注册中心，主要以下三部分
- 服务注册
- 服务地址的获取
- 服务地址的变化
3.1、 Spring Cloud 什么时候完成服务注册
在spring-cloud-Common 包中又个类org.springframework.cloud.client.serviceregistry，提供了Spring Cloud 提供的服务注册的标准。集成到Spring cloud中实现服务注册的组件，都回实现该接口
package org.springframework.cloud.client.serviceregistry;
/**
* Contract to register and deregister instances with a Service Registry.
*
* @param <R> registration meta data
* @author Spencer Gibb
* @since 1.2.0
*/
public interface ServiceRegistry<R extends Registration> {
void register(R registration);
void deregister(R registration);
void close();
void setStatus(R registration, String status);
<T> T getStatus(R registration);
...
- Spring Cloud集成Nacos的实现过程 在Spring-cloud-commons包下的META-INF/spring.factories中包含自动装配的配置信息
AutoConfiguration
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.cloud.client.CommonsClientAutoConfiguration,\
org.springframework.cloud.client.ReactiveCommonsClientAutoConfiguration,\
。。。
org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration
其中AutoServiceRegistrationAutoConfiguration就是服务注册相关的配置类
@Configuration(proxyBeanMethods = false)
@Import(AutoServiceRegistrationConfiguration.class)
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled",
matchIfMissing = true)
public class AutoServiceRegistrationAutoConfiguration {
@Autowired(required = false)
private AutoServiceRegistration autoServiceRegistration;
@Autowired
private AutoServiceRegistrationProperties properties;
// 初始方法
@PostConstruct
protected void init() {
if (this.autoServiceRegistration == null && this.properties.isFailFast()) {
throw new IllegalStateException("Auto Service Registration has "
+ "been requested, but there is no AutoServiceRegistration bean");
}
}
}
在AutoServiceRegistrationAutoConfiguration配置类中，注入了AutoServiceRegistration实例。AbstractAutoServiceRegistration抽象类实现了该接口，最终NacosAutoServiceRegistration继承AbstractAutoServiceRegistration

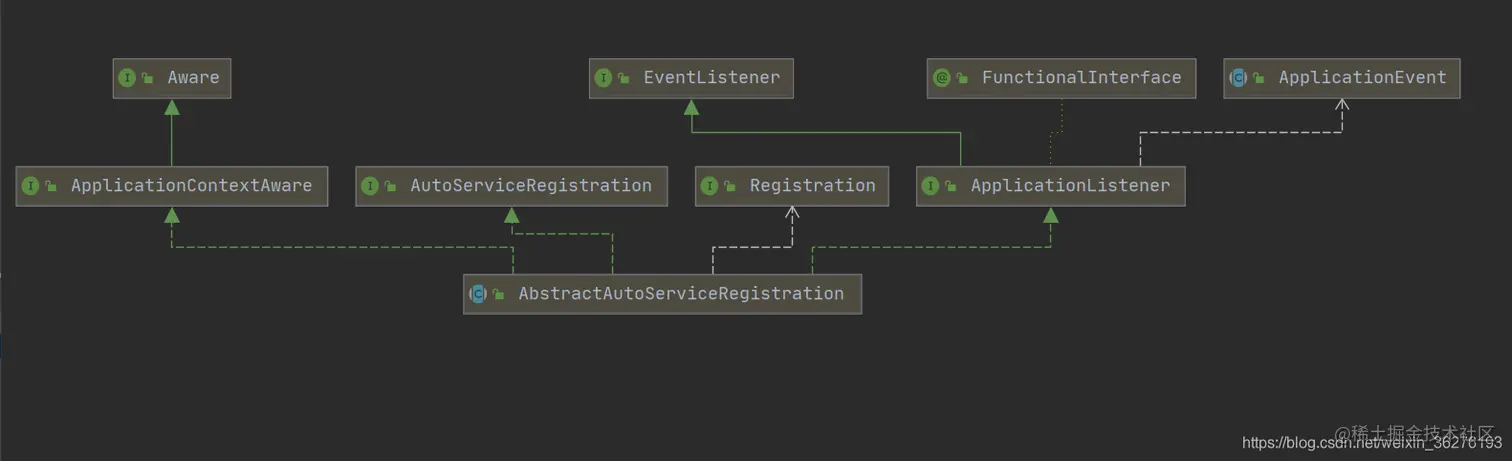

具体实现逻辑在ApplicationListener事件监听机制，在webserver服务器注册完成之后，调用this.bind(event)
// package org.springframework.cloud.client.serviceregistry;
@Override
@SuppressWarnings("deprecation")
public void onApplicationEvent(WebServerInitializedEvent event) {
bind(event);
}
@Deprecated
public void bind(WebServerInitializedEvent event) {
ApplicationContext context = event.getApplicationContext();
if (context instanceof ConfigurableWebServerApplicationContext) {
if ("management".equals(((ConfigurableWebServerApplicationContext) context)
.getServerNamespace())) {
return;
}
}
this.port.compareAndSet(0, event.getWebServer().getPort());
this.start();
}
核心类NacosServiceRegistry的注册和心跳入口处

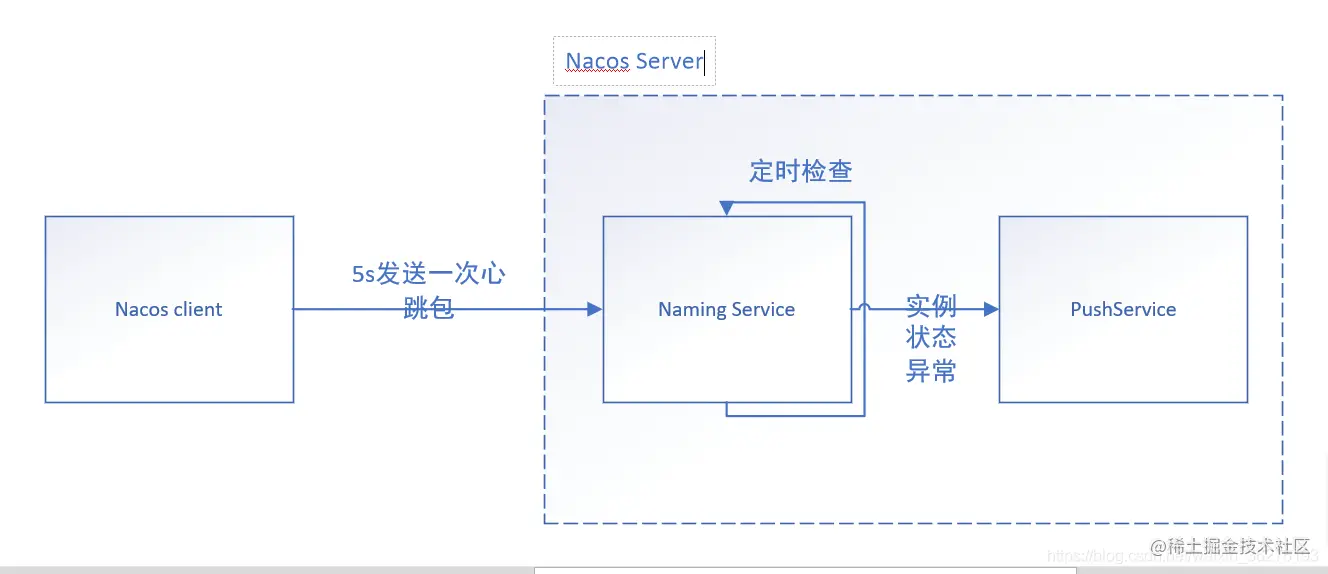

- beatReactor.addBeatInfo 创建心跳信息实现健康监测，Nacos server必须确保服务实例是健康的，心跳机制为客户端向服务端发送健康信息
- serverProxy.registerService 实现服务注册，向服务端发送服务信息
@Override
public void registerInstance(String serviceName, String groupName, Instance instance) throws NacosException {
if (instance.isEphemeral()) {
BeatInfo beatInfo = new BeatInfo();
beatInfo.setServiceName(NamingUtils.getGroupedName(serviceName, groupName));
beatInfo.setIp(instance.getIp());
beatInfo.setPort(instance.getPort());
beatInfo.setCluster(instance.getClusterName());
beatInfo.setWeight(instance.getWeight());
beatInfo.setMetadata(instance.getMetadata());
beatInfo.setScheduled(false);
beatInfo.setPeriod(instance.getInstanceHeartBeatInterval());
//心跳监测 beatReactor.addBeatInfo(NamingUtils.getGroupedName(serviceName, groupName), beatInfo);
}
//注册 serverProxy.registerService(NamingUtils.getGroupedName(serviceName, groupName), groupName, instance);
}
beatInfo.setPeriod 心跳机制
public void addBeatInfo(String serviceName, BeatInfo beatInfo) {
NAMING_LOGGER.info("[BEAT] adding beat: {} to beat map.", beatInfo);
String key = buildKey(serviceName, beatInfo.getIp(), beatInfo.getPort());
BeatInfo existBeat = null;
//fix #1733
if ((existBeat = dom2Beat.remove(key)) != null) {
existBeat.setStopped(true);
}
dom2Beat.put(key, beatInfo);
executorService.schedule(new BeatTask(beatInfo), beatInfo.getPeriod(), TimeUnit.MILLISECONDS);
MetricsMonitor.getDom2BeatSizeMonitor().set(dom2Beat.size());
}

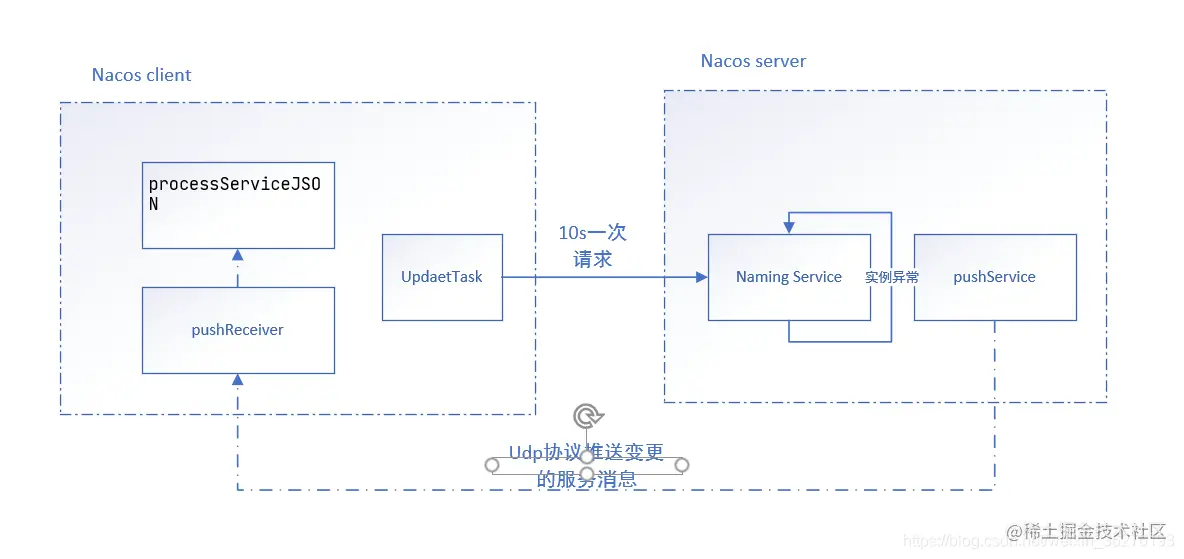

客户端向schedule定时向服务端发送数据包，然后启动新线程不断监测服务端的回应。服务端根据客户端 的心跳包不断更新服务的状态。
3.3、Nacos注册的原码解读
Nacos提供SDK和Open API的形式实现服务注册
curl -x POST 'http://127.0.0.1:8848/nacos/v1/ns/instance?serviceName=nacos.naming.serviceName&ip=127.0.0.1&port=8080
基于sdk形式实现服务注册, 其实内部也是基于http来进行调用
void registerInstance（String serviceName，String ip，String port）;
nacos服务端提供接口请求地址，/v1/ns/instance，具体代码在nacos-naming下的InstanceController
@CanDistro
@PostMapping
@Secured(
parser = NamingResourceParser.class,
action = ActionTypes.WRITE
)
public String register(HttpServletRequest request) throws Exception {
String serviceName = WebUtils.required(request, "serviceName");
String namespaceId = WebUtils.optional(request, "namespaceId", "public");
Instance instance = this.parseInstance(request);
this.serviceManager.registerInstance(namespaceId, serviceName, instance);
return "ok";
}
registerInstance为方法注册的核心，主要逻辑为
- 创建一个空服务，初始化serviceMap
- getService，从serviceMap中根据namespaceid和serviceName得到一个服务对象
- 调用addInstance添加到服务对象
public void registerInstance(String namespaceId, String serviceName, Instance instance) throws NacosException {
createEmptyService(namespaceId, serviceName, instance.isEphemeral());
Service service = getService(namespaceId, serviceName);
if (service == null) {
throw new NacosException(NacosException.INVALID_PARAM,
"service not found, namespace: " + namespaceId + ", service: " + serviceName);
}
addInstance(namespaceId, serviceName, instance.isEphemeral(), instance);
}
createEmptyService创建空服务，其核心方法为createServiceIfAbsent
- 根据namespaceId，serviceName从缓存中获取实例
- 如果service实例为空则创建实例且保存到缓存中
public void createServiceIfAbsent(String namespaceId, String serviceName, boolean local, Cluster cluster) throws NacosException {
Service service = getService(namespaceId, serviceName);
if (service == null) {
Loggers.SRV_LOG.info("creating empty service {}:{}", namespaceId, serviceName);
service = new Service();
service.setName(serviceName);
service.setNamespaceId(namespaceId);
service.setGroupName(NamingUtils.getGroupName(serviceName));
// now validate the service. if failed, exception will be thrown
service.setLastModifiedMillis(System.currentTimeMillis());
service.recalculateChecksum();
if (cluster != null) {
cluster.setService(service);
service.getClusterMap().put(cluster.getName(), cluster);
}
service.validate();
putServiceAndInit(service);
if (!local) {
addOrReplaceService(service);
}
}
}
putServiceAndInit涉及到的逻辑稍微复杂一点
- putService(service)方法将服务缓存到内存中
- service.init();建立心跳监测机制
- consistencyService.listen实现数据一致性的监听----未弄懂？？？？？
private void putServiceAndInit(Service service) throws NacosException {
putService(service);
service.init();
consistencyService.listen(KeyBuilder.buildInstanceListKey(service.getNamespaceId(), service.getName(), true), service);
consistencyService.listen(KeyBuilder.buildInstanceListKey(service.getNamespaceId(), service.getName(), false), service);
Loggers.SRV_LOG.info("[NEW-SERVICE] {}", service.toJSON());
}
总结下服务注册的流程
- Nacos 通过http或者open Api的形式发送服务注册请求
- Nacos 服务端收到请求后，完成以下工作 1、构建一个service对象保存到ConcurrentHashMap集合中 2、使用定时任务对当前任务简历心跳监测 3、基于数据一致性协议将服务数据进行同步
3.4、服务提供者地址查询
通过openapi获取服务，/v1/ns/instance/list?serviceName=serviceName
@GetMapping({"/list"})
@Secured(
parser = NamingResourceParser.class,
action = ActionTypes.READ
)
public ObjectNode list(HttpServletRequest request) throws Exception {
String namespaceId = WebUtils.optional(request, "namespaceId", "public");
String serviceName = WebUtils.required(request, "serviceName");
String agent = WebUtils.getUserAgent(request);
String clusters = WebUtils.optional(request, "clusters", "");
String clientIP = WebUtils.optional(request, "clientIP", "");
Integer udpPort = Integer.parseInt(WebUtils.optional(request, "udpPort", "0"));
String env = WebUtils.optional(request, "env", "");
boolean isCheck = Boolean.parseBoolean(WebUtils.optional(request, "isCheck", "false"));
String app = WebUtils.optional(request, "app", "");
String tenant = WebUtils.optional(request, "tid", "");
boolean healthyOnly = Boolean.parseBoolean(WebUtils.optional(request, "healthyOnly", "false"));
return this.doSrvIPXT(namespaceId, serviceName, agent, clusters, clientIP, udpPort, env, isCheck, app, tenant, healthyOnly);
}
通过doSrvIPXT获取服务列表
- 根据namespaceId、serviceName获取service实例
- service实例中srvIPs获取所有服务提供者的实例信息
- 遍历组装成json字符串并返回
public ObjectNode doSrvIPXT(String namespaceId, String serviceName, String agent, String clusters, String clientIP, int udpPort, String env, boolean isCheck, String app, String tid, boolean healthyOnly) throws Exception {
ClientInfo clientInfo = new ClientInfo(agent);
ObjectNode result = JacksonUtils.createEmptyJsonNode();
Service service = this.serviceManager.getService(namespaceId, serviceName);
this.checkIfDisabled(service);
long cacheMillis = this.switchDomain.getDefaultCacheMillis();
List<Instance> srvedIPs = service.srvIPs(Arrays.asList(StringUtils.split(clusters, ",")));
if (service.getSelector() != null && StringUtils.isNotBlank(clientIP)) {
srvedIPs = service.getSelector().select(clientIP, srvedIPs);
}
if (CollectionUtils.isEmpty(srvedIPs)) {
if (Loggers.SRV_LOG.isDebugEnabled()) {
Loggers.SRV_LOG.debug("no instance to serve for service: {}", serviceName);
}
if (clientInfo.type == ClientType.JAVA && clientInfo.version.compareTo(VersionUtil.parseVersion("1.0.0")) >= 0) {
result.put("dom", serviceName);
} else {
result.put("dom", NamingUtils.getServiceName(serviceName));
}
result.put("hosts", JacksonUtils.createEmptyArrayNode());
result.put("name", serviceName);
result.put("cacheMillis", cacheMillis);
result.put("lastRefTime", System.currentTimeMillis());
result.put("checksum", service.getChecksum());
result.put("useSpecifiedURL", false);
result.put("clusters", clusters);
result.put("env", env);
result.put("metadata", JacksonUtils.transferToJsonNode(service.getMetadata()));
return result;
} else {
Map<Boolean, List<Instance>> ipMap = new HashMap(2);
ipMap.put(Boolean.TRUE, new ArrayList());
ipMap.put(Boolean.FALSE, new ArrayList());
Iterator var19 = srvedIPs.iterator();
while(var19.hasNext()) {
Instance ip = (Instance)var19.next();
((List)ipMap.get(ip.isHealthy())).add(ip);
}
if (isCheck) {
result.put("reachProtectThreshold", false);
}
double threshold = (double)service.getProtectThreshold();
if ((double)((float)((List)ipMap.get(Boolean.TRUE)).size() / (float)srvedIPs.size()) <= threshold) {
Loggers.SRV_LOG.warn("protect threshold reached, return all ips, service: {}", serviceName);
if (isCheck) {
result.put("reachProtectThreshold", true);
}
((List)ipMap.get(Boolean.TRUE)).addAll((Collection)ipMap.get(Boolean.FALSE));
((List)ipMap.get(Boolean.FALSE)).clear();
}
if (isCheck) {
result.put("protectThreshold", service.getProtectThreshold());
result.put("reachLocalSiteCallThreshold", false);
return JacksonUtils.createEmptyJsonNode();
} else {
ArrayNode hosts = JacksonUtils.createEmptyArrayNode();
Iterator var22 = ipMap.entrySet().iterator();
label114:
while(true) {
Entry entry;
List ips;
do {
if (!var22.hasNext()) {
result.replace("hosts", hosts);
if (clientInfo.type == ClientType.JAVA && clientInfo.version.compareTo(VersionUtil.parseVersion("1.0.0")) >= 0) {
result.put("dom", serviceName);
} else {
result.put("dom", NamingUtils.getServiceName(serviceName));
}
result.put("name", serviceName);
result.put("cacheMillis", cacheMillis);
result.put("lastRefTime", System.currentTimeMillis());
result.put("checksum", service.getChecksum());
result.put("useSpecifiedURL", false);
result.put("clusters", clusters);
result.put("env", env);
result.replace("metadata", JacksonUtils.transferToJsonNode(service.getMetadata()));
return result;
}
entry = (Entry)var22.next();
ips = (List)entry.getValue();
} while(healthyOnly && !(Boolean)entry.getKey());
Iterator var25 = ips.iterator();
while(true) {
Instance instance;
do {
if (!var25.hasNext()) {
continue label114;
}
instance = (Instance)var25.next();
} while(!instance.isEnabled());
ObjectNode ipObj = JacksonUtils.createEmptyJsonNode();
ipObj.put("ip", instance.getIp());
ipObj.put("port", instance.getPort());
ipObj.put("valid", (Boolean)entry.getKey());
ipObj.put("healthy", (Boolean)entry.getKey());
ipObj.put("marked", instance.isMarked());
ipObj.put("instanceId", instance.getInstanceId());
ipObj.put("metadata", JacksonUtils.transferToJsonNode(instance.getMetadata()));
ipObj.put("enabled", instance.isEnabled());
ipObj.put("weight", instance.getWeight());
ipObj.put("clusterName", instance.getClusterName());
if (clientInfo.type == ClientType.JAVA && clientInfo.version.compareTo(VersionUtil.parseVersion("1.0.0")) >= 0) {
ipObj.put("serviceName", instance.getServiceName());
} else {
ipObj.put("serviceName", NamingUtils.getServiceName(instance.getServiceName()));
}
ipObj.put("ephemeral", instance.isEphemeral());
hosts.add(ipObj);
}
}
}
}
}
3.5、nacos服务地址动态感知
服务消费者需要获取服务提供者的地址列表，还需要监听服务异常变化 nacos客户端通过HostReactor类，实现服务的动态更新
- 客户端发起事件订阅后，在HostReactor启动updateTask线程，10s一次pull请求们，获取最新服务端的地址列表
- 服务端维持心跳机制，一旦服务提供者出现异常，则发送一个push消息给Nacos客户端
- 服务消费者受到请求后，HostReactor中的processServiceJSON解析消息，并更新本地服务地址列表
服务动态感知
