关键帧动画最佳优化方案

327 阅读1分钟

故事背景

接到需求写一个关键帧动画,说到这个大神前端们脑海里似乎有了不少的方案了,是否是以下几种:
  • css3 animation 0%~100% 显示不同的图片 或者translate图片的位置达到关键帧效果
  • 通过js + 定时器 操作dom 达到关键帧效果
  • canvas画布绘制
  • 直接上gif

以上方式都存在一些性能上的缺陷 比如图片过大过多加载时候导致渲染较慢 gif无法定义播放时间,播放速度,是否轮询动画

优化方案-lottie实现帧动画

  • 不在使用AE生成图片文件 使用用AE+BodyMovin导出动画JSON文件
  • 引入lottie
  • 根据api实例化

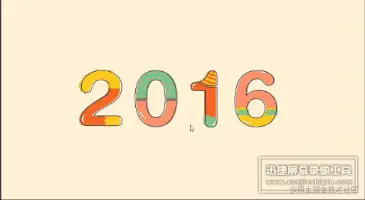

效果:

实现代码:

<!DOCTYPE html>
<html style="width: 100%;height: 100%">
<head>
     <script src="https://shanbo-mall-pro.oss-cn-shanghai.aliyuncs.com/miniapp/lottie.js"></script>
</head>
<body style="background-color:#ccc; margin: 0px;height: 100%; font-family: sans-serif;font-size: 10px">

<div style="width:100%;height:100%;background-color:#333;" id="bodymovin"></div>

<script>

    var animData = {
        wrapperdocument.getElementById('bodymovin'),
        animType'html',
        looptrue,
        prerendertrue,
        autoplaytrue,
        path'https://shanbo-mall-pro.oss-cn-shanghai.aliyuncs.com/miniapp/data.json'

    };
    var anim = bodymovin.loadAnimation(animData);
</script>
</body>
</html>

实现后效果:

AE+BodyMovin:

AE+BodyMovin生成josn教学链接

lottie web实现方式github地址:

lottie实现帧动画
