Flink 快速开始

566 阅读1分钟

创建 Flink 项目

Flink 官方提供了 Flink Maven Archetype 工具,能够快速创建一个包含了必要依赖的 Flink 程序骨架,包括flink 的核心依赖 flink-streaming-java 它提供了 Flink 流式计算的核心api

mvn archetype:generate \
    -DarchetypeGroupId=org.apache.flink \
    -DarchetypeArtifactId=flink-walkthrough-datastream-java \
    -DarchetypeVersion=1.11.2 \
    -DgroupId=frauddetection \
    -DartifactId=frauddetection \
    -Dversion=0.1 \
    -Dpackage=spendreport \
    -DinteractiveMode=false

编写处理逻辑

每一个 mian 方法都对应 一个 Flink job 的入口,如果你有多个任务,就需要定义多个 main 方法

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

/**
 * Flink 入门 单词统计
 */
public class WordCount {
    public static void main(String[] args) throws Exception{
        compute();
    }

    public static void compute() throws Exception{
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        DataStreamSource<String> streamSource = env.readTextFile("D:/word.txt");

        streamSource.flatMap(new FlatMapFunction<String, Tuple2<String, Long>>() {
            @Override
            public void flatMap(String value, Collector<Tuple2<String, Long>> out) throws Exception {
                String[] words = value.split(" ");
                for (String word : words){
                    out.collect(Tuple2.of(word, 1L));
                    Thread.sleep(1000);
                }
            }
        })
                .keyBy(t -> t.f0)
                .sum(1)
                .print();

        env.execute("word count job");

    }
}

这样就创建好了一个叫 word count job 的应用,你可以直接运行 mian 方法在本地进行调试,确认无误后打包

打包 Flink 程序

官方推荐我们使用 maven-shade-plugin 插件,复制一下代码到 POM 中指定我们的主方法类即可。

<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-shade-plugin</artifactId>
            <version>3.0.0</version>
            <executions>
                <execution>
                    <phase>package</phase>
                    <goals>
                        <goal>shade</goal>
                    </goals>
                    <configuration>
                        <artifactSet>
                            <excludes>
                                <exclude>com.google.code.findbugs:jsr305</exclude>
                                <exclude>org.slf4j:*</exclude>
                                <exclude>log4j:*</exclude>
                            </excludes>
                        </artifactSet>
                        <filters>
                            <filter>
                                <!-- Do not copy the signatures in the META-INF folder.
                                Otherwise, this might cause SecurityExceptions when using the JAR. -->
                                <artifact>*:*</artifact>
                                <excludes>
                                    <exclude>META-INF/*.SF</exclude>
                                    <exclude>META-INF/*.DSA</exclude>
                                    <exclude>META-INF/*.RSA</exclude>
                                </excludes>
                            </filter>
                        </filters>
                        <transformers>
                            <transformer implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
                                  <!-- 设置jar包的入口类,也可以再提交任务时,手动指定 -->
                                <mainClass>com.wqlm.Flink.job.WordCount</mainClass>
                            </transformer>
                        </transformers>
                    </configuration>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

执行

mvn clean package -DskipTests

提交任务

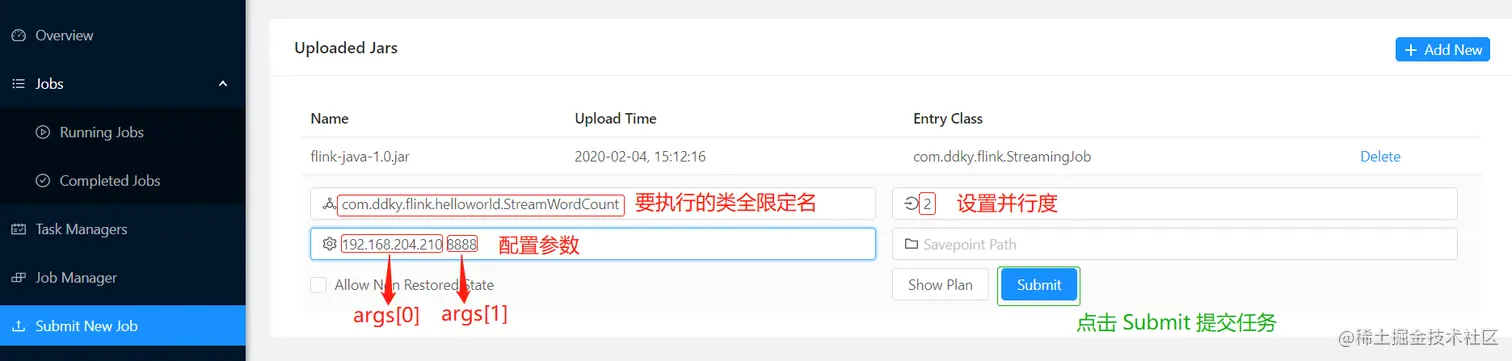

Flink 提供了web ui 供我们管理flink,我们可以通过 web 提交任务,先上传jar包后,对 job 进行配置

也可以选择使用 Flink Cli 提交任务,先将 jar 包上传到服务器,然后

./bin/flink run -c com.wqlm.Flink.job.WordCount \
                       ./examples/batch/WordCount.jar \
                       --input file:///home/user/hamlet.txt --output file:///home/user/wordcount_out

其中 com.wqlm.Flink.job.WordCount job 的入口

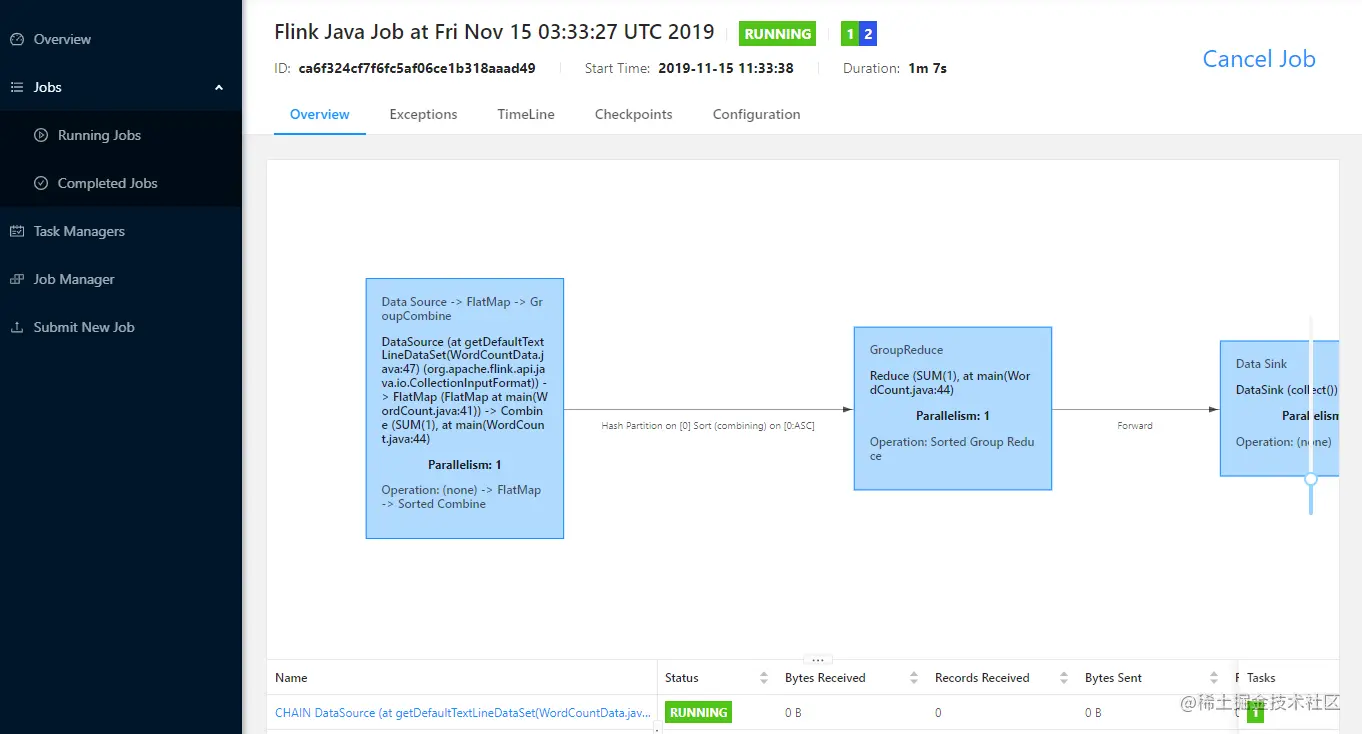

操作完成后,可以去web页面查看提交结果
