使用t265和d435i估计物体在三维坐标系中的位置
ros坐标系

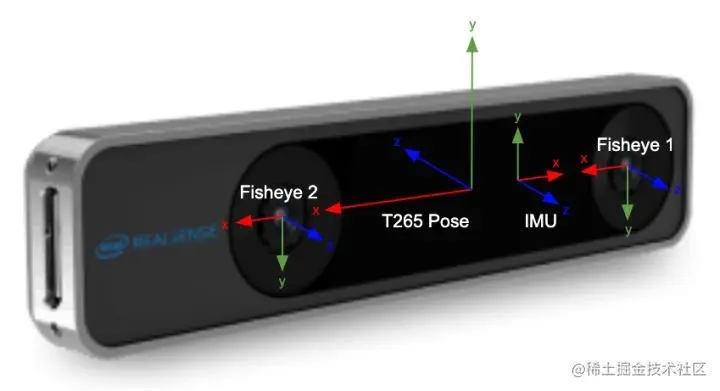

t265自身的坐标如下所示
在ros读取到的坐标中，x 轴指向机器人前方，y 轴指向机器人左方，z 轴指向机器人上方。对应来说，ros中x轴为上图z轴反方向，y轴为上图x轴反方向，z轴为上图y轴。下面统一使用ros中坐标定义而不是t265自身坐标定义。读取pos时使用msg_Odometry已经自动将坐标进行转换。
图像坐标系与世界坐标系转换

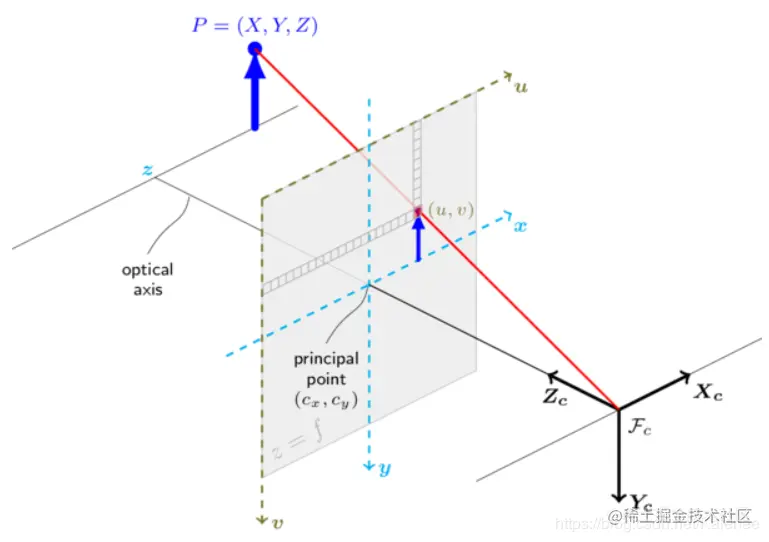

相机中有四个坐标系，分别为world，camera，image，pixel
- world为世界坐标系，可以任意指定xw轴和yw轴，为上图P点所在坐标系。
- camera为相机坐标系，原点位于小孔，z轴与光轴重合，xw轴和yw轴平行投影面，为上图坐标系XcYcZc。
- image为图像坐标系，原点位于光轴和投影面的交点，xw轴和yw轴平行投影面，为上图坐标系XYZ。
- pixel为像素坐标系，从小孔向投影面方向看，投影面的左上角为原点，uv轴和投影面两边重合，该坐标系与图像坐标系处在同一平面，但原点不同。
坐标变换如下
非齐次的形式如下
对应我们初始坐标系没有平移，所以上面 ，上述的R矩阵为
M矩阵可以通过相机内参求得。
齐次坐标变换
由于相机发生相对运动，上面我们只是获得了物体相对相机的坐标，我们还需要考虑相机自己的平移和旋转，转换关系如下所示

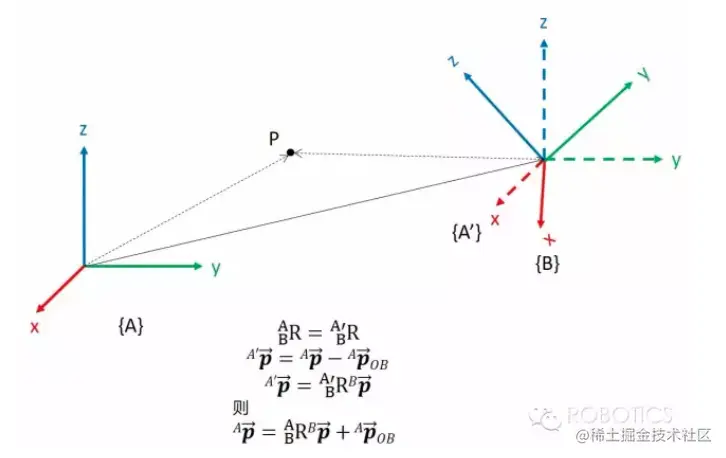

我们知道相机的相对平移和旋转变换到B坐标系，然后求得B坐标系中物体相对相机的坐标，最后还是要变换到A坐标系。
具体推导参考位置角度平移旋转
代码实现
import sys
import time
import os
import rospy
from sensor_msgs.msg import Image as msg_Image
from sensor_msgs.msg import CameraInfo as msg_CameraInfo
from nav_msgs.msg import Odometry as msg_Odometry
import numpy as np
from cv_bridge import CvBridge, CvBridgeError
import argparse
import message_filters
import cv2
import matplotlib.pyplot as plt
from autolab_core import RigidTransform
from scipy.spatial.transform import Rotation as R
class CWaitForMessage:
def __init__(self, opt):
self.height = opt.img_height
self.width = opt.img_width
self.node_name = "rs2_listener"
self.bridge = CvBridge()
self.listener = None
self.prev_msg_time = 0
self.is_init = False
# x->pitch, y->yaw, z->roll
self.theta = {}
self.theta["pitch"], self.theta["yaw"], self.theta["roll"] = None, None, None
self.external_mat = None
self.rotation_mat = None
self.t_mat = None
self.internal_mat = None
def rotation_estimator(self, pos_data):
w = pos_data.pose.pose.orientation.w
x = pos_data.pose.pose.orientation.x
y = pos_data.pose.pose.orientation.y
z = pos_data.pose.pose.orientation.z
self.theta["pitch"] = -np.arcsin(2.0 * (x*z - w*y)) * 180.0 / np.pi
self.theta["roll"] = np.arctan2(2.0 * (w*x + y*z), w*w - x*x - y*y + z*z) * 180.0 / np.pi
self.theta["yaw"] = np.arctan2(2.0 * (w*z + x*y), w*w + x*x - y*y - z*z) * 180.0 / np.pi
def get_camera_external_param(self, pos_data):
rotation_quaternion = np.asarray([pos_data.pose.pose.orientation.w, pos_data.pose.pose.orientation.x,
pos_data.pose.pose.orientation.y, pos_data.pose.pose.orientation.z])
translation = np.asarray([pos_data.pose.pose.position.x, pos_data.pose.pose.position.y,
pos_data.pose.pose.position.z])
T_qua2rota = RigidTransform(rotation_quaternion, translation)
self.rotation_mat = T_qua2rota._rotation
self.t_mat = T_qua2rota._translation
def get_camera_internal_param(self, camera_info):
k = camera_info.K
self.internal_mat = np.zeros((3, 3))
self.internal_mat[0, :] = k[:3]
self.internal_mat[1, :] = k[3:6]
self.internal_mat[2, :] = k[6:]
def check(self, img_data, depth_data):
cv_color_img = self.bridge.imgmsg_to_cv2(img_data, img_data.encoding)
cv_depth_img = self.bridge.imgmsg_to_cv2(depth_data, depth_data.encoding)
assert cv_color_img.shape == (self.height, self.width, 3)
assert cv_depth_img.shape == (self.height, self.width)
def estimate_absolute_pos(self, obj_pos, obj_depth):
uv_pos = np.array([[obj_pos[0]], [obj_pos[1]], [1]])
abs_pos = np.dot(np.linalg.inv(self.internal_mat), obj_depth * uv_pos)
axes_trans = np.array([[0, 0, 1], [-1, 0, 0], [0, -1, 0]])
abs_pos = np.dot(axes_trans, abs_pos)
# abs_pos[:, 0] -= self.t_mat * 1000
abs_pos = np.dot(self.rotation_mat, abs_pos)
abs_pos[:, 0] += self.t_mat * 1000
# abs_pos = np.dot(np.linalg.inv(self.rotation_mat), abs_pos)
return abs_pos.flatten()
def callback(self, img_data, depth_data, pos_data, camera_info):
# self.rotation_estimator(pos_data)
# print(pos_data)
if not self.is_init:
self.check(img_data, depth_data)
self.get_camera_internal_param(camera_info)
cv_color_img = self.bridge.imgmsg_to_cv2(img_data, img_data.encoding)
cv_depth_img = self.bridge.imgmsg_to_cv2(depth_data, depth_data.encoding)
cv_color_img = cv2.cvtColor(cv_color_img, cv2.COLOR_RGB2BGR)
obj_pos = [100, 100]
self.get_camera_external_param(pos_data)
obj_absolute_pos = self.estimate_absolute_pos(obj_pos, cv_depth_img[obj_pos[0], obj_pos[1]])
cv2.rectangle(cv_color_img, (obj_pos[0] - 5, obj_pos[1] - 5), (obj_pos[0] + 5, obj_pos[1] + 5), (0, 255, 0), 2)
pos_str = "x: {:.2f}, y: {:.2f}, z: {:.2f}".format(obj_absolute_pos[0], obj_absolute_pos[1], obj_absolute_pos[2])
cv2.putText(cv_color_img, pos_str, (30, 30), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2)
cv2.imshow("RGB", cv_color_img)
cv2.imshow("depth", cv_depth_img)
if int(time.time()) % 10 == 0:
print("pos")
print(obj_absolute_pos)
print(self.t_mat)
print(self.rotation_mat)
key = cv2.waitKey(1)
# Press esc or "q" to close the image window
if key & 0xFF == ord("q") or key == 27:
cv2.destroyAllWindows()
os._exit(0)
def wait_for_messages(self):
print("connect to ROS with name: %s" % self.node_name)
rospy.init_node(self.node_name, anonymous=True)
img_sub = message_filters.Subscriber("/d400/color/image_raw", msg_Image)
depth_sub = message_filters.Subscriber("/d400/aligned_depth_to_color/image_raw", msg_Image)
pos_sub = message_filters.Subscriber("/t265/odom/sample", msg_Odometry)
carmera_sub = message_filters.Subscriber("/d400/color/camera_info", msg_CameraInfo)
# topic synchronization by time
ts = message_filters.ApproximateTimeSynchronizer([img_sub, depth_sub, pos_sub, carmera_sub],
queue_size=10, slop=0.5, allow_headerless=True)
ts.registerCallback(self.callback)
rospy.spin()
if __name__ == "__main__":
parser = argparse.ArgumentParser()
parser.add_argument("--img_height", type=int, default=480, help="color image height")
parser.add_argument("--img_width", type=int, default=640, help="color image width")
opt = parser.parse_args()
msg_retriever = CWaitForMessage(opt)
msg_retriever.wait_for_messages()

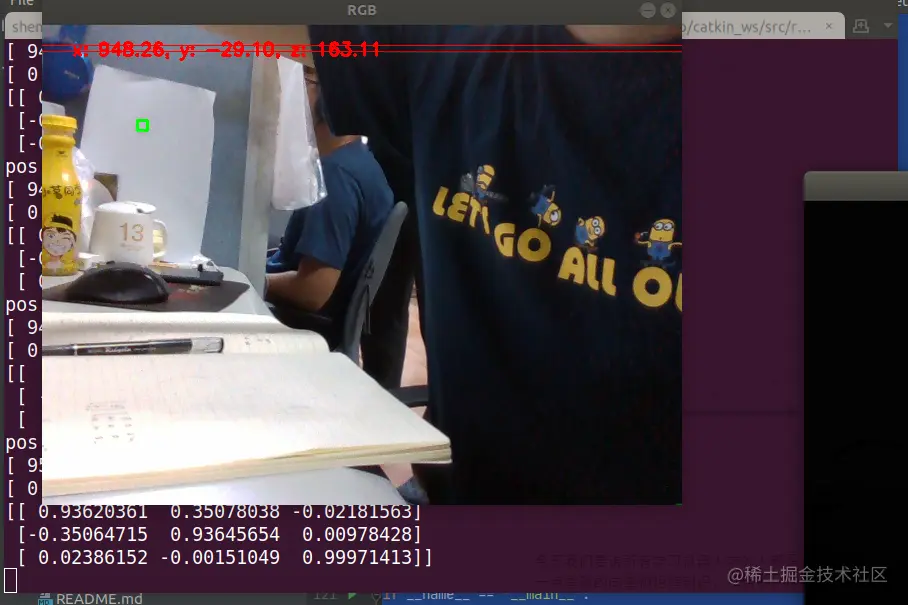

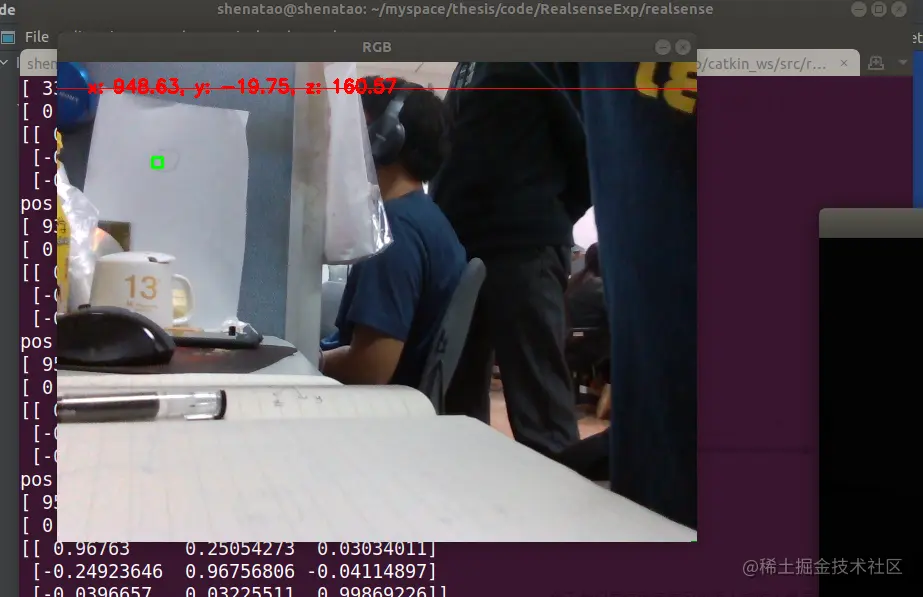

最终验证相机运动时候，观测一个点，其三维坐标是不是不变，如下图所示
| 场景1 | 场景2 |
|---|---|
估计单位为mm，上述误差也比较合理。
