电脑同时连接RealSense d435i和realse t265，读取d435i的imu数据，RGB图像和深度图像，读取t265的位置。
使用pyrealsense2连接
使用pyrealsense2连接，只需要安装realsense sdk和pyrealsense2。测试失败，可能是sdk存在的bug，官方说后序会跟进问题，代码如下
import pyrealsense2 as rs
import numpy as np
import os
# cannot work
ctx = rs.context()
devices = ctx.query_devices()
align = rs.align(rs.stream.color)
depth_scale = None
pipelines = {}
for dev in devices:
# get the name
dev_name = dev.get_info(rs.camera_info.name)
if "D435I" in dev_name:
pipeline = rs.pipeline(ctx)
cfg = rs.config()
cfg.enable_device(dev.get_info(rs.camera_info.serial_number))
print(dev.get_info(rs.camera_info.serial_number))
cfg.enable_stream(rs.stream.depth, 640, 480, rs.format.z16, 30)
cfg.enable_stream(rs.stream.color, 640, 480, rs.format.bgr8, 30)
profile = pipeline.start(cfg)
depth_scale = profile.get_device().first_depth_sensor().get_depth_scale()
pipelines["D435I"] = pipeline
elif "T265" in dev_name:
pipeline = rs.pipeline(ctx)
cfg = rs.config()
cfg.enable_device(dev.get_info(rs.camera_info.serial_number))
print(dev.get_info(rs.camera_info.serial_number))
cfg.enable_stream(rs.stream.pose)
profile = pipeline.start(cfg)
pipelines["T265"] = pipeline
else:
print("detect extra camera")
try:
while True:
# D453i info
frames = pipelines["D435I"].wait_for_frames()
aligned_frames = align.process(frames)
aligned_depth_frame = aligned_frames.get_depth_frame()
color_frame = aligned_frames.get_color_frame()
if not aligned_depth_frame or not color_frame:
continue
# get the distance to image center
depth_image = np.asanyarray(aligned_depth_frame.get_data())
color_image = np.asanyarray(color_frame.get_data())
depth_image = depth_image * depth_scale * 1000
width = aligned_depth_frame.get_width()
height = aligned_depth_frame.get_height()
dist_to_center = aligned_depth_frame.get_distance(int(width / 2), int(height / 2))
# T265 info
frames = pipelines["T265"].wait_for_frames()
pose = frames.get_pose_frame()
if pose and dist_to_center:
data = pose.get_pose_data()
if pose.frame_number % 100 == 0:
print("Frame #{}".format(pose.frame_number))
print("Position: {}".format(data.translation))
print("Distance: {}".format(dist_to_center))
finally:
for name in pipelines:
pipelines[name].stop()
使用rospy连接
使用ros连接，需要ros和realsense sdk和rospy。安装ros后，使用roslaunch连接2个摄像头，然后使用rospy进行读取， realsense-ros的使用参考连接。完成安装后修改launch文件，在realsense2_camera/launch下创建rs_d400_and_t265_v2.launch。
<launch>
<arg name="device_type_camera1" default="t265"/>
<arg name="device_type_camera2" default="d4.5"/> <!-- Note: using regular expression. match D435, D435i, D415... -->
<arg name="serial_no_camera1" default=""/>
<arg name="serial_no_camera2" default=""/>
<arg name="camera1" default="t265"/>
<arg name="camera2" default="d400"/>
<arg name="tf_prefix_camera1" default="$(arg camera1)"/>
<arg name="tf_prefix_camera2" default="$(arg camera2)"/>
<arg name="initial_reset" default="false"/>
<arg name="enable_fisheye" default="false"/>
<arg name="color_width" default="640"/>
<arg name="color_height" default="480"/>
<arg name="depth_width" default="640"/>
<arg name="depth_height" default="480"/>
<arg name="clip_distance" default="-2"/>
<arg name="topic_odom_in" default="odom_in"/>
<arg name="calib_odom_file" default=""/>
<arg name="enable_gyro" default="true"/>
<arg name="enable_accel" default="true"/>
<group ns="$(arg camera1)">
<include file="$(find realsense2_camera)/launch/includes/nodelet.launch.xml">
<arg name="device_type" value="$(arg device_type_camera1)"/>
<arg name="serial_no" value="$(arg serial_no_camera1)"/>
<arg name="tf_prefix" value="$(arg tf_prefix_camera1)"/>
<arg name="initial_reset" value="$(arg initial_reset)"/>
<arg name="enable_fisheye1" value="$(arg enable_fisheye)"/>
<arg name="enable_fisheye2" value="$(arg enable_fisheye)"/>
<arg name="topic_odom_in" value="$(arg topic_odom_in)"/>
<arg name="calib_odom_file" value="$(arg calib_odom_file)"/>
<arg name="enable_pose" value="true"/>
</include>
</group>
<group ns="$(arg camera2)">
<include file="$(find realsense2_camera)/launch/includes/nodelet.launch.xml">
<arg name="device_type" value="$(arg device_type_camera2)"/>
<arg name="serial_no" value="$(arg serial_no_camera2)"/>
<arg name="tf_prefix" value="$(arg tf_prefix_camera2)"/>
<arg name="initial_reset" value="$(arg initial_reset)"/>
<arg name="align_depth" value="true"/>
<arg name="filters" value="pointcloud"/>
<arg name="color_width" value="$(arg color_width)"/>
<arg name="color_height" value="$(arg color_height)"/>
<arg name="depth_width" value="$(arg depth_width)"/>
<arg name="depth_height" value="$(arg depth_height)"/>
<arg name="clip_distance" value="$(arg clip_distance)"/>
<arg name="enable_gyro" value="$(arg enable_gyro)"/>
<arg name="enable_accel" value="$(arg enable_accel)"/>
</include>
</group>
<node pkg="tf" type="static_transform_publisher" name="t265_to_d400" args="0 0 0 0 0 0 /$(arg tf_prefix_camera1)_link /$(arg tf_prefix_camera2)_link 100"/>
</launch>
启动节点
roslaunch realsense2_camera rs_d400_and_t265_v2.launch

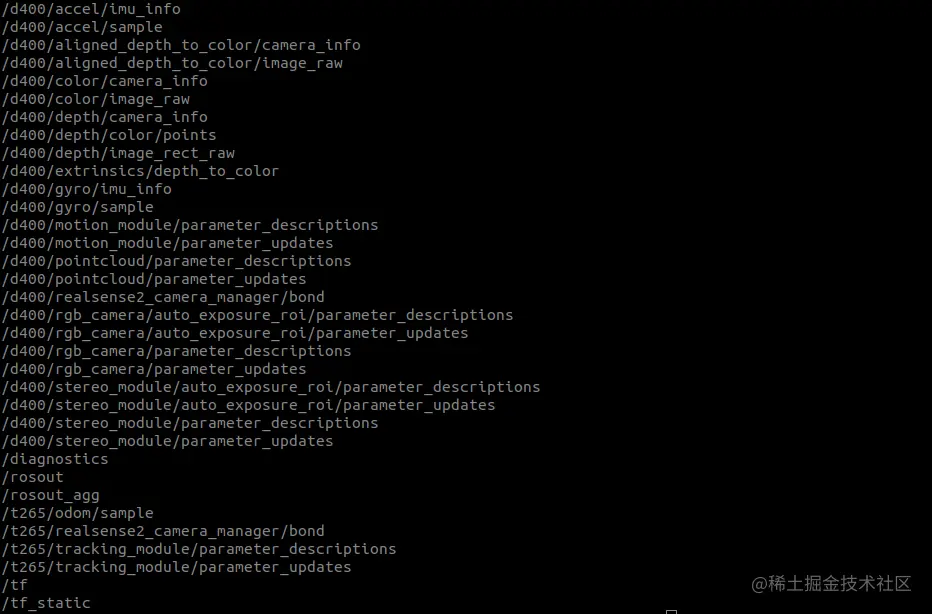

查看topic如下
其中需要的是
- /d400/color/image_raw
- /d400/aligned_depth_to_color/image_raw
- /d400/gyro/sample
- /d400/accel/sample
- /t265/odom/sample
读取上述topic，使用ApproximateTimeSynchronizer进行时间对齐，代码如下
import sys
import time
import os
import rospy
from sensor_msgs.msg import Image as msg_Image
from sensor_msgs.msg import Imu as msg_Imu
from nav_msgs.msg import Odometry as msg_Odometry
import numpy as np
from cv_bridge import CvBridge, CvBridgeError
import argparse
import message_filters
import cv2
import matplotlib.pyplot as plt
class CWaitForMessage:
def __init__(self, opt):
self.result = None
self.timeout = opt.timeout
self.seq = opt.seq
self.node_name = "rs2_listener"
self.bridge = CvBridge()
self.listener = None
self.prev_msg_time = 0
self.fout = None
self.func_data = dict()
def callback(self, img_data, depth_data, gyro_data, accel_data, pos_data):
cv_color_img = self.bridge.imgmsg_to_cv2(img_data, img_data.encoding)
cv2.imshow("RGB", cv2.cvtColor(cv_color_img, cv2.COLOR_RGB2BGR))
cv_depth_img = self.bridge.imgmsg_to_cv2(depth_data, depth_data.encoding)
cv2.imshow("depth", cv_depth_img)
key = cv2.waitKey(1)
# Press esc or "q" to close the image window
if key & 0xFF == ord("q") or key == 27:
cv2.destroyAllWindows()
os._exit(0)
print("gryo angular_velocity")
print(gyro_data.angular_velocity)
print("accel linear_acceleration")
print(accel_data.linear_acceleration)
print("pos")
print(pos_data.pose)
def wait_for_messages(self):
print("connect to ROS with name: %s" % self.node_name)
rospy.init_node(self.node_name, anonymous=True)
img_sub = message_filters.Subscriber("/d400/color/image_raw", msg_Image)
depth_sub = message_filters.Subscriber("/d400/aligned_depth_to_color/image_raw", msg_Image)
gyro_sub = message_filters.Subscriber("/d400/gyro/sample", msg_Imu)
accel_sub = message_filters.Subscriber("/d400/accel/sample", msg_Imu)
pos_sub = message_filters.Subscriber("/t265/odom/sample", msg_Odometry)
# topic synchronization by time
ts = message_filters.ApproximateTimeSynchronizer([img_sub, depth_sub, gyro_sub, accel_sub, pos_sub],
queue_size=10, slop=0.5, allow_headerless=True)
ts.registerCallback(self.callback)
rospy.spin()
if __name__ == "__main__":
parser = argparse.ArgumentParser()
parser.add_argument("--wanted_topic", type=str, default="colorStream", help="the topic to listen")
parser.add_argument("--seq", type=str, default="", help="the sequential number for device")
parser.add_argument("--timeout", type=float, default=1, help="timeout value")
opt = parser.parse_args()
msg_retriever = CWaitForMessage(opt)
msg_retriever.wait_for_messages()
上述python代码支持python，由于cv_bridge不支持python3，可能存在一定问题。
