手把手，撸出java-web机器人一(初始篇)完整项目地址：https://gitee.com/Tziq/withou

完整项目地址：gitee.com/Tziq/withou…

一、前言

该教程主要针对，想要了解web机器人，但却不知从何处下手的开发人员。本章实现了文本机器人，下篇文章实现语音机器人

二、技术选型

后台

springboot
WebSocket
阿里asr（实时）
阿里tts
阿里云小蜜

前台

HZRecorder2.js（h5录音功能，解码js）
h5websocket.js

三、创建云小蜜账户

阿里云创建地址：help.aliyun.com/document_de…

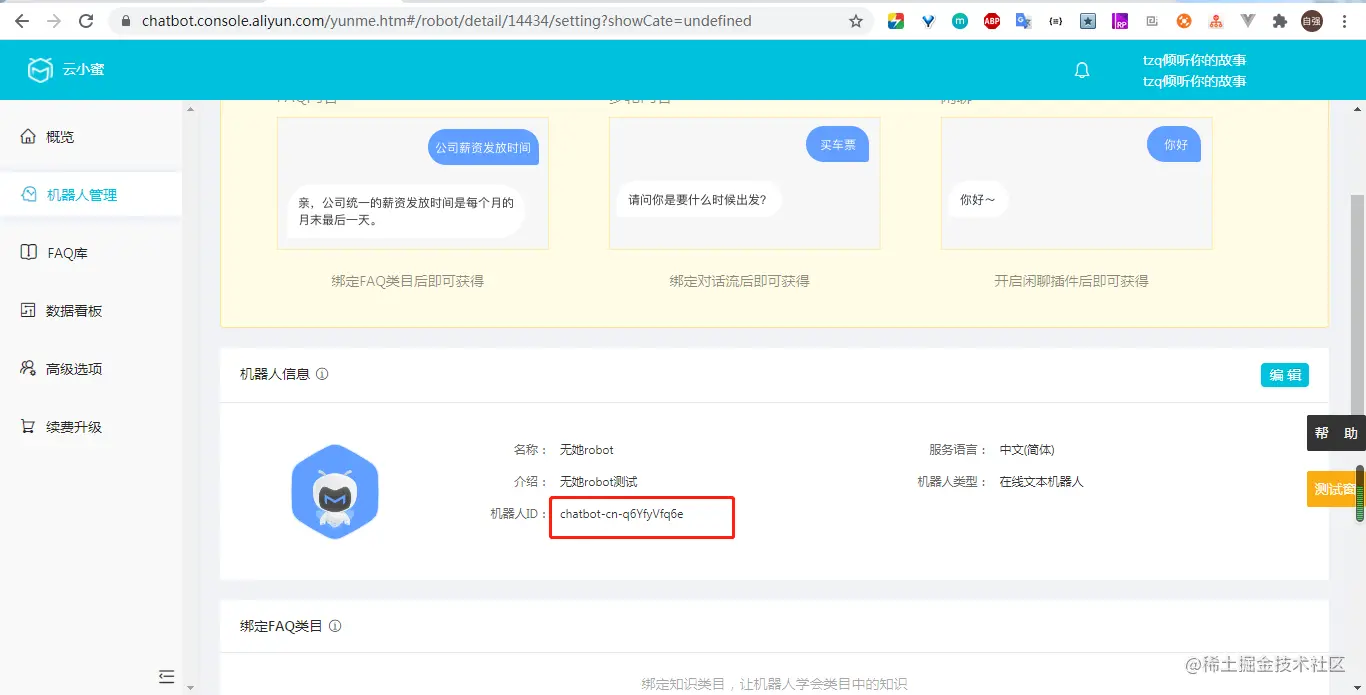

在机器人管理中获取ID

在maven项目引入所需SDK

<dependency>
   <groupId>com.aliyun</groupId>
   <artifactId>aliyun-java-sdk-chatbot</artifactId>
   <version>1.0.0</version>
</dependency>

<dependency>
   <groupId>com.aliyun</groupId>
   <artifactId>aliyun-java-sdk-core</artifactId>
   <version>4.5.2</version>
</dependency>
<dependency>
    <groupId>cn.hutool</groupId>
    <artifactId>hutool-all</artifactId>
    <version>4.5.6</version>
</dependency>

在main方法中调用

public static void main(String[] args) throws Exception {
   String accountAccessAK = "XXXXXXXXXXXXXXXXXX";
   String accountAccessSK = "XXXXXXXXXXXXXXXXXX";
   String popRegion = "cn-shanghai";
   String popProduct = "Chatbot";
   String popDomain = "chatbot.cn-shanghai.aliyuncs.com";
   DefaultProfile.addEndpoint(popRegion, popProduct, popDomain);
   IClientProfile profile = DefaultProfile.getProfile(popRegion, accountAccessAK, accountAccessSK);
   DefaultAcsClient client = new DefaultAcsClient(profile);
   //固定入参
   CommonRequest commonRequest = new CommonRequest();
   commonRequest.setSysProduct("Chatbot");
   commonRequest.setSysMethod(MethodType.GET);
   //根据API会有变化
   commonRequest.setSysAction("Chat");
   commonRequest.setSysVersion("2017-10-11");
   commonRequest.putQueryParameter("Utterance", "hi");
   //机器人id
   commonRequest.putQueryParameter("InstanceId", "chatbot-cn-xxxxxxxxxxxx");
   CommonResponse commonResponse = client.getCommonResponse(commonRequest);
   System.out.println(commonResponse.getData());
}

查看返回参数

{"Messages":[{"Type":"Text","Text":{"UserDefinedChatTitle":"打招呼","Content":"哈喽，人见人爱的我来啦，有啥我可以帮您的吗~","AnswerSource":"USER_DEFINED_CHAT","HitStatement":"hi"},"Knowledge":{}}],"RequestId":"96F2396B-B116-4F65-90F7-AEBE9D027F65","SessionId":"43619053db654fe3a7e0bed73b9d9d5f","MessageId":"96F2396B-B116-4F65-90F7-AEBE9D027F65"}

使用工厂模式封装对话机器人(为了对接另外的机器人)

创建通用对话接口

package com.withouther.robot.rainingrobot.util.ai.dialogue;

import com.aliyuncs.exceptions.ClientException;
import com.withouther.robot.rainingrobot.util.ai.dialogue.model.BotResult;

import java.util.Map;

public interface DialogueBot {
    BotResult getDialogue(Map<String, Object> paramMap) throws ClientException;
}

创建云小蜜实现类

package com.withouther.robot.rainingrobot.util.ai.dialogue;

import cn.hutool.http.HttpStatus;
import cn.hutool.setting.dialect.Props;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import com.aliyuncs.CommonRequest;
import com.aliyuncs.CommonResponse;
import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.http.MethodType;
import com.aliyuncs.profile.DefaultProfile;
import com.aliyuncs.profile.IClientProfile;
import com.withouther.robot.rainingrobot.util.ai.dialogue.model.BotResult;
import lombok.extern.slf4j.Slf4j;

import java.util.HashMap;
import java.util.Map;

/**
 * @ClassName BeeBot
 * @Auther: tzq
 * @Date: 2020/9/21 14:00
 * @Description:
 */
@Slf4j
public class BeeBot implements DialogueBot {

    private static DefaultAcsClient client = null;

    public BeeBot() {
        init();
    }
    public void init(){
        Props robotPro = new Props("robot.properties");
        String accountAccessAK = robotPro.getStr("ali.accountAccessAK");
        String accountAccessSK = robotPro.getStr("ali.accountAccessSK");
        String popRegion = robotPro.getStr("ali.popRegion");
        String popProduct = robotPro.getStr("ali.popProduct");
        String popDomain = robotPro.getStr("ali.popDomain");
        if (client == null) {
            DefaultProfile.addEndpoint(popRegion, popProduct, popDomain);
            IClientProfile profile = DefaultProfile.getProfile(popRegion, accountAccessAK, accountAccessSK);
            client = new DefaultAcsClient(profile);
        }
    }
    @Override
    public BotResult getDialogue(Map<String, Object> paramMap) throws ClientException {
        //固定入参
        CommonRequest commonRequest = new CommonRequest();
        commonRequest.setSysProduct("Chatbot");
        commonRequest.setSysMethod(MethodType.GET);
        //根据API会有变化
        commonRequest.setSysAction("Chat");
        commonRequest.setSysVersion("2017-10-11");
        commonRequest.putQueryParameter("Utterance", (String) paramMap.get("text"));
        String InstanceId = paramMap.get("InstanceId") == null ? "chatbot-cn-q6YfyVfq6e" : (String) paramMap.get("InstanceId");
        commonRequest.putQueryParameter("InstanceId", InstanceId);
        CommonResponse commonResponse = post(commonRequest);
        BotResult botResult = new BotResult();
        botResult.setSuccess(commonResponse.getHttpStatus() == HttpStatus.HTTP_OK);
        JSONObject data = JSON.parseObject(commonResponse.getData());
        JSONArray messages = data.getJSONArray("Messages");
        JSONObject textJson = messages.getJSONObject(0).getJSONObject("Text");
        botResult.setText(textJson.getString("Content"));
        botResult.setRequestId(data.getString("RequestId"));
        botResult.setMessage(textJson.getString("AnswerSource"));
        return botResult;
    }
    public CommonResponse post(CommonRequest commonRequest) throws ClientException {
        CommonResponse commonResponse = client.getCommonResponse(commonRequest);
        System.out.println(commonResponse.getData());
        log.debug("dialogueRequest: {}", commonRequest);
        log.debug("dialogueResponse: {}", commonResponse);
        return commonResponse;
    }
}

创建工厂类

package com.withouther.robot.rainingrobot.util.ai.dialogue;

import com.aliyuncs.exceptions.ClientException;
import com.withouther.robot.rainingrobot.util.ai.dialogue.model.BotResult;

import java.util.HashMap;
import java.util.Map;

/**
 * @ClassName RobotFactory
 * @Auther: tzq
 * @Date: 2020/9/21 15:10
 * @Description:
 */
public class RobotFactory {

    private static RobotFactory tools = null;

    private static Map<Integer, DialogueBot> strategyMap = new HashMap<>();

    /**
     * 阿里云小蜜
     */
    public static final int BEEBOT = 1;

    static {
        strategyMap.put(BEEBOT, new BeeBot());
    }

    private RobotFactory() {
        init();
    }

    /**
     * 该类的初始化方法
     */
    public void init() {

    }

    /**
     * 重置该类
     */
    public void reset() {
        init();
    }

    /**
     * 工厂方法，返回
     *
     * @return
     */
    public static RobotFactory getFactory() {
        if (tools == null) {
            create();
        }
        return tools;
    }

    /**
     * 线程安全的创建方法，防止并发多次创建
     */
    private static synchronized void create() {
        if (tools == null) {
            tools = new RobotFactory();
        }
    }

    public BotResult botAction(Map<String, Object> paramMap, int type) throws ClientException {
        DialogueBot dialogueBot = strategyMap.get(type);
        return dialogueBot.getDialogue(paramMap);
    }
}

创建通用接收实体

package com.withouther.robot.rainingrobot.util.ai.dialogue.model;

import lombok.Data;

import java.io.Serializable;

/**
 * @ClassName BotResult
 * @Auther: tzq
 * @Date: 2020/9/21 14:08
 * @Description:
 * 通用机器人对话接口实体
 */
@Data
public class BotResult implements Serializable {

    private String text;

    private String requestId;

    private String message;

    private boolean isSuccess;
}

创建robot.properties

ali.accountAccessAK = LTAI4G1oyqgD7pZcnrPMZCMj
ali.accountAccessSK = cEnXSJocB2O4AkAnki9s7L5QXSX5Ve
ali.popRegion = cn-shanghai
ali.popProduct = Chatbot
ali.popDomain = chatbot.cn-shanghai.aliyuncs.com

四、创建对话接口

创建controller

package com.withouther.robot.rainingrobot.rest;

import com.withouther.robot.rainingrobot.core.result.CallResult;
import com.withouther.robot.rainingrobot.service.RobotRecordService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

/**
 * @ClassName RobotRecordController
 * @Auther: tzq
 * @Date: 2020/7/30 21:31
 * @Description:
 */
@RestController
@RequestMapping({"/robotRecord"})
public class RobotRecordController {

    @Autowired
    private RobotRecordService robotRecordService;

    @GetMapping("/dialogue")
    public CallResult getDialogue(@RequestParam("text") String text) {
        return CallResult.success(robotRecordService.getDialogue(text));
    }

}

创建service

package com.withouther.robot.rainingrobot.service.impl;

import cn.hutool.core.util.StrUtil;
import com.aliyuncs.exceptions.ClientException;
import com.withouther.robot.rainingrobot.service.RobotRecordService;
import com.withouther.robot.rainingrobot.util.ai.dialogue.RobotFactory;
import com.withouther.robot.rainingrobot.util.ai.dialogue.model.BotResult;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Map;

/**
 * @ClassName RobotRecordServiceImpl
 * @Auther: tzq
 * @Date: 2020/9/21 15:08
 * @Description:
 */
@Service
@Slf4j
public class RobotRecordServiceImpl implements RobotRecordService {

    @Override
    public BotResult getDialogue(String text) {
        Map<String, Object> paramMap = new HashMap<>();
        paramMap.put("text", text);
        BotResult botResult = null;
        try {
            botResult = RobotFactory.getFactory().botAction(paramMap, 1);
        } catch (ClientException e) {
            e.printStackTrace();
        }
        if (StrUtil.isEmpty(botResult.getText())) {
            log.error("未找到答案：{}", botResult);
            botResult.setText("哎呀，你想问的问题，人家暂时不会呢。");
        }
        return botResult;
    }
}

CallResult可去码云地址上自取

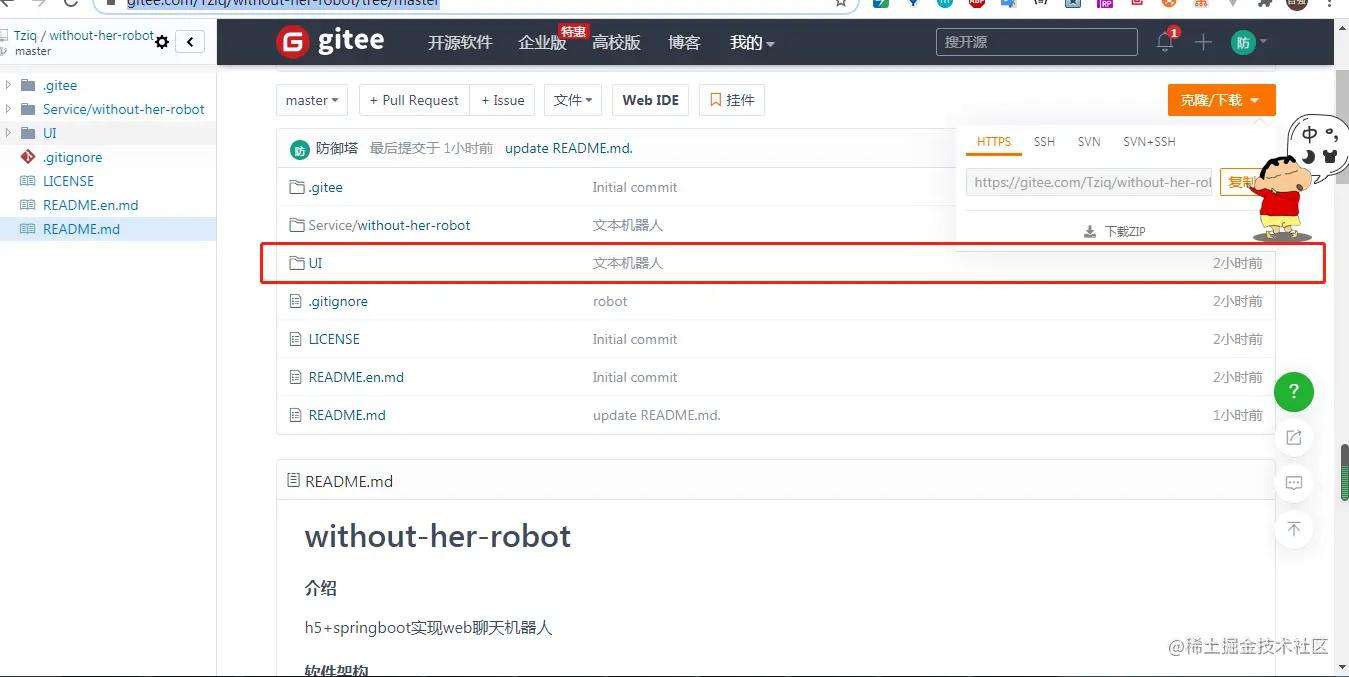

五、创建h5项目

创建聊天室页面

<html lang="zh-cn" ><head><meta charset="utf-8" /><meta HTTP-EQUIV="pragma" CONTENT="no-cache"><meta HTTP-EQUIV="Cache-Control" CONTENT="no-cache, must-revalidate"><meta HTTP-EQUIV="expires" CONTENT="0"><meta name="apple-touch-fullscreen" content="yes" /><meta name="format-detection" content="telephone=no" /><meta http-equiv="X-UA-Compatible" content="IE=Edge,chrome=1" /><meta name="viewport" content="width=device-width, initial-scale=1.0 user-scalable=no" media="screen" /><title>无她聊天机器人</title><link rel="stylesheet" type="text/css" href="css/main.css"></head><body><div class="speak_window">    <div class="speak_box">        <div class="answer">            <div class="heard_img left"><img src="images/service.jpg"></div>            <div class="answer_text">                <p>Hey，您的专属导游在此！您可以向我提问哦！有时微信会跟我闹点小脾气，试试关闭当前页面重新进入就ok啦!</p>                <i></i>            </div>        </div>    </div></div><div class="saying">    <img src="images/saying.gif"/></div><div class="wenwen-footer">    <div class="wenwen_text left">        <div class="write_box">            <input type="text" class="left" onKeyUp="keyup()" placeholder="请输入关键字" />        </div>       </div>    <div class="wenwen_help right">        <button onClick="up_say()" class="right">发送</button>    </div>    <div style="opacity:0;" class="clear"></div></div><script type="text/javascript" src="js/jquery-3.2.1.min.js"></script><div style="text-align:center;"></div></body><script src="js/ajaxUtil.js"></script><script src="js/robot.js"></script></html>

剩下的js和css可去码云获取

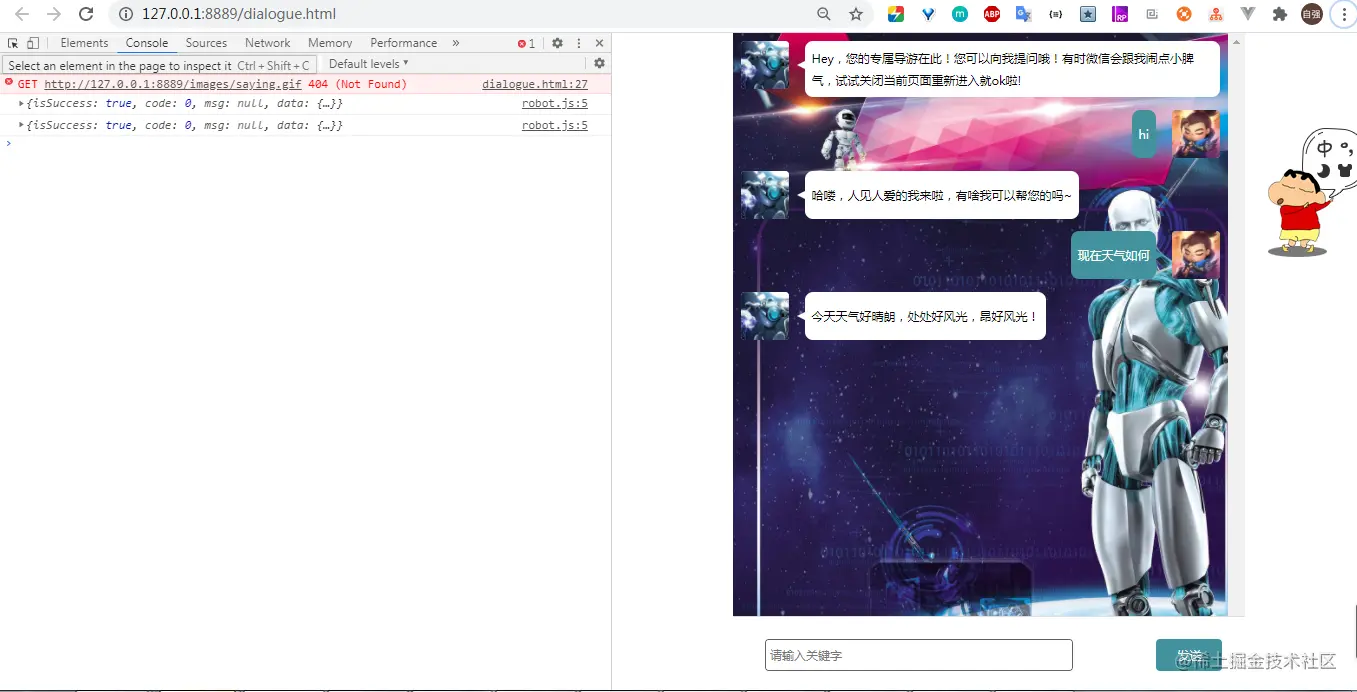

六、演示效果

七、结语

目前实现了h5聊天室的文本机器人，下篇文章将梳理如何实现语音机器人，敬请期待！
