Android屏幕刷新机制

Android屏幕刷新机制

之前我们讲过布局优化中提到Android系统每16ms发出一个VSYNC信号,然后执行一次UI的渲染工作。如果渲染成功,那么界面基本就是流畅的。

我们看看Android系统是如何做屏幕刷新机制,如果做到16ms执行一次绘制工作,又如何保证我们每次点击或者触摸屏幕的时候,快速的处理对应的事件。

VSync来源自底层硬件驱动程序的上报,对于Android能看到的接口来说,它是来自HAL层的hwc_composer_device的抽象硬件设备

基础知识

View绘制

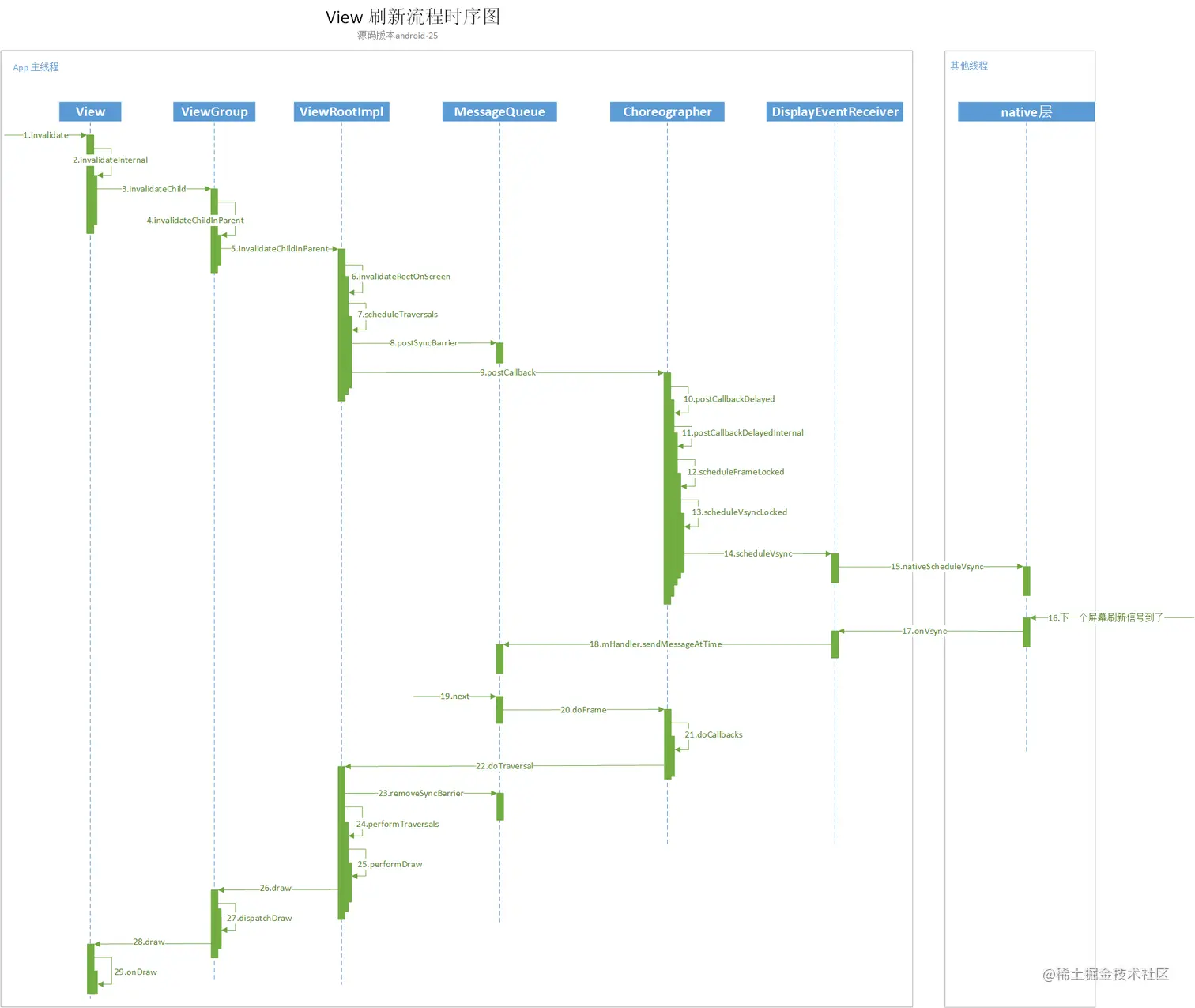

这部分在之前的文章有过专门的说明Android的View绘制机制

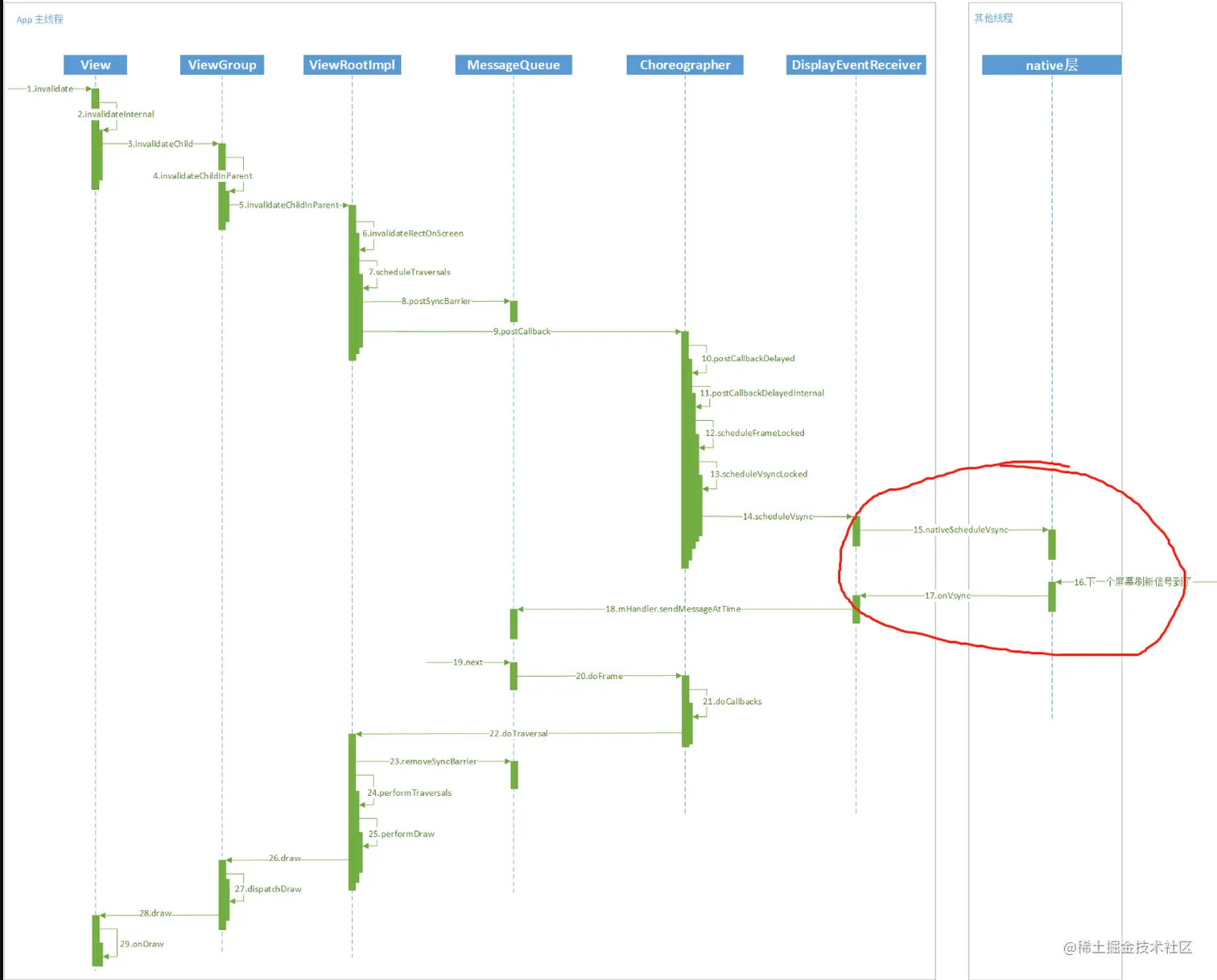

在我们之前的代码中,对于15-17这部分并没有进行任何的详解,那么底层是如何产生Vsync的信号,然后又是如何通知到我们的应用进行屏幕刷新呢?这不分就是我们这篇文章的关注点。

入口

	mChoreographer = Choreographer.getInstance();

	//Choreographer.java	frameworks\base\core\java\android\view
    public static Choreographer getInstance() {
        return sThreadInstance.get();
    }

    private static final ThreadLocal<Choreographer> sThreadInstance = new ThreadLocal<Choreographer>() {
        @Override
        protected Choreographer initialValue() {
            //获取对应的looper
            Looper looper = Looper.myLooper();
            if (looper == null) {
                throw new IllegalStateException("The current thread must have a looper!");
            }
			//注意这里使用的VSYNC_SOURCE_APP
            Choreographer choreographer = new Choreographer(looper, VSYNC_SOURCE_APP);
            if (looper == Looper.getMainLooper()) {
                mMainInstance = choreographer;
            }
            return choreographer;
        }
    };

    private Choreographer(Looper looper, int vsyncSource) {
		//FrameDisplayEventReceiver创建的信号是VSYNC_SOURCE_APP,APP层请求的VSYNC
        mDisplayEventReceiver = USE_VSYNC? new FrameDisplayEventReceiver(looper, vsyncSource): null;
        ...
    }


复制代码

这里初始化的FrameDisplayEventReceiver类继承自DisplayEventReceiver

    public DisplayEventReceiver(Looper looper, int vsyncSource) {
        if (looper == null) {
            throw new IllegalArgumentException("looper must not be null");
        }

        mMessageQueue = looper.getQueue();
		//调用底层初始化,并将本身以及对应的mMessageQueue传入进去
        //对应frameworks\base\core\jni\android_view_DisplayEventReceiver.cpp
        mReceiverPtr = nativeInit(new WeakReference<DisplayEventReceiver>(this), mMessageQueue,vsyncSource);

        mCloseGuard.open("dispose");
    }
复制代码

这里会调用Native层的方法,并将当前的DisplayEventReceiver以及队列mMessageQueue和**vsyncSource(VSYNC_SOURCE_APP)**传递给底层

nativeInit

//frameworks\base\core\jni\android_view_DisplayEventReceiver.cpp
static jlong nativeInit(JNIEnv* env, jclass clazz, jobject receiverWeak,
        jobject messageQueueObj, jint vsyncSource) {
    //申请对应的MessageQueue
    sp<MessageQueue> messageQueue = android_os_MessageQueue_getMessageQueue(env, messageQueueObj);
    ...
	//重点方法1       创建NativeDisplayEventReceiver
    sp<NativeDisplayEventReceiver> receiver = new NativeDisplayEventReceiver(env,
            receiverWeak, messageQueue, vsyncSource);
	//重点方法2        进行初始化NativeDisplayEventReceiver,并返回对应的初始化结果
    status_t status = receiver->initialize();
    if (status) {//初始化出现异常
        String8 message;led to initialize display event receiver.  status
        message.appendFormat("Fai=%d", status);
        jniThrowRuntimeException(env, message.string());
        return 0;
    }
    receiver->incStrong(gDisplayEventReceiverClassInfo.clazz); // retain a reference for the object
    return reinterpret_cast<jlong>(receiver.get());
}

复制代码

我们这里先看一下NativeDisplayEventReceiver的创建过程。

[NativeDisplayEventReceiver的创建]

NativeDisplayEventReceiver::NativeDisplayEventReceiver(JNIEnv* env,
        jobject receiverWeak, const sp<MessageQueue>& messageQueue, jint vsyncSource) :
        //继承了DisplayEventDispatcher,并传入了对应的messagequeue,将vsyncSource转化为了底层使用的变量
        DisplayEventDispatcher(messageQueue->getLooper(),
                static_cast<ISurfaceComposer::VsyncSource>(vsyncSource)),
        mReceiverWeakGlobal(env->NewGlobalRef(receiverWeak)),
        mMessageQueue(messageQueue) {
    ALOGV("receiver %p ~ Initializing display event receiver.", this);
}

//DisplayEventDispatcher构造函数
DisplayEventDispatcher::DisplayEventDispatcher(const sp<Looper>& looper,ISurfaceComposer::VsyncSource vsyncSource) :
        //Vsync的来源传递给了mReceiver。这里相当于调用了mReceiver(DisplayEventReceiver)的构造函数
        mLooper(looper), mReceiver(vsyncSource), mWaitingForVsync(false) {
    ALOGV("dispatcher %p ~ Initializing display event dispatcher.", this);
}


复制代码

这里会创建DisplayEventReceiver

//DisplayEventReceiver构造函数	frameworks\native\libs\gui\DisplayEventReceiver.cpp
DisplayEventReceiver::DisplayEventReceiver(ISurfaceComposer::VsyncSource vsyncSource,
                                           ISurfaceComposer::ConfigChanged configChanged) {
    //方法1   	获取SurfaceFling服务,并保存在ComposerService中
    sp<ISurfaceComposer> sf(ComposerService::getComposerService());
    if (sf != nullptr) {
		//方法2   通过binder,最后跨进程调用surfaceFling的createDisplayEventConnection方法
		//方法位置 ISurfaceComposer.cpp	frameworks\native\libs\gui	66331	2020/3/22	1379
        mEventConnection = sf->createDisplayEventConnection(vsyncSource, configChanged);
        if (mEventConnection != nullptr) {
			//方法3
            mDataChannel = std::make_unique<gui::BitTube>();
			//方法4
            mEventConnection->stealReceiveChannel(mDataChannel.get());
        }
    }
}
复制代码

DisplayEventReceiver结构体是一个比较重要的类,其主要作用是建立与SurfaceFlinger**的连接。我们这里将对其每一个调用的方法都来进行一个自习的分析

  • 方法1:获取SurfaceFlinger服务

sp sf(ComposerService::getComposerService());

ComposerService::getComposerService()
// 	frameworks\native\libs\gui\SurfaceComposerClient.cpp
/*static*/ sp<ISurfaceComposer> ComposerService::getComposerService() {
    ComposerService& instance = ComposerService::getInstance();
    Mutex::Autolock _l(instance.mLock);//加锁
    if (instance.mComposerService == nullptr) {
		//获取SurfaceFling服务,并保存在ComposerService中
        ComposerService::getInstance().connectLocked();
        assert(instance.mComposerService != nullptr);
        ALOGD("ComposerService reconnected");
    }
    return instance.mComposerService;
}

void ComposerService::connectLocked() {
    const String16 name("SurfaceFlinger");
	//通过getService方法获取SurfaceFlinger服务,并将获取到的服务保存到mComposerService变量中
    while (getService(name, &mComposerService) != NO_ERROR) {
        usleep(250000);
    }
    //创建死亡回调
    ...
    mDeathObserver = new DeathObserver(*const_cast<ComposerService*>(this));
    IInterface::asBinder(mComposerService)->linkToDeath(mDeathObserver);
}
复制代码

通过getService方法来获取对应的SurfaceFlinger服务。这里会将获取到的服务保存到mComposerService变量中.

  • 创建事件连接
sf->createDisplayEventConnection
    virtual sp<IDisplayEventConnection> createDisplayEventConnection(VsyncSource vsyncSource,ConfigChanged configChanged) {
        Parcel data, reply;
        sp<IDisplayEventConnection> result;
		//binder机制调用SurfaceFling的createDisplayEventConnection方法
		//SurfaceFlinger.cpp	frameworks\native\services\surfaceflinger
        int err = data.writeInterfaceToken(ISurfaceComposer::getInterfaceDescriptor());
        data.writeInt32(static_cast<int32_t>(vsyncSource));
        data.writeInt32(static_cast<int32_t>(configChanged));
        err = remote()->transact(
                BnSurfaceComposer::CREATE_DISPLAY_EVENT_CONNECTION,
                data, &reply);
        ...
        result = interface_cast<IDisplayEventConnection>(reply.readStrongBinder());
        return result;
    }
复制代码

可以看到,该方法使用的是Binder机制,而服务的提供方则是SurfaceFlinger

//创建显示事件连接
sp<IDisplayEventConnection> SurfaceFlinger::createDisplayEventConnection(
        ISurfaceComposer::VsyncSource vsyncSource, ISurfaceComposer::ConfigChanged configChanged) {
    //makeResyncCallback是一个方法,定义在EventThread.h中。using ResyncCallback = std::function<void()>;
    //创建一个resyncCallback
    auto resyncCallback = mScheduler->makeResyncCallback([this] {
        Mutex::Autolock lock(mStateLock);
        return getVsyncPeriod();
    });
	//根据传入的Vsync类型,返回不同的Handler。如果是应用中注册的,则返回mAppConnectionHandle
    const auto& handle = vsyncSource == eVsyncSourceSurfaceFlinger ? mSfConnectionHandle : mAppConnectionHandle;
	//调用createDisplayEventConnection,传入了对应的handle,mScheduler是Scheduler.cpp结构体
    return mScheduler->createDisplayEventConnection(handle, std::move(resyncCallback),
                                                    configChanged);
}

复制代码

根据传入的vsyncSource类型来返回具体的Handler。因为我们这里使用过的应用类型,所以这里的handle是mAppConnectionHandle

然后通过mScheduler创建对应的连接。

这里我们需要对handle进行一个补充说明

补充说明:

对于Handler的创建是在SurfaceFlinger的初始化方法init()中进行创建的

void SurfaceFlinger::init() {
    ...
	mAppConnectionHandle =
       	mScheduler->createConnection("app", mVsyncModulator.getOffsets().app,
                                     mPhaseOffsets->getOffsetThresholdForNextVsync(),
                                     resyncCallback,
                                     impl::EventThread::InterceptVSyncsCallback());
    ...
}


sp<Scheduler::ConnectionHandle> Scheduler::createConnection(
        const char* connectionName, nsecs_t phaseOffsetNs, nsecs_t offsetThresholdForNextVsync,
        ResyncCallback resyncCallback,
        impl::EventThread::InterceptVSyncsCallback interceptCallback) {
    //对应的id,累加的
    const int64_t id = sNextId++;
	//创建一个EventThread,名称为传入的connectionName
    std::unique_ptr<EventThread> eventThread =
            makeEventThread(connectionName, mPrimaryDispSync.get(), phaseOffsetNs,
                            offsetThresholdForNextVsync, std::move(interceptCallback));
	//创建EventThreadConnection
    auto eventThreadConnection = createConnectionInternal(eventThread.get(), std::move(resyncCallback),
                                     ISurfaceComposer::eConfigChangedSuppress);
	//创建ConnectionHandle,入参是id,
	//然后将创建的connection并存入到map中。key是id。
    mConnections.emplace(id,
                         std::make_unique<Connection>(new ConnectionHandle(id),
                                                      eventThreadConnection,
                                                      std::move(eventThread)));
    return mConnections[id]->handle;
}
复制代码

这里创建的Handler,持有了对应的EventThread,而eventThreadConnection是通过EventThread来进行创建。创建eventThreadConnection以后,会将其保存到map中,对应的key则是id信息。

而连接处理器:ConnectionHandle则是一个持有id的对象。

我们回到主线。。。。

mScheduler->createDisplayEventConnection
//	frameworks\native\services\surfaceflinger\Scheduler\Scheduler.cpp

sp<IDisplayEventConnection> Scheduler::createDisplayEventConnection(
        const sp<Scheduler::ConnectionHandle>& handle, ResyncCallback resyncCallback,
        ISurfaceComposer::ConfigChanged configChanged) {
    RETURN_VALUE_IF_INVALID(nullptr);
	//传入了handle.id。能够表明连接是app还是surfaceFlinger
    return createConnectionInternal(mConnections[handle->id]->thread.get(),
                                    std::move(resyncCallback), configChanged);
}

sp<EventThreadConnection> Scheduler::createConnectionInternal(
        EventThread* eventThread, ResyncCallback&& resyncCallback,
        ISurfaceComposer::ConfigChanged configChanged) {
    //调用EventThread的方法,创建事件连接器
    return eventThread->createEventConnection(std::move(resyncCallback), configChanged);
}

复制代码

我们看看事件连接器EventThreadConnection的创建过程

sp<EventThreadConnection> EventThread::createEventConnection(
        ResyncCallback resyncCallback, ISurfaceComposer::ConfigChanged configChanged) const {
    return new EventThreadConnection(const_cast<EventThread*>(this), std::move(resyncCallback),
                                     configChanged);
}


EventThreadConnection::EventThreadConnection(EventThread* eventThread,
                                             ResyncCallback resyncCallback,
                                             ISurfaceComposer::ConfigChanged configChanged)
      : resyncCallback(std::move(resyncCallback)),
        configChanged(configChanged),
        mEventThread(eventThread),
        mChannel(gui::BitTube::DefaultSize) {}

复制代码

EventThreadConnection的构造方法中最重要的是创建了mChannel,而它是gui::BitTube类型的

//	frameworks\native\libs\gui\BitTube.cpp
BitTube::BitTube(size_t bufsize) {
    init(bufsize, bufsize);
}


void BitTube::init(size_t rcvbuf, size_t sndbuf) {
    int sockets[2];
    if (socketpair(AF_UNIX, SOCK_SEQPACKET, 0, sockets) == 0) {
        size_t size = DEFAULT_SOCKET_BUFFER_SIZE;
		//创建对应一对socket:0和1,一个用来读,一个用来写。
        setsockopt(sockets[0], SOL_SOCKET, SO_RCVBUF, &rcvbuf, sizeof(rcvbuf));
        setsockopt(sockets[1], SOL_SOCKET, SO_SNDBUF, &sndbuf, sizeof(sndbuf));
        // since we don't use the "return channel", we keep it small...
        setsockopt(sockets[0], SOL_SOCKET, SO_SNDBUF, &size, sizeof(size));
        setsockopt(sockets[1], SOL_SOCKET, SO_RCVBUF, &size, sizeof(size));
        fcntl(sockets[0], F_SETFL, O_NONBLOCK);
        fcntl(sockets[1], F_SETFL, O_NONBLOCK);
		//将mReceiveFd文件和socket进行绑定。当Vsync到来的时候,会通过mSendFd文件来写入消息,通过对文件的消息写入监听,完成了对Vsync信号的监听
        mReceiveFd.reset(sockets[0]);
        mSendFd.reset(sockets[1]);
    } else {
        mReceiveFd.reset();
    }
}

复制代码

在初始化方法中,创建了一对socket,然后将mReceiveFdmSendFd进行了绑定。当Vsync到来的时候通过mSendFd写入消息,然后APP就可以监听文件的变化。

在创建EventThreadConnection对象的时候,会自动调用onFirstRef方法。

void EventThreadConnection::onFirstRef() {
    mEventThread->registerDisplayEventConnection(this);
}

status_t EventThread::registerDisplayEventConnection(const sp<EventThreadConnection>& connection) {
    std::lock_guard<std::mutex> lock(mMutex);

    // this should never happen
    auto it = std::find(mDisplayEventConnections.cbegin(),
            mDisplayEventConnections.cend(), connection);
    if (it != mDisplayEventConnections.cend()) {
        ALOGW("DisplayEventConnection %p already exists", connection.get());
        mCondition.notify_all();
        return ALREADY_EXISTS;
    }
	//将连接放入到需要通知的列表中。
    mDisplayEventConnections.push_back(connection);
	//有新的连接了,就需要唤醒AppEventThread线程使能Vsync信号了。
    mCondition.notify_all();
    return NO_ERROR;
}

复制代码

会将我们创建的连接放入到EventThread管理的mDisplayEventConnections中,然后唤醒AppEventThread线程使能Vsync信号

整个步骤二,其实是根据传入的vsyncSource,指导对应的监听者是来自APP,然后创建一对socket连接,来进行进程间的通信。

我们继续回到主线进行跟踪处理

DisplayEventReceiver::DisplayEventReceiver(ISurfaceComposer::VsyncSource vsyncSource,
                                           ISurfaceComposer::ConfigChanged configChanged) {
    //方法1   	获取SurfaceFling服务,并保存在ComposerService中
    sp<ISurfaceComposer> sf(ComposerService::getComposerService());
    if (sf != nullptr) {
		//方法2   通过binder,最后跨进程调用surfaceFling的createDisplayEventConnection方法
		//方法位置 ISurfaceComposer.cpp	frameworks\native\libs\gui
        mEventConnection = sf->createDisplayEventConnection(vsyncSource, configChanged);
        if (mEventConnection != nullptr) {
			//方法3 获取方法二中创建的gui::BitTube对象
            mDataChannel = std::make_unique<gui::BitTube>();
			//方法4
            mEventConnection->stealReceiveChannel(mDataChannel.get());
        }
    }
}

复制代码

方法3是获取了对应的gui::BitTube对象。我们主要来分析一下方法四。

方法四调用了EventThreadConnectstealReceiveChannel

status_t EventThreadConnection::stealReceiveChannel(gui::BitTube* outChannel) {
    outChannel->setReceiveFd(mChannel.moveReceiveFd());
    return NO_ERROR;
}

复制代码

这的mChannel是gui::BitTube。这里将事件连接器EventThreadConnection中创建的Fd复制给了outChannel。也就是DisplayEventReceiver的mDataChannel。

所以这时候app进程就有了mReceivedFd,surfaceFlinger进程有了mSendFd。这时候通过socket就能够进行通信了

整个DisplayEventReceiver的作用是创建一个socket以及对应的文件,然后实现和SurfaceFlinger的双向通讯。

这里我们为止,我们只是创建NativeDisplayEventReceiver。

那么后续还有

receiver->initialize()

status_t DisplayEventDispatcher::initialize() {
	//异常检测
    status_t result = mReceiver.initCheck();
    if (result) {
        ALOGW("Failed to initialize display event receiver, status=%d", result);
        return result;
    }
	//这里的Looper就是应用app进程的主线程Looper,这一步就是将创建的BitTube信道的
	//fd添加到Looper的监听。
    int rc = mLooper->addFd(mReceiver.getFd(), 0, Looper::EVENT_INPUT,
            this, NULL);
    if (rc < 0) {
        return UNKNOWN_ERROR;
    }
    return OK;
}

复制代码

这里之所以能够加入到监听,是因为我们的

这里整个方法比较简单,就是进行异常的检测,让后将在步骤一中创建的fd文件加入到Looper的监听中。

到这里为止,整个流程算是打通了。

java层通过DisplayEventReceive的nativeInit函数,创建了应用层和SurfaceFlinger的连接,通过一对socket,对应mReceiveFd和mSendFd,应用层通过native层Looper将mReceiveFd加入监听,等待mSendFd的写入。

那么mSendFd什么时候写入,又是如何传递到应用层的呢?

当我们进行页面刷新绘制的时候,看一下如何注册对于Vsync的监听的

    @UnsupportedAppUsage
    void scheduleTraversals() {
       	...
            mChoreographer.postCallback(Choreographer.CALLBACK_TRAVERSAL, mTraversalRunnable, null);
		...
    }

    public void postCallback(int callbackType, Runnable action, Object token) {
        postCallbackDelayed(callbackType, action, token, 0);
    }

    public void postCallbackDelayed(int callbackType,Runnable action, Object token, long delayMillis) {
        postCallbackDelayedInternal(callbackType, action, token, delayMillis);
    }

    private void postCallbackDelayedInternal(int callbackType,Object action, Object token, long delayMillis) {
        	...
				//需要立即进行绘制
                scheduleFrameLocked(now);
            ...
    }

    private void scheduleFrameLocked(long now) {
    	...
                    scheduleVsyncLocked();
        ...
    }

    private void scheduleVsyncLocked() {
        //执行同步功能,进行一次绘制。这里会进行一个VSYNC事件的监听注册,如果有有
        mDisplayEventReceiver.scheduleVsync();
    }

    public void scheduleVsync() {
        ..
            nativeScheduleVsync(mReceiverPtr);
        ...
    }

复制代码

这里的**nativeScheduleVsync()**就是应用层向native层注册监听下一次Vsync信号的方法。

nativeScheduleVsync

//base\core\jni\android_view_DisplayEventReceiver.cpp		8492	2020/9/14	96
static void nativeScheduleVsync(JNIEnv* env, jclass clazz, jlong receiverPtr) {
    sp<NativeDisplayEventReceiver> receiver =
            reinterpret_cast<NativeDisplayEventReceiver*>(receiverPtr);
    //调用Recivier的调度方法
    status_t status = receiver->scheduleVsync();
}


复制代码

这里的receiver,是NativeDisplayEventReceiver。而NativeDisplayEventReceiver是继承自DisplayEventDispatcher

DisplayEventDispatcher->scheduleVsync();

//调度Vsync
status_t DisplayEventDispatcher::scheduleVsync() {
	//如果当前正在等待Vsync信号,那么直接返回
    if (!mWaitingForVsync) {
        nsecs_t vsyncTimestamp;
        PhysicalDisplayId vsyncDisplayId;
        uint32_t vsyncCount;
		//重点方法1   处理对应的准备事件,如果获取到了Vsync信号的话,这里会返回true
        if (processPendingEvents(&vsyncTimestamp, &vsyncDisplayId, &vsyncCount)) {
            ALOGE("dispatcher %p ~ last event processed while scheduling was for %" PRId64 "",
                    this, ns2ms(static_cast<nsecs_t>(vsyncTimestamp)));
        }
		//重点方法2   请求下一个Vsync信号
        status_t status = mReceiver.requestNextVsync();
        ...
		//设置正在等待Vsync信号
        mWaitingForVsync = true;
    }
    return OK;
}

复制代码

这里我们跟踪一下方法1

DisplayEventDispatcher::processPendingEvents
bool DisplayEventDispatcher::processPendingEvents(
        nsecs_t* outTimestamp, PhysicalDisplayId* outDisplayId, uint32_t* outCount) {
    bool gotVsync = false;
    DisplayEventReceiver::Event buf[EVENT_BUFFER_SIZE];
    ssize_t n;
    //获取对应的事件
    while ((n = mReceiver.getEvents(buf, EVENT_BUFFER_SIZE)) > 0) {
        ALOGV("dispatcher %p ~ Read %d events.", this, int(n));
        for (ssize_t i = 0; i < n; i++) {
            const DisplayEventReceiver::Event& ev = buf[i];
            switch (ev.header.type) {
            case DisplayEventReceiver::DISPLAY_EVENT_VSYNC://Vsync类型
                //获取到最新的Vsync信号,然后将时间戳等信息保存下来
                gotVsync = true;
                *outTimestamp = ev.header.timestamp;
                *outDisplayId = ev.header.displayId;
                *outCount = ev.vsync.count;
                break;
           ...
    return gotVsync;
}

复制代码

会通过getEvents方法获取到对应的事件类型,然后返回是否为Vsync信号。

DisplayEventReceiver::getEvents
//	native\libs\gui\DisplayEventReceiver.cpp

ssize_t DisplayEventReceiver::getEvents(DisplayEventReceiver::Event* events,size_t count) {
	//这里的mDataChannel是在init中创建的,用来接收Vsync信号
    return DisplayEventReceiver::getEvents(mDataChannel.get(), events, count);
}
ssize_t DisplayEventReceiver::getEvents(gui::BitTube* dataChannel,
        Event* events, size_t count)
{
    return gui::BitTube::recvObjects(dataChannel, events, count);
}

//native\libs\gui\BitTube.cpp
    static ssize_t recvObjects(BitTube* tube, T* events, size_t count) {
        return recvObjects(tube, events, count, sizeof(T));
    }

ssize_t BitTube::recvObjects(BitTube* tube, void* events, size_t count, size_t objSize) {
    char* vaddr = reinterpret_cast<char*>(events);
	//通过socket读取数据
    ssize_t size = tube->read(vaddr, count * objSize);
    return size < 0 ? size : size / static_cast<ssize_t>(objSize);
}
//读取数据
ssize_t BitTube::read(void* vaddr, size_t size) {
    ssize_t err, len;
    do {
		//将mReceiveFd接收到的数据,放入到size大小的vaddr缓冲区。并返回实际接收到的数据大小len
        len = ::recv(mReceiveFd, vaddr, size, MSG_DONTWAIT);
        err = len < 0 ? errno : 0;
    } while (err == EINTR);
    if (err == EAGAIN || err == EWOULDBLOCK) {
        //如果接收出现异常,返回0
        return 0;
    }
    return err == 0 ? len : -err;
}

复制代码

这里将接收到的数据放入到对应的缓冲区,并返回数据之后,会校验返回的具体的数据类型。

status_t DisplayEventReceiver::requestNextVsync() {
	//校验当前连接存在
    if (mEventConnection != nullptr) {
		//通过连接请求下一个Vsync信号。这个mEventConnection。是在DisplayEventReceiver初始化的时候创建的
		//具体的是EventThreadConnection(位于EventThread中)
        mEventConnection->requestNextVsync();
        return NO_ERROR;
    }
    return NO_INIT;
}

void EventThreadConnection::requestNextVsync() {
    ATRACE_NAME("requestNextVsync");
    mEventThread->requestNextVsync(this);
}

void EventThread::requestNextVsync(const sp<EventThreadConnection>& connection) {
    if (connection->resyncCallback) {
        connection->resyncCallback();
    }
	//线程锁机制
    std::lock_guard<std::mutex> lock(mMutex);
	//vsyncRequest默认值是None.定义在EventThread.h文件中
    if (connection->vsyncRequest == VSyncRequest::None) {
		//之所以Vsync是一次性的,是因为,当我们当前是None之后,会将这个字段设置为Single。
		//后续硬件再有Vsync信号过来的时候,不会再执行这个方法
        connection->vsyncRequest = VSyncRequest::Single;
        mCondition.notify_all();
    }
}


复制代码

这里当有Vsync的信号过来的时候,会调用一个notify_all()。这个方法会唤醒所有执行了**wait()**方法的线程。

那么这个到底会唤醒谁呢?

这里就不得不说一下EventThread创建过程中了。

EventThread::EventThread(VSyncSource* src, std::unique_ptr<VSyncSource> uniqueSrc,
                         InterceptVSyncsCallback interceptVSyncsCallback, const char* threadName)
      : mVSyncSource(src),
        mVSyncSourceUnique(std::move(uniqueSrc)),
        mInterceptVSyncsCallback(std::move(interceptVSyncsCallback)),
        mThreadName(threadName) {
    ...
	//创建了mThread线程
    mThread = std::thread([this]() NO_THREAD_SAFETY_ANALYSIS {
        std::unique_lock<std::mutex> lock(mMutex);
		//创建线程的时候调用了threadMain函数
        threadMain(lock);
    });
	...
}

复制代码

EventThread创建时,会创建一个线程,然后调用threadMain方法。

//在创建EventThread的时候会调用该方法。会不断的遍历
void EventThread::threadMain(std::unique_lock<std::mutex>& lock) {
    DisplayEventConsumers consumers;
	//只要没有退出,则一直遍历循环
    while (mState != State::Quit) {
        std::optional<DisplayEventReceiver::Event> event;
        ...
		//是否有Vsync请求
        bool vsyncRequested = false;
		...
        //查询所有的连接,其实这里一个连接就是一个监听
        auto it = mDisplayEventConnections.begin();
        while (it != mDisplayEventConnections.end()) {
            if (const auto connection = it->promote()) {
                vsyncRequested |= connection->vsyncRequest != VSyncRequest::None;
				//遍历,将需要通知的监听放入到consumers中
                if (event && shouldConsumeEvent(*event, connection)) {
                    consumers.push_back(connection);
                }

                ++it;
            } else {
                it = mDisplayEventConnections.erase(it);
            }
        }

        if (!consumers.empty()) {
			//进行事件的分发。最终会调用gui::BitTube::sendObjects函数
            dispatchEvent(*event, consumers);
            consumers.clear();
        }

        State nextState;
        if (mVSyncState && vsyncRequested) {
            nextState = mVSyncState->synthetic ? State::SyntheticVSync : State::VSync;
        } else {
            ALOGW_IF(!mVSyncState, "Ignoring VSYNC request while display is disconnected");
            nextState = State::Idle;
        }

        if (mState != nextState) {
            if (mState == State::VSync) {
                mVSyncSource->setVSyncEnabled(false);
            } else if (nextState == State::VSync) {
                mVSyncSource->setVSyncEnabled(true);
            }

            mState = nextState;
        }

        if (event) {
            continue;
        }

        //空闲状态,则等待事件请求
        if (mState == State::Idle) {
            mCondition.wait(lock);
        } else {
            ...
        }
    }
}


复制代码

threadMain函数会不断的循环。如果找到了能够消耗事件的EventThreadConnection,则调用dispatchEvent分发事件。如果当前为空闲状态,则会让线程进入到等待,等待唤醒。

也就是我们在前面所说的唤醒。

当有Vsync信号到来的时候,会调用dispatchEvent方法进行分发

void EventThread::dispatchEvent(const DisplayEventReceiver::Event& event,
                                const DisplayEventConsumers& consumers) {
    //这里的DisplayEventConsumers是vector,内部保存的是EventThreadConnection。
    for (const auto& consumer : consumers) {
        switch (consumer->postEvent(event)) {
            case NO_ERROR:
                break;
            case -EAGAIN:
                ALOGW("Failed dispatching %s for %s", toString(event).c_str(),
                      toString(*consumer).c_str());
                break;
            default:
                // Treat EPIPE and other errors as fatal.
                removeDisplayEventConnectionLocked(consumer);
        }
    }
}

复制代码

我们看一下postEvent方法

//EventThread.cpp	frameworks\native\services\surfaceflinger\Scheduler
status_t EventThreadConnection::postEvent(const DisplayEventReceiver::Event& event) {
    ssize_t size = DisplayEventReceiver::sendEvents(&mChannel, &event, 1);
    return size < 0 ? status_t(size) : status_t(NO_ERROR);
}

//DisplayEventReceiver.cpp	frameworks\native\libs\gui
ssize_t DisplayEventReceiver::sendEvents(gui::BitTube* dataChannel,
        Event const* events, size_t count)
{
    return gui::BitTube::sendObjects(dataChannel, events, count);
}

ssize_t DisplayEventReceiver::sendEvents(gui::BitTube* dataChannel,
        Event const* events, size_t count)
{
	//这里会发送Vsync信号,往BitTube所对应的
    return gui::BitTube::sendObjects(dataChannel, events, count);
}

//BitTube.h	frameworks\native\libs\gui\include\private\gui
    static ssize_t sendObjects(BitTube* tube, T const* events, size_t count) {
        return sendObjects(tube, events, count, sizeof(T));
    }

ssize_t BitTube::sendObjects(BitTube* tube, void const* events, size_t count, size_t objSize) {
    const char* vaddr = reinterpret_cast<const char*>(events);
	//往vaddr中写数据。当mSendFd写入文件以后以后,与之对应的mReceiveFd则能接收到数据。
	//然后mReceiveFd则会调用对应的回调函数
    ssize_t size = tube->write(vaddr, count * objSize);
	...
    return size < 0 ? size : size / static_cast<ssize_t>(objSize);
}

复制代码

当sendObjects像mSendFd写入数据以后,mReceiveFd能够接收到消息。而在nativeInit过程中,会将mReceiveFd添加到handler的epoll进行监听。所以当写入数据以后,就会回调对应的handleEvent回调函数。而这个回调在添加mReceiveFd的时候,是一起注册的

回调流程

//mReceiveFd能接收到对应写入的数据,然后调用此方法。
int DisplayEventDispatcher::handleEvent(int, int events, void*) {
    if (events & (Looper::EVENT_ERROR | Looper::EVENT_HANGUP)) {
        ALOGE("Display event receiver pipe was closed or an error occurred.  "
                "events=0x%x", events);
        return 0; // remove the callback
    }

    nsecs_t vsyncTimestamp;
    PhysicalDisplayId vsyncDisplayId;
    uint32_t vsyncCount;
    if (processPendingEvents(&vsyncTimestamp, &vsyncDisplayId, &vsyncCount)) {
        ALOGV("dispatcher %p ~ Vsync pulse: timestamp=%" PRId64 ", displayId=%"
                ANDROID_PHYSICAL_DISPLAY_ID_FORMAT ", count=%d",
                this, ns2ms(vsyncTimestamp), vsyncDisplayId, vsyncCount);
		//这里已经获取到一个Vsync信息,所以将正在等待Vsync标志位置为false。
        mWaitingForVsync = false;
		//进行分发。这个的具体是现在DisplayEventDispater(android_view_DisplayEventReceiver中定义的)的子类NativeDisplayEventReceiver中
        dispatchVsync(vsyncTimestamp, vsyncDisplayId, vsyncCount);
    }

    return 1; // keep the callback
}


//android_view_DisplayEventReceiver.cpp	frameworks\base\core\jni
void NativeDisplayEventReceiver::dispatchVsync(nsecs_t timestamp, PhysicalDisplayId displayId,
                                               uint32_t count) {
    //JNI的上下文环境
    JNIEnv* env = AndroidRuntime::getJNIEnv();
	//这里的mReceiverWeakGlobal
    ScopedLocalRef<jobject> receiverObj(env, jniGetReferent(env, mReceiverWeakGlobal));
    if (receiverObj.get()) {
        ALOGV("receiver %p ~ Invoking vsync handler.", this);
		//通过JNI方法,调用dispatchVsync方法,参数传入了对应的时间戳、显示屏和对应的Vsync的个数
		//实际上就是DisplayEventReceiver的dispatchVsync方法
        env->CallVoidMethod(receiverObj.get(),
                gDisplayEventReceiverClassInfo.dispatchVsync, timestamp, displayId, count);
        ALOGV("receiver %p ~ Returned from vsync handler.", this);
    }

    mMessageQueue->raiseAndClearException(env, "dispatchVsync");
}

复制代码

最终会调用我们Java中的dispatchVsync方法。

   //DisplayEventReceiver.java	frameworks\base\core\java\android\view
    private void dispatchVsync(long timestampNanos, long physicalDisplayId, int frame) {
        onVsync(timestampNanos, physicalDisplayId, frame);
    }

复制代码

终于回到我们的主线了。。。

image-20200920161202323

我们划线这部分也算是打通了。剩下得Java层的回调处理,我们在之前的View绘制讲解过,有兴趣的可以了解一下。

引用

dandanlove.com/2018/04/25/…

blog.csdn.net/stven_king/…

blog.csdn.net/litefish/ar…

Android垂直同步信号VSync的产生及传播结构详解

blog.csdn.net/qq_34211365…

blog.csdn.net/qq_34211365…

本文由 开了肯 发布!

同步公众号[开了肯]

image-20200404120045271

文章分类
Android
文章标签
